Regency Fireplace Products P42 Guide de démarrage rapide

FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4

908-018b

MODELS: P42-NG2 Natural Gas P42-LP2 Propane

P42 Gas Fireplace

WARNING:

Iftheinformationintheseinstructionsarenotfollowedexactly,

a fire or explosion may result causing property damage,

personal injury or loss of life.

FOR YOUR SAFETY

Do not store or use gasoline or other flammable vapors and

liquids in the vicinity of this or any other appliance.

Installation and service must be performed by a qualified

installer, service agency or the gas supplier.

FOR YOUR SAFETY

What to do if you smell gas:

Do not try to light any appliance

Do not touch any electrical switch:

do not use any phone in your

building.

Immediately call your gas supplier

from a neighbour's phone. Follow

the gas supplier's instructions.

If you cannot reach your gas

supplier, call the fire department.

Owners &

Installation Manual

Tested by: Installer: Please complete the details on the back cover

and leave this manual with the homeowner.

Homeowner: Please keep these instructions for future reference.

03/17/05

www.regency-fire.com

fire-parts.com

Regency P42-2 Zero Clearance Direct Vent Gas Fireplace

To the New Owner:

Congratulations!

Youaretheownerofastate-of-the-artGasStoveby FIREPLACEPRODUCTSINTERNATIONAL. TheP42

is a hand crafted appliance and has been designed to provide you with all the warmth and charm of a wood

fireplace at the flick of a switch. The model P42 has been approved by Warnock Hersey for both safety and

efficiency. As it also bears our own mark, it promises to provide you with economy, comfort and security for

manytroublefreeyearstofollow. Pleasetakeamomentnowtoacquaintyourselfwiththeseinstructionsand

the many features of your Regency Fireplace.

ThisRegencyMobile/ManufacturedHomeListed appli-

ance comes factory equipped with a means to secure

theunit.

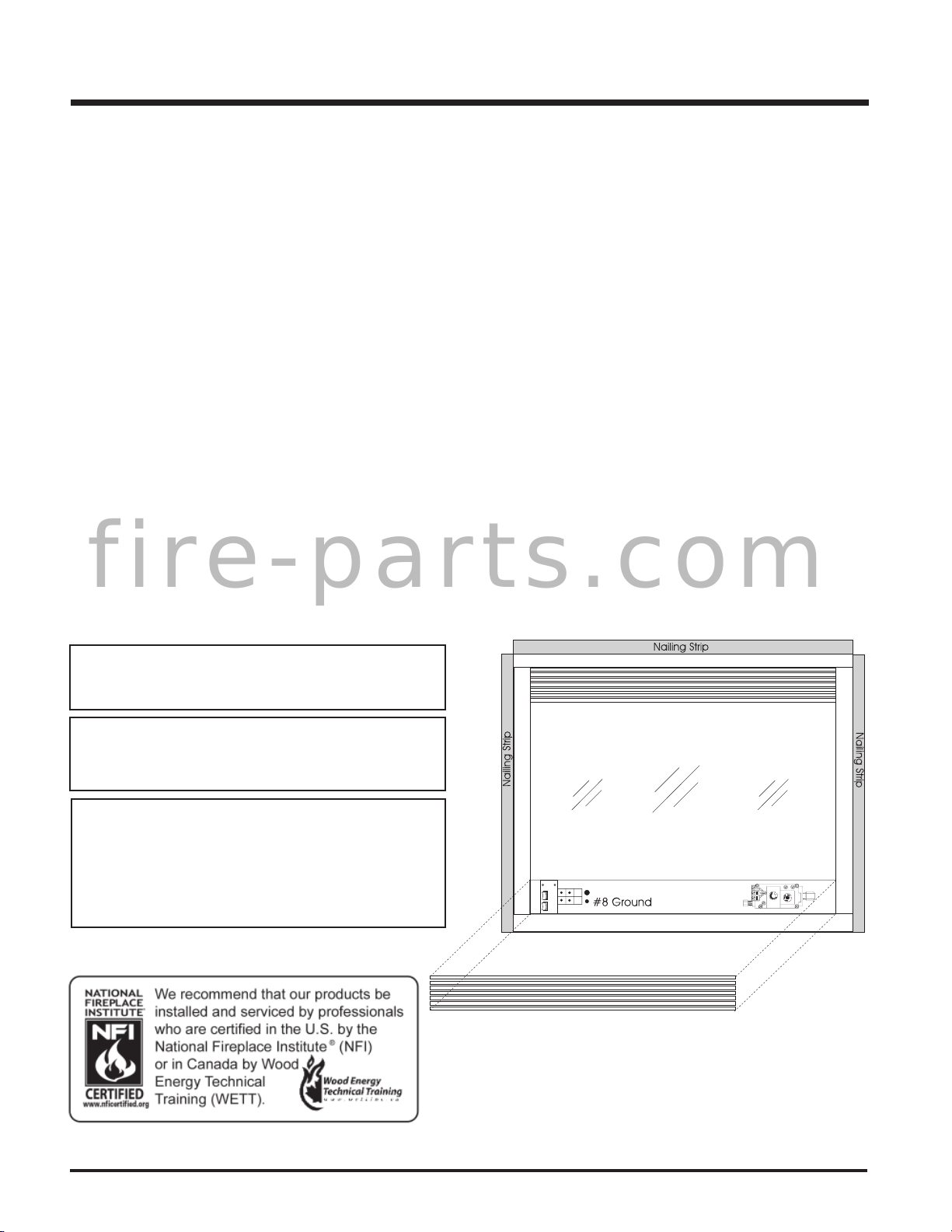

This Regency Mobile/Manufactured Home listed appli-

ancecomesequippedwithadedicated#8groundlugto

which an 18 gauge copper wire from the steel chassis

ground must be attached.

Thisappliancemaybeinstalledinanaftermarketperma-

nentlylocated,manufactured(mobile)home,wherenot

prohibitedbylocalcodes.

Thisapplianceisonlyusewiththetypeofgasindicated

ontherating plate.Thisappliance isnotconvertible for

use with other gases, unless a certified kit is used.

INFORMATION FOR MOBILE/MANUFACTURED HOMES AFTER FIRST SALE

This Regency product has been tested and listed by Warnock Hersey as a Direct Vent Room Heater to the following standards: UL307B-1995,

CAN/CGA-2.17-M91, ANSI Z21.88b-2003/CSA 2.33b-2003.

This Direct Vent System Appliance must be installed in accordance with the manufacturer's installation instructions and the Manufactured Home

ConstructionandSafetyStandard,Title24CFR,Part3280, or the current Standard of Fire Safety Criteria for Manufactured Home Installations,

Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240-MH Mobile Home Standard in Canada.

This appliance installation must comply with the manufacturer's installation instructions and local codes, if any. In the absence of local codes follow

the current National Fuel Gas Code, ANSI Z223.1 and the current National Electrical Code ANSI/NFPA 70 in the U.S.A., and the current CAN/CGA

B149 Gas Installation Code and the current Canadian Electrical Code CSA C22.1 in Canada.

fire-parts.com

Regency P42-2 Zero Clearance Direct Vent Gas Fireplace 3

TABLE OF CONTENTS

Brick Panels ............................................................. 23

LogSetInstallation ................................................... 24

FlushDoor ................................................................ 25

FlushLouvers............................................................ 25

DoubleScreenDoor .................................................. 25

Bay Front .................................................................. 26

BayLouvers .............................................................. 26

FullScreenFront ...................................................... 27

WiringDiagram ......................................................... 30

RemoteControl ......................................................... 31

Remote Wall Switch.................................................. 31

WallThermostat........................................................ 31

OperatingInstructions

OperatingInstructions ............................................... 31

LightingProcedure .................................................... 31

LightingPlateInstructions ......................................... 32

ShutdownProcedure ................................................. 33

First Fire ................................................................... 33

NormalOperatingSoundsofGasAppliances............ 33

Maintenance

MaintenanceInstructions .......................................... 33

Gold-PlatedLouvers .................................................. 34

LogReplacement ...................................................... 34

Thermopile/Thermocouple ......................................... 34

GlassReplacement................................................... 34

RemovingFan ........................................................... 35

ReplacingFan ........................................................... 35

RemovingValve ......................................................... 35

InstallingValve .......................................................... 36

Partslist

Replacement/SparePartsList................................... 37

Warranty

Warranty ................................................................... 43

Safety Label

SafetyLabel ................................................................ 4

Installation

ImportantMessage ..................................................... 5

BeforeYouStart ......................................................... 5

GeneralSafetyInformation .......................................... 5

InstallationChecklist ................................................... 5

ManufacturedMobileHomeRequirements .................. 6

UnitSpecifications ...................................................... 6

LocatingYourGasStove............................................. 6

OptionalHeatWaveDuctSystem ................................ 6

OptionalHeat ReleaseKit ........................................... 6

Hearth ...................................................................... 6

Clearances.................................................................. 7

Mantels ...................................................................... 7

MantelLegClearances................................................ 7

FramingandFinishing ................................................. 8

Top Assembly & Nailing Strips.................................... 8

VentingIntroduction .................................................... 8

Vent Restrictors .......................................................... 8

ExteriorVentTerminationRequirements ..................... 9

Venting .................................................................... 10

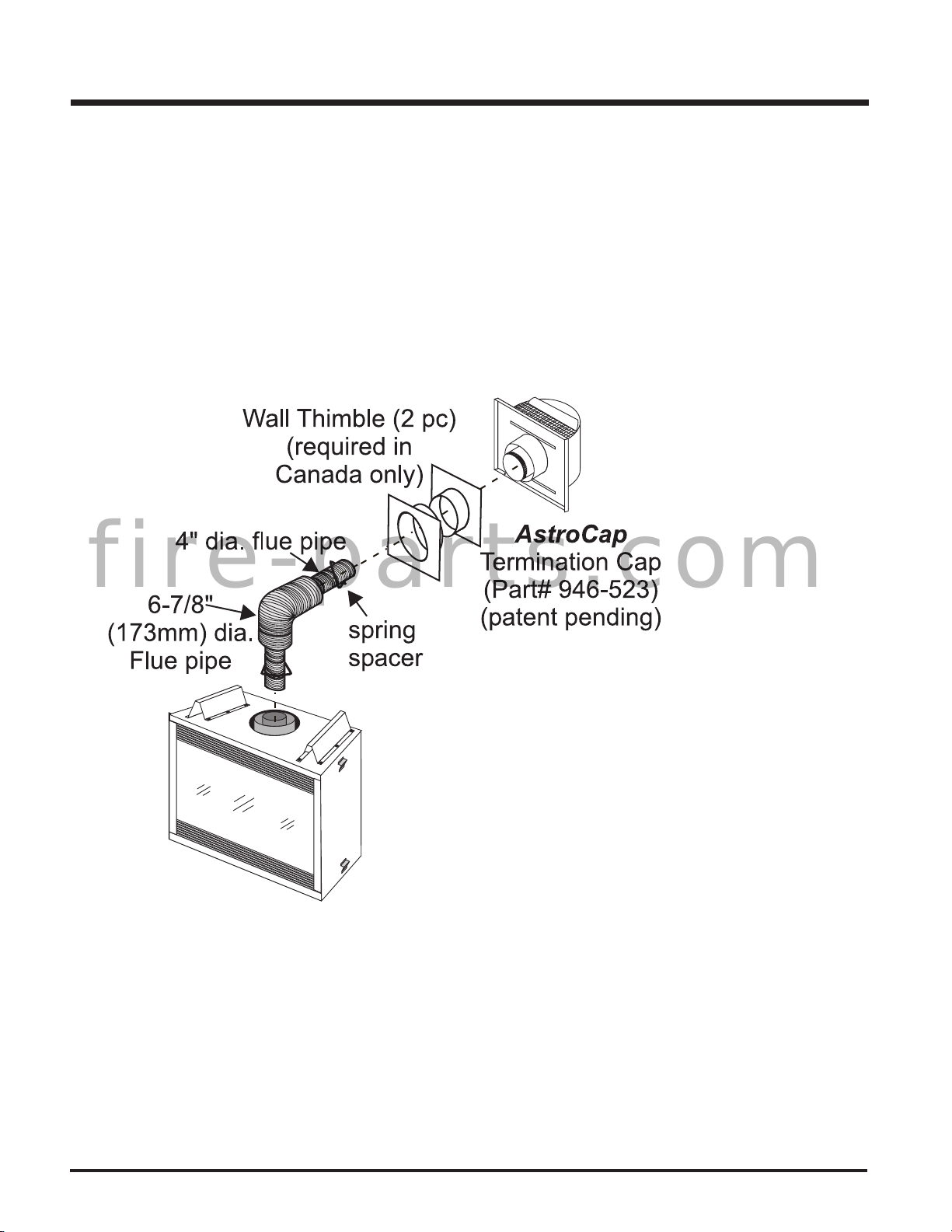

Regency Direct Vent System (Flex) Horizontal

TerminationKitsonly .......................................... 10

RigidPipeVenting ComponentsList ......................... 11

Rigid Pipe Venting - Horizontal or Vertical

Terminations ....................................................... 12

VentingArrangementsHorizontalTerminations ......... 13

VentingArrangementsVerticalTerminations............. 14

VerticalTerminations-Co-Linear FlexSystem.......... 17

VentingArrangements ........................................ 18

Dura-VentHorizontalTerminationInstallations .......... 19

Dura-VentVerticalTerminationInstallation ................ 20

InstallationProceduresforRegencyDirectVent

System Flex....................................................... 21

System Data............................................................. 22

HighElevation ........................................................... 22

GasLineInstallation.................................................. 22

Gas Pipe Pressure Test ............................................ 22

S.I.T.ValveDescription ............................................. 22

AerationAdjustment.................................................. 23

fire-parts.com

Regency P42-2 Zero Clearance Direct Vent Gas Fireplace

This is a copy of the label that accompanies

each P42 Zero Clearance Direct Vent Gas

Fireplace. We have printed a copy of the con-

SAFETY LABEL

tents here for your review. The safety label is

located on the front inside base of the unit,

visible when the bottom louver is open.

NOTE: Regency units are constantly being

improved.Checkthelabelontheunitandifthere

isadifference,thelabelontheunitisthecorrect

one.

For the State of Massachusetts, installation and repair must be done by a plumber or gasfitter licensed in the Commonwealth of Massachusetts.

For the State of Massachusetts, flexible connectors shall not exceed 36 inches in length.

For the State of Massachusetts, the appliances individual manual shut-off must be a t-handle type valve.

Copy of Safety Decal for P42

DO NOT REMOVE THIS LABEL / NE PAS ENLEVER CETTE TIQUETTEÉ

215

NATURAL GAS: Model P42-NG2

Minimum supply pressure

Manifold pressure high

Manifold pressure low

Orifice size

Minimum input

Maximum input

Altitude

PROPANE: Model P42-LP2

Minimum supply pressure

Manifold pressure high

Manifold pressure low

Orifice size

Minimum input

Maximum input

Altitude

DOOR SEAL: Please check that the door is properly sealed

FPI Fireplace Products International Ltd.

Delta, BC, Canada

Minimum Clearances to Combustibles

/Degagement Minimum

De Materiaux Combustibles

Top, sides, bottom and rear of unit

A) Min. 7" (177mm)

Depth 36" (914mm), Width 52" (1321mm),

Height 90" (2286mm)

(

0" clearance to combustibles from:

Mantel Clearances from Louver:

Max. Alcove Clearances:

See Instruction Manual for Detailed Instructions)

DUPLICATE SERIAL NO.

Serial No./ No de serie

908-087a

5" (1.25 kPa)

3.8" (0.94 kPa)

0.9" (0.22 kPa)

# 33 DMS

17500 (5.13 Kwh)

35000 (10.25Kwh)

0-4500 (0-1372 m)

ft/pi

tu/h

11" (2.74 kPa)

10" (2.49 kPa)

2.9" (0.72 kPa)

# 50 DMS

17500 (5.13 Kwh)

35000 (10.25Kwh)

0-4500 (0-1372 m)

ft/pi

tu/h

6" 6"

36"

Ceiling

Wall

The "Bay Louvers" be used with the Bay Glass optionMUST

APPAREIL FONCTIONNANT AU NATURAL GAS

CONCU POUR ETRE POELE: Mod le P42-NG2

Pression d'allimentation minimum

Pression à la tubulure d' chappement lev e

Pression à la tubulure d' chappement basse

Grandeur de l'injecteur

D bit Calorifique - Ventilateur en Marche BTU

D bit - Ventilateur leint BTU

D bit minimum selon

D bit maximum selon

l'altitude

ééé

éÉ

Calorifique

APPAREIL FONCTIONNANT AU PROPANE

CONCU POUR ETRE POELE: Mod le P42-LP2

Pression d'allimentation minimum

Pression à la tubulure d' chappement lev e

Pression à la tubulure d' chappement basse

Grandeur de l'injecteur

D bit - Ventilateur en Marche BTU

D bit - Ventilateur leint BTU

D bit minimum selon

D bit maximum selon

l'altitude

ééé

éÉ

Calorifique

VENTING: This appliance must be installed in accordance with the manufacturer's installation instructions and with local codes,

if any; if not, follow the current ANSI Z223.1 in the USA or the current CAN 1-B149 in Canada.

For Manufactured Home Installation: This Direct Vent System Appliance must be installed in accordance with the

manufacturer's installation instructions and Manufactured Home Construction and Safety Standard Title 24 CFR,

Part 3280, or the current Standard for Fire Safety Criteria for Manufactured Home Installations, Sites, and Communities

ANSI/NFPA 501A, and with CAN/CSA Z240 MH Mobile Home Standard in Canada.

Fan (Part # 600-915) Optional Bay Window (Part # 600-950) Option: HeatWave Kit # 946-556

MAY BE INSTALLED IN MANUFACTURED (MOBILE) HOMES AFTER FIRST SALE.

Listed:

Certified for/Certifi e pour:

Tested to:

Report No.

GRAVITY DIRECT VENT WALL FURNACE

CANADA and U.S.A.

CAN/CGA-2.17-M91,

ANSI Z21.88b-2003/CSA 2.33b-2003

476-1319 (Aug 1996)

Model/Modele:

P42-NG2

Model/Modele:

P42-LP2

Electrical supply 115VAC, 1.13 A, 60Hz. Not for use with solid fuel.

Made in Canada/ Fabrique au Canada

fire-parts.com

Regency P42-2 Zero Clearance Direct Vent Gas Fireplace 5

INSTALLATION

IMPORTANT:

SAVE THESE

INSTRUCTIONS

The P42-NG/P42-LP Direct Vent Fireplace must

beinstalledin accordance with theseinstructions.

Carefully read all the instructions in this manual

first. Consult the "authority having jurisdiction" to

determinetheneedforapermitpriortostartingthe

installation.Itistheresponsibilityoftheinstallerto

ensurethisfireplaceisinstalledincompliancewith

manufacturers instructions and all applicable

codes.

BEFORE YOU START

Safeinstallation and operationof this appliance

requires common sense, however, we are

requiredbytheCanadianSafetyStandardsand

ANSI Standards to make you aware of the

following:

YOUNG CHILDREN SHOULD BE

CAREFULLY SUPERVISEDWHEN

THEYAREINTHESAMEROOMAS

THEAPPLIANCE.

CLOTHINGOR OTHER FLAMMA-

BLEMATERIALSHOULDNOTBE

PLACEDONORNEARTHEAPPLI-

ANCE.

INSTALLATION AND REPAIR

SHOULDBEDONEBYANAUTHOR-

IZEDSERVICEPERSON.THEAP-

PLIANCESHOULDBEINSPECTED

BEFOREUSEANDATLEASTAN-

NUALLY BY A PROFESSIONAL

SERVICE PERSON. MORE FRE-

QUENT CLEANING MAY BE RE-

QUIREDDUETOEXCESSIVELINT

FROMCARPETING,BEDDINGMA-

TERIAL, ETC. IT IS IMPERATIVE

THAT CONTROL COMPART-

MENTS,BURNERSANDCIRCULAT-

INGAIRPASSAGEWAYSOFTHE

APPLIANCEBEKEPTCLEAN.

DUE TO HIGH TEMPERATURES,

THEAPPLIANCESHOULDBELO-

CATED OUT OF TRAFFIC AND

AWAY FROM FURNITURE AND

DRAPERIES.

WARNING:FAILURETOINSTALL

THIS APPLIANCE CORRECTLY

WILLVOIDYOURWARRANTYAND

MAY CAUSE A SERIOUS HOUSE

FIRE.

CHILDRENANDADULTSSHOULD

BE ALERTED TO THE HAZARDS

OF HIGH SURFACE TEMPERA-

TURES, ESPECIALLY THE FIRE-

PLACE GLASS, AND SHOULD

STAYAWAYTOAVOIDBURNSOR

CLOTHINGIGNITION.

annually. Make it a practice to have all of

your gas appliances checked annually.

13)Do not slam shut or strike the glass door.

14)Under no circumstances should any solid

fuels (wood, paper, cardboard, coal, etc.)

be used in this appliance.

15)The appliance area must be kept clear and

free of combustible materials, (gases and

other flammable vapours and liquids).

INSTALLATION

CHECKLIST

1) Locate appliance

a) Room location, page 6

b) Clearances to Combustibles, page 7

c) Mantle Clearances, page 7

d) Framing & Finishing Requirements,

page 8

e) Venting Requirements, pages 8-18.

2) Assemble Top Facing Support and Side

Nailing Strips, page 8. NOTE: must be

done before installing unit into fire-

place.

3) Install venting, pages 19-21.

4) Make gas and electrical connections. Test

thepilot. Must beas per diagram. Page 22.

5) Test Gas Pressure. Page 22.

6) Install brick panels (optional), page 23.

7) Install Flush Door Front (Standard) and

optional Flush Gold Trim, page 25. Install

Optional Door Screen, page 25.

8) Install Optional Bay Front and optional Bay

Gold Trim, page 26.

9) Install Louvers (Flush or Bay), pages 25-

26.

10)Install optional Wall Switch, Remote Con-

trol, or Wall Thermostat, page 30.

11)Final check.

Before leaving this unit with the customer, the

installermustensurethatthe appliance is firing

correctly and operation fully explained to

customer.

GENERAL SAFETY

INFORMATION

1) The appliance installation must conform

with local codes or, in the absence of local

codes,with thecurrentCanadianorNation-

alGas Codes, CAN1-B149or ANSI Z223.1

InstallationCodes.

2) Theappliancewheninstalled,mustbeelec-

trically grounded in accordance with local

codes,orin the absence of localcodeswith

the current National Electrical Code, ANSI/

NFPA70orCSAC22.1CanadianElectrical

Code.

3) See general construction and assembly

instructions.Theapplianceandventshould

be enclosed.

4) This appliance must be connected to the

specified vent and termination cap to the

outsideofthebuildingenvelope.Nevervent

to another room or inside a building. Make

sure that the vent is fitted as per Venting

instructions.

5) Inspect the venting system annually for

blockage and any signs of deterioration.

6) Ventingterminalsshallnotberecessedinto

a wall or siding.

7) Any safety glass removed for servicing

must be replaced prior to operating the

appliance.

8) To prevent injury, do not allow anyone who

is unfamiliar with the operation to use the

fireplace.

9) Wear gloves and safety glasses for pro-

tection while doing required maintenance.

10)Be aware of electrical wiring locations in

walls and ceilings when cutting holes for

termination.

11)Under no circumstances should this appli-

ance be modified. Parts that have to be

removed for servicing should be replaced

prior to operating this appliance.

12)Installationandanyrepairstothisappliance

should be done by an authorized service

person. A professional service person

should be called to inspect this appliance

Emissions from burning wood or gas could

contain chemicals known to the State of

California to cause cancer, birth defects or

other reproductive harm.

fire-parts.com

Regency P42-2 Zero Clearance Direct Vent Gas Fireplace

Diagram 1

INSTALLATION

UNIT SPECIFICATIONS

This includes:

1) Clocking the appliance to ensure the cor-

rect firing rate (rate noted on label 35,000

Btu/h) after burning appliance for 15 min-

utes.

2) If required, adjusting the primary air to

ensure that the flame does not carbon.

First allow the unit to burn for 15-20 min. to

stabilize.

CAUTION: Any alteration to the product

that causes sooting or carboning that

results in damage is not the responsibil-

ity of the manufacturer.

MANUFACTURED

MOBILE HOME

ADDITIONAL

REQUIREMENTS

1) Ensure that structural members are not cut

or weakened during installation.

2) Ensure proper grounding using the #8

ground lug provided. See page 28.

LOCATING YOUR

GAS STOVE

1) When selecting a location for your stove,

ensurethat the clearances outlinedon this

page are met.

2) Provide adequate clearances for servic-

ing.

3) The appliance must be installed on a flat,

solid, continuous surface (e.g. wood, met-

al, concrete). This may be the floor, or

raised up on a platform to enhance its

visualimpact.Iftheapplianceisgoingtobe

installed on carpeting, combustible linole-

um tile or other combustible material other

than wood flooring, the appliance must be

installed on a metal or wood panel extend-

ing the full width and depth of the appli-

ance.

4) The P42 Direct Vent Gas Fireplace can be

installed in a recessed position or framed

out into the room as in A, B, C, D. See

Diagram1.

HEARTH

Ahearthisnotmandatory,butisrecommended

for aesthetics and for added safety.

5) ThisapplianceisListedforbedroom instal-

lations when used with a Listed Millivolt

Thermostat. Some areas may have further

requirements, check local codes before

installation.

6) The P42 Direct Vent Gas Fireplace is ap-

proved for alcove installations, which meet

the clearances listed on this page.

7) Werecommendthatyou plan your installa-

tion on paper using exact measurements

for clearances and floor protection before

actually installing this appliance. Have an

authorized inspector, dealer, or installer

review your plans before installation.

Note: For vent terminations see page 9

OPTIONAL

DUCT SYSTEM

KIT #946-556

The HeatWave Air Duct Kit increases the

effectiveness of your fireplace by dispersing

warm air from the fireplace to remote locations

inthesameroom or other rooms inyourhome.

Upto twokitsmaybeinstalledonthefireplace.

Please Note: Only 1 HeatWave kit may be

operatedatonetime.This includestheinternal

blower option as well.

A) Flat on Wall

B) Flat on Wall Corner

C) Recessed into

Wall/Alcove

D) Corner

OPTIONAL

HEAT RELEASE

KIT #946-570

TheHeat ReleaseKitexpelswarmairfrom the

fireplace to the outside of the building, allowing

the fireplace to be operated with less heat

enteringtheroom.Thekitmaybeusedoneither

the left or right side.

fire-parts.com

Regency P42-2 Zero Clearance Direct Vent Gas Fireplace 7

MANTEL LEG CLEARANCES

Combustible mantel leg clearances as per diagram below:

MANTELS

Because of the extreme heat this fireplace emits, the mantel clearances are critical.

Combustible mantel clearances from louver are shown in the diagram below.

Note: A non-combustible mantel may be installed at a lower height if the framing is

made of metal studs covered with a non-combustible board.

INSTALLATION

This drawing is to scale at 1:6 (one inch = 6 inches)

Mantel can be installed anywhere in shaded area using the above scale for units with the Flush

Front and with the optional Bay Front.

Note: Ensure the paint that is used on the mantel and the facing is "heat resistant"

or the paint may discolour.

Maximum

1-1/2" projection at 2"

minimumclearance.

CLEARANCES

The clearances listed below are Minimum dis-

tances unless otherwise stated:

A major cause of chimney related fires is

failure to maintain required clearances

(air space) to combustible materials. It is

of the greatest importance that this fire-

place and vent system be installed only in

accordance with these instructions.

Clearance to Combustibles from:

Back 0" (0mm)

Side 0" (0mm)

Floor 0" (0mm)

Minimum Clearance from Louver to:

Mantel min.7" (177mm)

Ceiling 36" (914mm) from top

of louvers

Side Wall 6" (152mm)

Vent 1-1/2" (38mm)Flex

1-1/4" (32mm)RigidPipe

Alcove Clearances:

Max. Depth 36" (914mm)

Min. Width 52" (1321mm)

Min. Height 90" (2286mm)

WARNING

Fire hazard is an extreme risk

if these clearances are

not adhered to.

TheHeatWave DuctKit

and the Heat Release

Kit have different clear-

ance and framing re-

quirements, check the

HeatWave and Heat

Release manual for de-

tails.

Heat Release Kit

fire-parts.com

Regency P42-2 Zero Clearance Direct Vent Gas Fireplace

TOP ASSEMBLY &

NAILING STRIPS

TheTopFacingSupportandSideNailingStrips

must be correctly positioned and attached be-

fore the unit is slipped into position.

1) The top standoffs are shipped installed.

2) The Top Facing Support and the 2 Side

Nailing Strips can be installed at different

depths depending on the width of your

facing. Match the depths of the top facing

support and the side nailing strips.

a) Mount Top Facing Support using the 3

suppliedscrewsinto the 3 pre-punched

screw holes on the top front of the unit.

See Diagrams 2 & 3 for the proper

position of the Top Facing Support for

the various material depths.

Diagram 1

Diagram 2

Diagram 3

Diagram 4

INSTALLATION

5) The unit does not have to be completely

enclosed in a chase. The clearance on top

of the unit from the top standoffs is 0" so

combustible building materials can be laid

directly on top of the standoffs. You must

maintain these clearances from the vent to

combustible materials: Flex Termination

clearance 1-1/2" (38mm), Simpson Dura-

Ventclearanceor(1-1/4"(32mm).Combus-

tible materials can be laid against the side

and back standoffs and the stove base.

b) Mount the Side Nailing Strip using the 3

supplied screws into the 3 screw holes

or slots (diagram 4) on the side of the unit

andrepeat fortheotherside.Use thehole

fora1/2"(13mm)thickfacingmaterialand

the slot for a range of thickness from 1"

to 1-1/2" (25mm to 38mm).

VENTING

INTRODUCTION

The P42 uses the "balanced flue" technology

CoAxial system. The innerliner vents products

of combustion to the outside while the outer

liner draws outside combustion air into the

combustion chamber thereby eliminating the

needtouseheatedroomairforcombustionand

losing warm room air up the chimney.

Note: These flue pipes must not be con-

nected to any other appliance.

The gas appliance and vent system must be

venteddirectlytotheoutsideofthebuilding,and

never be attached to a chimney serving a

separate solid fuel or gas burning appliance.

Each direct vent gas appliance must use it's

own separate vent system. Common vent sys-

tems are prohibited.

VENT RESTRICTOR

A vent restrictor may be required. Check the

diagrams on pages 13 to 18 to determine if the

#6 restrictor is needed for your vent configu-

ration. If required, attach the 2 piece #6 restric-

tor using 4 screws per piece to the inside top

of the firebox.

Note: 43" (1092mm) is the minimum

height for flex termination and

Simpson Dura-Vent terminations.

Diagram 1

FRAMING AND

FINISHING

1) The facing allows for 1/2" (13mm) of dry-

wall material. The unit may be installed

directly on/or against standard combusti-

ble building materials.

2) Frame in the enclosure for the unit with

framing material. The framed opening for

the assembled kit is 36-5/8" high x 40-1/4"

wide x 19" deep (930mm H x 1022mm W

x 483mm D). See Diagram 1.

3) For exterior walls, insulate the enclosure to

the same degree as the rest of the house,

apply vapour barrier and drywall, as per

local installation codes. (Do not insulate

the fireplace itself.)

4) Thetoplouvers must not becloserthan36"

(914mm) to the ceiling.

The HeatWave Duct Kit has different

clearance and framing requirements,

check the HeatWave manual for details.

fire-parts.com

Regency P42-2 Zero Clearance Direct Vent Gas Fireplace 9

EXTERIOR VENT TERMINATION REQUIREMENTS

INSTALLATION

Fixed

Openable

Closed Closed

Openable

Vertical

Termination

Vent terminal Area where terminal is not permited

Air supply outlet

24"

Inside

corner detail

24"

18"

Vertical

Termination

A= Clearance above grade, veranda, porch, deck, or balcony *(min. 12"/30cm)

B= Clearance to window or door that may be opened *(12"/30cm)

C= Clearance to permanently closed window *(min. 12"/30cm)

D= Vertical clearance to ventilated soffit located above the terminal within a horizontal

distance of (24"/60cm) from the centerline of the terminal (min. 18"/46cm) check with

local code.

E= Clearance to unventilated soffit (min. 15"/38cm)

F= Clearancetooutsidecorner:withAstroCapTerminationCap(min6"/15cm),withDura-

Vent Termination Cap (13"/33cm)

G= Clearance to inside corner: with AstroCap Termination Cap (min 6"/15cm), with Dura-

Vent Termination Cap (12"/30cm)

H= Nottobeinstalledaboveameter/regulatorassemblywithin(3'/90cm)horizontallyfrom

the centerline of the regulator.

J= Clearance to service regulator vent outlet *(min 36"/90cm)

K= Clearance to non-mechanical air supply inlet to building or the combustion air inlet to

any other appliance *(12"/30cm)

L= Clearance to a mechanical air supply inlet *(min. 72"/1.8m)

M= Clearance above paved sidewalk or a paved driveway located on public property

*(min. 84"/2.1m)

N= Clearance under veranda, porch, deck, or balcony *(min. 12"/30cm)

Note:

- A vent shall not terminate directly above a sidewalk or paved driveway which is located between two single family dwellings and serves both dwellings.

- Only permitted if veranda, porch, deck, or balcony is fully open on a minimum of two sides beneath the floor.

- If the vent termination is accessible, a certified guard shall be installed.

* As specified in CGA B149 Installation Code. Note: Local codes or regulations may require different clearances.

fire-parts.com

Regency P42-2 Zero Clearance Direct Vent Gas Fireplace

INSTALLATION

VENTING

Regency Direct Vent System (Flex) Horizontal Terminations Only

These venting systems, in combination with

the P42 Direct Vent Gas Fireplace, have been

testedandlistedasadirectventheatersystem

by Warnock Hersey. The location of the termi-

nation cap must conform to the requirements

in the Vent Terminal Locations diagram on

page 9.

Regency Direct Vent (Flex) System Ter-

mination Kit (Part # 946-515) includes all

the parts needed to install the P42 with

a maximum run of 4 feet.

1) 6-7/8" dia. flexible liner (4 ft. length)

2) 4" dia. flexible liner (4 ft. length)

3) spring spacers (4)

4) thimble (2)

5) AstroCap termination cap (1)

6) screws (12)

7) tube of Mill Pac (1)

8) plated screws (8)

9) screws #8 x 1/2" Drill Point, stainless steel

(4)

If longer runs are needed, the Regency

Direct Vent system (Flex) # 946-516 in-

cludes all the parts needed to install the

P42 with a maximum 10' run.

1) 6-7/8" dia. flexible liner (10 ft. length)

2) 4" dia. flexible liner (10 ft. length)

3) spring spacers (7)

4) thimble (2)

5) AstroCap termination cap (1)

6) screws (12)

7) tube of Mill Pac (1)

8) plated screws (8)

9) screws #8 x 1/2" Drill Point, stainless steel

(4)

Note:

a) Liner sections should be continuous with-

out any joints or seams.

b) Only Flex pipe purchased from Regency

may be used for Flex Installations.

fire-parts.com

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Regency Fireplace Products Cheminée intérieure

Regency Fireplace Products

Regency Fireplace Products Bellavista B36XTE-10 Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products Liberty LRI3E Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products Greenfire GF900C-NG1 Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products CI2700 Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products Horizon HZ33CE-NG10 Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products Horizon HZ40E Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products P33-NG4 Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products B41XTE-NG1 Manuel de service

Regency Fireplace Products

Regency Fireplace Products P48 Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products Horizon HZ42E-NG Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products IG34-NG Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products P121-NG10 Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products P90-NG10 Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products P36-NG4 Natural Gas Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products Gi33LE Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products H2100 Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products Bellavista B36XTE Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products LRI3E-LP1 Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products Classic H2100M Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products CI1200 Alterra Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products CB72EPV-NG Manuel utilisateur

Regency Fireplace Products

Regency Fireplace Products Regency Gi29LU Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products GEM54-NG Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products P121-NG Guide de démarrage rapide

Manuels Cheminée intérieure populaires d'autres marques

Brigantia

Brigantia 35-DVRS31N-2 Manuel du propriétaire

Nordpeis

Nordpeis Bergen Manuel utilisateur

Superior

Superior BCT2536TMN Manuel utilisateur

Quadra-Fire

Quadra-Fire 5100I-GD-B Manuel utilisateur

Renaissance

Renaissance RUMFORD 1000 Manuel utilisateur

Lacunza

Lacunza IV-800 Manuel utilisateur

Baxi

Baxi 940 Instructions d'utilisation

Dru

Dru Maestro 60/2 Tall RCH Manuel utilisateur

Diamond Fireglass

Diamond Fireglass SS-O22 Manuel utilisateur

HearthStone

HearthStone Windsor Bay 8830 Manuel de programmation

Napoleon

Napoleon ASCENT B42 Manuel utilisateur

Enviro

Enviro E33GI Manuel utilisateur

Smeg

Smeg L30 FABE Instructions de montage

KEDDY

KEDDY K700 Manuel utilisateur

Godin

Godin 3451 Manuel utilisateur

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Manuel utilisateur

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 Manuel utilisateur

Desa

Desa CCFPDFT Manuel d'utilisation
