Regency Fireplace Products P33-4 Guide de démarrage rapide

FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4

918-520

MODELS: P33-NG4 Natural Gas P33-LP4 Propane

P33-4 Zero Clearance

Direct Vent Gas Fireplace

06/08/06

Owners &

Installation Manual

WARNING:

If the information in these instructions are not followed exactly,

a ﬁre or explosion may result causing property damage,

personal injury or loss of life.

FOR YOUR SAFETY

Do not store or use gasoline or other ﬂammable vapors and

liquids in the vicinity of this or any other appliance.

Installation and service must be performed by a qualiﬁed

installer, service agency or the gas supplier.

FOR YOUR SAFETY

What to do if you smell gas:

Do not try to light any appliance

Do not touch any electrical switch:

do not use any phone in your

building.

Immediately call your gas supplier

from a neighbour's phone. Follow

the gas supplier's instructions.

If you cannot reach your gas

supplier, call the ﬁre department.

Tested by:

Installer: Please complete the details on the back cover

and leave this manual with the homeowner.

Homeowner: Please keep these instructions for future reference.

www.regency-ﬁre.com

Regency®P33-4 Zero Clearance Direct Vent Gas Fireplace

To the New Owner:

Congratulations!

You are the owner of a state-of-the-art Gas Fireplace by FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. The

P33-4 has been designed to provide you with all the warmth and charm of a wood ﬁreplace at the ﬂick of a switch.

The P33-4 has been approved by Warnock Hersey for both safety and efﬁciency. As it also bears our own mark,

it promises to provide you with economy, comfort and security for many trouble free years to follow. Please take a

moment now to acquaint yourself with these instructions and the many features of your Regency®Fireplace.

INFORMATION FOR MOBILE/MANUFACTURED HOMES AFTER FIRST SALE

This Regency®product has been tested and listed by Warnock Hersey as a Direct Vent Wall Furnace to the following standards:

VENTED GAS FIREPLACE HEATERS ANSI Z21.88-2002/CSA 2.33-2002 and GAS-FIRED APPLIANCES FOR USE AT HIGH

ALTITUDES CAN/CGA-2.17-M91.

This Direct Vent System Appliance must be installed in accordance with the manufacturer's installation instructions and the Manu-

factured Home Construction and Safety Standard, Title 24 CFR, Part 3280, or the current Standard of Fire Safety Criteria for

Manufactured Home Installations, Sites, and Communities ANSI/NFPA 501A, and with CAN/CSA Z240-MH Mobile Home Standard

in Canada.

This appliance installation must comply with the manufacturer's installation instructions and local codes, if any. In the absence of

local codes follow the current National Fuel Gas Code, ANSI Z223.1 and the current National Electrical Code ANSI/NFPA 70 in the

U.S.A., and the current CAN/CGA B149 Gas Installation Code and the current Canadian Electrical Code CSA C22.1 in Canada.

The appliance, when installed, must be electrically grounded in accordance with local codes or, in the absence of local codes,

with the National Electrical Code, ANSI/NFPA 70, or the Canadian Electrical Code, CSA C22.1.

This Regency®Mobile/Manufactured Home Listed

appliance comes factory equipped with a means

to secure the unit.

This Regency®Mobile/Manufactured Home listed

appliance comes equipped with a dedicated #8

ground lug to which an 18 gauge copper wire from

the steel chassis ground must be attached.

This appliance may be installed in an aftermarket

permanently located, manufactured (mobile)

home, where not prohibited by local codes.

This appliance is only use with the type of gas

indicated on the rating plate. This appliance is

not convertible for use with other gases, unless

a certiﬁed kit is used.

Regency®P33-4 Zero Clearance Direct Vent Gas Fireplace 3

TABLE OF CONTENTS

Full Screen doors .......................................................34

Optional Wall Thermostat ..........................................36

Optional Remote Control............................................36

Optional Wall Switch...................................................36

Wiring Diagrams ........................................................37

Installing the Optional Fan..........................................39

OPERATING INSTRUCTIONS

Copy of the Lighting Plate Instructions.......................40

Operating Instructions ................................................41

Lighting Procedure .....................................................41

Shutdown Procedure..................................................41

First Fire .....................................................................41

Aeration Adjustment ...................................................41

MAINTENANCE

Maintenance Instructions ...........................................42

General Vent Maintenance.........................................42

Gold-Plated or Brass Louvers/trim .............................42

Log Replacement .......................................................42

Normal Operating Sounds of Gas Appliances............42

Thermopile/Thermocouple .........................................43

Glass Gasket..............................................................43

Door Glass .................................................................43

Removing Valve..........................................................44

Installing Valve............................................................44

PARTS LIST

Main Assembly ...........................................................45

Burner & Log Assembly..............................................47

Flush Front & Louvers ................................................48

Bay Front & Louvers...................................................49

WARRANTY

The Warranty: Limited Lifetime..................................51

SAFETY LABEL

Safety Label ..................................................................4

REQUIREMENTS

MA Code - CO Detector ................................................5

INSTALLATION

Important Message ......................................................6

Before You Start ............................................................6

General Safety Information ...........................................6

Manufactured Mobile Home Additional Requirements ..6

Installation Checklist......................................................7

Locating Your Fireplace .................................................7

Unit Dimensions ............................................................7

Duct System Option ......................................................7

Combustible Mantels.....................................................8

Mantel Leg Clearances .................................................8

Clearances ....................................................................8

Framing and Finishing...................................................9

Unit Assembly Prior to Installation...............................10

Venting Introduction.....................................................10

Exterior Vent Termination Locations ............................ 11

Regency®Direct Vent ﬂex System ..............................12

Installation Procedures................................................13

Rigid Pipe Venting Systems ........................................14

Rigid Pipe Venting Components List ...........................15

Rigid Pipe Venting Arrangements ...............................16

Vertical Termination with Co-Linear Flex System .......22

Venting Arrangements - Vertical Terminations ............23

Unit Installation with Horizontal Termination................24

Unit Installation with Vertical Termination ....................25

Gas Line Installation....................................................25

Pilot Adjustment...........................................................26

High Elevation .............................................................26

Gas Pipe Pressure Testing ..........................................26

S.I.T. Valve Description................................................26

Conversion Kit# 434-969 from NG to LP.....................27

Optional Brick Panels ..................................................30

Log Set Installation......................................................30

Standard Flush Door ...................................................31

Optional Flush Trim .....................................................31

Double Screen Door....................................................32

Optional Bay Door .......................................................32

Optional Bay Trim........................................................32

Flush Louvers..............................................................32

Bay Louvers ................................................................33

Regency®P33-4 Zero Clearance Direct Vent Gas Fireplace

SAFETY LABEL

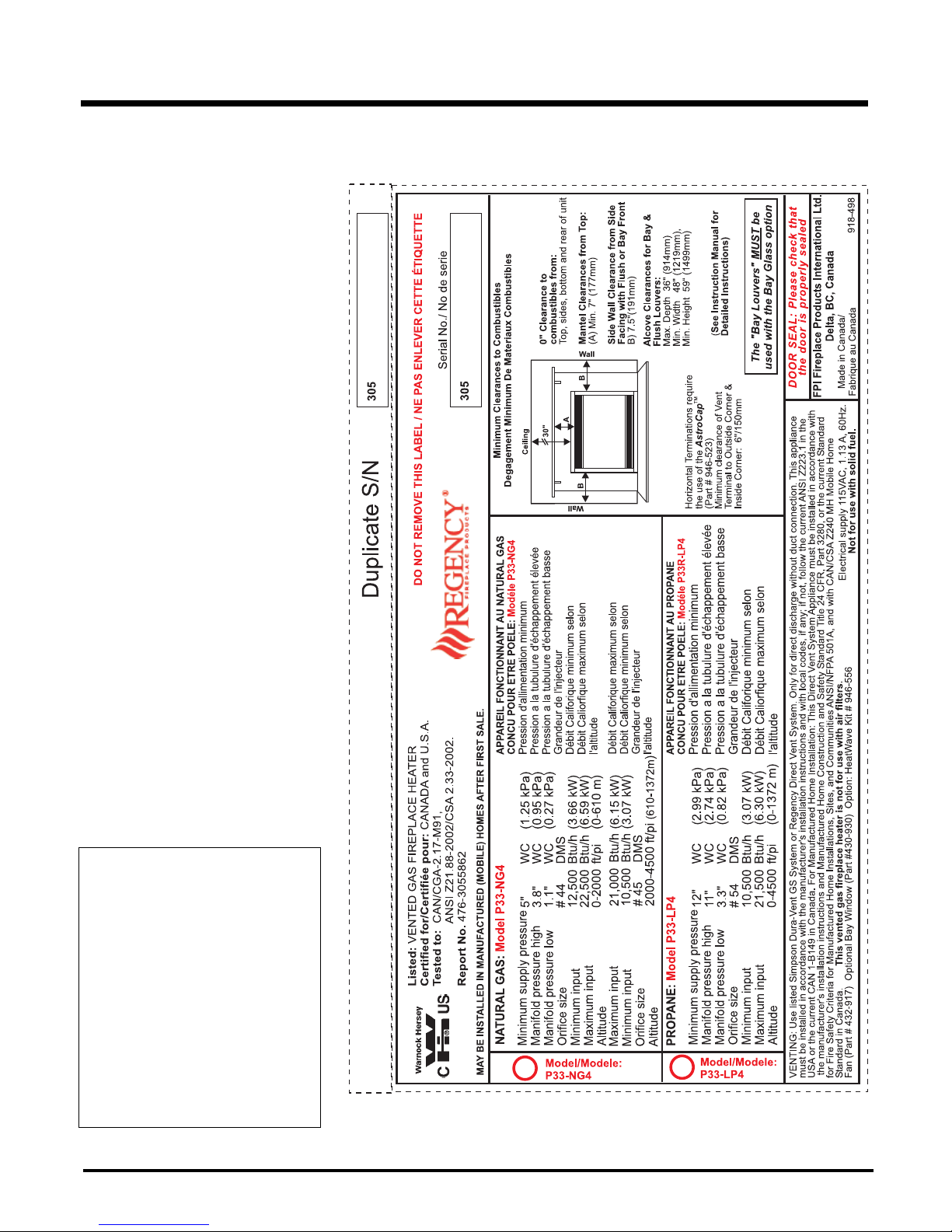

This is a copy of the label that accompanies each

P33-4 Zero Clearance Direct Vent Gas Fireplace.

We have printed a copy of the contents here for

your review. The safety label is located on the

front inside base of the unit, visible when the

bottom louver is open.

NOTE: Regency®units are constantly being

improved. Check the label on the unit and if

there is a difference, the label on the unit is the

correct one.

SAFETY LABEL

For the State of Massachusetts, installation

and repair must be done by a plumber or

gasﬁtter licensed in the Commonwealth of

Massachusetts.

For the State of Massachusetts, ﬂexible

connectors shall not exceed 36 inches in

length.

For the State of Massachusetts, the appli-

ances individual manual shut-off must be a

t-handle type valve.

The State of Massachusetts requires the

installation of a carbon monoxide alarm in

accordance with NFPA 720 and a CO alarm

with battery back up in the same room where

the gas appliance is installed.

Regency®P33-4 Zero Clearance Direct Vent Gas Fireplace 5

REQUIREMENTS

5.08: Modifications to NFPA-54, Chapter 10

(2) Revise 10.8.3 by adding the following additional requirements:

(a) For all side wall horizontally vented gas fueled equipment installed in every dwelling, building or structure used in whole or in part for

residential purposes, including those owned or operated by the Commonwealth and where the side wall exhaust vent termination is less than

seven (7) feet above finished grade in the area of the venting, including but not limited to decks and porches, the following requirements shall

be satisfied:

1. INSTALLATION OF CARBON MONOXIDE DETECTORS. At the time of installation of the side wall horizontal vented gas fueled

equipment, the installing plumber or gasfitter shall observe that a hard wired carbon monoxide detector with an alarm and battery back-up is

installed on the floor level where the gas equipment is to be installed. In addition, the installing plumber or gasfitter shall observe that a battery

operated or hard wired carbon monoxide detector with an alarm is installed on each additional level of the dwelling, building or structure

served by the side wall horizontal vented gas fueled equipment. It shall be the responsibility of the property owner to secure the services of

qualified licensed professionals for the installation of hard wired carbon monoxide detectors

a. In the event that the side wall horizontally vented gas fueled equipment is installed in a crawl space or an attic, the hard wired carbon

monoxide detector with alarm and battery back-up may be installed on the next adjacent floor level.

b. In the event that the requirements of this subdivision can not be met at the time of completion of installation, the owner shall have a period of

thirty (30) days to comply with the above requirements; provided, however, that during said thirty (30) day period, a battery operated carbon

monoxide detector with an alarm shall be installed.

2. APPROVED CARBON MONOXIDE DETECTORS. Each carbon monoxide detector as required in accordance with the above provisions

shall comply with NFPA 720 and be ANSI/UL 2034 listed and IAS certified.

3. SIGNAGE. A metal or plastic identification plate shall be permanently mounted to the exterior of the building at a minimum height of eight

(8) feet above grade directly in line with the exhaust vent terminal for the horizontally vented gas fueled heating appliance or equipment. The

sign shall read, in print size no less than one-half (1/2) inch in size, "GAS VENT DIRECTLY BELOW. KEEP CLEAR OF ALL

OBSTRUCTIONS".

4. INSPECTION. The state or local gas inspector of the side wall horizontally vented gas fueled equipment shall not approve the installation

unless, upon inspection, the inspector observes carbon monoxide detectors and signage installed in accordance with the provisions of 248 CMR

5.08(2)(a)1 through 4.

(b) EXEMPTIONS: The following equipment is exempt from 248 CMR 5.08(2)(a)1 through 4:

1. The equipment listed in Chapter 10 entitled "Equipment Not Required To Be Vented" in the most current edition of NFPA 54 as adopted by

the Board; and

2. Product Approved side wall horizontally vented gas fueled equipment installed in a room or structure separate from the dwelling, building or

structure used in whole or in part for residential purposes.

Approved side wall horizontally vented gas equipment provides a venting system design or venting system components with the equipment, the

instructions provided by the manufacturer for installation of the equipment and the venting system shall include:

1. Detailed instructions for the installation of the venting system design or the venting system components; and

2. A complete parts list for the venting system design or venting system.

(d) MANUFACTURER REQUIREMENTS - GAS EQUIPMENT VENTING SYSTEM NOT PROVIDED. When the manufacturer of a

Product Approved side wall horizontally vented gas fueled equipment does not provide the parts for venting the flue gases, but identifies

"special venting systems", the following requirements shall be satisfied by the manufacturer:

1. The referenced "special venting system" instructions shall be included with the appliance or equipment installation instructions; and

2. The "special venting systems" shall be Product Approved by the Board, and the instructions for that system shall include a parts list and

detailed installation instructions.

(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions,

all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of

the installation.

MA Code - CO Detector

Regency®P33-4 Zero Clearance Direct Vent Gas Fireplace

INSTALLATION

IMPORTANT MESSAGE

SAVE THESE

INSTRUCTIONS

The P33-NG4 or P33-LP4 Direct Vent Fireplace

must be installed in accordance with these

instructions. Carefully read all the instructions

in this manual ﬁrst. Consult the "authority

having jurisdiction" to determine the need for

a permit prior to starting the installation. It is

the responsibility of the installer to ensure

this ﬁreplace is installed in compliance with

manufacturer's instructions and all applicable

codes.

BEFORE YOU START

Safe installation and operation of this appliance

requires common sense, however, we are

required by the Canadian Safety Standards

and ANSI Standards to make you aware of

the following:

GENERAL SAFETY

INFORMATION

1) The appliance installation must conform with

local codes or, in the absence of local codes,

with the current Canadian or National

Gas Codes, CAN1-B149 or ANSI Z223.1

Installation Codes.

2) The appliance when installed, must be

electrically grounded in accordance with

local codes, or in the absence of local codes

with the current National Electrical Code,

ANSI/NFPA 70 or CSA C22.1 Canadian

Electrical Code.

3) See general construction and assembly

instructions. The appliance and vent should

be enclosed.

4) This appliance must be connected to the

speciﬁed vent and termination cap to the

outside of the building envelope. Never vent

to another room or inside a building. Make

sure that the vent is ﬁtted as per Venting

instructions.

5) Inspect the venting system annually for

blockage and any signs of deterioration.

6) Venting terminals shall not be recessed into a

wall or siding.

7) Any safety glass removed for servicing

must be replaced prior to operating the

appliance.

8) To prevent injury, do not allow anyone who

is unfamiliar with the operation to use the

ﬁreplace.

9) Wearglovesandsafetyglassesforprotection

while doing required maintenance.

10) Be aware of electrical wiring locations in

walls and ceilings when cutting holes for

termination.

11) Under no circumstances should this

appliance be modiﬁed. Parts that have to be

removed for servicing should be replaced

prior to operating this appliance.

12) Installation and any repairs to this appliance

should be done by a qualiﬁed service

person. A professional service person

should be called to inspect this appliance

annually. Make it a practice to have all of

your gas appliances checked annually.

13) Do not slam shut or strike the glass door.

14) Under no circumstances should any solid

fuels (wood, paper, cardboard, coal, etc.)

be used in this appliance.

15) The appliance area must be kept clear and

free of combustible materials, (gases and

other ﬂammable vapours and liquids).

MANUFACTURED

MOBILE HOME

ADDITIONAL

REQUIREMENTS

1) Ensure that structural members are not

cut or weakened during installation.

2) Ensure proper grounding using the #8

ground lug provided. Refer to "Wiring

Diagram" Section.

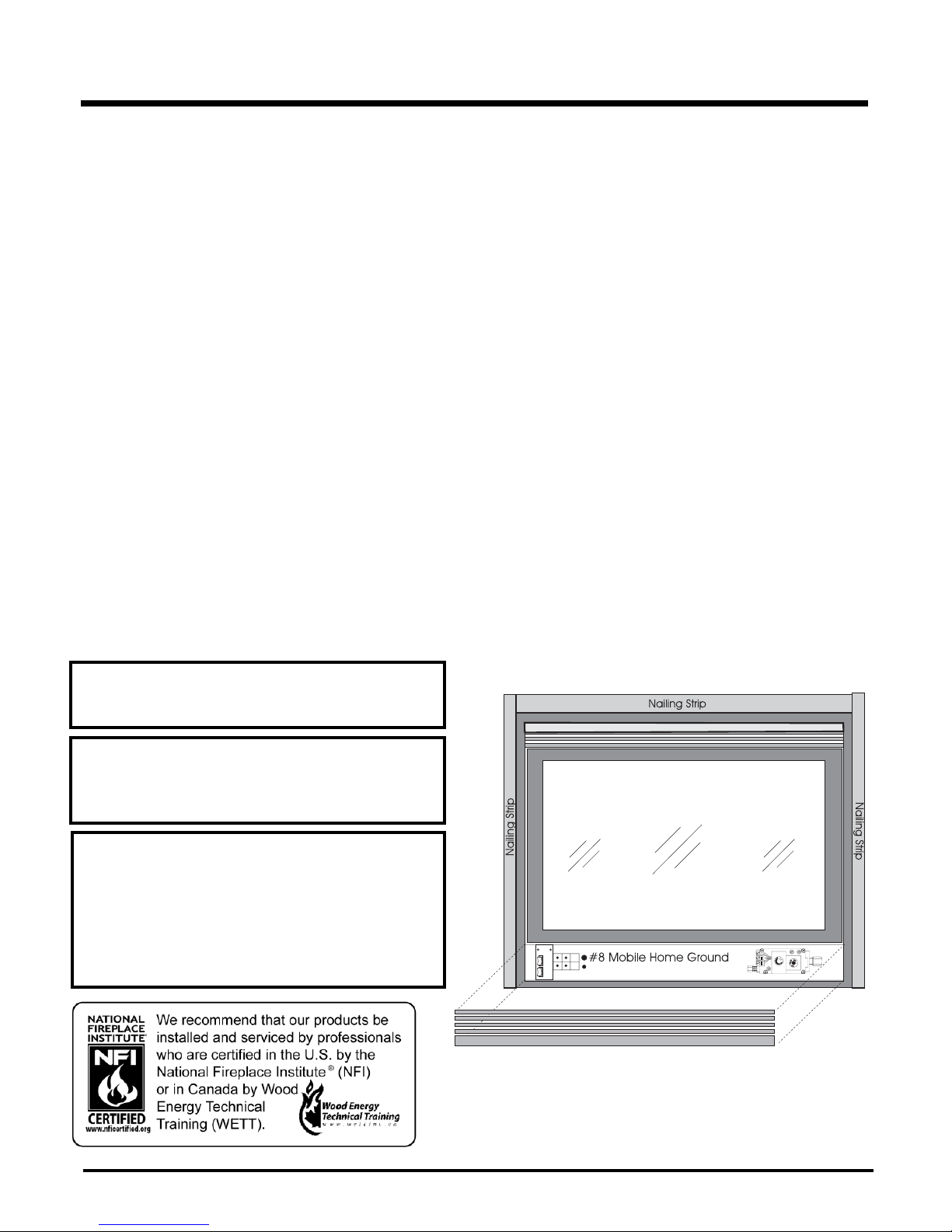

INSTALLATION AND REPAIR

SHOULD BE DONE BY A

QUALIFIED SERVICE PERSON.

THE APPLIANCE SHOULD BE

INSPECTED BEFORE USE

AND AT LEAST ANNUALLY

BY A PROFESSIONAL

SERVICE PERSON. MORE

FREQUENT CLEANING MAY BE

REQUIRED DUE TO EXCESSIVE

LINT FROM CARPETING,

BEDDING MATERIAL, ETC.

IT IS IMPERATIVE THAT

CONTROL COMPARTMENTS,

BURNERS AND CIRCULATING

AIR PASSAGEWAYS OF

THE APPLIANCE BE KEPT

CLEAN.

YOUNG CHILDREN SHOULD BE

CAREFULLY SUPERVISED WHEN

THEY ARE IN THE SAME ROOM

AS THE APPLIANCE.

Emissions from burning wood or gas could

contain chemicals known to the State of

California to cause cancer, birth defects

or other reproductive harm.

DUE TO HIGH TEMPERATURES,

THE APPLIANCE SHOULD BE

LOCATED OUT OF TRAFFIC AND

AWAY FROM FURNITURE AND

DRAPERIES.

WARNING: FAILURE TO INSTALL

THIS APPLIANCE CORRECTLY

WILL VOID YOUR WARRANTY

AND MAY CAUSE A SERIOUS

HOUSE FIRE.

CHILDREN AND ADULTS

SHOULD BE ALERTED TO THE

HAZARDS OF HIGH SURFACE

TEMPERATURES, ESPECIALLY

THE FIREPLACE GLASS,

AND SHOULD STAY AWAY TO

AVOID BURNS OR CLOTHING

IGNITION.

CLOTHING OR OTHER

FLAMMABLEMATERIALSHOULD

NOT BE PLACED ON OR NEAR

THE APPLIANCE.

Regency®P33-4 Zero Clearance Direct Vent Gas Fireplace 7

DUCT SYSTEM OPTION

kit #946-556

The HeatWave Air Duct Kit increases the

effectiveness of your ﬁreplace by dispersing

warm air from the ﬁreplace to remote locations

in the same room or other rooms in your

home.

Up to two kits may be installed on the ﬁreplace.

Please Note: Only 1 HeatWave kit may be

operated at one time. This includes the internal

blower option as well.

INSTALLATION

CHECKLIST

1) Locate appliance

a) Room location

(Refer to "Locating Your Fireplace"

Section)

b) Clearances to Combustibles

(Refer to "Clearances" Section)

c) Mantle Clearances

(Refer to "Combustible Mantels"

Section)

d) Framing & Finishing Requirements

(Refer to "Framing & Finishing"

Section)

e) Venting Requirements

(Refer to "Venting" Sections)

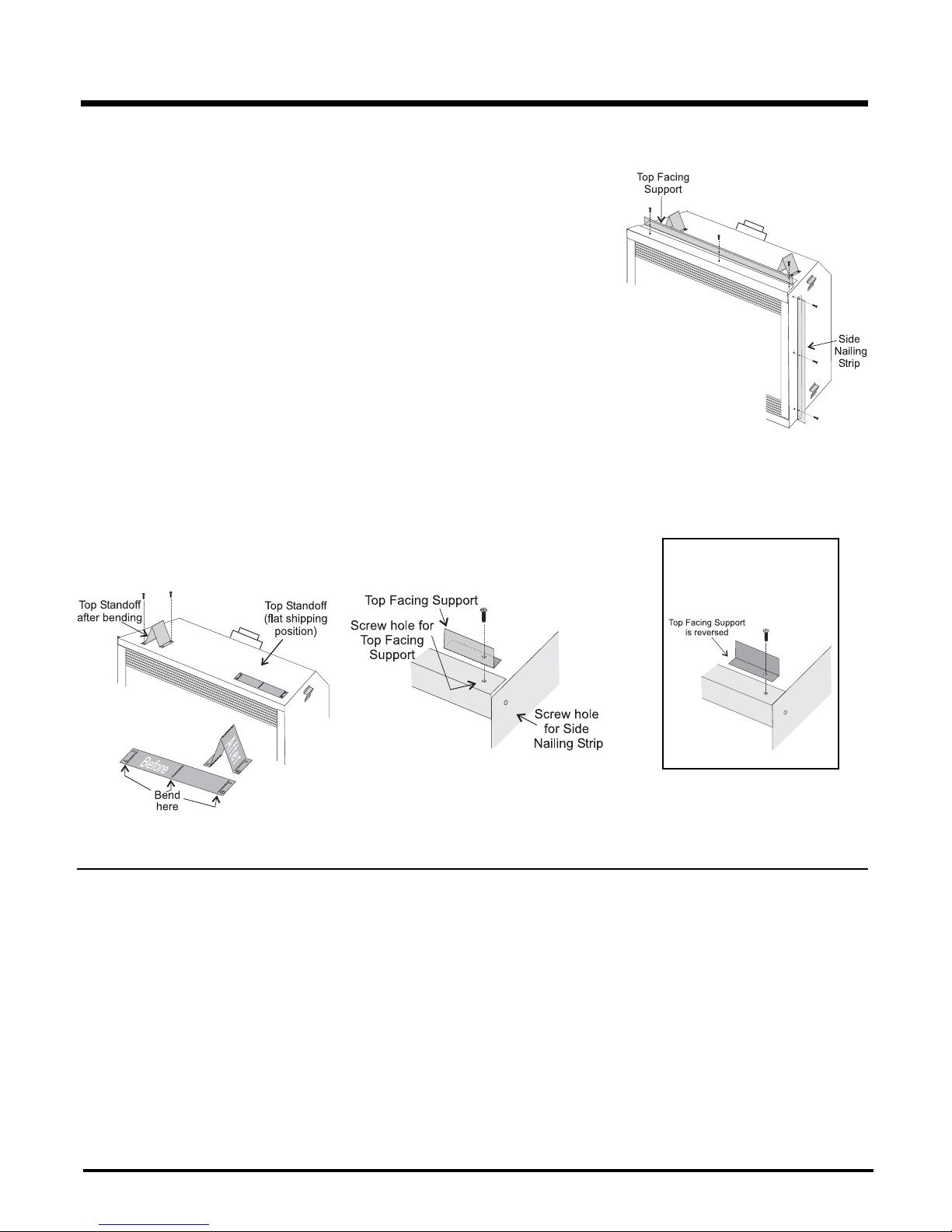

2) Assemble Top Facing Support and Side

Nailing Strips (Refer to "Unit Assembly Prior

to Installation" Section). NOTE: Must be

done before installing unit into ﬁreplace.

3) Install vent (Refer to "Venting" Sections)

4) Make gas and electrical connections. Test

the pilot. Must be as per diagram.

(Refer to "Gas Line Installation" and "Pilot

Adjustment" Section).

Convert to Propane if desired.

(Refer to "Conversion Kit from NG to LPG"

Section).

5) Install standard and optional features. Refer

to the following sections:

a. Optional Brick Panels

b. Log Set Installation

c. Standard Flush Door

d. Optional Flush Trim

e. Double Screen Door

f. Optional Bay Door

g. Optional Bay Trim

h. Flush Louvers

i. Bay Louvers

j. Full Screen Doors

k. Optional Wall Themostat

l. Optional Remote Control

m. Optional Wall Switch

n. Installing the Optional Fan

6) Final check.

Before leaving this unit with the customer,

the installer must ensure that the appliance is

ﬁring correctly and operation fully explained

to customer.

This includes:

1) Clocking the appliance to ensure the correct

ﬁring rate (rate noted on label) after burning

appliance for 15 minutes.

2) If required, adjusting the primary air to ensure

that the ﬂame does not carbon. First allow

the unit to burn for 15-20 min. to stabilize.

Diagram 1

INSTALLATION

CAUTION: Any alteration to the product that

causes sooting or carboning that results

in damage is not the responsibility of the

manufacturer.

LOCATING YOUR

FIREPLACE

1) When selecting a location for your ﬁreplace,

ensure that the clearances outlined on this

page are met.

2) Provide adequate clearances for

servicing.

3) The appliance must be installed on a ﬂat,

solid, continuous surface (e.g. wood, metal,

concrete). This may be the ﬂoor, or raised up

on a platform to enhance its visual impact.

If the appliance is going to be installed

on carpeting, combustible linoleum tile or

other combustible material other than wood

ﬂooring, the appliance must be installed on a

metal or wood panel extending the full width

and depth of the appliance.

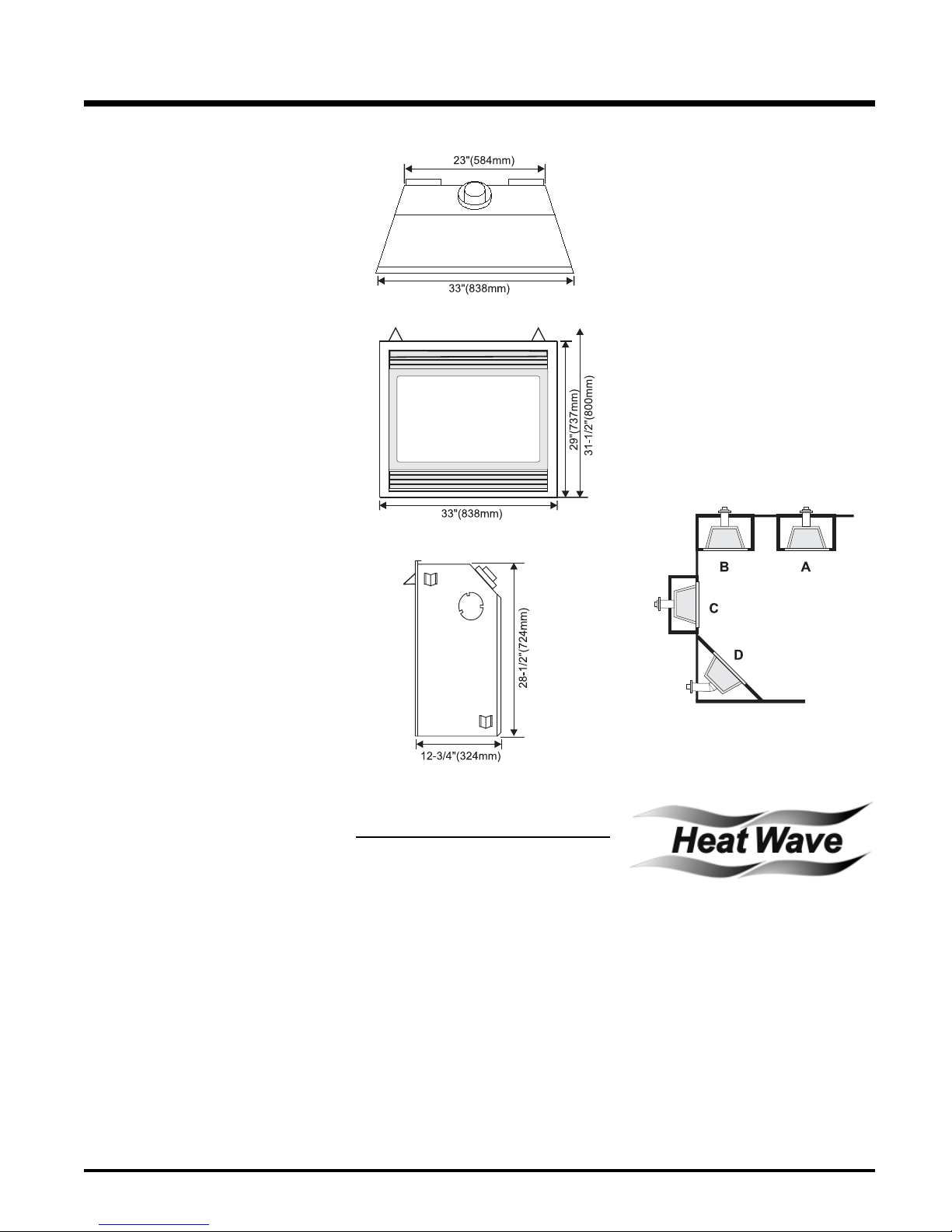

UNIT DIMENSIONS 4) The P33-4 can be installed in a recessed

position or framed out into the room as in

A, B, C, D. See Diagram 1 below.

5) This appliance is Listed for bedroom

installations when used with a Listed

Millivolt Thermostat. Some areas may

have further requirements, check local

codes before installation.

6) The P33-4 Direct Vent Gas Fireplace

is approved for alcove installations,

which meet the clearances listed on the

"Clearances" Section.

7) We recommend that you plan your

installation on paper using exact

measurements for clearances and ﬂoor

protection before actually installing this

appliance. Have a qualiﬁed inspector,

dealer, or installer review your plans before

installation.

Note: For vent terminations see "Exterior

Vent Termination Locations" Section.

A) Flat on Wall

B) Flat on Wall Corner

C) Recessed into Wall/Alcove

Regency®P33-4 Zero Clearance Direct Vent Gas Fireplace

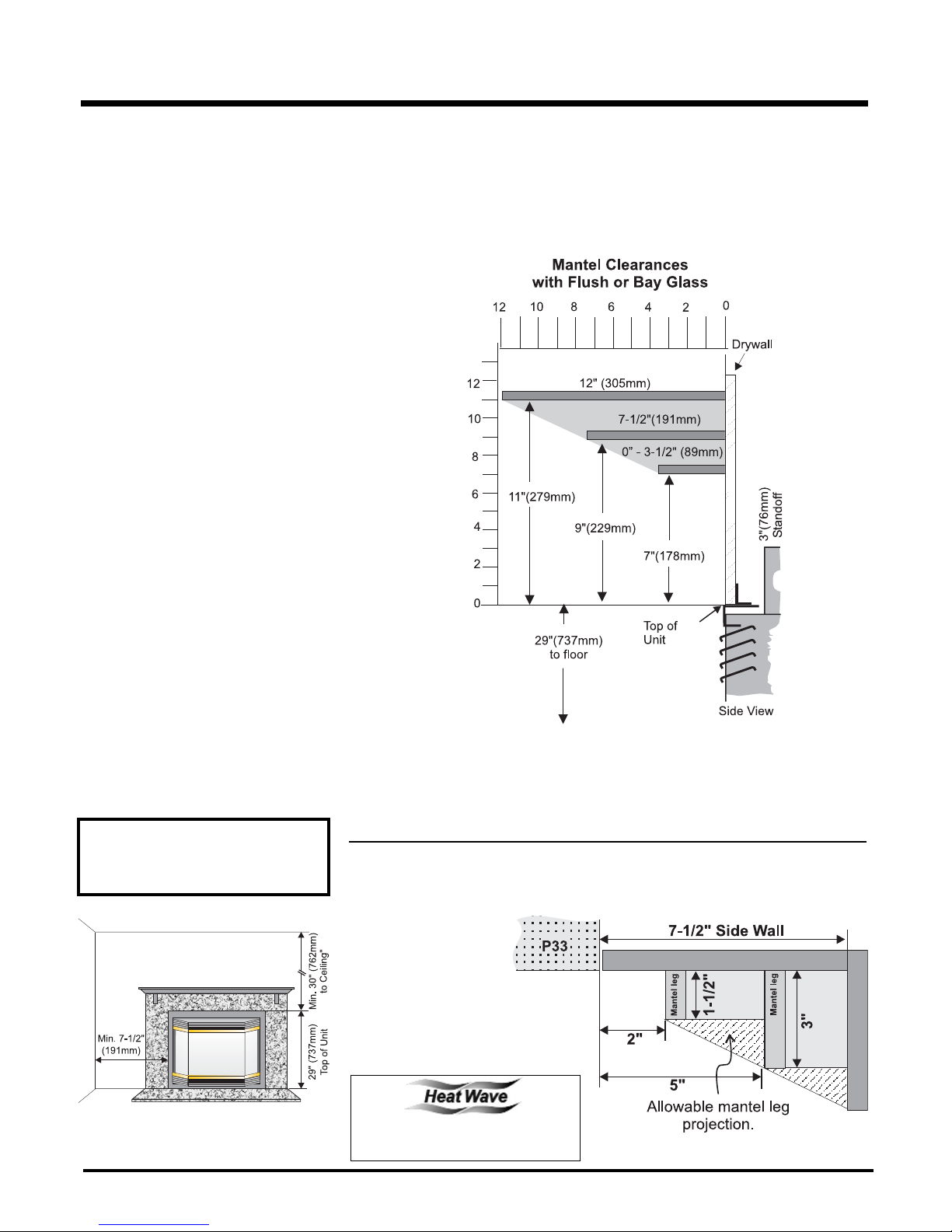

COMBUSTIBLE MANTELS

Because of the extreme heat this ﬁreplace emits, the mantel clearances are critical.

Combustible mantel clearances from top of unit are shown in the diagram below.

Note: A non-combustible mantel may be installed at a lower height if the framing is made

of metal studs covered with a non-combustible board.

INSTALLATION

Clearances for Bay or Flush Front

MANTEL LEG CLEARANCES

Combustible mantel leg clearances as per diagram below:

This drawing is to scale at 1:6 (one inch = 6 inches). Mantel can be installed anywhere in shaded

area or higher using the above scale.

Note: Ensure the paint that is used on the mantel and the facing is "heat resistant" or

the paint may discolour.

CLEARANCES

The clearances listed below are Minimum

distances unless otherwise stated:

A major cause of chimney related ﬁres is

failure to maintain required clearances (air

space) to combustible materials. It is of the

greatest importance that this ﬁreplace and

vent system be installed only in accordance

with these instructions.

Clearance to Combustibles from:

Back 0" (0mm)

Side 0" (0mm)

Floor 0" (0mm)

NOTE: The minimum ﬂoor clearance must be

maintained from the top surface of the carpeting,

tile, etc.

Minimum Clearance from Top of Unit to:

Mantel* min. 7" (177mm)

Ceiling 30" (762mm)

from top of unit.

Side Wall Clearance

Bay or Flush Front 7-1/2" (191mm)

Minimum Vent Clearances:

2-1/2" (64mm) Horizontal Top

1-1/2" (38mm) Horizontal Side

1-1/2" (38mm) Horizontal Bottom

1-1/4" (32mm) Vertical Vent Clearance

(Rigid Vent)

1-1/2" (38mm) Vertical Vent Clearance

(Flex Vent)

Alcove Clearances:

Max. Depth 36" (914mm)

Min. Width 48" (1219mm)

Min. Height 59" (1499mm)

* see mantel clearance instructions.

Maximum

1-1/2" projection at 2"

minimum clearance.

WARNING

Fire hazard is an extreme risk if

these clearances are not adhered

to.

The HeatWave Duct Kit has different

clearance and framing requirements,

check the HeatWave manual for details.

Regency®P33-4 Zero Clearance Direct Vent Gas Fireplace 9

INSTALLATION

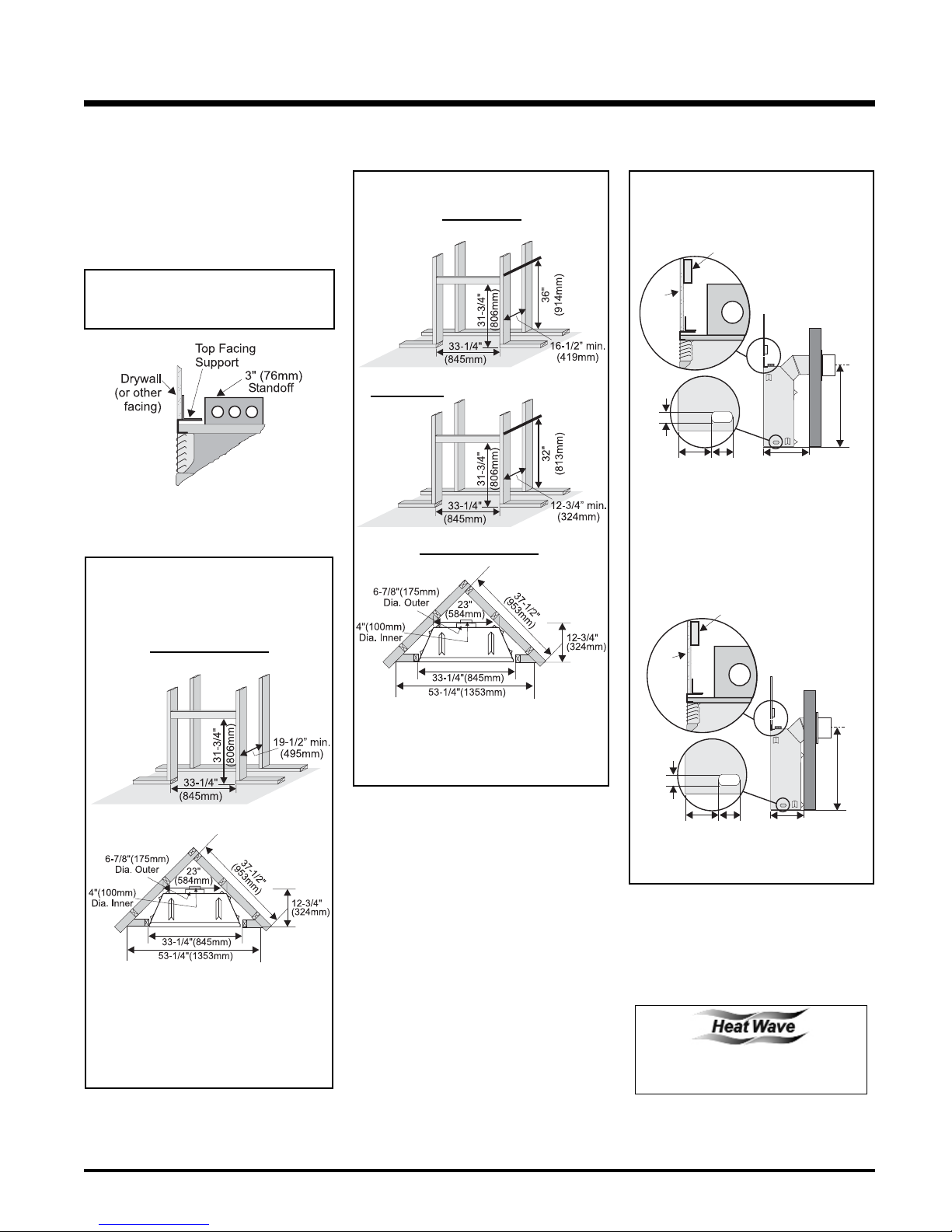

3) For exterior walls, insulate the enclosure to

the same degree as the rest of the house,

apply vapour barrier and drywall, as per

local installation codes. (Do not insulate

the ﬁreplace itself.)

4) The top of the unit must not be closer than

30" (762mm) to the ceiling.

5) Combustible material may be brought up to

the top and sides of the unit and be covered

with ceramic tiles, bricks, rock or other

suitable combustible ﬁnishing materials.

Note: Theunit doesnothavetobe completely

enclosed in a chase. The clearance on

top of the unit is 0" to the standoffs so

combustible building materials can be

laid directly on top of the standoffs.

You must maintain clearance from

the vent to combustible materials

for ﬂex or for Rigid Vent (Refer to

"Clearances" Section).

1) Determine the total thickness of facing

material (e.g. drywall plus ceramic tiles) to

allow the ﬁnished surface to be ﬂush with

the front of the unit. Total facing thickness

can vary from 1/2" (13mm) to 1-1/4" (32mm)

thick.

6) Use steel studs for framing where the

1-1/2" (38mm) clearance from the vent

to combustible material cannot be

maintained.

2) Frame in the enclosure for the unit with

framing material.

FRAMING AND FINISHING

16-1/2”

(419mm)

Minimum

(102mm)

(76mm)

1-1/2"

(38mm)

30”

(762mm)

10" (254mm)

dia. Hole through

wall for Dura-Vent

1/2"

(13mm)

Drywall

Top Header

Opening for gas

connection

12-3/4”

(324mm)

Minimum

(102mm)

(76mm)

1-1/2"

(38mm)

26”

(660mm)

10" (254mm)

dia. Hole through

wall for Flex

1/2"

(13mm)

Drywall

Top Header

Opening for gas

connection

Rigid Vent

Minimum Clearances

Flex Vent

Minimum Clearances

Vertical Termination or

Vertical Rise with Horizontal

Termination

NOTE: If this is an outside corner, the

minimum distance between the vent and the

outside corner is 6" (15cm) with AstroCap

termination cap or 12" (30cm) with Rigid Vent

termination cap. (For example Dura-Vent).

For Both Rigid & Flex

Rear Termination

NOTE: If this is an outside corner, the minimum

distance between the vent and the outside

corner is 6" (15cm) with AstroCap termination

cap or 12" (30cm) with Rigid Vent termination

cap. (For Example Dura-Vent).

For Rigid Vent

For Flex Vent

For Both Rigid & Flex

The HeatWave Duct Kit has different

clearance and framing requirements,

check the HeatWave manual for details.

Install Side Nailing Strips, and Top Facing

Support before unit is slipped into position.

See "Unit Assembly Prior to Installation"

Section

Regency®P33-4 Zero Clearance Direct Vent Gas Fireplace

The Top Facing Support, the Side Nailing Strips

and the 2 Top Standoffs must be correctly

positioned and attached to the top before the

unit is put into position.

Top Standoff Assembly

The top standoffs are shipped in a ﬂat position

and must be pulled up and bent into the correct

shape.

1) Remove the standoffs from on top of the

ﬁrebox by undoing the screws.

2) Take each standoff and bend into the correct

shape. Bend up at the bend lines until the

screw holes in the standoff and the pre-

punched screw holes on the ﬁrebox top

line-up.

3) Attach the standoffs securely to the top with

4 screws per standoff.

Note: Secure the standoffs to the holes

closest to the edge of the ﬁrebox top.

Top Facing Support &

Side Nailing Strips

Determine the total thickness of facing material

(e.g. drywall plus ceramic tiles) to allow the

ﬁnished surface to be ﬂush with the front of the

unit. Total facing thickness can vary from 1/2"

(13mm) to 1-1/4" (32mm) thick.

The Top Facing Support & Side Nailing Strips

can be mounted in various positions depending

on the thickness of the facing material.

1) Mount Top Facing Support using the 3

supplied screws into the three pre-punched

screw holes on the top front of the unit.Adjust

support to desired facing material depth.

2) Mount Side Nailing Strip using the 3

supplied screws into the three pre-punched

screw holes at the front sides of the unit.

Adjust support to desired facing material

thickness.

UNIT ASSEMBLY PRIOR TO INSTALLATION

INSTALLATION

VENTING INTRODUCTION

The P33-4 uses the "balanced ﬂue" technology Co-Axial system. The inner liner vents products of combustion to the outside while the outer

liner draws outside combustion air into the combustion chamber thereby eliminating the need to use heated room air for combustion and losing

warm room air up the chimney.

There are 5 vent systems approved for use with the P33-4: the Regency®Direct Vent Flex System for Horizontal Terminations only and the Simpson

Dura-Vent, Selkirk Direct-Temp, Amerivent Direct Vent and Security Secure Vent Systems for Horizontal and Vertical Terminations (see following

"Venting" Sections for more details).

Note: These ﬂue pipes must not be connected to any other appliance.

The gas appliance and vent system must be vented directly to the outside of the building, and never be attached to a chimney serving a separate

solid fuel or gas burning appliance. Each direct vent gas appliance must use it's own separate vent system. Common vent systems are prohibited.

(See "Rigid Pipe Venting System" for more details and exceptions).

NOTE: Ensure compliance with the outside vent terminal location before cutting hole as both dimensions must be met.

For a facing material depth of

1-1/4"(32mm), the top facing

support must be reversed.

Table des matières

Autres manuels Regency Fireplace Products Cheminée intérieure

Regency Fireplace Products

Regency Fireplace Products F180B-2 Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products U32 Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products Greenfire GF900L Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products Bellavista B41XTE-NG11 Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products E21 Gas Insert Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products CI1200 Alterra Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products Horizon HZ42E-NG Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products Alterra CI1150 Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products City ACB40ENG Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products Bellavista B36XTE-10 Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products F1100S Manuel de service

Regency Fireplace Products

Regency Fireplace Products Classic I2453M Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products Bellavista B41XTCE-NG10 Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products City Series Manuel de service

Regency Fireplace Products

Regency Fireplace Products Energy U31 Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products City New York View 40 Series Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products City Series ACV40ENG Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products Pro CI2700 Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products Bellavista B36XTE Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products Contura Ri50 Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products CARDINIA Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products I2403M Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products Panorama P36 Guide de démarrage rapide

Regency Fireplace Products

Regency Fireplace Products Skope E110-2 Manuel utilisateur

Manuels Cheminée intérieure populaires d'autres marques

Brigantia

Brigantia 35-DVRS31N-2 Manuel du propriétaire

Nordpeis

Nordpeis Bergen Manuel utilisateur

Superior

Superior BCT2536TMN Manuel utilisateur

Quadra-Fire

Quadra-Fire 5100I-GD-B Manuel utilisateur

Renaissance

Renaissance RUMFORD 1000 Manuel utilisateur

Lacunza

Lacunza IV-800 Manuel utilisateur

Baxi

Baxi 940 Instructions d'utilisation

Dru

Dru Maestro 60/2 Tall RCH Manuel utilisateur

Diamond Fireglass

Diamond Fireglass SS-O22 Manuel utilisateur

HearthStone

HearthStone Windsor Bay 8830 Manuel de programmation

Napoleon

Napoleon ASCENT B42 Manuel utilisateur

Enviro

Enviro E33GI Manuel utilisateur

Smeg

Smeg L30 FABE Instructions de montage

KEDDY

KEDDY K700 Manuel utilisateur

Godin

Godin 3451 Manuel utilisateur

Jøtul

Jøtul Jotul GI 535 DV IPI New Harbor Manuel utilisateur

Austro Flamm

Austro Flamm Heidi Back 2.0 945048 Manuel utilisateur

Desa

Desa CCFPDFT Manuel d'utilisation
