Reebok One Series Manuel utilisateur

11 12

SPARE PARTS LIST

Part No.

Description QTY

101 console housing (upper) 1

102 console housing ( bottom) 1

103 keyboard 1

104 LCD overlay (w/ PCB of monitor + central plastic parts) 1

105

Switch 1

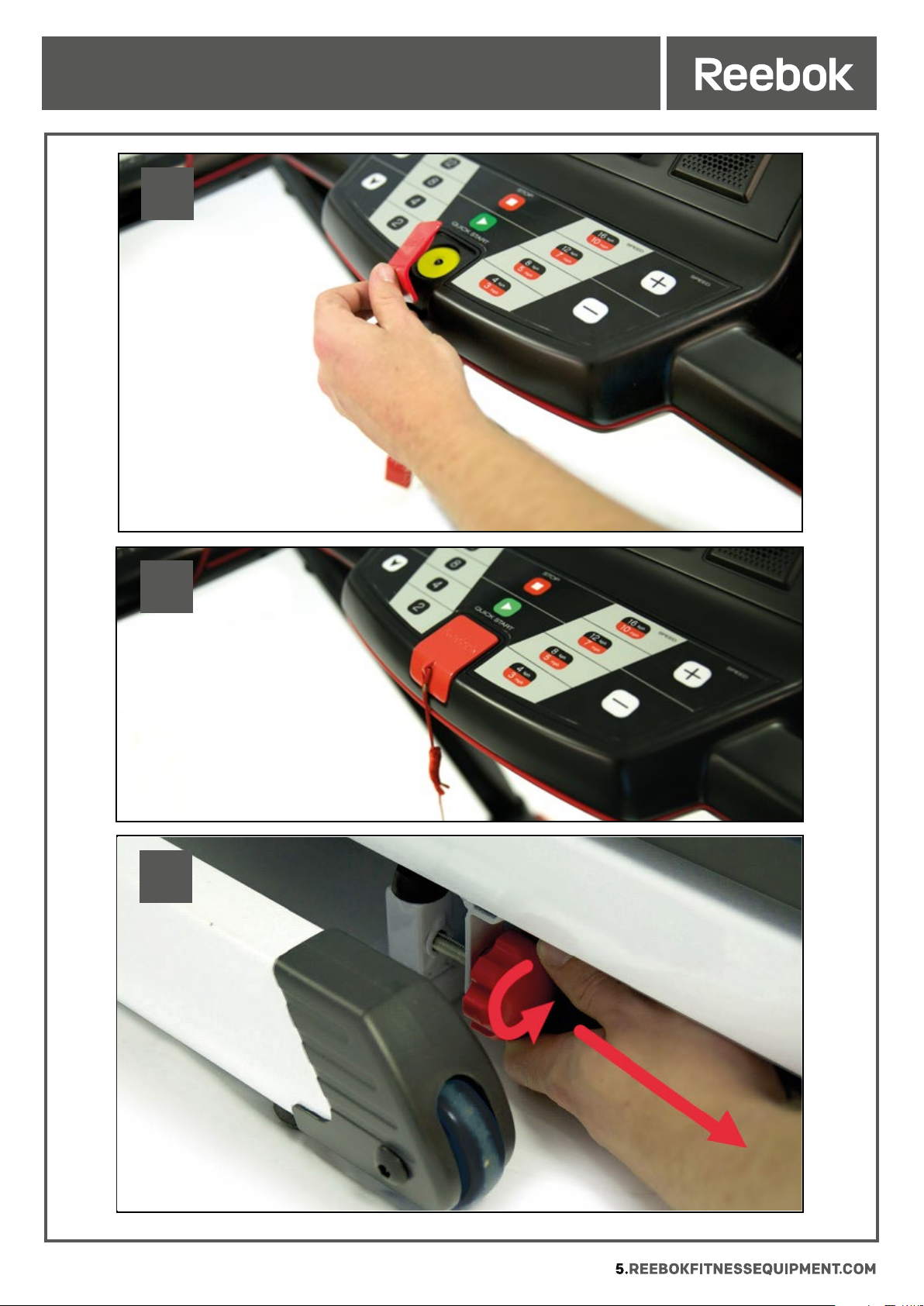

106 safety key 1

107 Fan cover 1

108 decorate side rail (1) 1

109 decorate side rail (2) 1

110

Arch plate 2

111 Water bottle holder 1

112 IPAD pallet 1

113 overlay 1

201 stand post 2

202 computer fixed frame 1

203 Computer ornament 2

204 handle bar cover 2

205 wire /L-1300mm 1

206 wire/L-950mm 1

207

Handle pulse w/ EZ button (speed) 1

208

Handle pulse w/ EZ button (Incline) 1

209 handle pulse wire 2

301

Base fame 1

302 Upright lateral cover right (right) 1

303 Upright lateral cover right (left) 1

304 Upright lateral cover left (left) 1

305 Upright lateral cover rleft(right) 1

306

End cap 2

307

Foot pad(Conductive Rubber) 4

308

Wheel 62 2

309

Foot pad 2

310 wire protector 1

311 Wire/L-1200mm 1

401

Platform frame 1

402

Ferrite 2

403 front roller 1

404 rear roller 1

405 incline motor 1

406 motor belt 1

407

strip-type cushion 2

408

strip-type cushion 2

409

strip-type cushion 2

410

Decorative cushion 2

411

Decorative cushion 2

412

Decorative cushion 2

413

Wheel 62 2

414 knob 1

415 binder 2

416

Controller 1

417

Wire (Red) L=500mm 1

418

Wire (Black)L=500mm 1

419

switch 1

420

fuse with wire 1

421

socket 1

422

power cord 1

423

filter 1

424

choke 1

425

Wire (Red) L=300mm 1

426

Wire (Black)L=150mm 1

501 Running deck 1

502 Running belt 1

503 motor cover 1

504 Front motor cover 1

505 rear cover 1

506 side rail 2

507 roundness side rail guider 6

601 Ezfit linking parts

602

Hydraulic

603

End cap

604 Spring

701

Incline frame

702 Metal plug

801 Motor base frame 1

802 Motor 1

803 Square cushion 4

804 Speed sensor 1

901

Philips C.K.S self-tapping screw ST4*12

902

Philips C.K.S self-tapping screw ST4*16

903 Philip self-tapping screw ST4*15

904

Allen C.K.S full thread screwM8*15

905

Allen C.K.S half thread screwM8*55*20

906

Philips C.K.S self-tapping screw ST4*16

907

Philips C.K.S self-tapping screw ST4*30

908

Philips C.K.S full thread screw M4*10

909 Spring washer 8

910 Hex self-locking nut M8

911

Allen socket head full thread screwM8*75

912

Allen C.K.S half thread screwM10*35*20

913

Allen C.K.S half thread screwM10*65*20

914

Allen C.K.S half thread screwM8*40*20

915

Allen socket head full thread screwM6*30

916 Spring washer 8

917 Spring washer 10

918 Washer 5

919 Hex self-locking nut M10

920

Philips steel tapping screw ST3*10

921 Allen C.K.S.full thread screw M6 50 16

922

Philips C.K.S full thread screw M5*10

923

Philips steel tapping screw ST4*15

924

Allen C.K.S half thread screwM8*30*20

925 Allen C.K.S half thread screwM8*30*20

926

Allen C.K.S half thread screwM8*55*25

927 Spring washer 12

928 Bolt welding M8*65

929

Hex full thread screw M8*75

930

Allen socket head full thread screwM8*15

931 Philip self-tapping screw ST3 10

932 Spring washer 8
