REEBOK XL ACTION GRIP®
BASKETBALL SYSTEM
MODEL #51549
ASSEMBLY INSTRUCTIONS AND
OWNER’S MANUAL
Save this instruction in the event that
the manufacturer has to be contacted for
replacement parts.
INSTRUCTION #1030931
WARNING
Failure to comply with any of the warnings
in these instructions may result in serious
personal injuries such as cuts, broken
bones, nerve damage, paralysis, brain
injury, or death. Failure to comply may
also result in property damage. Please
heed all warnings and cautions. To ensure
your safety, do not attempt to assemble
this system without reading and following
all instructions carefully. Identify and
inventory the parts using the Parts List.
**U.S. and Canada customers ONLY**
IF ASSISTANCE IS NEEDED,
DO NOT CONTACT THE STORE!!!
CALL OUR CUSTOMER SERVICE DEPARTMENT at 1 (800) 225-3865
HOURS: 7:00 a.m. to 5:00 p.m. Monday through Friday (Mountain Standard Time)
**For customers outside the U.S. or Canada, please contact the store for assistance.**
,IFETIME0RODUCTS¸)NCISTHESOLEDISTRIBUTOROF2EEBOK¸"ASKETBALL
SYSTEMS&ORMOREINFORMATIONVISITUSAT
Copy
22
HARDWARE IS
ACTUAL SIZE
(Unless otherwise indicated)
PARTS LIST
ID Part # Description Qty
TP 1030702 Top Pole 1
MP 1030703 Middle Pole 1
BP 1030855 Bottom Pole 1
RB 1030781 Right Backboard Bracket 1
LB 1030762 Left Backboard Bracket 1
AT 1030881 Backboard 1
AA 500096 Pole Cap 1
AB 502005 Net 1
AC 502056 Plastic Guard 1
AD 504068 Counterbalance Spring 2
AE 510025 1/2” x 21 3/4” Axle 1
AF CB01599 Base 1
AG 510022 Wheel 2
AH 510035 Base Cap 1
WS FS16400 Warning Sticker ( one Applied) 2
AI F028010 Height Sticker 1
AJ 1030666 Rim 1
AK 1030669 Short Extension Arm 2
AL 1030670 Long Extension Arm 2
AM 1030674 Pole Brace 2
AN DA03800 Rebook Pole Pad 1
Main Hardware (HD9125B)
HA 300022 1/4” Centerlock Nut 2
HB 300029 1/2” x 7 1/8” Hex Bolt 5
HC 300110 1/4” x 2 3/4” Hex Bolt 2
HD 301008 1/2” Centerlock Nut 5
HE 302005 3/8” x 7” Hex Bolt 1
HF 302008 3/8” Centerlock Nut 1
HG 302011 5/16” x 1 1/4” Carriage Bolt 2
HH 302090 5/16” Nylock Flange Nut 2
HI 500013 9/16” x .592” Poly Spacer 4
HJ 500032 1/2” x 1/8” Spacer 4
HK 500037 1/2” x 1” Poly Spacer 2
HL 800324 1/2” x 2 5/16” Metal Spacer 2
Rim Hardware (1012253)
RA 300066 5/16” Hex T-Nut 2
RK 300128 5/16” Jam Nut 2
RC 302014 5/16” Flat Washer 2
RD 302056 Rubber Washer 2
RE 302060 5/16” x 2 1/2” Tap Bolt 2
RF 1009200 4 1/2” U-Bolt 1
HH 302090 5/16” Nylock Flange Nut 4
RJ 1001137 Compression Spring 2
RI 804033 Spring Retainer Plate 1
HB
HA
HD
HC
HG
HF
HH
HI
HJ
RC
RA
RE
RK
RD
RI
(Not actual size)
HL
HK
HE
3
PARTS LIST
ID Part # Description Qty
AN A040031C Inner Channel 1
AO 1030812 Outer Tube 1
AP C050018 Channel Stop 1
AQ 1030748 Pole Bracket 1
AR C050019 Handle 1
AS C050017 Trigger 1
Action Grip®Hardware (HH01300)
GA A070044 Lock Tab 1
GB B070040 1/4-20 x 1 1/2” Screw 2
GC B080015 Trigger Spring 1
GD BW00100 #6 Flat Washer 2
GE 300027 5/16” x 1 3/4” Hex Bolt 1
GF 300031 3/8” Flat Washer 2
GH 300095 5/16” Cap Nut 1
GI 300103 #6 x 3/8” Phillips Screw 2
HF 302008 3/8” Centerlock Nut 2
GK 302053 3/8” x 4” Hex Bolt 2
GL 800239 1/2” x 3 7/16” Spacer 2
Pole Joint Hardware (1005748)
PA BS02000 1/4” x 3/4” Screw 2
PB 1004620 Self-Tapping Screw 2
Base Hardware (1006763)
BA 300066 5/16” Hex T-Nut 1
BB 300030 5/16” x 1” Hex Bolt 2
BD 300097 5/16” Nylock Nut 2
BE BB05300 5/16” x 3.65” Shldr Screw 1
RC 302014 5/16” Flat Washer 4
GA
(Not actual size)
GCGB
(Not actual size)
GE
GH GI
GD
GL
BA
GK
BE
BD
BB
PA PB
GF
4
Failure to follow these safety instructions may result in serious injury or property damage and will void the warranty. The owner must ensure that all players
know and follow these rules for safe operation of the system. Proper and complete assembly, use and supervision is essential for proper operation and to reduce the risk
of accident or injury. A high probability of serious injury exists if this system is not installed, maintained, or operated properly. • If using a ladder during assembly, use
extreme caution. Follow all warnings and cautions on the ladder carefully. • Two people are required for assembly. • Check the Base regularly for leaks. Slow leakage
could cause the system to tip over unexpectedly. • Seat the pole sections properly. Failure to do so could allow the pole sections to separate during play and/or transport
of the system. • Climate, corrosion, or misuse could result in system failure. • If technical assistance is required, contact the manufacturer. • Minimum operational height
is 7’ 6” to the Rim. Most injuries are caused by misuse and/or failure to follow instructions. Use caution when using the system.
SAFETY INSTRUCTIONS
A. Keep the hardware bags and their contents separate. If any parts are missing, call our Customer Service Department.
B. TesttallBoltsbyinsertingthemintotheirrespectiveholes.Ifnecessary,carefullyscrapeawayanyexcesspowdercoatingbuildupfrominsidethe
holes. Do not scrape away all of the powder coating. Bare metal may rust. You may need to pound some Bolts into place with a hammer or mallet.
BEFORE BEGINNING ASSEMBLY
*A MINIMUM OF TWO
ADULTS ARE REQUIRED
FOR ASSEMBLY*
Tools and Materials
Required for Assembly
(Not Included)
1. Adjustable Wrench
2. 7/16” Wrenches (2)
3. 1/2” Wrenches (2)
4. 9/16” Wrenches (2)
5. 3/4” Wrenches (2)
6. Hammer or Mallet
7. 375 lbs. Sand or Water Supply
8. Tape Measure
9. Punch/Dowel or similar tool
10. Scrap Wood or Cardboard
11. Phillips Screwdriver
5

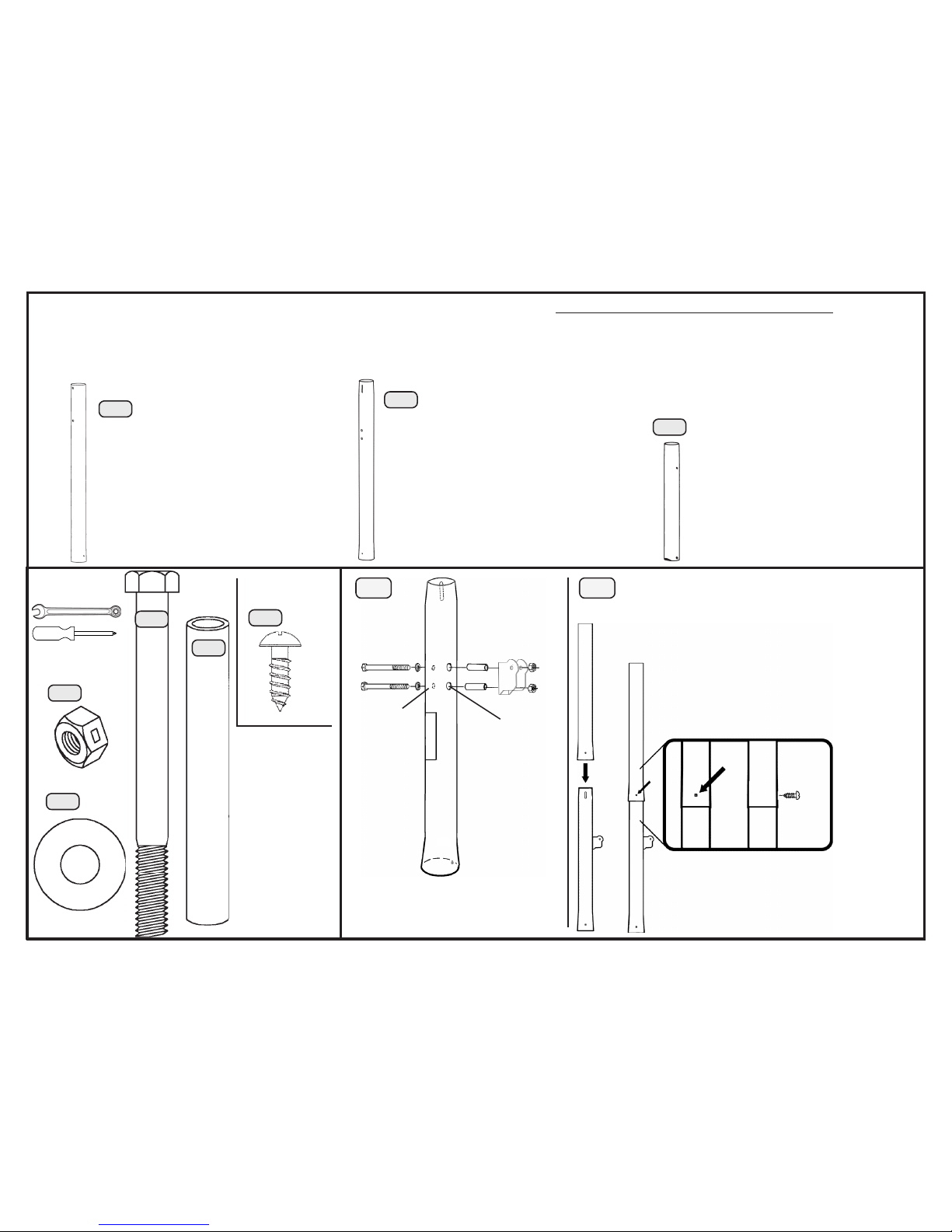

POLE SECTION IDENTIFICATION
Identify the pole sections before beginning assembly. Failure to assemble
the pole sections correctly may result in severe personal injury or property
damage as described on Page One.
ONCE THE POLE SECTIONS HAVE BEEN SEATED, THEY
CANNOT BE SEPARATED.
TP MP
Top Pole:
Four holes at the
top of the pole and
one small hole at
the bottom.
Middle Pole:
One slot at the top of the pole,
four holes in the middle and
one small hole at the bottom.
Warning Sticker.
BP Bottom Pole:
One slot at the top of the pole, two
holes near the top, two holes at
the bottom and a bent edge at the
bottom. Shortest pole.
GK GF
MP
GL AQ HF
Large holes
21
Small
holes
GL
GK
HF
PA
(2)
GF
(2)
(2)
(2)
(1)
1005748
HH01300
9/16” Wrenches
Tighten all Nuts
securely now.
MP
TP
PA
Align the hole in the Top Pole with the slot in the Middle
Pole and slide the Top Pole over the Middle Pole.
Do not jam the poles together until instructed.
The Screw will spin freely once installed.
Insert a 1/4” x 3/4” Screw (PA) through the small
hole in the Top Pole and into the Middle Pole.
Note: There are two screw holes at the
bottom of the pole. The correct hole will
be slightly larger and slightly higher up
on the pole.
6
3
BP
PA
PA
4
(1)
1005748
TP
This step cannot be
reversed.
BP
MP
BP
MP
5A
TP
In order to seat the poles, strike each end of the pole
very hard 5 to 6 times on a piece of scrap wood or
cardboard. This must be done even if the poles cover
the slots before seating.
Measure from the top of the Top Pole to the bottom of the Middle
Pole. It must measure 83 1/2” or less. If it measures longer than
83 1/2”, strike it again on the wood. If it is still too long, do not
complete assembly. Call our Customer Service Department.
212.1 cm
83 1/2”
MP
TP
MP
Align the hole in the Middle Pole with the slot in the Bottom Pole and slide the Middle Pole over the Bottom Pole.
Do not jam the poles together until instructed.
The Screw will spin freely once installed.
Insert the remaining 1/4” x 3/4” Screw (PA) through the small hole in the Middle
Pole and into the Bottom Pole.
WARNING
The poles must be seated together!!
Even if the poles cover the slots before
seating, you must strike them on the
wood ve to six times!! Failure to seat
the poles correctly could allow the poles
to separate during use, which could lead
to serious personal injuries or property
damage as listed on Page One.
If the Top and Middle Poles do not completely
cover the slots on the Middle and Bottom Poles
after seating, DO NOT COMPLETE ASSEMBLY. Call
our Customer Service Department.
Note: There are two screw holes at the
bottom of the pole. The correct hole will
be slightly larger and slightly higher up
on the pole.
Insert two self-tapping screws
(PB) into the back of the pole at
the locations shown.
5B
PB
PB
PB
PB (1)
PA
7
AH
Make sure the Rubber Gasket is
inside the Base Cap (AH).
Rubber Gasket
Screw the Base Cap (AH)
onto the Base. AH
6
AE
AG
7 8
AG
The Bracket on the Middle
Pole faces the Base.
The attened end of the Pole Brace (AM) has a smaller
hole and attaches to the top hole in the Base (AF). The
angled end attaches to the pole.
AM
RC
BB
AF
RC
BD
Only nger
tighten now.
Repeat for the other
Pole Brace.
BB (2)
(2)
RC
BD
(4)
1006763
9
BE
Completely tighten all Base
and Pole Brace hardware.
BA
Tip the Base forward until the
pole rests on the ground.
10 RB
LB
RF
BE
BA (1)
(1)
9/16” Wrenches
1/2” Wrenches
AF
8
7/16” Wrench
1/2” Wrenches 11
HA
HL
HA
RB
LB
HC
HC
Completely tighten
the Nuts (HA).
HC
HA
HL
(2)
12
(2)
(2)
RA
RE
RE RC RD
The Tap Bolts (RE) should be at
the outer edge of the holes.
Tighten the T-Nuts (RA) only until the
Rubber Washers (RD) begin to bulge.
RD
RA
RC
(2)
HD9125B
(2)
(2)
(2)
1012253
14
AC
RK
RK
Place the Plastic Guard (AC) on
the back of the Rim.
Only hand tighten the Nuts (HH).
Tighten the 5/16” Jam Nuts (RK)
onto the U-Bolt as far as they
will go.
HH
RF
13
(2)
(2)
HH
AJ
You may want to perform step #36
now, before proceeding with this step.
9
HD9125B
(2)
(1)
HH
RI
1012253
RJ
RI
HH
15
Only hand tighten
the Nuts (HH).
Tightening these Nuts later will adjust
the Rim tension.
HG
16
HG HG
HG
The lower holes should go
over the Carriage Bolts.
Bend the Backboard Brackets (LB
& RB) out.
LB RB
(Not actual size)
HH
HH
Do not overtighten
the Nuts (HH).
Completely tighten
all Rim hardware.
1/2” Wrenches 17
18
(2)
HH
(2)
19
HD
HI
(1)
(2)
HD HI
AK
Tighten the Nut until it
is ush with the Bolt.
HI HB
AK
AK
HB
(1)
3/4” Wrenches
10
HD9125B
HB
HD
HI
(3)
(2)
(3)
3/4” Wrenches
HD HI
20 Attach this end of the Long Extension Arms (AL) to the
Backboard Brackets
HI HB
AL
Tighten the
Nut until it
is ush with
the Bolt.
AL
GA
GI
GI
GA
21
AS
HH01300
GC
(1)
(Not actual size)
(1)
(Not actual size)
GI
22
GC
AS
(2)
23
GD
AS
AR
(2)
GD
GD
HJ
(4)
AL
HB
HB
AK
24
HJ
AL
HD
HD
The Backboard and Rim should
be on the ground resting on
cardboard with the Extension
Arms facing up.
TWO PEOPLE REQUIRED FOR THIS STEP
TP
The Backboard must be on the
opposite side as the Bracket on
the Middle Pole.
AK
AL
AL
Table des matières
Autres manuels Reebok Équipement de fitness
Reebok
Reebok inversion table RBBE1996.1 Manuel utilisateur
Reebok
Reebok POWERLIFT 51564 Guide de l'utilisateur
Reebok
Reebok GB60 Manuel utilisateur
Reebok
Reebok weight bench RBBE0787.2 Manuel utilisateur
Reebok
Reebok EDGE series Manuel utilisateur
Reebok
Reebok S1 Bike Manuel utilisateur
Reebok
Reebok I-rower Manuel utilisateur
Reebok
Reebok FLOATRIDE+ FR30 Manuel utilisateur
Reebok
Reebok 75cm Manuel utilisateur
Reebok
Reebok 65cm Massage Ball Manuel utilisateur
Reebok
Reebok ASTRORIDE A6.0 BIKE Manuel utilisateur
Reebok
Reebok weight bench RBBE14210 Manuel utilisateur
Reebok
Reebok Accsy Rip60 Suspension Trnr Manuel utilisateur
Reebok
Reebok 55cm Manuel utilisateur
Reebok
Reebok One Series Manuel utilisateur
Reebok
Reebok Squat Stand Manuel utilisateur
Reebok
Reebok RBEL78010.3 Manuel utilisateur
Reebok
Reebok Rip:60 Manuel utilisateur
Reebok
Reebok crosstrainer C5.7e Manuel utilisateur
Reebok
Reebok FLAT BENCH Manuel utilisateur
