Record R62 Manuel utilisateur

User manual service display

record R62

automatic door systems - this is record!

Translation of the original manual

Table of contents

BAL_SD_R62_EN_2V2_BLA_121

-006454377 2/

Table of contents

Table of revision...............................................................................................

Instructions.......................................................................................................

1.1

Connecting the Service Display .....................................................................................................

1.2

Connection to the column on the entrance door entrance side .....................................................

Operating modes..............................................................................................

2.1

General presentation......................................................................................................................

2.2

Commissioning the record Service Display....................................................................................

2.3

Enter the access code....................................................................................................................

Parameter display ............................................................................................

Parameter overview..........................................................................................

Table of revision

BAL_SD_R62_EN_2V2_BLA_121

-006454377 3/

Table of revision

Instructions

General changes........................................................... 4

Parameter overview

General changes........................................................... 9

Instructions

BAL_SD_R62_EN_2V2_BLA_121

-006454377 4/

Instructions

Connecting the Service Display

Connect the Service Display to one of the sockets in the door or in the optional socket on the inside

column (secure side).

IMPORTANT

Please ensure that the “ON / OFF” switch is in the OFF position before connect-

ing and/or disconnecting the Service Display.

CAUTION

If the display is on (switch in the ON position) while being connected / discon-

nected

•this can lead to destruction of the control interface

Place switch in the OFF position

Connection to the column on the entrance door entrance side

Remove the protective cap and plug the Service

Display into the 9-pin socket (see picture).

1.1

1.2

Operating modes

BAL_SD_R62_EN_2V2_BLA_121

-006454377 5/

Operating modes

General presentation

The individual parameters and adjustable timer values are shown individually on the service display.

Access to the menus is via the blue rotary switch on the front of the Service Display as shown below.

▪Scroll through the menu by turning the Rotary

encoder

(1).

▪Confirm your selection by briefly pressing the

rotary switch

(1)

▪Press and hold the Rotary encoder

(1)

to re-

turn to the previous menu.

Access logic to the menus:

The cursor

(1)

indicates the current position in

the menu.

▪Turn the Rotary encoder to scroll through the

menu.

2.1

Operating modes

BAL_SD_R62_EN_2V2_BLA_121

-006454377 6/

Commissioning the record Service Display

Before using the record Service Display, it has to be configured in order to communicate with the PLC

(Programmable Logic Control).

Accessing the “SETUP” menu on the screen:

Connect the plug while keeping the rotary dial pressed.

Setting the communication speed:

Scroll down to “Set Baudate” and confirm

Set to “9600” and confirm

Return to the previous menu

Selecting the communication mode:

Select “Set Serial Mode” and confirm

Select “RS485 FTP” and confirm

2.2

Operating modes

BAL_SD_R62_EN_2V2_BLA_121

-006454377 7/

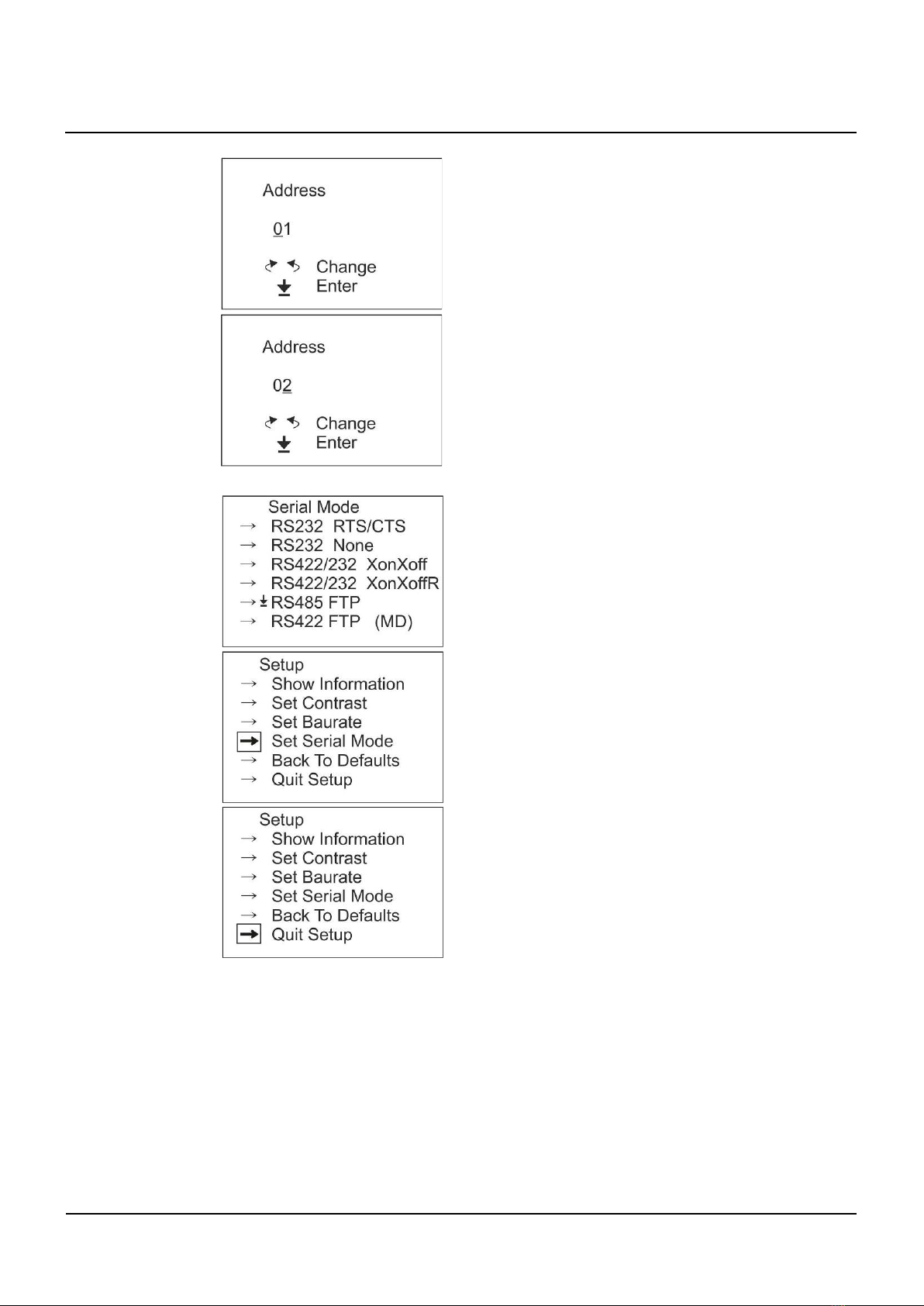

Choice of address:

“01” to add local address and confirm

“02” to add technician’s info and confirm

Change the address screen:

Return to the communication mode”

Exit “Serial Mode” menu

And exit the “Setup” menu

Enter the access code

Access tot he menu is protected by a code which restricts modification oft he parameter settings to

qualified and authorized personnel only.

No code is required to view the settings. Simply confirm to proceed tot he next menu.

Contact your record partner to obtain your access code.

2.3

Parameter display

BAL_SD_R62_EN_2V2_BLA_121

-006454377 8/

Parameter display

page layout

The following information is displayed:

▪Current program details

▪Software Version

▪Information message (current operating

mode, maintenance required, etc.)

▪Date and time of the system

Parameter overview

BAL_SD_R62_EN_2V

2_BLA_121-006454377 9/

Parameter overview

PARAMETERS

FACTORY

SETTINGS

DESCRIPTION

→

CUSTOMER

→ Customer

Parameter to select special customer functions:

= Standard

= Toronto

→

SENSOR

→ PSensorType

Select the type of sensor:

= no sensor

= contact mat

= IEE 3D – Tailgaiting sensor

= external approval

→

OPERATING MODES

→ LOCKED

→ PDetection

OFF

Protection against confinement in the LOCKED

operating mode:

: detection in the portal reopens the last

opened door

OFF

: doors close and lock (danger of confine-

ment)

→ SLUICE MODE

→ TPubOpenDelay

(ds)

Delay time to open the door "public side" in sluice

mode

→ TSecOpenDelay

(ds)

Delay time to open the door "secure side" in

sluice mode

→ TLedInterval

(ds)

Traffic lights interval in sluice mode

→ TPubWaitIN

(ds)

Time waiting for a person to go into the sluice

from the public side before the door closes again

→ TSecWaitIN

(ds)

Time waiting for a person to go into the sluice

form the secure side before the door closes again

→ TDelayIdle

(ds)

Delay time to check is door is empty

→ TTimeDecision

(sec)

Timeout waiting for verification (this could be an

external selection, finger print, contact mat sensor

etc.)

Parameter overview

BAL_SD_R62_EN_2V

2_BLA_121-006454377 10/

→ MAINTENANCE

→ PArea

PUB

Select from which side maintenance can be done:

PUB

= public side

SEC

= secure side

→ TLedIntervall

(ds)

Traffic lights blinking interval during maintenance

mode

→ Override

OFF

Switch on maintenance mode via Service Display

(in any operating mode)

→ CLEANING

→ TDuration

(min.)

Time allotted for cleaning mode

→ TWarningExit

(ds)

Warning signal (buzzer or optional voice mes-

sage), to exit the door as the cleaning time has

expired

→ PANIC

→ TPubOpenDelay

(ds)

Delay time to open the door "public side" in panic

mode

→ TSecOpenDelay

(ds)

Delay time to open the door "secure side" in panic

mode

→

TRAFFIC LIGHTS

→ PTrafficeLEDIdle

(green)

Color of traffic lights when the security portal is

empty:

= green

red

= red

→

LOCK-DOWN

→ PExitWay

PUB

Select which door will open as exit way when the

lock-down button is pressed. First the opposite

door will close for security reason.

PUB

= public side

SEC

= secure side

→

DOOR LOCKING

→ Safety locking

OFF

Locking function that always locks the opposite

door when one door isn't closed.
