Realtek Ameba RTL8195AM DEV01 Manuel utilisateur
Realtek Ameba RTL8195AM DEV01 User Manual
This document define pin out of Ameba RTL8195AM DEV.
Version 1.10
Document Number: UM0058
_______________________________________________________________
October 6, 2016 2
Table of Contents
1System requirements............................................................................................................... 3
2Hardware block diagram......................................................................................................... 3
3Pin out reference ..................................................................................................................... 4
4Antenna hardware setup.......................................................................................................... 5
5Peripherals support.................................................................................................................. 6
5.1 Pin function table setup................................................................................................... 6
5.2 Peripheral Descriptions................................................................................................... 7
6Hardware configuration .......................................................................................................... 8
6.1 CMSIS-DAP................................................................................................................... 8
6.2 J-Link/JTAG................................................................................................................... 9
6.3 DAP mode..................................................................................................................... 11
7Reference electrical schematics ............................................................................................ 12
8Sensor board.......................................................................................................................... 14
Document Number: UM0058
_______________________________________________________________
October 6, 2016 3
1System requirements
Windows PC (XP, Vista, 7)
USB type A to Micro-B USB cable x 1
RS-232 to UART board(debug) x 1, JTAG cable x1 (option)

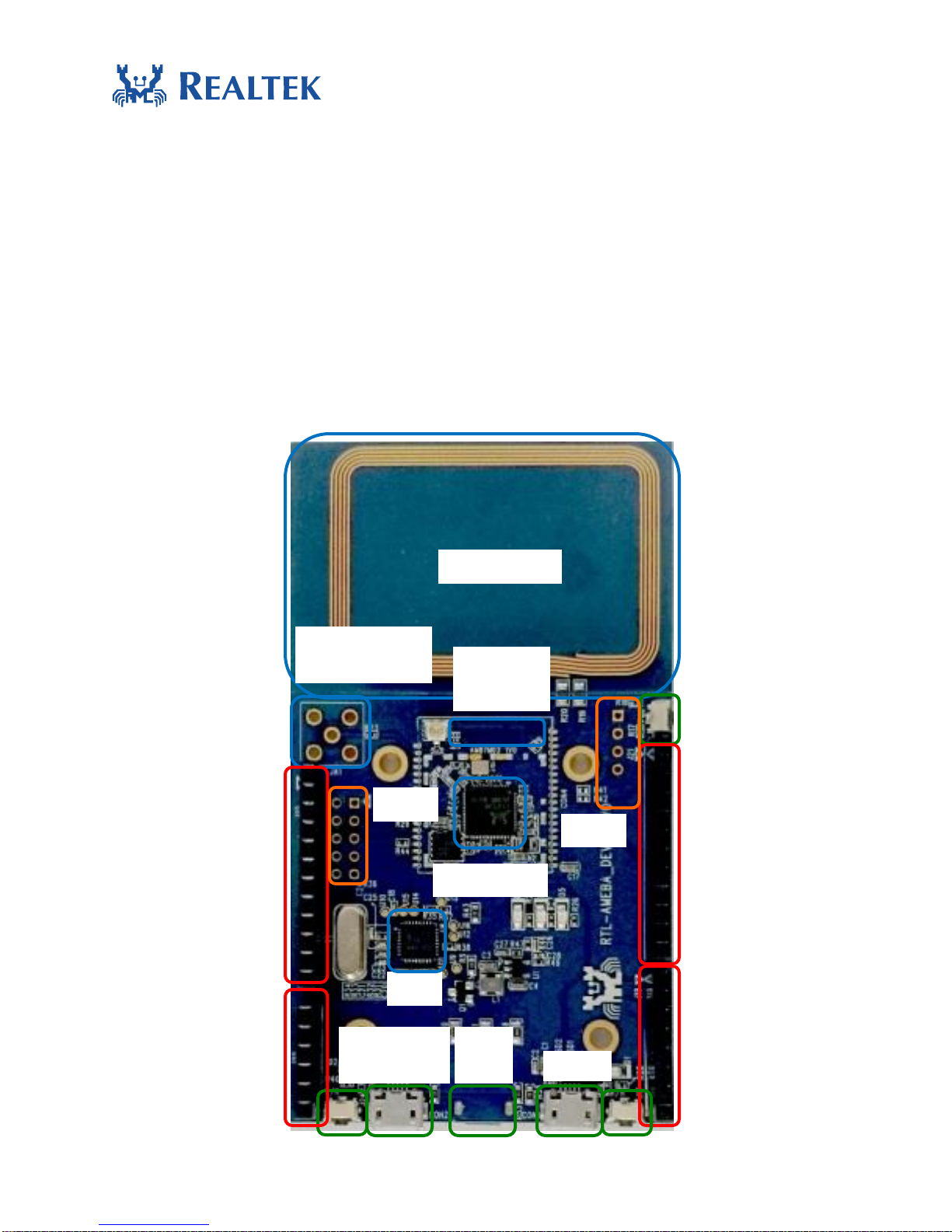

2Hardware block diagram
IC: RTL8195AM
Module HDK version: HDK-AM95A03_1V0
DEV HDK version: RTL-AMEBA_DEV01_1v1
DAP update
Mode button
DAP reset
button
NFC Antenna
Wi-Fi PCB
Antenna
Wi-Fi external
ANT connector
Ameba
reset button
USB
Host
DAP+DC
+serial port
DC 5V
J22
J20
J21
J19
RTL8195AM
DAP
J-TAG
UART
Document Number: UM0058
_______________________________________________________________
October 6, 2016 4

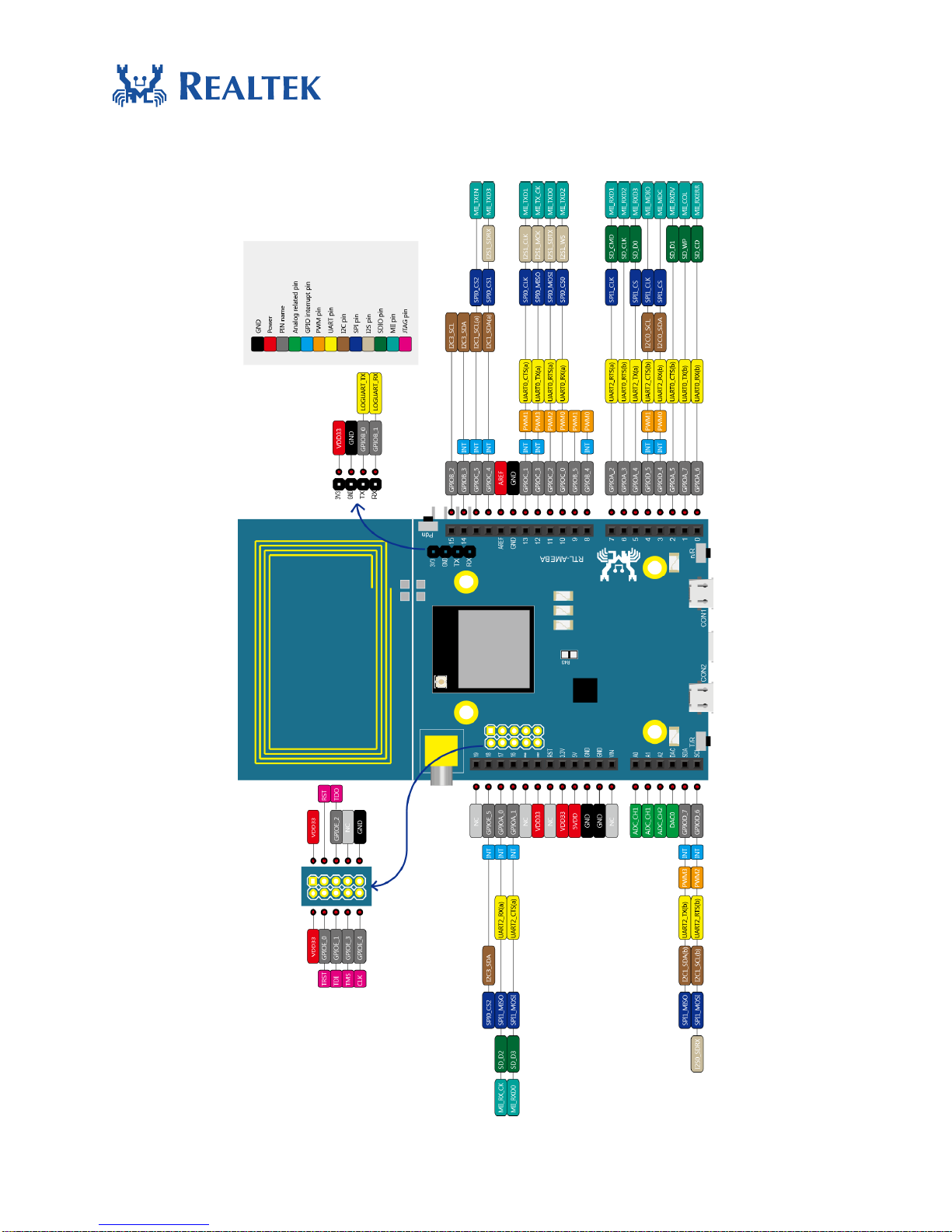

3Pin out reference
Document Number: UM0058
_______________________________________________________________
October 6, 2016 5
R20
6
R20
7
R20
8
4Antenna hardware setup
I-PEX/U.FL connector: R206
External antenna: R207
PCB antenna: R208
Document Number: UM0058
_______________________________________________________________
October 6, 2016 6
5Peripherals support
Debug UART: GPIOB_[0..1]
JTAG: GPIOE_[0..4]
5.1 Pin function table setup
Multiple functions are supported by group setup.
For example: GPIOA_6(Rx), GPIOA_7(Tx), GPIOA_3(RTS) and
GPIOA_5(CTS) are used if UART0 function. GPIOA_3(RTS) and
GPIOA_5(CTS) can not be used as other functions.
For example: GPIOC_0, GPIOC_1, GPIOC_2, GPIOC_2, GPIOC_3 are
used if PWM is occupied. GPIOC_1(PWM1) and GPIOC_2(PWM2) can
not be used as other functions.
NOTE1: PH = Pull-High, HI = High-impedance
NOTE2: GPIOA_1 needs external Circuit to do the pull high control; others’ pull
control can be done by register setting (including GPIOA_1’s PD).
JTAG
Debug console
I2S
PWM
SDIO
UART
UART
I2C
SPI
SPI
Document Number: UM0058
_______________________________________________________________
October 6, 2016 7
5.2 Peripheral Descriptions
Baud rate
UART
UART_LOG
38400 Hz
UART0
4 MHz
UART2
4 MHz
Clock rate
SPI
SPI0_Master
20.8 MHz
SPI0_Slave_TRx
4.1 MHz
SPI1_Master
41.6 MHz
SPI1_Slave_TRx
--
Clock rate
I2C
Standard mode
0~100 kb/s
Fast mode
<400 kb/s
High-speed mode
<3.4Mb/s
Document Number: UM0058
_______________________________________________________________
October 6, 2016 8
6Hardware configuration
6.1CMSIS-DAP
RTL-AMEBA_DEV01 supports CMSIS-DAP debugger. It requires installing
“serial to USB driver”at first. Serial to USB driver can be found in
tools\serial_to_usb\mbedWinSerial_16466.
Connect board to the PC with micro-USB cable.
Document Number: UM0058
_______________________________________________________________
October 6, 2016 9
6.2J-Link/JTAG
Weld JTAG and log UART connectors to HDK board and connect with pitch
2.54mm 2x5pins connector. It is recommended to weld the connector on the
bottom side. Users can connect extension boards from top side.
Dupont Line or 2.54mm 2x5 pins connector.
JTAG
UART
5V DC
Document Number: UM0058
_______________________________________________________________
October 6, 2016 10
Power On(Disable DAP mode)
Holding TGT_NRESET button (J24, red-circled) then press Pdn button (J13, blur-
circled). Release the button after power on.
J24
J17
J13
