RealFlame C9630LP Manuel utilisateur

If the information in this manual

is not followed exactly, a ﬁre or

explosion may result causing

property damage personal injury

or loss of life.

Improper Installation, adjustment,

alteration, service or maintenance

can cause injury or property

damage.

Read the installation, operation

and maintenance instructions

thoroughly before installing or

servicing this equipment.

IMPORTANT

WARNING

SAVE THESE INSTRUCTIONS

!DANGER

If you smell gas:

2. Extinguish any open ﬂame.

3. If odor continues, keep away from the appliance and

immediately call your gas supplier or ﬁre department.

C SU

For Technical Support Please Contact Real Flame® At: 1-800-654-1704

C9630LP Ventura Fire Table NG Conversion Kit

1. Shut o gas to the appliance.

PARTS LIST 00023102G

NATURAL GAS CONVERSION KIT

NOTE

This conversion kit is for changing a Liqueﬁed Petroleum (LP) ﬁre table into a Natural Gas

ﬁre table.

This conversion kit shall be installed by a qualiﬁed service agency in accordance with

Real Flame’s instructions and all applicable codes and requirements of the Authority

Having Jurisdiction. If the information in these instructions is not followed exactly, a ﬁre,

explosion or production of carbon monoxide may result causing property damage,

personal injury or loss of life. The qualiﬁed service agency is responsible for the proper

installation of this kit. The installation is not proper and complete until the operation of

the converted appliance is checked as speciﬁed in the manufacturer’s instructions

supplied with this kit.

WARNING

Natural Gas Hose and Quick Disconnect

NG Oriﬁce Spud #2.43mm

Primary Air Mixer Sleeve

Conversion Plaque

Cable Kit

C9630LP Ventura

Conversion

NATURAL GAS CONVERSION

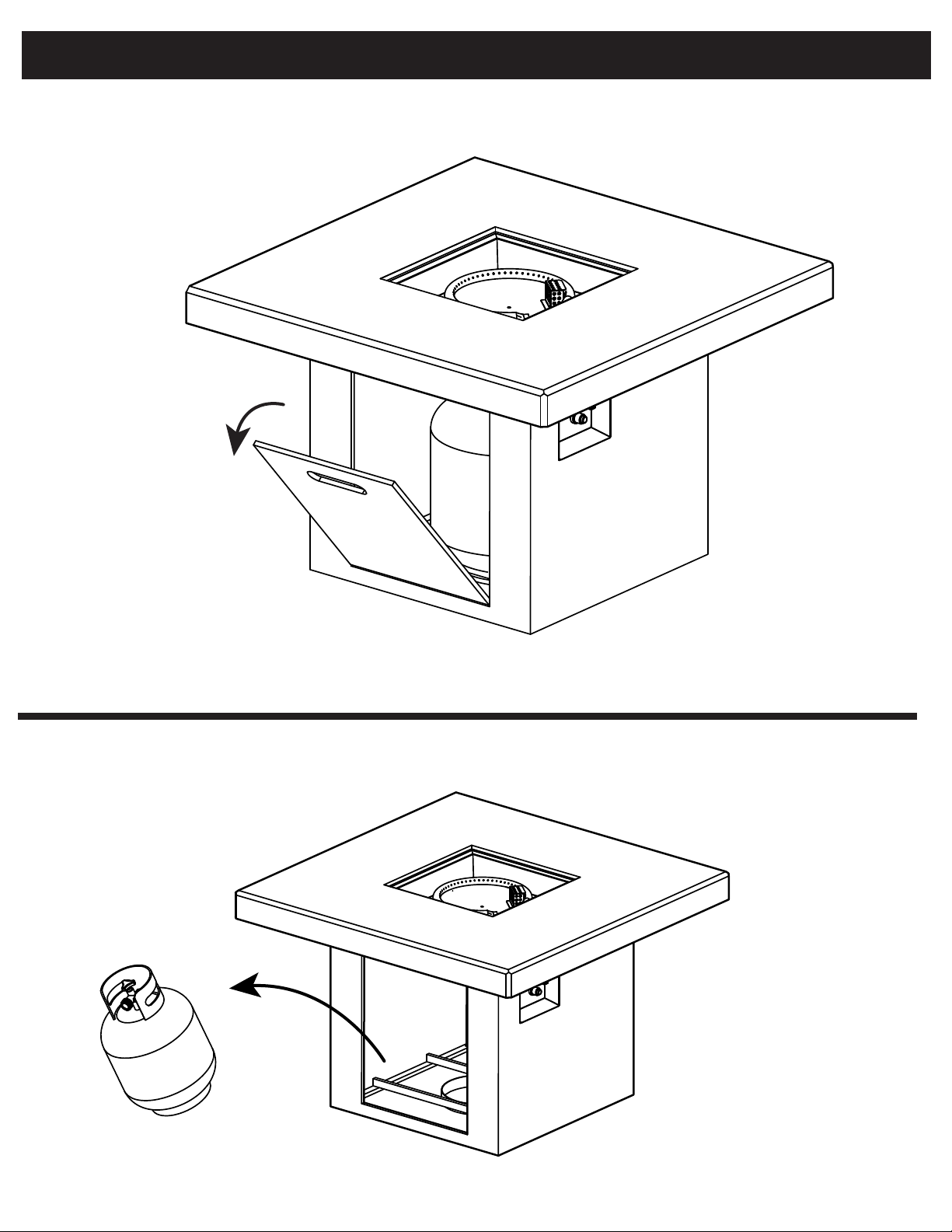

1.) Remove access door.

2.) Disconnect and remove propane tank.

NATURAL GAS CONVERSION

3.) Disconnect LP hose from valve.

4.) Disconnect bellows (CSST) from burner base.

Bellows

NATURAL GAS CONVERSION

5.) Remove the existing LP oriﬁce spud.

LP Oriﬁce Spud

NATURAL GAS CONVERSION

6.) Locate the new NG oriﬁce spud, verify it is the correct number.

The number 2.43 should be on the end of the oriﬁce spud.

7.) Slip sleeve over primary air opening. See ﬁg. 1

Next, screw the new NG oriﬁce spud into the burner base. See ﬁg. 2

Sleeve

Primary Air

Opening NG Oriﬁce

Spud

2.43

NATURAL GAS CONVERSION

8.) Re-attach bellows (CSST) to new spud.

9.) Attach NG hose to the input side of the valve.

Bellows

10.) Attach quick disconnect to gas supply.

NATURAL GASCONVERSION

House Natural Gas Piping

Quick Disconnect Socket

NG Gas Hose

To Fire Table

11.) After installing the conversion kit, verify the location of the

Thermocouple and Igniter Pin using the illustration below.

Installing at Altitude

For installations at elevations above 2000 ft. contact your local dealerorgas

supplier before installing as input rating should be reduced approximately 4%

for each 1000 ft. above sea level. Refer to the National Fuel Gas Code.

Contact the Real Flame for more information at 1-800-654-1704

12.) Note to installation technicians. Verify the manifold pressure by using a

3/8” ﬂared T-junction at the location marked by the arrow below. Then using

a digital manometer verify that the pressure before the oriﬁce is 7” W.C. Also

verify that the oriﬁce spud has the 2.43 marked. This will allow you to verify

that the input rating of the appliance is correct.

NATURAL GAS CONVERSION

Igniter

Thermocouple

To Manometer

14.) Cut the exis

French plaque and NG conversion plaque included with this kit to the ﬁre table using

the included cable kit.

Cut Cable Re-attach both plaques

NOTE: The proper manifold pressure for this converted appliance is 7” water column.

NOTE: The maximum inlet gas pressure for this unit is 10.5 in wc (2.61 kPa)

The minimum inlet gas pressure for this unit is 3.5 in wc (0.87 kPa)

NATURAL GAS CONVERSION

WARNING Before using this outdoor ﬁre table, make sure you have read, understand and

are following all information provided in the important Safety Information section of this

manual. Failure to follow those instructions can cause death, serious injury or property damage.

Check for leaks at these locations

13. CHECKING FOR LEAKS

Make a leak check solution by mixing 1 part dishwashing soap

with 3 parts water in a spray bottle.

Make sure the control knob is “OFF.”Then, turn the Natural Gas on

at its source.

Spray leak solution on the valve connections, paying particular

attention to the areas indicated by the arrows.

nect and re-test. If you continue to see bubbles after several

attempts, disconnect the Natural Gas Source and Contact Real

Flame® at 1-800-654-1704 for assistance.

If no bubbles appear after one minute turn the gas

source “OFF”, wipe away solution and proceed.
