Raymar DSP9612RM Manuel utilisateur
DSP9612RM USER’S GUIDE
0049-0519-000 Page i REV.D
DSP9612RM Flash Poll
Rack-Mount Modem
User’s Guide
DSP9612RM USER’S GUIDE
0049-0519-000 Page ii REV.D
The products and programs described in this User’s Guide are licensed products
of Raymar Information Technology, Inc. This User’s Guide contains proprietary
information protected by copyright, and this User’s Guide and all accompanying
hardware and documentation are copyrighted.
Raymar Information Technology, Inc. does not warrant that the hardware will
work properly in all environments and applications, and makes no warranty and
representation, either implied or expressed, with respect to the quality,
performance, merchantability, or fitness for a particular purpose.
Information in this User’s Guide is subject to change without notice and does not
represent a commitment on the part of Raymar Information Technology, Inc.
Raymar Information Technology, Inc. assumes no responsibility for any
inaccuracies that may be contained in this User’s Guide.
Raymar Information Technology, Inc. makes no commitment to update or keep
current the information in this User’s Guide, and reserves the right to make
changes to this User’s Guide and/or product without notice.
No part of this manual may be reproduced or transmitted in any form or by any
means, electronic or mechanical, including photocopying, recording, or
information storage and retrieval systems, for any purpose other than the
purchaser's personal use, without the express written permission of Raymar
Information Technology, Inc.
©Copyright 2010
Raymar Information Technology, Inc.
7325 Roseville Road
Sacramento, California 95842
Tel: 800-695-1951
Direct: (916) 783-1951
Fax: (916) 783-1952
DSP9612RM USER’S GUIDE
0049-0519-000 Page iii REV.D
Compliances
This device complies with Part 15A of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class A
digital device, pursuant to Part 15A of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and the receiver.
Connect the equipment to an outlet on a circuit other than the one to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
If none of these actions resolves the problem, consult your distributor or an
experienced radio/television technician for additional suggestions.
Additionally, Section 15.838, paragraph d), of the FCC Rules and Regulations
states: “Where special accessories, such as shielded cables, are required in order
to meet FCC regulations, shielded cables must be used with this equipment.
Operation with non-approved equipment or unshielded cables is likely to result in
interference to radio and TV reception. The user is cautioned that changes and
modifications to this equipment without the approval of the manufacturer could
void the user’s authority to operate this equipment.
DSP9612RM USER’S GUIDE
0049-0519-000 Page iv REV.D
Contents
CHAPTER 1 INTRODUCTION......................................1
FEATURES.............................................................................2
APPLICATIONS ......................................................................2
ANCILLARY DOCUMENTATION..............................................3
CHAPTER 2 INSTALLATION .......................................4
UNPACKING YOUR HARDWARE ............................................4
ADDITIONAL ITEMS YOU NEED.............................................4
HARDWARE OVERVIEW ........................................................4
Front View........................................................................4
Component View...............................................................5
INSTALLATION SUMMARY.....................................................7
CONFIGURING THE MODEM...................................................7
SW1 DIP Switch Settings..................................................8
SW2 DIP Switch Settings................................................11
SW3 DIP Switch Settings................................................14
INSTALLING THE MODEM....................................................18
CONNECTING TO A TRANSMISSION LINE .............................19
Modular Jack Connectors ..............................................19
Mass Termination Connector.........................................20
CONNECTING AN RS-232 DEVICE.......................................20
LEDS..................................................................................21
LOOPBACK CONTROL SWITCH ............................................21
APPENDIX A TROUBLESHOOTING.........................27
PROBLEM SOLVING.............................................................27
APPENDIX B SPECIFICATIONS................................24
GENERAL SPECIFICATIONS..................................................24
MECHANICAL SPECIFICATIONS ...........................................25
BACK-TO-BACK CONNECTIONS TO A SECOND MODEM.......26
RS-232 (RTU) Interface..................................................26
ENVIRONMENTAL SPECIFICATIONS .....................................27
APPENDIX C LIMITED PRODUCT WARRANTY...28
APPENDIX D RMA PROCEDURE..............................29
DSP9612RM USER’S GUIDE
0049-0519-000 Page 1 REV.D
Chapter 1
Introduction
Congratulations for purchasing the finest industrial-grade fast-poll rack-mount
modem available.
The Raymar-Telenetics DSP9612RM (Flash Poll) modem is a 9600/4800/0-1800
bps rack-mount modem designed for 4-wire, full-duplex or 2-wire, half-duplex
operation over a voice-band leased line. The modem is designed utilizing the
latest digital-signal processing (DSP) technology to achieve high performance.
The modem employs Raymar-Telenetics’ proprietary modulation and encoding
scheme to achieve fast modem training time. It is also backward compatible with
Bell 202 modems.
The modem can be installed in an RM16M Rack (16 slots, 3U) or the RMX Shelf
(2 slots, 1U) from Raymar-Telenetics. The modem occupies only one rack slot,
eliminating the hassle of equipment trays and power bricks required for “Stand
Alone” modems. The modem is powered from the modem rack.
The DSP9612RM modem is ideally suited for multi-point communication
systems that require fast response time, short training time, and low throughput
delay. The modem is the most technologically advanced rack-mount modem on
the market.
This User’s Guide is designed to let you get your modem “up and running” as
quickly as possible. It contains all the information you need to install and
configure your modem. It also contains troubleshooting information in the
unlikely event you encounter a problem with your modem.
DSP9612RM USER’S GUIDE
0049-0519-000 Page 2 REV.D
Features
Though functionally similar to commercial modems, the DSP9612RM provides
the following unique features that make it well suited for utility and industrial
applications.
Requires only one rack slot.
Operates over voice-band conditioned or unconditioned leased line and
pilot wires.
Operates without human intervention, making it ideal for unmanned
locations.
Works within an extended temperature range of -40ºC to +85ºC.
Designed with coupling transformers for high-voltage isolation and
common mode noise rejection in industrial and commercial environments.
Asynchronous data rates (selectable) of 9600, 4800, and 0-1800 bps.
Easily accessible DIP switches for user configuration and option selection.
Local analog, local digital, and remote digital loopback diagnostics.
Applications
The DSP9612RM modem is designed for point-to-point and multipoint data
communications. Figure 1-1 shows a typical multipoint configuration.
Figure 1-1. Network of Multipoint Configuration
DSP9612RM USER’S GUIDE
0049-0519-000 Page 3 REV.D
There are a number of factors that can affect the network’s and modem’s
operation and performance. These include:
Operating speed
2-wire or 4-wire configuration
Transmission line characteristics, noise, and line impairments
Network configuration (point-to-point or multipoint)
Number of nodes on the network
Ancillary Documentation
For information about how to adapt an AC powered DSP9612RM modem to a
DC power operation, refer to the included documents (0062-0117-001). Also
refer to the RM16M Installation and Operation Guide (TEL-6200508506004).
DSP9612RM USER’S GUIDE
0049-0519-000 Page 4 REV.D
Chapter 2
Installation
This chapter describes how to install the modem.
Unpacking Your Hardware
Your package should include:
At least one DSP9612RM modem
This User’s Guide (on CD)
If your package contents are damaged or missing, please contact your place of
purchase immediately.
Additional Items You Need
To use your modem, you need the following additional items:
An RM16M Rack or an RMX Shelf from Raymar-Telenetics
A two- or four-wire transmission line or leased line
Hardware Overview
Front View
Figure 2-1 shows a front view of the DSP9612RM modem. Starting from the top,
this view shows:
A loopback test switch. See page 21.
A set of eight LEDs. See page 21.
DSP9612RM USER’S GUIDE
0049-0519-000 Page 5 REV.D

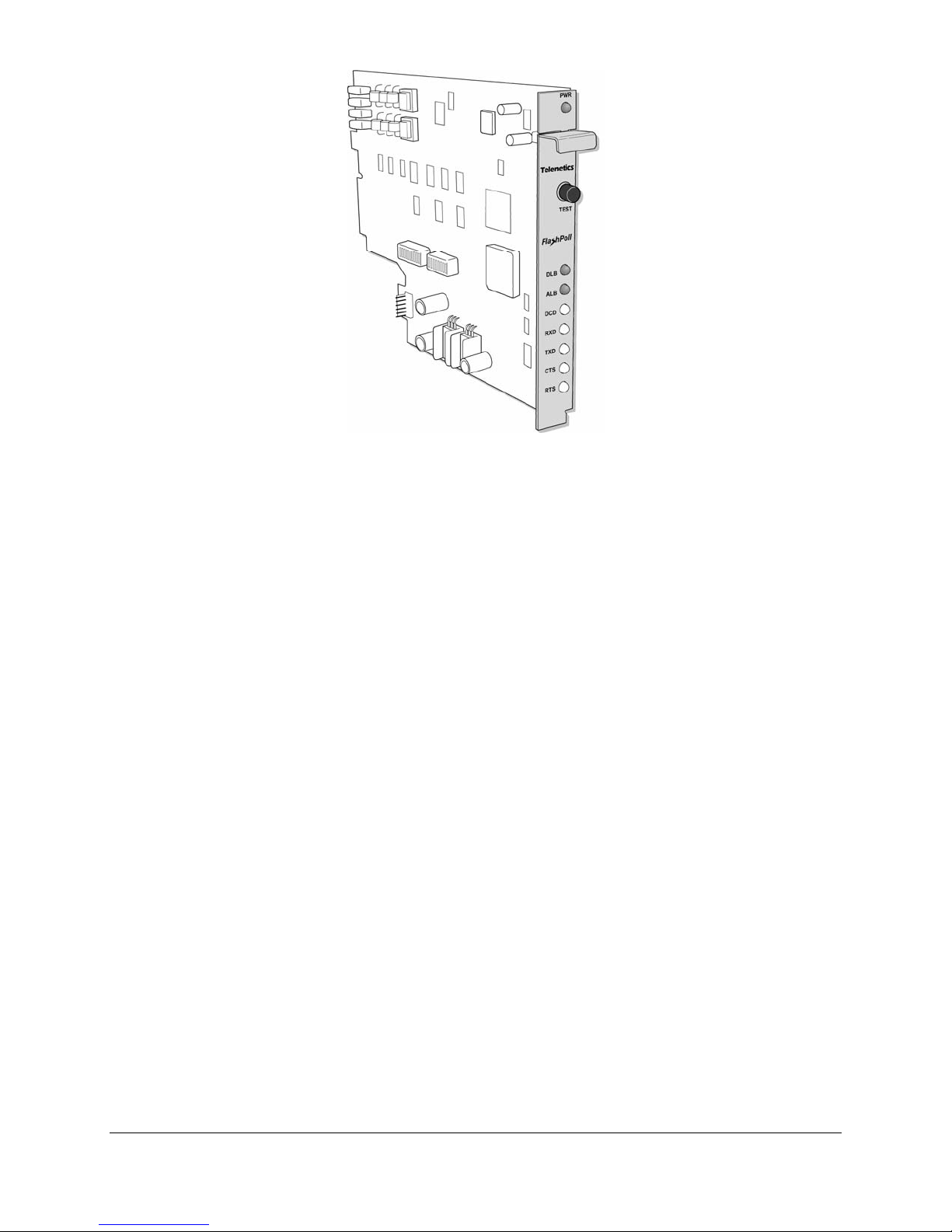

Figure 2-1. Front View of Modem
Component View
Figure 2-2 shows the component view of the modem. This view shows:
Three configuration switch blocks, designated SW1, SW2, and SW3. See
page 7.
Jumpers located in various positions on the modem. Do not change or
remove the straps from these jumpers.
Edge connectors at the back of the modem, which plug into the backplane
of an RMX Shelf or an RM16M Rack from Raymar-Telenetics.
DSP9612RM USER’S GUIDE
0049-0519-000 Page 6 REV.D
Figure 2-2. Component View of Modem
Edge Connectors Configuration
Switch Blocks
Switch Block
SW2 Switch Block SW1
Switch Block SW3
Table des matières
Autres manuels Raymar Modem
Raymar
Raymar MOT202TSA Manuel utilisateur
Raymar
Raymar Myriad MD202T Manuel utilisateur
Raymar
Raymar Hidex HXII Manuel utilisateur
Raymar
Raymar DSP9612 Manuel utilisateur
Raymar
Raymar Telenetics MIU9.6FPD Manuel utilisateur
Raymar
Raymar Myriad MD9612FP Manuel utilisateur
Raymar
Raymar RMX-2 Mode d'emploi
Raymar
Raymar Alliance V.34M Manuel utilisateur
Raymar
Raymar HIDEX Manuel utilisateur
Raymar
Raymar 326X V.34 Series Manuel utilisateur
Raymar
Raymar MIU202T Manuel utilisateur
Raymar
Raymar Telenetics MIU14.4L Manuel utilisateur
Raymar
Raymar V.32M/14.4 Manuel utilisateur
Raymar
Raymar 3460 Manuel utilisateur
Raymar
Raymar 2.4 MIU/PowerPort Series Manuel utilisateur
Raymar
Raymar BBI-14.4 Manuel du propriétaire
Raymar
Raymar ASTRO 25 Analog Modem II Manuel utilisateur
Manuels Modem populaires d'autres marques
Davicom
Davicom DM562AP Manuel utilisateur
EpiValley
EpiValley TATA indicom SXC-1080 Manuel utilisateur
Zte
Zte WiMAX Manuel utilisateur
Intelimax
Intelimax MA-2060 Manuel utilisateur
SMC Networks
SMC Networks D3CM1604V Manuel d'utilisation et d'entretien
Telstra
Telstra Wi-Fi 4G Advanced Pro X Manuel utilisateur
US Robotics
US Robotics 3453C Manuel utilisateur
MaxTech
MaxTech Plug & Play Internal Voice/FAX/Data/SVD... Manuel utilisateur
Zte
Zte MF823 Manuel utilisateur
Four-Faith
Four-Faith F1403 Manuel utilisateur
Sierra Wireless
Sierra Wireless AIRLINK MP595W Manuel utilisateur
Gemtek
Gemtek WiMAX WIXFBR-103 Manuel utilisateur
