Rasmussen SPK3E Manuel utilisateur

THE GAS LOG COMPANY

Wireless On/Off

Remote

(SR-2R)

Wireless On/Off

Remote with

Thermostat

(THR-2R)

Wireless Wall

Switch

(WS-2R)

Wireless Wall

Thermostat

(TS-2R)

HI/LODC

Motor Drive

(STV-VMD)

Wireless Wall Timer

(30/60/120 Minutes)

(WT-2R)

UPGRADE OPTIONS

“RE” “Variable Flame Height” Remote Control

Upgrade Kit (RE-UP1)

Kitto upgrade from “ME”or “SE” to“RE”functionality.Includes:

DCMotor Drive,Receiver, Transmitterand batteries.

Our optional Ceramic Log House accessory (RH2) offers heat

protection for the Battery Pack/Receiver while being pleasing

to the eye.

Variable Flame Height Remote Control Transmitter (STR-RMD)

Battery Pack/Receiver

(BPR3)

Latching Solenoid for Remote

Ready (STV-LS) Battery Pack/Receiver

(BPR3)

“SE” “Remote Ready” Upgrade Kit (SE-UP1)

Kit to upgrade from “ME” to “SE” functionality. Includes:Solenoid, Receiver

and batteries. One offour Wireless Remote Transmitter Devices* is also

required (each sold separately, see below)

*Wireless Remote Transmitter Devices (each sold separately)

See instructions included with remote devices for operation.

SPK3E PARTS LIST

5. 10-32 x 3/8 bolts (qty. 3)

6. 10-32 Hex nut (qty. 3)

7. Valve Knob Extender (STV-KE2)

8. 10” flex Connector (SSCB-10)

9. Pilot-Thermocouple Assembly (J95R -NG or -LP)

10. “EASY” Safety Valve (STV-10) and Heat shield (HS-ST1)

1. Air Mixerfor LP Gas Burner Inlet Assembly (MA2)

2. Burner Orifice #’s 45, 49, 51,53 (01-XX)

3. Internally Tapped 3/8 Flared x 3/8 MIP Elbow (A2T)

4a. Pilot Support Bracket for F & TNA burners (PB-1)

4b. Pilot Support Bracket for CS & CXF burners (PB-2)

4c. Thermocouple Heat Shield for left side gas supply (PB-4)

REQUIRED TOOLS AND MATERIALS

Adjustable Wrench, PipeWrench, Flat Head Screwdriver, Phillips Screwdriver, Pipe Sealing compound

(Only required if fittings not already prepared with pre-wrapped Teflon thread tape).

SPK3E - Manual “ EASY” Control

General Assembly,Installation, and Operation Instructions for use with Natural Gas Burners;

F, FX, CS, CXF, TNAor Propane GasBurners: FA,FAX, CA, CXFA, TNA/LP

(Green mark indicates Natural Gas,

Red indicates Propane Gas)

2 3 4a

ATTENTION! READ INSTRUCTIONS CAREFULLY BEFORE ASSEMBLY

INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE ●CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE

REV: SPK3E-0910

Last Printed 9/17/2010

Owner’s Manual

12028 E. PHILADELPHIA ST.

WHITTIER, CA 90601 U.S.A.

www.rasmussen.biz

Report # 10-38

With the PILOT THERMOCOUPLE ASSEMBLY (Figure 2A) attached to the PILOT SUPPORT BRACKET (Figure 2B),

insert the 10-32 BOLTS (Figure 2C) through the pre-drilled holes of the Pilot Support Bracket and into the threaded

holes of the Pilot Thermocouple Assembly (Figure 2A). Tighten with flathead screwdriver.

STEP TWO: ATTACH PILOT (Figures 2 thru 5)

NOTE: The following pilot attachment instructions apply to each burner model shown in Figures 2 thru 5.

FIGURE 2 (F, FX, FA and FAX Burners)

B) Pilot Support

Bracket

E) 10-32 nut

C) 10-32 bolts

F) Burner Pipe

FIGURE 3

CS/CA Burners

10-32 bolts

ASSEMBLY

STEP ONE: BURNER PAN FITTINGS (Figure 1)

NOTE: If fittings do not come pre-wrapped with Teflon threaded tape, pipe compound must be applied to the non-flared

threads.

1. Ensure that the BURNER PLUG (Figure 1A.) is inserted into the opposite end of the BURNER PIPE (Figure 1B)

and wrench tightened.

2. Thread the Natural Gas or Propane Burner Pan Inlet Assembly into the BURNER PAN (Figure 1C).

• Natural Gas Burners (NG) (F, FX, CS, CXF, TNA) Insert theBURNER ORIFICE (Figure 1D) into the INTERNALLY

TAPPED 3/8 FLARED x 3/8 MIP ELBOW (Figure 1E)and wrench tighten. (Orifices and Fittings are provided with the

Burner Pan)

• Propane Burners (LP) (FA, FA-X, CA, CXFA, TNA/LP) requiresMA (Figure 1F) or MA-2 (Figure 1G) AIR MIXER

ASSEMBLY. Insert the Internally Tapped 3/8 Flared x 3/8 MIP Elbow and wrench tighten. Thread the Air Mixer onto

the 3/8 Flared x 3/8 MIP Elbow and wrench tighten with air intake hole positioned horizontally and parallel with the floor.

A) Burner Plug

B) Burner Pipe

C) Burner Pan

E) Internally Tapped 3/8 Flared x 3/8

MIP Elbow

FIGURE 1

G) Air Mixer For CA Burner Inlet Assembly (MA)

(Supplied with burner only)

F) Air Mixer For LP Gas Burner Inlet Assembly (MA2)

D) Orifice

Propane Burner

Inlet Assembly

Natural Gas Burner

Inlet Assembly

A) Pilot Thermocouple Assembly

Pilot

Thermocouple

Assembly

A) 10” FLEX CONNECTOR

B) VALVE OUTPUT 3/8 FLARED FITTING

C) BURNER INPUT

3/8 FLARED x 3/8

MIP ELBOW

VALVE INPUT

VALVE OUTPUT

3/8 FLARED FITTING WITH

10” FLEX CONNECTOR ATTACHED

VALVE INPUT 3/8 FLARED FITTING

(Attach to Gas Supply)

PILOT INPUT

FIGURE 4 (CXF AND CXFA Burners

Pilot Thermocouple

Assembly

10-32 bolts

FIGURE 5

(TNA / TNA-LP Burners)

10-32 nuts

& bolts

Pilot

Thermocouple Assembly

FIGURE 6

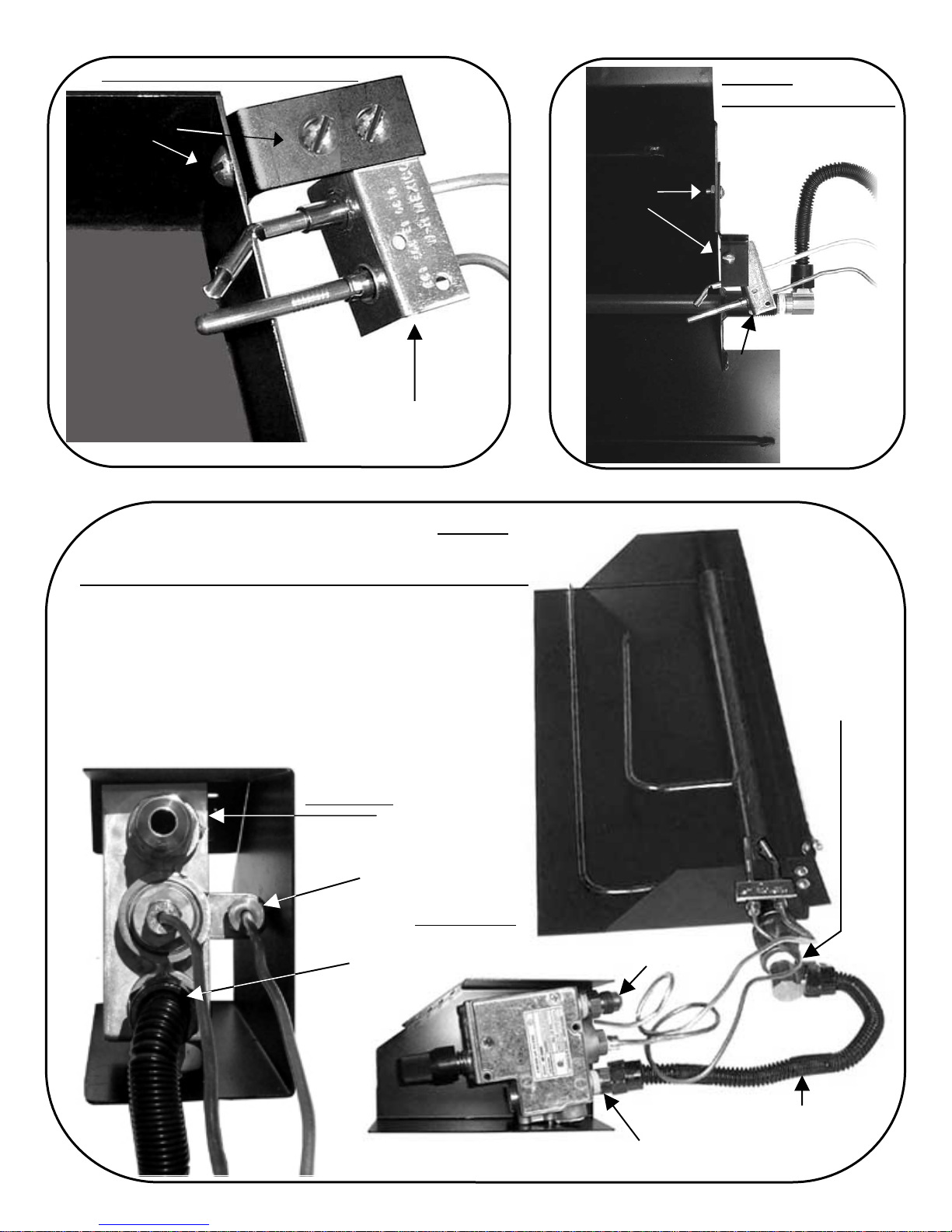

Connect 10” FLEX CONNECTOR (Figure 6A) between the

flared ends of the VALVE OUTPUT 3/8 FLARED FITTING

(Figure 6B) and the BURNER INPUT 3/8 FLARED 3/8 x

MIP ELBOW (Figure C). Bend the 10” Flex Connector to the

optimum Valve position (forward and to the side of the Burner

pan, low to the floor).

STEP THREE: CONNECT BURNER AND PILOT GAS SUPPLY

10-32 bolts

Pilot Thermocouple

Assembly

Internally Tapped 3/8 Flared x 3/8 MIP Elbow

Burner Plug

Burner Pipe

Air Mixer For LP Gas

Burner Inlet Assembly

10” Flex Connector

Burner Pan

Pilot Thermocouple Assembly

Burners

B) “EASY” Safety Valve

Heat Shield

LEFT SIDE GAS SUPPLY CONNECTION

Attach the Pilot Support Bracket (PB-1) to the left side of the burner pan using a 10-32 nut and bolt (Figure 7A), then place the

Pilot Thermocouple Assembly overthe bracket aligning the two screw holes (Figure 7b). Place the Thermocouple Heat Shield

over the Thermocouple Assembly and bolt onto the Pilot Support Bracket using the supplied 10-32 nuts and bolts (Figure 7C).

Burner Plug

SUGGESTED FIREBOX LAYOUT AND REQUIRED PARTS

The “EASY” Safety Valve can be adversely affected by heat and must be placed as far forward and to the side of the

burner pan as possible (Figure 8B). It may also be placed open face side down with heat shield up as shown in

Figure 8C. The example below shows an FX style burner. For other styles of burners see next page.

10-32 nut

10-32 bolt

Pilot Support

Bracket

(PB-1)

A) B)

Gas Supply Pipe

FIGURE 7

Thermocouple

Heat Shield

(PB4)

FIGURE 8

FURTHER SAMPLES OF FIREBOX LAYOUT

TNA STYLE BURNER

CXF AND CXFA STYLE BURNER

CS AND CA STYLE BURNER

Burners

Burner Plug

Burner Pipe

Flex Connector

Heat Shield

Pilot Thermocouple Assembly

Internally Tapped

3/8 Flared x 3/8 MIP Elbow

Burners

Burner Pipe

Burner Pan

Pilot Thermocouple Assembly Flex

Connector

Heat Shield

Burner Pipe

Burner Pan

Pilot Thermocouple Assembly

Flex Connector

Heat Shield

“EASY” Safety Valve

Each shown with “EASY” Safety Valve placed asfar forward and to the side of the burner pan as possible.

“EASY” Safety Valve

LIGHTING AND OPERATION

VALVE

PLUG

B) PILOT ADJUSTMENT

SCREW

A) VALVE KNOB

C) KNOB POSITION INDICATOR

FIGURE 9 “EASY” SAFETY VALVE

1. Turn VALVE KNOB (Figure 9A) to “PILOT” position.

2. Depress and hold until air is bled and gas flows to Pilot

(Figure 10A).

3. Light Pilot with a Match or Lighter.

4. Once Pilot is lit, continue to depress and hold until the

Pilot flame remains lit (approximately 30 to 60 seconds).

5. If Pilot does not remain lit, depress and turn Valve Knob

clockwise to “OFF” position and wait at least 5 minutes to

allow gas to dissipate. Repeat steps 1 thru 4.

STEP ONE: PILOT LIGHTING

1. The Pilot flame should be steady, surrounding the

THERMOCOUPLE TIP (Figure 10B).

2. If pilot flame adjustment is necessary, use a narrow long stem flathead

screwdriver to turn PILOT ADJUSTMENT SCREW (Figure 9B) above.

3. Turn clockwise for less flame, counterclockwise for more.

4. If after pilot adjustment the burner begins to shutdown,

re-adjust for a longer pilot flame.

STEP TWO: PILOT ADJUSTMENT

FIGURE 10

PILOT THERMOCOUPLE

ASSEMBLY

A) PILOT

B) THERMOCOUPLE TIP

STEP THREE: BURNER OPERATION

1. Turn VALVE KNOB counter clockwise to “ON” position (Figure 11A).

2. Adjust the burner flame height by turning the valve knob clockwise to

lower and counter-clockwise to raise up to full on.

NOTE: The VALVE KNOB has complete control of gas to the pilot and

burner. It cannot be turned to “OFF” without first depressing dial to the

“PILOT “ position and then rotating clockwise to “OFF” (see figure 9A).

During the heating season leave valve knob in “PILOT” position for

convenience. Otherwise, turn to “OFF” position for any prolonged non-use.

FULL ON LOWER

FIGURE 11

IMPORTANT! READ THESE WARNINGS PRIOR TO OPERATION IMPORTANT!

• CHIMNEY DAMPER MUST BE WIDE OPEN! The flue must vent all products of combustion. Damper and glass

doors MUST be fully open before lighting or burning for proper ventilation and to prevent heat damage to valve.

• Your gas log set should be operated for the first 2-3 hours at a low flame setting to allow tempering of the

refractory logs.

• DO NOT REMOVE HEAT SHIELD (Figure 8A). It is intended to prevent premature valve failure and voiding

of warranty. Replace immediately if removed for any reason.

• The “EASY Safety Control Valve must be protected to a maximum ambient temperature of 225° F. Excessive heat

to the valve is indicated by melted plastic or wiring on the valve body and is not warrantable.

• Allow an adequate period of cooling after use before closing glass doors.

• NEVER operate your gas log set with glass doors closed.
