Master valve :

The terminal marked “P” is used to activate a Master

Valve. It is STRONGLY RECOMMENDED to use a

Master Valve to ensure proper operation of your system

in case, for example, the valve wiring is accidentally cut,

etc

Important :

Maximum distance between the controller and the valves

using wire sized 1.5mm²: 30m

WIRING TO THE ELECTRIC VALVE

Controller capacity

1 Rain Bird 9V latching solenoid per station and possibility to use 1 master valve

equipped with a Rain 9V latching solenoid for the system

Make sure all wire from the controller to the valves is code-approved for

underground low voltage use. Select the suitable wire size. All connections to the

valve leads and any splice in the field must be watertight. Use Rain Bird Quick

Connect “King” connectors supplied with the product or “DBY” connectors.

See wiring diagram below.

Rain Bird 9V

latching

solenoid

All manuals and user guides at all-guides.com

WIRING TO THE ELECTRIC VALVES

:Valve box

Use Rain Bird 9V

latching solenoid for

each valve.

B: master valve with

Rain Bird 9V latching

solenoid

All manuals and user guides at all-guides.com

WIRING TO THE RAIN SENSOR

Active Rain Sensor input immediately stops watering if it rains.

Note: The icon will appear in all screens when the rain sensor is activated.

Rain Sensor RSD-BEx (option)

All manuals and user guides at all-guides.com

CONNECT THE BATTERIES

Note: To prolong battery life, the screen automatically goes blank after 1 minute if no keys

are pressed.

Important : This icon means you must replace batteries. Use only a top quality

brand such as Varta or equivalent.

Always replace both batteries

simultaneously

Start-up / Programming:

Connect 2- top-grade 9V alkaline

batteries (6AM6/6LR61) Varta or

equivalent.

As soon as the batteries are

installed, this screen appears:

All manuals and user guides at all-guides.com

ACCESS TO PROGRAMMING AND BASIC MENU

BASIC MENU

1/ Ecran par défaut (écran d’état)

2/ Réglage du Rain Delay

3/ Water Budget

4/ Démarrage manuel d’une station

5/ Démarrage manuel d’un cycle

6/ Test de toutes les stations

7/ Position ON/OFF

1/ Set Clock and current day

2/ Set water days

3/ Set length of watering time

4/ Set time to start watering

5/ Controller status screen

Or press simultaneously

All manuals and user guides at all-guides.com

all-guides.com

1.1/ PROGRAMMING MENU

WP-series have a « protected » programming menu to avoid

accidentally modifying the programming schedules. You can access

this menu by :

- Connecting the batteries

- Pressing both keys simultaneously and .

Note : As soon as you are in the programming menu, " PROG " appears on the screen.

Set clock and day

Note : if those 3 parameters are already set, press the key to move to next screen.

1.1.1/ Set current time of the day

Use the and keys to set the hours.

To confirm and move to next step press the key.

Use the and keys to set the minutes.

If you want to go directly to the next step and confirm this setting press the key.

All manuals and user guides at all-guides.com

1.1.2/ Set current day.

Press the key to move the square cursor through the days of the week numbered 1 to 7 (

1= Monday, 2= Tuesday, etc.). Place the cursor on the current day of the week.

Example: Today is Wednesday. Place the cursor on « 3 ».

Press the key to confirm and move to the next screen.

1.2/ Set water days

Press the key to move the square cursor through the days of

the week numbered 1 to 7.

Use the and keys to set or cancel water days.

The key cancels water days and the square disappears.

To set a water day, place the cursor on the corresponding day number and press the

key.

Press the key to set water days for the next program if desired. Repeat the above steps to

set or cancel water days.

Press the to confirm and move to the next screen.

All manuals and user guides at all-guides.com

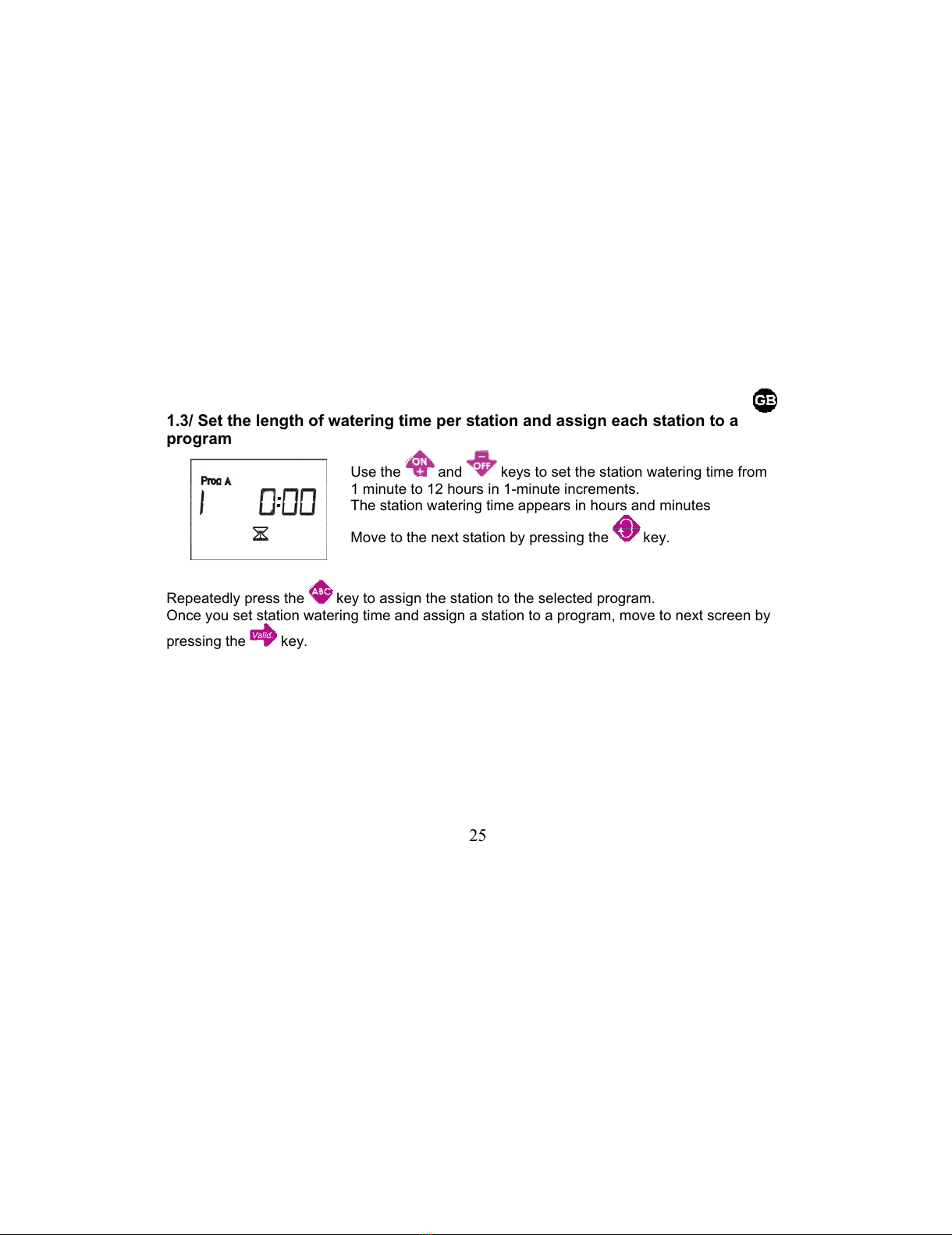

1.3/ Set the length of watering time per station and assign each station to a

program

Use the and keys to set the station watering time from

1 minute to 12 hours in 1-minute increments.

The station watering time appears in hours and minutes

Move to the next station by pressing the key.

Repeatedly press the key to assign the station to the selected program.

Once you set station watering time and assign a station to a program, move to next screen by

pressing the key.

All manuals and user guides at all-guides.com

1.4/ Set time of the day to start watering

You can start a watering cycle up to 8 times per day and per

program if you prefer short watering cycles. Select the desired

program by pressing the key to set the first start time;

Use the and keys to set the first start time. Then press

the key to move to the next start time.

Repeat above procedure;

Note: It is not necessary to use all 8 start times. The controller will

automatically file your start times in chronological order from 00:00

to 23:59.

To cancel a start time : Press the key to display the start

times. When you see the start time you want to cancel, press the

or keys until you see this screen (between 11 :59 and

12 :00 and between 23 :59 and 00 :00).

Once all start times are set for all your programs, basic programming is complete.

Press the key to leave the programming menu and move to controller status screen.

All manuals and user guides at all-guides.com
