SR2611-2S-S2

User Manual

Index

Check Package Contents and Accessories......................................................... 3

Hardware Introduction......................................................................................... 4

System Requirement & Environment Requirement and Notices......................... 4

Hardware Installation Procedure......................................................................... 5

Connecting SR2611 to your computer................................................................. 6

Setting the Hard Drive Array Mode...................................................................... 7

Installing a brand new hard drive and a hard drive with existing data................. 7

Computer Set Up................................................................................................. 8

Hard Disk status on LCD screen......................................................................... 9

Appendix: Trouble Shooting/Q&A........................................................................ 11

Check Package Contents and Accessories

SR2611 system includes the following:

Item Quantity

SR2611 1

Removable Carrier 2

Internal RS232 cable 1

External RS232 cable 1

45cm SATA Cable 1

Product CD 1

Accessory bag 1

(includes 6#-32 screws x 8 pcs , Key for keylock x 2)

SR2611 Removable Carrier

Internal RS232 cable

45cm SATA Cable Product CD

External RS232 cable Accessory bag

Note : Please check above parts are included prior to installation. The accessory bag

contains screws and a plastic key.

SATA

Check Package Contents and Accessories 3

Hardware Introduction

Front Panel Real Panel

1LCD Panel 2HDD Tray 1eSATA Port 2Power Socket

3Mute Button 4Key Lock 3RS232 Port 45cm Fan

5HDD Access LED 6Fail LED

Note :

Status Indications of LEDs:

HDD Access LED will ash yellow when the data is accessed from the hard drive.

Fail LED will light red when HD failed, temperature is higher than 60 C or fan fails.

System Requirement & Environment

requirement and notices

Hardware Requirement

1. Computers or servers with SATA I& SATA II

2. Hard drive with SATA-1 & SATA-2

3. The computer or server must run on the Windows system and has RS232 port to install

the RAID Guide GUI software.

Environment requirement and notices

1. SR2611’s brilliant design allows the user to simultaneously utilize two hard drives manu

factured by different companies. However, if the user expects better efciency, we strongly

recommend the users to use hard drives manufactured by the same manufacturer.

2. Since the system uses more stringent factors to determine the disk corruption in the hard

drive, please use noncorrupted hard drive with minimum storage capacity of 20 GB.

3. Please don’t set any MASTER or Single Drive mode for rst and second hard drive

inSR2611, the system will detect the hard drives automatically.

4. The SR2611 had undergone strict hard drive compatibility test. The result shows that it is

compatible with most hard drives on the market such as Maxtor, Western Digital, Seagate,

Fujitsu, Hitachi, and etc. However, due to the new types of hard drives appearing on the

market, if your hard drive is not compatible with the system, please contact us through the

153

SATA

+5V +12V

GND FAN RS232

4 Hardware Introduction System Requirement & Environment requirement and notices

following email:[email protected] and we will reply as soon as possible.

5. The SR2611 is equipped with a 5.2 cm ball bearing cooling fan that will provide effective

cooling for the 7200&10000 rpm hard drive. We highly recommend using computer

chassis with effective cooling design to avoid disk array crashing due to ineffective

cooling.

6. SR2611 supports RAID 1 only.

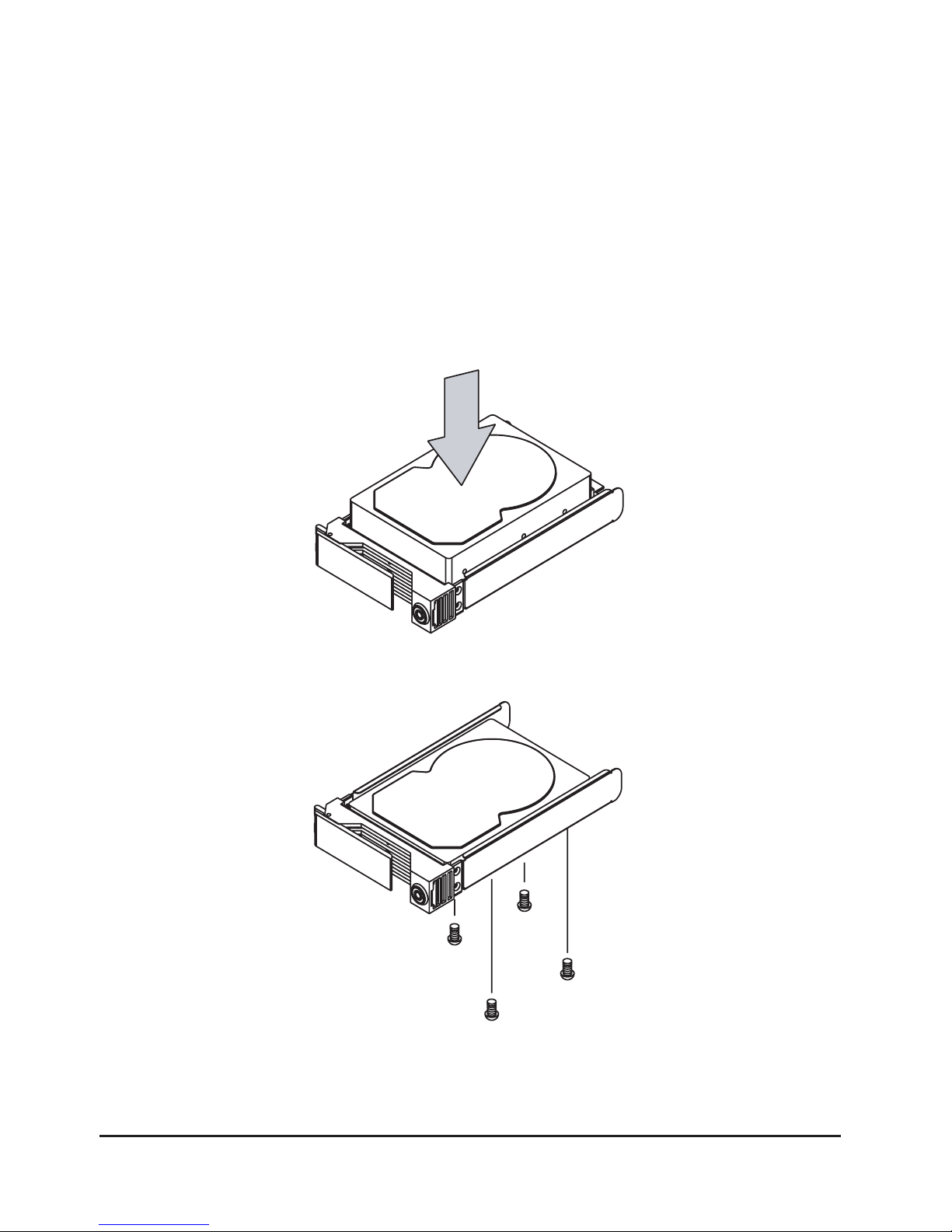

Hardware Installation Procedure

1. Connect the SATA cables on the removable hard drive carrier to the pins of hard drive.

2. Secure the hard drive into the removable hard drive carrier by the screws which provided

in the accessory pack.

Hardware Installation Procedure 5

Connecting SR2611 to your computer

1. Connect DC12V&5V power cables and SATA cables to SR2611.

2. Secure RS232 set on the SR2611 machine

3. Connect SR2611 to the motherboard COM 1 with RS232 cables which included in the ac

cessory pack as shown in the picture.

45cm SATA Cable

Power Supply Connector

Internal RS232 Cable

Real Panel

45cm SATA Cable

Power Supply Connector

Internal RS232 Cable

External RS232 cable

Internal Case

Note :

1. We do not recommend users to disassemble the machine without proper instructions and

authorization. The manufacture warranty will not cover damage caused by unauthorized

disassembling.

2. If exchange the parts of SR2611 is absolutely necessary, please refer to the diagram in

the user’s guide.

SATA

SATA Ports

COM 1

COM 2

Power Supply SR2611

Motherboard

SATA

+5V +12V

GND FAN RS232

6 Connecting SR2611 to your computer

Setting the Hard Drive Array Mode

Installing two brand new hard drives

1. Place two new hard drives into SR2611 at the same time.

2. Use the disk manager in the operating system to partition and format the hard drive after

turning the machine on. At this point, SR2611 will be treated as a single hard drive. If hard

drives with different storage capacity are installed, SR2611 will automatically detect the

storage capacity of each hard drive, and will treat the hard drive with larger storage

capacity as the same capacity of the hard drive with smaller storage capacity.

3. Install RAID Guide (Windows User)

Installing a brand new hard drive and a hard

drive with existing data

Internal RAID module is suggested to be used for OS backup data. We highly recommend

using the same brand of hard drives with the same or larger storage capacity when installing

hard drives to SR2611. The user can use the auto rebuilding function to automatically format

the new drive and subsequently to back up the data into the new hard drive.

1. Place the hard drive with existing data into slot 1 or 2 in the SR2611.

2. Since one of the slots is empty, the buzzer will alarm user about the empty slot when the

computer is turned on. To shut off the buzzer alarm, just push the bottom located in the

front display screen.

3. After turning on the operation system, please check whether the current SR2611 setting

is the same prior to hard drive installation. Then place the new hard drive in the removable

hard drive carrier into another slot. Note: the storage capacity of the newly installed hard

drive must be larger than or equal to the old hard drive.

4. The SR2611 will start the auto rebuilding function shortly after.

5. Please press the Buzzer bottom after auto rebuilding to reset the buzzer alarm and to

return the system operation normally.

6. If you use this install method and backup OS at the same time, please make sure that the

system is installed normally, in case of error or OS backup failure.

Setting the Hard Drive Array Mode Installing a brand new hard drive and a hard drive with existing data 7

Computer Set Up

When the hardware setup for SR2611 is complete, you are now ready to turn the machine

on.

1. After the hardware installation is complete, the SR2611 will be treated as one single hard

drive. Set the hard drive to AUTO in the computer’s BIOS. When the computer is turned

on, the system will retrieve the following information:

2. In SR2611, the installed hard drive can be detected by the Device Manager of Computer

Management for Windows.

3. Customers can choose to format the hard drive by using the Disk Management tool of the

operating system before using the SR2611

At this point, the installation process is completely nished. The user can freely retrieve and

save data to SR2611 just like retrieving and saving data to a regular hard drive. If the user

8 Computer Set Up

experiences any abnormality during the operation, please refer to the trouble shooting Q&A

section in Appendix.

Hard Disk status on LCD screen

Left Hard Drive (Primary Hard Drive) Fail

Right Hard Drive (Secondary Hard Drive) Normal

Primary hard drive storage capacity larger than secondary hard drive

Secondary hard drive storage capacity larger than primary hard drive

Hot Swap & Auto Rebuilding

The hard drive Hot Swap and Auto Rebuilding functions are available.

The Hot Swap & Auto Rebuilding functions are applicable in:

1. Off-line Back up

When the data is stored within SR2611, the user can remove one of the hard drives from

SR2611 as back up drive for data such as system operation le, secured les, seldom

modied les or image and music les. The user can periodically insert the hard drive

back into SR2611 to execute automatic backup to protect the system from being hit by

computer virus or to avoid risk of having both hard drives failing at the same time.

2. During the Hard drive Failure

When one of the two hard drives fails in the SR2611 system, the system will alarm the

hard drive failure message both on the LCD display screen and in the monitoring

software. The user can remove the failed hard drive from the system while the system

is still in operation without shutting down the machine. If the failed hard drive is replaced

shortly, the system will automatically execute the Auto Rebuilding function without

affecting the system operation and without any operation command from the user.

Hard Disk status on LCD screen 9

The LCD Display Message During Hot Swap and Auto Rebuilding

When the SR2611 detects a hard drive missing or a hard drive failure, the Buzzer will go off

and the LCD display screen will display the following messages:

1. After removing the failed hard drive and replacing with a new hard drive, if the hard drive is

properly installed, the LCD display screen will display the following messages:

2. After few seconds of installing the new hard drive, the LCD display screen will display the

data rebuilding progress:

Pri->Sec represents that the data in the original hard drive (primary hard drive) is copied

to the new hard drive (secondary hard drive). XXX % represents the rebuilding completion

percentage.

3. When SR2611 is overheating, “T” will be displayed on the upper right-hand corner of

screen (As shown in illustration)

10 Hard Disk status on LCD screen
