iR2022S User Manual

v1.0

iR2022S User Manual

1. Package Contents and Product Views

Introduction

Thank you for purchasing RAIDON products. This User Manual will introduce you the InTANK

iR2022S storage product. Before using your iR2022S, please read it thoroughly. Although all

information contented in this User Manual had already been carefully verified before publishing,

however, the actual product and its specification will be based upon the time of delivery from

RAIDON. Any update to the product or its relevant information may be listed on www.raidon.com.tw.

Product is subjected to change without prior notications.

If you have any question regarding to the product you purchased, or you would like to know the

latest product information, User Manual’s update, please contact to your local supplier or visit to

www.raidon.com.tw for further information.

Open the package and you should nd the following parts:

iR2022S

iR2022S x1 ( with removable drive tray enclosed x2)

SATA Cable x1

Quick Installation Guide x1

Screws & Keys

• Please check the product and accessories for any defect or missing parts. If you have any questions,

please contact your product supplier.

• Please visit the oﬃcial website (www.raidon.com.tw) to download drivers and other related resources.

Product View, Front and Back

1. LCD Display

2. UP/DOWN Button

3. ESC Button

4. Enter Button

5. MUTE Button

1. Cooling Fan

2. 3-pin Fan Connector

3. RS232 Connector

4. SATA 15-pin Power Connector

5. SATA 7-pin Connector

6. Power / Failure Indicator

7. HDD Tray Handle

8. HDD Tray Key Lock

9. HDD Access Indicator

iR2022S User Manual

Status Power / Failure Indicator

HDD Access Indicator

Buzzer

TRAY 1 TRAY 2

No HDD Purple light always on Red light always on ON

HDD Idle Blue light always on Blue light

always on

Red light

always on N/A

Access Blue light always on Purple light

lashing

Red light

always on N/A

HDD 1 Failure Purple light always on Red light always on ON

HDD 2 Failure Purple light always on Blue light

always on

Red light

always on ON

Backup Blue light always on Blue light

always on

Red light

ﬂashing N/A

Fan Failure Purple light always on Blue light

always on

Red light

always on ON

Overheat (≥50°C) Purple light always on Blue light

always on

Red light

always on ON

LED Indicators：

2. Operation Information

Operating Temperature : 5～35 ℃(41 ～95 ℉)

Storage Temperature : -10 ~ 70 oC (14 ~ 158 oF)

Line Voltage : 5V DC

iR2022S User Manual

3. Hardware Requirements and Precautions

1. Computers or servers must be with SATA I, SATA II, or SATA III.

2. Hard drive must be with SATA I, SATA II, or SATA III.

3. Once the drive mode conguration has been completed, re-conguration using the same hard

drives to set the drive mode will result in complete data loss. If you must change the drive mode,

make sure to backup all data prior to the mode change.

4. All existing data will be deleted when this product is set up for the rst time. Please ensure that all

data on the hard disk has been backed up before installation to avoid data loss.

5. Please make sure that the two hard drives are free from bad blocks or defects prior to installation

in order to avoid system crashes or data loss.

6. The usable storage capacity of the hard disk after formatting will be less than the capacity

indicated on the hard disk.

7. It is highly recommended for user to back up important data contained within the iR2022S unit on

a regular basis or whenever the user feels necessary to a remote or a separate storage device.

RAIDON will not be responsible for any lost of data caused during the use of the unit or the

recovery of the data lost.

4. Hardware Installation Procedure

Please follow the instructions below to complete the hardware installation.

1. Use the key included in the accessory kit and inserted into the key access opening to eject the

removable drive tray latch and extract the removable drive tray.

Lock Unlock Press

2. For 2.5" HDD/SSD, please

secure it by use four the

smaller screws included in

the accessory kit.

3. When the HDD installation has been completed, insert

the tray into the system horizontally and secure the

latch into place.

iR2022S User Manual

SATA

SATA Cable

Internal host shell schematic

iR2022S

SATA Power Cable

※ Note :

1. RS232 Port: Provides hardware status monitoring to industrial control system or IPC via RS232.

2. We do not recommend users to disassemble the device without proper instructions and authorization. The manufacture warranty

will not cover the damages caused by unauthorized disassembling.

3. To prevent the device from malfunction, please make sure the device is connected with a direct and dedicated power connection of

a stable power input.

4. RS232 Port: For industrial control system or IPC to monitor the hardware status. More information, please contact your sales

window or [email protected]

4. Install device into one of the CD-ROM bays with screws from the accessory kit. Then properly

connect SATA cable and SATA power cable from your system to the device.

5. Power on your system after hardware installation is completed, and your operating system will

automatically detect the hard drives from booting. Then follow the steps from your operating

system to partition and format the drives when necessary, device will be ready to use once the

format is completed.

iR2022S User Manual

5. Computer Setup

When the hardware setup for iR2022S is complete, you are now ready to turn the machine on.

After the hardware installation is complete, the iR2022S will be treated as one single hard drive. Set

the hard drive to AUTO in the computer’s BIOS. When the computer is turned on, the system will

retrieve the following information:

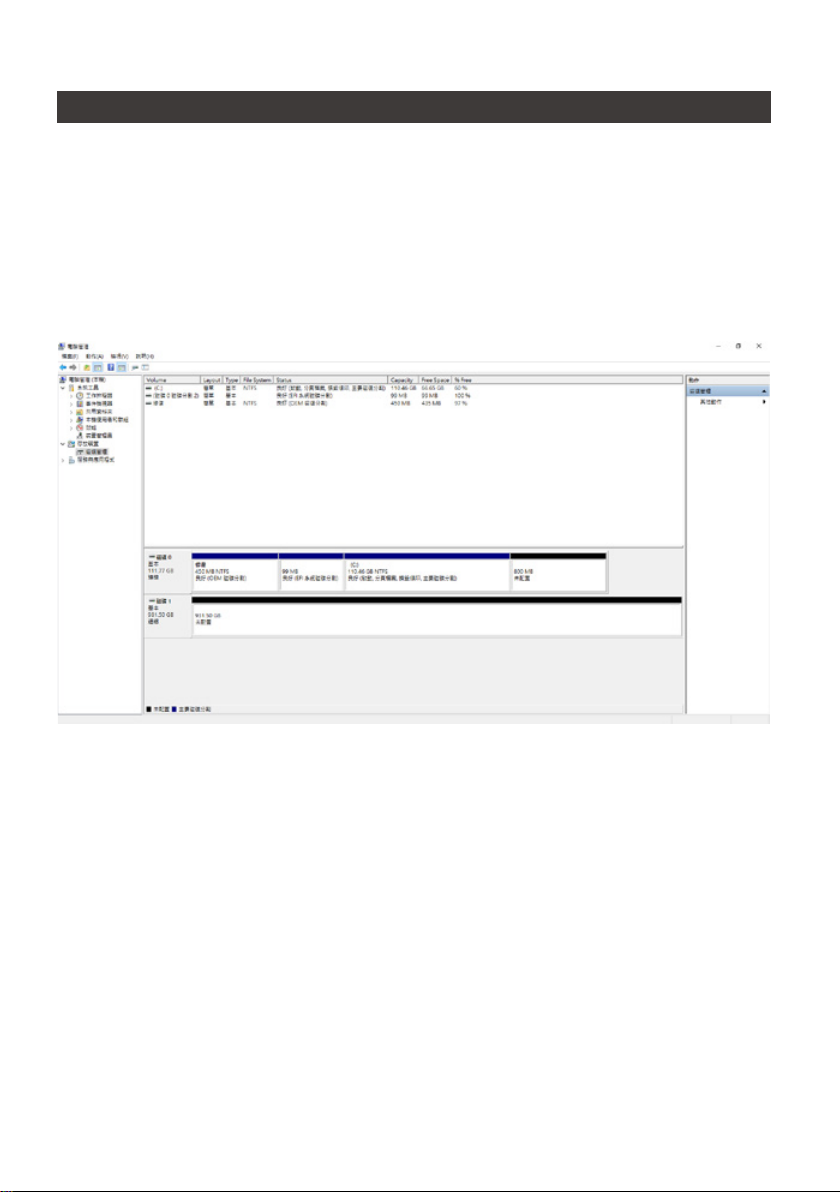

1. In iR2022S, the installed hard drive can be detected by the Device Manager of Computer

Management for Windows.

2. Customers can choose to format the hard drive by using the Disk Management tool of the

operating system before using the iR2022S.

At this point, the installation process is completely nished. The user can freely retrieve and save

data to iR2022S just like retrieving and saving data to a regular hard drive. If the user experiences

any abnormality during the operation, please refer to the trouble shooting Q&A section in Appendix.

iR2022S User Manual

6. Hard Disk Status on LCD Screen

2. Fan Failure

3. Over Temperature (≥50°C)

5. HDD2 is corrupted or not installed while HDD1 is still accessible

4. HDD1 is corrupted while HDD2 still exists

1. Booting and Normal status

Pri HDD : OK

Sec HDD : READY T

Pri HDD : OK F

Sec HDD : READY

Pri HDD : OK

Sec HDD : READY

Pri HDD : OFF

Sec HDD : OFF

Pri HDD : OK

Sec HDD : OFF

RAIDON RAIDbox3

vxxxxxx.x

7. Description of Front Panel Operation

Select Items

Back to next level or Cancel

Enter to next level or Confirm

iR2022S User Manual

8. Data Rebuilding Operation

With hard disk hot-swappable and scheduled backup functions.

O󰀪ine backup. After the data is stored in the iR2022S, the user uses the secondary hard disk (HDD 2)

as a data backup disk to ensure the security of related data such as operating system les, encrypted

les, less accessed les, and even audio and video les. Users can put the hard disks back to the

iR2022S periodically to perform automatic data reconstruction to ensure that the system will not be

attacked by viruses or reduce the risk of simultaneous damage to two hard disks.

When one of the hard disks in the iR2022S is damaged, the system will send an alert through the

LCD screen and monitoring software. Users can take out the damaged hard disk without turning o󰀨

the machine while the system is still running.

When the iR2022S detects a hard drive missing or a hard drive failure, the Buzzer will start and the

LCD display screen will display the following messages:

After removing the failed hard drive and replacing with a new hard drive, if the hard drive is properly

installed, the LCD display screen will display the following messages:

When entering the scheduled backup time, the LCD screen will show the progress of data backup:

When the data backup is complete, the LCD screen will display the following message:

Pri HDD : OK

Sec HDD : READY

Pri HDD : OFF

Sec HDD : OFF

Pri HDD : OK

Sec HDD : Insert

Pri HDD :Insert

Sec HDD : OK

Backup

Pri →Sec 32%

Pri HDD : OK

Sec HDD : OFF

iR2022S User Manual

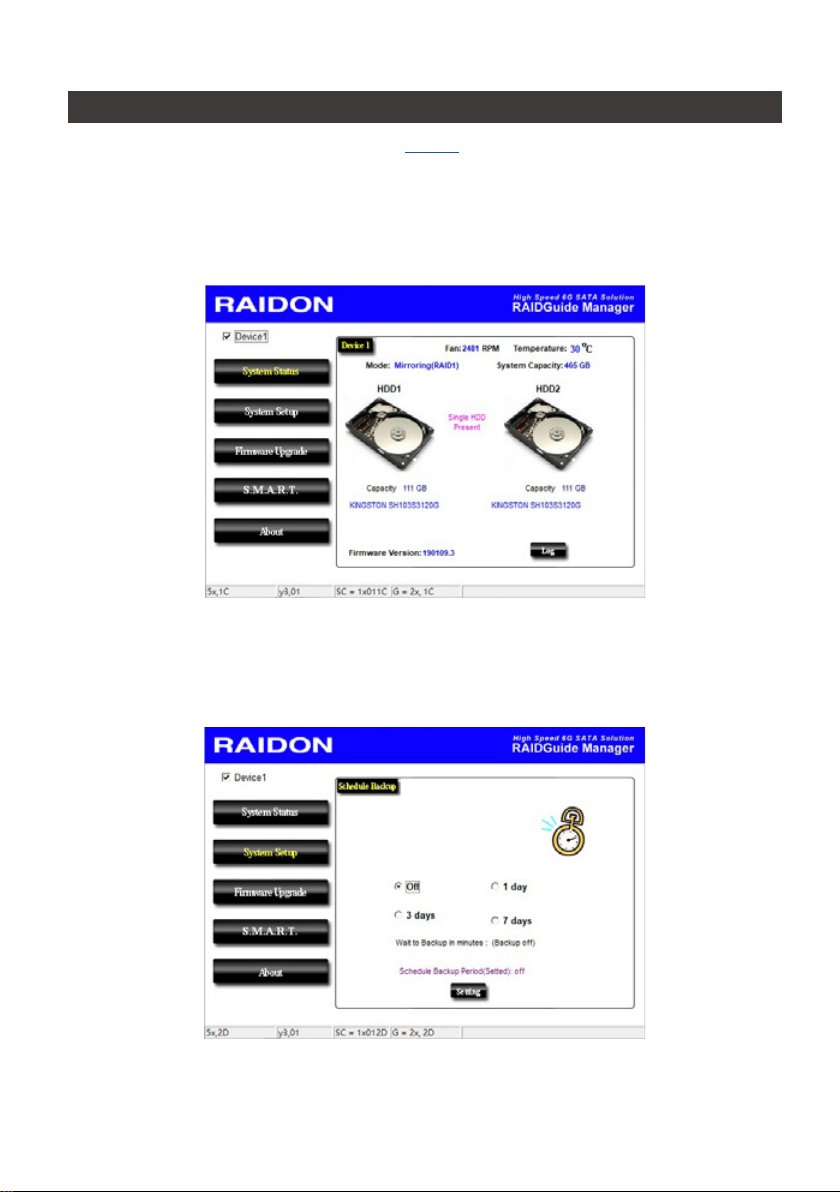

Users can download the GUI software from the website to monitor the status of the product.

1. System Status:

This GUI automatically detects your iR2022S and reveals relative information accordingly.

2. Schedule Backup

You can schedule backups through this GUI. Click the backup cycle and click "Setting" to complete

the setting.

9. GUI Monitoring Software and Firmware Update
