RadTech BT-500 mini Manuel utilisateur

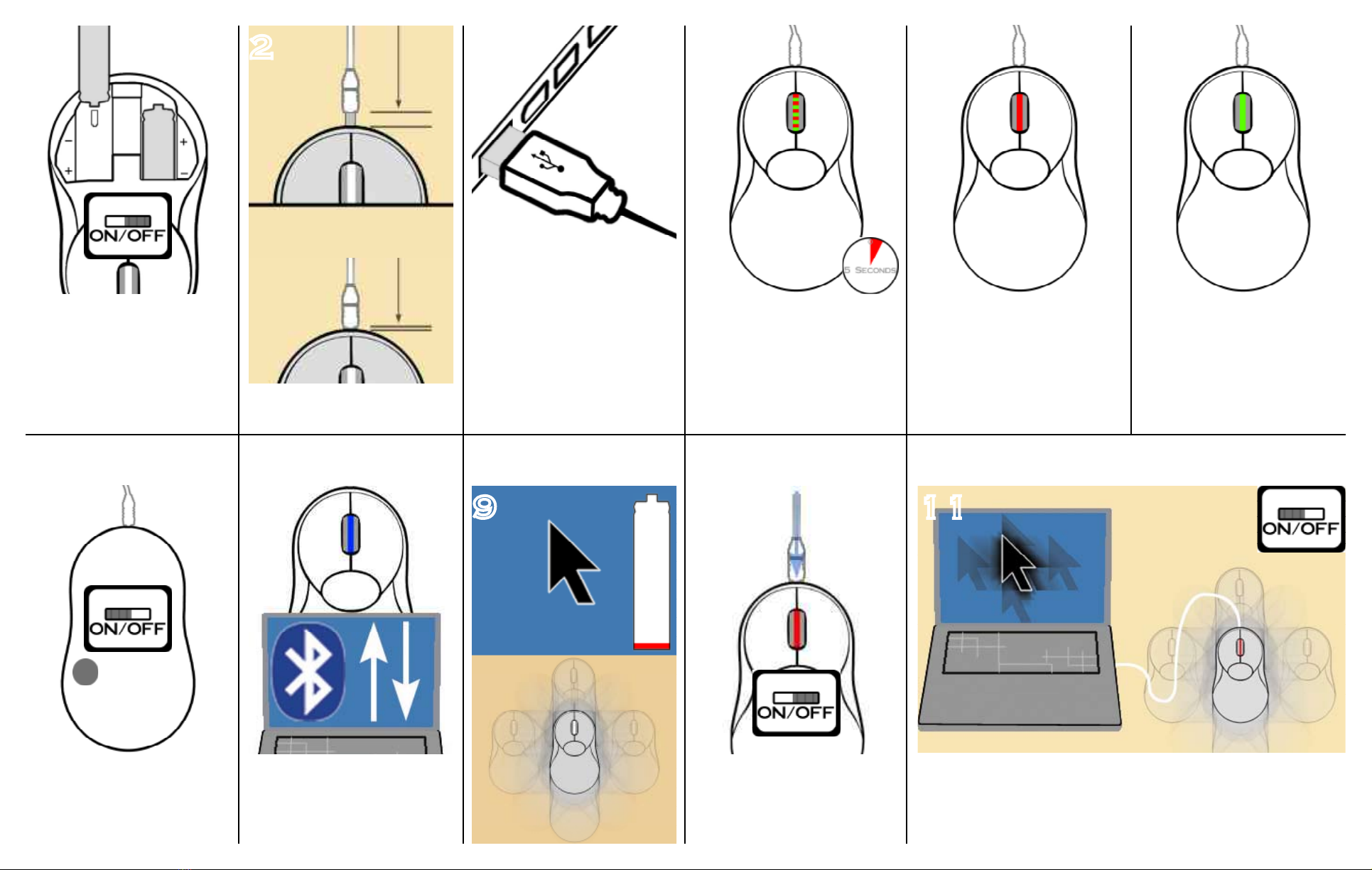

Scroll wheel

illuminates green when

fully charged

charge time = 2 hours

Scroll wheel

illuminates red while

batteries are charging

Switch mouse on

press pairing button

While scroll wheel

glows blue

pair to computer

Scroll wheel flashes

red & green for 5

seconds while preparing

to charge

When batteries fail

switch off

connect charge cable

scroll wheel glows red

Connect USB end

of charge cable to

computer

Switch mouse off

Install Batteries

1 2 3 4 5 6

7 8 9 10 11

Fully insert mouse end

of charge cable into

charge port

To use while charging

switch mouse on once scroll wheel is solid red

Disconnect cable once charge is complete (green)

Wireless Bluetooth Mouse

BT-5 00 ™mi ni

Mac Quick Setup Guide

Before Using How to Install Batteries

Pairing Process Mac

1. Install two AAA batteries into the battery slots of your

BT500 Mouse. Alkaline or

NiMH rechargeable recommended.

2. Slide the power switch to the on position and press the

pairing button on the underside of the mouse until the

scroll wheel glows blue to indicate mouse is discoverable.

3. Pair your BT 500 Bluetooth Mouse with your computer.

1. Press and push raised

area to open battery

cover.

2. With

“Bluetooth Setup

Assistant”

launched,

click “

Continue”

to proceed to the

next step.

4. Once the BT500 is

found and appears

in the list, select it

and click

“Continue”.

If asked for a pairing

code or Passkey,

enter 0000 (4 zeros).

5. The paring process is

complete. You may

click

“Quit” to exit the

Setup Assistant.

6. The BT500 will

appear listed as a

paired device under

the device tab of the

Bluetooth prefer-

ences pane.

The BT500 will auto-

matically reconnect

after restarts or shut-

downs.

3. Choose

“Mouse”

“Other Device”,

make sure mouse

is discoverable

and click

“Continue”

to proceed to the

next step.

2. Insert AAA batteries

into slots.

3. Slide battery cover

back into position

and snap into place.

NOTE: A USB-BT adapter is required if your

machine is not configured with built-in

Bluetooth. Bluetake BT009X or BT009M

Bluetooth USB Adapter recommended.

Available from: www.radtech.us

1. With Bluetooth active on your computer, launch the

“Bluetooth Setup Assistant”

using one of several options:

Scroll Wheel / Middle Button / LED Status Indicator

Right Button

Battery Cover

Left Button

Power ON/Off Switch

Mouse Bottom

Mouse Top

Pairing Button

•BT menubar widget >

Set up Bluetooth Device

•System Preferences >

Bluetooth > Devices Tab >

Set Up New Device.

•Menubar > Go> Utilities >

Bluetooth Setup Assistant

Use power On/Off switch to conserve energy

when not in use,

Power-saving sleep mode extends

battery life – when the mouse is

moved after being in sleep mode,

the connection is restored in sec-

onds. Battery life averages 4-7 days

when powered on 24/7, and up to

several weeks when used 4-6

hours per day – switched off when

not in use. Alkaline or NiMH

rechargeable recommended.

NOTE: Use care NOT to press pairing button once BT500 has

been paired. If pressed, connection will be lost and pairing

process will need to be repeated.

If using with the Apple Wireless Bluetooth Keyboard – switch on

keyboard first – then mouse (after mouse is paired).

For troubleshooting and other helpful tips go to:

www.radtech.us/BT500tips

Please follow regional rules for Bluetooth use.

w w w . r a d t e c h . u s

Bluetake, the Bluetake logo and BT500 are trademarks of Bluetake Technology Co., Ltd.

The Bluetooth word mark and logos are owned by Bluetooth SIG, Inc. and any use of

such marks by Bluetake Technology Co., Ltd. is under license. All other trademarks

belong to their respective owners. The information in this document is subject to

change without notice.

Delete pairing, then re-pair BT500

per instructions and retest

Does BT500 function normally?

Start with known good batteries and BT500 switched off

Ensure compliance with OS X checklist appended below

Enable Bluetooth on computer

Switch BT500 on while observing scroll wheel

Scroll wheel flashes blue briefly

Scroll wheel glows solid blue

Has BT500 been previously paired to this computer?

Yes

Pair BT500 per instructions

and retest

Does BT500 appear in Bluetooth

System Pref Devices window?

Yes

Pair BT500 per instructions

and retest

Select BT500 in list - does status show connected?

Yes

BT500 Troubleshooter

Yes

BT500 ready

for use

Shake BT500 lengthwise

is a rattling sound heard?

Yes

battery contact has bent

See pg. 3 of this document

for repair procedure

self-repair or return

for warranty replacement

BT500 defective

see pg. 3 for warranty

replacement info

BT500 is not paired

Pair BT500 per instructions

and retest

BT500 still fails to work

No go

Use care not to press the pairing button on underside of BT500

after it has been paired. If pressed - BT500 must be paired again

No scroll wheel illumination

1. Download and install the latest Apple Bluetooth software update - currently at version 1.5

2. Download and install the latest Apple Bluetooth firmware update - currently at version 1.2

3. Apple Wireless Keyboard Users - Install Apple Wireless Keyboard Firmware update 1.1

The Apple Wireless Mouse Firmware Update is not needed, nor will it update the BT500.

Note: Downloading the updates does NOT install them

You must launch the updater(s) from your "Utilities" folder to install.

4. Un-check "Discoverable" in the Bluetooth System Preferences if you're not using it.

5. If you've installed any Mac OS updates via the Software Update mechanism, install the appropriate

Combined Update for your OS version - Issues have been identified in the Software Update versions.

Links to the Apple Combined updates are available at: www.radtech.us/Products/BT500.aspx

6. Remove potentially corrupted Bluetooth preference file if Bluetooth useability issues persist:

Locate and delete the file named: com.apple.Bluetooth.plist - trash file and restart computer.

The path to this file is: /Users/"your home folder"/Library/Preferences.

All Bluetooth devices will need to be paired again, and please check #4 above.

7. Unexplained BT issues / erratic device behavior can often be resolved by simply removing the

offending device's pairing, then pairing again.

8. Apple BT Keyboard Users - To prevent the erroneous "Connection Lost" messages.

Once all Bluetooth devices you are going to use have been paired, power down all devices.

Turn Keyboard on first, wait 20 seconds, then turn other devices on.

Most people leave their Bluetooth keyboards on 24/7, and this is fine.

Other Bluetooth devices may be switched off and on at will in this case.

If the keyboard is switched off for any reason, turn all BT devices off, then power-up keyboard first.

Bluetooth checklist for Mac OS X

2005 RadTech Rev 2

Scroll wheel is steadily flashing blue

Batteries are depleted - replace

Returning a defective BT500 for warranty replacement

Phone or email RadTech prior to assuming your BT500 is defective - we will assist you with the issue you’re experiencing and, if necessary, approve the return.

Email: [email protected] Phone: +1 314-209-9993

If instructed to return BT500 -

1. Pack BT500 carefully to avoid damage during shipment, Be sure to Remove batteries. Use the original package if available.

2. Include a brief note with the unit describing the problem.

3. Include a copy of the RadTech invoice containing the BT500 -

if your shipping address has changed, please indicate the new ship to address on the invoice - include a daytime phone number.

4. Return the BT500 to the address below - insure the package to avoid loss.

RadTech LLC

4352 Rider Trail North

Earth City, Mo 63045

Your BT500 will be repaired or replaced, and shipped back to you once received by RadTech.

If your returned mouse is not defective, we will contact you for payment to ship the unit back to you.

Repairing a bent battery contact

Paper Clip Tool

Flattened Battery Clip

Hook tool under clip and pull outward to repair

Correct Battery Clip

Straiten a large paper clip

Using pliers or similar, bent a small “L” at the end of the wire

Remove the BT500 battery cover and batteries

Visually check the left internal battery contact (when viewed from rear of BT500)

If bent, reach into the battery cavity and slip the “L” hook behind the bent contact

Gently pull outward on the wire tool to pull the contact toward the rear of the mouse

Only a light pulling force is necessary to restore the contact to its proper position

If the contact breaks during the repair, simply return for warranty replacement - see below
