Radiocrafts RC2301DK Manuel utilisateur
Radiocrafts
EmbeddedWirelessSolutions RC2301DK
©2007 Radiocrafts AS RC2301DK Demonstration Kit Quick Start (rev. 2.0) Page 1 of 4

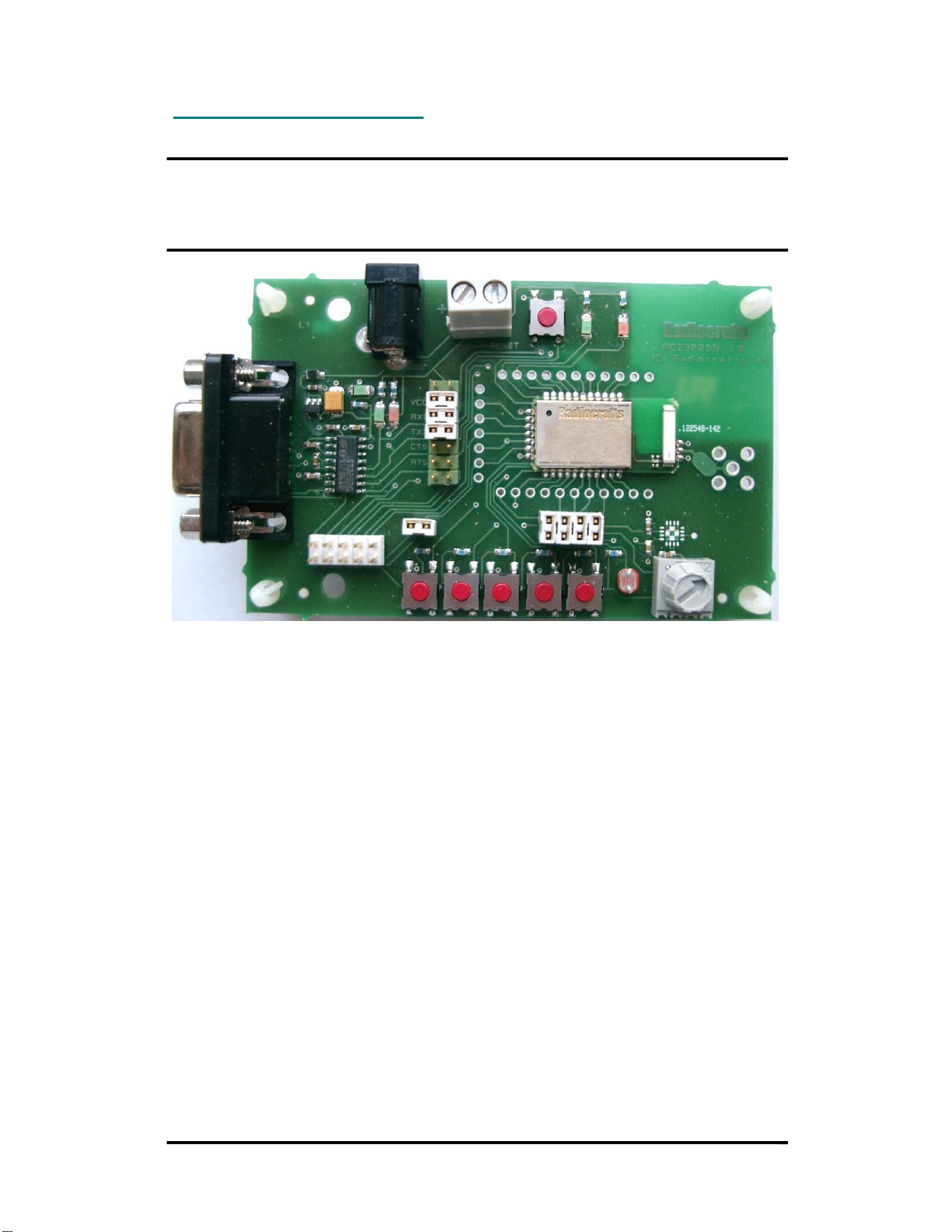

RC2301DK Demonstration Kit Quick Start
ZigBee®-ready Location Engine demo
Introduction
The RC2301DK demonstration kit shows a ZigBee®-ready location demo application on the
Figure 8 Wireless Z-stack from Texas Instruments. To make the demonstration a minimum of
8 nodes are required:
•One Location Dongle (D) configured as network coordinator
•Six reference nodes (R1 to R6) configured as network routers
•One blind node (B) with RC2301 configured as network router
The kit contains all 8 boards and each board has an identifier label on the reverse side.
Radiocrafts
EmbeddedWirelessSolutions RC2301DK
©2007 Radiocrafts AS RC2301DK Demonstration Kit Quick Start (rev. 2.0) Page 2 of 4
Quick Start Guide
1. Download location demo PC application
Download the latest verion of the location demo PC(Z-Location Engine) SW from TI (
http://www.ti.com/litv/zip/swrc070c ) and install it on your PC.
2. Set up the Location Dongle
Start the Z-location Engine program on the PC. Power up the Location Dongle and connect it
to a COM-port on your computer. Make sure the “Select COM port field at the bottom of the
application window correspond to the correct port. The program does not support USB-Com
port, only pure RS232 COM ports.
Press the “►” button in the application and observe that the application connects to the
dongle at the bottom of the application window.

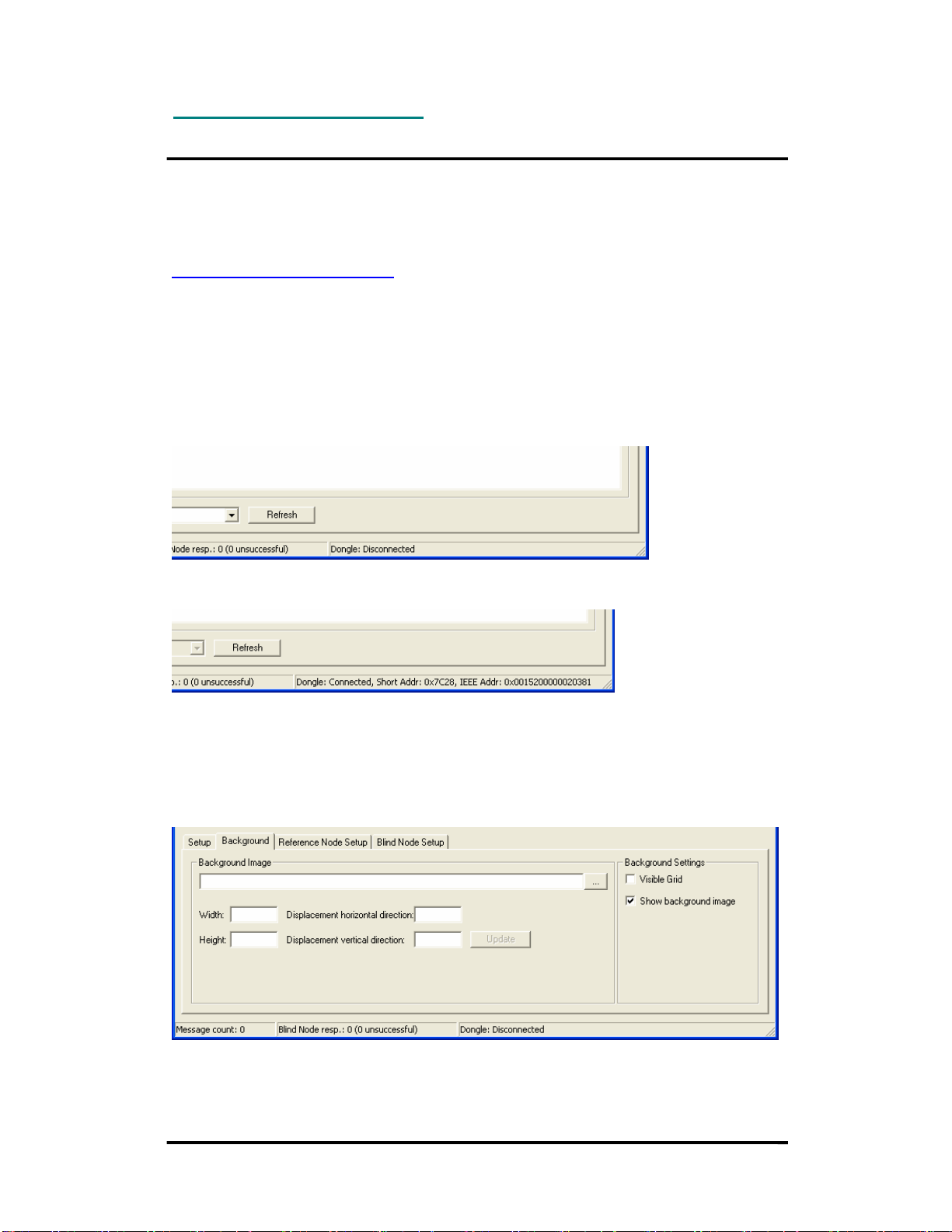

Figure 1. Before connection
Figure 2. After connection
3. Add a background image
Select the Background tab in the application window. Select a Background Image and type in
the width and height. Displacement should be 0 if the image shall be placed in the top left
corner of the image window in the application.
Figure 3 Background tab
Press Update, and the picture should become visible in the application window.
Radiocrafts
EmbeddedWirelessSolutions RC2301DK
©2007 Radiocrafts AS RC2301DK Demonstration Kit Quick Start (rev. 2.0) Page 3 of 4
4. Power up reference nodes
Connect power to reference node 1 (R1). Make sure that it is in range of the location dongle.
The reference node will appear in the Reference Node Setup tab in the application, and will
also appear in the graphical window as a yellow ball.

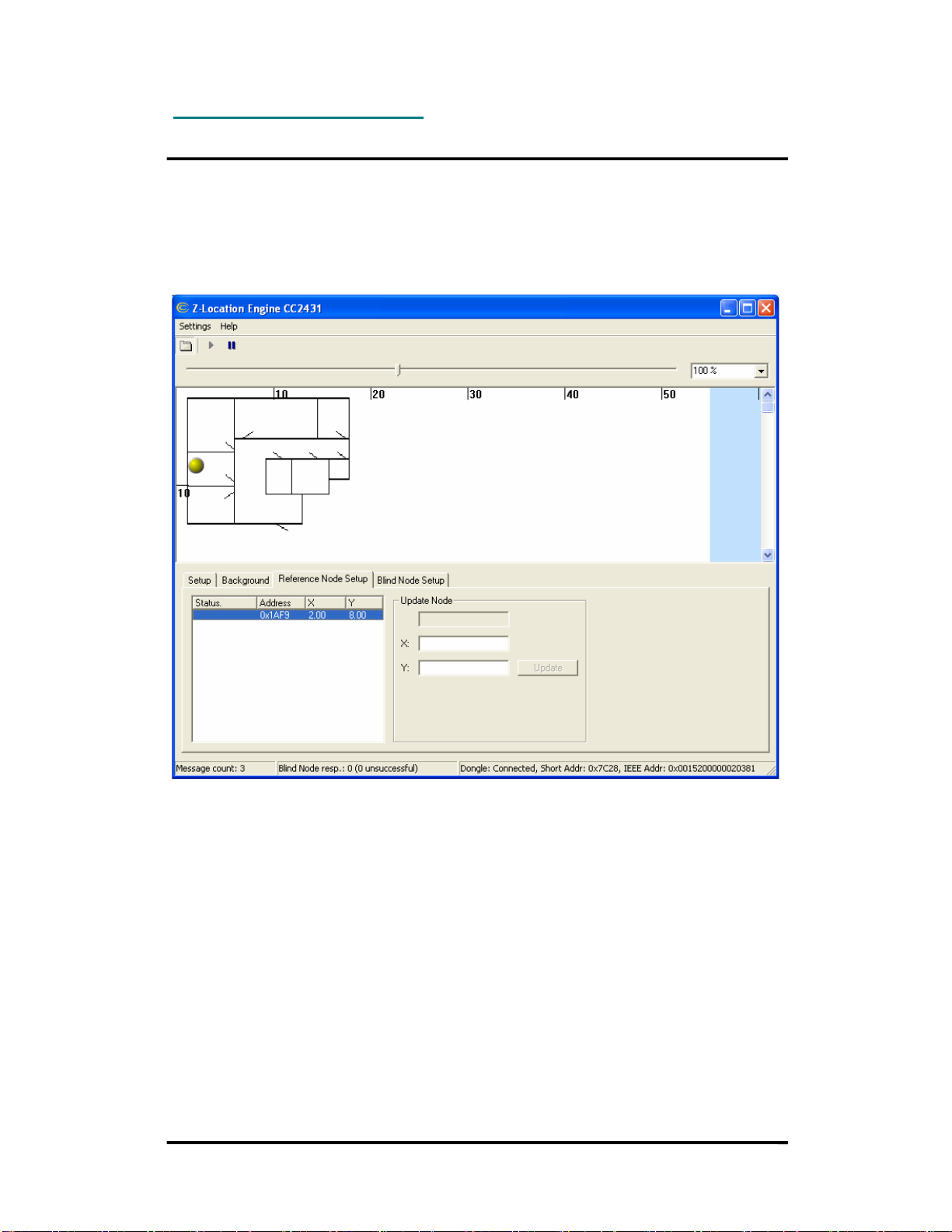

Figure 4. Reference Node Setup tab
Double-click on the node in the list and change the location coordinates. Press update.
Status of the device will be updating. When the update is complete, double-click the node
again to make sure the updating was successful. Then place the node at the specified
location.
Repeat for nodes R2 to R6.
5. Activate blind node
Activate the blind node by connecting it to a battery. After a few seconds the blind node will
appear in the application window as a green ball.

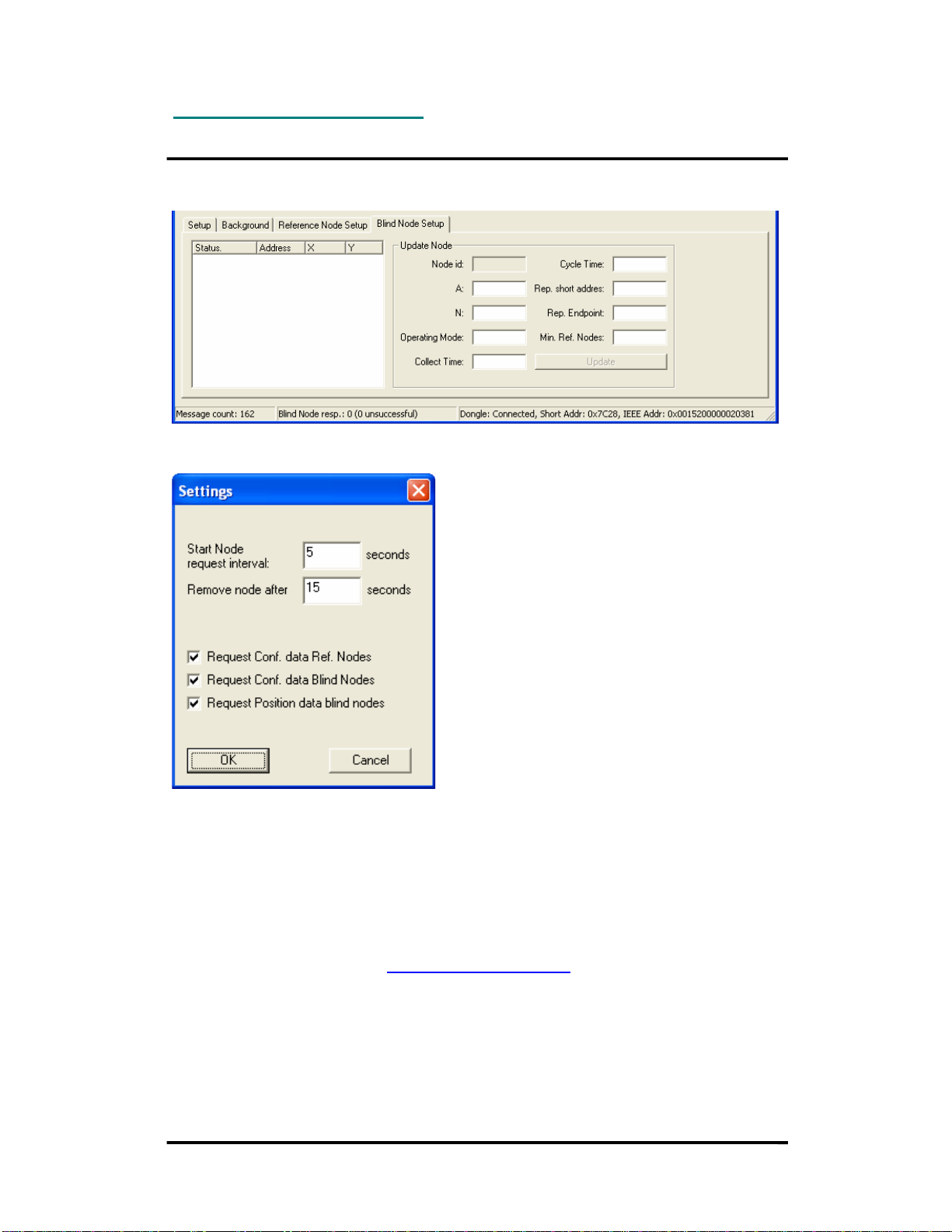

6. Tuning the application
The application can be tuned by changing the parameters that the location engine in RC2301
uses. This is done in the Blind Node Setup tab. Double-click on the blind node you want to
change, set the parameters and press update. For a description of the parameters see the
Radiocrafts
EmbeddedWirelessSolutions RC2301DK
©2007 Radiocrafts AS RC2301DK Demonstration Kit Quick Start (rev. 2.0) Page 4 of 4
chapter on Blind Node Configuration in the Z-Stack Location Profile document by TI
(Document Number: F8W-2006-0002).
Some parameters of the application can also be tuned in the Settings window.
Contact Information
Radiocrafts AS
Sandakerveien 64
NO-0484 OSLO
NORWAY
www.radiocrafts.com
radiocrafts@radiocrafts.com
Tel: +47 4000 5195
Fax: +47 22 71 29 15
ZigBee is a registered trademark of the ZigBee Alliance. © 2007, Radiocrafts AS. All rights
reserved.
