Cat. No. 43-704

OWNER’S MANUAL

Please read before using this equipment.

TAD-704

16-Minute Digital Telephone Answering

System with 68-Memory Caller ID

43-704.fm Page 1 Wednesday, November 17, 1999 4:47 PM

FEATURES

Your RadioShack TAD-704 16-Minute

Digital Telephone Answering System

with 68-Memory Caller ID is a combina-

tion high-quality fully-digital answering

system and Caller ID. The TAD-704 pre-

vents you from missing incoming calls

and messages. Fully digital means the

TAD-704 stores all messages on a com-

puter chip — there are no tape mecha-

nism to wear out and no tapes to bother

with. This gives you capabilities that

tape-based answering machine do not

have. For example, you can listen quick-

ly from message to message without lis-

tening to all of them.

The TAD-704 also shows the caller's

telephone number (and name, if avail-

able in your area) and the current date

and time, as provided by your local

phone company to Caller ID service

subscribers. It saves up to 68 Caller ID

records that you can review and call

back.

TAD FEATURES

Dual Outgoing Messages — let you

record two outgoing messages of up to

about 32 seconds each: one for when

you want callers to leave a message,

the other for when you want to play an

announcement without recording callers'

messages.

Voice Date/Time Stamp — records the

day and time each message was record-

ed.

Two-Way Recording — lets you record

both sides of your phone conversation.

Memo Recording — lets you leave

messages for yourself or others.

Adjustable Ring Number — lets you

set the TAD to answer after two, four, or

seven rings.

Toll-Saver — lets you avoid unneces-

sary toll charges when you call by long-

distance to check your messages.

Remote Operation — lets you use a

touch-tone phone (or rotary phone and

pocket tone dialer) to operate the TAD

and Caller ID while you are away from

your home or office.

Phone Pick-Up Detection — stops re-

cording when you pick up any phone on

the same line as the TAD.

Call Breakthrough (CBT) with Pro-

grammable Code — alerts you to an

important call when the caller enters a

preset code during the outgoing mes-

sage.

Call Screen — lets you listen as a caller

leaves a message so you can decide

whether or not to answer the call.

RadioShack is a registered trademark used by Tandy Corporation.

43-704.fm Page 2 Wednesday, November 17, 1999 4:47 PM

Programmable Remote Operation Se-

curity Code — lets you set your own

security code for remote operation.

Remote Answer-On — lets you turn on

the TAD from a remote location even

when it is not set to answer calls.

Room Monitor — lets you listen from a

remote phone to the room where the

TAD is installed.

Memory Backup — protects messages

stored in memory in case of a power fail-

ure.

CALLER ID FEATURES

3-Line Display — lets you view an en-

tire Caller ID record on one screen.

Caller ID Memory — stores up to 68

Caller ID records with name and number

or name only, depending on the informa-

tion your phone company provides.

VIP Call List — lets you save up to 10

caller ID records in a VIP list. Then,

when any of those callers call, the sys-

tem sounds a distinctive tone.

Call Summary — displays the number

of calls you received.

New Call Indicator — lets you see at a

glance that you have new calls.

Review Scrolling — lets you easily

scroll through all records in Caller ID

memory.

Dialing Option — lets you select the

usable dialing number from the Caller ID

record to match the different telephone

systems.

Callback — lets you dial the phone

number in a Caller ID record with the

touch of a button.

Message Waiting — lets you know that

you have received a voice mail message

(if you subscribe to a message waiting

service from your local telephone com-

pany).

Contrast Control — lets you adjust the

display contrast for the best readability.

Your TAD-704 is ETL listed to UL stan-

dards and meets all applicable FCC

standards.

IMPORTANT CALLER ID

INFORMATION:

To use this TAD-704's Caller ID, you

must be in an area where Caller ID ser-

vice is available, and you must sub-

scribe to the service.

Where Caller ID is offered, one or more

of the following options are generally

available:

• caller's number only

• caller's name only

• caller's name and number

For the TAD's Caller ID memory dial fea-

ture to operate, you must receive the

caller's number.

43-704.fm Page 3 Wednesday, November 17, 1999 4:47 PM

READ THIS BEFORE

INSTALLATION

We have designed your TAD-704 to

conform to federal regulations and you

can connect it to most phone lines. How-

ever, each device that you connect to

the telephone line draws power from the

line. We refer to this power draw as the

TAD-704's ringer equivalence number,

or REN. The REN is shown on the bot-

tom of your TAD-704.

If you use more than one TAD-704 or

other device on the line, add up all the

RENs. If the total is more than five (three

in rural areas), your TAD-704 might not

ring. If ringer operation is impaired, re-

move one of the devices from the line.

FCC STATEMENT

Your TAD-704 complies with Part 68 of

FCC Rules. You must, upon request,

provide the FCC registration number

and REN to your telephone company.

These numbers are on the bottom of the

TAD.

You must not connect your TAD-704 to:

• coin-operated systems

• party-line systems

• most electronic key phone systems

WARNING: To reduce the risk of fire or

shock hazard, do not expose this product to rain

or moisture.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

CAUTION: TO REDUCE THE RISK OF

ELECTRIC SHOCK, DO NOT REMOVE

COVER OR BACK. NO USER-SERVICE-

ABLE PARTS INSIDE. REFER SERVICING

TO QUALIFIED PERSONNEL.

This symbol is intended to alert

you to the presence of uninsu-

lated dangerous voltage within

the product’s enclosure that might

be of sufficient magnitude to con-

stitute a risk of electric shock. Do

not open the product’s case.

This symbol is intended to inform

you that important operating and

maintenance instructions are

included in the literature accom-

panying this product.

43-704.fm Page 4 Wednesday, November 17, 1999 4:47 PM

CONTENTS

Preparation .............................................................................................................. 6

Connecting the Tad ............................................................................................ 6

Installing a Backup Battery ................................................................................. 7

Setting the Display Contrast ............................................................................... 7

Setting the Long Distance Code ......................................................................... 8

Setting the Area Code ........................................................................................ 8

Setting the Day, Time and Date .......................................................................... 8

Setting the Number of Rings .............................................................................. 9

TAD OPERATION ................................................................................................... 10

Recording the Outgoing Messages .................................................................. 10

Checking the Outgoing Messages ................................................................... 10

Setting the TAD to Answer Calls ...................................................................... 10

Incoming Message Recording .......................................................................... 11

Playing Messages ............................................................................................ 12

Recording a Memo ........................................................................................... 12

Recording a Conversation ................................................................................ 13

Deleting Messages ........................................................................................... 13

Screening Calls ................................................................................................ 13

Using Call Breakthrough .................................................................................. 14

Changing the Remote Operation Security Code .............................................. 14

Remote Operation ............................................................................................ 15

Using Remote Commands ............................................................................... 15

Using the Toll-saver .......................................................................................... 15

Caller ID Operation ............................................................................................... 18

Caller ID Messages .......................................................................................... 19

Reviewing Caller ID Records ........................................................................... 20

Deleting Call Records ....................................................................................... 21

Using VIP Calls ................................................................................................ 21

Using Callback ................................................................................................. 23

Troubleshooting .................................................................................................... 24

Resetting the TAD ............................................................................................ 25

Care And Maintenance ......................................................................................... 26

The FCC Wants You to Know ........................................................................... 27

Lightning ........................................................................................................... 27

43-704.fm Page 5 Wednesday, November 17, 1999 4:47 PM

PREPARATION

Select a location for the TAD-704 that is

near a modular telephone line jack and

an AC outlet, and is not in the way of

normal activities.

CONNECTING THE TAD

Notes:

• Your TAD-704 connects directly to a

modular telephone line jack. If your

phone line jack is not a modular

jack, you can update the wiring

yourself, using jacks and adapters

available at your local RadioShack

store. Or, you can let the phone

company update the wiring for you.

• The USOC number of the jack to be

installed is RJ11C.

Follow these steps to connect your TAD

to the telephone line and phone.

1. Unplug the telephone's modular

cord from the modular phone line

jack and plug it into the PHONE jack

on the back of the TAD.

2. Plug one end of the supplied modu-

lar cord into the LINE jack on the

back of the TAD.

3. Plug the cord's other end into a

modular phone line jack.

4. Insert the supplied AC adapter's

barrel plug into the AC 9V 400 mA

jack on the back of the TAD.

Cautions:

You must use a Class 2

power source that supplies

9V AC and delivers at least

400 mA. Its plug must fit the TAD-

704's AC 9V 400 mA jack. The sup-

plied adapter meets these specifica-

tions. Using an adapter that does

not meet these specifications could

damage the TAD-704 or the adapt-

er.

• Always connect the AC adapter to

the TAD-704 before you connect it

to AC power. When you finish, dis-

connect the adapter from AC power

before you disconnect it from the

TAD-704.

5. Plug the other end of the adapter

into a standard AC outlet.

43-704.fm Page 6 Wednesday, November 17, 1999 4:47 PM

When you first connect power, the TAD

beeps once, MEMORY TEST appears,

and the message counter counts up

from

0to 22. Then the TAD beeps. 0

CALL 0MESSAGE appears. OGM1 and

OGM2 flash to indicate that no outgoing

messages are recorded.

INSTALLING A BACKUP

BATTERY

Notes:

• If the AC power fails or you unplug

the TAD, a 9V backup battery (not

supplied) saves the messages, time

and day settings, and CBT and

remote operation security codes.

For the best performance and long-

est life, we recommend you use a

RadioShack alkaline battery.

• If the AC power fails or you unplug

the TAD, the TAD can receive Caller

ID records. However, the TAD can-

not operate on backup battery

power alone.

Caution: Always use a fresh battery of

the required size and recommend type.

1. Use a Phillips screwdriver to remove

the screw on the battery compart-

ment cover, then remove the cover.

2. Snap the battery's contacts firmly to

the battery connector and place the

battery in the compartment.

3. Replace the cover and secure it with

the screw.

Replace the battery when ap-

pears.

Warning: Dispose of the old battery

promptly and properly. Do not burn or

bury it.

Cautions:

• Before you replace the battery, be

sure the TAD is properly connected

to AC power. Otherwise, you might

lose any stored information.

• Disconnect the telephone line cord

before replacing the battery to

reduce the risk of fire or injury. Use

only a 9 Volt alkaline or super heavy

duty battery.

• Always remove old an or weak bat-

tery. A battery can leak chemicals

that can destroy electronic parts.

SETTING THE DISPLAY

CONTRAST

1. Hold down STOP until the TAD

beeps once. 7and LCD CONTRAST

appear. 7flashes.

43-704.fm Page 7 Wednesday, November 17, 1999 4:47 PM

2. Repeatedly press REPEAT to select

the desired display contrast set-

tings.

Note: The TAD-704 provides ten

(0–9) display contrast settings.

3. Press CALLBACK to lock in the set-

ting.

4. Press STOP to return to the time dis-

play.

SETTING THE LONG

DISTANCE CODE

Note: If you do not complete each step

within 8 seconds, the TAD exits setup.

Start again at Step 1.

1. Hold down STOP until the TAD

beeps once.

2. Press CALLBACK once. 1and SET

LDS CODE appear. 1flashes.

3. Repeatedly press REPEAT to set the

long distance code to 1, 9, or 0.

4. Press CALLBACK then press STOP

to return to the time display.

SETTING THE AREA

CODE

Note: If you do not complete each step

within 8 seconds, the TAD exits setup.

Start again at Step 1.

1. Hold down STOP until the TAD

beeps once.

2. Press CALLBACK twice. 000 and

SET AREA CODE appear. The first 0

flashes.

3. Repeatedly press REPEAT until the

first digit of your area code appears,

then press SKIP to the second digit.

The second 0flashes.

Note: If you make a mistake,

repeatedly press SKIP until the

desired digit flashes then re-enter

the code.

4. Repeat Step 3 to set the second and

third digits of your area code.

5. Press CALLBACK then press STOP

to return to the time display.

SETTING THE DAY, TIME

AND DATE

To avoid losing the day and time set-

tings if AC power fails, we recommend

you install a backup battery before you

set the day and time (see “Installing a

Backup Battery” on Page 7).

Follow these steps so the TAD can

record the correct day and time each

message and memo is recorded.

Note: If you do not complete each step

within 8 seconds, the TAD exits setup.

Start again at Step 1.

1. Hold down STOP until the TAD

beeps once.

2. Repeatedly press CALLBACK until

SUNDAY appears.

43-704.fm Page 8 Wednesday, November 17, 1999 4:47 PM

3. Repeatedly press REPEAT to select

AM or PM hour.

4. Press SKIP. The hour digit flashes.

5. Repeatedly press REPEAT to set the

correct hour.

6. Repeat Steps 4 and 5 to set the

minute, month, date, and the day of

the week.

7. Press CALLBACK then press STOP

to return to the time display.

SETTING THE NUMBER

OF RINGS

Set the ring select switch to 2, 4, 7, or TS

to set how long the TAD waits before it

answers a call (2 rings, 4 rings, 7 rings

or toll-saver).

If you plan to check your messages by

long distance, set the ring select switch

to TS.

43-704.fm Page 9 Wednesday, November 17, 1999 4:47 PM

TAD OPERATION

RECORDING THE

OUTGOING MESSAGES

Before the TAD-704 can answer calls

and record messages, you must record

an outgoing message (OGM). The TAD-

704 lets you record two separate mes-

sages, and it operates differently based

on which message you select.

OGM 1 — After playing your outgoing

message, the TAD records the caller's

message.

OGM 2 (announce-only) — The TAD

plays your outgoing message, but does

not record a message.

Notes:

• The maximum length for each out-

going message is 32 seconds. As

you record, the message counter

shows the recording time.

• If you plan to use the TAD's

announce-only feature, OGM 2

should clearly state that the caller

cannot leave a message.

•OGM1 or OGM2 on the display stops

flashing to indicate OGM1 or OGM2

is recorded.

Follow these steps to record an outgoing

message.

1. To record the OGM 1 (or OGM 2)

message, hold down OGM1 (or

OGM2) until the TAD beeps and the

timer starts counting. OGM1

RECORDING (or OGM2 RECORD-

ING) appears.

Note: As soon as the TAD beeps,

release OGM1 (or OGM2) quickly.

Otherwise, the TAD records a “pop”

sound at the beginning of the outgo-

ing message.

2. Speak your message from about 8

inches in front of the TAD.

3. When you finish, press STOP. The

TAD beeps and plays back the out-

going message.

CHECKING THE

OUTGOING MESSAGES

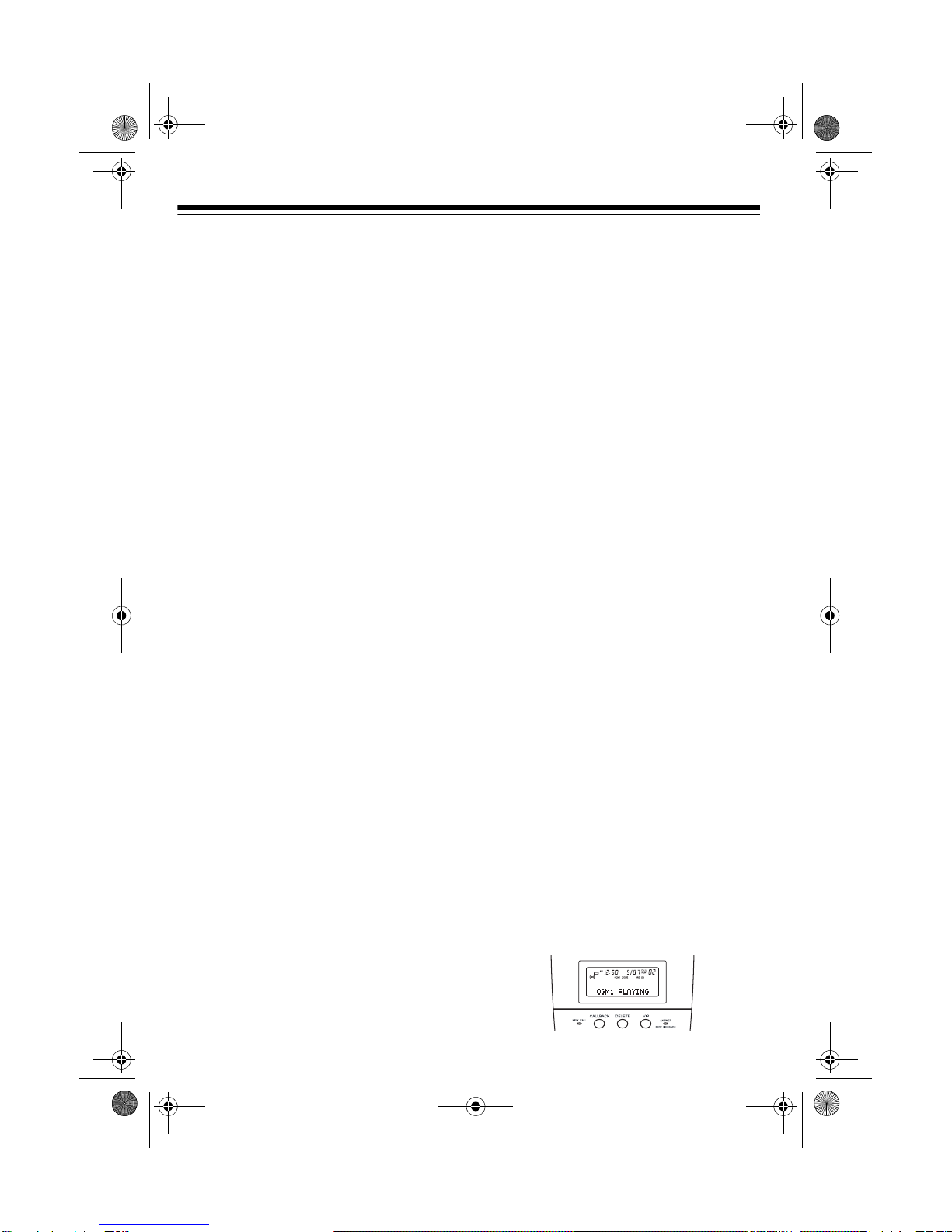

To check an outgoing message, press

its button (OGM1 or OGM2). OGM1

PLAYING (or OGM2 PLAYING) ap-

pears and the message plays.

If no outgoing message is recorded

when you press OGM1 or OGM2, the

TAD announces “You have no an-

nouncement one” (or “two”) and sounds

four beeps.

SETTING THE TAD TO

ANSWER CALLS

To turn on the TAD and set it to answer

calls and record messages, press AN-

SWER once. The TAD says “Answer on”,

and beeps once. ANS ON appears, then

the TAD plays the outgoing message

and shows OGM1 PLAYING briefly.

43-704.fm Page 10 Wednesday, November 17, 1999 4:47 PM

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Radio Shack Répondeur

Radio Shack

Radio Shack TAD-723 Manuel utilisateur

Radio Shack

Radio Shack 43-3801 Manuel utilisateur

Radio Shack

Radio Shack 900MHz Manuel utilisateur

Radio Shack

Radio Shack TAD-1027 Manuel utilisateur

Radio Shack

Radio Shack TAD-795 Manuel utilisateur

Radio Shack

Radio Shack TAD-1009 Manuel utilisateur

Radio Shack

Radio Shack TAD-277 Manuel utilisateur

Radio Shack

Radio Shack TAD-1005 Manuel utilisateur

Radio Shack

Radio Shack TAD-3806 Manuel utilisateur

Radio Shack

Radio Shack TAD-798 Manuel utilisateur

Radio Shack

Radio Shack TAD-222 Manuel utilisateur

Radio Shack

Radio Shack TAD-285 Manuel utilisateur

Radio Shack

Radio Shack TAD-1007 Manuel utilisateur

Radio Shack

Radio Shack TAD-779 Manuel utilisateur

Radio Shack

Radio Shack 43-3880 Manuel utilisateur

Radio Shack

Radio Shack 900MHz Manuel utilisateur

Radio Shack

Radio Shack 43-3808A Manuel utilisateur

Radio Shack

Radio Shack TAD -797 Manuel utilisateur

Radio Shack

Radio Shack TAD-759 Manuel utilisateur

Radio Shack

Radio Shack TAD-1006 Manuel utilisateur

Radio Shack

Radio Shack 43-3888 Manuel utilisateur

Radio Shack

Radio Shack 43-3822 Manuel utilisateur

Radio Shack

Radio Shack TAD-716 Manuel utilisateur

Radio Shack

Radio Shack TAD-732 Manuel utilisateur

Manuels Répondeur populaires d'autres marques

AT&T

AT&T 2455 Manuel utilisateur

Panasonic

Panasonic KX-TG2583CB Manuel utilisateur

Panasonic

Panasonic KX-TGE820E Manuel utilisateur

BellSouth

BellSouth GH9488 Guide de sécurité

GE 2-9985 Manuel utilisateur

Panasonic

Panasonic KX-TG2631 Manuel utilisateur

Panasonic

Panasonic KX-TCD961CXB Manuel utilisateur

Krown

Krown PortaPrinter 2000STD Manuel utilisateur

AT&T

AT&T 1717 Manuel utilisateur

Alcatel

Alcatel TEMPORIS 55-CE Manuel utilisateur

AT&T

AT&T E2562 Manuel utilisateur

Telstra

Telstra Monitor 420 Manuel utilisateur

Kortex

Kortex IAM V90 Manuel utilisateur

Panasonic

Panasonic EASA-PHONE KX-T1451 Manuel utilisateur

Philips

Philips VOIP8551B/05 Manuel utilisateur

Topcom

Topcom LUCCA Answering Machine Manuel utilisateur

Panasonic

Panasonic KX-TGM420 Manuel utilisateur

Panasonic

Panasonic KX-TCD320E Manuel utilisateur
