Owner’s Manual

Please read before using this equipment.

TAD-723 Digital Telephone

Answering System

with Day/Time Voice Stamp

43-723.fm Page 1 Monday, May 22, 2000 10:26 AM

READ THIS BEFORE

INSTALLATION

Your TAD (Telephone Answering Device)

conforms to federal regulations, and you can

connect it to most telephone lines. However,

each device that you connect to the phone

line draws power from the phone line. We re-

fer to this power draw as the device’s ringer

equivalence number, or REN. The REN is on

the bottom of the TAD.

If you use more than one phone or other de-

vice on the line, add up all the RENs. If the

total is more than five (or three in rural ar-

eas), your phone might not ring and your

TAD might not answer. If ringer operation is

impaired, remove a device from the line.

FCC STATEMENT

Your TAD complies with Part 68 of FCC

Rules. You must, upon request, provide the

FCC registration number and the REN to

your phone company. Both numbers are on

the bottom of your TAD.

Note: You must not connect your TAD to:

• coin-operated systems

• party-line systems

• most electronic key phone systems

Your TAD is ETL listed to UL standards and

meets all applicable FCC standards.

WARNING: To reduce the risk of fire or

shock hazard, do not expose this product to rain

or moisture.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

CAUTION: TO REDUCE THE RISK OF

ELECTRIC SHOCK, DO NOT REMOVE

COVER OR BACK. NO USER-SERVICE-

ABLE PARTS INSIDE. REFER SERVICING

TO QUALIFIED PERSONNEL.

This symbol is intended to alert

you to the presence of uninsu-

lated dangerous voltage within

the product’s enclosure that might

be of sufficient magnitude to con-

stitute a risk of electric shock. Do

not open the product’s case.

This symbol is intended to inform

you that important operating and

maintenance instructions are

included in the literature accom-

panying this product.

RadioShack and RadioShack.com are trademarks used by Tandy Corporation.

43-723.fm Page 2 Monday, May 22, 2000 10:26 AM

Contents

Features .................................................................................................................................. 4

Installation .............................................................................................................................. 5

Connecting the TAD to the Phone Line ............................................................................ 5

Connecting Power ............................................................................................................ 5

Installing the Backup Batteries ......................................................................................... 5

Preparation ............................................................................................................................. 6

Turning the TAD On/Off .................................................................................................... 6

Adjusting the Volume ........................................................................................................ 6

Setting the Day and Time ................................................................................................. 6

Recording the Outgoing Messages (OGM) ...................................................................... 7

Setting the Incoming Message Length ............................................................................. 8

Checking an OGM ............................................................................................................ 8

Setting the Number of Rings ............................................................................................ 8

Basic Operation ..................................................................................................................... 9

Setting the TAD to Answer Calls ...................................................................................... 9

Using the Announce-Only Feature ................................................................................... 9

Screening Calls .............................................................................................................. 10

Recording a Memo ......................................................................................................... 10

Playing Incoming Messages/Memos .............................................................................. 10

Deleting Messages ......................................................................................................... 10

Remote Operation ................................................................................................................ 11

Changing the Remote Operation Security Code ............................................................. 11

Operating the TAD from a Remote Location ................................................................... 11

Remote Commands ........................................................................................................ 12

Troubleshooting ................................................................................................................... 13

Care and Maintenance ......................................................................................................... 14

The FCC Wants You to Know ......................................................................................... 15

Lightning ......................................................................................................................... 15

43-723.fm Page 3 Monday, May 22, 2000 10:26 AM

4Features

Features

Your RadioShack Digital Telephone Answer-

ing System is a sophisticated, fully digital

message center.

Fully digital means the TAD (Telephone An-

swering Device) stores all messages on a

computer chip. This gives you advanced ca-

pabilities over tape-based answering ma-

chines. For example, you can save or delete

individual messages.

Because your TAD is fully digital, there are

no tape mechanisms to wear out and no

tapes to bother with.

The TAD has these features:

High Capacity — lets you record up to 20

minutes of messages and memos.

Voice Day/Time Stamp — records the day

and time each message was recorded.

Digitally-Synthesized Voice — guides you

through operation of many of the system’s

features.

Call Screening — lets you listen to incoming

calls so you can decide whether or not to an-

swer a call.

Phone Pick-Up Detection — stops record-

ing a caller’s message when you pick up any

phone on the same line as the TAD, so you

can talk to the caller.

Multiple Outgoing Message (OGM) Capac-

ity — lets you set the TAD to play one of two

outgoing messages then record the caller’s

message, or just play an announcement

without recording a message.

Memo Recording — lets you leave messag-

es for yourself or others in your home or of-

fice.

Remote Operation — lets you use a touch-

tone phone (or rotary phone and pocket tone

dialer) to operate the TAD while you are

away from your home or office.

Programmable Remote Operation Securi-

ty Code — lets you set your own 3-digit se-

curity code for remote operation.

Remote Answer-On — lets you call the TAD

from a remote location and set it to answer

calls.

Adjustable Ring Number — you can set the

TAD to answer after two, four, or seven

rings.

Toll-Saver — lets you avoid unnecessary toll

charges when calling long-distance to check

your messages.

Selectable Incoming Message Length —

lets you set the maximum length of a caller’s

message to 1 or 5 minutes.

Memory Full Warning — lets you know

when the TAD’s memory is full.

Memory Backup — protects stored mes-

sages in case of a power failure.

Messages Indicator LED — flashes to let

you know you have new messages.

LED Message Counter — shows the num-

ber of messages the TAD recorded.

Room Monitor — lets you monitor, using a

remote phone, the room where the TAD is in-

stalled for 30 seconds.

43-723.fm Page 4 Monday, May 22, 2000 10:26 AM

Installation

Select a location for the TAD that is near

both a telephone jack and an easily accessi-

ble AC outlet, and out of the way of normal

activities.

CONNECTING THE TAD TO

THE PHONE LINE

Notes:

• If the phone line jack is not a modular

jack, you must update the wiring. You

can convert the wiring yourself, using

jacks and adapters available at your

local RadioShack store. Or, you can let

the phone company update it.

• The USOC number of the jack to be

installed is RJ11C.

1. Unplug your telephone’s modular cord

from the modular phone line jack and

plug it into the TO PHONE jack on the

back of the TAD.

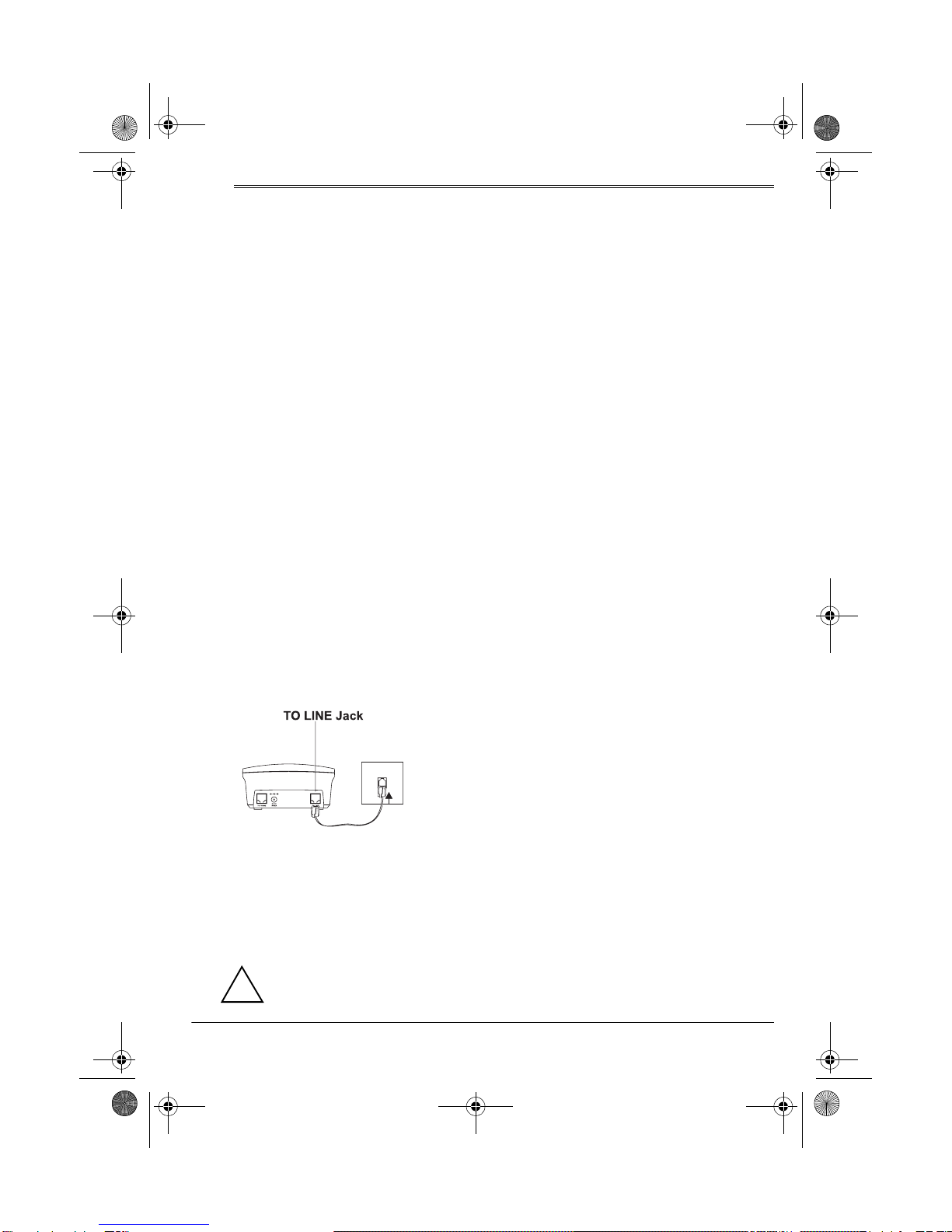

2. Plug one end of the supplied modular

cord into the TO LINE jack on the back of

the TAD.

3. Plug the cord’s other end into the phone

line jack.

CONNECTING POWER

Cautions:

You must use a power source

that supplies 9V DC and deliv-

ers at least 300 mA. Its center tip must

be set to positive and its plug must fit the

TAD’s 9V jack. The supplied adapter

meets these specifications. Using an

adapter that does not meet these speci-

fications could damage the TAD or the

adapter.

• Always connect the adapter to the TAD

before you connect it to the power

source. When you finish, disconnect the

AC adapter from the power source

before you disconnect it from the TAD.

Follow these steps to connect the power:

1. Insert the barrel plug of the supplied AC

adapter into the DC 9V 300mA jack on

the back of the TAD.

2. Plug the other end of the AC adapter

into a standard AC outlet.

Each time you connect the TAD to AC pow-

er, the LOW BATTERY indicator lights (if no

backup batteries are installed), and the TAD

initializes itself, then beeps when it finishes.

Notes:

• Do not press any of the TAD’s buttons

while you are plugging the adapter into

the AC outlet. If you accidentally press a

button, reset the TAD by unplugging the

adapter from the AC outlet then re-

inserting it.

• The TAD cannot operate without AC

power.

INSTALLING THE BACKUP

BATTERIES

If AC power fails or you unplug the TAD, four

AAA batteries (not supplied) is needed to

save any recorded messages and the set-

43-723.fm Page 5 Monday, May 22, 2000 10:26 AM

6Preparation

tings for the day, time, and security code. We

recommend you use RadioShack alkaline

batteries.

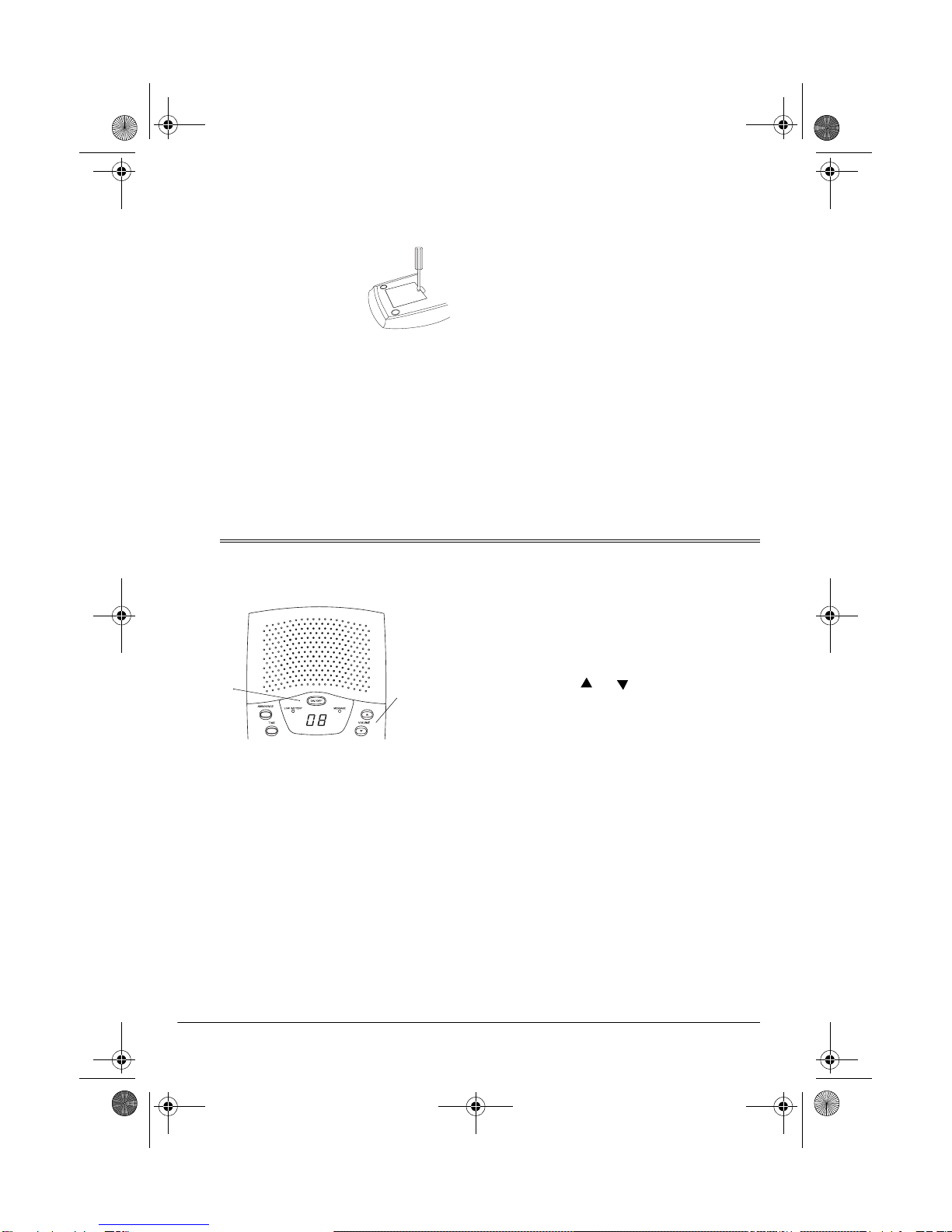

1. Use a Phillips screw-

driver to remove the

screw on the battery

compartment cover.

2. Place the batteries in

the compartment according to the polar-

ity symbols (+and –) marked inside.

3. Replace the cover and secure it with the

screw.

Replace the batteries when the LOW BAT-

TERY indicator lights while the TAD is con-

nected to AC power.

Warning: Dispose of the old batteries

promptly and properly. Do not bury or burn

them.

Cautions:

• To avoid losing stored information, be

sure the AC adapter is plugged in and

connected to the TAD before you

replace the batteries.

• Always use fresh batteries of the

required size and type.

• Always remove old or weak batteries.

Batteries can leak chemicals that can

destroy electronic parts.

• Do not mix old and new batteries or dif-

ferent types of batteries.

Preparation

TURNING THE TAD ON/OFF

To turn on the TAD, simply press ON/OFF.

The TAD beeps twice.

To turn off the TAD, press ON/OFF again.

Notes:

• Once you turn on the TAD, it is set to

answer calls (see “Setting the TAD to

Answer Calls” on Page 9).

• You can also turn on the TAD remotely

(see “Remote Commands” on Page 12).

ADJUSTING THE VOLUME

Press VOLUME or to adjust the volume

to a comfortable listening level. The volume

level (0–7) appears on the display. The TAD

beeps three times when it reaches the maxi-

mum volume level.

SETTING THE DAY AND

TIME

Follow these steps to set the current day and

time so the TAD can record the day/time

voice stamp on each memo and incoming

message.

Notes:

• The day/time voice stamp automatically

defaults to Sunday, 12 AM when you

connect the TAD to power, and does not

ON/OFF VOLUME

43-723.fm Page 6 Monday, May 22, 2000 10:26 AM

Preparation

advance until you set the correct day

and time.

•CL and 0flash on the display until you

set the day and time.

• If you do not press a button for about 10

seconds after the TAD says an instruc-

tion, the TAD exits setup. Start over at

Step 1.

1. If the TAD is off, press ON/OFF. The TAD

beeps twice.

2. Hold down TIME until the TAD

announces the day of the week (about 2

seconds). For example TAD says “Sun-

day”, and the display shows 7.

3. Press SKIP or REPEAT to set the day.

The TAD announces the day of the

week as you press the button.

4. Press TIME to store the day of the week.

5. Repeat Steps 3–4 to store the hour and

minute.

Note: The TAD uses the 12-hour time

format. Be sure to set the correct AM or

PM hour.

6. The TAD announces the current day,

hour and minutes.

To hear the current day of the week and

time, press TIME.

RECORDING THE

OUTGOING MESSAGES

(OGM)

The TAD has a built-in outgoing message

that says, “Hello, please leave a message af-

ter the tone.” Use this message or record

your own. The TAD lets you record three

separate messages, and it operates differ-

ently based on which message you select

(see “Using the Announce-Only Feature” on

Page 9).

OGM 1 and 2. After playing your outgo-

ing message (either the built-in mes-

sage or one you record), the TAD lets

callers record a message of up to 1 or 5

minutes.

AO (announcement only). The TAD

plays your outgoing message, but does

not let the caller record a message.

Follow these steps to record an OGM.

Note: The maximum length for each outgo-

ing message is 3 minutes. As you record, the

display counts up the recording time and

beeps when you reach the maximum mes-

sage length.

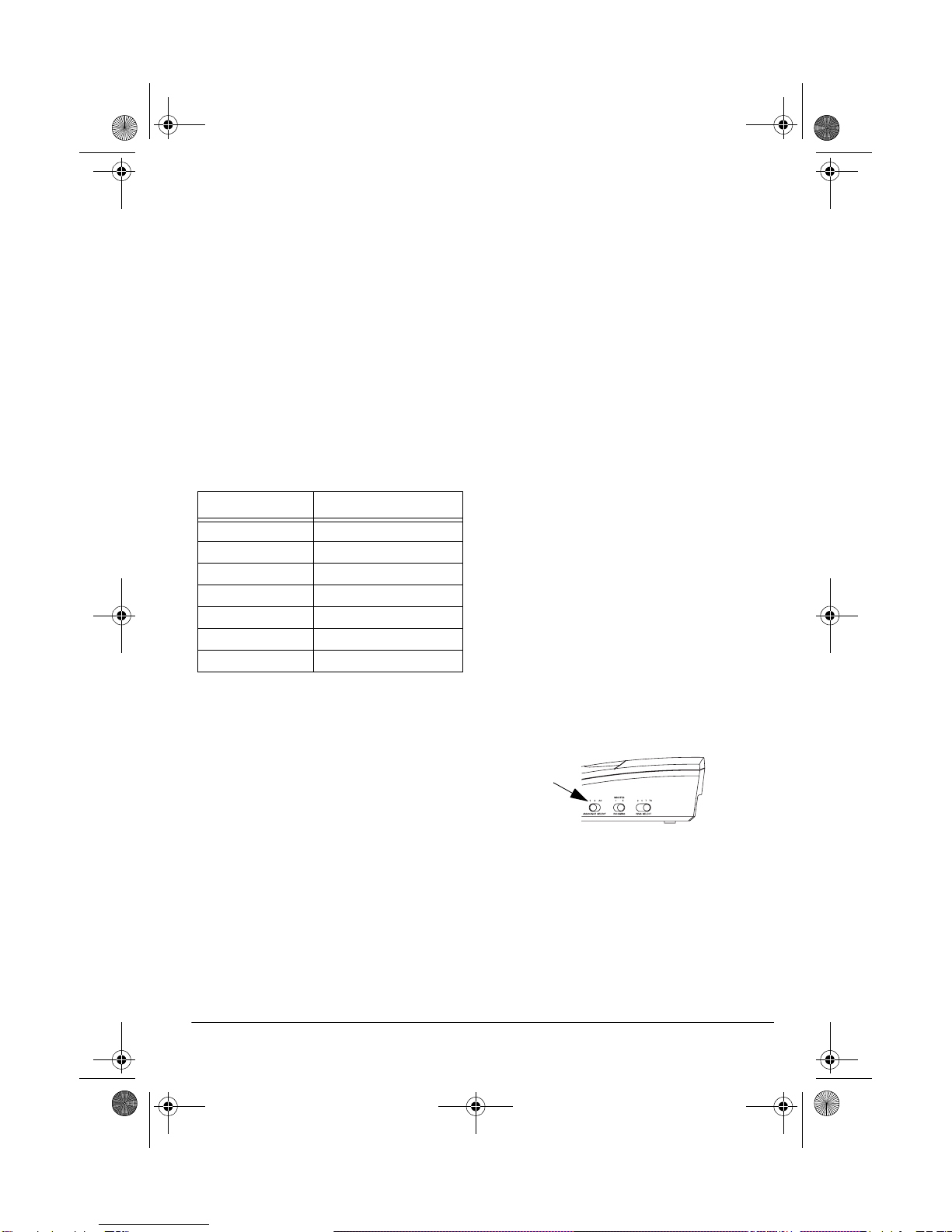

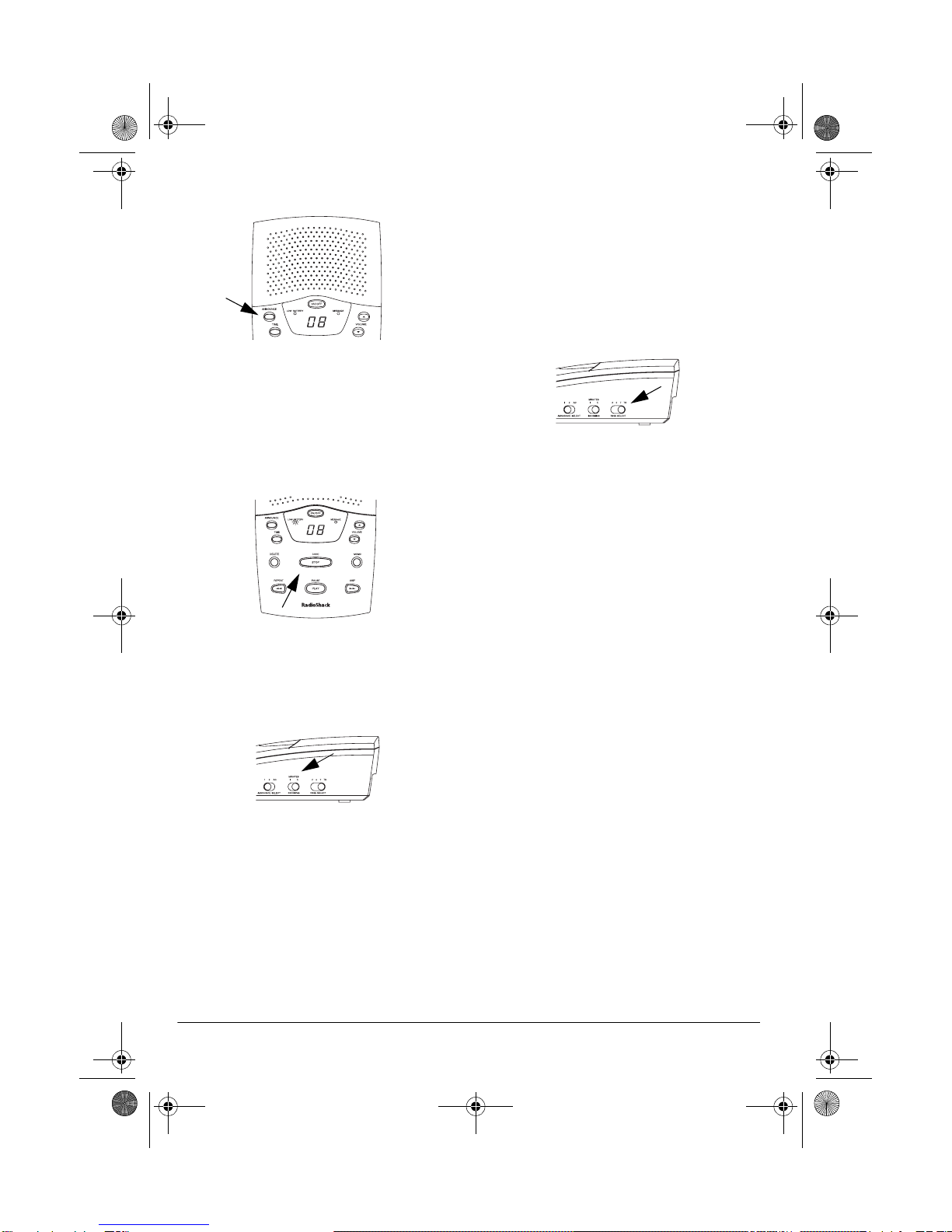

1. Slide ANNOUNCE SELECT to 1, 2, or AO

to select the message you want to

record.

Display Day of the Week

1 Monday

2 Tuesday

3 Wednesday

4 Thursday

5 Friday

6 Saturday

7 Sunday

43-723.fm Page 7 Monday, May 22, 2000 10:26 AM

8Preparation

2. Hold down ANNOUNCE until you hear a

beep (about 2 seconds).

3. After the beep, begin speaking your

message about 8 inches away from the

microphone (located on the front of the

TAD).

4. Press CODE/STOP to stop recording.

The TAD automatically repeats the mes-

sage then beeps.

SETTING THE INCOMING

MESSAGE LENGTH

Slide INCOMING to 1or 5 MINUTES to restrict

the length of incoming messages.

CHECKING AN OGM

Follow these steps to check any OGM at any

time.

1. Slide ANNOUNCE SELECT to 1, 2, or AO

to select the desired OGM.

2. Press ANNOUNCE to play the OGM.

3. To stop the outgoing message before it

ends, press STOP.

SETTING THE NUMBER OF

RINGS

The ring select switch on the right side of the

TAD controls how long the TAD waits before

it answers a call. Slide the switch to the ap-

propriate position.

2— The TAD answers after two rings.

4— The TAD answers after four rings.

7— The TAD answers after seven rings.

TS (Toll Saver) — If there are new messages,

the TAD answers after two rings. Otherwise,

the TAD answers after four rings. This lets

you avoid unnecessary charges when calling

by long-distance to check your messages. If

you hear more than two rings, you know you

can hang up because the TAD has no new

messages.

43-723.fm Page 8 Monday, May 22, 2000 10:26 AM

Basic Operation

SETTING THE TAD TO

ANSWER CALLS

To set the TAD to answer calls, press ON/

OFF. The display turns on and the TAD

beeps twice.

Notes:

• You can use a remote phone to set the

TAD to answer calls (see “Remote Com-

mands” on Page 12).

• To set the TAD to not answer calls, turn

it off by pressing ON/OFF.

When the TAD answers a call, the outgoing

message plays, then the TAD beeps and be-

gins recording.

The caller can leave a message of up to 5

minutes in length depending on the INCOM-

ING setting (see “Setting the Incoming Mes-

sage Length” on Page 8). After the caller

hangs up or is silent for more than 7 sec-

onds, or the maximum message length is

reached, the TAD hangs up and resets to an-

swer the next call. The MESSAGE indicator

flashes to indicate an incoming message has

been recorded.

Notes:

• The MESSAGE indicator flashes rapidly

when the memory is full.

• If the TAD answers a call when its mem-

ory is full, it announces “Memory is full”

and beeps twice, waits 10 seconds for

any remote operation commands, then

hangs up (see “Remote Commands” on

Page 12). The TAD cannot record addi-

tional messages until you delete some

of the old messages (see “Deleting Mes-

sages” on Page 10).

• Many local phone companies use calling

party control (CPC) to signal that the

caller has hung up. Your TAD can recog-

nize a CPC signal and release the line. If

the TAD records phone company mes-

sages or dial tones, your local phone

company probably does not use CPC.

USING THE ANNOUNCE-

ONLY FEATURE

Your TAD’s announce-only feature lets you

set the TAD to play a message for the caller,

then automatically hang up without letting the

caller leave a message.

To select the announce-only mode, slide AN-

NOUNCE SELECT to AO. AO appears. When

the TAD receives a call, it plays the an-

nounce-only message then hangs up.

To turn off announce-only, slide ANNOUNCE

SELECT to either 1 or 2.

Notes:

• You must record an announce-only mes-

sage in order to use this feature.

• When the TAD is set for announce-only,

you cannot set it to record calls using

the remote commands (see “Remote

Commands” on Page 12).

43-723.fm Page 9 Monday, May 22, 2000 10:26 AM

10 Basic Operation

SCREENING CALLS

To screen your calls, let the TAD answer.

Listen to the caller’s message through the

TAD’s speaker. If you decide to answer the

call, pick up any phone connected to the

same phone line as the TAD. The TAD stops

recording and resets to answer the next call.

RECORDING A MEMO

A memo is a message that you record by

speaking directly into the TAD, without call-

ing in on the phone. Follow these steps to

record a memo up to 3 minutes long.

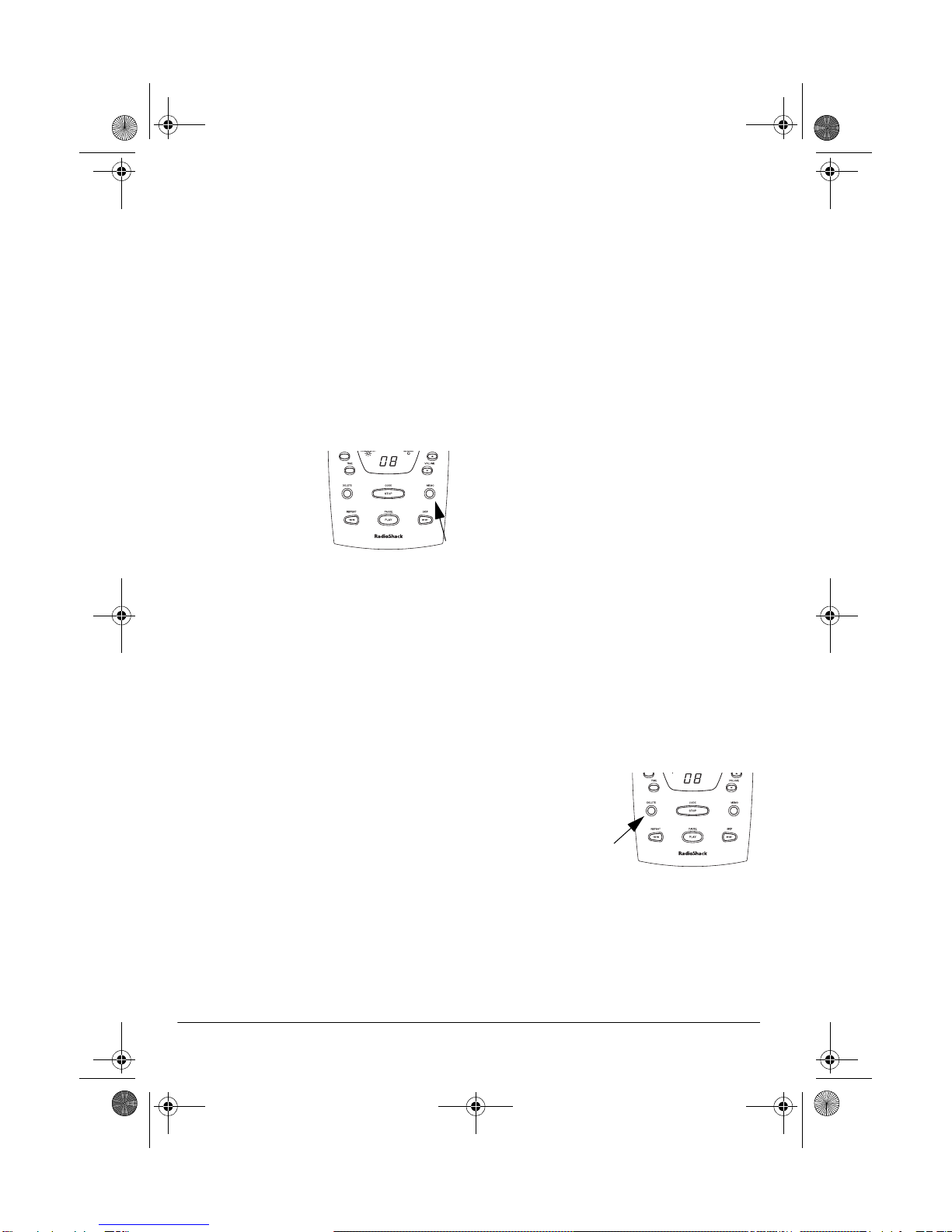

1. Press MEMO and

the TAD beeps.

The display timer

starts counting.

Record your

memo.

2. When you finish speaking, press CODE/

STOP. The message indicator light

flashes until you play the memo. The

light remains on until you delete played

memos (see “Deleting Messages”). To

play back a memo, see “Playing Incom-

ing Messages/Memos.”

PLAYING INCOMING

MESSAGES/MEMOS

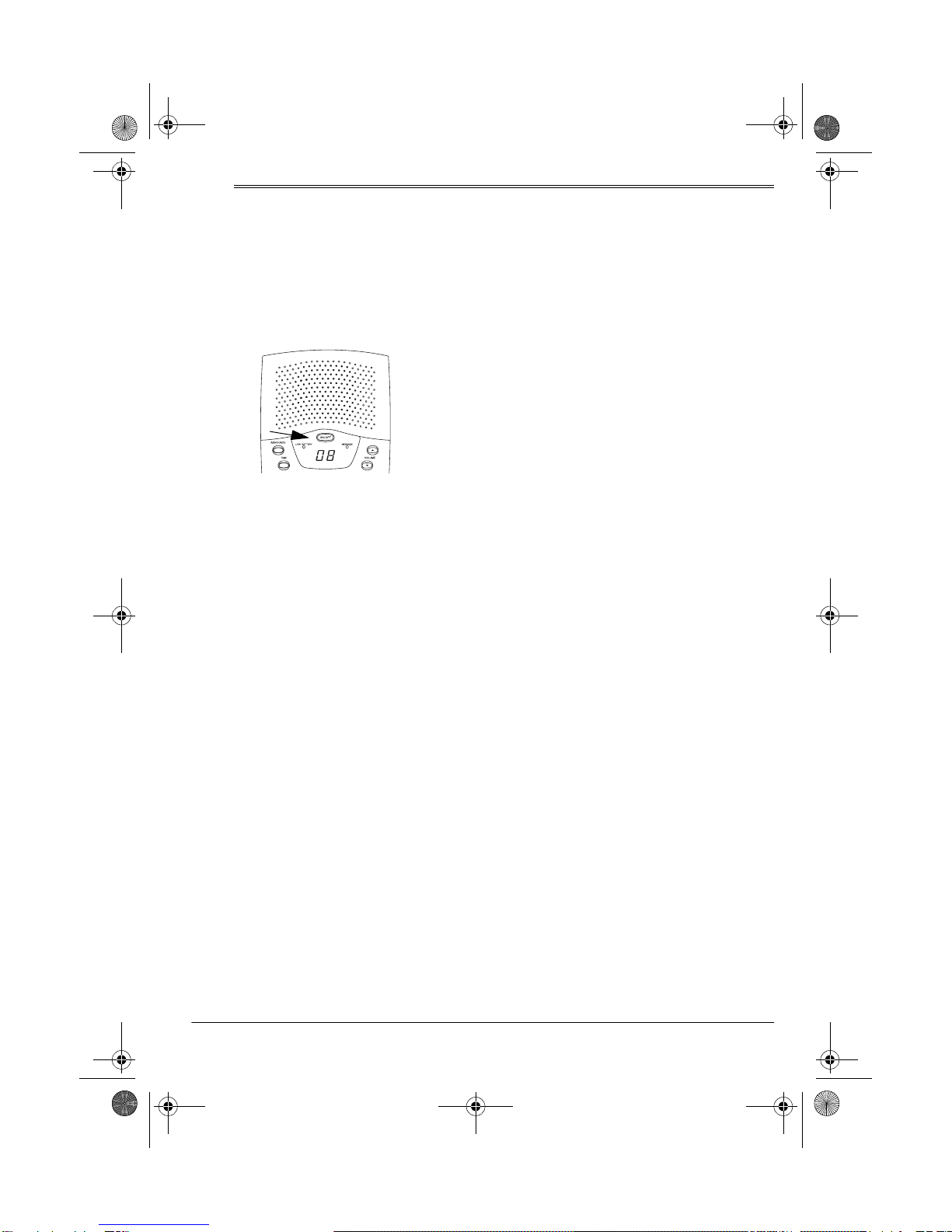

The MESSAGE indicator flashes after the

TAD records one or more incoming messag-

es or memos. The display shows how many

messages were recorded.

1. To listen to all messages (including

memos), press PAUSE/PLAY.

The TAD plays each recorded message

in sequence, beginning with the first new

message. Before each message, the

TAD announces the day and time the

message was recorded. After playing

the last message, the TAD says, “End of

messages.”

After you play the messages, the MES-

SAGE indicator lights steadily and the

TAD automatically saves the messages

and resets to answer calls.

2. To replay the messages, press PAUSE/

PLAY.

Note: To pause while listening to mes-

sages, press PAUSE/PLAY. The playback

resumes automatically after 1 minute or

when you press PAUSE/PLAY again.

3. During message playback, you can

repeat the current message, or skip

backward or forward to the previous or

next message.

• To repeat the current message, press

REPEAT.

• To skip backward to any message,

press REPEAT until you reach the

message number you want to hear.

• To skip forward to the next message,

press SKIP.

4. To stop message playback at any time,

press CODE/STOP.

DELETING MESSAGES

You can delete

messages indi-

vidually during

playback, or all at

once after play-

back.

To delete a particular incoming message or

memo (after listening to it), press DELETE im-

mediately during playback.

To delete all messages after playback, hold

down DELETE for about 2 seconds. The TAD

says, “Messages deleted”. The display

43-723.fm Page 10 Monday, May 22, 2000 10:26 AM

Table des matières

Autres manuels Radio Shack Répondeur

Radio Shack

Radio Shack TAD-1027 Manuel utilisateur

Radio Shack

Radio Shack TAD-1009 Manuel utilisateur

Radio Shack

Radio Shack TAD-1029 Manuel utilisateur

Radio Shack

Radio Shack 43-3808A Manuel utilisateur

Radio Shack

Radio Shack Digital Answering System with Big Button Trim... Manuel utilisateur

Radio Shack

Radio Shack 900MHz Manuel utilisateur

Radio Shack

Radio Shack 43-3801 Manuel utilisateur

Radio Shack

Radio Shack TAD-1018 Manuel utilisateur

Radio Shack

Radio Shack TAD -797 Manuel utilisateur

Radio Shack

Radio Shack TAD-764 Manuel utilisateur

Radio Shack

Radio Shack TAD-3806 Manuel utilisateur

Radio Shack

Radio Shack 43-3803 Manuel utilisateur

Radio Shack

Radio Shack 43-3880 Manuel utilisateur

Radio Shack

Radio Shack TAD-739 Manuel utilisateur

Radio Shack

Radio Shack TAD-1006 Manuel utilisateur

Radio Shack

Radio Shack TAD 3809 Manuel utilisateur

Radio Shack

Radio Shack TAD-1024 Manuel utilisateur

Radio Shack

Radio Shack TAD-716 Manuel utilisateur

Radio Shack

Radio Shack TAD-1007 Manuel utilisateur

Radio Shack

Radio Shack Digital Telephone Answering Device Manuel utilisateur

Radio Shack

Radio Shack TAD-277 Manuel utilisateur

Radio Shack

Radio Shack TAD-1026 Manuel utilisateur

Radio Shack

Radio Shack TAD-779 Manuel utilisateur

Radio Shack

Radio Shack TAD-716 Manuel utilisateur

Manuels Répondeur populaires d'autres marques

AT&T

AT&T 2455 Manuel utilisateur

Panasonic

Panasonic KX-TG2583CB Manuel utilisateur

Panasonic

Panasonic KX-TGE820E Manuel utilisateur

BellSouth

BellSouth GH9488 Guide de sécurité

GE 2-9985 Manuel utilisateur

Panasonic

Panasonic KX-TG2631 Manuel utilisateur

Panasonic

Panasonic KX-TCD961CXB Manuel utilisateur

Krown

Krown PortaPrinter 2000STD Manuel utilisateur

AT&T

AT&T 1717 Manuel utilisateur

Alcatel

Alcatel TEMPORIS 55-CE Manuel utilisateur

AT&T

AT&T E2562 Manuel utilisateur

Telstra

Telstra Monitor 420 Manuel utilisateur

Kortex

Kortex IAM V90 Manuel utilisateur

Panasonic

Panasonic EASA-PHONE KX-T1451 Manuel utilisateur

Philips

Philips VOIP8551B/05 Manuel utilisateur

Topcom

Topcom LUCCA Answering Machine Manuel utilisateur

Panasonic

Panasonic KX-TGM420 Manuel utilisateur

Panasonic

Panasonic KX-TCD320E Manuel utilisateur
