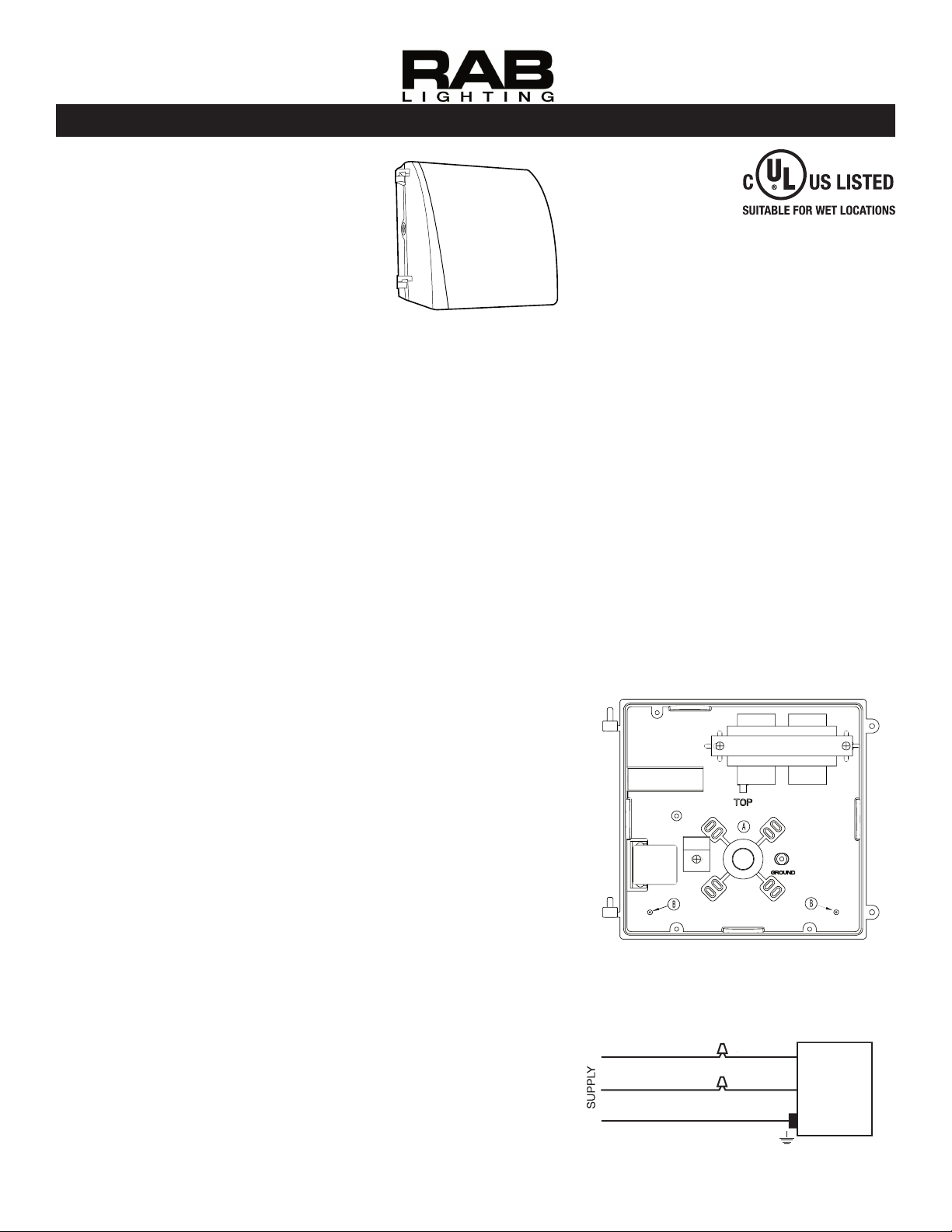

WP1FC Full Cut-off INSTALLATION INSTRUCTIONS

Thank you for buying RAB Lighting ﬁxtures. Our goal is to design the best quality products to get the job done right.

We’d like to hear your comments. Call the Marketing Department at 888-RAB-1000, or email: [email protected]

IMPORTANT

READ CAREFULLY BEFORE INSTALLING FIXTURE. RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.

RAB Wallpacks must be wired in accordance with the National Electrical Code and applicable local codes.

Proper grounding is required for safety. Wallpacks are for outdoor use and should not be used in areas

with limited ventilation or high-ambient temperatures. Installation should be done by a qualiﬁed electrician.

WARNING: Make certain power is OFF before installing or maintaining ﬁxture.

LOCATION

Mount ﬁxture on a wall with lens facing down as shown in drawing above. Fixture must be level. Lamp must

be in a horizontal position. DO NOT mount in a way that would entrap heat.

MOUNTING

Use the knockout template on the inside back surface of the housing to match most standard junction boxes

(see “A”) or for more secure installation, lag bolt housing to mounting surface using points “B”.

1. Remove the door and reﬂector

2. Prepare the housing for use by knocking out the appropriate holes

3. Line up the housing in desired location and mount securely

4. Complete the wiring to the power source and ground

(see wiring instructions)

5. Replace the reﬂector, install the lamp and mount the door

6. To insure weatherproof seal make sure all holes (mounting,

plugs, conduit, etc.) are sealed with weatherproof silicone sealant

WIRING

If supply wires are located within (3) inches of ballast, use wire rated for at least 125°C. If supply wires are routed

and secured min (3) inches away from ballast, use wire rated for at least 90° C.

1. Connect the appropriate voltage ﬁxture lead to the HOT supply lead

2. Connect the “COM” ﬁxture lead to the COMMON supply lead

3. Fixture ground screw must be connected to supply ground

4. All unused leads must be capped and insulated



 







WP1FC

WP1FC Full Cut-off INSTALLATION INSTRUCTIONS

PHOTOCELL INSTALLATION

A PHOTOCELL MAY BE INSTALLED IN THE FIELD.

1. Remove door and reﬂector

2. Remove close up plug on top of ﬁxture

3. Install photocell and wire as per diagram

RE-LAMPING

CAUTION: Prior to installing, check that the lamp is of proper type and wattage. Observe lamp manufacturer’s

recommendations on lamp operation, burning position and ballast type.

1. Disconnect power

2. Make sure ﬁxture and lamp are cool enough to touch

3. Loosen two screws holding door frame

4. Open by swinging door to the left, letting hinge hold door

5. Replace lamp

6. Close door and tighten screws

REPLACEMENT LAMPS

METAL HALIDE ANSI HIGH PRESSURE SODIUM ANSI FLUORESCENT

Wattage Catalog# Code Wattage Catalog# Code Wattage Catalog#

50PS LMH50 M110 35 LHPS35 S76 42 LCFL42

70PS LMH70 M98 50 LHPS50 S68

100PS LMH100 M90 70 LHPS70 S62

100 LHPS100 S54

150 LHPS150 S55

CLEANING

Caution: Be sure ﬁxture temperature is cool enough to touch. Be sure power is off.

Clean reﬂector and refractor with a cloth moistened with non abrasive glass cleaning solution.

TROUBLESHOOTING CHECKLIST

Check that:

1. Proper lamp is installed. Lamp is not faulty

2. Line voltage at the ﬁxture is correct

3. Fixture is wired correctly

4. Fixture is grounded correctly

THESE INSTRUCTIONS DO NOT COVER ALL DETAILS OR VARIATIONS IN EQUIPMENT, NOR DO THEY PROVIDE FOR EVERY

POSSIBLE CONTINGENCY TO BE MET IN CONNECTION WITH INSTALLATION, OPERATION OR MAINTENANCE.

EASY INSTALLATION & PRODUCT HELP

©RAB Lighting, Inc.

170 Ludlow Avenue Northvale, NJ 07647 USA

1/06

RAB

MAKES

EASY!

Info on Demand





rabweb.com





Tech Help Line





Toll Free Fax





E-mail





“COM”

PHOTOCELL

WP2FC

WP1FC
