Quoizel TML8407K Instructions de montage

Hardware Contents

Package Contents

Pleasegoto forproductcleaningtips.Gotothe selection.www.quoizel.com Care+Maintenance

ToolsRequired:Flatheadscrewdriver, Phillips screwdriver,pliers,wirecutters,wirestrippers,electricaltape,safetyglasses.

BulbRecommended: (2)B10CandelabraBaseBulbs60WMaximum

EstimatedAssemblyTime:

Preparation:

Fixturecanonlybemountedinthedirectionindicatedonpage2.

30-45minutes

Identifyandinspectallpartsbeforebeginninginstallation.Checkpackagecontentlistanddiagramsbelowtobesureallpartsare

present.Ifanypartsaremissingordamaged,donotattempttoassemble,install,oroperatethefixture.Contactcustomerserviceforreplacement

parts.

Warnings and Cautions

1of2

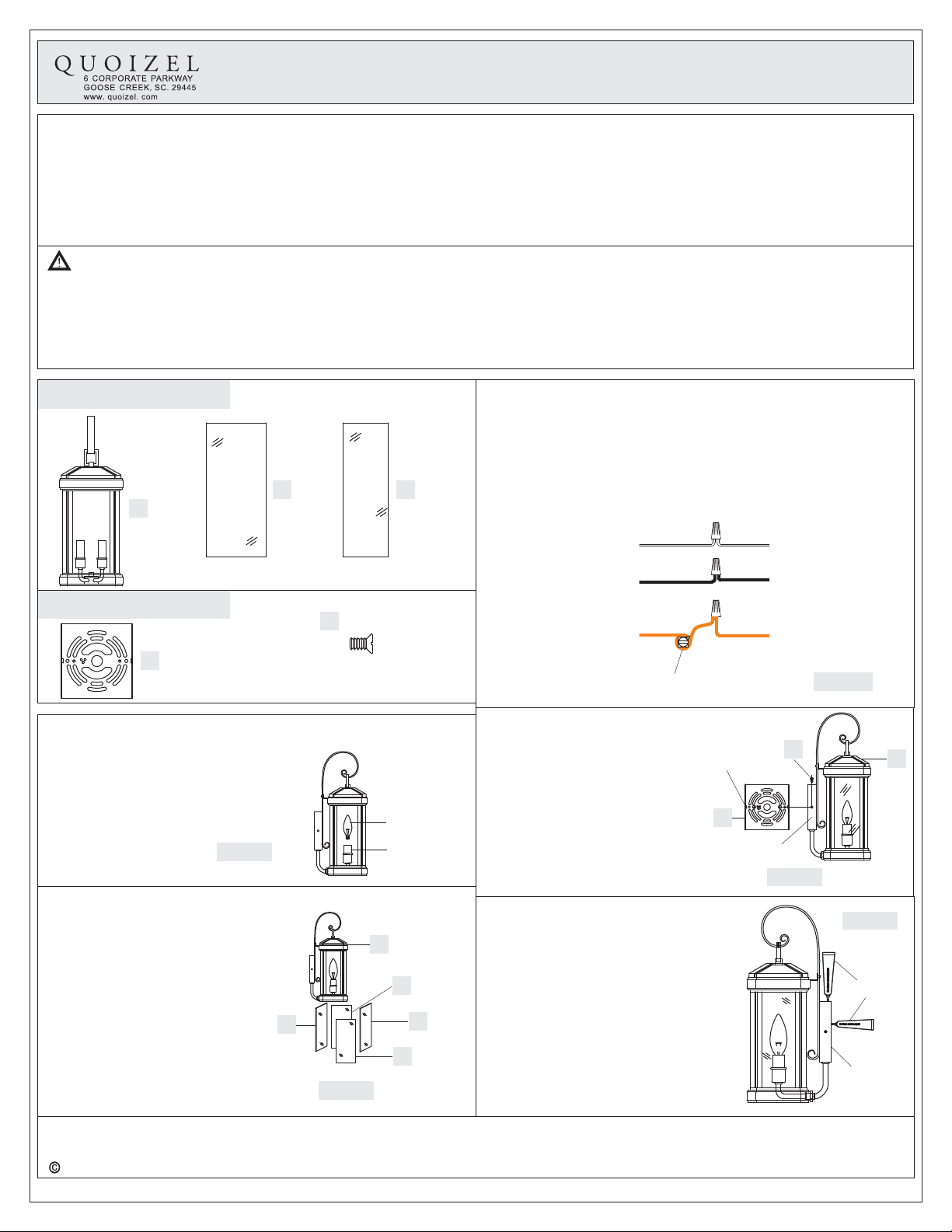

Assembly Instruction Sheet #IS-TML8407K_R1

For Style TML8407K

Turn off electricity at circuit breaker or main fuse box before installation. Consult a licensed electrician if in doubt.

These instructions are provided for your safety. It is very important you read them completely before installing the fixture. We strongly

recommend that a licensed, professional electrician perform the installation.

Disconnect fixture from power source before replacing bulbs. Make sure bulbs are given sufficient time to cool before removal.

AA Inner Backplate

Fixture

Body

Narrow

Glass

BB Mounting Screw

Wide

Glass

Figure 3

STEP 1 Install Bulbs-

A. Insert bulbs onto sockets and screw

snugly into place.

Figure 2

Bulb (not

supplied)

Socket

Figure 1

STEP 2 Attach Glass to Fixture

Body

A. Insert the Wider Glass (B) Panel

to the Cage close to the

backplate first. Then insert the

two Narrow Glasses C to the

cage next to the installed wider

glass. Insert the other Wider

Glass to the cage at last.

()

(B) B

STEP 3 - Wire Connections

A. Wrap bare or green ground wire around green ground screw on the

crossbar, no less than 2 inches from the end of the wire. Tighten the

green ground screw.

B. Use standard wire connectors (not included) to make all wire

connections. Twist connectors until wires are tightly joined together.

Wrap each connection with approved electrical tape and carefully

stuff all the connected wires into the Outlet Box.

Green Ground Screw

on the Crossbar

White wire

from outlet box White wire

from fixture

Black wire from

outlet box (or Red)

Black wire

from fixture

Bare, or Green

Ground wire

from outlet box

Ground wire

from Fixture

STEP 4 - Attach fixture to Inner

Backplate

A. Place the backplate of the

Fixture Body (A) onto the Inner

Backplate (AA). Line up holes

on both of them. Thread

Mounting Screws (BB) into the

mounting holes on the Inner

Backplate (AA) and hand

tighten until snug to secure

them.

Backplate

Mounting

Hole

Figure 5

STEP 5 -Apply Silicone Sealer

A. Make sure exterior wall surface

and fixture backplate are free of

dirt before applying caulk. Using

exterior grade caulk, caulk over

top of backplate and down other

side. Do not caulk bottom of fixture

backplate to ensure proper

moisture drainage.

Your fixture is now assembled and

ready to use. Enjoy! Backplate

Exterior

Grade

Caulk

Figure 4

2017 QuoizelInc.

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184

or visit us on-line at www.quoizel.com

RevisedDate:2017-11-09

2of2

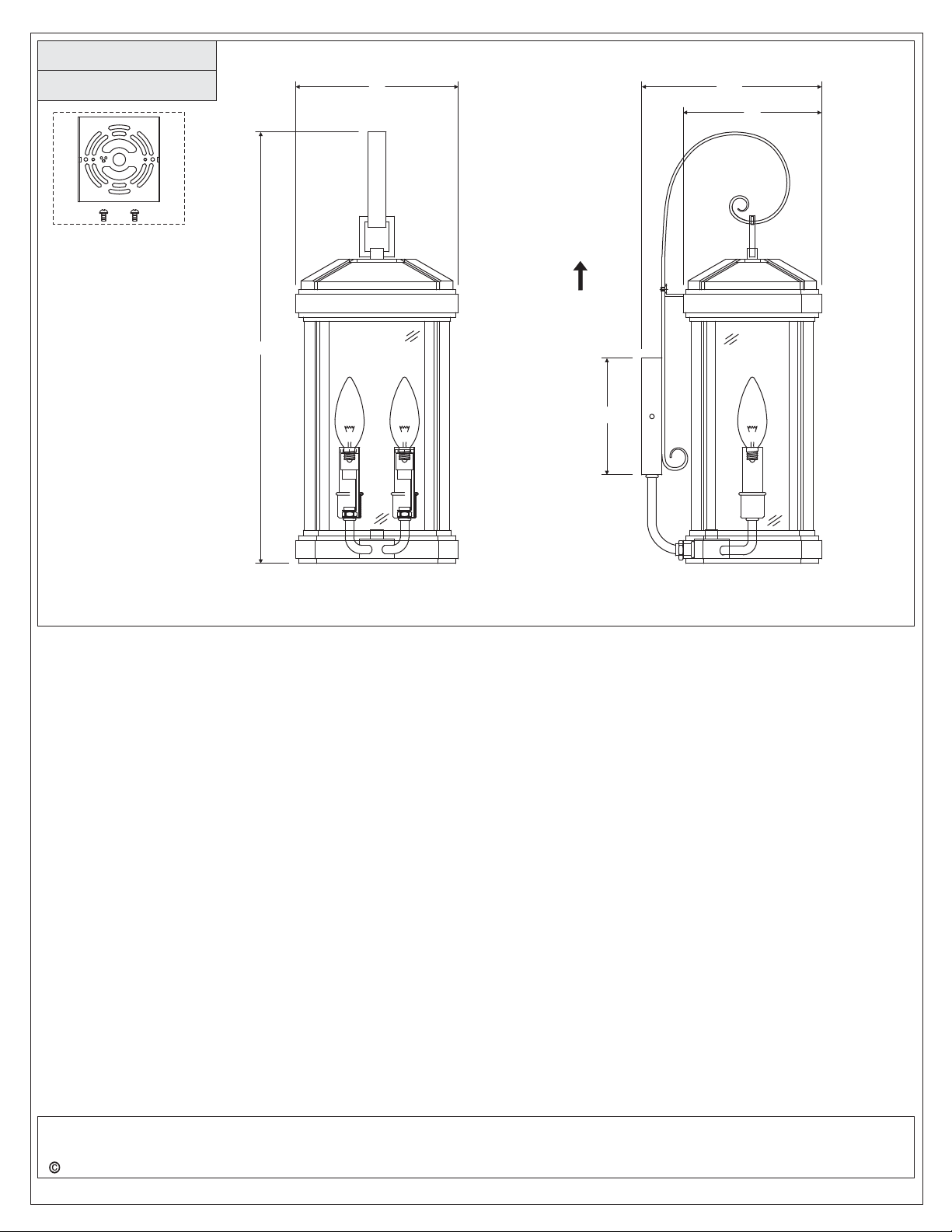

TML8407K

NOTE: ALL DIMENSIONS ARE ROUNDED UP TO THE NEAREST 1/2"

FINISH: MYSTIC BLACK

Fixture can only be

mounted in the

direction indicated

18.5”

7” 75”.

6”

5” Sq.

2017 QuoizelInc.

Thank you for purchasing a Quoizel product.

Need assistance with parts or assembly? Call Quoizel customer service at 1-800-645-3184

or visit us on-line at www.quoizel.com

RevisedDate:2017-11-09
