Quatech SPPXP-100 Manuel utilisateur

CONNECT WITH

RELIABILITY

QUATECH, INC.

5675 Hudson Industrial Parkway

Hudson, Ohio 44236-5012

Toll free: 1-800-553-1170

TEL: (330) 655-9000

FAX: (330) 655-9010

http://www.quatech.com.

SPPXP-100

User’s Manual P/N: 940-5001-100

Rev. 1.00 – Jul

2007

ExpressCard Parallel Port

Adapter User’s Manual

SPPXP-100

information contained in this document cannot be reproduced in any form

without the written consent of Quatech, Inc. Any software programs that

might accompany this document can be used only in accordance with any

license agreement(s) between the purchaser and Quatech, Inc. Quatech

Inc. reserves the right to change this documentation or the product to

which it refers at any time and without notice.

Trademarks QUATECH® is a registered trademark of Quatech, Inc. Other product

and brand names listed in this manual may be trademarks of their

respective owners.

Disclaimer The information in this manual is believed to be accurate and reliable at

the time of posting. Notwithstanding the foregoing, Quatech assumes no

responsibility for any damage or loss resulting from the use of this

manual, and expressly disclaims any liability or damages for loss of data,

loss of use, and property damage of any kind, direct, incidental or

consequential, in regard to or arising out of the performance or form of

the materials presented herein or in any software program(s) that may

accompany this document.

Changes or modifications to this device not explicitly approved by

Quatech will void the user's authority to operate this device.

Feedback Quatech, Inc. encourages and appreciates feedback concerning this

document. Please send any written comments to the Technical Support

department at the address listed on the cover page of this manual.

Quatech ExpressCard Parallel Port Adapter User’s Manual Table of contents

Table of contents

Table of contents------------------------------------------------------------------------------------------------------------------ i

Figures ------------------------------------------------------------------------------------------------------------------------ ii

Introduction----------------------------------------------------------------------------------------------------------------------- 1

System requirements ----------------------------------------------------------------------------------------------------- 1

Installing the Parallel Port Adapter --------------------------------------------------------------------------------------- 2

Installing under Windows XP ------------------------------------------------------------------------------------------ 2

Uninstalling under Windows XP -------------------------------------------------------------------------------------- 6

Installing under Windows Vista--------------------------------------------------------------------------------------- 7

Uninstalling under Windows Vista----------------------------------------------------------------------------------11

Making external connections -----------------------------------------------------------------------------------------------12

Using Device Manager--------------------------------------------------------------------------------------------------------13

Accessing Device Manager ---------------------------------------------------------------------------------------------13

Exploring Device Manager screens ----------------------------------------------------------------------------------13

Windows XP / Vista -------------------------------------------------------------------------------------------------13

Troubleshooting-----------------------------------------------------------------------------------------------------------------18

Appendix A -----------------------------------------------------------------------------------------------------------------------19

Specifications---------------------------------------------------------------------------------------------------------------19

Warranty information ---------------------------------------------------------------------------------------------------20

Page i Rev 1.00 (July 2007)

Table of Contents Quatech ExpressCard Parallel Port Adapter User’s Manual

Figures

Figure 1 - Windows XP Found new hardware prompt.............................................................................. 2

Figure 2 - Windows XP Choose your installation options prompt............................................................ 3

Figure 3 - Windows XP “software has not passed Windows logo testing” prompt ................................ 4

Figure 4 - Windows XP “please wait” message......................................................................................... 5

Figure 5 - Windows XP Finished installing prompt.................................................................................. 5

Figure 6 - Device Manager.......................................................................................................................... 6

Figure 7 - Windows Vista "Found new hardware" prompt ....................................................................... 7

Figure 8 - "Windows needs your permission to use this program" prompt ............................................. 7

Figure 9 - Windows Vista "Insert the disc that came with your hardware" prompt............................... 8

Figure 10 - Windows Vista “Windows can’t verify the publisher of the driver software” prompt ........ 9

Figure 11 - Windows Vista “Installing driver software” message......................................................... 10

Figure 12 - Windows Vista "the software has been successfully installed" prompt............................. 10

Figure 13 - Device Manager...................................................................................................................... 11

Figure 14 - DB-25 female parallel port connector ................................................................................... 12

Figure 15 - Windows XP Device Manager - Adapter properties, General tab....................................... 14

Figure 16 - Windows XP Device Manager - Adapter properties, Port Settings tab .............................. 15

Figure 17 - Windows XP Device Manager - Adapter properties, Driver tab ......................................... 16

Figure 18 - Windows XP Device manager - Adapter properties, Driver file details box....................... 17

Page ii Rev 1.00 (July 2007)

Quatech ExpressCard Parallel Port Adapter User’s Manual Introduction

Introduction

This User’s Manual describes how to setup and install your Quatech

Parallel Port Adapter.

The Quatech SPPXP-100 provides one parallel port to the host PC via

the ExpressCard port.

The adapter is a Plug-and-Play device and requires no hardware

configuration.

System requirements

Quatech Parallel Port Adapters are supported under the Windows XP

(and later) operating systems. All device drivers are available for

download from the Quatech World Wide Web site at

http://www.quatech.com/.

Rev 1.00 (July 2007) Page 1

Installing the software Quatech ExpressCard Parallel Port Adapter User’s Manual

Installing the Parallel Port Adapter

This section explains how to install the Parallel Port Adapter under

different operating systems. Please locate and follow the procedure

for your computer’s operating system.

Caution! Be sure to allow

the installation process to

finish without interruption. The Parallel Port Adapter uses the Windows system-supplied parallel

drivers that enables the port to appear to Windows as a standard

LPT port.

Installing under Windows XP

Follow these steps to install the adapter under Windows XP.

Step Procedure Description

Step 1 Turn on the power to your computer

system.

This is the system in which the device is to

be installed.

Step 2 Plug the ExpressCard into an available

ExpressCard slot on the computer.

Windows tells you that it has found new

hardware and launches the Found New

Hardware Wizard.

Figure 1 - Windows XP Found new hardware prompt

Step Procedure Description

Step 3 When the “welcome to the found new

hardware wizard” appears, select the “No,

not this time” option

Please do NOT allow Windows Update

to search for the software on the internet.

Step 4 Click the Next button Windows will continue to the next step.

Figure 1 illustrates the

Windows XP Found new

hardware prompt. The Found

New Hardware Wizard

launches automatically when

you first plug in the Parallel

Port Adapter.

Page 2 Rev 1.00 (July 2007)

Quatech ExpressCard Parallel Port Adapter User’s Manual Installing the software

Figure 2 - Windows XP Choose your installation options prompt

Procedure Description

Step 5 Insert the Quatech installation CD into

your CD-ROM drive.

This is the CD that shipped with the

product.

Step 6 Select the “install automatically

(Recommended)” option.

The installation options prompt

displays.

Step 7 Click the Next button. Windows searches for drivers for the

adapter.

Rev 1.00 (July 2007) Page 3

Installing the software Quatech ExpressCard Parallel Port Adapter User’s Manual

Figure 3 - Windows XP “software has not passed Windows logo testing” prompt

Step Procedure Description

Step 8 In the case of a new unsigned driver, the

“software has not passed Windows logo

testing” prompt will appear. Please click

the [Continue Anyway] button to continue

with the installation.

Windows displays a warning prompt if

the software drivers are not signed with

the Windows logo. New drivers have

been tested at our lab facilities, but may

not yet have received the official logo

from Microsoft.

Step 9 The Wizard locates and starts to install

the necessary software.

The “wait while the Wizard installs the

software” prompt displays (fig.4),

followed by the “Finished installing”

prompt (fig.5).

Figure 3 illustrates the

“software has not passed

Windows logo testing” prompt.

This prompt will only appear

in the case of a new unsigned

driver.

Page 4 Rev 1.00 (July 2007)

Quatech ExpressCard Parallel Port Adapter User’s Manual Installing the software

Figure 4 - Windows XP “please wait” message

Figure 5 - Windows XP Finished installing prompt

Step Procedure Description

Step 10 Press the Finish button to continue. The ExpressCard Adapter installation is

complete.

Rev 1.00 (July 2007) Page 5

Installing the software Quatech ExpressCard Parallel Port Adapter User’s Manual

Uninstalling under Windows XP

Follow these steps in the event that you need to uninstall or reinstall

the Parallel Port software.

1. From the Control Panel, select System.

2. Press the Hardware tab.

3. Click on Device Manager.

Figure 6 - Device Manager

4. Scroll down to PORTS and expand.

5. Highlight your Quatech Parallel Port Adapter; for example,

Quatech SPPXP-100 ExpressCard IEEE-1284 Parallel Adapter

(LPT3)

6. Select the Action menu option.

7. Select Uninstall from the drop down menu.

8. Click OK at the Confirmation screen. Note that this also removes

the parallel port associated with your Parallel Port Adapter.

Page 6 Rev 1.00 (July 2007)

Table des matières

Autres manuels Quatech Adaptateur

Quatech

Quatech DSC-300 Manuel utilisateur

Quatech

Quatech DSC-100 Manuel utilisateur

Quatech

Quatech ESU-100-EMB Manuel utilisateur

Quatech

Quatech DSC-100 Manuel utilisateur

Quatech

Quatech DSU-200 Manuel utilisateur

Quatech

Quatech SS-BLT-100 Manuel utilisateur

Quatech

Quatech Asynchronous Communications Adapter for PCI bus... Manuel utilisateur

Quatech

Quatech DSU2-100 Manuel utilisateur

Quatech

Quatech MPAP-200 Manuel utilisateur

Quatech

Quatech Audio/Video Capture USB 2.0 Manuel utilisateur

Quatech

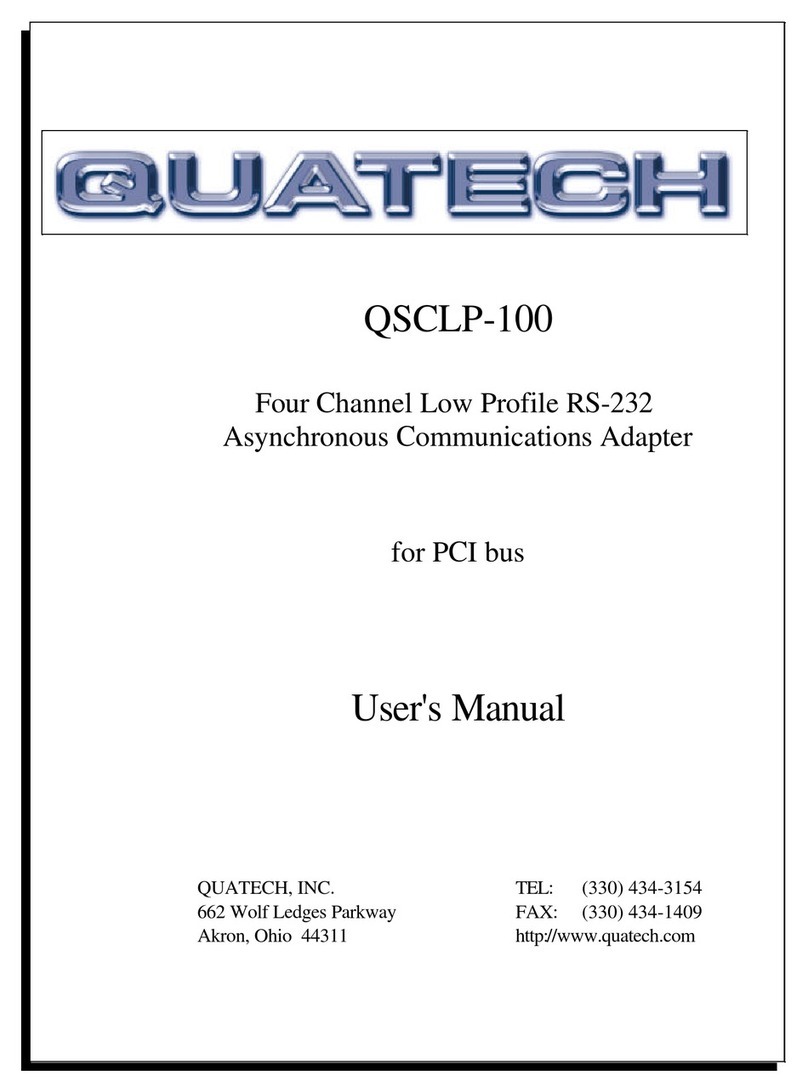

Quatech QSC(LP)-100 Manuel utilisateur
