QDI PlatiniX 2E/333 Manuel utilisateur

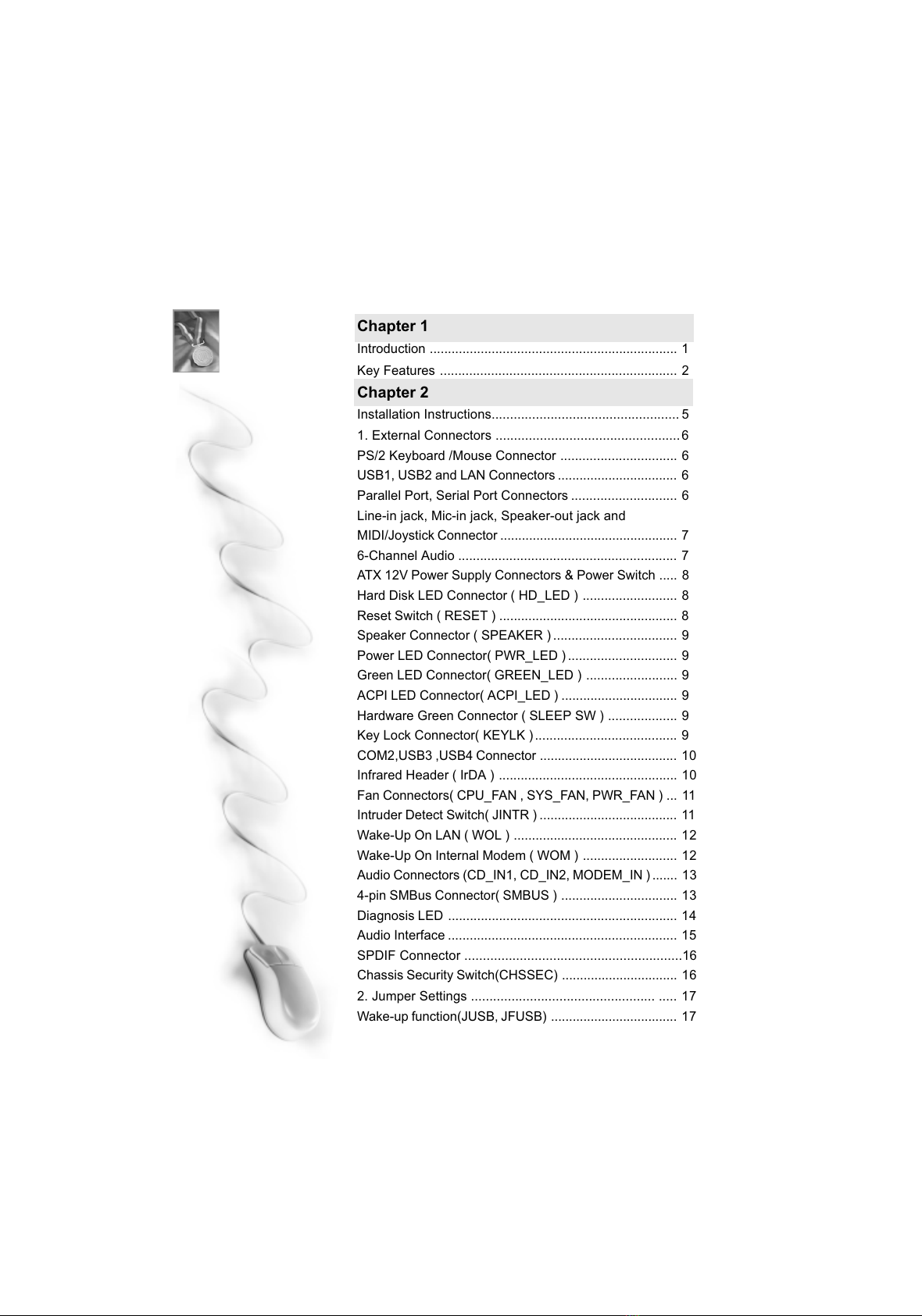

Chapter 1

Introduction .................................................................... 1

Key Features ................................................................. 2

Chapter 2

Installation Instructions................................................... 5

1. External Connectors ..................................................6

PS/2 Keyboard /Mouse Connector ................................ 6

US 1, US 2 and LAN Connectors ................................. 6

Parallel Port, Serial Port Connectors ............................. 6

Line-in jack, Mic-in jack, Speaker-out jack and

MIDI/Joystick Connector ................................................. 7

6-Channel Audio ............................................................ 7

ATX 12V Power Supply Connectors & Power Switch ..... 8

Hard Disk LED Connector ( HD_LED ) .......................... 8

Reset Switch ( RESET ) ................................................. 8

Speaker Connector ( SPEAKER ) .................................. 9

Power LED Connector( PWR_LED ) .............................. 9

Green LED Connector( GREEN_LED ) ......................... 9

ACPI LED Connector( ACPI_LED ) ................................ 9

Hardware Green Connector ( SLEEP SW ) ................... 9

Key Lock Connector( KEYLK )....................................... 9

COM2,US 3 ,US 4 Connector ...................................... 10

Infrared Header ( IrDA ) ................................................. 10

Fan Connectors( CPU_FAN , SYS_FAN, PWR_FAN ) ... 11

Intruder Detect Switch( JINTR ) ...................................... 11

Wake-Up On LAN ( WOL ) ............................................. 12

Wake-Up On Internal Modem ( WOM ) .......................... 12

Audio Connectors (CD_IN1, CD_IN2, MODEM_IN ) ....... 13

4-pin SM us Connector( SM US ) ................................ 13

Diagnosis LED ............................................................... 14

Audio Interface ............................................................... 15

SPDIF Connector ...........................................................16

Chassis Security Switch(CHSSEC) ................................ 16

2. Jumper Settings .................................................. ..... 17

Wake-up function(JUS , JFUS ) ................................... 17

All manuals and user guides at all-guides.com

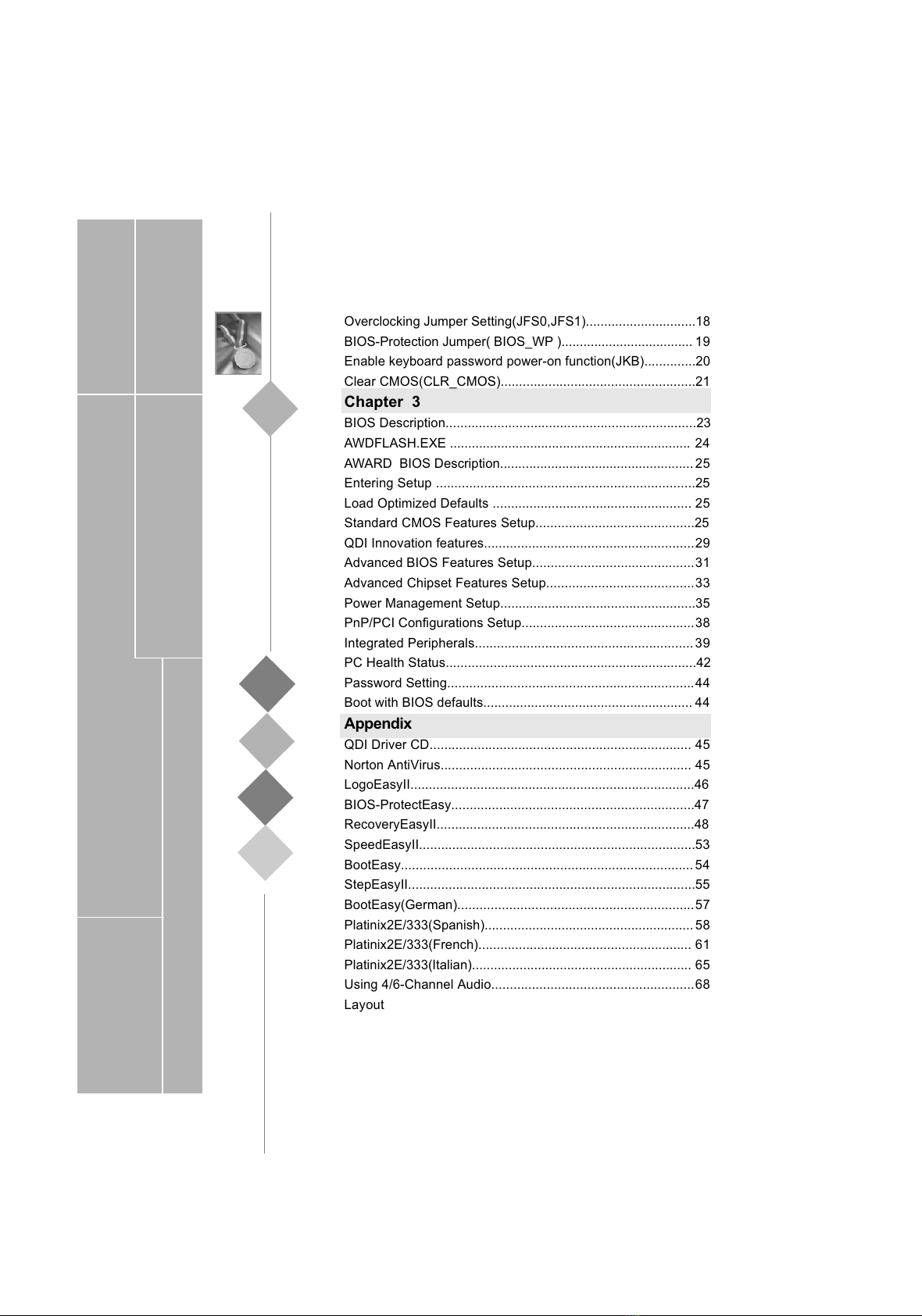

Overclocking Jumper Setting(JFS0,JFS1)..............................18

IOS-Protection Jumper( IOS_WP ).................................... 19

Enable keyboard password power-on function(JK )..............20

Clear CMOS(CLR_CMOS).....................................................21

Chapter 3

IOS Description....................................................................23

AWDFLASH.EXE .................................................................. 24

AWARD IOS Description..................................................... 25

Entering Setup ......................................................................25

Load Optimized Defaults ...................................................... 25

Standard CMOS Features Setup...........................................25

QDI Innovation features.........................................................29

Advanced IOS Features Setup............................................31

Advanced Chipset Features Setup........................................33

Power Management Setup.....................................................35

PnP/PCI Configurations Setup...............................................38

Integrated Peripherals........................................................... 39

PC Health Status....................................................................42

Password Setting...................................................................44

oot with IOS defaults......................................................... 44

Appendix

QDI Driver CD....................................................................... 45

Norton AntiVirus.................................................................... 45

LogoEasyII.............................................................................46

IOS-ProtectEasy..................................................................47

RecoveryEasyII......................................................................48

SpeedEasyII...........................................................................53

ootEasy............................................................................... 54

StepEasyII..............................................................................55

ootEasy(German)................................................................57

Platinix2E/333(Spanish)......................................................... 58

Platinix2E/333(French).......................................................... 61

Platinix2E/333(Italian)............................................................ 65

Using 4/6-Channel Audio.......................................................68

Layout

All manuals and user guides at all-guides.com



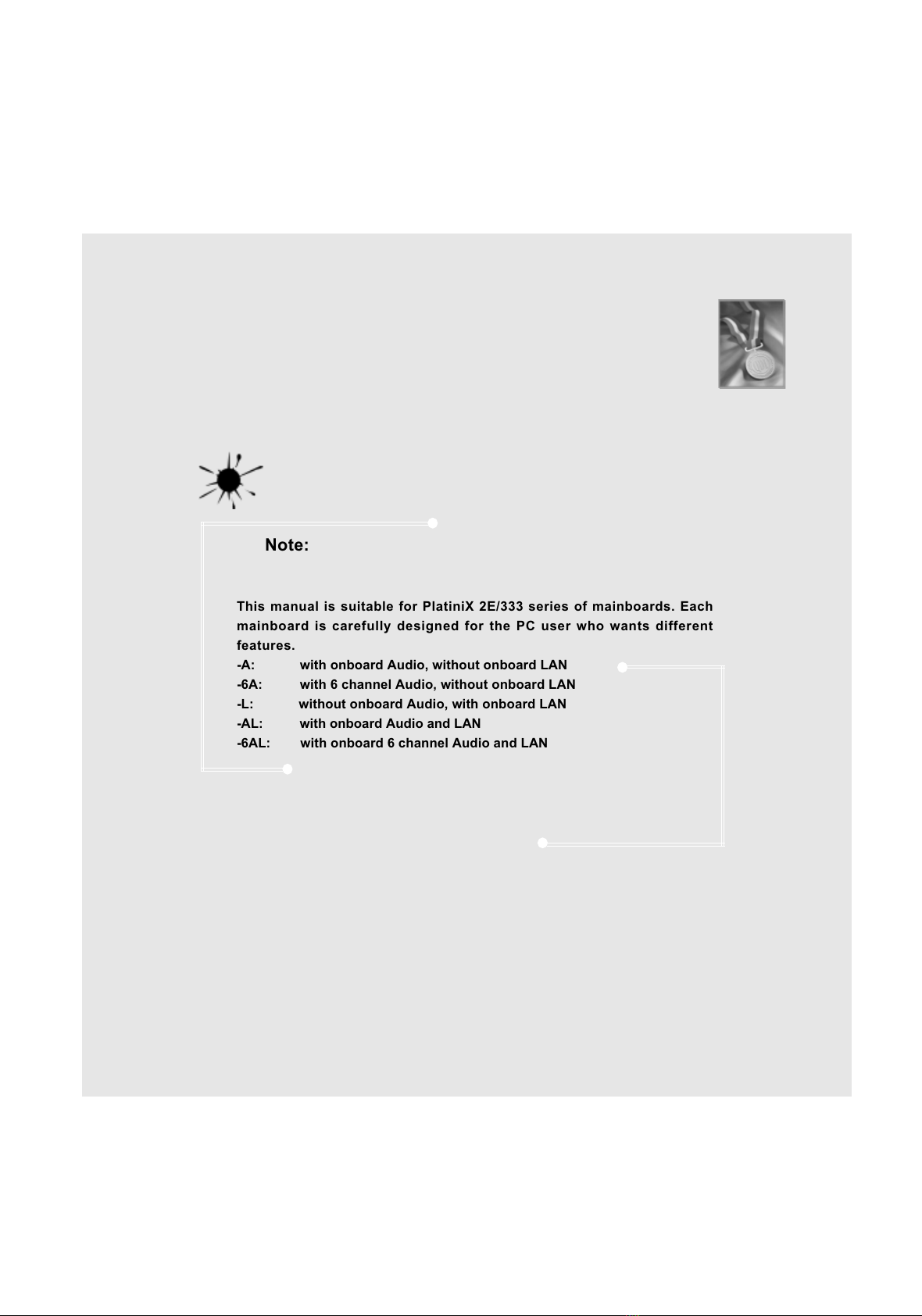

Note:

This manual is suitable for PlatiniX 2E/333 series of mainboards. Each

mainboard is carefully designed for the PC user who wants different

features.

-A with onboard Audio, without onboard LAN

-6A with 6 channel Audio, without onboard LAN

-L without onboard Audio, with onboard LAN

-AL with onboard Audio and LAN

-6AL with onboard 6 channel Audio and LAN

All manuals and user guides at all-guides.com

PlatiniX 2E/333

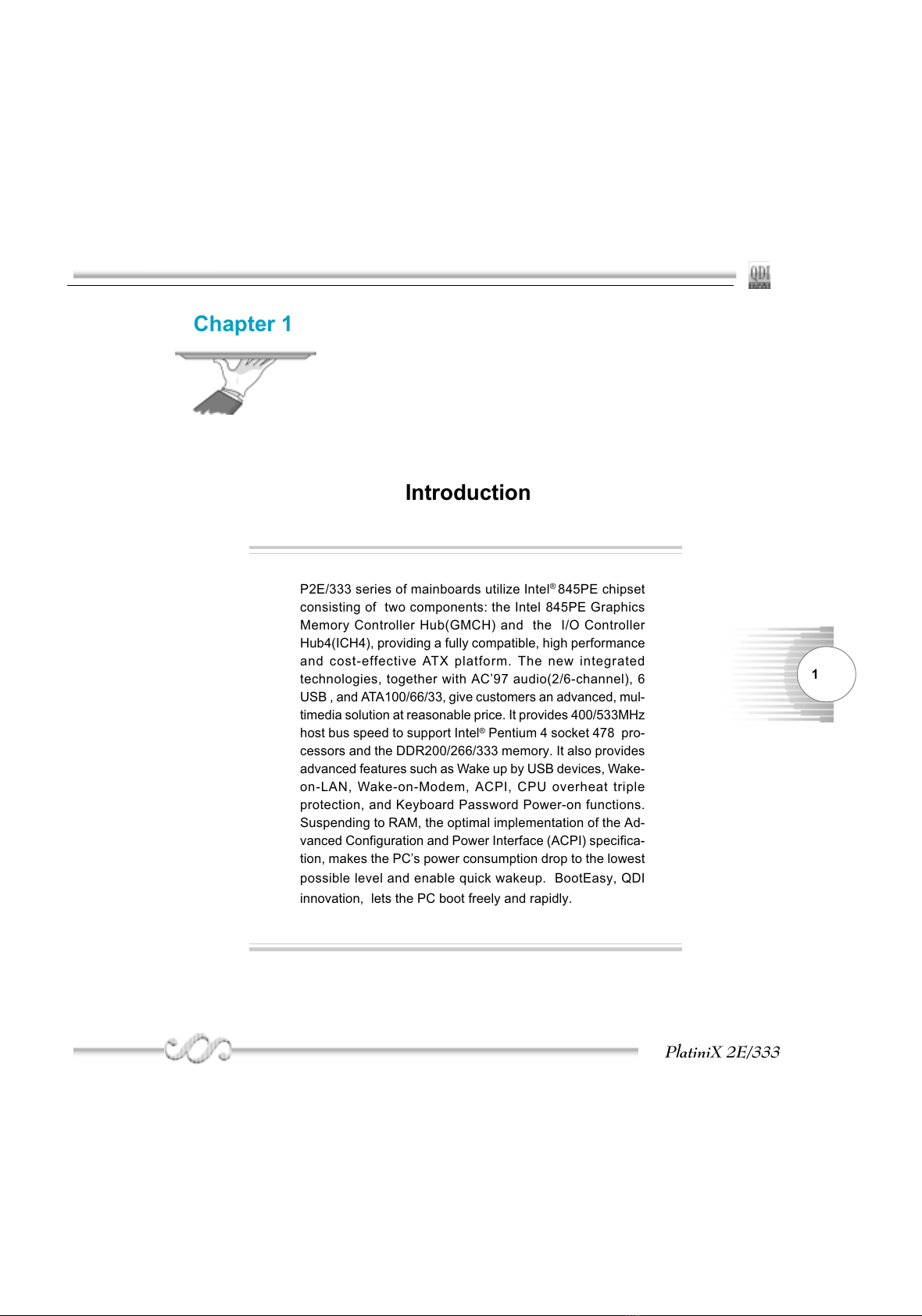

Chapter 1

Introduction

P2E/333 series of mainboards utilize Intel® 845PE chipset

consisting of two components: the Intel 845PE Graphics

Memory Controller Hub(GMCH) and the I/O Controller

Hub4(ICH4), providing a fully compatible, high performance

and cost-effective ATX platform. The new integrated

technologies, together with AC97 audio(2/6-channel), 6

US , and ATA100/66/33, give customers an advanced, mul-

timedia solution at reasonable price. It provides 400/533MHz

host bus speed to support Intel® Pentium 4 socket 478 pro-

cessors and the DDR200/266/333 memory. It also provides

advanced features such as Wake up by US devices, Wake-

on-LAN, Wake-on-Modem, ACPI, CPU overheat triple

protection, and Keyboard Password Power-on functions.

Suspending to RAM, the optimal implementation of the Ad-

vanced Configuration and Power Interface (ACPI) specifica-

tion, makes the PCs power consumption drop to the lowest

possible level and enable quick wakeup. ootEasy, QDI

innovation, lets the PC boot freely and rapidly.

All manuals and user guides at all-guides.com

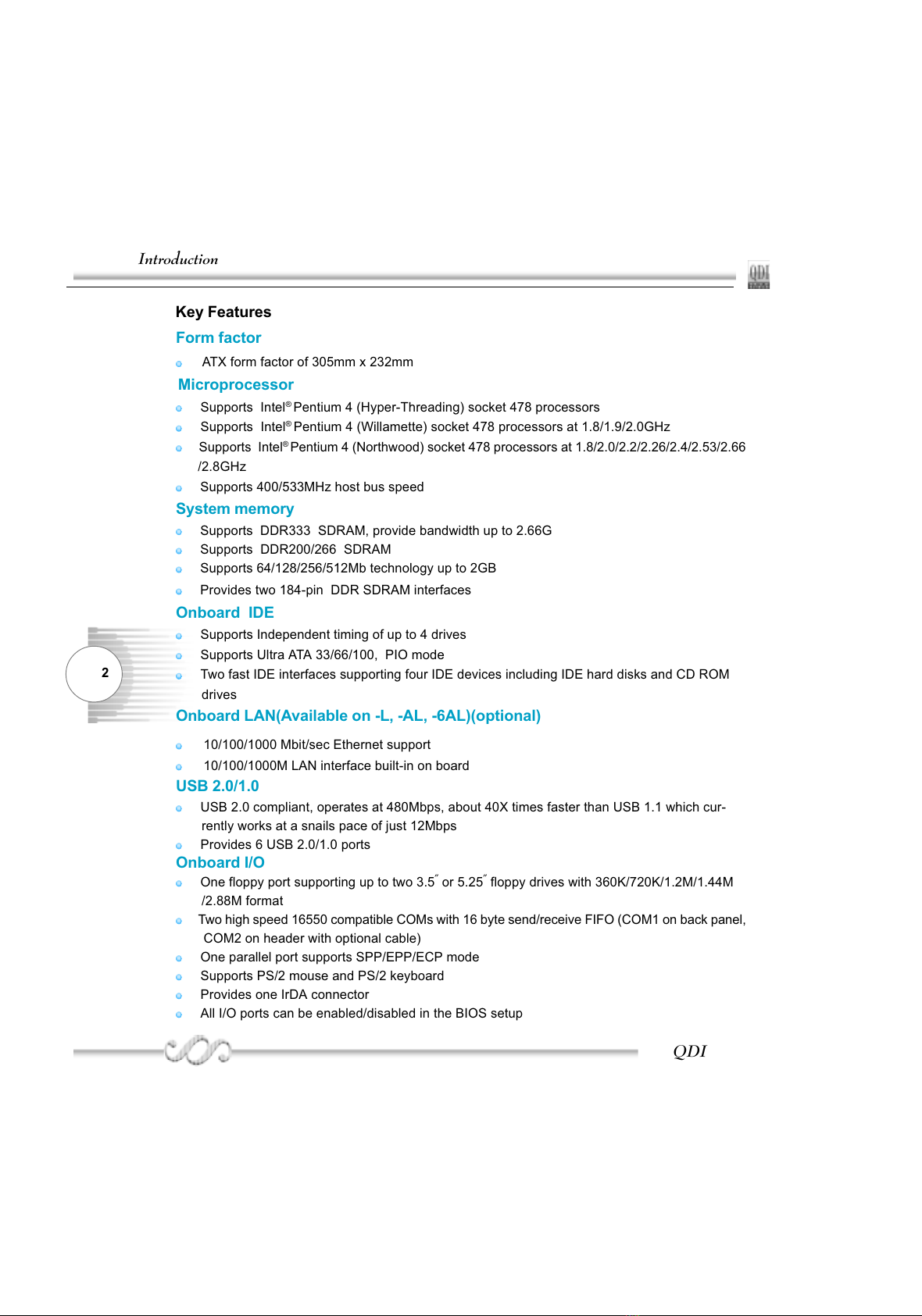

Introduction

QDI

Form factor

 ATX form factor of 305mm x 232mm

Microprocessor

Supports Intel® Pentium 4 (Hyper-Threading) socket 478 processors

Supports Intel® Pentium 4 (Willamette) socket 478 processors at 1.8/1.9/2.0GHz

Supports Intel® Pentium 4 (Northwood) socket 478 processors at 1.8/2.0/2.2/2.26/2.4/2.53/2.66

/2.8GHz

Supports 400/533MHz host bus speed

System memory

Supports DDR333 SDRAM, provide bandwidth up to 2.66G

Supports DDR200/266 SDRAM

Supports 64/128/256/512Mb technology up to 2G

Provides two 184-pin DDR SDRAM interfaces

Onboard IDE

Supports Independent timing of up to 4 drives

Supports Ultra ATA 33/66/100, PIO mode

Two fast IDE interfaces supporting four IDE devices including IDE hard disks and CD ROM

drives

Onboard LA (Available on -L, -AL, -6AL)(optional)

10/100/1000 Mbit/sec Ethernet support

10/100/1000M LAN interface built-in on board

USB 2.0/1.0

US 2.0 compliant, operates at 480Mbps, about 40X times faster than US 1.1 which cur-

rently works at a snails pace of just 12Mbps

Provides 6 US 2.0/1.0 ports

Onboard I/O

One floppy port supporting up to two 3.5″ or 5.25″ floppy drives with 360K/720K/1.2M/1.44M

/2.88M format

Two high speed 16550 compatible COMs with 16 byte send/receive FIFO (COM1 on back panel,

COM2 on header with optional cable)

One parallel port supports SPP/EPP/ECP mode

Supports PS/2 mouse and PS/2 keyboard

Provides one IrDA connector

All I/O ports can be enabled/disabled in the IOS setup

Key Features

All manuals and user guides at all-guides.com

PlatiniX 2E/333

Chapter 1

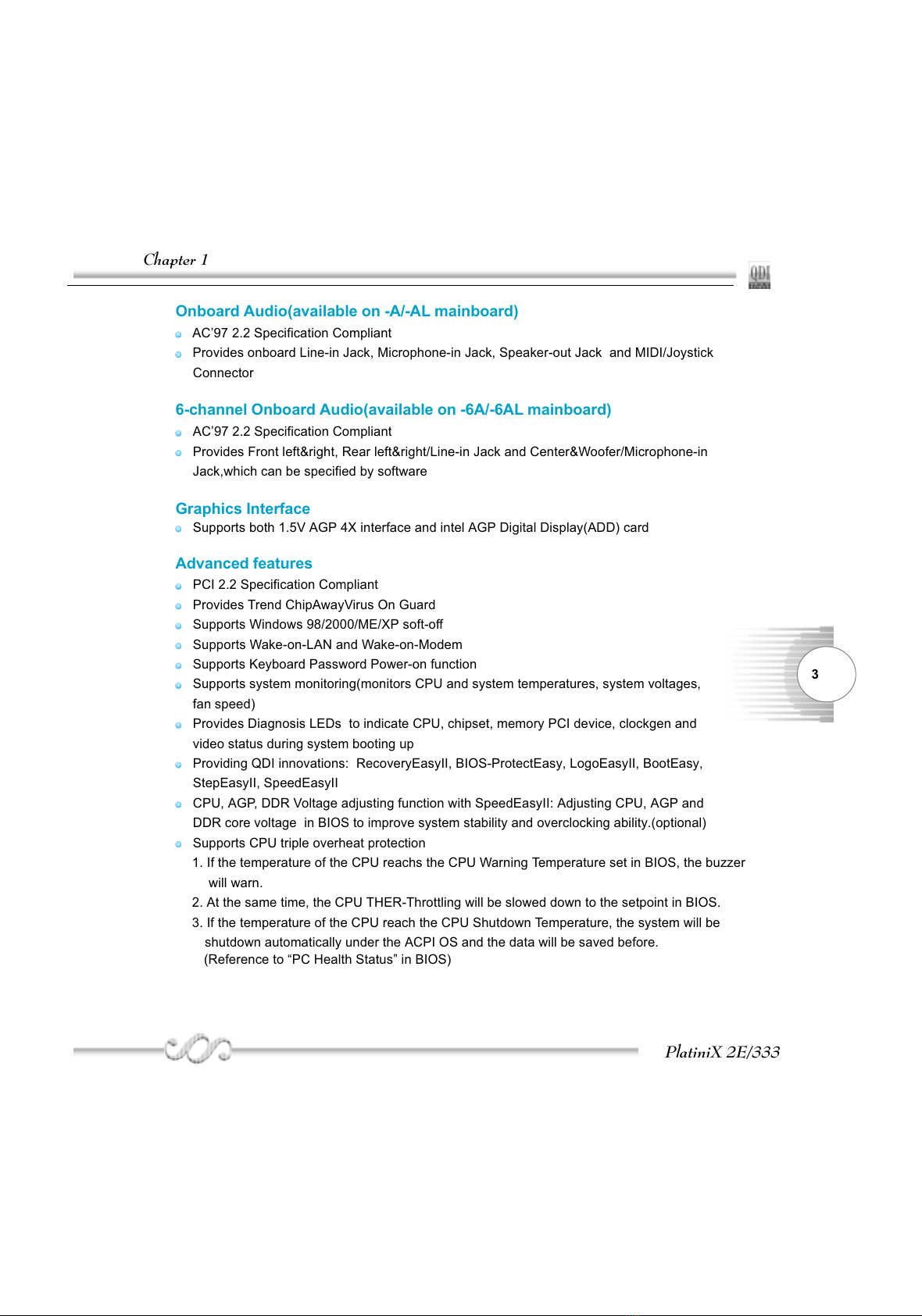

Onboard Audio(available on -A/-AL mainboard)

AC97 2.2 Specification Compliant

Provides onboard Line-in Jack, Microphone-in Jack, Speaker-out Jack and MIDI/Joystick

Connector

6-channel Onboard Audio(available on -6A/-6AL mainboard)

AC97 2.2 Specification Compliant

Provides Front left&right, Rear left&right/Line-in Jack and Center&Woofer/Microphone-in

Jack,which can be specified by software

Graphics Interface

Supports both 1.5V AGP 4X interface and intel AGP Digital Display(ADD) card

Advanced features

PCI 2.2 Specification Compliant

Provides Trend ChipAwayVirus On Guard

Supports Windows 98/2000/ME/XP soft-off

Supports Wake-on-LAN and Wake-on-Modem

Supports Keyboard Password Power-on function

Supports system monitoring(monitors CPU and system temperatures, system voltages,

fan speed)

Provides Diagnosis LEDs to indicate CPU, chipset, memory PCI device, clockgen and

video status during system booting up

Providing QDI innovations: RecoveryEasyII, IOS-ProtectEasy, LogoEasyII, ootEasy,

StepEasyII, SpeedEasyII

CPU, AGP, DDR Voltage adjusting function with SpeedEasyII: Adjusting CPU, AGP and

DDR core voltage in IOS to improve system stability and overclocking ability.(optional)

Supports CPU triple overheat protection

1. If the temperature of the CPU reachs the CPU Warning Temperature set in IOS, the buzzer

will warn.

2. At the same time, the CPU THER-Throttling will be slowed down to the setpoint in IOS.

3. If the temperature of the CPU reach the CPU Shutdown Temperature, the system will be

shutdown automatically under the ACPI OS and the data will be saved before.

(Reference to PC Health Status in IOS)

All manuals and user guides at all-guides.com

Introduction

QDI

Our technology is subject to upgrade from time to time, the de-

scription and Interface for Easy technology in this manual are

only for your reference. Please download the latest IOS or the

utility from the website.

Main Expansion Slots and Connectors

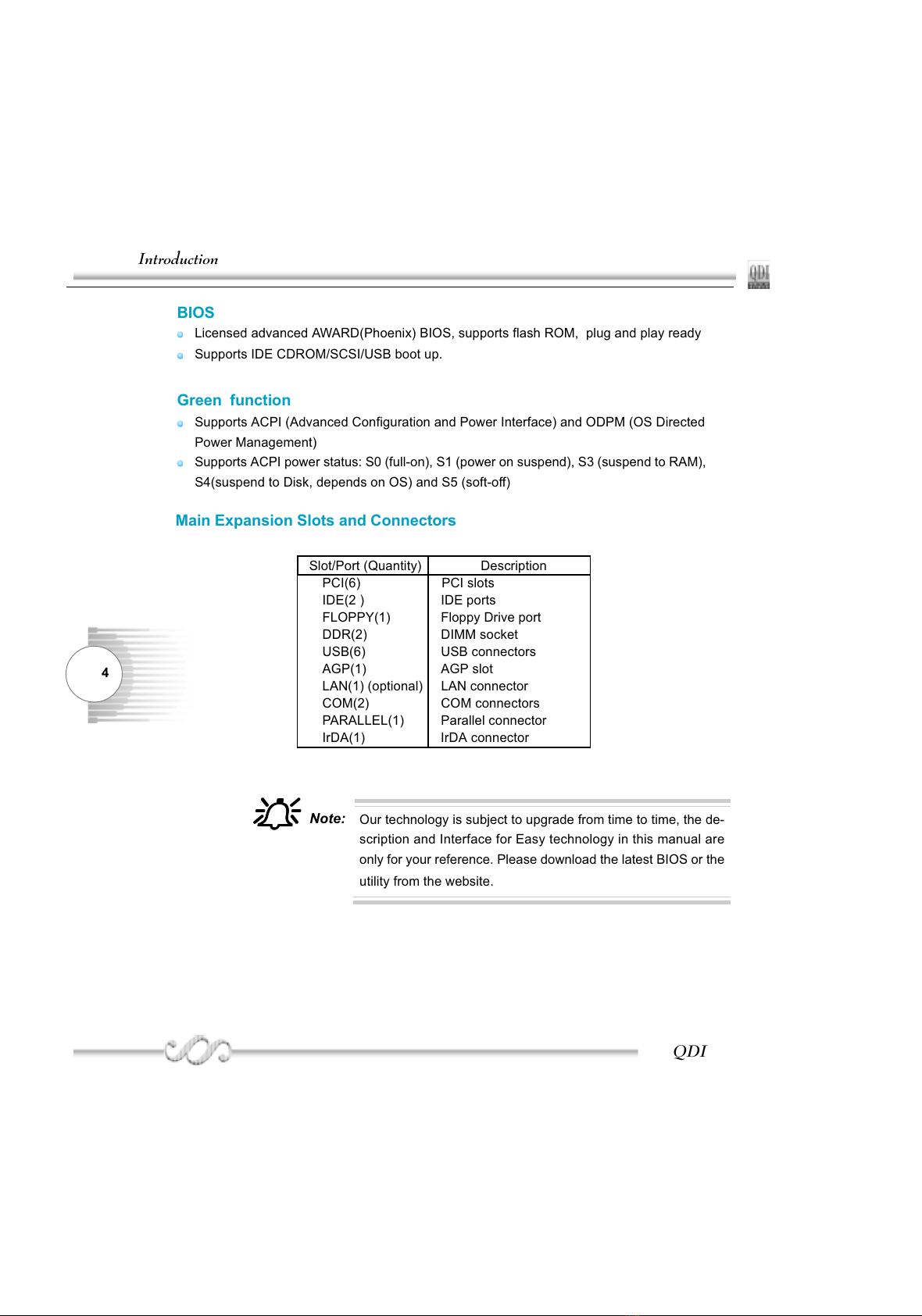

BIOS

Licensed advanced AWARD(Phoenix) IOS, supports flash ROM, plug and play ready

Supports IDE CDROM/SCSI/US boot up.

Green function

Supports ACPI (Advanced Configuration and Power Interface) and ODPM (OS Directed

Power Management)

Supports ACPI power status: S0 (full-on), S1 (power on suspend), S3 (suspend to RAM),

S4(suspend to Disk, depends on OS) and S5 (soft-off)

Slot/Port (Quantity) Description

PCI(6) PCI slots

IDE(2 ) IDE ports

FLOPPY(1) Floppy Drive port

DDR(2) DIMM socket

US (6) US connectors

AGP(1) AGP slot

LAN(1) (optional) LAN connector

COM(2) COM connectors

PARALLEL(1) Parallel connector

IrDA(1) IrDA connector





Note:

All manuals and user guides at all-guides.com

PlatiniX 2E/333

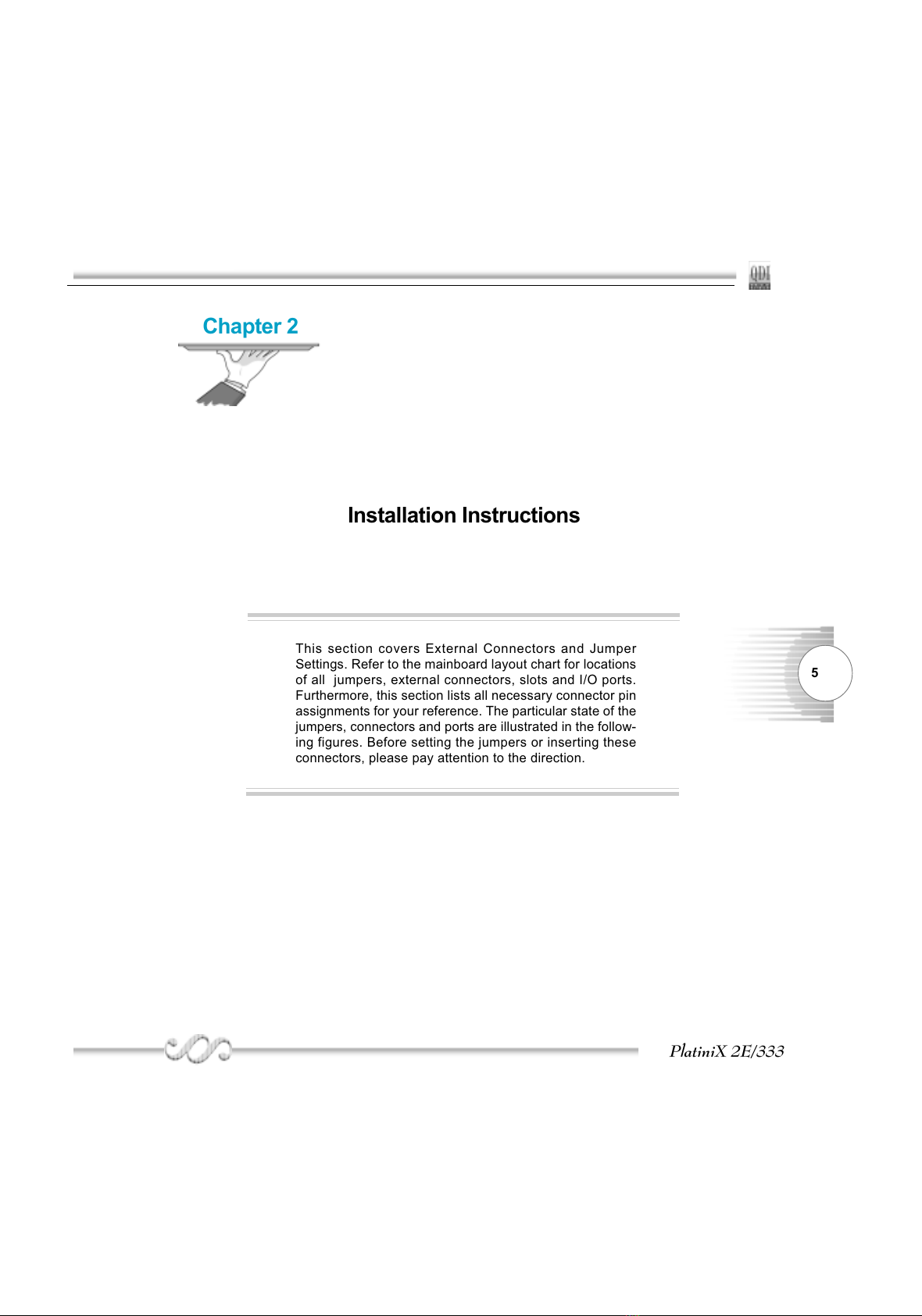

Chapter 2

Installation Instructions

Chapter 2

This section covers External Connectors and Jumper

Settings. Refer to the mainboard layout chart for locations

of all jumpers, external connectors, slots and I/O ports.

Furthermore, this section lists all necessary connector pin

assignments for your reference. The particular state of the

jumpers, connectors and ports are illustrated in the follow-

ing figures. efore setting the jumpers or inserting these

connectors, please pay attention to the direction.

All manuals and user guides at all-guides.com

QDI

Installation Instruction

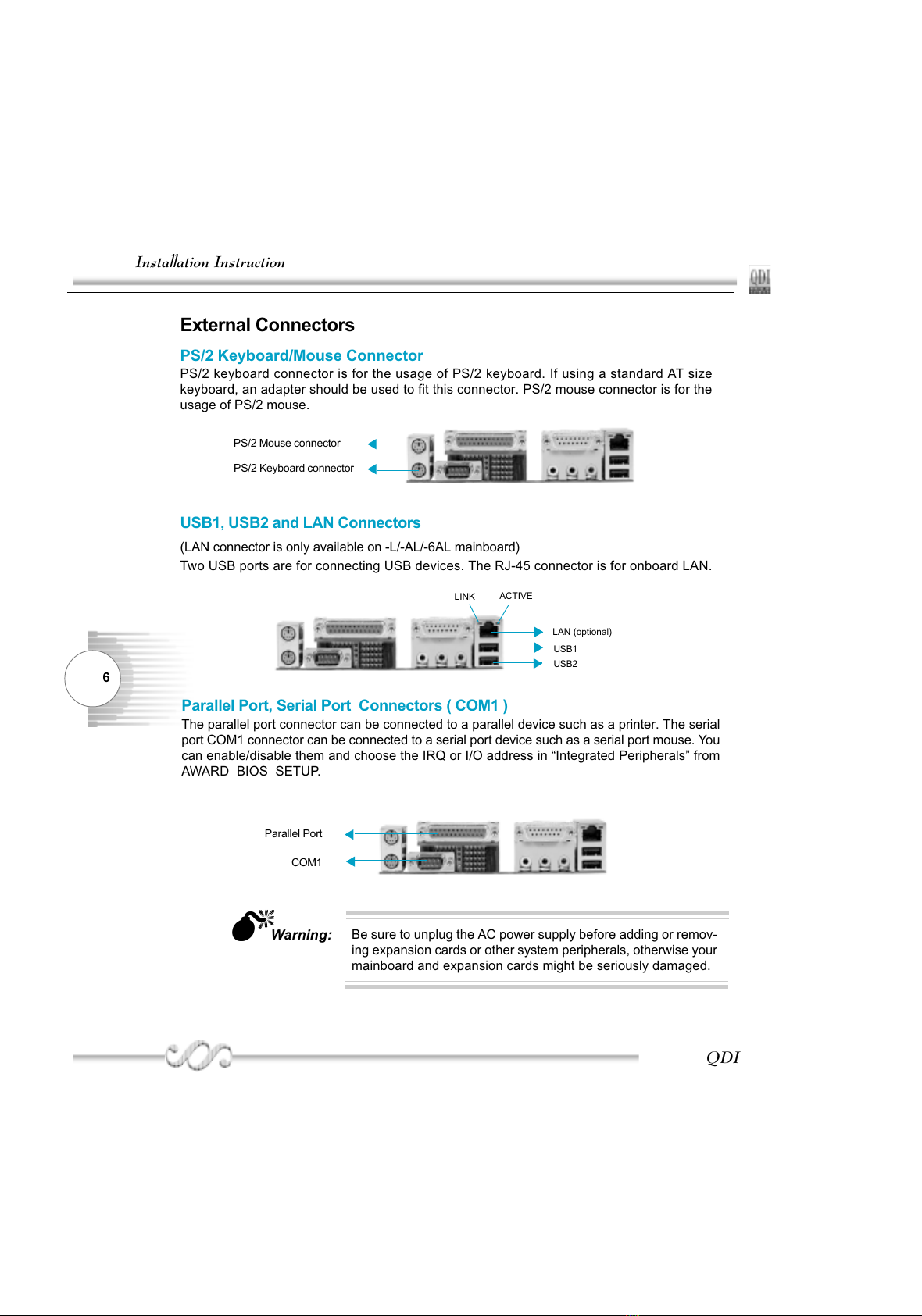

External Connectors

PS/2 Keyboard/Mouse Connector

PS/2 keyboard connector is for the usage of PS/2 keyboard. If using a standard AT size

keyboard, an adapter should be used to fit this connector. PS/2 mouse connector is for the

usage of PS/2 mouse.

USB1, USB2 and LA Connectors

(LAN connector is only available on -L/-AL/-6AL mainboard)

Two US ports are for connecting US devices. The RJ-45 connector is for onboard LAN.

PS/2 Mouse connector

PS/2 Keyboard connector

Parallel Port, Serial Port Connectors ( COM1 )

The parallel port connector can be connected to a parallel device such as a printer. The serial

port COM1 connector can be connected to a serial port device such as a serial port mouse. You

can enable/disable them and choose the IRQ or I/O address in Integrated Peripherals from

AWARD IOS SETUP.

Parallel Port

COM1

USB1

USB2

LAN (optional)

LINK ACTIVE

e sure to unplug the AC power supply before adding or remov-

ing expansion cards or other system peripherals, otherwise your

mainboard and expansion cards might be seriously damaged.

Warning:

All manuals and user guides at all-guides.com

PlatiniX 2E/333

Chapter 2

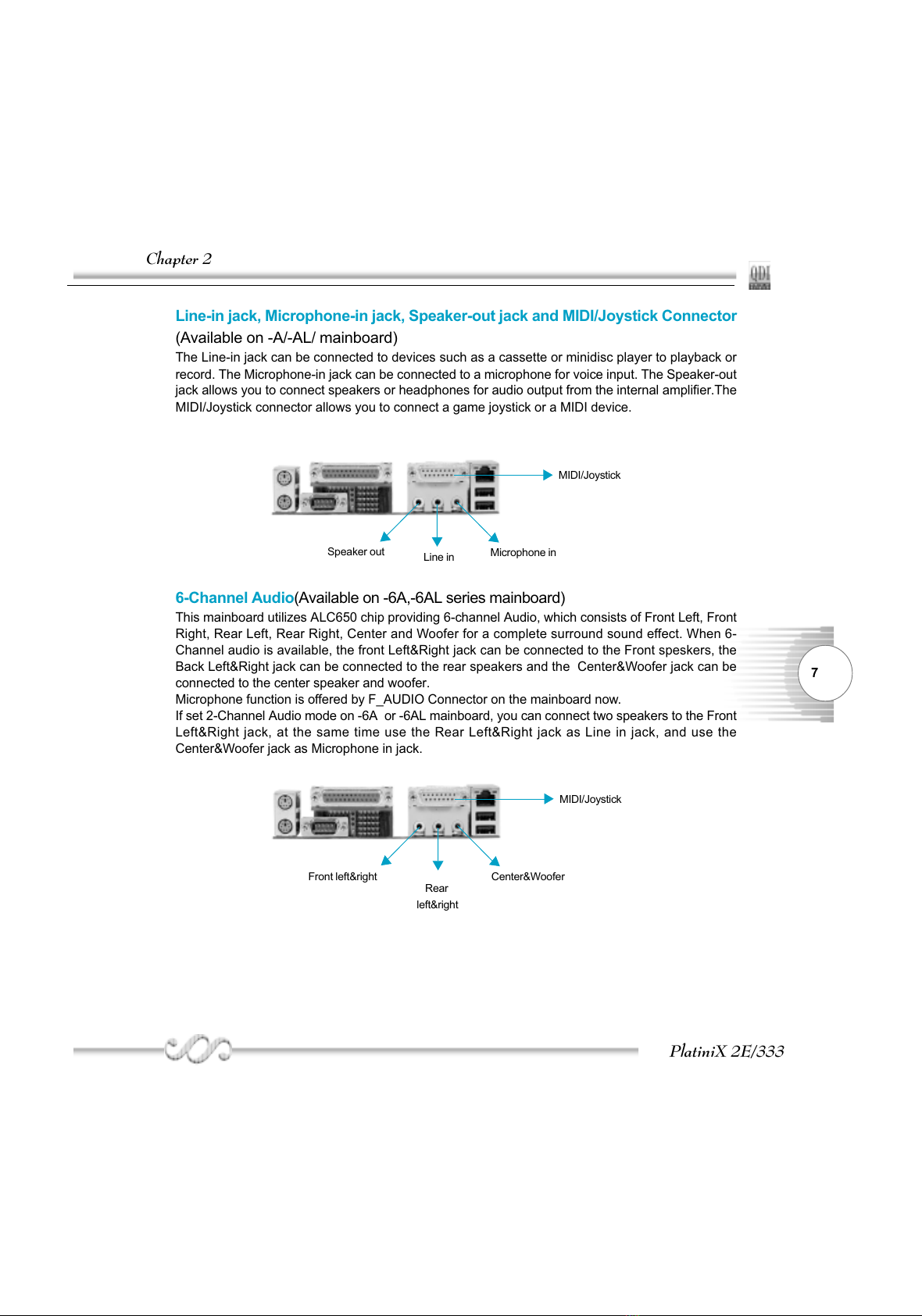

Line-in jack, Microphone-in jack, Speaker-out jack and MIDI/Joystick Connector

(Available on -A/-AL/ mainboard)

The Line-in jack can be connected to devices such as a cassette or minidisc player to playback or

record. The Microphone-in jack can be connected to a microphone for voice input. The Speaker-out

jack allows you to connect speakers or headphones for audio output from the internal amplifier.The

MIDI/Joystick connector allows you to connect a game joystick or a MIDI device.

6-Channel Audio(Available on -6A,-6AL series mainboard)

This mainboard utilizes ALC650 chip providing 6-channel Audio, which consists of Front Left, Front

Right, Rear Left, Rear Right, Center and Woofer for a complete surround sound effect. When 6-

Channel audio is available, the front Left&Right jack can be connected to the Front speskers, the

ack Left&Right jack can be connected to the rear speakers and the Center&Woofer jack can be

connected to the center speaker and woofer.

Microphone function is offered by F_AUDIO Connector on the mainboard now.

If set 2-Channel Audio mode on -6A or -6AL mainboard, you can connect two speakers to the Front

Left&Right jack, at the same time use the Rear Left&Right jack as Line in jack, and use the

Center&Woofer jack as Microphone in jack.

MIDI/Joystick

Front left&ri ht

Rear

left&ri ht

Center&Woofer

MIDI/Joystick

Speaker out Line in Microphone in

All manuals and user guides at all-guides.com

Autres manuels pour PlatiniX 2E/333

Table des matières

Autres manuels QDI Carte mère

QDI

QDI P6I440EX/MATX EXCELLENT II Manuel utilisateur

QDI

QDI PlatiniX 1E Manuel utilisateur

QDI

QDI P6I440LX/L6 Manuel utilisateur

QDI

QDI GeniuX 4 Manuel utilisateur

QDI

QDI WinneX 3 Manuel utilisateur

QDI

QDI KinetiZ 7T Manuel utilisateur

QDI

QDI Brilliant IV Manuel utilisateur

QDI

QDI LEGEND-V Manuel utilisateur

QDI

QDI P5I865PE Manuel utilisateur

QDI

QDI PENTIUM II P6I440EX/ATX EXCELLENT 1 Manuel utilisateur

QDI

QDI P5I848P Manuel utilisateur

QDI

QDI Superb 4L Manuel utilisateur

QDI

QDI P61440FX Commander Manuel utilisateur

QDI

QDI K7VM400M Pro Series Manuel utilisateur

QDI

QDI Advance 6T Manuel utilisateur

QDI

QDI ZillioX 5 Manuel utilisateur

QDI

QDI P51437/250a Manuel utilisateur

QDI

QDI Advance 5 Manuel utilisateur

QDI

QDI P2S Manuel utilisateur

QDI

QDI KinetiZ 7A Manuel utilisateur

QDI

QDI BrillianX 8V Manuel utilisateur

QDI

QDI WinneX 5 Manuel utilisateur

QDI

QDI PlatiniX 8 Series Manuel utilisateur

QDI

QDI WinneX3E Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
