Pyramid CDR35FD Manuel utilisateur
OWNER’S MANUAL
MANUALLY TUNED SYNTHESIZER STEREO RADIO
WITH COMPACT DISC PLAYER
2
CONTENTS
Installation.................................................................................................................. 3
Remove the Unit From the Dash Board................................................................... 4
Operation.................................................................................................................... 5
Radio Operation......................................................................................................... 6
CD Operation ............................................................................................................. 7
Wiring Connection..................................................................................................... 8
Specification .............................................................................................................. 8
INSTALLATION
Here is the installation diagram.
NON PULL-OUT UNIT
PULL-OUT UNIT
Precautions
1. Choose the mounting location where the
unit will not interfere with the normal
driving functions of the driver.
2. Avoid installing the unit where it would
be subject to high temperature, such as
from direct sunlight, or from hot air, from
the heater, or where it would be subject
to dust, dirt or excessive vibration.
3. For safe installation, use the mounting
hardware provided by the manufacturer.
3
Bracket
Fire Wall
DASH BOARD
HEX NUT
SPRING
WASHER
TAPPING
SCREW
PLAIN WASHER
CONSOLE
MOUNTING HOUSING
METAL MOUNTING STRAP
HEX BOLT
DASH BOARD
HEX NUT
TAPPING SCREW
PLAIN WASHER
CONSOLE
SLIDE BRACKET HOUSING
METAL MOUNTING STRAP
HEX BOLT SPRING WASHER
4

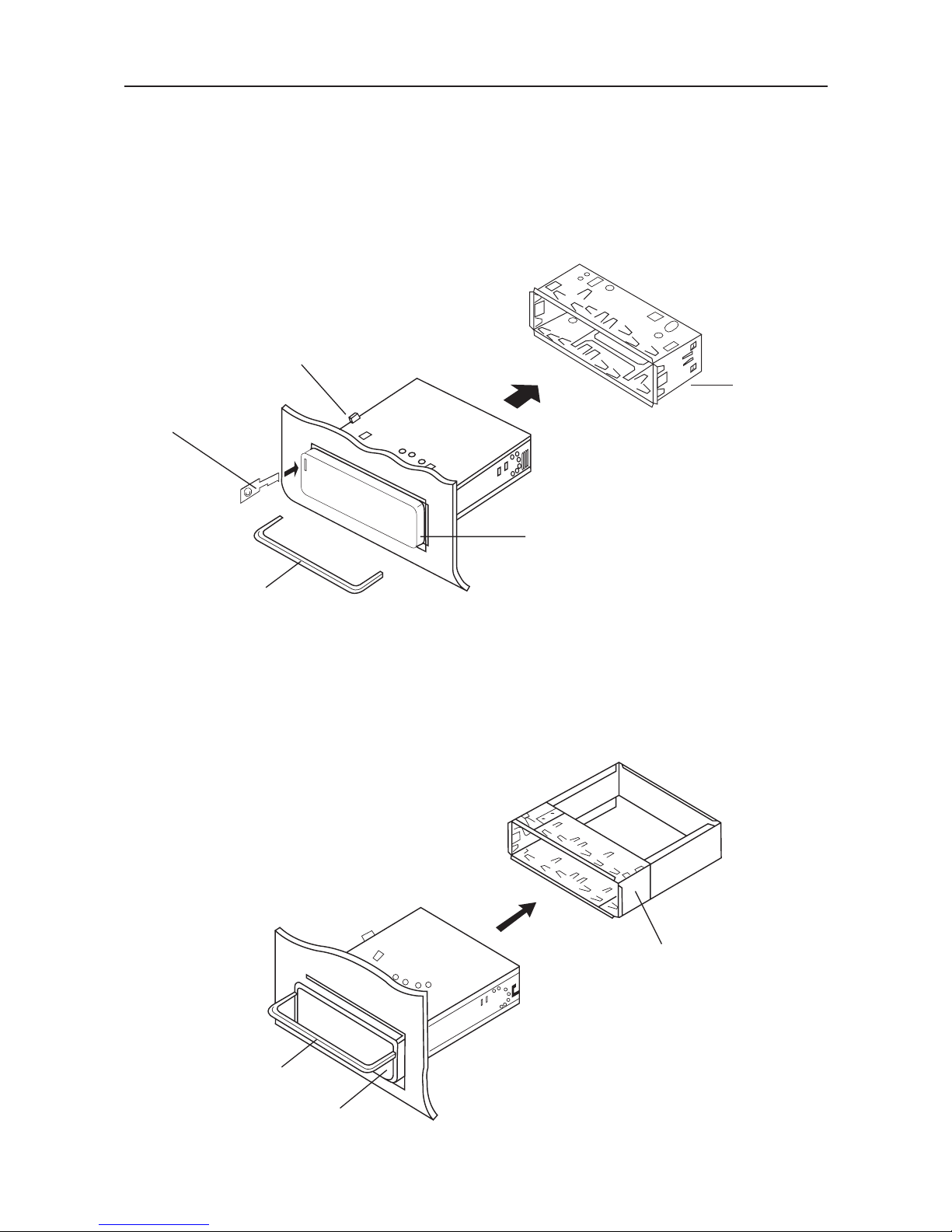

REMOVE THE UNIT FROM THE DASH BOARD
FOR NON PULL-OUT VERSION
1. Remove the metal strap attached to the back of the unit.
2. Disconnect all the wires of the unit and the antenna plug.
3. Remove the handle frame from the trim plate.
4. Insert the supplied key into the slot as shown, and slide the unit out of the
dash board while holding the trim plate.
5. Remove the key from the slot.
TRIM
PLATE
SLEEVE
SLOT
SCREW-DRIVER
HANDLE FRAME
TRIM PLATE
SLEEVE
HANDLE
FOR PULL-OUT VERSION
1. Remove the metal strap attached to the back of the unit.
2. Disconnect all the wires of the unit and the antenna plug.
3. Lift up the handle and pull the trim plate out.
OPERATION
GENERAL OPERATION
•ON/OFF
Press POWER button (1) to turn on the unit. Press it again to turn it off.
•BALANCE
Rotate the button (2) to left or right to adjust the sound balance between left and
right speakers.
•VOLUME
Rotate the button (3) to left or right to adjust volume level.
•TONE CONTROL
Rotate the button (4) to left or right to obtain the desired sound quality.
•FREQUENCY DISPLAY
The dial pointer (5) indicates the frequency of current reception.
•SELECT MODE
Press MODE button (6) to choose radio or CD mode.
•LIQUID CRYSTAL DISPLAY
During CD mode, the LCD (17) can show the current CD work state of the unit.
•RESET
RESET button (18) must be activated with either a ballpoint pen or thin metal object.
The RESET button (18) is to be activated for the following reasons:
- Initial installation of the unit when all wiring is completed.
- All the function buttons do not operate.
- Error symbol on the display.
•PULL-OUT HANDLE (FOR PULL-OUT VERSION ONLY)
In case of taking away the car radio unit from car, lift up the handle (19) to pull it
out.
5
92
13
3
14 7
4 6 19 5
811 17 1615 1
12
10
18
6
RADIO OPERATION
•BAND
Press BND button (8) to change bands as below:
•SELECT STATION
Rotate the TUNING knob (9) clockwise or anti-clockwise to adjust the frequency
upward or downward.
•LOCAL/DISTANT
Press RPT/LOC button (10) to select between local setting for reception of strong
station and distant setting for reception of weak stations when tuning.
FM AM
7
CD OPERATION
•DISC PLAY
Gently insert a compact disc with the label side facing up into the disc slot (14).
The disc is then automatically loaded into the unit and starts playing with the first
track of the disc. The digital display will indicate the track number and the time of
the track.
•EJECT
Press (EJECT) button (13) to stop CD play and eject CD from slot. Receiver
switches to radio operation.
•PAUSE CD
During CD playing, press button (12) to temporarily stop playing.
Press it again to resume playback.
•SKIP TRACKS
Press TRACK button (16) or TRACK button (15) to choose the following track
or the previous track. Track numbers show on display.
•FAST FORWARD AND FAST REVERSE
Hold TRACK button (16) or TRACK button (15) for several seconds to fast
forward or fast reverse. Releasing the button to stop fast playing.
•REPEAT
During CD playing, press RPT/LOC button (10) to continuously repeat playing the
current track. Press it again to release this mode.
•INTRO: PREVIEW ALL TRACKS
During CD playing, press INTRO button (11) to play first several seconds of each
track. Press it again to stop introduction mode and listen to track.
•RANDOM: PLAY ALL TRACKS IN THE RANDOM ORDER
During CD playing, press and hold RND button (7) for several seconds to play all
tracks in the random order. Press it again for several seconds to cancel the function.
WIRING CONNECTION
Note:
After ACC turn off, turn on the unit again, it will return to FM mode.
SPECIFICATION
General
Power Supply Requirements : DC 12 Volts, Negative Ground
Chassis Dimensions : 178 (W) x 163 (D) x 51 (H) mm
Maximum Output Power : 7 W x 2
CD Player
Signal to Noise Ratio : More than 50 dB
Channel Separation : More than 50 dB
Frequency Response : 100 Hz - 15 KHz
Radio Section
FM BAND (EUROPE) FM BAND (U.S.A.)
Frequency Range : 88 MHz – 108 MHz 88 MHz – 108 MHz
Intermediate Frequency : 10.7 MHz 10.7 MHz
Usable Sensitivity (Mono) : Better than 25 dBu Better than 25 dBu
Stereo Separation at 1 KHz : More than 24 dB More than 24 dB
AM BAND AM BAND
Frequency Range : 520 KHz – 1620 KHz 530 KHz – 1710 KHz
Intermediate Frequency : 455 KHz 455 KHz
Usable Sensitivity (S/N 20 dB) : Better than 42 dBu Better than 42 dBu
POWER
ANTENNA
BLUE
FUSE
RED
LEFT
SPEAKER
WHITE GREY
RIGHT
SPEAKER
MAIN UNIT
BLACK
GROUND/SPK.COMMON
RCA CABLE Rch RED
Lch WHITE
ANTENNA CONNECTOR
IGNITION
B(+)
88-C2021-00
(FOR POWER ANT. VERSION ONLY)
(FOR RCA LINE OUT VERSION ONLY)
