Pyramid PDVD78 Manuel utilisateur

DVD/VCD/CD/MP3 PLAYER WITH

MANUALLY TUNED SYNTHESIZER STEREO RADIO

TUNE

PWR

LOC

DISC-RPT

FLAT

ROCK

CLAS

POP

LOUD LOC

TRACK

MUTERND INT SW

OWNER's MANUAL

Mobile Video System

ENTER

SETUP

+10

PBC

F. B W D

F. F W D NEXT

PREV.

ANGLE

PLAY/PAUSE

SUBTITLE

ZOOM TITLE

AUDIO

DISPLAY

EJECT

GOTO

STOP

REPEAT A-B

SLOW

AUX

MUTE

F. F W D NEXT

PREV.

ANGLE

PLAY/PAUSE

SUBTITLE

ZOOM TITLE

AUDIO

DISPLAY

EJECT

GOTO

STOP

REPEAT A-B

SLOW

AUX

MUTE

U.S.A.

PDVD78

Safety Information ........................................................................................3

Disc Notes ....................................................................................................4

Installation.....................................................................................................5

Electric Connection ......................................................................................8

Remote Control.............................................................................................9

Preparing the Remote Control......................................................................10

Basic Operation ............................................................................................13

On-Screen Display Function.........................................................................15

Muti-audio Language Function.....................................................................15

Menu Function..............................................................................................16

Title Menu Function (For DVD only) ..............................................................16

Multi-subtitle Language Function (For DVD only).........................................16

Multi-angle Function (For DVD only).............................................................16

MP3 Disc Play...............................................................................................17

Setup ............................................................................................................18

Initial Setup ...................................................................................................18

General Setup...............................................................................................18

Speaker Setup ..............................................................................................20

Audio Setup ..................................................................................................20

Preferences Setup ........................................................................................21

Defaults Table ...............................................................................................23

Specifications ...............................................................................................24

Trouble Shooting...........................................................................................25

CONTENTS

CAUTION:

THIS DVD PLAYER IS A CLASS I

LASER PRODUCT. HOWEVER THIS

DVD PLAYER USES A

VISIBLE/INVISIBLE LASER BEAM

WHICH COULD CAUSE HAZARDOUS

RADIATION EXPOSURE IF DIRECTED.

BE SURE TO OPERATE THE DVD

PLAYER CORRECTLY AS

INSTRUCTED.

USE OF CONTROLS OR

ADJUSTMENTS OR PERFORMANCE

OFPROCEDURES OTHER THAN

THOSE SPECIFIED HEREIN MAY

RESULT IN HAZARDOUS RADIATION

EXPOSURE.DO NOT OPEN COVERS

AND - DO NOT REPAIR YOURSELF.

REFER SERVICINGTO QUALIFIED

PERSONNEL.

WARNING:

•TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK,DO NOT EXPOSE

THIS EQUIPMENT TO RAIN OR

MOISTURE.

•TO REDUCE THE RISK OF FIRE OR

ELECTRIC SHOCK,ANDANNOYING

INTERFERENCE,USE ONLY THE

RECOMMENDED ACCESSORIES.

•THIS DEVICE IS INTENDED FOR

CONTINUOUS OPERATION.

This product incorporates copyright

protection technology that is

protected by method claims of certain

U.S. patentsand other intellectual

property rights owned by Macrovision

Corporation and other rights owners.

Use of this copyright protection

technology must beauthorized by

Macrovision Corporation, and is

intended for home and other limited

viewing uses only unless otherwise

authorized by Macrovision

Corporation. Reverse engineering

ordisassembly is prohibited.

Region Management

InformationRegion Management

Information:This DVD Player is

designed and manufactured to

respond to the Region Management

Information that is recordedon a DVD

disc. If the Region number described

on the DVD disc does not correspond

to the Region number of this DVD

Player, this DVD Player cannot play

this disc.

SAFETY INFORMATION

Disc formats supported by this player

DVD

12 cm disc

(Single-sided disc only)

Video CD

12 cm disc

MP3

12 cm disc

Discs which cannot be played with this

player

•DVD-ROM

•DVD-R/DVD-RAM

•CDV

•CD-G

Handling and Cleaning

•Dirt, dust, scratches and warping disc

will cause misoperation.

•Do not place stickers or make

scratches on discs.

•Do not warp discs.

•A disc should always be kept in its

case when not in use to prevent from

damaging.

•Do not place discs in the following

places:

1. Direct sunlight

2. Dirty, dusty and damp areas

3. Near car heaters

4. On the seats or dashboard

Disc Cleaning

Use a dry soft cloth to wipe the surface.

If the disc is quite dirty, use a soft cloth

slightly moistured with isopropyl (rubbing)

alcohol. Never use solvents such as

benzine, thinner or conventional record

cleaners as they may mar the surface of

the disc.

Note:

A disc may become somewhat scratched

(although not enough to make it

unusable) depending on your handle it

and conditions in the usage environment.

Note these scratches are not an

indication of any problem with the player.

Preparing New Discs with Rough

Spots

A new disc may have rough edges on its

inside and outside edges. If a disc with

rough edges is used, the proper setting

will not be performed and the player will

not play the disc. Therefore, remove the

rough edges in advance by using a ball

point pen or pencil as shown on the right.

To remove the rough edges, press the

side of the pen or pencil against the

inside and outside edges of the disc.

DISC NOTES

INSTALLATION

Notes:

•Choose the mounting location where the unit will not interfere with the normal

driving function of the driver.

•Before finally installing the unit, connect the wiring temporarily and make sure it is

all connected up properly and the unit and the system work properly.

•Use only the parts included with the unit to ensure proper installation. The use of

unauthorized parts can cause malfunctions.

•Consult with your nearest dealer if installation requires the drilling of holes or other

modifications of the vehicle.

•Install the unit where it does not get in the driver’s way and cannot injure the

passenger if there is a sudden stop, like an emergency stop.

•If installation angle exceeds 30˚from horizontal, the unit might not give its optimum

performance.

•Avoid installing the unit where it would be subject to high temperature, such as from

direct sunlight, or from hot air, from the heater, or where it would be subject to dust,

dirt or excessive vibration.

DIN FRONT/REAR-MOUNT

This unit can be properly installed either from “Front”(conventional DIN Front-mount)

or “Rear”(DIN Rear-mount installation, utilizing threaded screw holes at the sides of

the unit chassis). For details, refer to the following illustrated installation methods.

30˚

INSTALLATION

PLAIN WASHER

HEX BOLT

METAL MOUNTING

STRAP

DASH

BOARD

CONSOL

ESLIDE BRACKET HOUSING

HEXNUT

SPRING WASHER

PLAIN WASHER

TAPPING SCREW

RELEASE

BUTTON

FRONT

PANEL

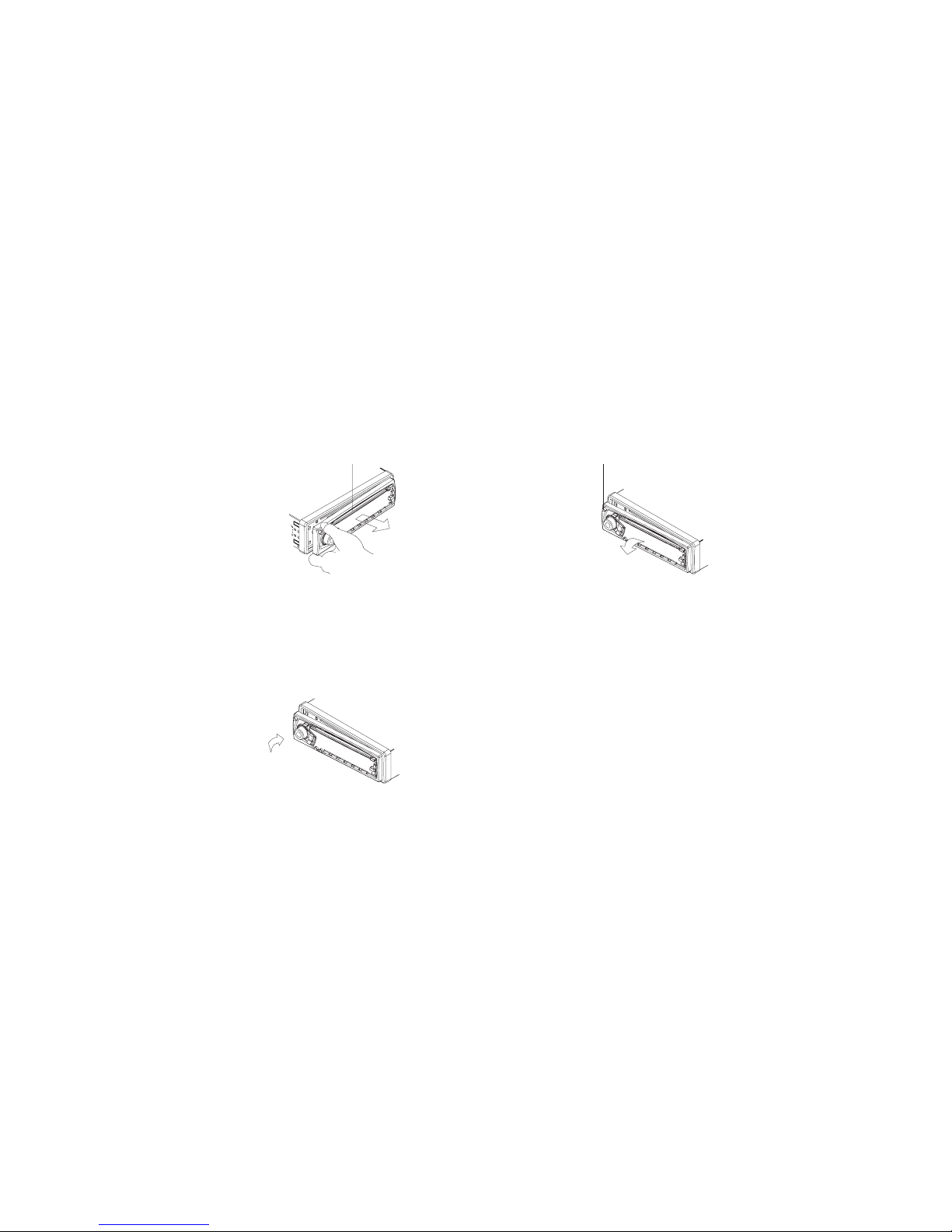

HOW TO REMOVE AND INSTALL THE FRONT PANEL

1. Press the release button and pull-off the front panel.

Keep the front panel into the case.

2. To install the front panel, insert the panel into the housing and make sure the panel

is properly installed, otherwise, abnormalities occurs on the display or some keys

will not function properly.

REMOVING THE FRONT PANEL

INSTALLING THE FRONT PANEL

VIOLET/BLACK

GREY

IGNITION

SWITCH (B+)

MEMORY

BACK-UP

POWER

ANTENNA

GROUND (B+)

RED

YELLOW

BLACK

BLUE

FRONT

Lch SPK.

REAR

Lch SPK.

GREY/BLACK

VIOLET

WHITE

WHITE/BLACK

GREEN

GREEN/BLACK

CHOKE BOX

ANTENNA CONNECTOR

RCA CABLE

FRONT RCA OUTPUTCABLE

FRONT

Rch SPK.

REAR

Rch SPK.

MAIN UNIT

WIRINGCONNECTION

FOR 4x7W SYSTEM

ELECTRIC CONNECTION

VIDEO IN YELLOW

RCH IN RED

LCH IN WHITE

VIDEO OUT 1 YELLOW

VIDEO OUT 2 YELLOW

COAXIAL OUT BROWN

RCH IN RED

LCH WHITE

RCH RED

GRAY SUB WOOFER

WHITE

(FOR

RCA

LINE

OUT

VERSION

ONLY)

AUX

REAR RCA OUTPUT CABLE (OPTIONAL)

1. GOTO Disc search button, cooperatively used with numeric buttons

2. DISPLAY Display statistical disc information during playback.

3. EJECT Press it to eject the disc. (Eject is enable in Disc Mode only.)

4. SUBTITLE Changing of the SUBTITLE language on multi-subtitle

language DVD disc .

5. AUDIO Changing of the AUDIO soundtrack on multi-audio soundtrack

DVD disc.Changing of the sound mode of the VCD/CD disc

6. ZOOM Press it to zoom the picture in scale x1.5,

7. TITLE Display the TITLE menu that is stored in DVD disc changing

between PBC ON and PBC OFF on the VCD disc.

8. / Press to start forward rapid y & to reverse rapid y

9. / / / Cursor buttons in MENU mode.

10. SETUP Display the SETUP menu

11 Press it to stop playback

12. Press once to pause a play, press again to resume playback.

13. AUX Press AUX to switch to external A/V input.

(AUX is enabled in Disc Mode only)

14. MUTE Press it to elimate the sound immediate

15. SLOW Changing for slow forward/reverse playback motion

16. ANGLE Changing of the view angle on multi-angle DVD disc

17. A-B Press it to repeat between two selected sports on DVD

orVCD disc.

18. REPEAT Switch the Repeat mode of DVD/VCD/CD disc

19. / Press to skip to the next track & press to skip back one track

20. ENTER Confirm the Track/Chapter selected with the number key or

selected with the cursor buttons on TV screen

21. 0 - 9 Numeric buttons

22. +10 Press it to select 10th digits

REMOTE CONTROL

ENTER

SETUP

+10

PBC

F. B W D

F. F W D NEXT

PREV.

ANGLE

PLAY/PAUSE

SUBTITLE

ZOOM TITLE

AUDIO

DISPLAY

EJECT

GOTO

STOP

REPEAT A-B

SLOW

AUX

MUTE

F. F W D NEXT

PREV.

ANGLE

PLAY/PAUSE

SUBTITLE

ZOOM TITLE

AUDIO

DISPLAY

EJECT

GOTO

STOP

REPEAT A-B

SLOW

AUX

MUTE

Preparing the Remote Control

Inserting the Batteries

1. Open the battery compartment cover.

2. Insert the new batteries.Make sure that the positive and negative

terminals of thebatteries are oriented indicated.

3. Close the cover

Using the Remote Control

Face the remote control towards the player front face IR mark (remote

control signal receiver).

Operation angle:About 30 degree in each the direction of the front of the

IR mark.

To prevent damage to the unit, be sure to follow the connection diagram

(page8).

REMOTE CONTROL

Table des matières

Autres manuels Pyramid Récepteur de voiture

Pyramid

Pyramid 1402P Manuel utilisateur

Pyramid

Pyramid CDR27DX Manuel utilisateur

Pyramid

Pyramid CDR25P Manuel utilisateur

Pyramid

Pyramid 1906EQ Manuel utilisateur

Pyramid

Pyramid CDR45DX Manuel utilisateur

Pyramid

Pyramid CDR-36DX Manuel utilisateur

Pyramid

Pyramid CDR34D Manuel utilisateur

Pyramid

Pyramid PDVD79 Manuel utilisateur

Pyramid

Pyramid CDR94UM Manuel utilisateur

Pyramid

Pyramid CDRCS80D Guide de démarrage rapide

Pyramid

Pyramid CDRCS80 Manuel utilisateur

Pyramid

Pyramid 1902EQ Manuel utilisateur

Pyramid

Pyramid CDR-39M Manuel utilisateur

Pyramid

Pyramid CDR21KIT Manuel utilisateur

Pyramid

Pyramid CDR35FD Manuel utilisateur

Pyramid

Pyramid CDR98MP3 Manuel utilisateur

Pyramid

Pyramid CDR29DX Manuel utilisateur

Pyramid

Pyramid 2706D Manuel utilisateur

Pyramid

Pyramid CDRCS91MP Guide de démarrage rapide

Pyramid

Pyramid CDR49DX Manuel utilisateur

Pyramid

Pyramid CDR42DX Manuel utilisateur

Pyramid

Pyramid CDR31FD Manuel utilisateur

Pyramid

Pyramid CDR79MP Manuel utilisateur

Pyramid

Pyramid CDR40DX Manuel utilisateur

Manuels Récepteur de voiture populaires d'autres marques

Motorola

Motorola VWA63 Manuel utilisateur

Nextar

Nextar D3201 Manuel utilisateur

Alpine

Alpine CDE-163BT Manuel utilisateur

Pioneer

Pioneer DEH-P645R Manuel utilisateur

Axxera

Axxera XDMA7600 Mode d'emploi

XM OnyX Manuel utilisateur

Sound Storm

Sound Storm STM93R Manuel utilisateur

Soundstream

Soundstream VIR-5000 Manuel utilisateur

Avson

Avson MKT Platform Manuel utilisateur

Sony

Sony MEX-1HD - Audio Library System Manuel utilisateur

Pioneer

Pioneer DVH-P500UB Manuel utilisateur

JVC

JVC KD-AHD69 Manuel utilisateur

Blaupunkt

Blaupunkt SANTIAGO CR 87 Manuel utilisateur

Sony

Sony CDX-4160 - Cd Receiver Manuel utilisateur

XFIRE AUDIO

XFIRE AUDIO BMW42S Manuel utilisateur

VDO

VDO CD 2253 Manuel utilisateur

Volvo

Volvo 13 84 580 Manuel utilisateur

ZENEC

ZENEC ZE-160DVD Manuel utilisateur
