Pulsar N944 Manuel utilisateur

MODES AND DISPLAYS

There are two buttons and a crown as indicated in the

illustration below.

PULSAR ANALOGUE QUARTZ WATCH

WITH ALARM CHRONOGRAPH TIMER

Cal. N944, N945

FEATURES

This is a multi-display analogue watch featuring alarm,

stopwatch, countdown timer and dual time functions. The

mode changes simply by turning the crown.

■TIME

Hour, minute and 24-hour hands

■CALENDAR

Date is indicated by date indicator.

■ALARM

The alarm is set on a 24-hour basis.

■STOPWATCH (CHRONOGRAPH)

It can measure up to 12 hours in 1/10 seconds.

Split time measurement is also possible.

■COUNTDOWN TIMER

Up to 60 minutes can be set with a preset function.

■DUAL TIME

The time of a different time zone can be displayed on a 24-hour

basis.

The mode changes by turning the crown at normal position

clockwise or counterclockwise, and the mode indicator

shows the mode selected. The hands move and perform

different functions in each mode.

MODE INDICATOR

Countdown timer Hands position

adjustment

Alarm set time

Time

Date

Dual time

Alarm engaged/on

In each mode the hands perform the following functions.

N/F: Not functional. Disregard the display or movement.

*1: Alarm can be set to ring on a dual time basis.

*2: Special movement.

Time

Date

Dual time

Alarm

disengaged/off

Stopwatch

Functions of the crown and buttons in each mode

N/F : Not functional.

*: Please do not set the dual time in this mode.

ADJUSTING THE HAND POSITION

Before setting the time or calendar, or after the battery is replaced,

be sure to adjust the hand position using “→Ø←” mode.

•Turn the crown to set the mode indicator to “→Ø←”.

If all the hands other than the dual time hand at the 3 o’clock

position do not return to the 12 o’clock position, follow the

procedure below.

1. Pull out the crown to the first click.

2. Press “A” or “B” repeatedly but separately to reset the stopwatch

second (center hand) and stopwatch 1/10 second hands, which

are mechanically engaged. Both the hands move simultaneously

and return to the 12 o’clock position at the same time.

* Be sure to reset the pointed tip of the center hand to the 12

o’clock position.

*The hands move quickly if the button is kept pressed.

3. Pull out the crown to the second click.

Press “A” or “B” repeatedly but separately to reset the hour,

minute and 24-hour hands, which are mechanically engaged.

All of the three hands return to the 12 o’clock position at the

same time.

* Please note that it is not necessary to adjust the dual time

hand.

*The hands move quickly if the button is kept pressed.

4. Push the crown back in to the normal position.

TIME SETTING

•Turn the crown to set the mode indicator to either

“TIME” (alarm disengaged) or “TIME •)))”(alarm engaged).

The hour, minute and 24-hour hands move to indicate the time

set previously. Disregard the movement of the stopwatch 1/10

second hand, center hand and dual time hand during the time

setting.

Time shown is 10:08 PM or 22:08.

1. Pull out the crown to the second click.

The minute hand may advance to the next minute.

2. Press “A” or “B” repeatedly but separately to set the hour,

minute and 24-hour hands, which are mechanically engaged.

*All the three hands can be set at the same time.

*The hands move quickly if the button is kept pressed.

*Please make sure that AM/PM is correctly set by noting the

24- hour hand.

3. Push the crown back in to the normal position to start the

watch.

7:15 AM 7:15 PM (19:15)

[24-hour hand]

Both indicate the 1st of the month.

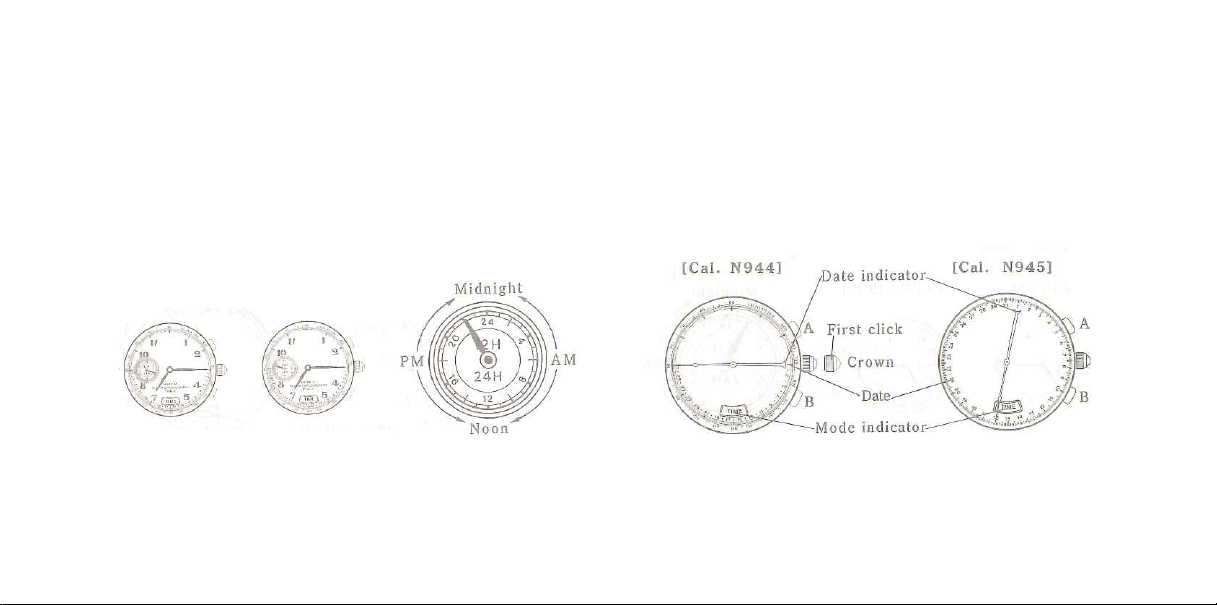

CALENDAR SETTING

Cal. N944 has date numerals printed on the lower half of the dial

starting from the 3 o’clock.

Cal. N945 has date numerals printed on the whole dial starting

from the 12 o’clock position.

All the calendar setting operations are the same for both calibres.

• Turn the crown to set the mode indicator to either “TIME” or

“TIME•)))”.

The hands move to indicate the time and calendar set previously.

1. Pull out the crown to the first click.

2. Press “A” or “B” repeatedly but separately to set the calendar.

* Be sure to set the date indicator (forked tip of the center

hand) to the desired date printed on the dial.

*The hands move quickly if the button is kept pressed.

*Disregard the movement of the stopwatch 1/10 second hand

at the 12 o’clock position.

3.Push the crown back in to the normal position.

*While the crown is kept at the first click, the hands stop, and

when the crown is pushed back to the normal position, the

hands move and catch up with the current time.

DUAL TIME

• Turn the crown to set the mode indicator to either “TIME” or

“TIME•)))”.

The hands move to indicate the time, calendar and dual time set

previously.

How to read the dual time

The dual time hand indicates the hour of the dual time while the

regular minute hand indicates the minutes of the dual time.

The dual time shown is 11:08 AM.

Dual time setting

1. Pull out the crown to the first click.

2. Turn the crown clockwise or counterclockwise to set the dual

time hand.

* Please make sure that AM/PM of the dual time is correctly

set.

3. Push the crown back in to the normal position.

*While the crown is kept at the first click, the hands stop, and

when the crown is pushed back to the normal position, the

hands move and catch up with the current time.

•Turn the crown to set the mode indicator to “(((•SET”.

The hour, minute and 24-hour hands move to indicate the alarm

time set previously.

1. Pull out the crown to the second click.

2. Press “A” or “B” repeatedly but separately to set the hour,

minute and 24-hour hands.

* All of the three hands are mechanically engaged and can be

set at the same time.

*The hands move quickly if the button is kept pressed.

*Please make sure that AM/PM of the alarm time is correctly

set.

3. Push the crown back in to the normal position.

The alarm is set to ring at 7:00 AM.

ALARM

The alarm can be set on a 24-hour basis in one-minute increments.

Alarm setting

Alarm engagement/disengagement

• To engage the alarm, turn the crown to set the mode indicator

to “TIME•)))” (alarm engaged).

•The alarm rings at the designated alarm time only when “TIME

•)))” mode is selected.

•The alarm rings for 15 seconds and stops automatically. To stop it

manually, press “A” or “B”, or turn the crown and change the

mode.

•The alarm can be tested by continuously pressing both “A” and “B”

at the same time when “TIME•)))” is selected.

Note: It is possible to set the alarm to ring at the

time of a different time zone, using the dual time hand.

To start :Press “A”.

To stop :Press “A”.

To reset to “0” :Press “B”.

1. Standard measurement

• Turn the crown to set the mode indicator to “CHRONO”. The

hour, minute, stopwatch second and stopwatch 1/10 second

hands return to the 12 o’clock (“0”) position.

The 24-hour hand returns to the 24 o’clock or 12 o’clock position.

Ex.) Elapsed time measured is 1 hour, 24 minutes and 37.2 seconds:

Stopwatch 1/10

second hand

The 24-hour hand

indicates 1 hour if

it has been reset to

the 12 o’clock

position.

STOPWATCH (CHRONOGRAPH)

The stopwatch measures in 1/10 seconds, seconds, minutes and

hour up to 12 hours.

Stopwatch operation

To display the finish time of the second

competitor : Press “B”.

To reset to “0” :Press “B”.

Hands’ movement during measurement

In order to save the energy, 10 minutes after the stopwatch is

started, the stopwatch second hand stops at the 12 o’clock position,

and the stopwatch 1/10 second hand shows special swing motion

to indicate that the stopwatch is in operation.

As well as the first 10 minutes of the measurement, the stopwatch

1/10 second and stopwatch second hands show the normal movement

for 10 minutes after each operation such as RESTART, SPLIT

RELEASE or returning to “CHRONO” mode.

*However, when “A” or “B” is pressed, the stopwatch 1/10 second

and stopwatch second hands advance and show measurement

time in 1/10 seconds and seconds.

Press “A”.

3. Split time measurement

To start : Press “A”.

To stop : Press “A”.

To restart : Press “A”.

To stop : Press “A”.

To reset to “0” :Press “B”.

2. Accumulated elapsed time

measurement

To start : Press “A”.

To measure split time :Press “B”.

To release split time :Press “B”.

To stop : Press “A”.

To reset to “0” : Press “B”.

4. Measurement of two competitors

To start : Press “A”.

To measure the finish time of the first

competitor : Press “B”.

When the second competitor finishes:

Notes:

• Even if the mode is changed from “CHRONO” to another while

the stopwatch is running, it continues measurement. However,

if “→Ø←” mode is selected and the crown is pulled out, the

measurement is canceled and the hands return to “0” position.

If the mode is changed while split time is displayed, the stopwatch

continues measuring but the split time is released.

•It is possible to start the stopwatch while the hands are returning

to the 12 o’clock position by selecting “CHRONO” mode, or

stopping and resetting the stopwatch.

•When measurement exceeds 12 hours, the hands stop at the 12

o’clock position.

•

The countdown timer indicates the time remaining of the time

period set previously. It can be set to count down from 1 to 60

minutes in one-minute increments. The remaining time is displayed

in one-second increments.

Once the countdown time is set, it can be used repeatedly as

preset time.

COUNTDOWN TIMER

Normal movement

Swing motion

Stop at the 12 o’clock position

Elapsed time

Stopwatch

1/10 second

hand

Stopwatch

second hand

Stopwatch

minute, hour

and 24-hour

hands

Ex.)
