Pulsar ARAD1S Manuel utilisateur

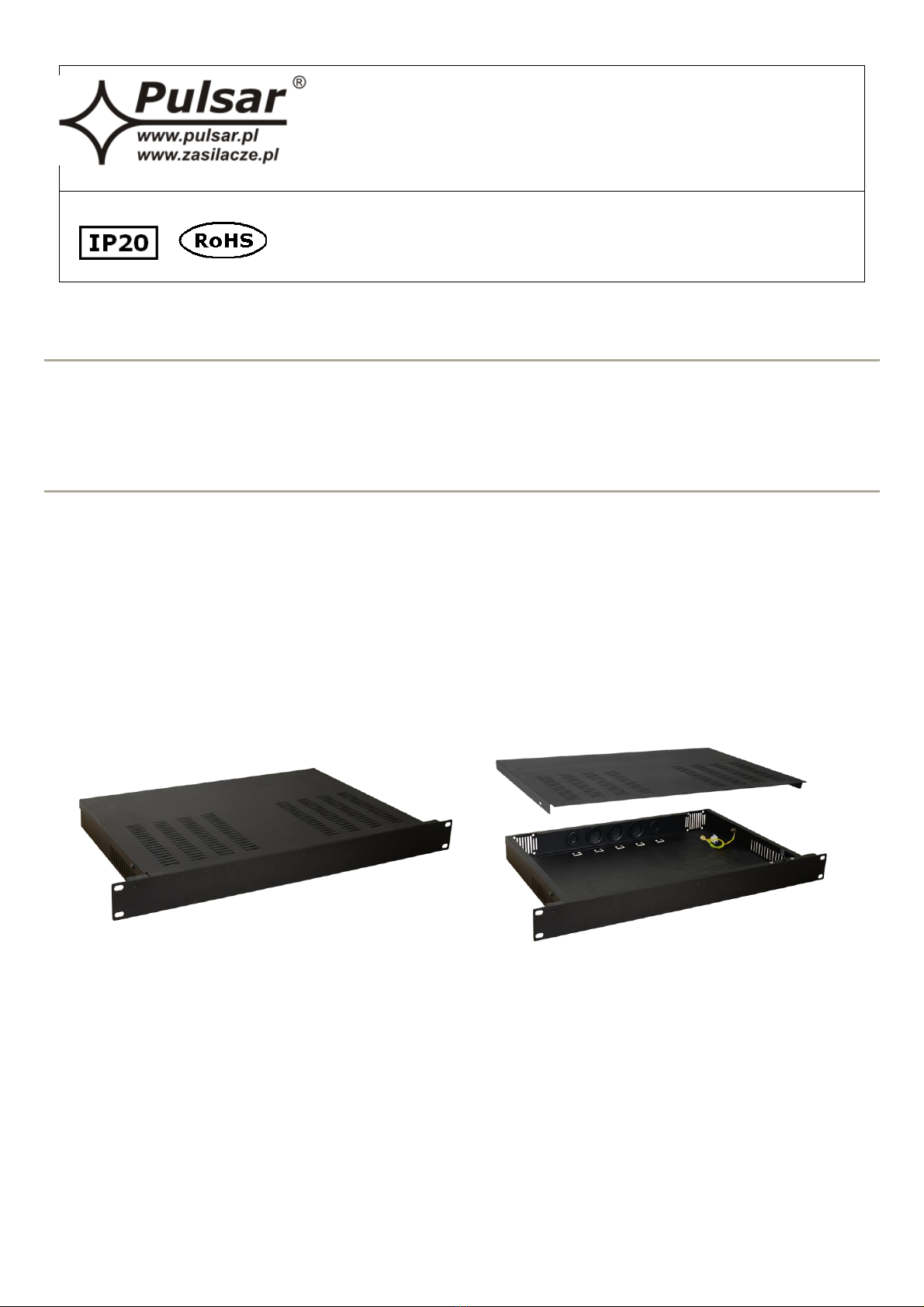

INSTALLATION GUIDE

ENGLISH

Code: ARAD1S

Name: RACK 1U/270mm universal enclosure

for RACK 19" cabinets

Metallic enclosure for RACK cabinet: CCTV, KD, SSWiN, RTV, LAN

IM ARAD1S

Edition: 1 from 20.03.2017

Supersedes: --------------

1. Intended use:

Due to its design, the ARAD1S enclosure is intended for mounting inside RACK 19'' cabinets. This general-

purpose enclosure may serve as an auxiliary element for integrating CCTV, AC, I&HAS, RTV, LAN systems in RACK 19''

cabinets. It is intended for mounting alarm control panels, AC controllers, power supply units, batteries, etc.

2. Description

The enclosure is designed for mounting any type of electronics with small dimensions. The enclosure accommodate

it features tampering protection (against unwanted opening). To enable leading cables into the enclosure, one can buy a

cable protection conduit of any length and a cable gland. The conduits and the cable glands are available at the following

codes:

1) ARAP16P –cable gland, inside diameter 16 mm –connection between the protection conduit and the enclosure

2) ARAP21P –cable gland, inside diameter 21 mm –connection between the protection conduit and the enclosure

3) MM019 –cable protection conduit , inside diameter 16 mm

4) MM020 –cable protection conduit, inside diameter 21 mm

The ARAD1S enclosure has a space for up to 2x ARAP16P and 3x ARAP21P cable glands.

3. Assembling instructions:

The ARAD1S enclosure is butt mounted to RACK 19” profiles, the front part is the load-bearing part of the

enclosure. For this method of installation, a load capacity is up to 2 kg.

4. Accessories:

Wires can be introduced in three ways:

a) - Through rubber grommets,

b) - Using the MM019/MM020 protection tubes,

c) - Using the MM019/MM020 protection tubes and the ARAP16P/ARAP21P cable glands.

5. Specifications

SPECIFICATIONS

Tampering protection

1x –against unwanted opening of the enclosure

Max. load of TAMPER output

500mA@50VDC

Enclosure: IP

IP 20

Operation temperature

-10ºC÷40ºC

Relative humidity RH –max.

90 [%]

Internal dimensions

(W x H x D)

390 x 40 x 265

[-/+2] [mm]

Materials

Sheet metal DC01, 1,0mm thick + front panel thickness:

1,5mm

Rust protection

Colour: RAL 9005 BLACK

Use

inside

Net weight

~2,52 [kg]

Gross weight

~2,80 [kg]

Declarations, warranty

CE, 2 year from the production date

PRODUCENT / PRODUCER

Pulsar

Siedlec 150,

32-744 Łapczyca, Poland

Tel. (+48) 14-610-19-40, Fax. (+48) 14-610-19-50

e-mail: biur[email protected], sales@pulsar.pl

http:// www.pulsar.pl, www.zasilacze.pl
