Introduction

Your new multimedia projector provides three computer, three video, and

two audio inputs, one audio output, RS-232 control, and has XGA 1024x768

resolution. Optional user-changeable short, fixed short, long and super long

throw lenses make this a flexible product suitable for many different uses.

The projector is easy to connect, easy to use, and easy to maintain.

Product specifications

To read the latest specifications on your multimedia projector, be sure to

visit our website. Web address information is located on the back inside

cover of this User’s Guide.

Accessories

The standard accessories that came with your projector can be found on the

packing list that came with your projector. Optional accessories are listed in

the Accessories catalog that came with the projector and can also found on

our website. See the inside back cover for the web address.

Online Registration

announcements, and registration incentives. See the inside back cover for

the web address.

Projector components and features: front

Projector components and features: back

keypad

speakers

lens

elevator foot release

remote

control

receiver (IR)

elevator foot release

air intake

vent

heat vent

connectors

back

foot

air intake

vent

air intake

vent

handle

Downloaded from Projector.com

Connector Panel

The projector provides three computer and three video connection options:

• one M1-D (DVI with USB)

• one VESA computer

• one BNC (RGBHV and Pr, Pb, Y)

• one component RCA video (Pr, Pb, Y)

• one S-video

• one composite RCA video

The projector provides computer and video connectors for audio support:

• two composite RCA stereo audio (L, R)

• one audio out

• two audio ins for computer

The projector also provides the following connectors:

• one wired remote

• one monitor out

• RS-232 serial connector (for serial control)

• RJ-45 connector (for networked control via ProjectorNet software)

The RS-232 Command Line Interface (CLI) specifications and commands

are available on our website. See the back inside cover of this User’s Guide

for website information.

lock

power

connector

M1-D computer monitor

s-video

composite

computer

audio external

speakers

(audio out)

RJ-45

VESA computer component video

video power switch

BNC

RS232

serial control

wired

remote remote

control

receiver (IR

)

Downloaded from Projector.com

Positioning the projector

To determine where to position the projector, consider the size and shape of

your screen, the location of your power outlets, and the distance between

the projector and the rest of your equipment. Here are some general guide-

lines:

• Position the projector on a flat surface at a right angle to the screen. The

projector (with the standard lens) must be at least 3 feet (0.9m) from the

projection screen.

• Position the projector within 10 feet (3m) of your power source and

within 6 feet (1.8m) of your video device (unless you purchase exten-

sion cables). To ensure adequate cable access, do not place the projector

within 6 inches (.15m) of a wall or other object.

• If you are installing the projector on the ceiling, refer to the installation

guide that comes with the Ceiling Mount Kit for more information. To

turn the image upside down, see “Ceiling” on page 35. We recom-

mends using an authorized ceiling mount. The Ceiling Mount Kit is

sold separately; see the Accessories catalog that came with this projec-

tor or visit our website for more information.

• Position the projector the desired distance from the screen. The distance

from the lens of the projector to the screen, the zoom setting, and the

video format determine the size of the projected image. For information

about image sizes at different distances, see “Projected image size” on

page 43.

• For the standard lens that comes with the projector, the image exits at a

given angle. However, the lens shift feature makes the image offset

variable. The image offset is 100% at a 10:0 ratio when the projector is in

4:3 mode (default mode). This means that if you have an image 10’

high, all 10’ will appear above the center of the lens.

• This image offset is 50% when the lens shift is at a 1:1 ratio. This means

that if you have an image 10’ high, the bottom of the image will be 5’

below the center of the lens.

• For information about the optional lenses image offsets, see “Projected

image size” on page 43.

bottom of image

100% above lens

10 ft high

image Projection angle in 4:3 mode (default)

lens center

10:0

1:1

center

bottom of image

50% below lens

center

10:0

1:0

Downloaded from Projector.com

Connecting a computer

Required computer connections

Connect one end of the VESA computer cable to the Computer 2 connector

on the projector. Connect the other end to the video port on your computer.

If you are using a desktop computer, you first need to disconnect the moni-

tor cable from the computer’s video port.

Connect the black power cable to the connector on the back of the projector

and to your electrical outlet.

NOTE: Always use the power cable that shipped with the projector.

Optional computer connections

To control your computer’s mouse using the projector’s remote control, con-

nect the USB and DVI cables to the USB and DVI ports on your computer,

and connect the other end to the Computer 1 (M1-D) connector on the pro-

jector. USB drivers must be installed to use the USB feature. For more infor-

mation, see page 12.

If your projector cannot receive the remote’s signal due to IR interference,

you can connect directly to the projector via a remote cable. To do so, plug

the remote cable into the wired remote connector on the projector. Plug the

other end into the connector on the remote,

To have sound with your presentation, connect the audio cable to your com-

puter and to the corresponding computer Audio In connector on the projec-

tor.

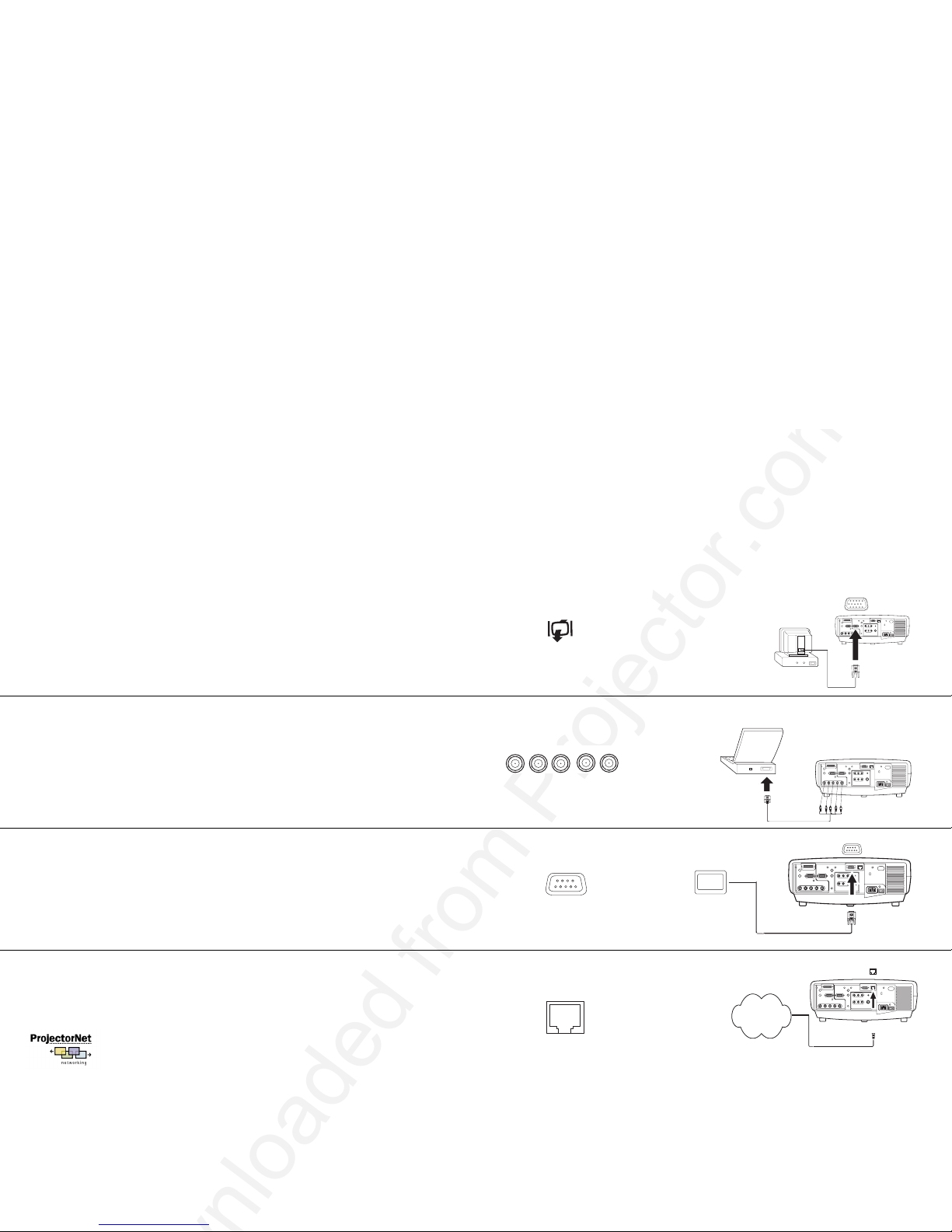

connect computer cable

connect power cable

connect M1-D cable

connect wired remote

connect audio cable

Downloaded from Projector.com

If you are using a desktop computer and want to see the image on your

computer screen as well as on the projection screen, plug the monitor cable

to the Monitor out connector on the projector.

You can also connect to your computer using a BNC cable. Connect the BNC

connectors on the BNC cable to the appropriate Computer 3 connectors on

the projector. Connect the other end to the video port on your computer. If

you are using a desktop computer, you first need to disconnect the monitor

cable from the computer’s video port. When all 5 BNCs are connected, the

projector handles separate synchs on H and V.

You can control the projector from an LCD control panel, touch screen, or

other control device or computer by connecting an RS-232 cable to the pro-

jector’s Serial connector. Specific RS-232 commands can be found in the Ser-

vice and Support section of our website and in this User’s Guide’s

Appendix.

The projector can be managed by ProjectorNet networking software

through its Network (RJ-45) connector. Contact an authorized dealer or

visit our website for information on ProjectorNet.

connect monitor cable

connect BNC cables

RG B

connect RS-232 cable

Network

connect CAT-5 cable

Autres manuels pour DP8400x

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Proxima Projecteur

Proxima

Proxima Ultralight SV1 Manuel utilisateur

Proxima

Proxima 5600 Manuel utilisateur

Proxima

Proxima DP9250 Manuel utilisateur

Proxima

Proxima Ultralight LX1 Manuel utilisateur

Proxima

Proxima Proxima PROAV9320 Manuel utilisateur

Proxima

Proxima DP2700 Manuel utilisateur

Proxima

Proxima Desktop Projector 5610 Manuel utilisateur

Proxima

Proxima LightBook 20 Manuel utilisateur

Proxima

Proxima DP5800 Manuel utilisateur

Proxima

Proxima DP9260 Manuel utilisateur

Proxima

Proxima Desktop Projector 6860 Manuel utilisateur

Proxima

Proxima DP5600 Manuel utilisateur

Proxima

Proxima Ultralight DS1 Manuel utilisateur

Proxima

Proxima DP9295 Manuel utilisateur

Proxima

Proxima Proxima DP9270 Manuel utilisateur

Proxima

Proxima DP6850 Manuel utilisateur

Proxima

Proxima Desktop Projector 9100 Manuel utilisateur

Proxima

Proxima Desktop Projector 9200 Manuel utilisateur

Proxima

Proxima 6150/6100 Manuel utilisateur

Proxima

Proxima Lightbook 30 Manuel utilisateur

Proxima

Proxima Pro AV 9320 Manuel utilisateur

Proxima

Proxima Proxima PROAV9410L Manuel utilisateur

Proxima

Proxima Media Express Manuel

Proxima

Proxima 4100/4200 Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur
