Proxima DP5500 Manuel utilisateur

Proxima

Desktop Projector 5500

User’s Guide

Final 06/21/96

Warranty

ProximaCorporationwarrants that the Proxima®‚ Desktop Projector™ product manufactured

by Proxima is free from defects in materials and workmanship under normal use during the

Warranty Period. The Warranty Period commences on the day of purchase by the end-user.

The Warranty Period is one year. The Projector lamp not covered by this Warranty.

EachProximaproduct is manufactured from new parts,ornewandsomeusedparts.Insome

cases, the product may have been delivered to another end-user and then returned. In all

cases, the product has undergone testing and quality inspection, meets all of Proxima's re-

quirements for a mew product, and our full warranty terms apply.

The end-user’s sales receipt or invoice showing the date of purchase of the product and the

name of the Reseller is proof of date of purchase. The Warranty extends only to the original

purchaser and is not transferable.

During the Warranty Period, Proxima will, at no additional charge, repair or replace defective

parts or at the option of Proxima, replace the entire unit.

This limited Warranty does not extend to any Proxima product that has been damaged or

been rendered defective (a) as a result of accident, misuse or other abuse; (b) by the use of

parts not manufactured or sold by Proxima; (c) by modification of the product; or (d) as a

result of servicing by non-authorized personnel.

Limitation of Warranties

The foregoing Warranty is expressly in lieu of any other expressed or implied ,warranties,

including, without limitation, warranties of merchantability or fitness for a particular pur-

pose. To the extent not prohibited by law, all statutory ,warranties are hereby waived and

excluded from this Warranty. Proxima expressly disclaims all warranties not stated in this

Limited Warranty.

FCC Statement

Warning: This equipment generates, uses and can radiate radio frequency energy and, if not

installedandusedinaccordancewiththeinstructionmanual,maycauseinterferencetoradio

communications. It has been tested and found to comply with limits for a Class “A” comput-

ing device pursuant to Subpart B of Part 15 of the FCC Rules, which are designed to provide

reasonableprotectionagainstsuchinterferencewhenoperatedinacommercialenvironment.

Operation of this equipment in a residential area is likely to cause interference in which case

the user, at his own expense, will be required to take whatever measures may be necessary to

correct the interference.

Trademarks, Patents, and Copyright

Proxima and Cyclops are registered trademarks of Proxima Corporation. Desktop Projector

and Desktop Projection are trademarks of Proxima Corporation. Other trademarks are the

property of their respective owners.

Contents

Chapter 1

Your Proxima Desktop Projector 5500

What’s in the Box? ...............................................................1-2

Quick Start ...........................................................................1-3

Connector Panel ..................................................................1-5

Control Panel.......................................................................1-6

Options and Accessories .....................................................1-6

Chapter 2

Setting Up the Desktop Projector 5500

Your DP5500 .......................................................................2-1

Getting Started .....................................................................2-2

Connector Panel ..................................................................2-5

Connecting Power to the Projector ....................................2-6

Connecting Computer Video..............................................2-6

Connecting Computer Audio ...........................................2-10

Connecting Composite Video .......................................... 2-11

Connecting an S-Video Source ......................................... 2-11

Connecting Non-Computer Audio...................................2-12

Chapter 3

Using the Desktop Projector 5500

Turning on the Projector and Lamp...................................3-1

Focusing and Zooming the Image......................................3-2

Turning off the Projector.....................................................3-2

Control Panel Keys ..............................................................3-3

Control Panel Indicators.....................................................3-4

Using the Remote Control ..................................................3-6

Using the Joystick ................................................................3-8

Operating the Projector.......................................................3-8

The Graphical User Interface ..............................................3-9

Using the Main Menu .......................................................3-10

Setup Menu ........................................................................ 3-11

Input Menu ........................................................................3-12

Image Menu .......................................................................3-13

Option Menu .....................................................................3-14

Quick Menus..................................................................... 3-16

Chapter 4

Maintenance

Cleaning the Lens ................................................................4-1

Replacing the Lamp .............................................................4-2

Cleaning the Air Filter .........................................................4-4

Changing the Remote Control’s Batteries ..........................4-5

Chapter 5

Troubleshooting

Where to get Help................................................................5-1

Returning your DP5500 for Repair.....................................5-5

Ordering Parts......................................................................5-5

Appendix A

Specifications

DP5500 Specifications ....................................................... A-1

Appendix B

Replacement Parts and Accessories

Replacement Parts ...............................................................B-1

Optional Accessories ...........................................................B-1

Index

Your Proxima Desktop Projector 5500

1-1

Chapter 1

Your Proxima Desktop Projector 5500

The Proxima® Desktop Projector™ family consists of portable, color data and

video Desktop Projection™ products that make sharing data and presenting

information as easy as connecting your computer to your monitor.

800

600

400

200

APR

MAY

JUN

JUL

RESET

ZOOM

INPUT

MUTE

STANDBY

/ON

LAMP

TEMP

800

600

400

200

APR

MAY

JUN

JUL

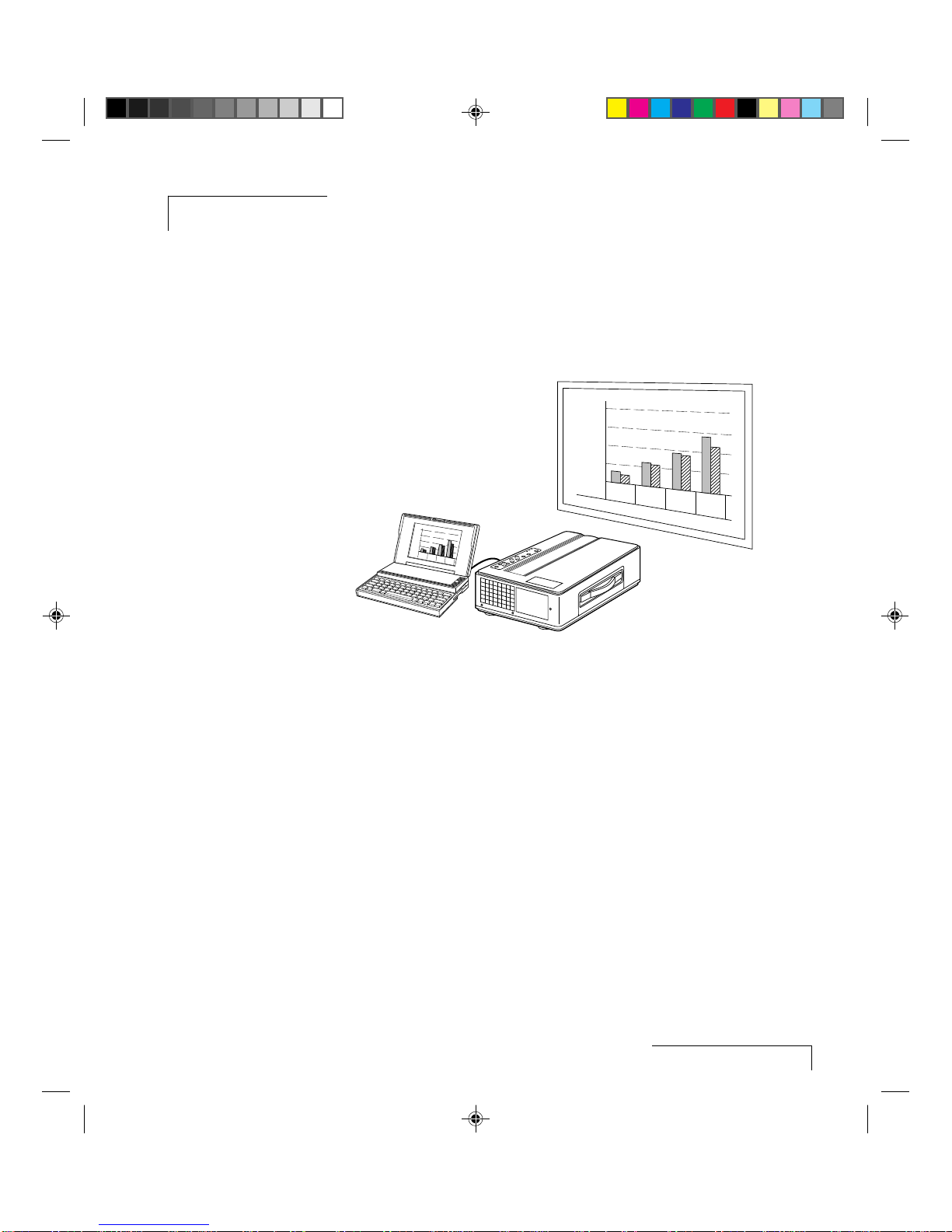

Figure 1-1 The Proxima DP5500 in use

This manual covers the Desktop Projector 5500, which provides images of

unrivaled brightness, clarity, and color accuracy.

1-2

Chapter One

WHAT’S IN THE BOX?

After you’ve opened the box and removed the DP5500 and accessory packs,

make sure you have all of the items shown in Figure 1-2.

CAUTION! The DP5500 should be treated like any other precision optical

instrument. Handle it carefully.

Proxima 

Desktop Projector Remote Control Power Cords

VGA Video Cable

Mac – VGA

Cable Adapter

Also included but not shown:

• (2) AAA Alkaline Batteries

• User's Guide

• Product Registration Card



AV Cable Serial Cable

FOCUS

ZOOM

STANDBY

/ON

LAMP

TEMP

INPUT

MUTE

RESET

CYCLOPS

RGB IN CONTROL

RGB OUT

AUDIO

0UT

INPUT

VIDEO 1/2

BLANK

TIMER VOL

–

FOCUS

STANDBY

RESET

RIGHT

ZOOM

MUTE

RGB 1/2

S-Video Cable Mini-stereo to Mini-stereo Cable

Figure 1-2 Items included with the DP5500

Your projector also includes power cords for Europe and Great Britain.

Your Proxima Desktop Projector 5500

1-3

QUICK START

Place the DP5500 on a solid flat surface at a right angle (perpendicular) to

the projection screen, parallel to the floor. Follow the appropriate section

below for the type of system that you have. These steps are described in

detail in Chapter 2.

NOTE: The DP5500 has two sets of computer video and audio inputs. The

following examples describe how to use INPUT 1.

Desktop PCs

1Unplug the monitor cable from the computer.

2Plug one end of the supplied VGA cable into the RGB 1 IN port on the

projector. Plug the other end into the computer’s Monitor Out port.

3Connect your audio source to the AUDIO 1 IN port on the projector

using the AV cable.

4You can project with or without a PC monitor. To use the monitor, plug

the monitor cable into the RGB OUT port on the projector.

5Turn the projector on and press the STANDBY/ON key.

NOTE: An external monitor is not needed to use the DP5500.

Desktop Macintosh Computers

1Unplug the monitor cable from the computer.

2Plug one end of the supplied VGA video cable into the RGB IN 1 port on

the projector. Attach the VGA end of the Mac - VGA cable adapter to the

other end of the VGA video cable.

3Plug the Mac end of the Mac - VGA cable adapter into your computer’s

Video port.

4Connect your audio source to the AUDIO 1 IN port on the projector

using the AV cable.

5To project and view the monitor at the same time, plug your monitor

cable into the RGB OUT port of the projector.

NOTE: The DP5500 only supports Multi-Sync monitors for Macintosh

computers. Other monitors cannot be used.

1-4

Chapter One

6Turn the projector on and press the STANDBY/ON key.

NOTE: If you turn the projector off while the computer is running, the

external monitor will go blank. This is normal. Just turn the projector back

on, and the monitor display will return.

Notebooks

NOTE: If you are connecting to an Apple PowerBook, attach the Mac - VGA

cable adapter to the computer’s Video Out port (or video adapter cable).

1Plug the COMPUTER end of the VGA Video cable into the notebook’s

VGA Out port or into the Mac - VGA cable adapter (Macintosh only).

2Plug one end of the VGA Video cable into the RGB IN 1 port on the

projector.

3Connect your audio source to the AUDIO 1 IN port on the projector.

4Turn on the projector and press the STANDBY/ON key.

Special Configurations

If your computer has an internal monitor but no external video capability

(such as the Macintosh Performa 575, PowerMac 5200, and certain

PowerBooks), you need a video adapter card in order to attach the DP5500.

Setup for a third-party adapter is identical to the procedures outlined in the

Quick Start section above. Contact your dealer, Proxima Customer Service, or

a third-party supplier for more information about an appropriate video

adapter.

Your Proxima Desktop Projector 5500

1-5

CONNECTOR PANEL

All connections between the DP5500 and your computer or video source are

made on the side connector panel.

RGB IN

AUDIO

IN AUDIO

OUT

CYCLOPS S-VIDEO VIDEO AUDIO

CONTROL

RGB OUT

2 3 4

Figure 1-3 The Connector Panel

CONNECTOR DESCRIPTION

1CYCLOPS Port Connects your computer to the Cyclops Interactive

Pointer System.

2S-VIDEO 1 & 2 Connects to an S-Video source.

3VIDEO 1 & 2 Connects to video output from an NTSC, PAL, or

SECAM source.

4L-AUDIO-R 1 & 2 Connects to stereo/mono audio output from an

NTSC, PAL, or SECAM source.

5AUDIO OUT Provides audio output to an external stereo system.

6RGB OUT Provides computer output to a separate monitor.

7CONTROL Connects to a serial cable for computer control.

8POWER SWITCH Turns power on and off.

9POWER RECEPTACLE For AC power cord connection.

10 RGB IN 1 & 2 Connects computer video to the projector.

11 AUDIO IN 1 & 2 Connects to stereo/mono audio output from a

computer.

1-6

Chapter One

FOCUS

RESET

ZOOM

MUTE

INPUT

LAMP

TEMP

STANDBY

/ON

–

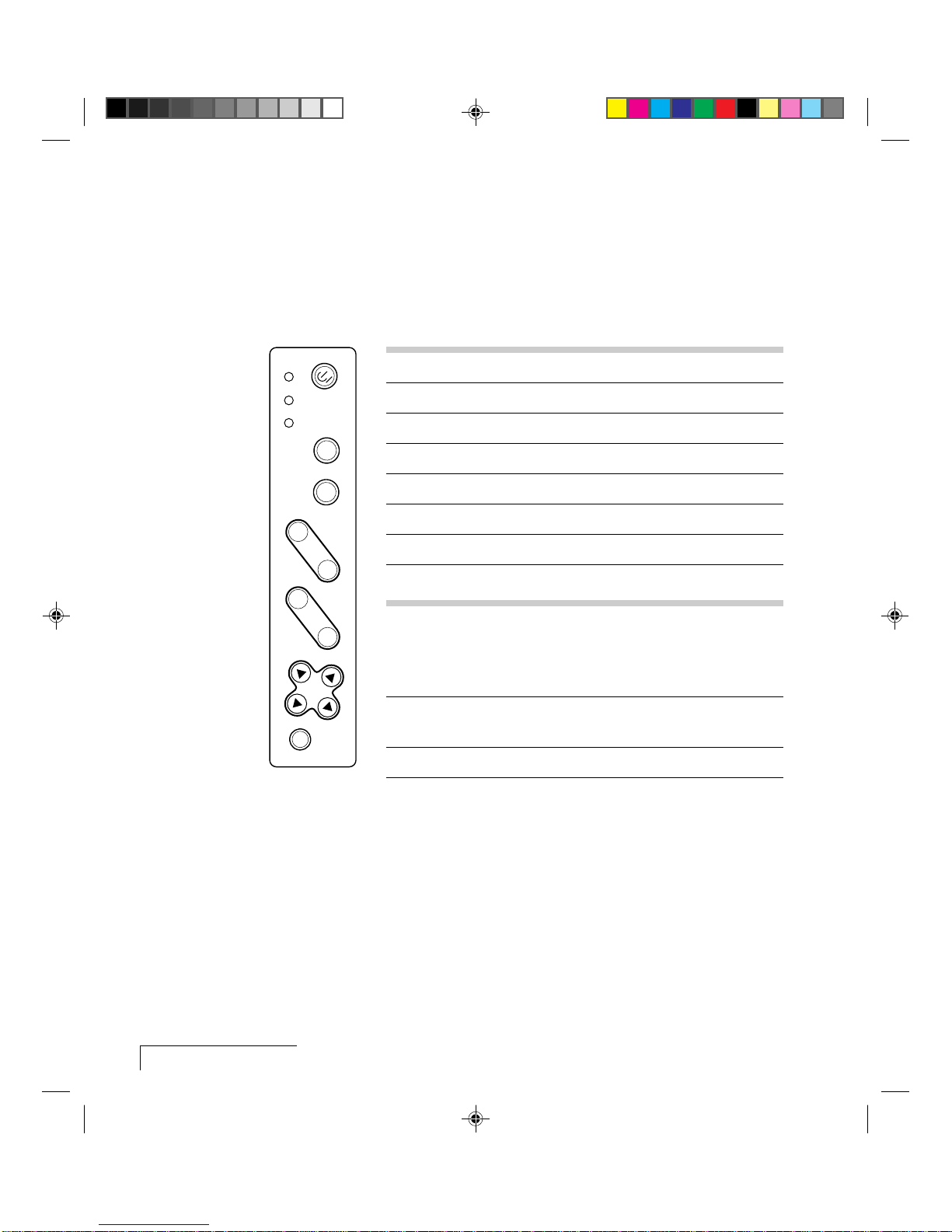

CONTROL PANEL

Use the DP5500’s control panel keys to turn the projector on or off, adjust

the projected image, and to display and hide the menus. Power, warning,

and alert lights give you important information about how your projector is

working.

KEY FUNCTION

STANDBY/ON Turns the lamp on or off.

INPUT Switches the video inputs.

MUTE Turns the Audio on or off.

ZOOM +/- Zooms in and out.

FOCUS +/- Adjusts the focus.

MENU Controls the menu.

RESET Resets the image to the factory defaults.

INDICATOR FUNCTION

ON Flashes green during start-up.

Glows green if AC input and projector power

supplies are functioning. Glows red if they are not,

or if the air filter door is removed.

TEMP Glows red to warn of an over-temperature

condition. Flashes red if the fan is not working.

LAMP Glows red if the projection lamp burns out.

Figure 1-4 The DP5500 Control Panel

OPTIONS AND ACCESSORIES

The Cyclops Interactive Pointer system

The Proxima Cyclops® interactive pointer system uses a built-in camera to

function like a cordless mouse. With the Cyclops system, you can control

your computer's cursor on the projected image by moving the hand-held

wand or optional hand-held laser pointer.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Proxima Projecteur

Proxima

Proxima DP9295 Manuel utilisateur

Proxima

Proxima Oviation 842 Manuel utilisateur

Proxima

Proxima DP8000 Manuel utilisateur

Proxima

Proxima Ultralight DS2 Manuel utilisateur

Proxima

Proxima DP2000s Manuel utilisateur

Proxima

Proxima DESKTOP PROJECTOR 5155SVGA Manuel utilisateur

Proxima

Proxima DESKTOP PROJECTOR 4100 Manuel utilisateur

Proxima

Proxima 4100/4200 Manuel utilisateur

Proxima

Proxima DP6800 Manuel utilisateur

Proxima

Proxima Proxima UltraLight LX2 Manuel utilisateur

Proxima

Proxima Desktop Projector 6860 Manuel utilisateur

Proxima

Proxima Proxima PROAV9350 Manuel utilisateur

Proxima

Proxima DP8400x Manuel utilisateur

Proxima

Proxima Pro AV 9400L Manuel utilisateur

Proxima

Proxima Proxima PROAV9410L Manuel utilisateur

Proxima

Proxima Ultralight DS1 Manuel utilisateur

Proxima

Proxima DP9260 Manuel utilisateur

Proxima

Proxima DP5610 Manuel utilisateur

Proxima

Proxima dp800 Manuel utilisateur

Proxima

Proxima Desktop Projector DP5100 Manuel utilisateur

Proxima

Proxima Pro AV 9300 Manuel utilisateur

Proxima

Proxima DP8000 Manuel utilisateur

Proxima

Proxima DP9250 Manuel utilisateur

Proxima

Proxima 5600 Manuel utilisateur

Manuels Projecteur populaires d'autres marques

iEmmet

iEmmet MP-312 Manuel utilisateur

Epson

Epson VS400 Manuel utilisateur

Sony

Sony VPL-HS10 Marketing Specifications & Features Manuel utilisateur

Sony

Sony VPL-HW65ES Manuel de service

Toshiba

Toshiba TLP-791U Manuel utilisateur

Philips

Philips LC1341 Guide de référence

Panasonic

Panasonic PTL735NTU - LCD PROJECTOR-NETWORK IB Manuel utilisateur

NEC

NEC NP600S EDU Manuel utilisateur

BenQ

BenQ SH753P Manuel utilisateur

Eiki

Eiki EK-623U series Manuel utilisateur

Epson

Epson PowerLite Pro Cinema 6020UB Manuel utilisateur

Epson

Epson PowerLite Home Cinema 705HD Manuel utilisateur

Christie

Christie LHD700 Manuel utilisateur

Navitar

Navitar FX Manuel utilisateur

InFocus

InFocus LitePro 560 Manuel utilisateur

Sony

Sony SRX-R815P Manuel utilisateur

Vivitar

Vivitar DP1500 X Manuel utilisateur

Acer

Acer C20 Series Manuel utilisateur
