Protech PMB-892LF Manuel utilisateur

USER’S

MANUAL

PMB-892LF

Intel

Socket H2 LGA1155

Mini-ITX Motherboard

With VGA/So nd/2LAN(1G)/4COM

All manuals and user guides at all-guides.com

all-guides.com

PMB-892LF Intel®Socket H2

Mini-ITX Motherboard

With VGA/ Sound/ 2LAN/ 4COM

This user’s manual is meant to assist users in installing and setting up the

system. The information contained in this document is subject to change

without any notice.

This manual is copyrighted May 2012. You may not reproduce or transmit in

any form or by any means, electronic, or mechanical, including photocopying

and recording.

ACKNOWLEDGEMENTS

All trademarks and registered trademarks mentioned herein are the property

of their respective owners.

CE NOTICE

This is a class A product. In a domestic environment this product may cause

radio interference in which case the user may be required to take adequate

measures.

All manuals and user guides at all-guides.com

FCC NOTICE

This equipment has been tested and found to comply with the limits for a Class

A digital device, pursuant to part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference when

the equipment is operated in a commercial environment. This equipment

generates, uses, and can radiate radio frequency energy and, if not installed

and used in accordance with the instruction manual, may cause harmful

interference to radio communications. Operation of this equipment in a

residential area is likely to cause harmful interference in which case the user

will be required to correct the interference at his own expense.

You are cautioned that any change or modifications to the equipment not

expressly approve by the party responsible for compliance could void your

authority to operate such equipment.

CAUTION

Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type recommended by the manufacturer.

Dispose of used batteries according to the manufacturer’s instructions.

Installation only by a trained electrician or only by an electrically trained person who

knows all English Installation and Device Specifications which are to be applied.

All manuals and user guides at all-guides.com

Contents

TABLE OF CONTENTS

CHAPTER 1 INTRODUCTION

1-1 About This Manual ...................................................... 1-2

1-2 System Specifications .................................................. 1-3

1-3 Safety Precautions ....................................................... 1-6

CHAPTER 2 SYSTEM CONFIGURATION

2-1 Jumper & Connector Quick Reference Table ...............

2-2

2-2 Component Locations ...................................................

2-3

2-3 How to Set the Jumpers ................................................

2-4

2-4 COM Port Connector ……..…………………………..

2-6

2-5 RS232/422/485(COM2) Selection ................................

2-8

2-6 COM2 Auto Detect Selection ……..…………………. 2-9

2-7 CPU Selection ...............................................................

2-9

2-8 Keyboard & Mouse Connector .....................................

2-10

2-9 Reset Connector ............................................................

2-10

2-10 Hard Disk Drive LED Connector ..................................

2-11

2-11 ATX Power Button …...................................................

2-11

2-12 External Speaker Connector ..........................................

2-11

2-13 PLED Connector ……...................................................

2-12

2-14 Clear CMOS Data Selection …………………………. 2-12

2-15 CPU Fan Connector ………..………………………… 2-13

2-16 System Fan Connector ……………………………….. 2-13

2-17 VGA Connector ……………………………………….

2-14

2-18 Serial ATA Connector ……………………………….. 2-15

2-19 Printer Connector ……………………………………..

2-17

2-20 Universal Serial Bus Connector ………………………

2-18

2-21 USB & LAN Connector ………………………………

2-19

2-22 Display Port Connector ……………………………….

2-21

2-23 Digital Input/Output Connector ……………………… 2-21

2-24 ATX Power Connector ………………………………. 2-22

2-25 Sound Connector …………….………………………..

2-23

All manuals and user guides at all-guides.com

Contents

CHAPTER 3 SOFTWARE UTILITIES

3-1 Introduction ................................................................. 3-2

3-2 Intel Chipset Software Installation Utility …..……..... 3-3

3-3 VGA Driver Utility ...................................................... 3-4

3-4 LAN Driver Utility ...................................................... 3-5

3-5 Sound Driver Utility .................................................... 3-6

3-6 Intel

ME Driver Utility ................................................

3-7

3-7 USB3.0 Software Installation Utility .............................

3-8

CHAPTER 4 AMI BIOS SETUP

4-1 Introduction ................................................................. 4-2

4-2 Entering Setup ............................................................ 4-4

4-3 Main …….................................................................... 4-6

4-4 Advanced …………………….........................…........ 4-7

4-5 Chipset …………….................................................... 4-30

4-6 Boot ..………………................................................... 4-37

4-7 Security ……………………………………………… 4-40

4-8 Save & Exit ………………………………………….. 4-43

APPENDIX A EXPANSION BUS

Mini-PCIe Bus Pin Assignment ………………………………

A-2

APPENDIX B TECHNICAL SUMMARY

Block Diagram ........................................................................ B-2

Interrupt Map .......................................................................... B-3

DMA Channels Map ……....................................................... B-8

Memory Map ........................................................................... B-9

I/O Map ................................................................................... B-11

Watchdog Timer Configuration …………..…………………. B-15

Flash BIOS Update ………………………………………….. B-17

All manuals and user guides at all-guides.com

Page:1-1

INTRODUCTION

This chapter gives you the information for PMB-892LF. It also

outlines the System specification.

Section includes:

About This Manual

System Specifications

Safety Precautions

Experienced users can skip to chapter 2 on page 2-1

for Quick Start.

CHAPTER

All manuals and user guides at all-guides.com

all-guides.com

Chapter 1 Introduction

Page: 1-2 PMB-892LF USER

′

S MANUAL

1-1. ABOUT THIS MANUAL

Thank you for purchasing our Intel

Gen. Core CPU (Ivy Bridge) Mini-

ITX Motherboard with VGA / Sound / 2LAN / 4COM. PMB-892LF provides

faster processing speed, greater expandability and can handle more task than

before. This manual is designed to assist you how to install and set up the

system. It contains four chapters. The user can apply this manual for

configuration according to the following chapters:

Chapter 1 Introduction

This chapter introduces you to the background of this manual, and the

specifications for this system. The final page of this chapter will indicate

how to avoid damaging this board.

Chapter 2 Hardware Configuration

This chapter outlines the component locations and their functions. In the

end of this chapter, you will learn how to set jumper and how to configure

this card to meet your own needs.

Chapter 3 Software Utilities

This chapter contains helpful information for proper installations of the

VGA utility, LAN utility, and Sound utility.

Chapter 4 AMI BIOS Setup

This chapter indicates you how to set up the BIOS configurations.

Appendix A Expansion Bus

This appendix introduces you the Mini-PCIe expansion bus.

Appendix B Technical Summary

This appendix gives you the information about the Technical maps, Watchdog-

timer configuration, and Flash BIOS Update.

All manuals and user guides at all-guides.com

Chapter 1 Introduction

PMB-892LF USER

′

S MANUAL Page: 1-3

1-2. SYSTEM SPECIFICATION

CPU

Intel

Gen. Core CPU (Ivy Bridge) / Socket H2 (LGA1155)

CHIPSET

Intel

Q77 (PCH)

MEMORY

2×240Pins, Dual channel DDR3-1333/1600MHz up to 16GB





BIOS:

AMI BIOS (UEFI), with VGA BIOS





REAL TIME CLOCK:

Build in PCH





DISPLAY:

Build in processor

Supports VGA, 1 x eDisplay port (Protech Display Port definition)

Discrete graphic card is necessary for display if the chosen CPU doesn’t have

integrated graphics support





SERIAL PORT:

4 ports (COM1/3/4 for RS232, COM2 for RS232/422/485)





PARALLEL PORT:

1 port (Bi-direction, SPP / EPP / ECP)





USB CONNECTOR:

8 ports

(4x USB3.0 with stack connector on Rear Panel,

4x USB2.0 with box-heater on board.)





LAN ADAPTER:

Dual ports, support 10/100/1000Mbps

LAN1: Intel

82579V (82579LM)

LAN2: Intel

82583V

Support Wake-on-LAN.

All manuals and user guides at all-guides.com

Chapter 1 Introduction

Page: 1-4 PMB-892LF USER

′

S MANUAL





SATA INTERFACE:

4 ports of S-ATA connector from PCH

SATA1 & SATA2 -- support SATAIII (6.0Gb/s, with Blue color connector)

SATA3 & SATA4 -- support SATAII (3.0Gb/s)





KEYBOARD/MOUSE:

1 x PS/2 port (KB/MS)





BUS SUPPORT:

1 x PCI-e (16X), 1 x MiniPCI-e





SOUND:

High Definition Audio

Realtek ALC888S

Supports Line-in/Line-out/Mic, audio connector on the rear panel





SPEAKER:

Internal buzzer





DIGITAL I/O:

4 in / 4 out





LED INDICATOR:

1 x HDD LED, 1 x Power LED





HARDWARE MONITORING FUNCTION:

Voltage, CPU Temperature and Cooling fan speed (CPU, System), Smart Fan

support.





WATCHDOG:

1~255 Secs.





RAID FUNCTION:

RAID 0, 1, 5, 10





POWER SUPPLY:

ATX 24 pin

All manuals and user guides at all-guides.com

Chapter 1 Introduction

PMB-892LF USER

′

S MANUAL Page: 1-5





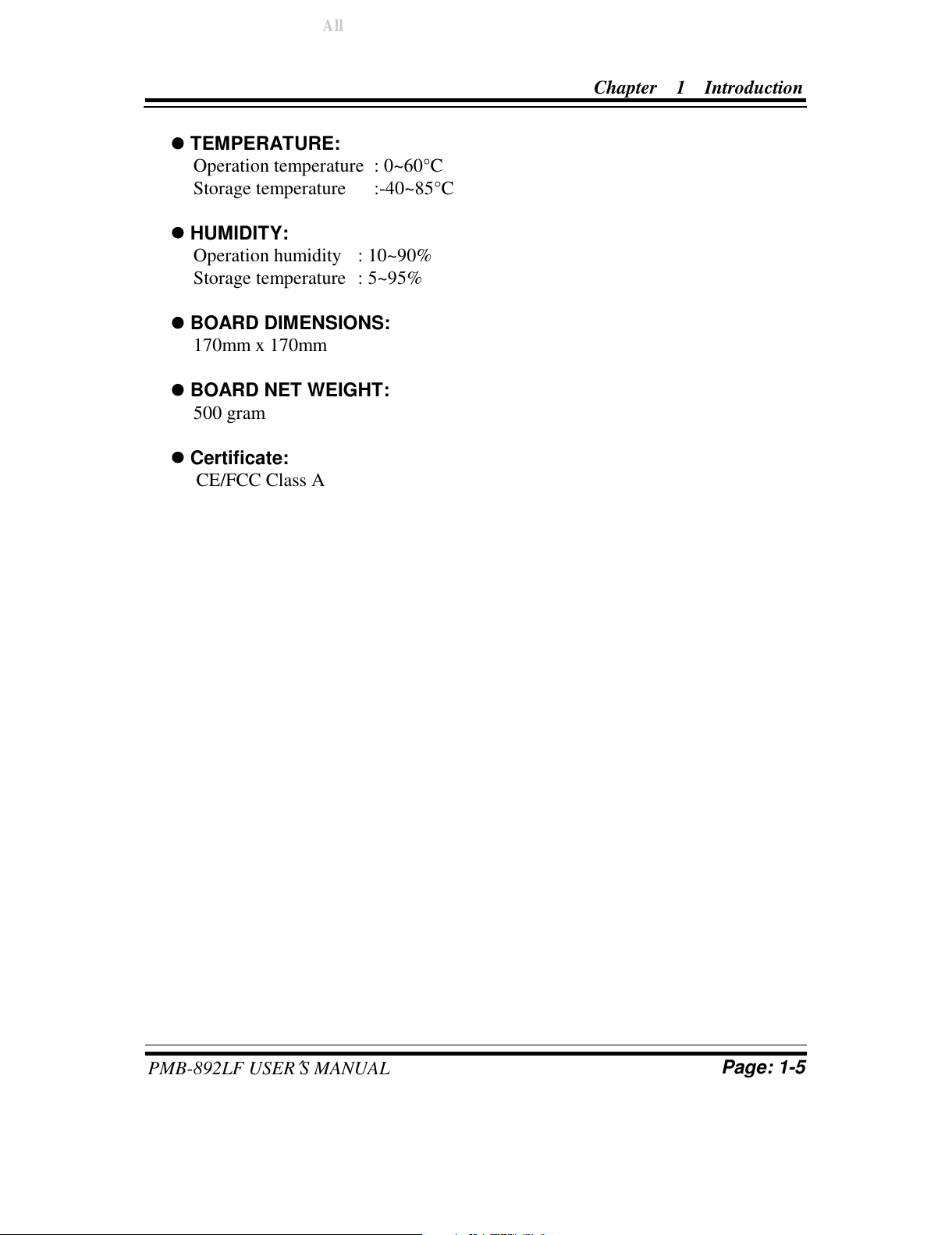

TEMPERATURE:

Operation temperature : 0~60°C

Storage temperature :-40~85°C





HUMIDITY:

Operation humidity : 10~90%

Storage temperature : 5~95%





BOARD DIMENSIONS:

170mm x 170mm





BOARD NET WEIGHT:

500 gram





Certificate:

CE/FCC Class A

All manuals and user guides at all-guides.com

Autres manuels pour PMB-892LF

Table des matières

Autres manuels protech Carte mère

protech

protech PC-570 Manuel utilisateur

protech

protech ProX-1670 Manuel utilisateur

protech

protech BM-0962 Manuel utilisateur

protech

protech BE-U830 Series Manuel utilisateur

protech

protech Prox-1720 Manuel utilisateur

protech

protech ProX-1650 Manuel utilisateur

protech

protech PMB-892LF Manuel utilisateur

protech

protech PMB-1751LF M1 Manuel utilisateur

protech

protech SA-5942 Manuel utilisateur

protech

protech PMB-562LF Manuel utilisateur

protech

protech Prox-1655 Manuel utilisateur

protech

protech PC-580 Manuel utilisateur

protech

protech ProX-B501 M2 Manuel utilisateur

protech

protech BM-0962 Manuel utilisateur

Manuels Carte mère populaires d'autres marques

DFI

DFI SD170 Manuel utilisateur

ASROCK

ASROCK ROMED8-2T Manuel utilisateur

Asus

Asus P2L97A Manuel utilisateur

Winmate

Winmate IC70 Manuel utilisateur

Asus

Asus MES-B Manuel utilisateur

Grantech

Grantech SYS8F377VGGA-3OMN Manuel utilisateur

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuel utilisateur

Gigabyte

Gigabyte GA-9IVDT Manuel utilisateur

Texas Instruments

Texas Instruments ADS8372EVM Manuel utilisateur

Commell

Commell MS-C73 Manuel utilisateur

IBT Technologies

IBT Technologies MB860 Manuel utilisateur

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuel utilisateur

Biostar

Biostar M7VIT Bravo Instructions d'utilisation et d'installation

Intel

Intel D33217CK Manuel utilisateur

Asus

Asus F1A55-M LX PLUS R2.0 Manuel utilisateur

EPC

EPC EPC9147C Manuel utilisateur

Asus

Asus EX-B760M-V5 D4 Manuel utilisateur

EPOX

EPOX MU-8KHA0010 Manuel utilisateur
