USER’S

MANUAL

ISA-562LF

HalfSizeCPUCard

WithVGA/Sound/LAN

ISA-562LF M2

ISA-562LF

Half Size CPU Card

With VGA /Sound/LAN

OPERATION MANUAL

This operation manual is meant to assist both Embedded Computer

manufacturers and end users in installing and setting up the system. The

information contained in this document is subject to change without any

notice.

This manual is copyrighted in May, 2006. You may not reproduce or

transmit in any form or by any means, electronic, or mechanical, including

photocopying and recording.

ACKNOWLEDGEMENTS

All trademarks and registered trademarks mentioned herein are the

property of their respective owners.

CE NOTICE

This is a class A product. In a domestic environment this product may

cause radio interference in which case the user may be required to take

adequate measures.

FCC NOTICE

This equipment has been tested and found to comply with the limits for a

Class A digital device, pursuant to part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful

interference when the equipment is operated in a commercial

environment. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with the

instruction manual, may cause harmful interference to radio

communications. Operation of this equipment in a residential area is

likely to cause harmful interference in which case the user will be

required to correct the interference at his own expense.

You are cautioned that any change or modifications to the equipment not

expressly approve by the party responsible for compliance could void

your authority to operate such equipment.

Contents

TABLE OF CONTENTS

CHAPTER 1 INTRODUCTION

1-1 About This Manual ........................................................ 1-2

1-2 System Specification ...................................................... 1-3

1-3 Safety Precautions ......................................................... 1-5

CHAPTER 2 HARDWARE CONFIGURATION

2-1 Jumper & Connector Quick Reference Table ................ 2-2

2-2 Component Locations .................................................... 2-3

2-3 How to Set the Jumpers ................................................. 2-4

2-4 COM Port Connector ……..…………………………... 2-6

2-5 RS232/422/485(COM2) Selection ................................ 2-7

2-6 Keyboard or PS/2 Mouse Connector .....................….... 2-8

2-7 External Keyboard Connector ....................................... 2-8

2-8 Keyboard or PS/2 Mouse Selection …………………… 2-9

2-9 Reset Connector ............................................................ 2-10

2-10 Hard Disk Drive LED Connector .................................. 2-10

2-11 ATX Power Button ….................................................... 2-10

2-12 External Speaker Connector .......................................... 2-11

2-13 Power LED Connector ……........................................... 2-11

2-14 KeyLock Connector ..………………………………… 2-11

2-15 IrDA Connector ……………………………………… 2-12

2-16 CPU Fan Connector ………………………………….. 2-12

2-17 Clear CMOS Data Selection ………………………… 2-13

2-18 VGA CRT Connector ………………………………… 2-14

2-19 Hard Disk Drive Connector ........................................... 2-15

2-20 Floppy Disk Drive Connector ....................................... 2-16

2-21 Printer Connector .......................................................... 2-17

2-22 Universal Serial Bus Connector ……………………… 2-18

2-23 LAN Connector ………………………………………. 2-18

2-24 ATX Power Connector ……………………………….. 2-19

2-25 5VSB Connector ……….……………………….…… 2-19

2-26 AT/ATX Power Selection …………………………….. 2-20

Contents

2-27 Inverter Connector …………………………………….. 2-21

2-28 CDIN Connector ………………………………………. 2-21

2-29 Sound Connector ………………………………………. 2-21

2-30 Reset / NMI Watchdog Selection………………………… 2-22

2-31 LVDS Connector ………………………………………. 2-23

2-32 LVDS Panel Voltage Selection ……………………….. 2-24

CHAPTER 3 SOFTWARE UTILITIES

3-1 Introduction …………..........................................…....... 3-2

3-2 VGA Driver Utility ……………………………….…… 3-2

3-3 Flash BIOS Update ..............................................…....... 3-3

3-4 LAN Driver Utility …...........................................…...... 3-5

3-5 Sound Driver Utility …………………………………… 3-6

3-6 Intel Chipset Software Installation Utility …..……..….. 3-7

3-7 USB2.0 Software Installation Utility ………………….. 3-8

3-8 Watchdog Configuration ……………………………… 3-9

CHAPTER 4 AWARD BIOS SETUP

4-1 Introduction ................................................................... 4-2

4-2 Entering Setup ............................................................... 4-3

4-3 The Standard CMOS Features ………............................ 4-4

4-4 The Advanced BIOS Features ....................................... 4-8

4-5 Advanced Chipset Features ........................................... 4-11

4-6 Integrated Peripherals …............................................... 4-14

4-7 Power Management Setup ............................................. 4-19

4-8 PNP/PCI Configuration …............................................. 4-20

4-9 PC Health Status …….................................................... 4-22

4-10 Frequency Control ....................................…………...... 4-24

4-11 Load Fail-Safe Defaults ................................................. 4-26

4-12 Load Optimized Defaults .........................................…. 4-26

4-13 Set Supervisor Password ……………………………… 4-27

4-14 Save & Exit Setup ......................................................... 4-28

4-15 Exit Without Saving ………………………………… 4-29

Contents

APPENDIX A EXPANSION BUS

ISA Bus Pin Assignment ..............................................…......... A-2

PC/104 Connector ..........................………....................…........ A-3

Compact Flash Card Connector Pin Assignment ……………. A-4

APPENDIX B TECHNICAL SUMMARY

Block Diagram ........................................................................... B-2

Interrupt Map ............................................................................ B-3

RTC & CMOS RAM Map ........................................................ B-4

Timer & DMA Channels Map .................................................. B-5

I/O & Memory Map ...............................................…................ B-6

Page:1-1

INTRODUCTION

This chapter gives you the information for ISA-562LF. It also

outlines the System specification.

Section includes:

zAbout This Manual

zSystem Specifications

zSafety precautions

Experienced users can skip to chapter 2 on page 2-1

for Quick Start.

CHAPTER

Chapter 1 Introduction

Page: 1-2 ISA-562LF USER

′

S MANUAL

1-1. ABOUT THIS MANUAL

Thank you for purchasing our ISA-562LF Intel® processor, Half Size Card

enhanced with VGA / Sound/ LAN, which is fully PC / AT compatible. ISA-

562LF provides faster processing speed, greater expandability and can handle

more task than before. This manual is designed to assist you how to install and

set up the system. It contains four chapters. The user can apply this manual for

configuration according to the following chapters :

Chapter 1 Introduction

This chapter introduces you to the background of this manual, and the

specification for this system. Final part of this chapter will indicate you how

to avoid damaging this Embedded Card.

Chapter 2 Hardware Configuration

This chapter outlines the component location and their functions. In the end of

this chapter, you will learn how to set jumper and how to configure this card

to meet your own needs.

Chapter 3 Software Utilities

This chapter contains helpful information for proper installations of the VGA

utility, LAN utility, sound utility, and BIOS update. It also describes the

Watchdog timer configuration.

Chapter 4 Award BIOS Setup

This chapter indicates you how to set up the BIOS configurations.

Appendix A Expansion Bus

This Appendix introduces you the expansion bus for ISA Bus, PC/104

connector and Compact Flash.

Appendix B Technical Summary

This section gives you the information about the Technical maps.

Chapter 1 Introduction

ISA-562LF USER

′

S MANUAL Page: 1-3

1-2. SYSTEM SPECIFICATION

zCPU :

Intel® processor

ULV Celeron® M 1GHz / Intel® Pentium® M L 1.4GHz

System bus frequency at 400MHz

Auto detect voltage regulator

zSYSTEM CHIPSET :

Intel® 855GME chipset

zMEMORY :

Supports up to 1GB DDR333 SDRAM.

One 200-pin DDR SO-DIMM sockets on board

zCACHE :

Built-in CPU

zREAL-TIME CLOCK / CALENDAR :

256-byte battery backed CMOS RAM.

Hardware implementation to indicate century rollover

zBIOS :

Phoenix-AwardBIOS™ for plug & play function

Memory size with 4 MB, with VGA BIOS

zKEYBOARD/MOUSE CONNECTOR :

Mini DIN connector, selectable for Keyboard, PS/2 Mouse, or Y-Cable

One additional 4-pin External keyboard connector

zUNIVERSAL SERIAL BUS :

Universal Serial Bus Connector on board

Supports up to two USB 2.0 ports.

zBUS SUPPORT :

One ISA Bus

One PC/104

One Compact Flash Bus

Chapter 1 Introduction

Page: 1-4 ISA-562LF USER

′

S MANUAL

zDISPLAY :

Integrated Graphic in Intel® 855GME

Support D-Sub 15 pin VGA connector

Support 18/24 bit LVDS connector

Support 3.3V/5V LVDS Panel Power Selection

Support 12V Panel Backlight

* 24 bit hardware is ready but Intel does not recommend using.

zIDE INTERFACE :

One IDE ports support up to two IDE devices.

Supports Ultra DMA 33/66/100.

Compact Flash is connected at secondary IDE Bus.

zFLOPPY DISK DRIVER INTERFACE :

Supports up to two Floppy Disk Drives, 3.5" and 5.25".

zLAN INTERFACE :

Intel® 82562ET 10/100 Mbps Ethernet.

Supports Wake-on-LAN with ATX power.

zSERIAL PORT :

Two high speed 16550 Compatible UARTs with Send / Receive 16 Byte

FIFOs. COM1 for RS232; COM2 for RS232/422/485.

zPARALLEL PORT :

One port supports SPP / ECP / EPP Function.

zHARDWARE MONITORING FUNCTION :

Monitor Voltage, CPU Temperature and Cooling Fan.

zIRDA PORT :

One 5-pin Infrared connector

Supports IrDA v1.0 SIR protocol.

zLED INDICATOR :

HDD LED, Power LED.

zSOUND :

Realtek ALC202A (AC’ 97 Codec)

Table des matières

Autres manuels Protech Systems Matériel informatique

Protech Systems

Protech Systems ISA-382LF Manuel utilisateur

Protech Systems

Protech Systems BH-0927 Manuel utilisateur

Protech Systems

Protech Systems BM-0972 Manuel utilisateur

Protech Systems

Protech Systems BM-0947 Manuel utilisateur

Protech Systems

Protech Systems BM-0942 Manuel utilisateur

Protech Systems

Protech Systems SA-5872 Manuel utilisateur

Protech Systems

Protech Systems PSB-601LF Manuel utilisateur

Protech Systems

Protech Systems BK-0940 Manuel utilisateur

Protech Systems

Protech Systems BH-1105 Manuel utilisateur

Protech Systems

Protech Systems BM-0982 Manuel utilisateur

Protech Systems

Protech Systems BM-2505 Manuel utilisateur

Protech Systems

Protech Systems BE-0966 Manuel utilisateur

Protech Systems

Protech Systems BC-K200 Manuel utilisateur

Protech Systems

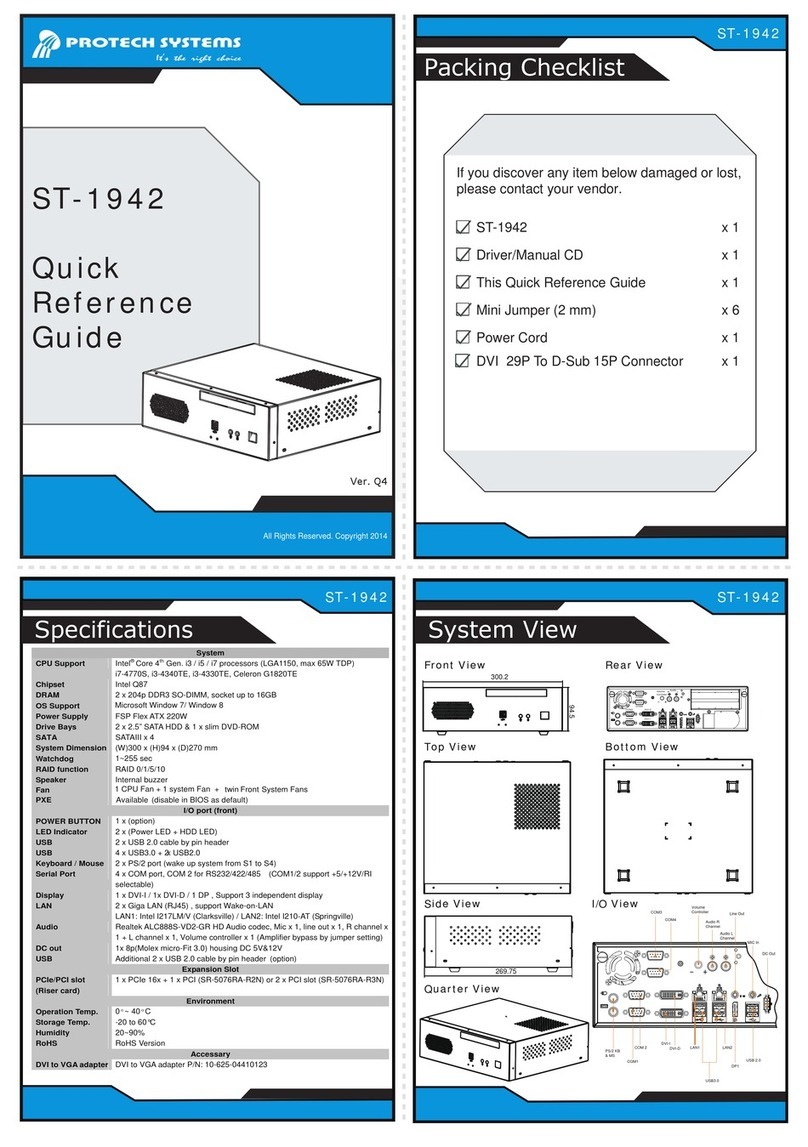

Protech Systems ST-1942 Manuel utilisateur

Protech Systems

Protech Systems PMB-897LF Manuel utilisateur

Protech Systems

Protech Systems BM-2502 Manuel utilisateur

Protech Systems

Protech Systems SP-6265 M1 Manuel utilisateur

Protech Systems

Protech Systems BE-0981 Manuel utilisateur

Protech Systems

Protech Systems BM-2503 Series Manuel utilisateur

Protech Systems

Protech Systems BM-2505 Manuel utilisateur

Manuels Matériel informatique populaires d'autres marques

EMC2

EMC2 VNX Series Manuel du propriétaire

Panasonic

Panasonic DV0PM20105 Manuel utilisateur

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuel utilisateur

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuel utilisateur

Raidon

Raidon iT2300 Manuel utilisateur

National Instruments

National Instruments PXI-8186 Manuel utilisateur

Hauppauge

Hauppauge WinTV-HVR-2250 Manuel utilisateur

Kontron

Kontron CP6002 Manuel utilisateur

Manhattan

Manhattan 702843 Manuel utilisateur

Aphex

Aphex 230 Manuel utilisateur

AMD

AMD Phenom II Manuel d'exploitation

Intel

Intel NUC 12 Pro Manuel utilisateur

dbx

dbx Zone Pro 1260 Manuel utilisateur

Galaxy

Galaxy GHDX2-2430S-24F4D Manuel utilisateur

Intel

Intel AXXRMFBU4 Manuel utilisateur

Kontron

Kontron DIMM-PC/MD Manuel utilisateur

ST X-NUCLEO-SAFEA1B Mode d'emploi

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuel utilisateur
