K757

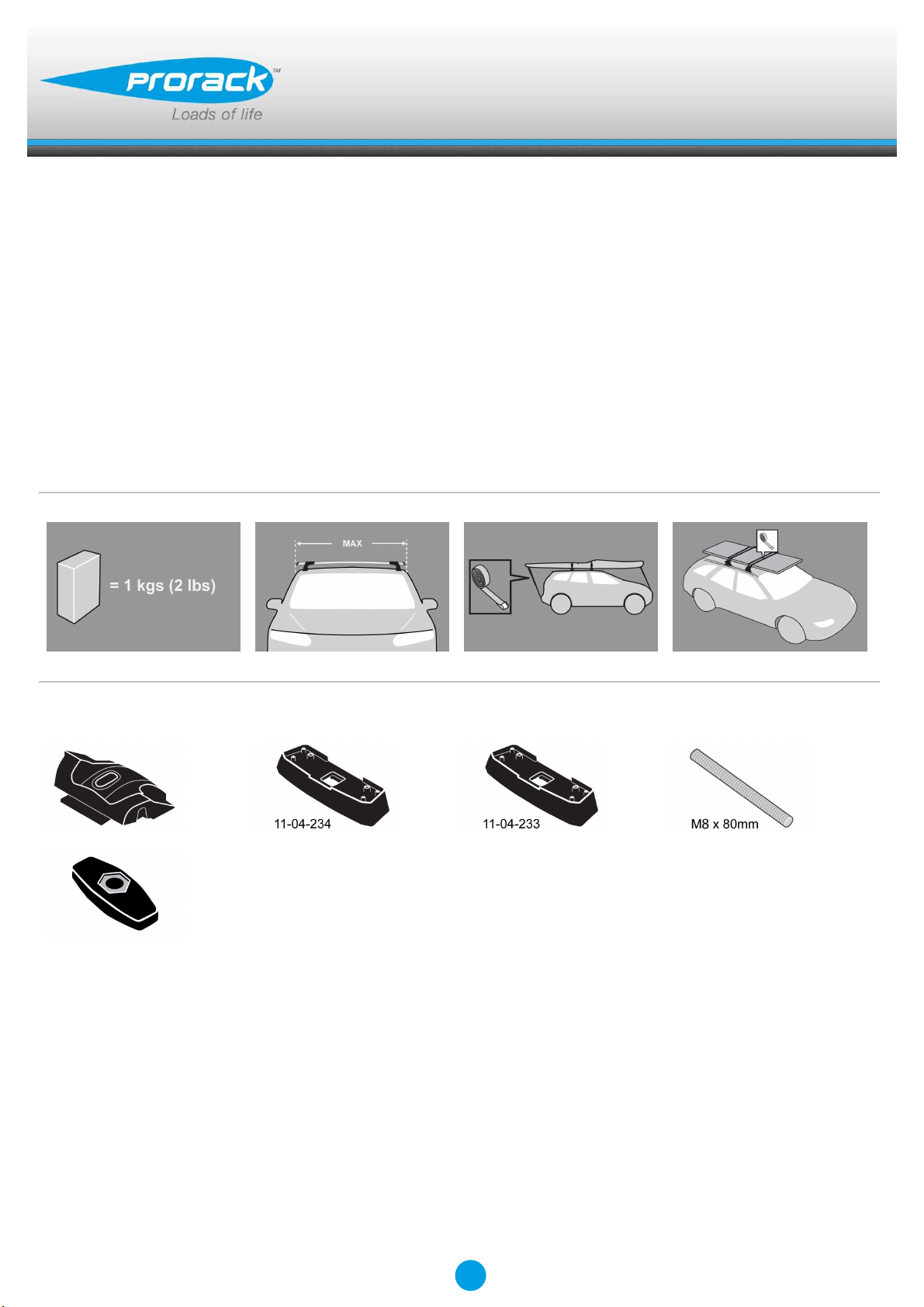

Fitting Kit
EN Fitting Instructions for Basic Carrier
x 4 x 2 x 2 x 4
x 4
Revision No: 4D 1
Fitting Kit K757
MAX kgs (lbs)
W/P WHD
Mercedes
C-Class W205, 4dr Sedan 14-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)
C-Class W205, 4dr Sedan 14-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)
C-Class W205, 4dr Sedan 14-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)
C-Class W205, 4dr Sedan 14-+ ZA 75 kgs (165 lbs) 75 kgs (165 lbs)
C-Class, 4dr Sedan 15-+ US 75 kgs (165 lbs) 75 kgs (165 lbs)
E-Class, 2dr Coupe 09-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)
E-Class, 2dr Coupe 09-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)
E-Class, 2dr Coupe 09-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)
E-Class, 2dr Coupe 09-+ ZA 75 kgs (165 lbs) 75 kgs (165 lbs)
E-Class, 2dr Coupe 09-+ CN 75 kgs (165 lbs) 75 kgs (165 lbs)
E-Class, 2dr Coupe 10-+ US 75 kgs (165 lbs) 75 kgs (165 lbs)
2
Fitting Kit K757
X
A B C 1 2 3
C-Class W205, 4dr Sedan 14-+ (NZ) -360mm 400mm - 890mm 785mm -
-14 -3/16ths" 15 3/4ths" - 35 1/16ths" 30 7/8ths" -
C-Class W205, 4dr Sedan 14-+ (AU) -360mm 400mm - 890mm 785mm -
-14 -3/16ths" 15 3/4ths" - 35 1/16ths" 30 7/8ths" -
C-Class W205, 4dr Sedan 14-+ (EU) -360mm 400mm - 890mm 785mm -
-14 -3/16ths" 15 3/4ths" - 35 1/16ths" 30 7/8ths" -
C-Class W205, 4dr Sedan 14-+ (ZA) -360mm 400mm - 890mm 785mm -
-14 -3/16ths" 15 3/4ths" - 35 1/16ths" 30 7/8ths" -
C-Class, 4dr Sedan 15-+ (US) -360mm 400mm - 890mm 785mm -
-14 -3/16ths" 15 3/4ths" - 35 1/16ths" 30 7/8ths" -
E-Class, 2dr Coupe 09-+ (NZ) -385mm 370mm - 795mm 800mm -
-15 -3/16ths" 14 9/16ths" - 31 5/16ths" 31 1/2ths" -
E-Class, 2dr Coupe 09-+ (AU) -385mm 370mm - 795mm 800mm -
-15 -3/16ths" 14 9/16ths" - 31 5/16ths" 31 1/2ths" -
E-Class, 2dr Coupe 09-+ (EU) -385mm 370mm - 795mm 800mm -
-15 -3/16ths" 14 9/16ths" - 31 5/16ths" 31 1/2ths" -
E-Class, 2dr Coupe 09-+ (ZA) -385mm 370mm - 795mm 800mm -
-15 -3/16ths" 14 9/16ths" - 31 5/16ths" 31 1/2ths" -
E-Class, 2dr Coupe 09-+ (CN) -385mm 370mm - 795mm 800mm -
-15 -3/16ths" 14 9/16ths" - 31 5/16ths" 31 1/2ths" -
E-Class, 2dr Coupe 10-+ (US) -385mm 370mm - 795mm 800mm -
-15 -3/16ths" 14 9/16ths" - 31 5/16ths" 31 1/2ths" -
3
Fitting Kit EN
K757
First Time Installation
●Remove parts from inside the package and
check. Contact your dealer if any parts are
missing or damaged.
●These instructions show type A crossbar
fitted. They also apply to type B, C and D.
●This kit fits type A, B, C and D.
●Use keys to remove covers.
4
Fitting Kit EN
K757
●Use hex screwdriver to reverse adjusting
screw 10 turns.
●Press adjusting screw and pull crossbar
legs out. Refer to the crossbar instructions
for crossbar adjustment method.
●Ensure each end of the crossbar is
adjusted equally.
●Attaches to factory-fitted mounting points
●Please check the front of this manual for
information relating specifically to your
vehicle.
●Adjust crossbar in or out to suit vehicle.
Refer to the crossbar instructions for
crossbar adjustment.
5
Fitting Kit EN
K757
●Tighten adjusting screw to 5 Nm (3.7 ft lb)
hand tight.
●Remove plastic clamp block by gripping bar
leg with fingers and push firmly with
thumbs until clamp block drops out behind
leg.
●Select plastic internal block (from fitting kit)
and insert into foot.
●Repeat for all legs.
6
Fitting Kit EN
K757
Fitment

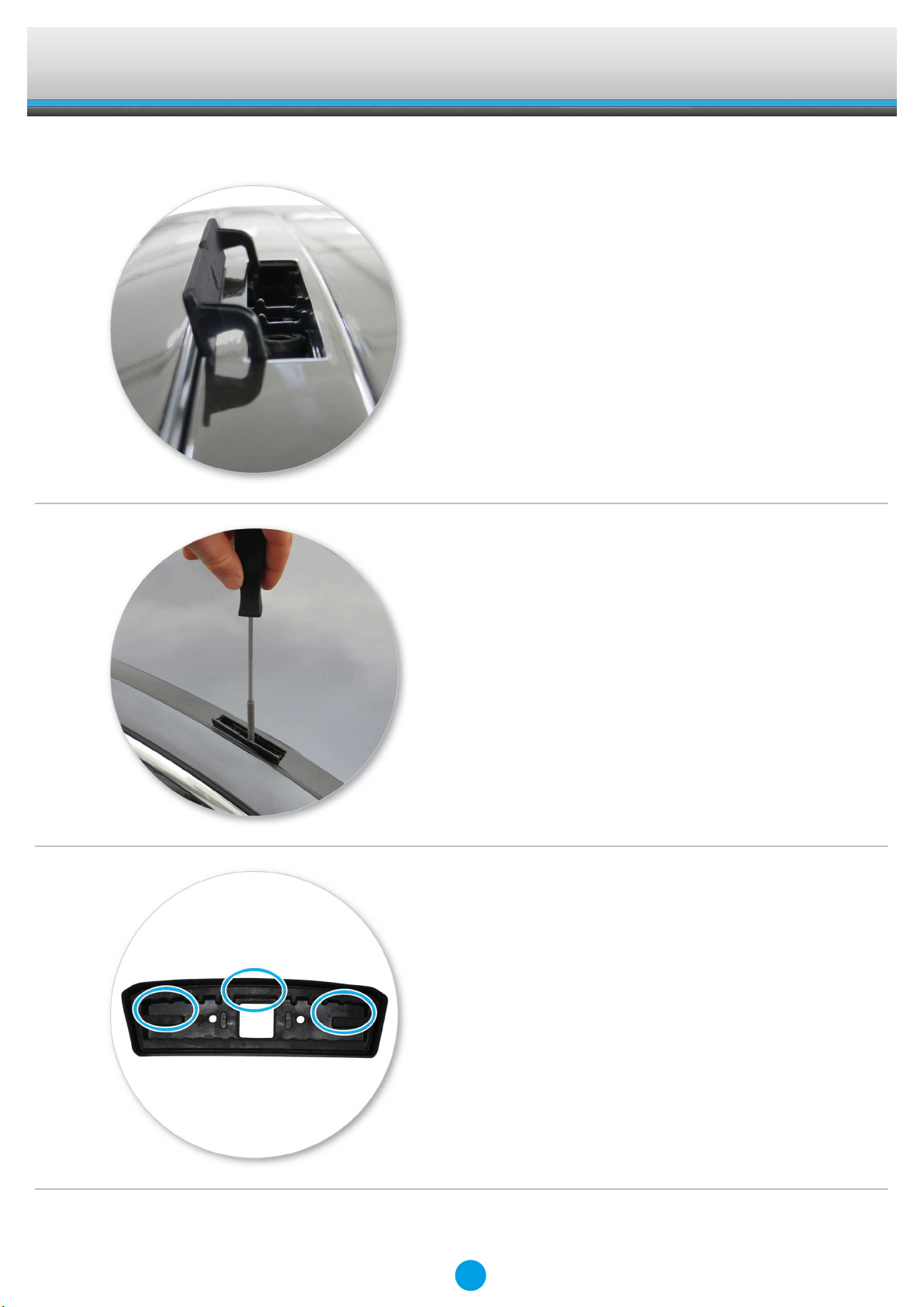

●Open or remove fixed-point covers.
●Select grubscrews and screw into the
vehicle's fixed points.
●Do not over tighten.
●Repeat for all four positions.
●Refer to the underside of the pad for the
part number.
7
Fitting Kit EN
K757
●Letters refer to the pad part numbers and
position.
●It is important to put the pads in the correct
position on the vehicle.
●Pad Part Number:
A = 233
B = 234
●Ensure the fixed-point covers sit vertically
in the recess in the pads.
●Place crossbars on pads ensuring the pads
fit into the holes underneath the foot and
the grubscrew passes through the hole in
the foot.
●Repeat for all four positions.
8
Fitting Kit EN
K757

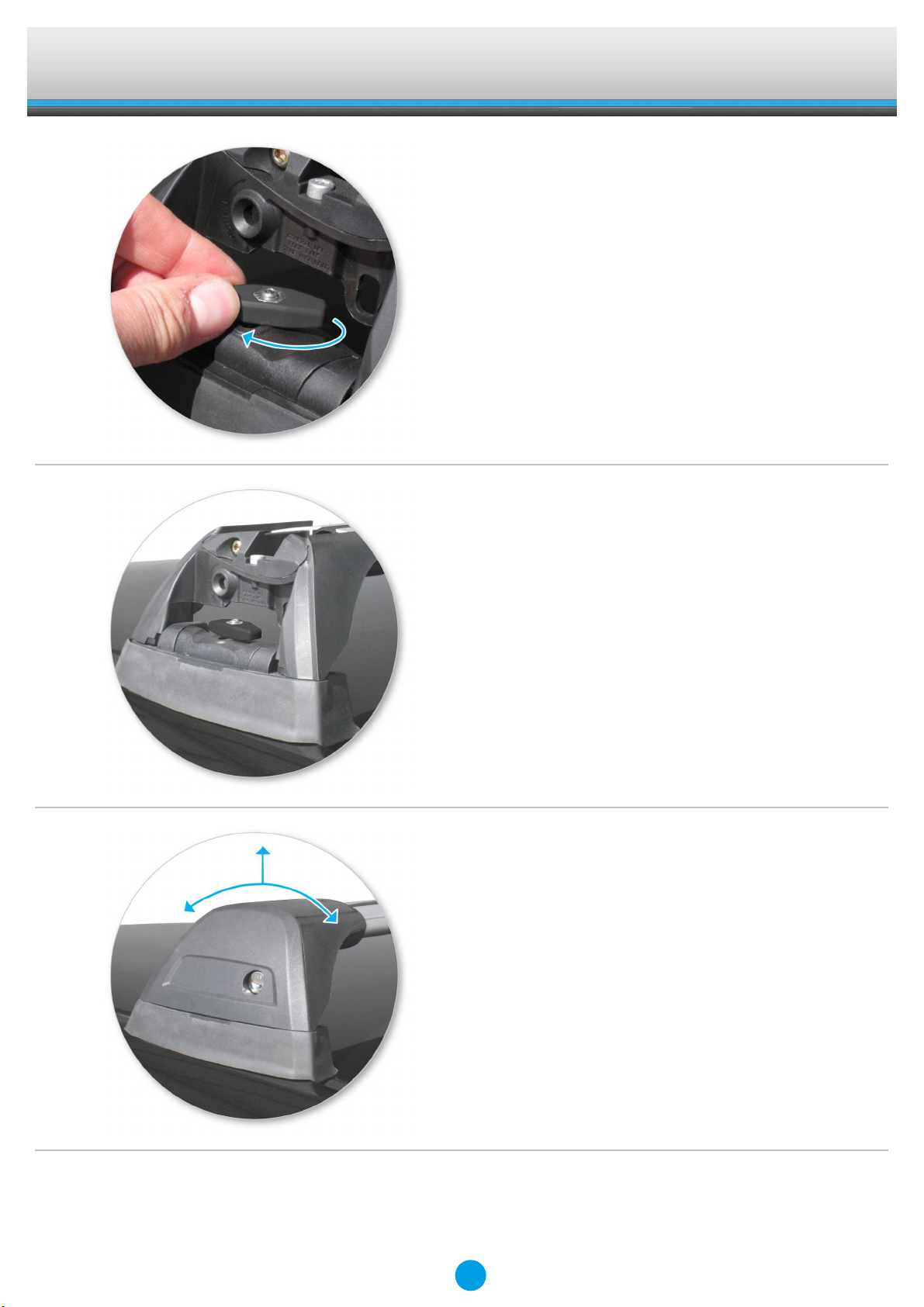

●Tighten the plastic knob. The side with the
nut showing should be facing up.
●Ensure the plastic knob is in the position
shown when fully tightened.
●Repeat for all legs.
●Check crossbar is securely attached to the
vehicle.
●Use keys to fit and lock covers
9
Fitting Kit EN
K757
CAUTION: Recheck all fasteners immediately after
a load is applied to the crossbars.
Regularly check screws are tight.
