K585

Fitting Kit

EN Fitting Instructions for Basic Carrier

x 4 x 4 x 4 x 4

x 1 x 1 x 2 x 4

Revision No: 7G 1

Fitting Kit K585

MAX kgs (lbs)

W/P WHD

Volkswagen

Amarok (Mexico), 4dr Truck 10-+ US 75 kgs (165 lbs) 75 kgs (165 lbs)

Amarok Double Cab, 4dr Ute 10-+ NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

Amarok Double Cab, 4dr Ute 10-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)

Amarok Double Cab, 4dr Ute 10-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)

Amarok Double Cab, 4dr Ute 10-+ ZA 75 kgs (165 lbs) 75 kgs (165 lbs)

Amarok Double Cab, 4dr Ute 10-+ CN 75 kgs (165 lbs) 75 kgs (165 lbs)

Amarok Single Cab, 2dr Ute 10-+ EU 35 kgs (77 lbs) 35 kgs (77 lbs)

Amarok Single Cab, 2dr Ute 10-+ AU 35 kgs (77 lbs) 35 kgs (77 lbs)

Amarok Single Cab, 2dr Ute 10-+ ZA 35 kgs (77 lbs) 35 kgs (77 lbs)

2

Fitting Kit K585

X

A B C 1 2 3

Amarok (Mexico), 4dr Truck 10-+ (US) -270mm 500mm - 970mm 955mm -

-10 -5/8ths" 19 11/16ths" - 38 3/16ths" 37 5/8ths" -

Amarok Double Cab, 4dr Ute 10-+ (NZ) -270mm 500mm - 970mm 955mm -

-10 -5/8ths" 19 11/16ths" - 38 3/16ths" 37 5/8ths" -

Amarok Double Cab, 4dr Ute 10-+ (AU) -270mm 500mm - 970mm 955mm -

-10 -5/8ths" 19 11/16ths" - 38 3/16ths" 37 5/8ths" -

Amarok Double Cab, 4dr Ute 10-+ (EU) -270mm 500mm - 970mm 955mm -

-10 -5/8ths" 19 11/16ths" - 38 3/16ths" 37 5/8ths" -

Amarok Double Cab, 4dr Ute 10-+ (ZA) -270mm 500mm - 970mm 955mm -

-10 -5/8ths" 19 11/16ths" - 38 3/16ths" 37 5/8ths" -

Amarok Double Cab, 4dr Ute 10-+ (CN) -270mm 500mm - 970mm 955mm -

-10 -5/8ths" 19 11/16ths" - 38 3/16ths" 37 5/8ths" -

Amarok Single Cab, 2dr Ute 10-+ (EU) -270mm - - 960mm - -

-10 -5/8ths" - - 37 13/16ths" - -

Amarok Single Cab, 2dr Ute 10-+ (AU) -270mm - - 960mm - -

-10 -5/8ths" - - 37 13/16ths" - -

Amarok Single Cab, 2dr Ute 10-+ (ZA) -270mm - - 960mm - -

-10 -5/8ths" - - 37 13/16ths" - -

3

Fitting Kit EN

K585

First Time Installation

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

●Use keys to remove covers.

4

Fitting Kit EN

K585

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

●Set bars to length (revert to rear of these

instructions).

●Please check the front of this manual for

information relating specifically to your

vehicle.

5

Fitting Kit EN

K585

●Tighten adjusting screw to 5 Nm (3.7 ft lb)

hand tight.

●Remove plastic clamp block by gripping bar

leg with fingers and push firmly with

thumbs until clamp block drops out behind

leg.

●Select plastic internal block (from fitting kit)

and insert into foot.

●Repeat for all legs.

6

Fitting Kit EN

K585

●Refer to the underside of the pad for the

part number.

●It is important to put the pads in the correct

position on the vehicle.

●Letters refer to the pad part numbers and

position.

●Pad Part Number:

A = 11-04-220

B = 11-04-224

C = 11-04-225

●Fit rubber pads (supplied with fitting kit) to

foot. Pad may vary in shape to that shown.

●Make sure the pad fits into the holes

underneath the foot.

7

Fitting Kit EN

K585

Fitment

●Open or remove fixed-point covers.

●Store items away in a safe place.

●Remove screws from the vehicle's fixed

points

●Remove rubber washer from screw and re-

install onto fixed point.

8

Fitting Kit EN

K585

●Assemble as shown.

●Ensure rubber sleeve is installed as far

onto the bolt as possible.

●Place crossbar foot over fixed-point mount.

●Ensure bolt engages with rubber washer

and fixed-point thread.

●Tighten the plastic knob.

9

Fitting Kit EN

K585

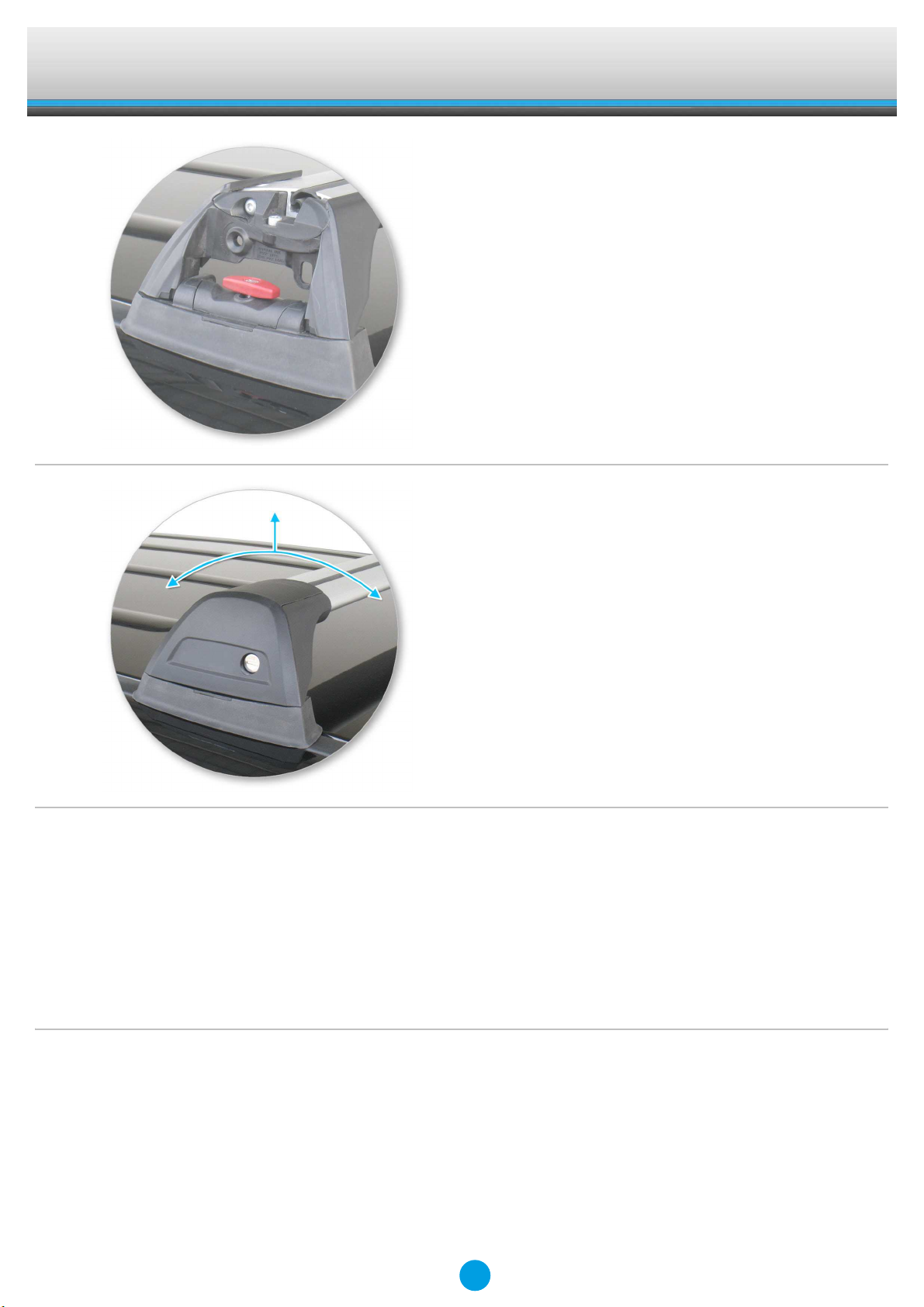

●Ensure the plastic knob is in the position

shown when fully tightened.

●Repeat for all four positions.

●Check crossbar is securely attached to the

vehicle.

●Use keys to fit and lock covers

CAUTION: Recheck all fasteners immediately after

a load is applied to the crossbars.

Regularly check screws are tight.

10
