Prorack K446 Manuel utilisateur

FittingKit

K446

Fitting Instructions for Basic Carrier

Instrucciones de montaje para el

sistema de transporte.

Instructions de montage pour Basic

Carrier

x 2

x 1

x 2

x 4

Revision No:

FittingKit

K446

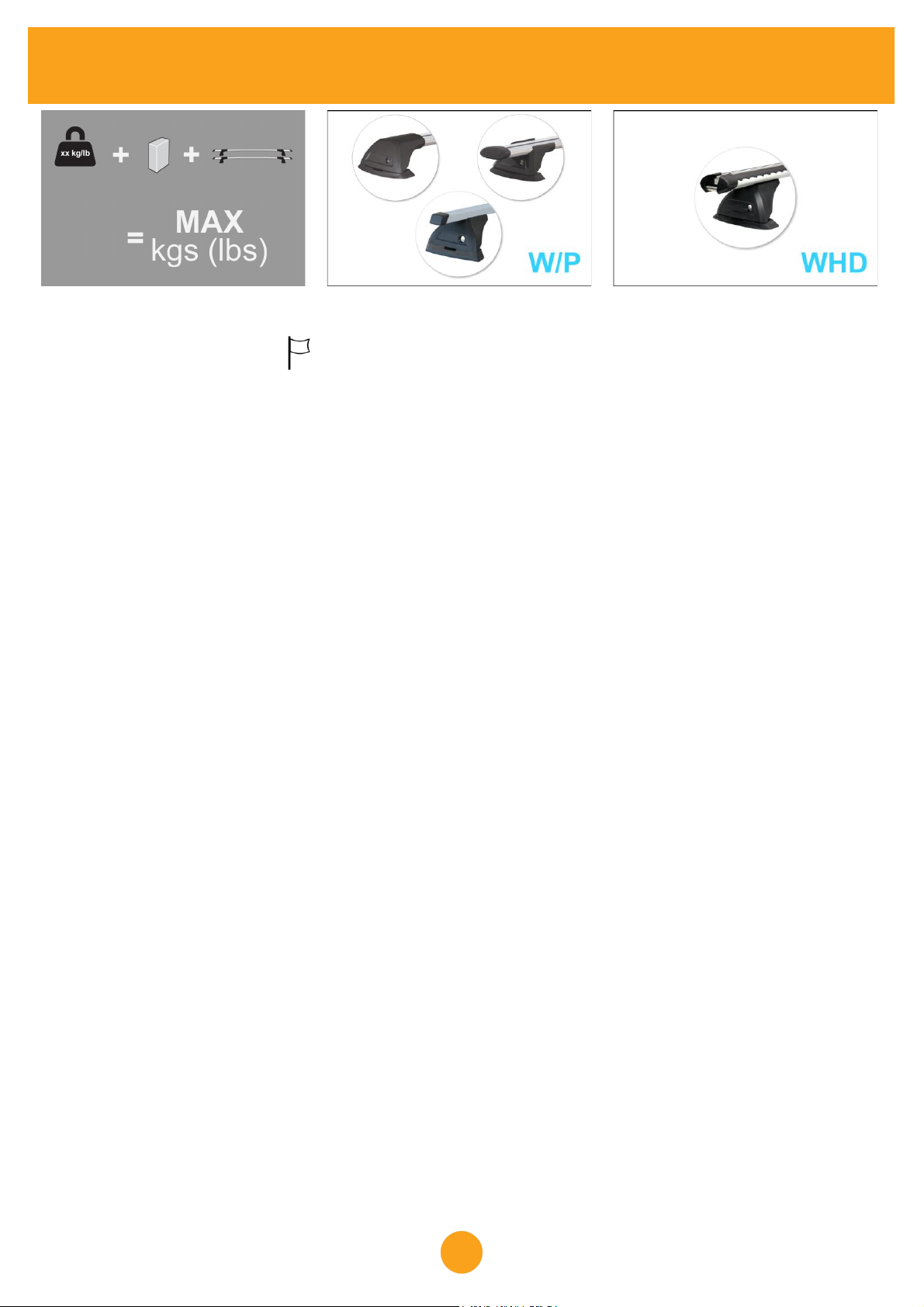

MAX kgs (lbs)

W/P

WHD

Honda

Fit , 5dr Hatch 07-+

50 kgs (110 lbs)

Fit , 5dr Hatch Aug 08-+

50 kgs (110 lbs)

Fit , 5dr Hatch Aug 08-+

50 kgs (110 lbs)

Jazz , 5dr Hatch 09-+

50 kgs (110 lbs)

Jazz , 5dr Hatch Aug 08-+

50 kgs (110 lbs)

Jazz , 5dr Hatch Jul 08-+

50 kgs (110 lbs)

Jazz , 5dr Hatch Oct 08-+

50 kgs (110 lbs)

FittingKit

K446

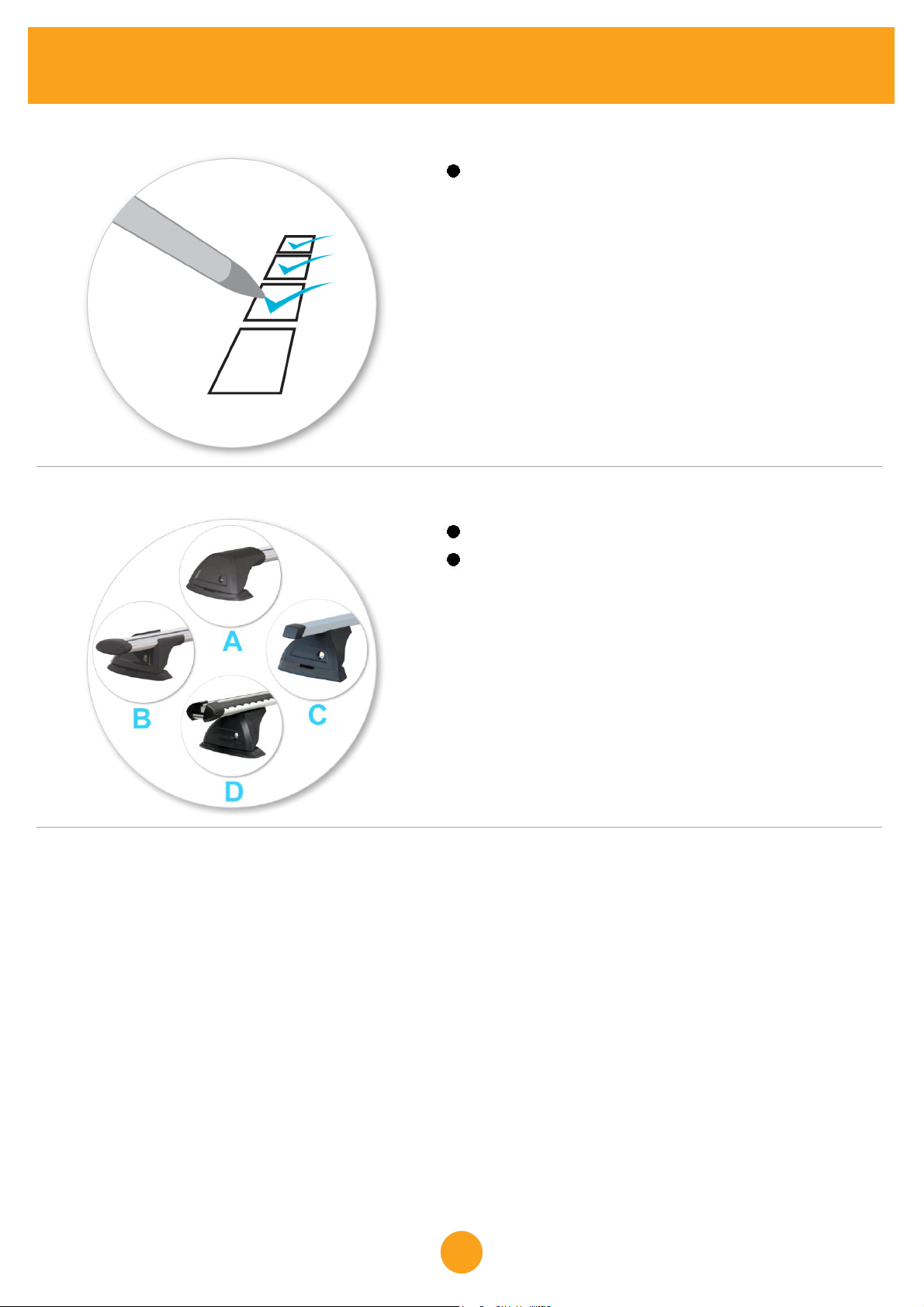

First Time Installation

Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

This kit fits type A, B, C and D.

These instructions show type A crossbar

fitted. They also apply to type B, C and D.

NOTE: Clamp images in these instructions may

not be representative of the clamps in this kit

FittingKit

K446

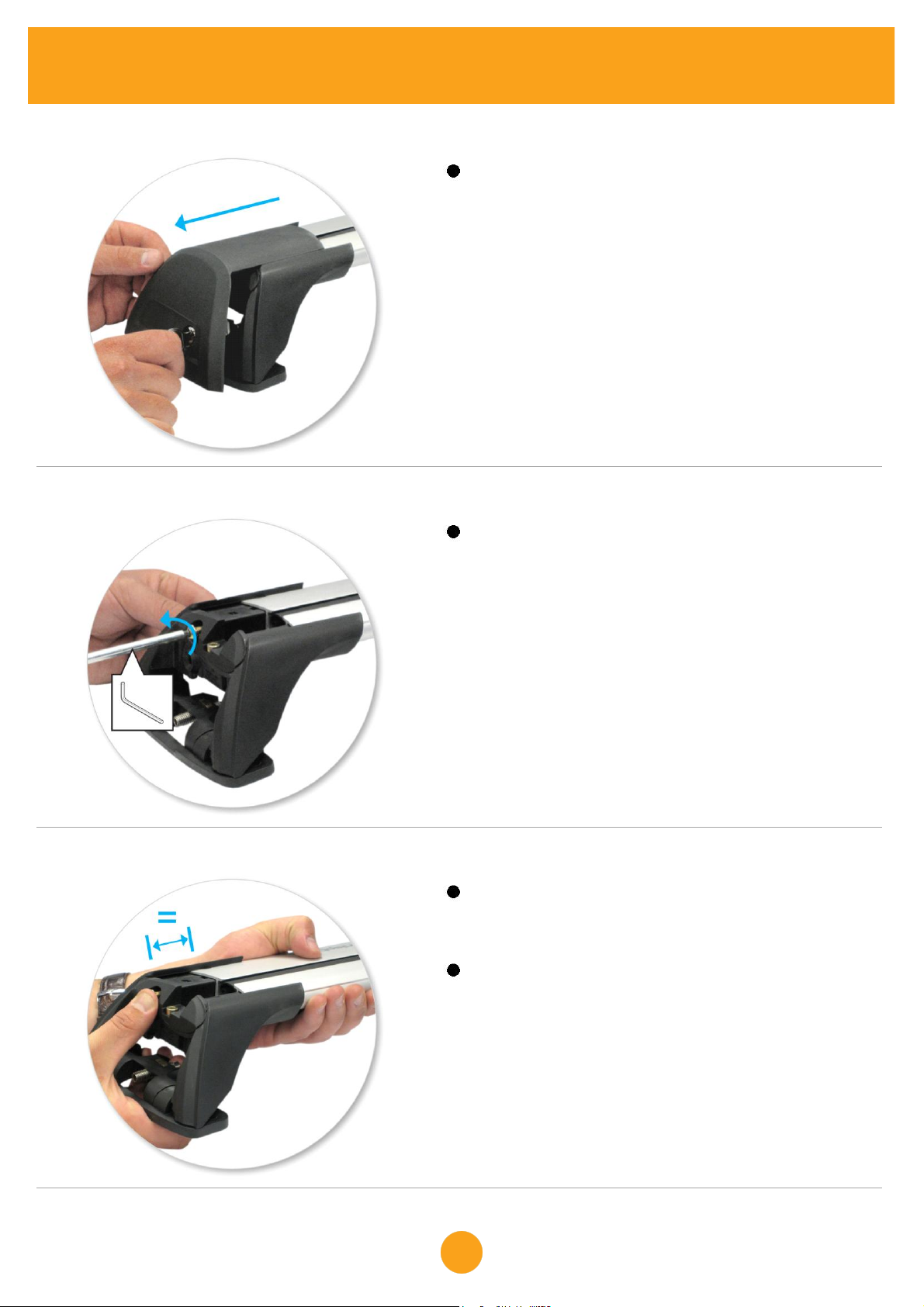

Use keys to remove covers.

Use hex screwdriver to reverse adjusting

screw 10 turns.

Press adjusting screw and pull crossbar legs

out. Refer to the crossbar instructions for

crossbar adjustment.

Ensure each end of the crossbar is adjusted

equally.

FittingKit

K446

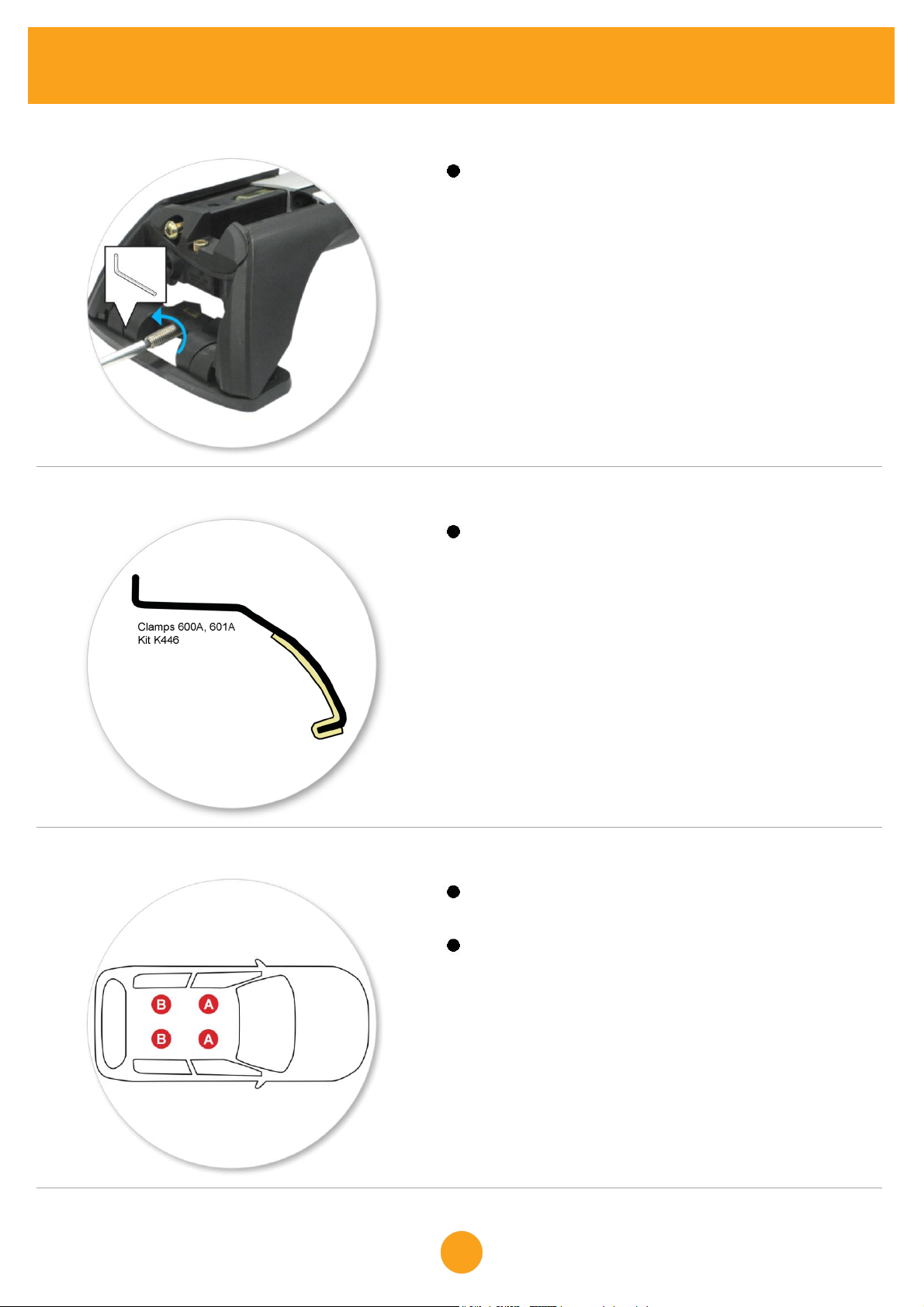

Remove locking screw.

Apply protective strip as shown.

Trim if required.

Letters refer to the part numbers stamped on

clamps.

Clamp Part Number:

A = 600A

B = 601A

FittingKit

K446

Attach clamp to each leg. NOTE; clamps

may have labels showing their positions on

the vehicle (For example; "Front Right").

Refit locking screw so that it goes through

the hole in the clamp. Do not begin to tighten

the locking screw.

Refer to the underside of the pad for the part

number.

FittingKit

K446

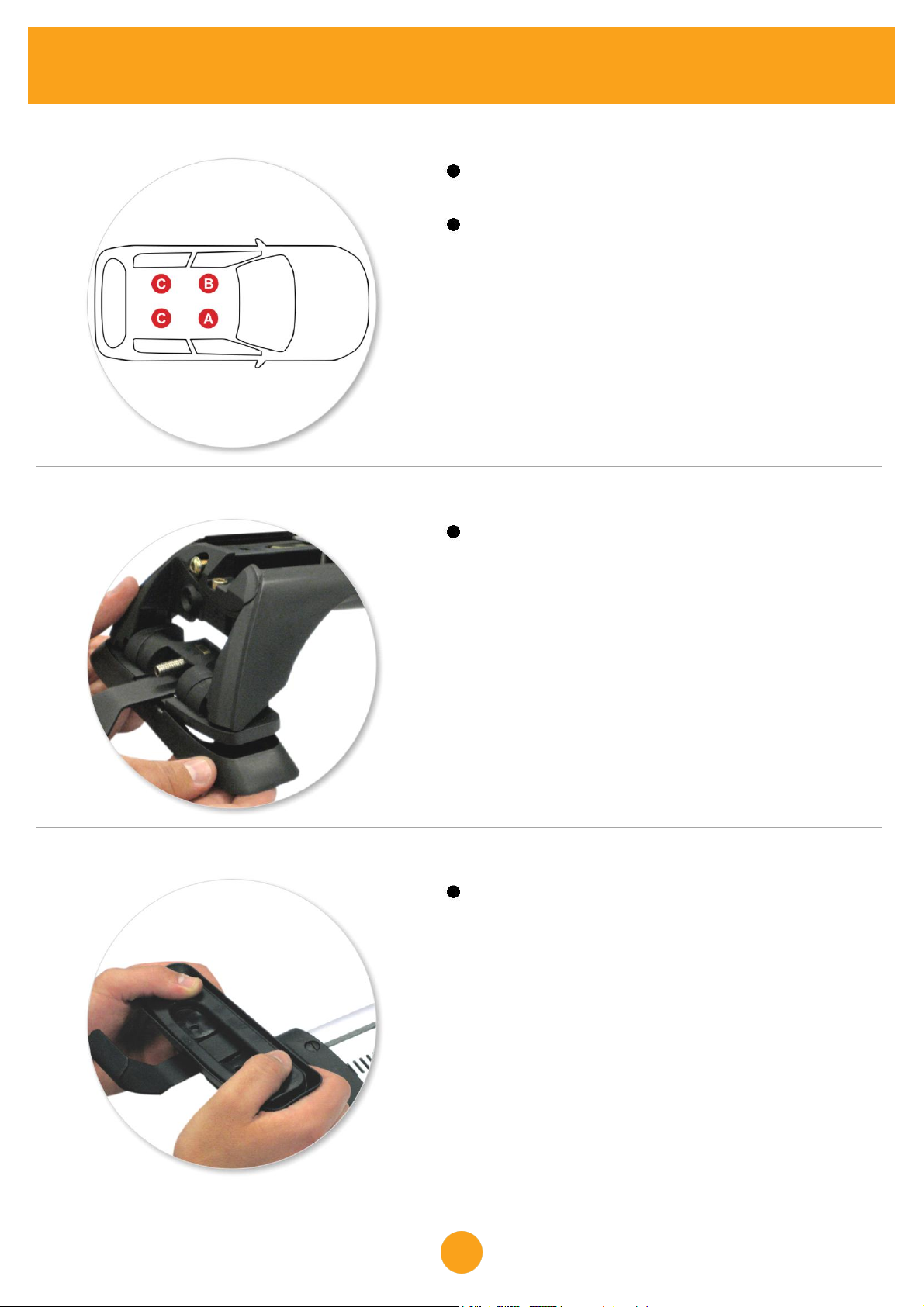

Letters refer to the pad part numbers and

position.

Pad Part Number:

A = 11-04-257

B = 11-04-256

C = 11-04-243

Fit rubber pads (supplied with fitting kit) to

foot. Pad may vary in shape to that shown.

Make sure the pad fits into the holes

underneath the foot.

FittingKit

K446

Fitment

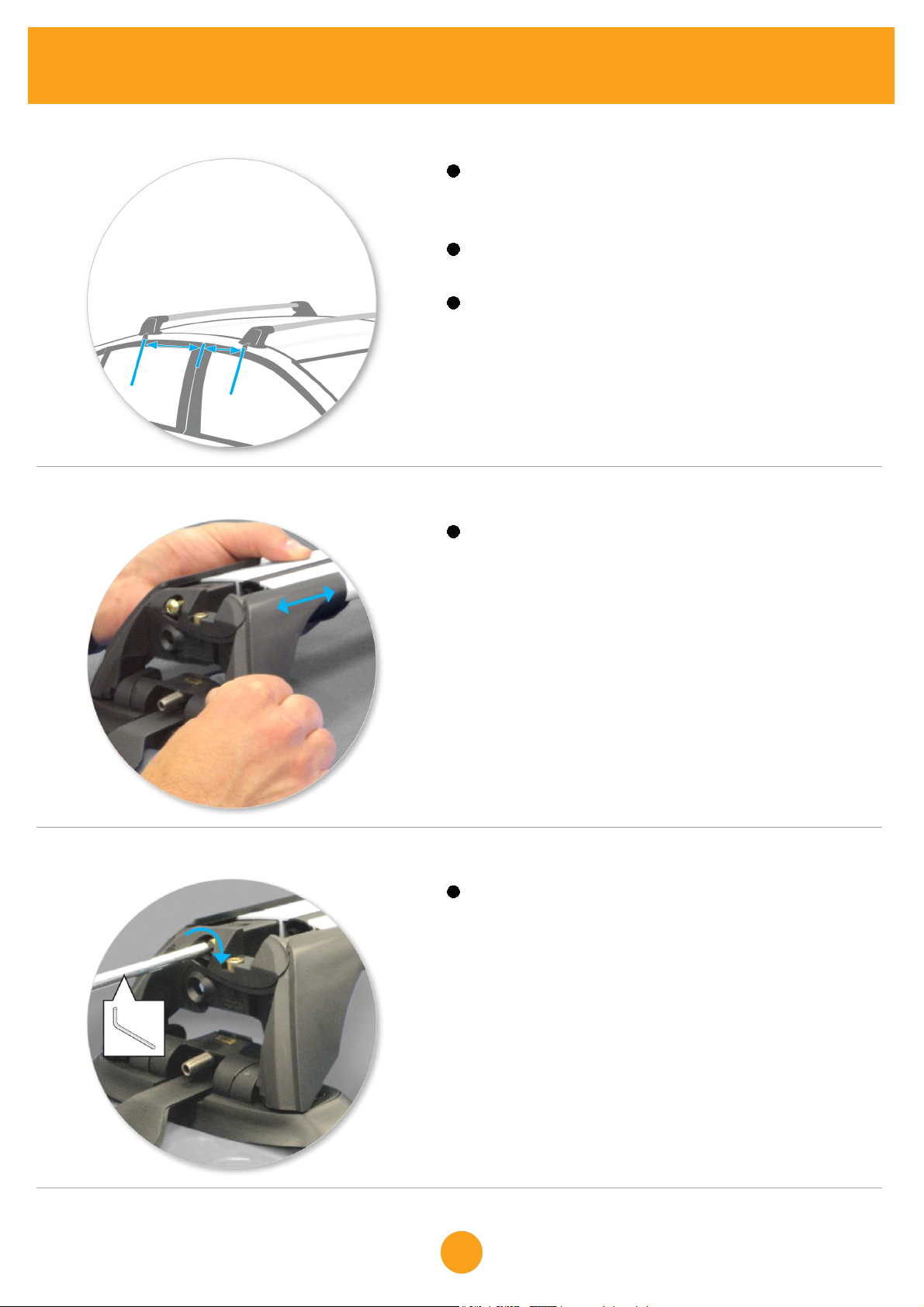

Place crossbar on vehicle. Minimum

recommended spacing between the bars is

700mm (27 1/2") (unless otherwise stated).

Clamps directly to edge of roof under the

doors

Please check the rear of this manual for

information relating specifically to your

vehicle.

Adjust the legs on the crossbar so that they

are positioned equally from the ends of the

crossbar, and the clamps engage firmly on

the body work of the vehicle.

Tighten adjusting screw to 5 Nm (3.7 ft lb).

FittingKit

K446

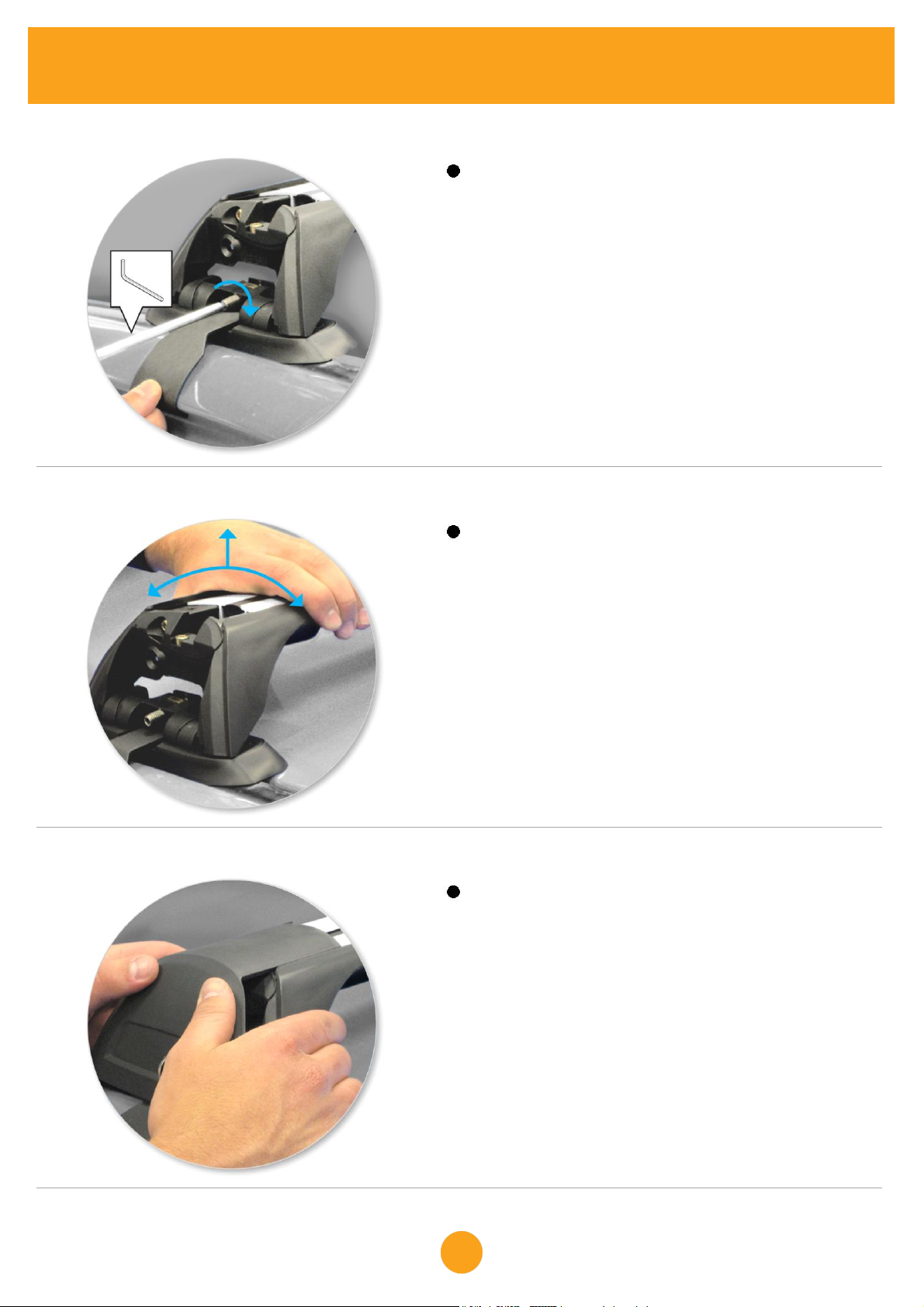

Tighten locking screw on both legs evenly.

Check crossbar is securely attached to the

vehicle.

Use keys to fit and lock covers

FittingKit

K446

CAUTION: Recheck all fasteners immediately

after a load is applied to the crossbars.

Regularly check screws are tight.
