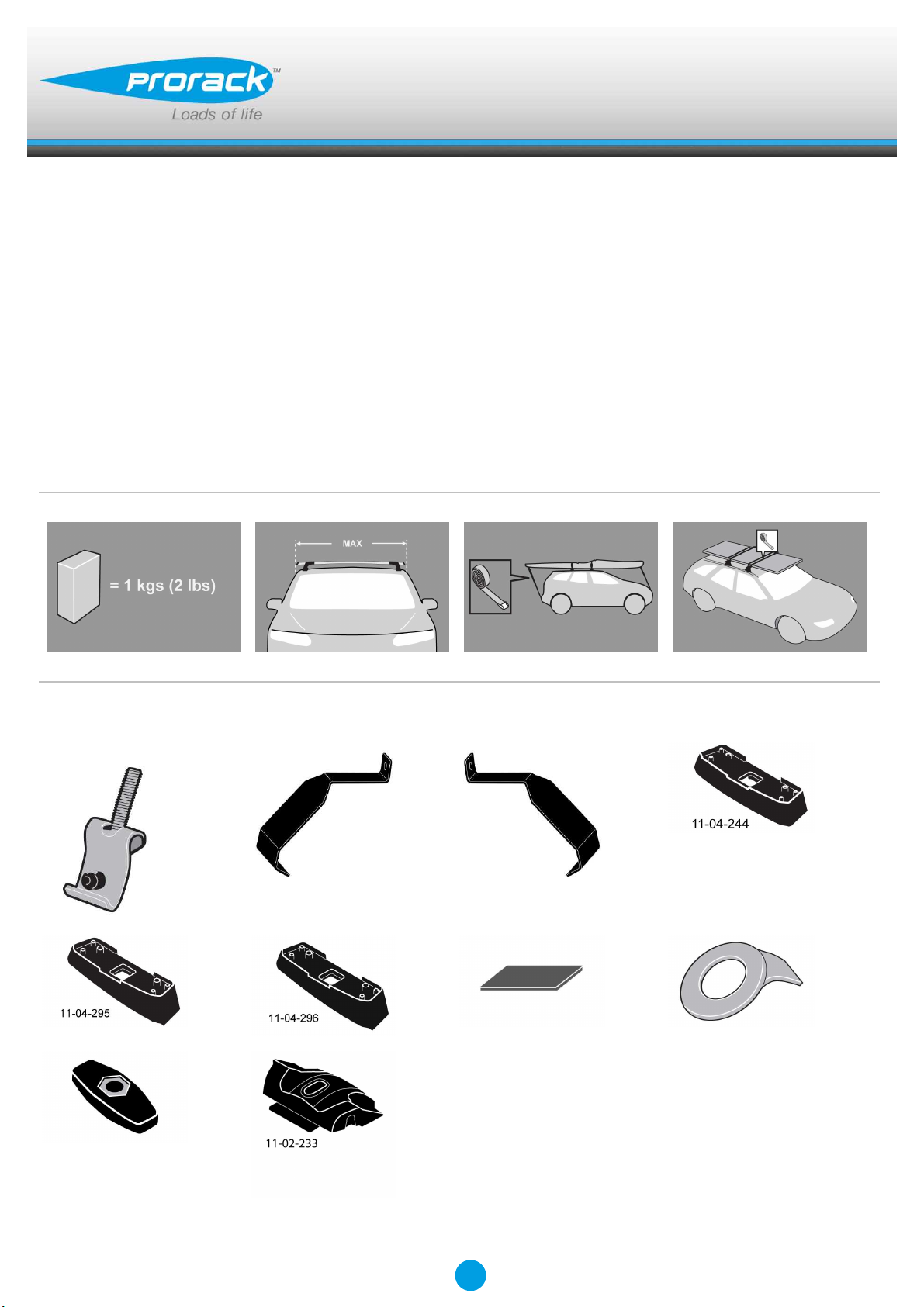

K716

Fitting Kit

EN Fitting Instructions for Basic Carrier

x 2 x 1 x 1 x 2

x 1 x 1 x 2 x 2

x 2 x 2

Revision No: 7G 1

Fitting Kit K716

MAX kgs (lbs)

W/P WHD

Toyota

Rav 4, 5dr SUV 16-+ EU 75 kgs (165 lbs) 75 kgs (165 lbs)

Rav 4, 5dr SUV Dec 15-+ AU 75 kgs (165 lbs) 75 kgs (165 lbs)

Rav 4, 5dr SUV Jan 13-+ US 75 kgs (165 lbs) 75 kgs (165 lbs)

Rav 4, 5dr SUV Jan 13-+ CN 75 kgs (165 lbs) 75 kgs (165 lbs)

Rav 4, 5dr SUV Jan 13-15 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

Rav 4, 5dr SUV Jan 13-15 EU 75 kgs (165 lbs) 75 kgs (165 lbs)

Lexus

RX, 5dr SUV 09-15 EU 75 kgs (165 lbs) 75 kgs (165 lbs)

RX, 5dr SUV 09-15 AU 75 kgs (165 lbs) 75 kgs (165 lbs)

RX, 5dr SUV 09-15 CN 75 kgs (165 lbs) 75 kgs (165 lbs)

RX, 5dr SUV 09-15 NZ 75 kgs (165 lbs) 75 kgs (165 lbs)

RX, 5dr SUV 10-15 ZA 75 kgs (165 lbs) 75 kgs (165 lbs)

2

Fitting Kit K716

X

A B C 1 2 3

Rav 4, 5dr SUV 16-+ (EU) -165mm 580mm - 911mm 832mm -

-6 -1/2ths" 22 13/16ths" - 35 7/8ths" 32 3/4ths" -

Rav 4, 5dr SUV Dec 15-+ (AU) -165mm 580mm - 911mm 830mm -

-6 -1/2ths" 22 13/16ths" - 35 7/8ths" 32 11/16ths" -

Rav 4, 5dr SUV Jan 13-+ (US) -165mm 580mm - 911mm 830mm -

-6 -1/2ths" 22 13/16ths" - 35 7/8ths" 32 11/16ths" -

Rav 4, 5dr SUV Jan 13-+ (CN) -165mm 580mm - 911mm 830mm -

-6 -1/2ths" 22 13/16ths" - 35 7/8ths" 32 11/16ths" -

Rav 4, 5dr SUV Jan 13-15 (NZ) -165mm 580mm - 911mm 830mm -

-6 -1/2ths" 22 13/16ths" - 35 7/8ths" 32 11/16ths" -

Rav 4, 5dr SUV Jan 13-15 (EU) -165mm 580mm - 911mm 830mm -

-6 -1/2ths" 22 13/16ths" - 35 7/8ths" 32 11/16ths" -

RX, 5dr SUV 09-15 (EU) -340mm 400mm - 915mm 850mm -

-13 -3/8ths" 15 3/4ths" - 36" 33 7/16ths" -

RX, 5dr SUV 09-15 (AU) -340mm 400mm - 915mm 850mm -

-13 -3/8ths" 15 3/4ths" - 36" 33 7/16ths" -

RX, 5dr SUV 09-15 (CN) -340mm 400mm - 915mm 850mm -

-13 -3/8ths" 15 3/4ths" - 36" 33 7/16ths" -

RX, 5dr SUV 09-15 (NZ) -340mm 400mm - 915mm 850mm -

-13 -3/8ths" 15 3/4ths" - 36" 33 7/16ths" -

RX, 5dr SUV 10-15 (ZA) -340mm 400mm - 915mm 850mm -

-13 -3/8ths" 15 3/4ths" - 36" 33 7/16ths" -

3

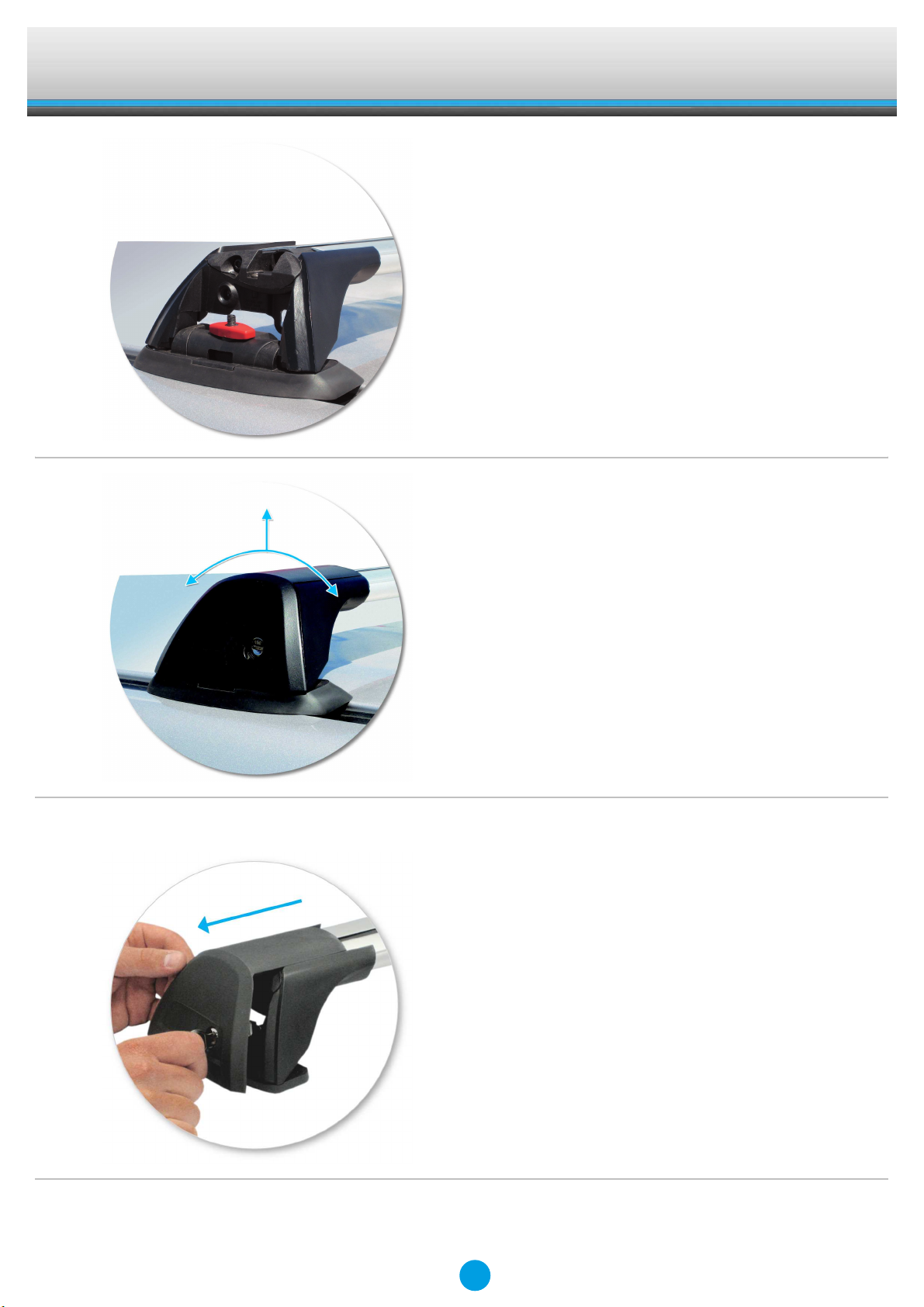

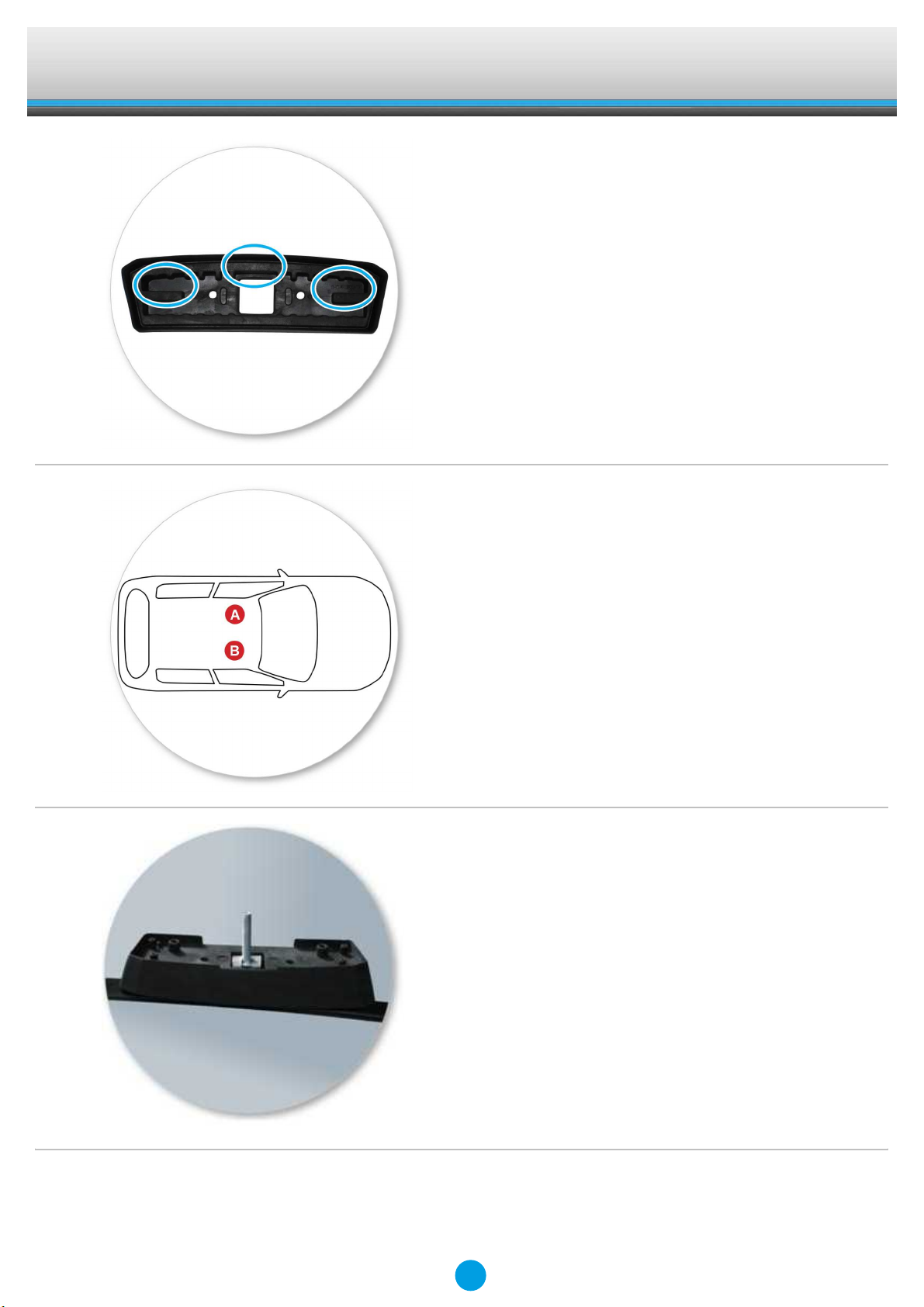

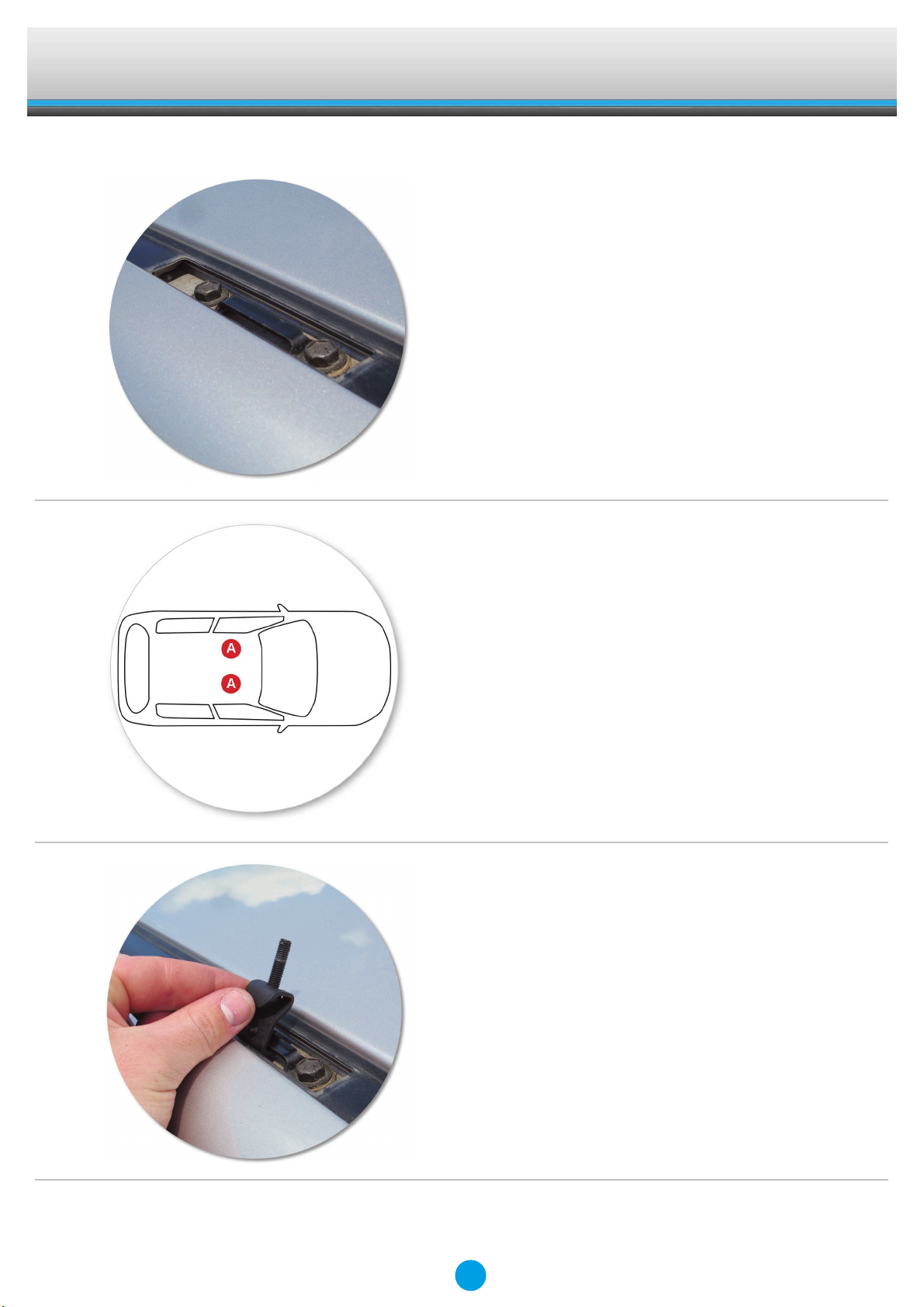

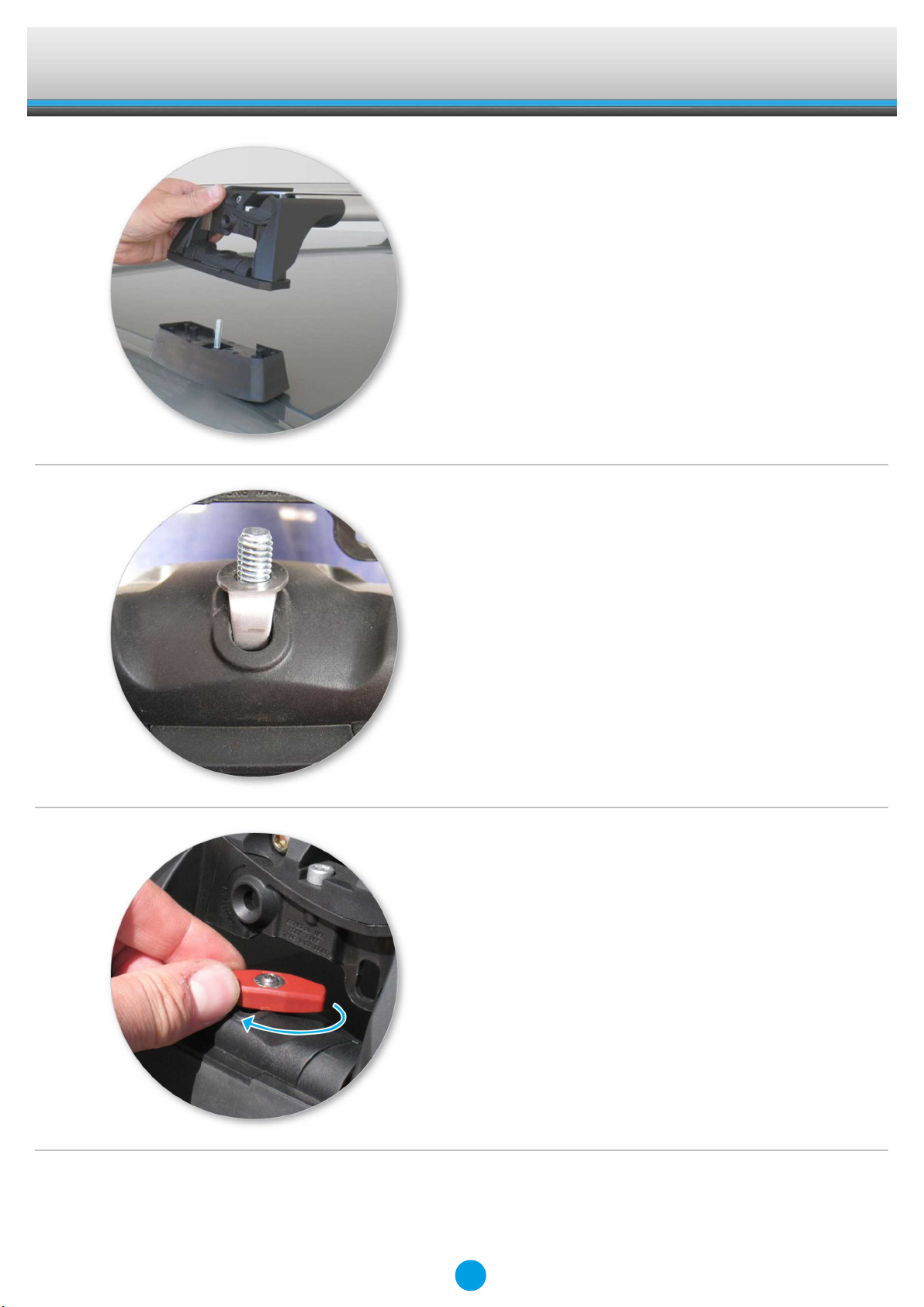

Fitting Kit EN

K716

Fitment (Front Bar)

●Remove parts from inside the package and

check. Contact your dealer if any parts are

missing or damaged.

●This kit fits type A, B, C and D.

●These instructions show type A crossbar

fitted. They also apply to type B, C and D.

●Use keys to remove covers.

4

Fitting Kit EN

K716

●Use hex screwdriver to reverse adjusting

screw 10 turns.

●Press adjusting screw and pull crossbar

legs out. Refer to the crossbar instructions

for crossbar adjustment method.

●Ensure each end of the crossbar is

adjusted equally.

●Set bars to length (revert to rear of these

instructions).

●Please check the front of this manual for

information relating specifically to your

vehicle.

5

Fitting Kit EN

K716

●Tighten adjusting screw to 3 Nm (2.2 ft lb)

hand tight.

●Remove plastic clamp block by gripping bar

leg with fingers and push firmly with

thumbs until clamp block drops out behind

leg.

●Select plastic internal block (from fitting kit)

and insert into foot.

6

Fitting Kit EN

K716

Fitment

●Open or remove fixed-point covers.

●Store items away in a safe place.

●Letters refer to the part numbers stamped

on clamps.

●Clamp Part Number:

A = 239A

●Hook clamps into the fixed points on the

vehicle.

7

Fitting Kit EN

K716

●Refer to the underside of the pad for the

part number.

●Letters refer to the pad part numbers and

position.

●Pad Part Number:

A = 296

B = 295

●Place pads on roof as per diagram. Screw

thread should be vertically through square

hole in pad.

8

Fitting Kit EN

K716

●Place crossbar foot over clamp bolt.

●Place washer over clamp thread as shown.

●Ensure that tab is inserted into clamp

block.

●Tighten the plastic knob. The side with the

nut showing should be facing up.

9

Fitting Kit EN

K716

●Ensure the plastic knob is in the position

shown when fully tightened.

●Repeat at other end.

●Check crossbar is securely attached to the

vehicle.

●Use keys to fit and lock covers

Fitment (Rear Bar)

●Use keys to remove covers.

10
