ProMinent Sigma / 2 Basic S2Ba Manuel utilisateur

Part No. 987282 ProMinent Dosiertechnik GmbH ·69123 Heidelberg ·Germany BA SI 018 10/03 GB

ProMinent

Please completely read through these operating instructions first! · Do not discard!

The warranty shall be invalidated by damage caused by operating errors!

Two sets of operating instructions are necessary to ensure the ProMinent®Sigma/ 2 S2Ba or S2Ca metering pumps

are operated safely and reliably for their intended purpose:

This product specific Sigma/ 2 operating instructions manual and the ”General operating instructions

ProMinent®motor-driven metering pumps and hydraulic accessories”are only valid if read together!

Operating Instructions

ProMinent®Sigma/ 2

S2Ba (Basic Type)

S2Ca (Control Type)

START

STOP

S2Ba S2Ca

Please enter the identity code of the device here.

S2Ba ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___

S2Ca ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___ ___

Control elements: overview

1Operating light (green)

2Warning light (yellow)

3Error warning light (red)

4Stroke length adjuster

5LCD display

6UP key

7DOWN key

8Pkey

9STOP/START key

10 i key

11 Relay output (optional)

12 Metering monitor socket

13 Float switch socket

14 External control socket

15 Diaphragm rupture indicator socket

16 Mains switch

Key functions

In continuous display mode In settings mode

(operating) (settings)

STOP/START key

STOP

START

Press briefly Stop pump, Stop pump,

start pump start pump

P key

Press briefly Start batch (in “batch” operating mode only), Confirm entry- jump to next menu

Cancel error option or continuous display

Press for 2 s Change to settings mode ---

Press for 3 s --- Jump to continuous display

Press for 10 s Software version displayed

Press for 15 s Load factory settings (calibration) ---

i key

Press x1 Toggle between continuous displays Toggle between “change individual digits”

and change a figure"

Press x2 --- For “change individual digits”:

jumps to first digit

Arrow keys UP and DOWN

Press separately Change directly alterable values Select other settings,

(until “Set” appears) change individual digit or figure

Press simultaneously Prime (in “stroke rate” permanent display) ---

Control elements and key functions

15 14 13 12 11

PPPP

P P

STOP

START

edom

Batch

Contact

ManualAnalog

edom

Analog

edom

Manual

edom

Contact

edom

Batch

edoc

enon

1edoc

2edoc

tes glana

Set

02o

Set

Analog

024

Set

Analog

evruc

Set

Analog

11i

Set

Analog

01i

Set

Analog

12f

Freq.

Set

Analog

02f

Freq.

Set

Analog

11f

Freq.

Set

Analog

01f

Freq.

Set

Analog

91f

Freq.

Set

Analog

01f

Freq.

Set

Analog

91f

Freq.

Set

Analog

01f

Freq.

Set

Analog

92f

Freq.

Set

Analog

92f

Freq.

Set

Analog

02f

Freq.

Set

Analog

02f

Freq.

Set

Analog

91i

Set

Analog

01i

Set

Analog

91i

Set

Analog

01i

Set

Analog

22i

Set

Analog

02i

Set

Analog

92i

Set

Analog

02i

Set

Analog

92i

Set

Analog

02i

Set

Analog

nore

Set

Analog

ffore

Set

Analog

2 s

-----

Set

Analog

Set

Analog

Set

Analog

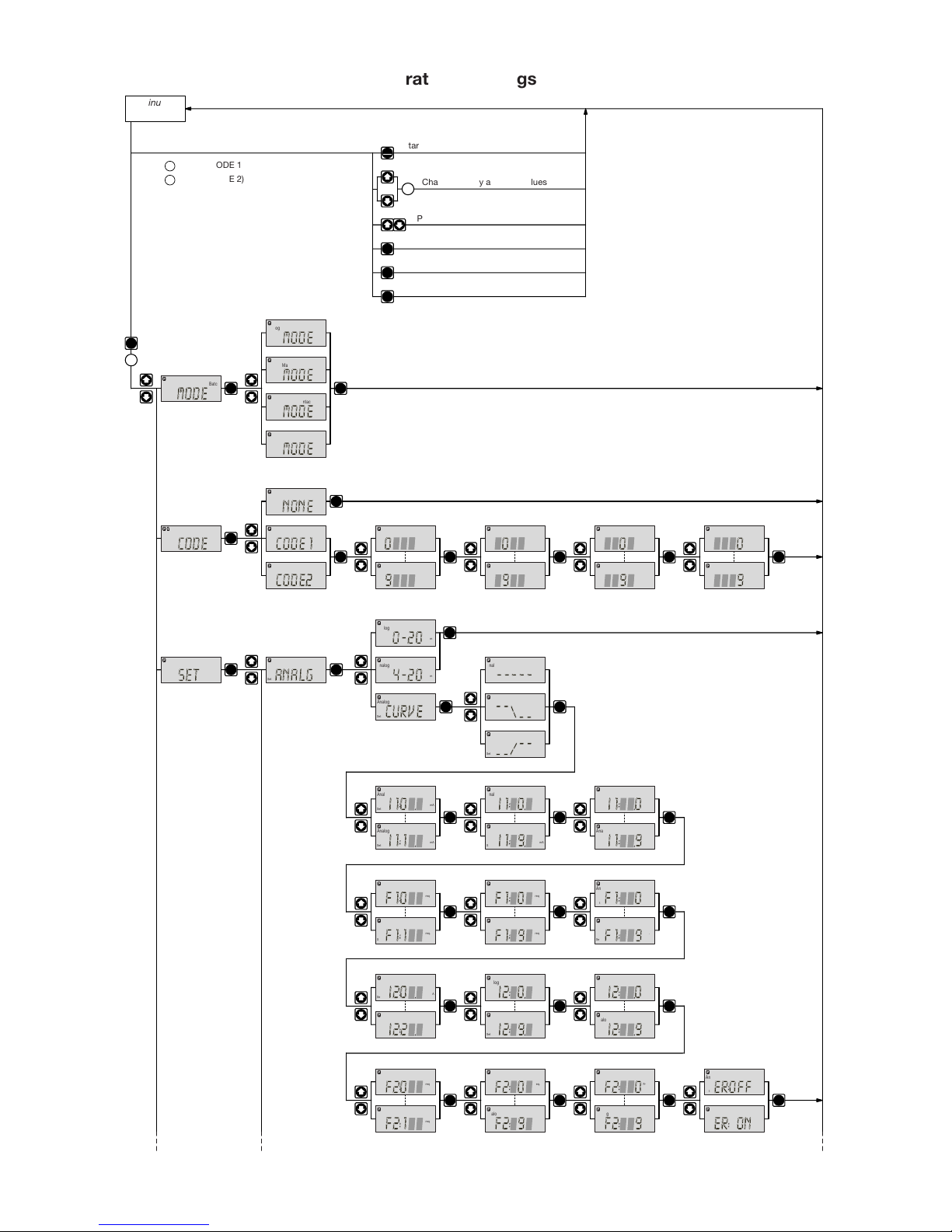

Operating-/Settings Diagram

Continuous

display

Start/stop pump

Change directly alterable values

= Lock (CODE 1)

= Lock (CODE 2)

Prime

Start batch (in"batch" operating mode only)

Cancel error

Check adjustable values

p. 45

p. 52

p. 44

p. 51

Select the operating mode here first,

then carry out the settings in the SET menu.

Exceptions: Timer and PROFIBUS®.

Set

Calib

Set

Calib

Set

p. 51

p. 49

p. 51

p. 49

p. 50

p. 34

p. 51

Mem

Contact

Stop

Operating mode "Analog" 0-20 mA

Stroke rate

Feed rate

Total stroke number

Total litres

(feed quantity)

"External" display

Signal current

Strokes remaining

Batch size/

Litres remaining

Factor

"Mem" appears only when "memory" function activated

Stroke length

Operating mode "Manual"

Continuous display

Operating mode "Contact" with

memory and tansfer factor 5

Operating mode "Batch" with

memory and tansfer factor 5

Analog

Stop

! 

Analog

Stop

Analog

Stop



Analog

Stop

Analog

Stop

Manual

Stop

Contact

Stop

Batch

Stop



&

Freq.

Manual

Stop



&

Freq.

Contact

Stop

Contact





Freq.

Batch

Stop

Batch



/hL

Manual

Stop

Manual

! 

Stop

Contact

! 

Stop

Batch

! 

Stop

Manual

Stop

Contact

Mem

Stop

Batch

Mem

Batch

Stop





Mem

Batch

Stop

Mem

Batch

Stop

Mem

Contact

Stop



&

Freq.

Analog

Stop



/hL

Analog

Stop

Continuous

display

= UP and/or DOWN arrow keys, directly alterable values

Operating mode ”Contact” with

memory and transfer factor 5

Operating mode ”Batch” with

memory and transfer factor 5

Page 6 ProMinent®

Dulcodes UV-Desinfektionsanlage
