Promax SATELLITE HUNTER Manuel utilisateur

PRODIG-1

• Thank you for buying

our PRODIG-1

Satellite Hunter

• Aligning a satellite

dish to a digital

satellite will be quick

and easy with the

PRODIG-1

GETTING STARTED

PRODIG-1

• This document takes you through a step by step procedure

to get familiarised with the PRODIG-1 use and

applications

•We recommend you to take few

minutes to read it carefully because it

can be very helpful for you

GETTING STARTED

PRODIG-1

• PRODIG-1 needs to be programmed before use with

transponder information from the satellites you need to

work with.

• Each set of transponder data (frequency, FEC, ....) will

become a test point on board the PRODIG-1 which you

can label to identify it easily.

GETTING STARTED

PRODIG-1

• Please, check if the satellites / transponders pre-

programmed in the PRODIG-1 you have just taken from

the box are good for your application

GETTING STARTED

PRODIG-1

TEST POINT NAME

(4 characters)

FREQUENCY

(IF)

LNB

VOLTAGE

22 KHz

(Yes or No)

FEC

(2/3, 3/4, …)

Symbol Rate

TP0 DISH 1186 18 No ¾ 20000

TP1

TP2

•If the configuration is not good for

your application, please, go to the

“MODIFYING CONFIGURATION”

section.

GETTING STARTED

PRODIG-1

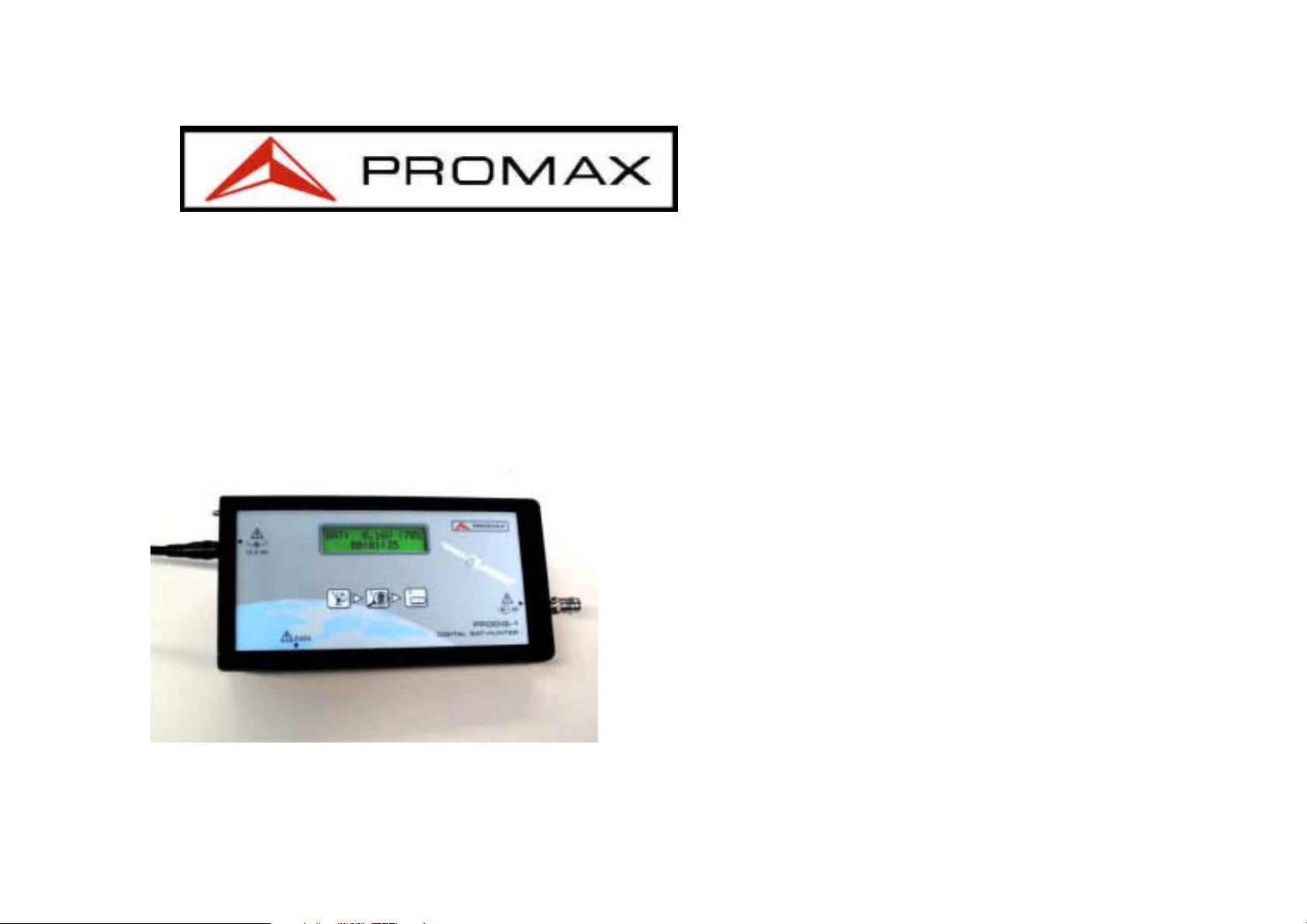

• Make sure batteries are charged

and eventually charge them for

few hours using the AL-101

power adapter supplied

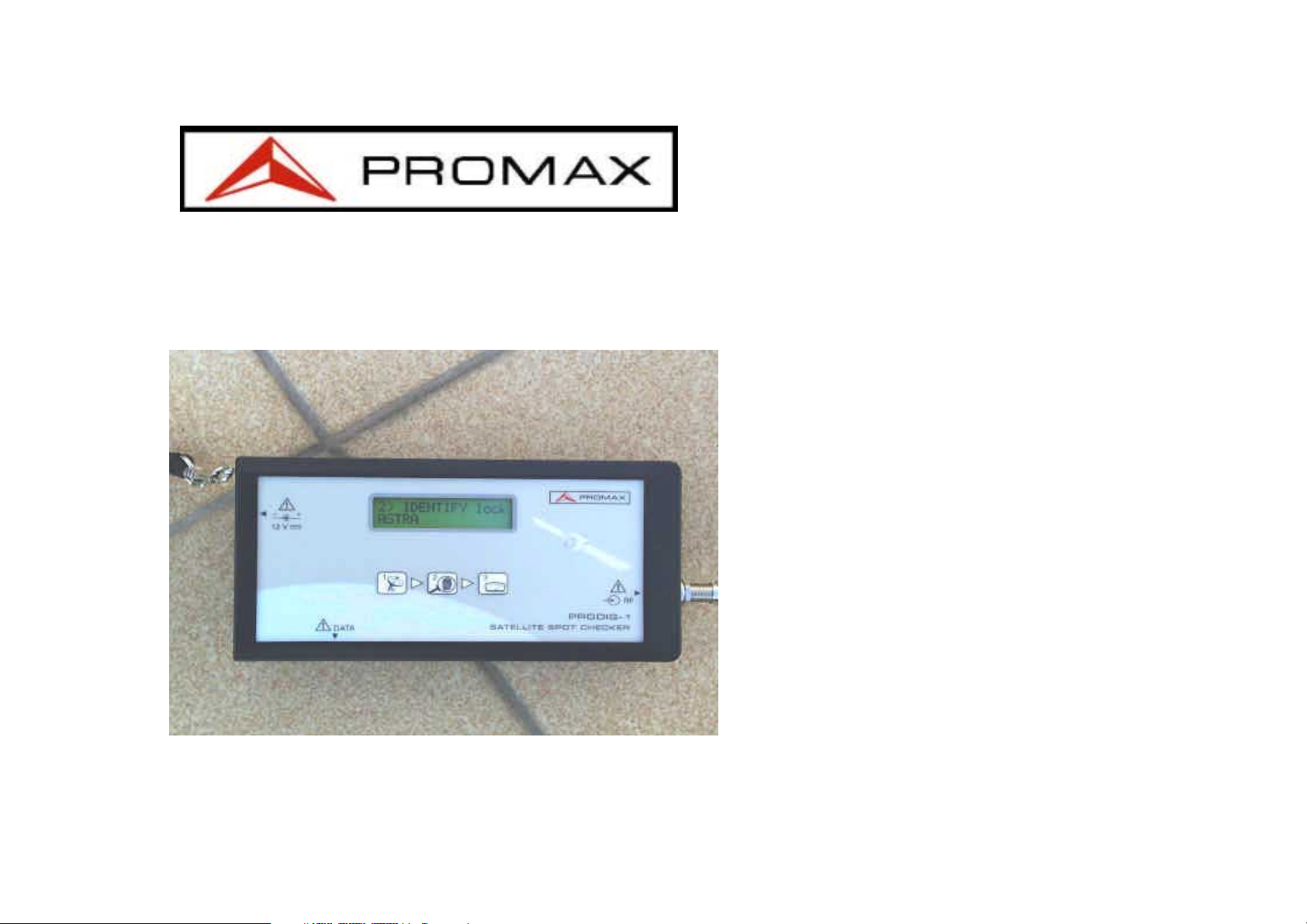

• Connect the dish LNB to the

PRODIG-1

• Switch on by pressing on key #

1 for more than a second

STEP 1 - DETECTING A SATELLITE

PRODIG-1

• Move the dish towards the position where you’d expect to

find the satellite you wish to align

• As soon as you receive signals from a satellite the bargraph

will show some activity and the acoustic indicator will beep

STEP 1 - DETECTING A SATELLITE

PRODIG-1

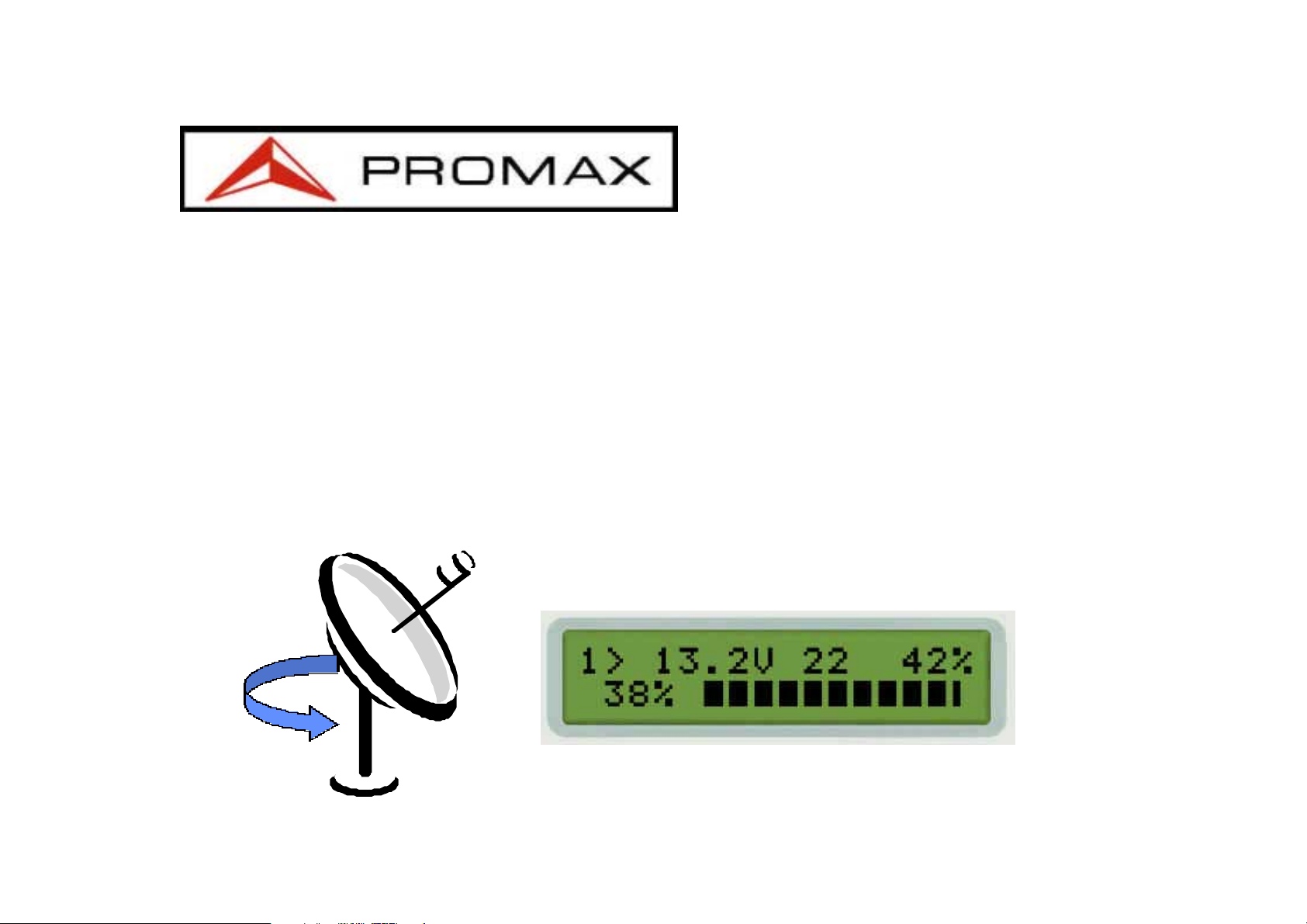

• Move the dish smoothly up down left and right to get the

maximum bargraph deviation

• Display will be also showing some additional information:

STEP 1 - DETECTING A SATELLITE

PRODIG-1

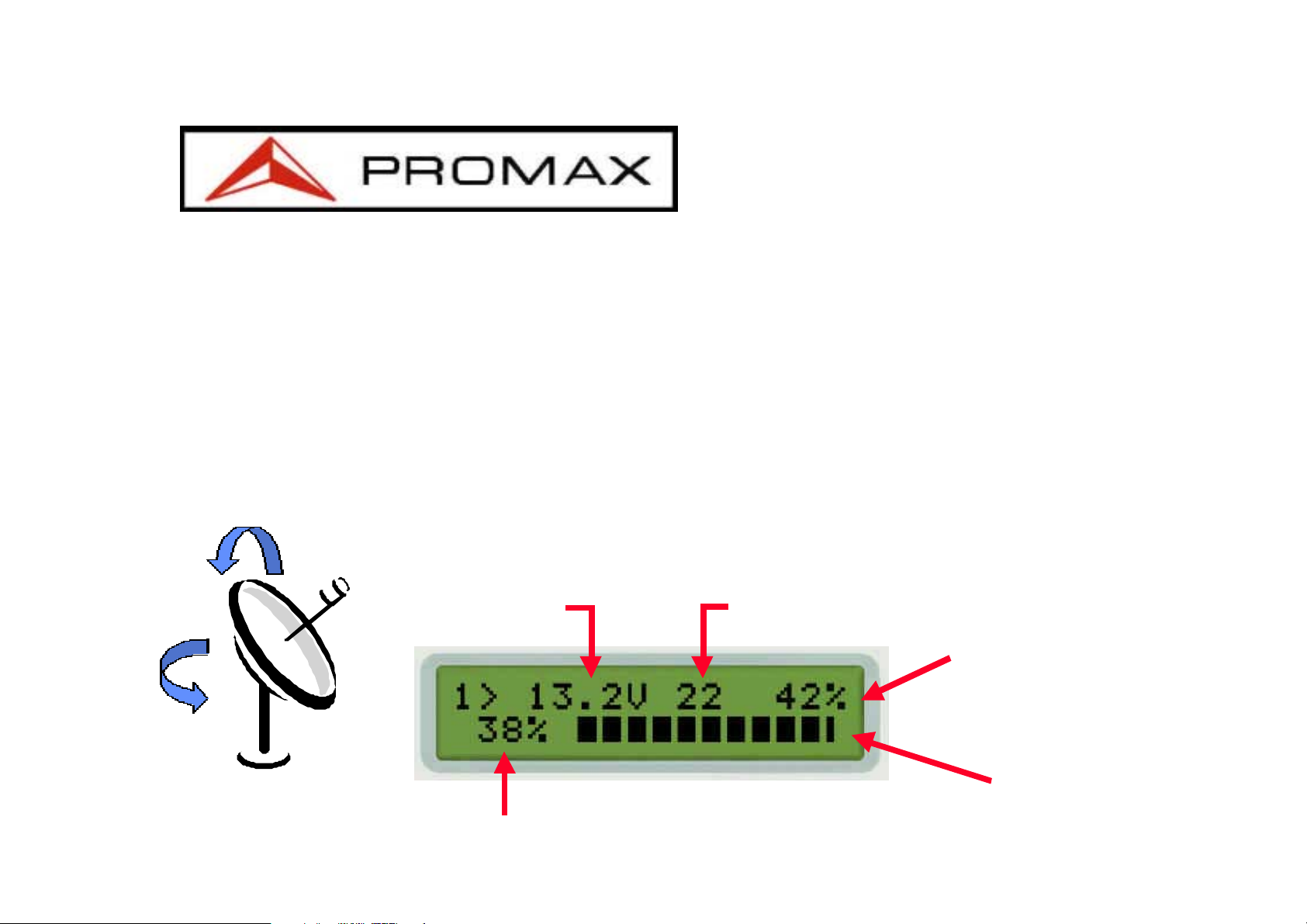

Actual LNB

voltage supplied

22 KHz signal

On /Off

Maxhold of the

Signal Energy reading

Signal Energy

on bargraph

Current Signal Energy reading

• These are some of the messages you can get on the display:

- “CABLE SHORT” Look for a short circuit in the cable

to the LNB, connectors, LNB itself...

- “NO LNB” Check connectors and LNB. Check that the

cable run is not too long

STEP 1 - DETECTING A SATELLITE

PRODIG-1
