Promax PROLITE-57 Manuel utilisateur
1
PROLITE-57
1. Introduction
1.1 Summary

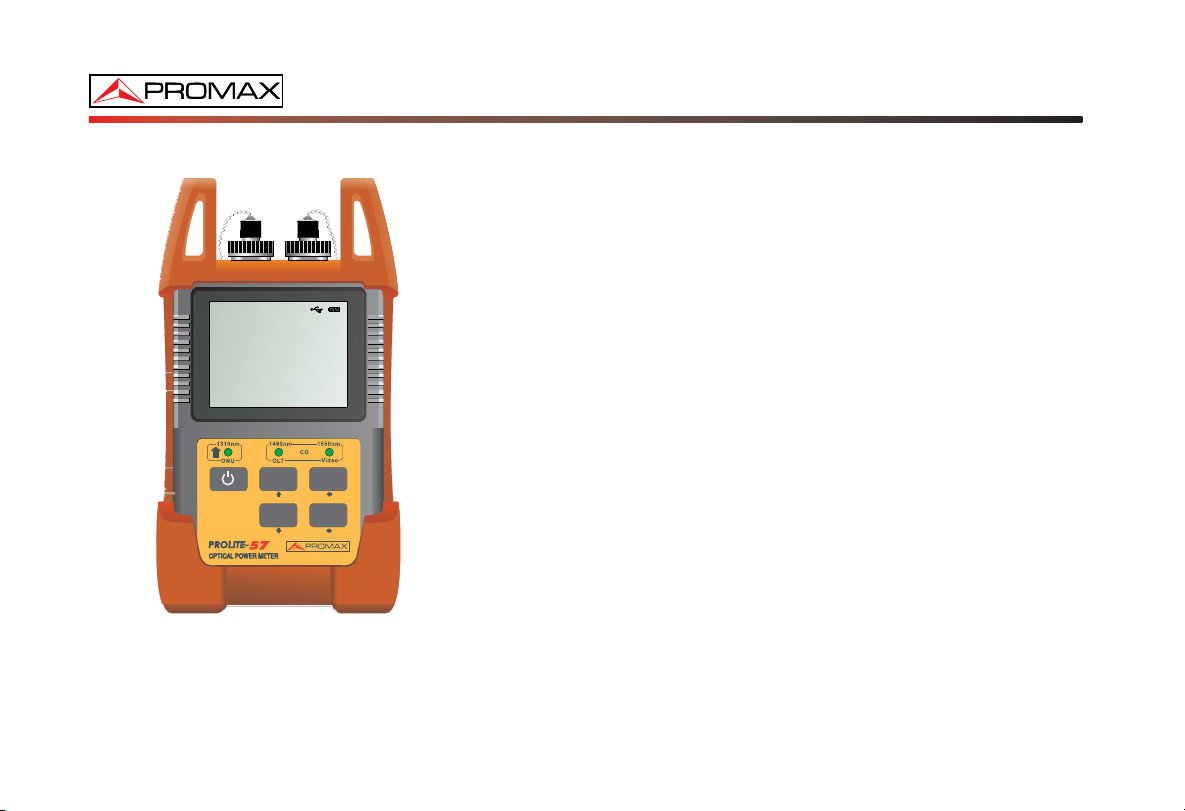

PROLITE- is a portable, high quality PON optical
power meter. It is specifically designed to meet the
rapid growth of FTTx market with PON (Passive
Optical Network) technologies. It is capable to
measure all three signals (1310nm, 1490nm and
1550nm) that carry voice, data and video, so-called
triple-play applications along a single fiber.
can measure not only 1490nm and
1550nm optical signal, but also accurately detect and
measure the upstream burst at 1310nm sent from an
ONU while the ONU is in the idle mode. The simple
operation and accurate measurement make
becomes an ideal tool for PON
(suitable for APON, BPON, EPON and GPON
application) installation/acceptance test to ensure that
they meet required standards, and service activation
and troubleshooting.
PROLITE-
PROLITE-
57
57
57
2008-08-22 17:00:01
1310nm
1490nm
1550nm
ONU
OLT
VIDEO
1.2
4.5
-15.0
-
dBm
Pass
dBm
warning
dBm
Fail
mode
Threshold
dBm/dB
Time REF/SEL
2
1.2 Main Function and Specifications
Cost efficient palm size designed for field and lab testing.
Support P/F measurement and normal measurement.
Easy-to-use interface with large color TFT display for easy visibility and LED indicators.
Simply connect-and-display the results of all three wavelengths (1310/1490/1550 nm) of PON
signals with two optical ports
Detect and measure the upstream burst at 1310 nm.
Support APON, BPON, EPON and GPON networks.
Pass, Fail and Warning indicators for easy view of signal condition.
User definable threshold value (up to 10 sets) Auto power shut off.
Low battery warningUSB interface.
Real-time clockUnit runs either by Ni-MH battery for more than 20 hours continuously work or
AC/DC adapter.
PROLITE-57
Connector Type
Detector type
Measurement Range
(Continuous Datastream)
Burst measurement range
(1310 nm bursted signal)
Spectral Passband
Insertion Loss
Accuracy
Linearity
Display
Refresh Rate of Display
Threshold
Auto Power-off
Number of Ports
Operating Temperature
Relative Humidity
Power Supply
Battery life
Dimension
Net Weight
SC/APC, ST/APC
1310 nm 1490 nm
1.5 dB
±0.5 dB
±0.2 dB
2.8 inch TFT LCD
2.5 Hz
10 sets(configured via PC-based software)
Yes
-10 to +50°C
0%~95%,non-condensing
1.2V*4pcs Ni-MH AA;12V AC/DC Adapter
>20 hours
190 mm*105 mm*55 mm(L*W*H)
700 g
2 ports. One for 1310 nm (ONU)
and one for 1490 nm / 1550 nm (OLT)
with rubber protector
-40 dBm~+10 dBm -40 dBm~+10 dBm -40 dBm~+20 dBm
1310 nm 1490 nm 1550 nm
1260 nm~1360 nm 1480 nm~1550 nm 1539 nm~1565 nm
1550 nm
3
PROLITE-57
1.3 Specification:
-30 dBm~+10 dBm
InGaAs
4
PROLITE-57
3 Safety Information
SAFETY RULES
The safety could not be assured if the instructions for use are not closely followed.
Class II supply line with the
corresponding ground terminal
Overvoltage Category I Pollution Degree 1
INDOOR
specified
specified ratings
specified environmental conditions
The user is not allowed to carry
cleaning instructions
The external DC charger is a equipment, for safety reasons plug it to a
.
Use the mains adapter in and installations. To use
.
When using some of the following accessories use only the ones to ensure safety:
Power adapter
Observe all both of supply and measurement.
Use this instrument under the .
out the following maintenance operations:
Any change on the equipment must be carried out exclusively by technical staff.
Follow the described in the Maintenance paragraph.
Discharged batteries
AC operation
Note:
1.- When the battery power is almost out, there will be a
warning of indicator keeps blinking, then please replace
the batteries or plug in AC adapter to charge batteries.
2.- Please make sure that you have turned the instrument
on before charge the batteries, unplug the AC adapter
when the batteries are fully charged.
3.- Please make sure the batteries are well placed
before charge them.
4.- To eliminate the possibility of acid leakage, please
take out the batteries if the unit will not be used for a long
time
If the instrument is mainly used at one location, e.g. in a
laboratory or test department, the AC adapter can be
used to power it instead of batteries. There is a DC input
jack on the left side of the PL-57 instrument casing into
which the output cable of the AC adapter is plugged. And
when the AC adapter is plugged in, the AC Indicator on
the LCD will be displayed.
1.- Power is supplied by the AC adapter even if battery is
fitted. And the battery indicator is not displayed on the
screen when AC adapter is plugged.
2.- Make sure that the operating voltage of the AC
Adapter / Charger is the same as the local AC line
voltage.
PROLITE-57
5
Symbols related with safety:
Never look directly into optical outputs or a fiber while the
equipment is on.
Invisible laser beam may damage your eyes.
Specific Precautions
Descriptive Examples of Over-Voltage Categories
Cat I
Cat II
Cat III
Cat IV
Low voltage installations isolated from themains.
Portable domestic installations.
Fixed domestic installations.
Industrial installations.
DIRECT CURRENT
ALTERNATING CURRENT
DIRECT AND ALTERNATING
GROUND TERMINAL
PROTECTIVE CONDUCTOR
FRAME TERMINAL
EQUIPOTENTIALITY
ON (Supply)
OFF (Supply)
DOUBLE INSULATION
(Class II protection)
CAUTION
(Risk of electric shock)
CAUTION REFER TO MANUAL
FUSE
EQUIPMENT OR COMPONENT
TO BE RECYCLED
6
PROLITE-57
4. Preparing for Operation
Unpacking the instrument
Packing material
Checking the package contents
Checking for damage in transit
We suggest that you keep the original packing material. Using the original packing material is your
guarantee of protecting the instrument during transit.
The standard accessories of are as follows:
Main unit
Case strap
After unpacking the instrument, check to see whether it was damaged in transit. This is particularly likely
if the outer casing is clearly damaged. If there is damage, do not attempt to operate the instrument or to
repair it without authorization. Doing so can cause further damage and you may lose your warranty
qualification.
4*Ni-MH Batteries
Carrying Case CD(software)
User's Guide 2 SC & ST adaptors
3 Ferrules USB-USB mini cable
AC Adapter
PROLITE-57
2008-08-22 17:00:01
1310nm
1490nm
1550nm
ONU
OLT
VIDEO
1.2
4.5
-15.0
-
dBm
Pass
dBm
warning
dBm
Fail
mode
Threshold
dBm/dB
Time REF/SEL
7
PROLITE-57
5. Operation
Part 1
Video/OLTONU
Part 2
The front panel is divided in two parts:
– LCD Display
-
The tester shows test result on LCD screen, and in the meanwhile
indicates different status in part 2 by LED.
Tester connector types: SC/APC, ST/APC
Part I
Part II Keypad
5.1 Layout
8
P-ROLITE 57
5.2 Key’s Functions
Power Switch
Mode Key
Threshold
dBm/dB/Time
REF/SEL
– Press the key to Power On the unit. While the unit is in the state of power on, if pressing
down the key and release quickly (less than 2 seconds), the unit will switch to auto power off; if pressing
down the key for longer than 2 seconds, the unit will shut down. If the unit is in threshold setup, time setup
and backlit setup menu, the key becomes ESC key to exit the menu.
– test mode. It is used to switch the test mode - P/F test mode and normal test mode. When the
unit is in time setup, threshold setup and backlit menu, the key is used to increase value.
– It is used to set threshold. Pressing it down for more than 2 seconds enters threshold setup
menu. In threshold setup menu, press and release the key quickly (less than 2 seconds) to switch
wavelength. In time setup menu, this key functions as <left> arrow key.
– unit switching key. Press and release the key quickly (less than 2 seconds) to switch unit
between dB and dBm; pressing the key down for more than 2 seconds enters to time setup menu. In time
setup menu, threshold setup and backlit setup menu, the key is used to decrease value.
– It is used for reference value setup and selection. If pressing it down for more than 2 seconds,
the instrument will take current light intensity as reference to do measurement. If pressing and release the
key quickly (less than 2 seconds), then the key will function as <right> arrow key.
9
P-ROLITE 57
LEDs
Thresholds
Limit1 Limit2
Threshold1 Threshold2 Threshold3
also Limit2 < Threshold3 < Threshold2 < Threshold1 < Limit1 P
P < Limit2 Low LED RED
Limit2 < P < Threshold3, Fail LED RED
Threshold3 < P < Threshold2 Warning LED ORANGE
Threshold2 < P < Threshold1 Pass LED GREEN
Threshold1 < P < Limit1 Fail LED RED
P > Limit1 LED RED
Not only the instrument will display measured optical power value on LCD screen, but also under P/F test
mode its three LED indicators will function with following meanings:
The three LED indicators represent upstream 1310 nm (ONU), downstream 1490 nm (OLT) and 1550 nm
(Video) respectively. The RED color indicates Fail, ORANGE color is Warning and GREEN color means
Pass.
The definitions for the three states (Fail, Warning and Pass) are described as below:
If assuming the instrument’s measuring upper limit as and lower limit as , the “Pass” threshold
value in instrument’s internal setup are , as Warning threshold and as
Fail threshold, . value represents
measured optical power, then:
1.If , means the power is , the will indicate in ;
2.If means , the will indicate in ;
3.If , means , the will indicate in ;
4.If , means , the will indicate in ;
5.If , means , the will indicate in ;
6.If , means the power is High, the will indicate in .
5.3 Definitions
