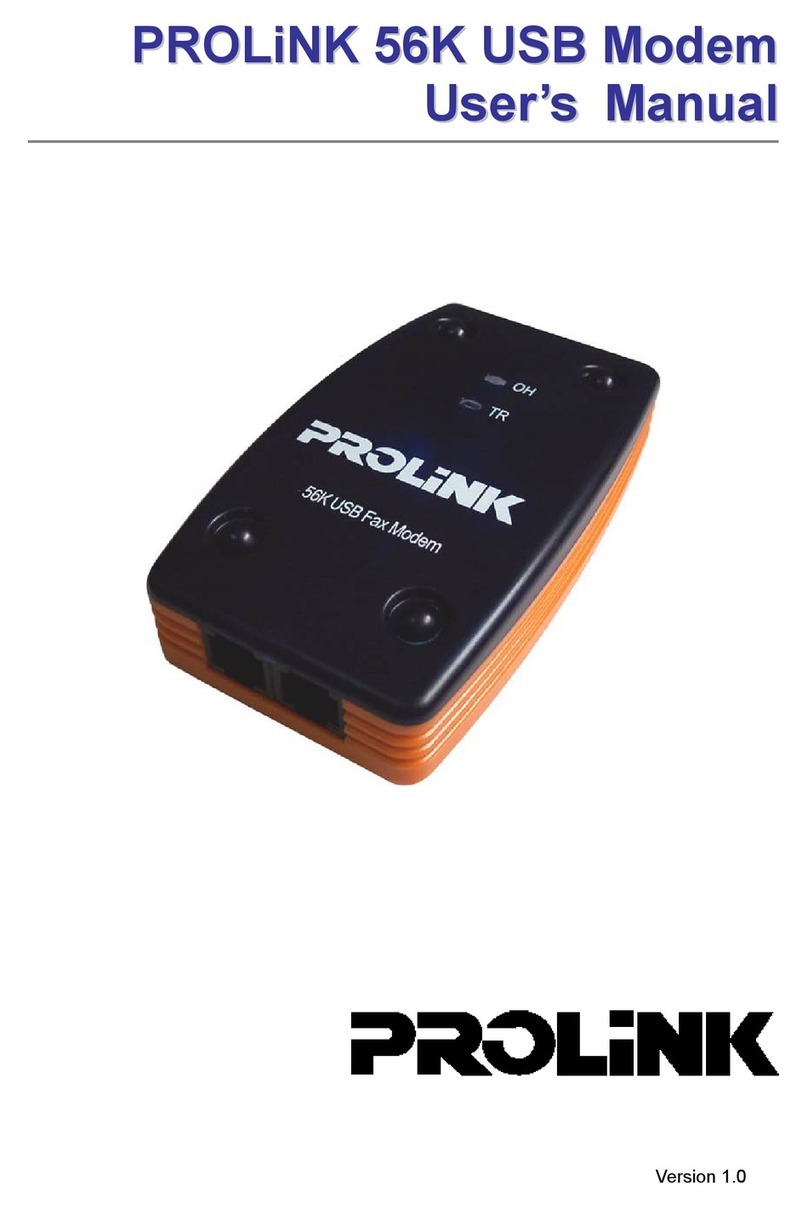

PROLiNK 56K Manuel utilisateur

Version 1.0

Operation System:

Windows 98SE



Windows ME

Windows 2000

Windows XP

CPU:

MMX 200 MHz-based computer

Memory:

64 MB or more

Prolink 56K USB Modem Installation Guide 1

Appearance of USB Modem

LED Indicators

OH Off Hook Indicator

Lights when the modem picks up or answer the telephone line.

TR Transmit / Receive Indicator

Flashes when transmit or receive data.

Prolink 56K USB Modem Installation Guide 2

Line: Connect to your telephone line by RJ11 cable

Phone: Connect to your telephone set by RJ11 cable

USB Port: Connect to your PC by USB cable

Prolink 56K USB Modem Installation Guide 3

Windows 98SE

1. Connect USB modem to PC with

USB cable. Cancel any Add

New Hardware Wizard window

and then insert the driver CD

into your CD-ROM drive. The

autorun function will then start

up the shell program. Press

Install Driver to install the driver

automatically. Or, run the

Autorun.exe to bring out the

autorun screen if the autorun

window does not display.

2. This program will help you

update some information of

Windows 98 Second Edition.

Click OK.

The installation process will take several seconds. Please wait for

completing.

Click Yes to restart you

computer. Windows will finish

the installation automatically

after rebooting.

Prolink 56K USB Modem Installation Guide 4

5. Double click Modems icon from

Start>Control Panel.

6. The modem named Prolink 56K

USB Modem is set up on your

computer.

Prolink 56K USB Modem Installation Guide 5

Windows ME

Prolink 56K USB Modem Installation Guide 6

Connect USB modem to PC with

USB cable. Cancel any Add

New Hardware Wizard window

and then insert the driver CD

into your CD-ROM drive. The

autorun function will then start

up the shell program. Press

Install Driver to install the driver

automatically. Or, run the

Autorun.exe to bring out the

autorun screen if the autorun

window does not display.

The installation process will take several seconds. Please wait for

completing.

Double click Modems icon from

Start>Control Panel.

4. The modem named Prolink 56K

USB Modem is set up on your

computer.

Windows 2000

1. Connect USB modem to PC with

USB cable. Cancel any Found

New Hardware Wizard window

and then insert the driver CD

into your CD-ROM drive. The

autorun function will then start

up the shell program. Press

Install Driver to install the driver

automatically. Or, run the

Autorun.exe to bring out the

autorun screen if the autorun

window does not display.

The installation process will take several seconds. Please wait for

completing.

Click Yes to continue this

installation.

4. Click Yes again to continue this

installation.

Prolink 56K USB Modem Installation Guide 7

5. Double click Phone and

Modem Options icon from

Start>Control Panel.

6. You can see the modem named

Prolink 56K USB Modem in

Modems tab.

Prolink 56K USB Modem Installation Guide 8

Windows XP

1. Connect the USB modem to PC

with USB cable. Cancel any

Found New Hardware Wizard

window and then insert the

driver CD into your CD-ROM

drive and the autorun function

will then start up the shell

program. Press Install Driver to

install the driver automatically.

Or, run the Autorun.exe to bring

out the autorun screen if the

autorun window does not

display.

The installation process will take several seconds. Please wait for

completing.

Click Continue Anyway to

continue this installation.

4. Select “Install from a list or

specific location (Advanced)”

and then click Next.

Prolink 56K USB Modem Installation Guide 9
