PROAIM Explorer Pro PT-EXPR-02 Manuel utilisateur
1
What’s In The Box
Please inspect the contents of your shipped package to ensure you have received everything that is listed
below.
Assembly Manua l
All rights reserved.
No part of this document may be reproduced, stored in a retrieval system, or transmied by any form or by any means,
electronic, mechanical, photo-copying, recording, or otherwise, except as may be expressly permied by the applicable copyright
statutes or in wring by the Publisher.
Explorer Pro Pan Tilt Head for Camera Jib Crane
(PT-EXPR-02)
Pro Pan Tilt Head
Controller Box
12V AC Adapter
2 x Fuse
4 x Washers
4 x Knobs
O-Ring
2 x Camera Bolts
(Sizes: 1/4”-20 , 3/8”-16)
15mtr Cable 3mtr Cable
4 x Bolts
(Sizes: 1/4”-1”)
4 x Bolts
(Sizes: 1/4”-3/4”) 4 x Bolts
(Sizes: 1/4”-5/8”) Bolt
Universal
Adapter
2
• Loosen the Pan Tilt Head’s Knob on both sides
and increase its height.
Explorer Pro Pan Tilt Head Setup
• Tighten both the knobs properly, as shown in
the image.
• Connect the male end of the cable to the
female end of the Pan Tilt.
Connecons of Controller Box
NOTE: Proaim Explorer Pan-Tilt head is precisely engineered, easy to operate & a silent companion for
accurate panning & lng moons.
3 x T-Type Allen Keys
(Sizes: 2.5mm, 4mm, 5mm)
2 x L-Type Allen keys
(Sizes: 2mm, 3/16”)
1 x Spanner (Size: 13)
3

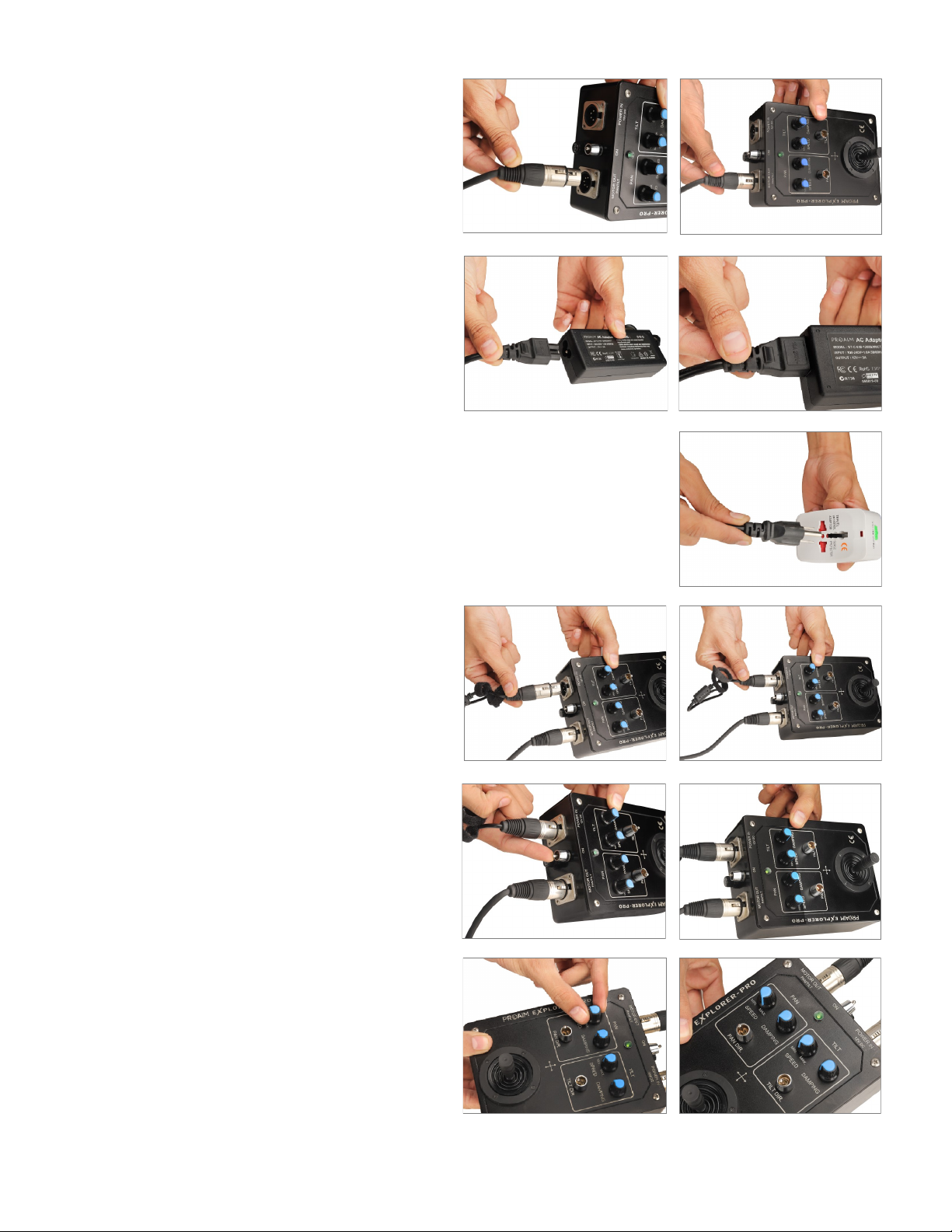

• Insert the 12-volt AC adapter (4 pin XLR) to
the controller box.
NOTE: If the Joysck Control is opposite, undo
the connectors of motors, rotate 180° and
re-install.
• Switch the controller box ON, as shown in the
image.
• Increase or decrease the Pan speed according
to your requirement and set the damping.
• Connect the female end of the cable to the
controller box.
NOTE: Any 12 volt baery may operate this Pan
Tilt Head as long as the Connector and the #1
Negave pin & #4 Posive pin of Cable meet
together.
• Aach the second end of the power cable to
the universal adapter.
• Aach the power cable with the AC adapter.
4
• Set the direcon of the Pan Tilt (Upward/
Downward) according to your requirement.
• Properly slide the Pan Tilt into the jib as
shown in the image.
NOTE: This 2-Axis pan-lt head facilitates
eortless connuous 360° rotaon on both
horizontal and vercal axis that gives the
operator full freedom to capture any desired
angle.
• To change the direcon of the Pan, move the
joysck le-right, and to change the direcon
of the lt, move the joysck up-down.
NOTE: Joysck remote controller provides a
great range of pan and lt speed control with
an excellent rotaon for a complete revoluon
in any axis.
Pan Tilt Setup
NOTE: Speed Controller -The Speed Controller
adjusts the speed of pan & lt based on the
requirement of the shot.
Damping Control -Damping control prevents
the Head from stopping with a jerk enabling
you to achieve smooth endings.
Pan-Tilt Direcon -You can reverse the panning
& lng direcon as & when required.
5
NOTE: Adjusng the Camera Angle upside down
you capture graceful bird’s eye view shots at
ease & it is Suitable for surroundings such as
sports events, small and large studios, churches,
parliaments, etc.
• Insert the bolt and mount the camera (Not
Included) properly.
• Insert both the knobs and ghten them
properly. Repeat the same process to insert
the knobs on backside.
Camera Mounng Setup
Balancing Tips
• Before balancing the camera, Detach the
motor gear assembly from the head.
NOTE: You can only balance the camera on the
head aer detaching the motor gear; otherwise,
the motor will not funcon properly.
• Then mount your camera on the explorer
head's camera plate.
• Horizontally balance your camera by placing
the camera in the center of the camera plate.
6
• Horizontally balance your camera by placing
the camera in the center of the camera plate.
• Aer that, vercally balance your camera by
loosening the side knob and increasing it to
the desired height, then ghten the knob
properly.
• The camera is now balanced both vercally
and horizontally.
• Now, reaach the motor gear to the head.
NOTE: Make sure that the camera is balanced in
all direcons depending on its weight so that
the motor can funcon properly when aached.
7
YOUR PROAIM EXPLORER PRO PAN TILT HEAD
ALL DRESSED UP AND READY TO GO!
(SHOWN WITH OPTIONAL ACCESSORIES)
Warranty: We oer one year warranty for our products from date of purchase. Within this period of me,
we will repair it without charge for labor or parts. Warranty doesn’t cover transportaon costs nor does it
cover a product subjected to misuse or accidental damage. Warranty repairs are subjected to inspecon
and evaluaon by us.
Liability: We are not liable for damage caused by products that we do not supply or from mishandling in
transit, accident, misuse, neglect, lack of care of the product, or service by anyone other than our company.
Contact Us: In case of any kind of dissasfacon, please Contact us immediately and we promise our utmost
support and care unl you use our product.
