Pro-Ject RPM 6.1 SB

38mm

37mm

66a

23 2323

SPEED

45/78

SPEED BOX

45/78

Speed

Speed Box

SPEED

45/78

SPEED BOX

45/78

Speed

Speed Box

PRO-JECT RPM 6.1 SB

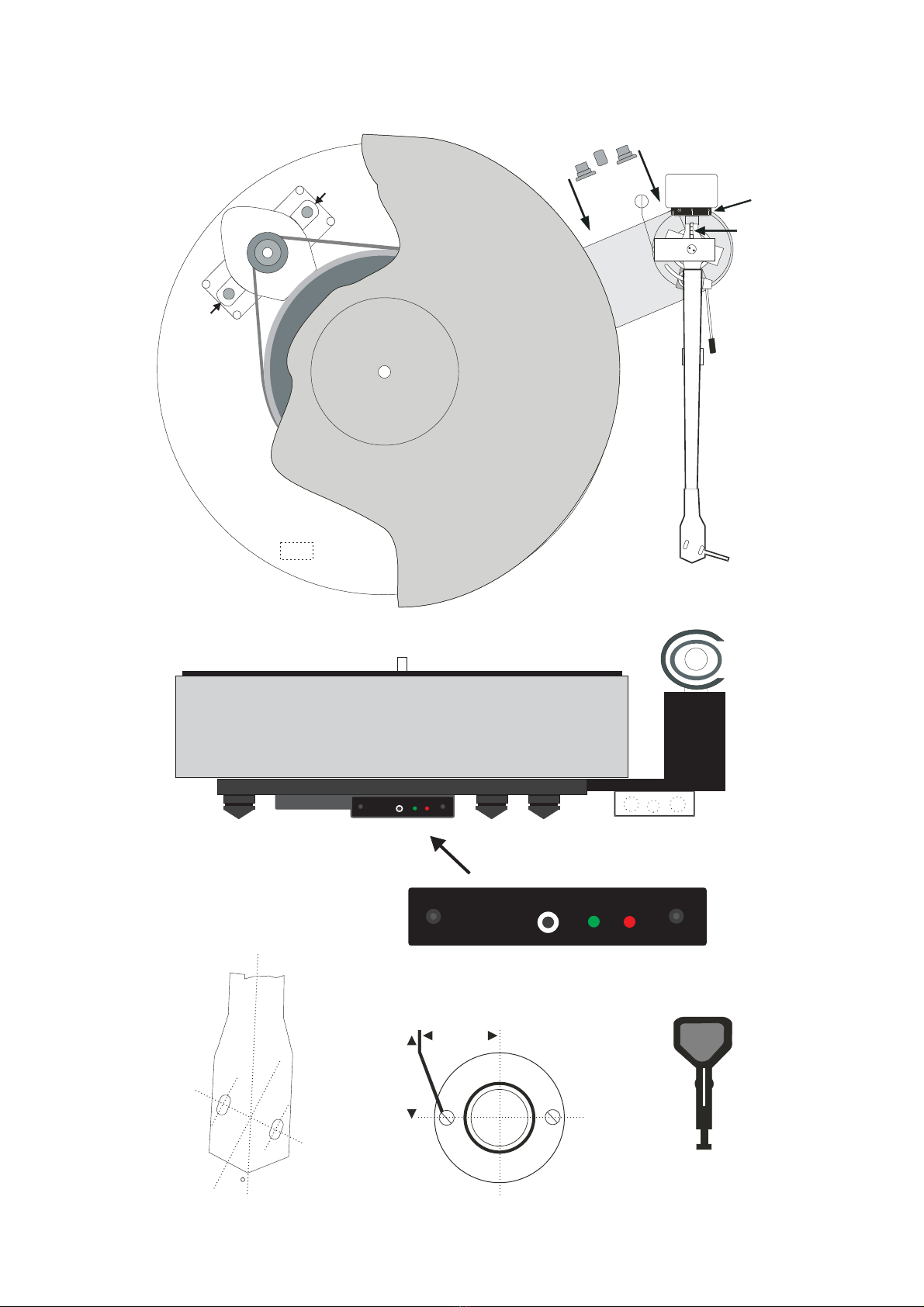

Controls, features and connections

1 Motor transportation screw (marked red)

2 Stepped drive pulley

3 Drive belt * 3a Hook

4 Hub *

5 Sandwich platter *

6 Tonearm counterweight * 6a Downforce scale

7 Tonearm lift lever

8/18 Tonearm rest and removable transport lock

9 Tonearm tube 9a Tonearm base

13 Power supply socket

14 Phono output sockets and earth connection

15 Anti-skating weight adjustment scale

16 Anti-skating weight *

17 Anti-skating weight support hoop

20 Power switch

21 Headshell with finger lift *

22 Motor

23 Adjustable feet *

Record weight (not shown) *

Connection cable (not shown) *

Power supply (not shown) *

Dear music lover,

thank you for purchasing a PRO-JECT AUDIO record player.

In order to achieve maximum performance and reliability with this record player you should study these instructions

for use carefully.

Warning of a hazard for the user, the unit or possible misuse.

Important notice.

During assembly and adjustment of the deck small parts could be lost if not carefully placed in a suitable

receptacle.

Before starting assembly make yourself acquainted with the parts listed above and correspondingly numbered

in the technical drawings above. Separately packed items are marked with an asterisk *.

Set-up

Screw the two feet (23) onto the threaded bolts located on the underside of the plinth. Make sure the surface

you wish to use the turntable on is level (use a spirit level) before placing the turntable on it.

Carefully insert the spindle of the hub (4) into the bearing. Fit the drive belt (3) around the hub (4) and the

smaller diameter part of the motor pulley (2). Avoid getting sweat or grease on the belt as these will

deteriorate the performance and reduce the belt's lifespan. Use absorbent kitchen paper to remove any oil or

grease from the outer edge of the hub and the belt. Fit the platter over the spindle of the hub.

Level the plinth using a spirit level and the adjustable feet (23). Remove the two red transport screws (1)

which secure the motor (22) during transportation.

Remove the transport lock (18) from the tonearm and the tonearm bearing. Store it together with the two red

motor transport screws (1) in the original packaging so they are available for any future transportation.

Fitting and connecting the cartridge

All cartridges with half inch mounting holes can be fitted. Leaving the needle's protection cover on, fit the

cartridge to the headshell using the screws supplied with the cartridge by passing one screw through each

slot in the headshell (21). Do not tighten the nuts yet.

Connect the tonearm wires to the cartridge pins as follows:

white left channel positive (L+)

red right channel pos. (R+)

green right channel return (R -)

blue left channel return (L -)

The full sound quality of the PRO-JECT RPM 6.1 SB can only be achieved if the cartridge is correctly adjusted.

Particular tools like the PRO-JECT alignment tool are required to accomplish this job properly.

If you are not well acquainted with the adjustment of cartridges you are advised to call upon the willing help of

your PRO-JECT dealer to accomplish this task for you.

The finger lift (21) must be fitted on top of the headshell under the cartridge fixing bolts or nuts - not

between headshell and cartridge body.

Please note: adjusting a cartridge and tonearm calls for the greatest care in order to avoid damaging

the cartridge or tonearm bearings. Leave this work to your dealer if you are in any way unsure of the

necessary steps and precautions to be taken.

Cartridge downforce adjustment

The counterweight (6) supplied is suitable for cartridges weighing between 6 - 10g. An alternative counterweight

for cartridges weighing between 10 - 15g is available as an accessory part. Adjust the downforce prior to

installing the anti-skating weight. Adjust the downforce prior to installing the anti-skating weight.

Gently push and turn the counterweight (6) onto the armtube stub. Lower the armlift and position the cartridge

in the space between arm rest and platter. Carefully rotate the counterweight (6) until the armtube balances

out. The arm should return to the balanced position if it is moved up or down. This adjustment must be done

carefully. Do not forget to remove the cartridge protection cap if fitted.

Once the arm is correctly balanced return it to the rest. Hold the counterweight (6) without moving it, and gently

revolve the downforce scale ring (6a) until the zero is in line with the anti-skating prong (15). Check whether the

arm still balances out.

Rotate the counterweight counter clockwise (seen from the front) to adjust the downforce according to the cartridge

manufacturer's recommendations. One mark on the scale represents 1 mN (= 0,1g / 0,1 Pond) of downforce.

Adjusting the vertical tracking angle (vta)

Put a record and the record weight on the platter. When the needle is lowered into the record groove and the

tonearm is not resting on the lift arm, the tube of the tonearm should be parallel to the surface of the record.

If it is not loosen both allen screws in the tonearm base just enough to allow vertical movement of the arm

pillar without force and slide the arm up or down until it is parallel.

Carefully retighten the allen screws without applying excessive force (which would deform the arm pillar) –

finger tight is quite sufficient.

Adjusting the azimut

The cartridge needle must be vertical in the record groove in order to trace the

groove wall modulations correctly.

A small screw at the bearing end of the arm allows incorrect azimuth to be

corrected if your needle is not mounted exactly perpendicular to the cartridge

body (which is often the case).

Slacken off the screw just enough to be able to revolve the arm tube without

applying force. Please note: do not remove the screw completely!

Screw

With the aid of a good magnifying glass adjust the needle until it is vertical in the groove (i.e. perpendicular

to the record's surface). Ideally this should correspond to the top surface of the cartridge body being parallel

to the record surface.

When you are satisfied that the needle is vertical retighten the screw carefully.

Under no circumstances should the arm tube be adjusted with the needle still in the record groove!

Irreparable damage may be caused to the cantilever suspension! The arm must be lifted to make

each adjustment and lowered afterwards to check it.

Anti-skating force adjustment

The anti-skating force must be adjusted according to the mass of the cartridge as

follows:

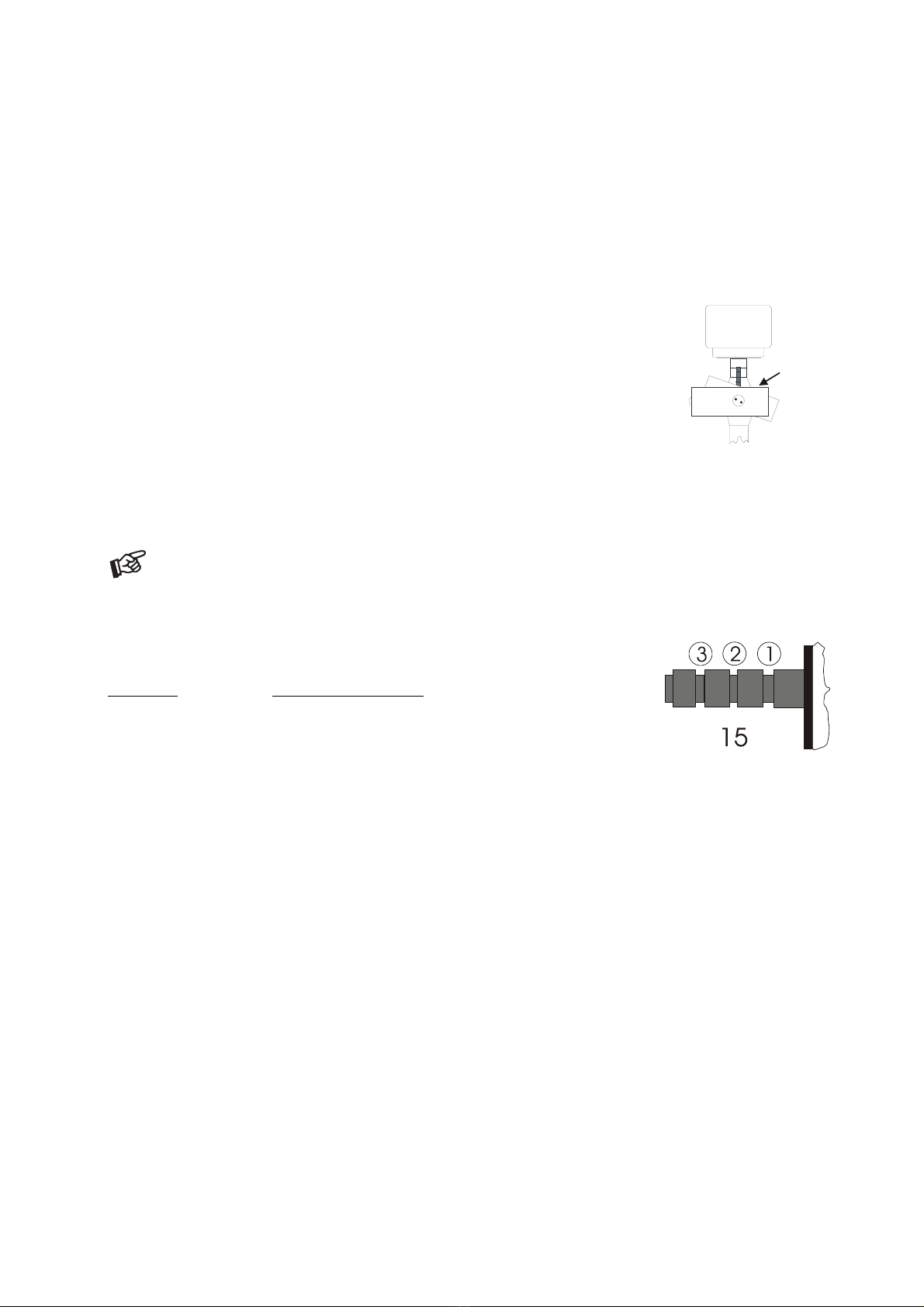

Downforce Groove in the stub (15)

10 - 15mN 1st from bearing rings

15 - 20mN 2nd " " "

20mN and bigger 3rd " " "

Hang the loop of the thread of the anti-skating weight in the groove of the anti-skating stub (15) corresponding

to the downforce applied to your cartridge and feed the thread through the loop of the wire support (17).

Connection to the amplifier

The PRO-JECT RPM 6.1 SB has gold plated female RCA phono sockets (14) so you can substitute the

interconnect cables supplied with those of your choice for connection to the amplifier if you wish. Your dealer

can advise you on alternative cables. Use the Phono input (sometimes labelled gram, disc or RIAA) on your

amplifier. Make sure that the phono input offers correct matching and amplification for the type of cartridge

used. Line inputs (such as CD, Tuner, Tape or Video) are not suitable.

Take care to connect the left and right channels correctly. The right channel is usually marked red, the left

channel black or white. Check the manual supplied with your amplifier for relevant information. An earthing

wire may be connected to the screw terminal between the sockets if you encounter hum problems when using

the record player.

If your amplifier does not have an input suitable for phono cartridges you will require a separate phono

amplifier stage for MM or MC cartridges such as the PRO-JECT PHONO BOX SE or the PRO-JECT TUBE BOX

which is then connected between the record player and a free line level input of the amplifier. For further

information see the last page.

Mains power connection

The turntable is supplied with a power supply suitable for your country's mains supply. Check the label before

connecting to ensure compliance with the mains rating in your house.

Connect the low voltage plug from the power supply to the socket (13) on the rear of the record player

before connecting the power supply to the mains.

Switching on and off

Pressing the power switch (20) alternately starts or stops the motor.

Changing replay speed

SPEED

45/78

SPEED BOX

45/78

Speed

Speed Box

Press the speed change button (24) to switch between 33 and 45 r.p.m.. The selected speed is shown

respectively by the lit green LED (33 r.p.m.) or red LED (45 r.p.m.).

To replay records at 78 r.p.m. perform the following steps: Remove the platter (5) and using the tool (3a)

from the accessory kit. Fit the belt (3) around the larger diameter step of the pulley (2). Replace the Platter,

start the turntable at 33 r.p.m. and switch the speed to 45 r.p.m., the platter will then revolve at 78 r.p.m..

To play at 45 or 78 r.p.m. please always start the turntable at 33 r.p.m. and then switch to the higher speed

when it has attained full speed.

Maintenance and cleaning

Your record player requires little or no regular maintenance. Remove dust with a slightly moistened antistatic

cloth. Never use a dry cloth because this will create static electricity which attract more dust! Antistatic

cleaning fluids are available at specialist stores but must be applied sparingly to avoid damage to rubber

parts. It is recommended to fit the needle cover before cleaning or maintenance is carried out to avoid damage.

If the player is not used over a long period of time the drive belt can be removed to prevent unequal stretching.

Always disconnect the record player from the mains power supply as a precaution before maintenance!

Useful tips

The record player should be positioned on a low-resonance surface such as wood or multiple layer ply board

to avoid structural vibrations disturbing replay.

Technical specifications PRO-JECT RPM 6.1 SB

* Electronic speed change * 33,33/* 45,11 and 78 r.p.m.

Speed variance ±0,5 %

Wow and flutter ±0,08 %

Signal to noise -70dB

Downforce range 10 - 30mN

Effective tonearm length 9 " (230mm)

Overhang 18mm

Power consumption 6W

Outboard power supply 16V/500mA AC, suitable for your country's mains supply

Dimensions (W x H x D) 385 x 170 x 330mm

Weight 8kg

Potential incorrect use and fault conditions

PRO-JECT turntables are manufactured to the highest standards and undergo strict quality controls before

leaving the factory. Faults that may possibly occur are not necessarily due to material or production faults but

can sometimes be caused by incorrect use or unfortunate circumstances. Therefore the following list of common

fault symptoms is included.

The platter doesn't turn although the unit is switched on:

The unit is not connected to the mains power supply.

No mains at the socket.

Drive belt is not fitted or has slipped off.

No signal through one or other channel or both channels:

No signal contact from the cartridge to the internal tonearm wiring or from that to the arm lead or

from that to the phono box or between that and the amplifier. This could be due to a faulty plug,

broken wire or solder joint or simply loose plug/socket connection.

Phono input not selected at amplifier.

Amplifier not switched on.

Amplifier or speakers defective or muted.

No connection to the loudspeakers.

Strong hum on phono input:

No earth connection from cartridge or arm or arm cable to amplifier, or earth loop.

Distorted or inconsistent sound from one or both channels:

Record player is connected to wrong input of amplifier, or MM/MC switch incorrectly set.

Needle or cantilever damaged.

Wrong r.p.m., drive belt overstretched or dirty, platter bearing without oil, dirty or damaged.

Service

Should you encounter a problem which you are not able to alleviate or identify despite the above information,

please contact your dealer for further advice. Only when the problem cannot be resolved there should the

unit be sent to the responsible distributor in your country.

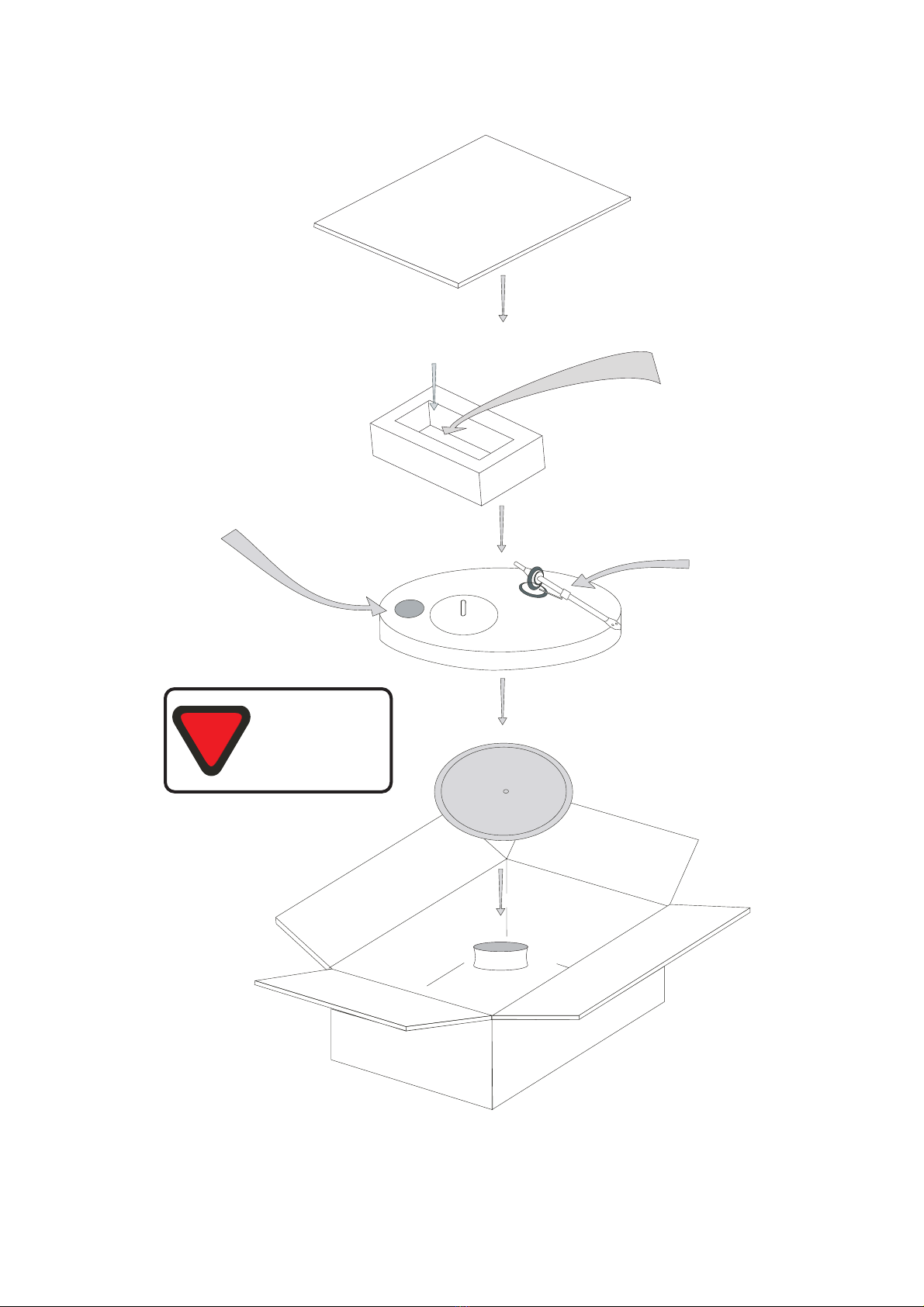

Never return a record player without making sure that is it safely disassembled and correctly packaged in the

original packaging according to the diagrams on page 8 of this booklet. Guarantee repairs will only be effected

if the unit is returned correctly packaged. For this reason we recommend keeping the original packaging.

Please remove these parts and pack them separately: counterweight (6), anti-skating weight (16) platter (5),

cartridge, belt (3). Insert the transport screws for the motor (1), the transport lock for the tonearm (18) and the

tonearm bearing prior to carefully packaging the record player.

Warranty

The manufacturer accepts no responsibility for damage caused by not adhering to these instructions

for use and/or by transportation without the original packaging. Modification or change to any part

of the product by unauthorized persons release the manufacturer from any liability over and above

the lawful rights of the customer.

PRO-JECT is a Registered Trademark of H. Lichtenegger.

This guide was produced by: Audio Trade GmbH

The information was correct at the time of going to

press. The manufacturer reserves the right to make

changes to the technical specification without prior

notice as deemed necessary to uphold the ongoing

process of technical development.

Record weight

Counterweight

Hub

Accessories

2 motor transport screws

(marked red)

Tonearm

transport lock

Platter

Please

remove feet

bevore repacking

Power supply

Phono pre-amplifier Phono Box II

 Amplification and RIAA equalisation for MM and MC cartridges

 Dual-Mono circuitry for improved channel separation

Available in silver or black finish

Phono pre-amplifier Phono Box SE

 Amplification and RIAA equalisation for MM and MC cartridges

 Selectable impedance for MC cartridges

 Subsonic filter

 Dual-Mono circuitry for improved channel separation

Tube phono pre-amplifier Tube Box II

 Amplification and RIAA equalisation for MM and MC cartridges

 Subsonic filter

 Dual-Mono circuitry utilising two double triodes for improved

channel separation

Available in silver or black finish

Tube phono pre-amplifier Tube Box

 Amplification and RIAA equalisation for MM and MC cartridges

 Selectable impedance for MC cartridges

 Subsonic filter

 Dual-Mono circuitry utilising two double triodes for improved

channel separation

Produktübersicht

Manufacturer reserves the right to change specification without notice. ·© Audio Trade GmbH.

For detailed product information please refer to the Pro-Ject full catalogue or the web site www.project-audio.com.

Autres manuels pour RPM 6.1 SB SuperPack

Table des matières

Autres manuels Pro-Ject Audio Systems Platine

Pro-Ject Audio Systems

Pro-Ject Audio Systems Pro-Ject 2 Xperience Comfort Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems 2 Xperience Basic + Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Perspective Final Edition Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Pro-Ject RPM 9.1 SuperPack 1 Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Debut Carbon DC Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Pro-Ject 6 PerspeX SuperPack Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Pro-Ject RPM 9.1 Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems VC-S Mise à jour du firmware

Pro-Ject Audio Systems

Pro-Ject Audio Systems Pro-Ject RPM 9 Carbon Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Signature 12 Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems VT-E BT L Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems RPM 5.1 Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems RPM 1.3 Genie Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Essential II DIGITAL Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Pro-Ject 1 Xpression III Comfort Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems 2Xperience Primary Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Xtension Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Debut Carbon EVO Mode d'emploi

Pro-Ject Audio Systems

Pro-Ject Audio Systems A2 Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Debut S Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Pro-Ject DEBUT III PHONO SB Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Xtension 10 Evolution Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems Speed Box MK II Manuel utilisateur

Pro-Ject Audio Systems

Pro-Ject Audio Systems ESSENTIAL III Guide de dépannage

Manuels Platine populaires d'autres marques

Gemini

Gemini CDT-05 MKII Manuel utilisateur

Rotel

Rotel RP-820 Manuel utilisateur

Shuman

Shuman MC-250BT Manuel utilisateur

Stanton

Stanton STR8-150 Manuel utilisateur

Audio Technica

Audio Technica AT-LPW40WN Manuel utilisateur

Crosley

Crosley McQueen CR7011-GY Manuel utilisateur

Reloop

Reloop SMP-1 Manuel utilisateur

auna

auna TT-Classic Plus Manuel utilisateur

COMO AUDIO

COMO AUDIO Turntable Analog Manuel utilisateur

Dual

Dual 1009 F Manuel utilisateur

REED

REED Muse3C Manuel utilisateur

AXIOMTEK

AXIOMTEK OPS883-H Series Manuel utilisateur

Pioneer

Pioneer PL-71 Manuel utilisateur

Vestax

Vestax PDX-a1 Manuel utilisateur

Denon

Denon DP-400 Manuel utilisateur

Dual

Dual 504 Manuel utilisateur

Audio-Techica

Audio-Techica AT-LP60XBT Manuel utilisateur

Goldring

Goldring G99 Manuel utilisateur
