Serial Number Decal

(under frame)

Model No. 831.21813.2

Serial No.

Write the serial number in the

space above for reference.

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manual

for future reference.

BIKE EXERCISER

User’s Manual

• Assembly

• Operation

• Maintenance

• Part List and Drawing

Sears, Roebuck and Co.

Hoffman Estates, IL 60179

WARNING DECAL PLACEMENT

TABLE OF CONTENTS

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

HOW TO USE THE EXERCISE BIKE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

MAINTENANCE AND TROUBLESHOOTING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

ORDERING REPLACEMENT PARTS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

90 DAY FULL WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

This drawing shows the location(s) of the warning

decal(s). If a decal is missing or illegible, call

1-888-533-1333 and request a free replacement

decal. Apply the decal in the location shown.

Note: The decal(s) may not be shown at actual size.

IMPORTANT PRECAUTIONS

WARNING: To reduce the risk of serious injury, read all important precautions and

instructions in this manual and all warnings on your exercise bike before using your exercise bike.

Sears assumes no responsibility for personal injury or property damage sustained by or through the

use of this product.

1. It is the responsibility of the owner to ensure

that all users of the exercise bike are ade-

quately informed of all precautions.

2. Before beginning any exercise program,

consult your physician. This is especially

important for persons over age 35 or per-

sons with pre-existing health problems.

3. Use the exercise bike only as described in

this manual.

4. The exercise bike is intended for home use

only. Do not use the exercise bike in a com-

mercial, rental, or institutional setting.

5. Keep the exercise bike indoors, away from

moisture and dust. Do not put the exercise

bike in a garage or covered patio, or near

water.

6. Place the exercise bike on a level surface

with at least 2 ft. (0.6 m) of clearance around

the exercise bike. To protect the floor or

carpet from damage, place a mat under the

exercise bike.

7. Inspect and properly tighten all parts regu-

larly. Replace any worn parts immediately.

8. Keep children under age 12 and pets away

from the exercise bike at all times.

9. Wear appropriate clothes while exercising;

do not wear loose clothes that could become

caught on the exercise bike. Always wear

athletic shoes for foot protection.

10. The exercise bike should not be used

by persons weighing more than 250 lbs.

(113 kg).

11. Be careful when mounting and dismounting

the exercise bike.

12. Always keep your back straight while using

the exercise bike; do not arch your back.

13. The heart rate monitor is not a medical

device. Various factors, including the user’s

movement, may affect the accuracy of heart

rate readings. The heart rate monitor is

intended only as an exercise aid in determin-

ing heart rate trends in general.

14. The exercise bike does not have a freewheel;

the pedals will continue to move until the

flywheel stops. Reduce your pedaling speed

in a controlled way.

15. Over exercising may result in serious injury

or death. If you feel faint, if you become short

of breath, or if you experience pain while

exercising, stop immediately and cool down.

Thank you for selecting the new PROFORM®230

U exercise bike. Cycling is an effective exercise for

increasing cardiovascular fitness, building endurance,

and toning the body. The 230 U exercise bike provides

an impressive selection of features designed to make

your workouts at home more effective and enjoyable.

For your benefit, read this manual carefully before

you use the exercise bike. If you have questions after

reading this manual, please see the back cover of this

manual. To help us assist you, note the product model

number and serial number before contacting us. The

model number and the location of the serial number

decal are shown on the front cover of this manual.

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Heart Rate Monitor

Seat

Carriage Knob

Leveling Foot

Wheel

Pedal/Strap

Console

Handlebar

Seat Knob

Water Bottle Holder*

*Water bottle is not included

BEFORE YOU BEGIN

Length: 2 ft. 8 in. (81 cm)

Width: 2 ft. (61 cm)

M8 x 18mm

Screw (42)–8

M4 x 12mm

Screw (57)–6

M10 x 68mm

Screw (44)–4

PART IDENTIFICATION CHART

Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each

drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the

key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it

has been preassembled. Extra parts may be included. If a part is missing, please call 1-888-533-1333.

ASSEMBLY

2. Identify the Rear Stabilizer (3), which has a

Leveling Foot (28) near each end.

Setasturdypieceofpackingmaterial(not

shown) under the rear of the Frame (1).

OrienttheRearStabilizer(3)asindicatedbythe

sticker. Attach the Rear Stabilizer to the Frame

(1) with two M10 x 68mm Screws (44).

Removethepackingmaterial.

• Assembly requires two persons.

• Place all parts in a cleared area and remove the

packing materials. Do not dispose of the packing

materials until you ﬁnish all assembly steps.

• Left parts are marked “L” or “Left” and right parts

are marked “R” or “Right.”

• To identify small parts, see page 5.

In addition to the included tool(s), assembly

requires the following tools:

one Phillips screwdriver

one adjustable wrench

Assembly may be easier if you have a set of

wrenches. To avoid damaging parts, do not use

power tools.

1. Go to www.proform.com/registration on your

computer and register your product.

•activates your warranty

•saves you time if you ever need to contact

Customer Care

•allows us to notify you of upgrades and offers

Note: If you do not have Internet access, call

1-888-533-1333 and register your product.

3. Set a sturdy piece of packing material under the

front of the Frame (1).

OrienttheFrontStabilizer(2)asindicatedbythe

sticker. Attach the Front Stabilizer to the Frame

(1) with two M10 x 68mm Screws (44).

Removethepackingmaterial.

4. Orient the Upright (4) as shown.

Tip: Avoid pinching the Main Wire (41). Attach

the Upright (4) to the Frame (1) with four M8 x

18mm Screws (42).

LocatethewiretieintheUpright(4).Tiethe

lower end of the wire tie to the Main Wire (41).

Then, pull the upper end of the wire tie until the

Main Wire is routed through the Upright.

Tip: To prevent the Main Wire (41) from fall-

ing into the Upright (4), secure the Main Wire

with the wire tie.

InserttheexcessMainWire(41)intothe

Upright (4).

Avoid pinching the

Main Wire (41)

Wire Tie

5. Orient the Rear and Front Upright Covers (19,

20) as shown.

PresstheRearandFrontUprightCovers(19,

20) together around the Upright (4), and join

them with two M4 x 12mm Screws (57).

Then,presstheRearandFrontUprightCovers

(19, 20) downward onto the Left and Right

Shields (21, 22).

21, 22

6. Orient the Handlebar (6) as shown.

Tip: Avoid pinching the Pulse Wire (58).

Attach the Handlebar (6) to the Upright (4) with

four M8 x 18mm Screws (42).

Avoid pinching the

Pulse Wire (58)

7. The Console (5) can use four D batteries (not

included); alkaline batteries are recommended.

Do not use old and new batteries together or

alkaline, standard, and rechargeable batter-

ies together. IMPORTANT: If the Console has

been exposed to cold temperatures, allow

it to warm to room temperature before you

insert batteries. Otherwise, you may dam-

age the console displays or other electronic

components. Remove the screws and the

battery covers, insert batteries into the battery

compartments, and then reattach the battery

covers. Make sure to orient the batteries as

shown by the diagrams inside the battery

compartments.

To purchase an optional power adapter, call

the telephone number on the cover of this

manual. To avoid damaging the console,

use only a manufacturer-supplied regulated

power adapter. Plug one end of the power

adapter into the receptacle on the console; plug

the other end into an outlet installed in accor-

dance with all local codes and ordinances.

Screws

Battery

Covers

Receptacle

Avoid pinching

the wires

8. Untie and discard the wire tie on the Main

Wire (41).

WhileasecondpersonholdstheConsole(5)

near the Upright (4), plug the Main Wire (41) and

the Pulse Wire (58) into the receptacles on the

Console.

The connectors on the Wires (41, 58) should

slide easily into the receptacles and snap

into place. If a connector does not slide eas-

ily into a receptacle, turn the connector and try

again. If you do not connect the connectors

properly, the console may become damaged

when you use the exercise bike.

InserttheexcesswireintotheUpright(4).

Tip: Avoid pinching the wires. Attach the

Console (5) to the Upright (4) with four M4 x

12mm Screws (57).

Adjustment

Holes

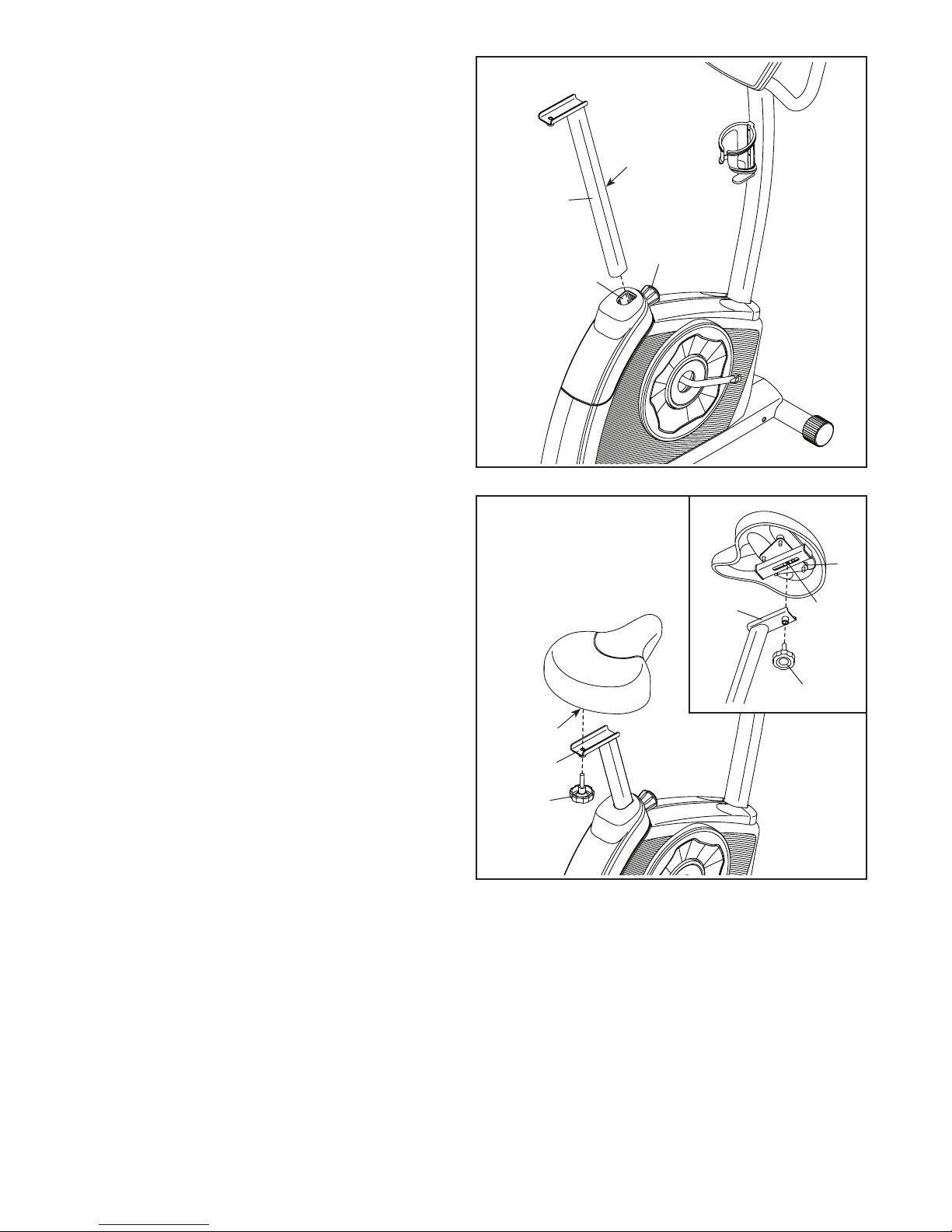

9. Orient the Seat Post (10) as shown. Loosen the

Post Knob (18) a few turns, pull it outward, and

insert the Seat Post into the Frame (1).

Then,slidetheSeatPost(10)upwardordown-

ward to the desired position, and release the

Post Knob (18) into one of the adjustment holes

in the Seat Post. Move the Seat Post upward

or downward slightly to make sure that the

Post Knob is engaged in one of the adjust-

ment holes in the Seat Post. Then, tighten the

Post Knob.

10. See the inset drawing. Remove the Carriage

Knob (15) from the Seat Carriage (11).

Next, set the Seat Carriage (11) on the Seat Post

(10) and hold it in place.

InserttheCarriageKnob(15)upwardintothe

Seat Post (10), and tighten the Carriage Knob

into the Carriage Bracket (14) inside the Seat

Carriage (11). Make sure that the Carriage

Knob is tightened into the Carriage Bracket.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Pro-Form vélo d'appartement

Pro-Form

Pro-Form endurance 720 e Manuel utilisateur

Pro-Form

Pro-Form 310 CSX PFEVEX73916.0 Manuel utilisateur

Pro-Form

Pro-Form 180 Zlx Bike Guide de démarrage rapide

Pro-Form

Pro-Form 715 Smr Bike Manuel utilisateur

Pro-Form

Pro-Form 345 Zlx Bike Manuel utilisateur

Pro-Form

Pro-Form 290 Csr Bike Manuel utilisateur

Pro-Form

Pro-Form Le Tour De France PFEVEX71919.0 Manuel utilisateur

Pro-Form

Pro-Form 1150ci Manuel d'utilisation et d'entretien

Pro-Form

Pro-Form 280 Zlx Bike Manuel utilisateur

Pro-Form

Pro-Form 280 Zlx Bike Guide de configuration

Pro-Form

Pro-Form 290 Csr Bike Guide de l'utilisateur

Pro-Form

Pro-Form 975S Manuel utilisateur

Pro-Form

Pro-Form 870e Manuel utilisateur

Pro-Form

Pro-Form Le Tour de France CBC PFEX39421-INT.1 Manuel utilisateur

Pro-Form

Pro-Form PFEVEX79911.0 Manuel utilisateur

Pro-Form

Pro-Form 100 Zlx Bike Manuel utilisateur

Pro-Form

Pro-Form 928L Manuel utilisateur

Pro-Form

Pro-Form 280 Re Bike Manuel utilisateur

Pro-Form

Pro-Form 780 Ekg Bike Manuel utilisateur

Pro-Form

Pro-Form 325 CSX+ Manuel utilisateur

Pro-Form

Pro-Form 715 Smr Bike Guide de démarrage rapide

Pro-Form

Pro-Form 790 E Manuel utilisateur

Pro-Form

Pro-Form 1150ci Manuel utilisateur

Pro-Form

Pro-Form LE TOUR DE FRANCE Manuel utilisateur

Manuels vélo d'appartement populaires d'autres marques

Weslo

Weslo Vector 302 Guide de démarrage rapide

TOORX

TOORX BRX85 Manuel utilisateur

Matrix

Matrix KranKcycle Manuel utilisateur

Matrix

Matrix IC3 Manuel utilisateur

Sunny Health & Fitness

Sunny Health & Fitness SF-B121021 Manuel utilisateur

Monark

Monark 827E Manuel utilisateur

Stamina

Stamina 1310 Manuel utilisateur

American Fitness

American Fitness SPR-BK1072A Manuel utilisateur

Cateye

Cateye CS-1000 (CYCLO SIMULATOR) Manuel utilisateur

BH FITNESS

BH FITNESS H9158H Manuel de l'opérateur

Body Sculpture

Body Sculpture BC-7220G Manuel utilisateur

Cateye

Cateye EC-2300 Manuel utilisateur

FYTTER

FYTTER RACER RC MSR Manuel utilisateur

Kikos

Kikos HM-9090M Manuel utilisateur

Fuel Fitness

Fuel Fitness SU135-40 Manuel utilisateur

NordicTrack

NordicTrack Gxr 4.2 Bike Manuel utilisateur

Vision Fitness

Vision Fitness U70 Manuel utilisateur

Stamina

Stamina 15-0340A Manuel utilisateur
