Pro-Form 8.0 EX Manuel utilisateur

USER’S MANUAL

Serial Number

Decal

Model No. PFEX14817.0

Serial No.

Write the serial number in the

space above for reference.

CAUTION

Read all precautions and

instructions in this manual before

using this equipment. Keep this

manual for future reference.

proform.com

To register your product and

activate your warranty today,

go to my.proform.com.

For service at any time, go to

proformservice.com.

Or call 1-888-533-1333

Mon.–Fri. 6 a.m.–6 p.m. MT

Sat. 8 a.m.–12 p.m. MT

Please do not contact the store.

ACTIVATE YOUR

WARRANTY

CUSTOMER CARE

WARNING DECAL PLACEMENT

166909 218557

218556

250085

• Not for therapeutic

use.

• Nicht für thera-

peutisch Gebrauch.

151249

259345

258865

258868 258869 258870 258871 258872

255569 258724 203572

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS..................................................................3

BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

HOW TO USE THE EXERCISE BIKE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

MAINTENANCE AND TROUBLESHOOTING.....................................................21

FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

EXERCISE GUIDELINES ....................................................................24

PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

ORDERING REPLACEMENT PARTS .................................................. Back Cover

LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

TABLE OF CONTENTS

This drawing shows the location(s) of the warning decal(s).

If a decal is missing or illegible, see the front cover

of this manual and request a free replacement decal.

Apply the decal in the location shown. Note: The

decal(s) may not be shown at actual size.

PROFORM and IFIT are registered trademarks of ICON Health & Fitness, Inc. App Store is a trademark of Apple

Inc., registered in the U.S. and other countries. Android and Google Play are trademarks of Google Inc. The

BLUETOOTH®word mark and logos are registered trademarks of Bluetooth SIG, Inc. and are used under license.

IOS is a trademark or registered trademark of Cisco in the U.S. and other countries and is used under license.

IMPORTANT PRECAUTIONS

WARNING: To reduce the risk of serious injury, read all important precautions and

instructions in this manual and all warnings on the exercise bike before using the exercise bike.

ICON assumes no responsibility for personal injury or property damage sustained by or through the

use of this product.

1. It is the responsibility of the owner to ensure

that all users of the exercise bike are ade-

quately informed of all precautions.

2. Before beginning any exercise program,

consult your physician. This is especially

important for persons over age 35 or per-

sons with pre-existing health problems.

3. The exercise bike is not intended for use by

persons with reduced physical, sensory, or

mental capabilities or lack of experience and

knowledge, unless they are given supervi-

sion or instruction about use of the exercise

bike by someone responsible for their safety.

4. Use the exercise bike only as described in

this manual.

5. The exercise bike is intended for home use

only. Do not use the exercise bike in a com-

mercial, rental, or institutional setting.

6. Keep the exercise bike indoors, away from

moisture and dust. Do not put the exercise

bike in a garage or covered patio, or near

water.

7. Place the exercise bike on a level surface

with at least 2 ft. (0.6 m) of clearance around

the exercise bike. To protect the floor or

carpet from damage, place a mat under the

exercise bike.

8. Inspect and properly tighten all parts each

time the exercise bike is used. Replace any

worn parts immediately.

9. Keep children under age 13 and pets away

from the exercise bike at all times.

10. Wear appropriate clothes while exercising;

do not wear loose clothes that could become

caught on the exercise bike. Always wear

athletic shoes for foot protection.

11. The exercise bike should not be used

by persons weighing more than 300 lbs.

(136 kg).

12. Be careful when mounting and dismounting

the exercise bike.

13. The heart rate monitor is not a medical

device. Various factors, including the user’s

movement, may affect the accuracy of heart

rate readings. The heart rate monitor is

intended only as an exercise aid in determin-

ing heart rate trends in general.

14. Always keep your back straight while using

the exercise bike; do not arch your back.

15. Over exercising may result in serious injury

or death. If you feel faint, if you become short

of breath, or if you experience pain while

exercising, stop immediately and cool down.

all

STANDARD SERVICE PLANS

Thank you for selecting the revolutionary PROFORM®

8.0 EX exercise bike. Cycling is one of the most effec-

tive exercises for increasing cardiovascular fitness,

building endurance, and toning the entire body. The

8.0 EX exercise bike provides an impressive selection

of features designed to make your workouts at home

more effective and enjoyable.

For your benefit, read this manual carefully before

you use the exercise bike. If you have questions after

reading this manual, please see the front cover of this

manual. To help us assist you, note the product model

number and serial number before contacting us. The

model number and the location of the serial number

decal are shown on the front cover of this manual.

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Heart Rate Monitor

Seat

Seat Post

Seat Knob

Leveling Foot

Handle

Wheel

Pedal/Strap

Fan

Console Knob

Handlebar

Console

Seat Post Knob

Accessory Tray

BEFORE YOU BEGIN

Length: 3 ft. 6 in. (107 cm)

Width: 1 ft. 11 in. (58 cm) Tablet Holder

M10 x 98mm

Screw (53)–4

M8 Locknut

(43)–2

M8 x 20mm

Screw (65)–4

M6 x 50mm Screw

(89)–1

M8 x 50mm Bolt

(70)–2

M4 x 16mm

Screw (72)–4

M4 x 22mm

Screw (84)–2

Tablet Holder

Screw (92)–4

PART IDENTIFICATION CHART

Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each

drawing is the key number of the part, from the PART LIST near the end of this manual. The number following

the key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see

whether it has been preassembled. Extra parts may be included.

• To hire an authorized service technician to

assemble this product, call 1-800-445-2480.

• Assembly requires two persons.

• Place all parts in a cleared area and remove the

packing materials. Do not dispose of the packing

materials until you nish all assembly steps.

• Left parts are marked “L” or “Left” and right parts

are marked “R” or “Right.”

• To identify small parts, see page 6.

• In addition to the included tool(s), assembly

requires the following tools:

one Phillips screwdriver

one adjustable wrench

Assembly may be easier if you have a set of

wrenches. To avoid damaging parts, do not use

power tools.

ASSEMBLY

1. Go to my.proform.com on your computer and

• activates your warranty

• saves you time if you ever need to contact

Customer Care

• allows us to notify you of upgrades and offers

Note: If you do not have internet access, call

Customer Care (see the front cover of this

manual) and register your product.

2. Set a sturdy piece of packing material under the

rear of the Frame (1).

Attach the Rear Stabilizer (3) to the Frame (1)

with two M10 x 98mm Screws (53).

Then, remove the packing material.

3. Set a sturdy piece of packing material under the

front of the Frame (1).

Attach the Front Stabilizer (2) to the Frame (1)

with two M10 x 98mm Screws (53).

Then, remove the packing material.

10, 11

4. Raise the Upright (4) to the vertical position.

Have a second person hold the Upright until

you complete this step.

Attach the Upright (4) to the Frame (1) with four

M8 x 20mm Screws (65); start all the Screws,

and then tighten them.

Next, orient the Front Shield Cover (9) as shown,

and slide it downward onto the Upright (4). Then,

press the Front Shield Cover onto the Right and

Left Shields (10, 11).

5. Attach the Accessory Tray (8) to the Upright (4)

with an M6 x 50mm Screw (89).

6. Have a second person hold the Handlebar (5)

near the Upright (4).

See the inset drawing. Route the Upper Wire

(87) through the Pivot Post (78) and the Pivot

Bracket (71) as shown. Tip: It may be easier to

route the Upper Wire if you adjust the angle

of the Pivot Bracket by turning the Console

Knob (77).

Tip: Avoid pinching the wires. Insert the Pivot

Post (78) into the Upright (4).

Attach the Pivot Post (78) with two M8 x 50mm

Bolts (70) and two M8 Locknuts (43); make

sure that the Locknuts are in the hexagonal

holes (A).

Avoid pinching

the wires

884

8. Tip: Avoid pinching the wires. Press the Front

Pivot Cover (12) and the Rear Pivot Cover (15)

together around the Pivot Bracket (71).

Attach the Front and Rear Pivot Covers (12, 15)

to the Pivot Bracket (71) with two M4 x 22mm

Screws (84).

Avoid pinching

the wires

Avoid

pinching

the wires

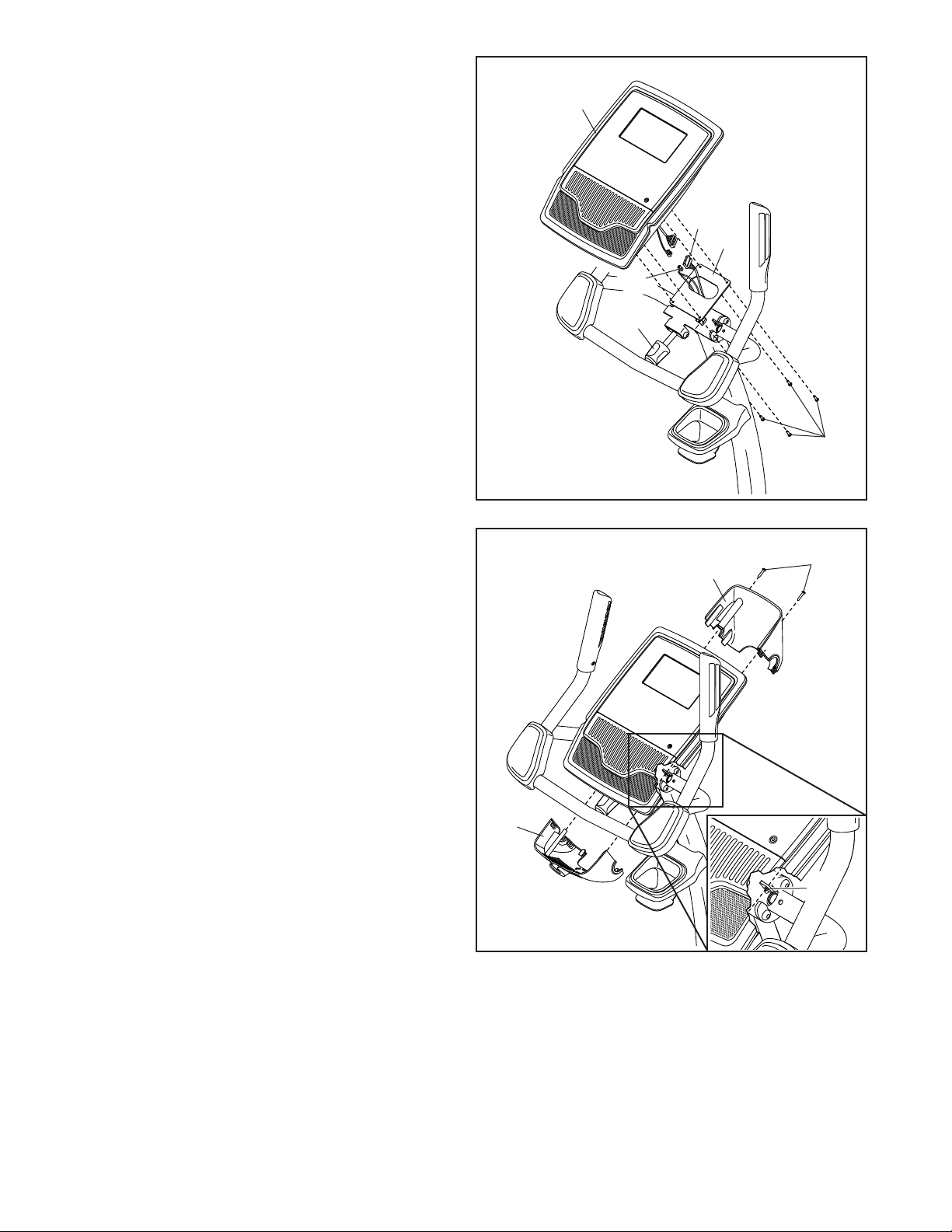

7. IMPORTANT: Turn the Console Knob (77)

until the Pivot Bracket (71) is in the most

vertical position.

While a second person holds the Console (13)

near the Pivot Bracket (71), connect the wires

on the Console to the Upper Wire (87) and the

Pulse Wire (61).

Insert the excess wire downward through the

Pivot Bracket (71). Do not insert the excess

wire into the Console (13); the wires may

interfere with the fan.

Tip: Avoid pinching the wires. Attach the

Console (13) to the Pivot Bracket (71) with four

M4 x 16mm Screws (72).

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Pro-Form vélo d'appartement

Pro-Form

Pro-Form 831.21926.0 Manuel utilisateur

Pro-Form

Pro-Form 280 Zlx Bike Manuel d'utilisation et d'entretien

Pro-Form

Pro-Form 5.0 Es Bike Manuel utilisateur

Pro-Form

Pro-Form 180 Zlx Bike Manuel utilisateur

Pro-Form

Pro-Form SR 20 Manuel utilisateur

Pro-Form

Pro-Form 831.280442 Manuel utilisateur

Pro-Form

Pro-Form 928L Manuel utilisateur

Pro-Form

Pro-Form PFEX38491 Manuel utilisateur

Pro-Form

Pro-Form PFEVEX71413.3 Manuel utilisateur

Pro-Form

Pro-Form 100 Zlx Bike Manuel du système

Pro-Form

Pro-Form PFEX34310 Manuel utilisateur

Pro-Form

Pro-Form 300 Zlx Bike Guide de démarrage rapide

Pro-Form

Pro-Form LE TOUR DE FRANCE PFEX09916.1 Manuel utilisateur

Pro-Form

Pro-Form 345 Zlx Bike Manuel utilisateur

Pro-Form

Pro-Form 1150ci Guide de l'utilisateur

Pro-Form

Pro-Form 100 Zlx Bike Manuel d'utilisation et d'entretien

Pro-Form

Pro-Form 740 Ekg Bike Guide de démarrage rapide

Pro-Form

Pro-Form GR 80 PFEX1995.1 Manuel utilisateur

Pro-Form

Pro-Form 831.21813.2 Manuel utilisateur

Pro-Form

Pro-Form 780 Ekg Bike Manuel d'utilisation et d'entretien

Pro-Form

Pro-Form 831.288300 Manuel utilisateur

Pro-Form

Pro-Form 1150ci Manuel d'utilisation et d'entretien

Pro-Form

Pro-Form PFEX25122 Manuel utilisateur

Pro-Form

Pro-Form PFEX19810.2 Manuel utilisateur

Manuels vélo d'appartement populaires d'autres marques

Weslo

Weslo Vector 302 Guide de démarrage rapide

TOORX

TOORX BRX85 Manuel utilisateur

Matrix

Matrix KranKcycle Manuel utilisateur

Matrix

Matrix IC3 Manuel utilisateur

Sunny Health & Fitness

Sunny Health & Fitness SF-B121021 Manuel utilisateur

Monark

Monark 827E Manuel utilisateur

Stamina

Stamina 1310 Manuel utilisateur

American Fitness

American Fitness SPR-BK1072A Manuel utilisateur

Cateye

Cateye CS-1000 (CYCLO SIMULATOR) Manuel utilisateur

BH FITNESS

BH FITNESS H9158H Manuel de l'opérateur

Body Sculpture

Body Sculpture BC-7220G Manuel utilisateur

Cateye

Cateye EC-2300 Manuel utilisateur

FYTTER

FYTTER RACER RC MSR Manuel utilisateur

Kikos

Kikos HM-9090M Manuel utilisateur

Fuel Fitness

Fuel Fitness SU135-40 Manuel utilisateur

NordicTrack

NordicTrack Gxr 4.2 Bike Manuel utilisateur

Vision Fitness

Vision Fitness U70 Manuel utilisateur

Stamina

Stamina 15-0340A Manuel utilisateur
