USER’S MANUAL

Serial

Number

Decal

CAUTION

Read all precautions and

instructions in this manual before

using this equipment. Keep this

manual for future reference.

Model No. PFEL31315.1

Serial No.

Write the serial number in the space

above for reference.

www.proform.com

To register your product and

activate your warranty today,

go to www.proformservice.com/

registration.

For service at any time, go to

www.proformservice.com.

Or call 1-888-533-1333

Mon.–Fri. 6 a.m.–6 p.m. MT

Sat. 8 a.m.–12 p.m. MT

Please do not contact the store.

ACTIVATE YOUR

WARRANTY

CUSTOMER CARE

This drawing shows the location(s) of the warning

decal(s). If a decal is missing or illegible, see

the front cover of this manual and request a

free replacement decal. Apply the decal in the

location shown. Note: The decal(s) may not be

shown at actual size.

TABLE OF CONTENTS

WARNING DECAL PLACEMENT

IFIT and PROFORM are registered trademarks of ICON Health & Fitness, Inc. Google Maps is a trademark of

Google Inc. Wi-Fi is a registered trademark of Wi-Fi Alliance. WPA and WPA2 are trademarks of Wi-Fi Alliance.

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS..................................................................3

BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

THE CHEST HEART RATE MONITOR. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

HOW TO USE THE ELLIPTICAL ..............................................................15

FCC INFORMATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

MAINTENANCE AND TROUBLESHOOTING ....................................................32

EXERCISE GUIDELINES ....................................................................34

PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .38

ORDERING REPLACEMENT PARTS .................................................. Back Cover

LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

WARNING: To reduce the risk of burns, fire, electric shock, or injury to persons, read

all important precautions and instructions in this manual and all warnings on your elliptical before

using your elliptical. ICON assumes no responsibility for personal injury or property damage sus-

tained by or through the use of this product.

1. It is the responsibility of the owner to ensure

that all users of the elliptical are adequately

informed of all precautions.

2. Before beginning any exercise program,

consult your physician. This is especially

important for persons over age 35 or persons

with pre-existing health problems.

3. The elliptical is not intended for use by

persons with reduced physical, sensory, or

mental capabilities or lack of experience and

knowledge, unless they are given supervi-

sion or instruction about use of the elliptical

by someone responsible for their safety.

4. Use the elliptical only as described in this

manual.

5. The elliptical is intended for home use only.

Do not use the elliptical in a commercial,

rental, or institutional setting.

6. Keep the elliptical indoors, away from

moisture and dust. Do not put the elliptical in

a garage or covered patio, or near water.

7. Place the elliptical on a level surface, with at

least 3 ft. (0.9 m) of clearance in the front and

rear of the elliptical and 2 ft. (0.6 m) on each

side. To protect the floor or carpet from dam-

age, place a mat under the elliptical.

8. Inspect and properly tighten all parts each

time the elliptical is used. Replace any worn

parts immediately.

9. Keep children under age 13 and pets away

from the elliptical at all times.

10. When connecting the power cord (see page

15), plug the power cord into a grounded

circuit.

11. Do not modify the power cord or use an

adapter to connect the power cord to an

improper receptacle. Keep the power cord

away from heated surfaces. Do not use an

extension cord.

12. Do not operate the elliptical if the power cord

or plug is damaged, or if the elliptical is not

working properly.

13. DANGER: Always unplug the power

cord and switch the power switch to the off

position when the elliptical is not in use and

before cleaning the elliptical. Servicing other

than the procedures in this manual should

be performed by an authorized service repre-

sentative only.

14. The elliptical should not be used by persons

weighing more than 375 lbs. (170 kg).

15. Wear appropriate clothes while exercising;

do not wear loose clothes that could become

caught on the elliptical. Always wear athletic

shoes for foot protection while exercising.

16. Hold the handlebars or the upper body arms

when mounting, dismounting, or using the

elliptical.

17. The heart rate monitor is not a medical

device. Various factors may affect the accu-

racy of heart rate readings. The heart rate

monitor is intended only as an exercise aid

in determining heart rate trends in general.

IMPORTANT PRECAUTIONS

SAVE THESE INSTRUCTIONS

18. The elliptical does not have a freewheel; the

pedals will continue to move until the fly-

wheel stops. Reduce your pedaling speed in

a controlled way.

19. Keep your back straight while using the

elliptical; do not arch your back.

20. Over exercising may result in serious injury

or death. If you feel faint, if you become short

of breath, or if you experience pain while

exercising, stop immediately and cool down.

UTS

all

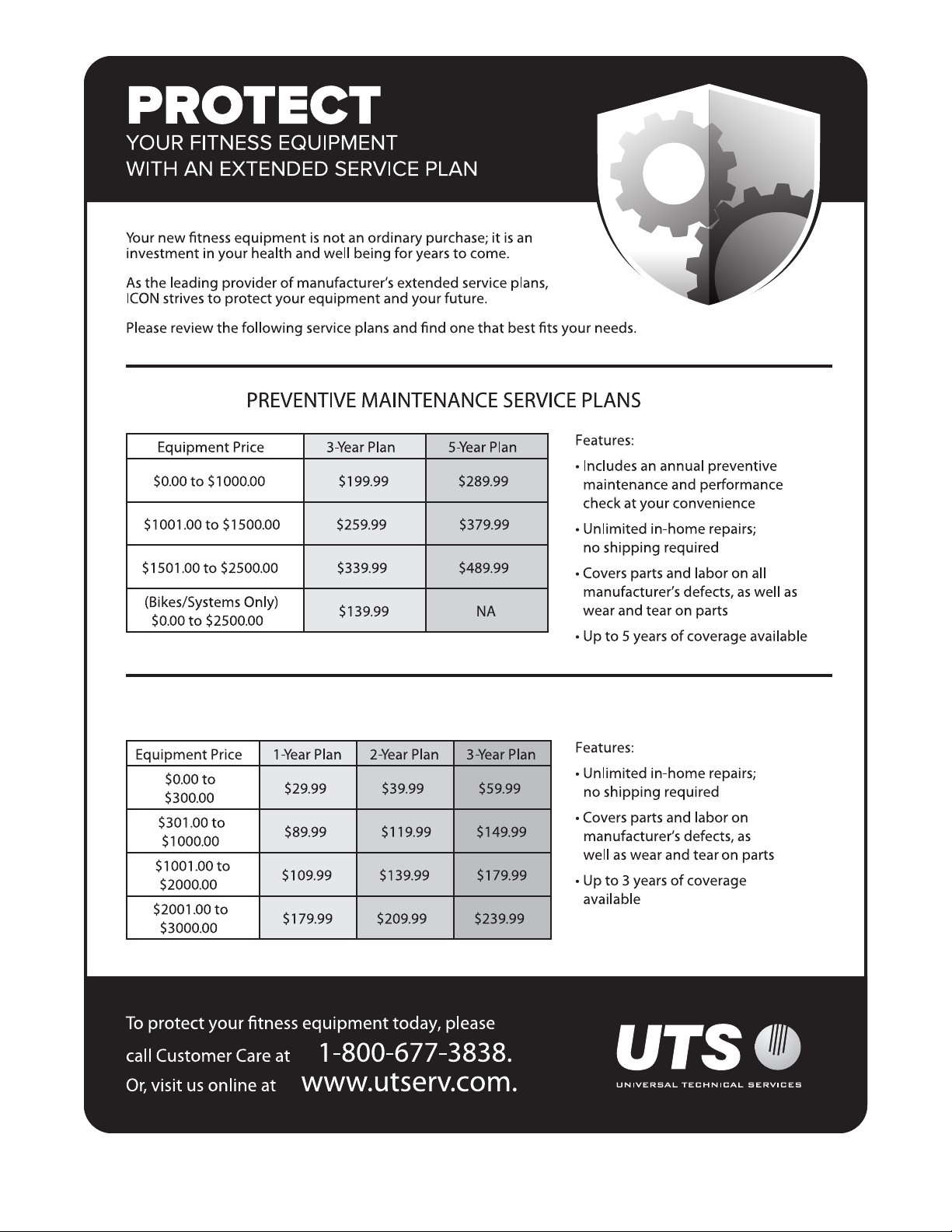

STANDARD SERVICE PLANS

Fan

Console

Tablet Holder

Upper Body Arm

Heart Rate Monitor

Wheel

Pedal

Roller

Pedal Handle

Handle

Accessory Tray

Ramp

Handlebar

Length: 6 ft. 8 in. (203 cm)

Width: 2 ft. 5 in. (74 cm)

Thank you for selecting the revolutionary PROFORM®

PRO 16.9 elliptical. The PRO 16.9 elliptical provides an

impressive selection of features designed to make your

workouts at home more effective and enjoyable.

For your benefit, read this manual carefully before

you use the elliptical. If you have questions after

reading this manual, please see the front cover of this

manual. To help us assist you, note the product model

number and serial number before contacting us. The

model number and the location of the serial number

decal are shown on the front cover of this manual.

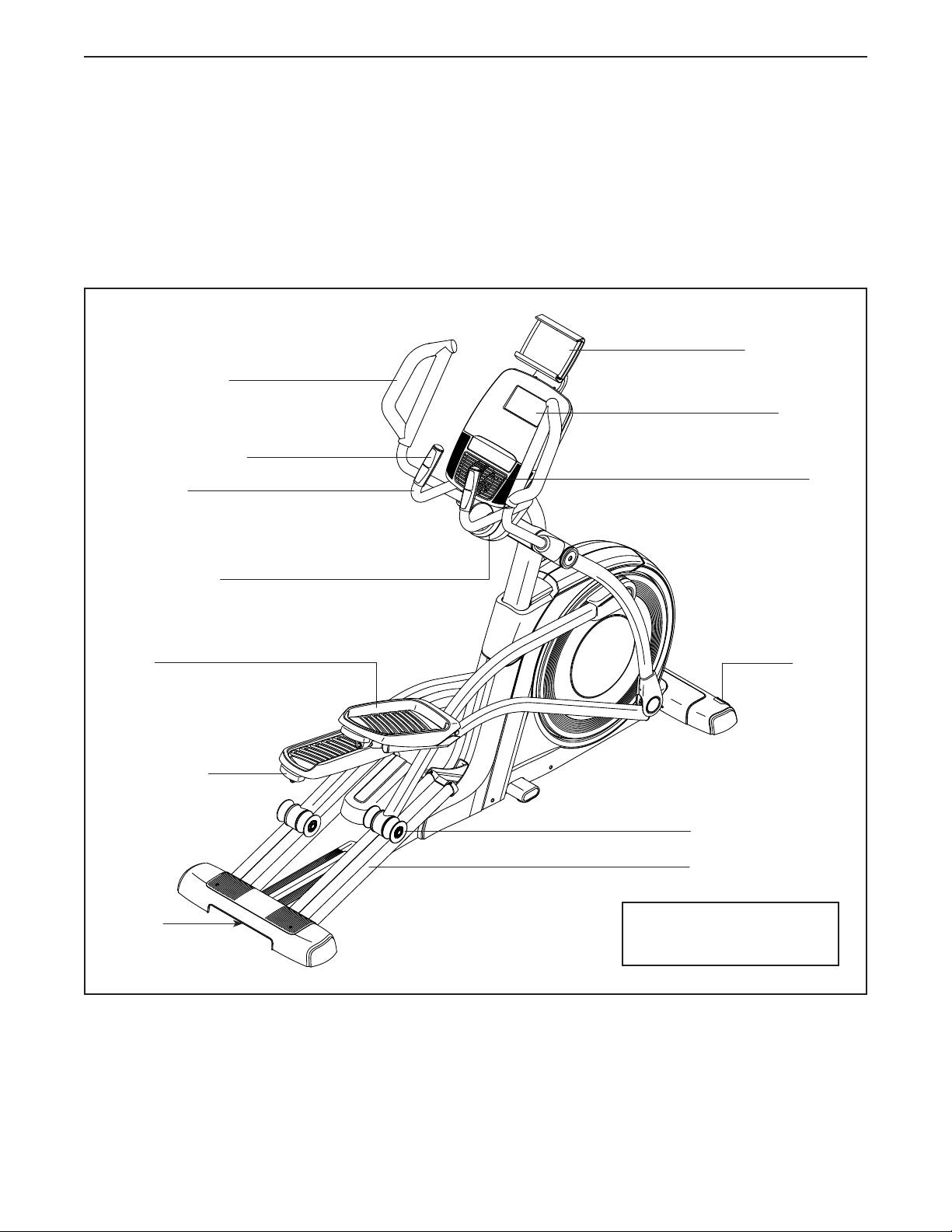

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

BEFORE YOU BEGIN

M10 x 75mm Screw

(142)–2

M10 Locknut

(99)–4

M10 x 20mm

Screw (144)–12

M4 x 16mm

Screw (104)–4

M10 x 45mm

Bolt (143)–4

M10 x 70mm

Screw (139)–2

#8 x 12mm

Screw (152)–4

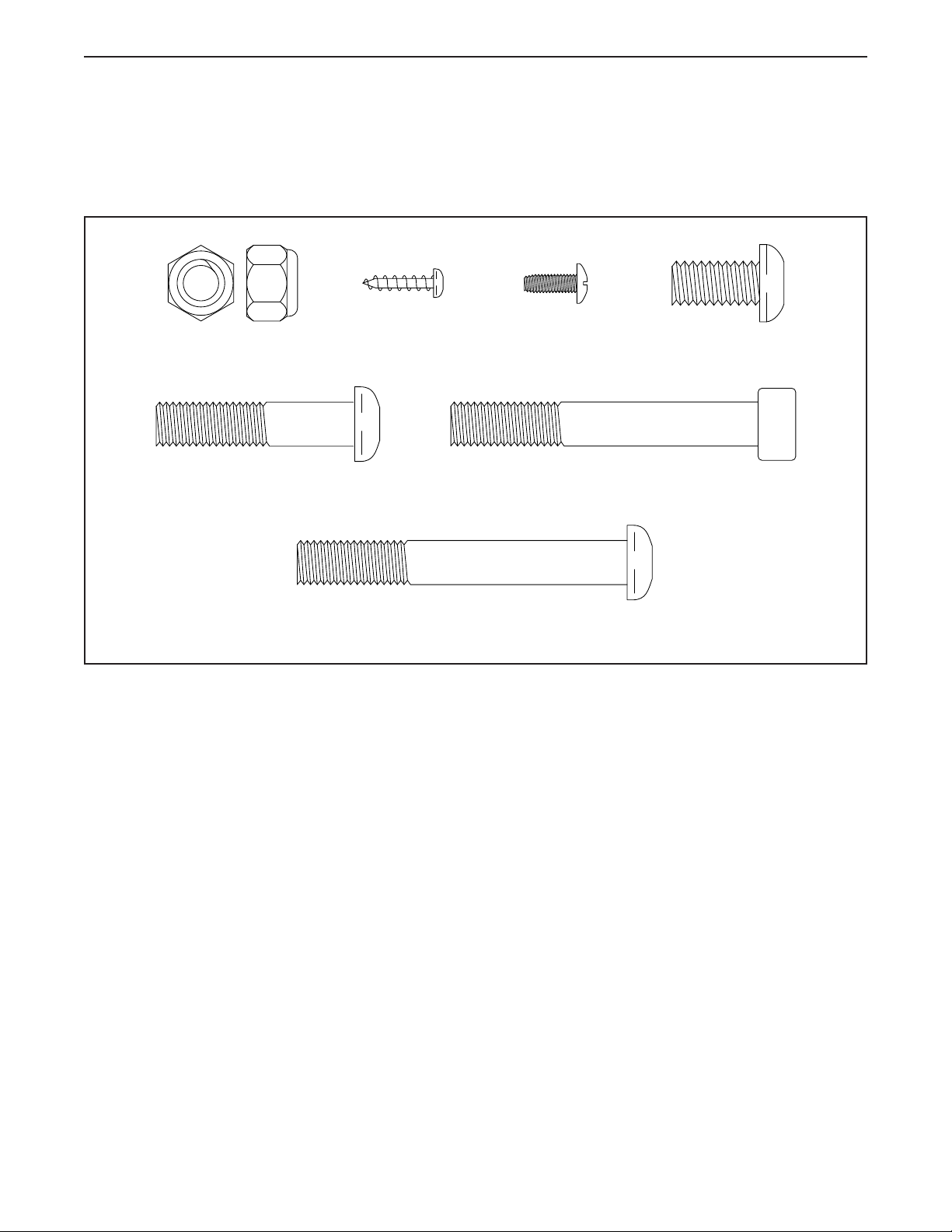

PART IDENTIFICATION CHART

Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each

drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the

key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it

has been preassembled. Extra parts may be included.

• To hire an authorized service technician to

assemble this product, call 1-800-445-2480.

• Assembly requires two persons.

• Place all parts in a cleared area and remove the

packing materials. Do not dispose of the packing

materials until you complete all assembly steps.

• Left parts are marked “L” or “Left” and right parts

are marked “R” or “Right.”

• To identify small parts, see page 8.

• In addition to the included tool(s), assembly

requires the following tools:

one Phillips screwdriver

one adjustable wrench

Assembly may be easier if you have your own set

of wrenches. To avoid damaging parts, do not use

power tools.

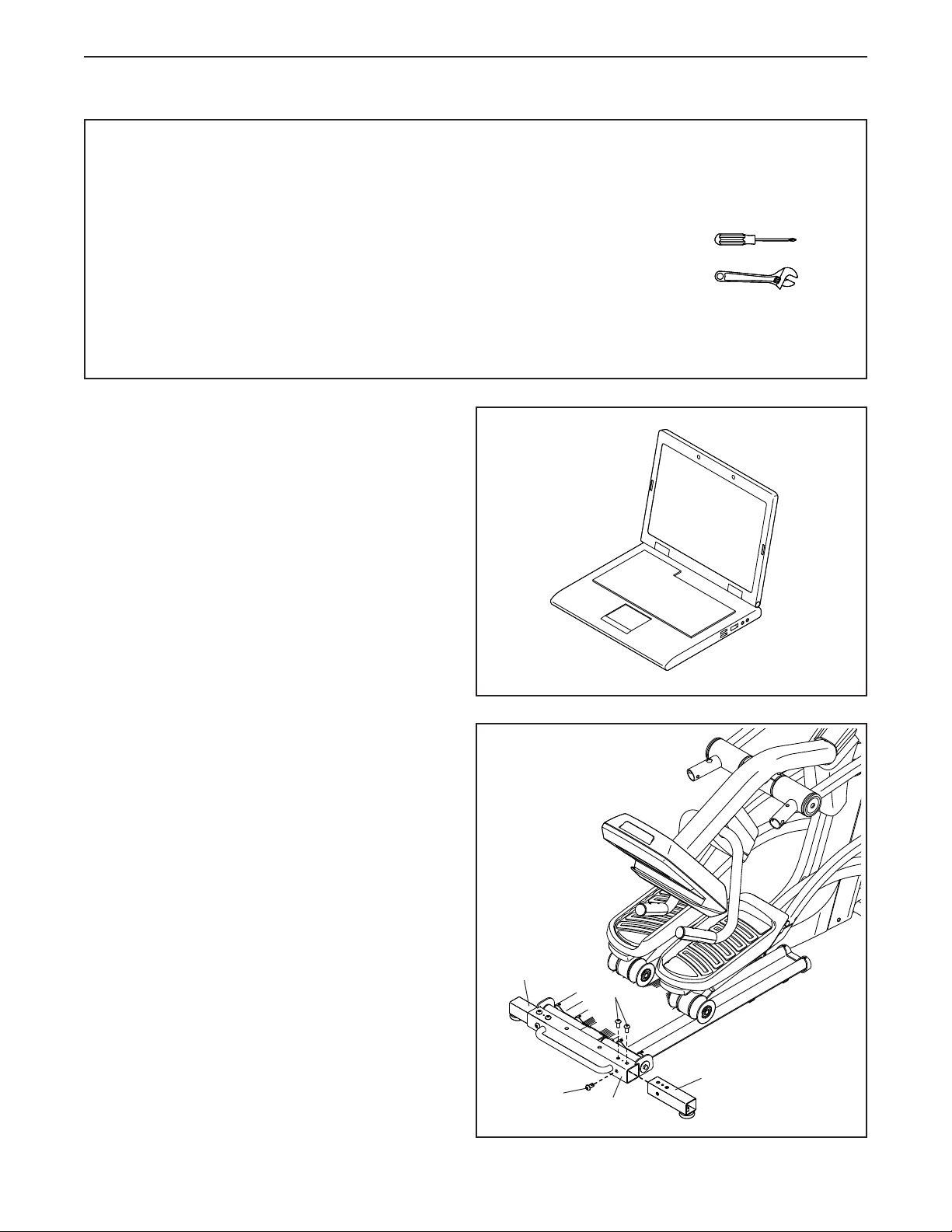

ASSEMBLY

1. Go to www.proform.com/registration on your

computer and register your product.

• activates your warranty

• saves you time if you ever need to contact

Customer Care

• allows us to notify you of upgrades and offers

Note: If you do not have internet access, call

Customer Care (see the front cover of this

manual) and register your product.

2. With the help of a second person, place some of

the packing materials (not shown) under the rear

of the Frame (1). Have the second person hold

the Frame to prevent it from tipping while you

complete this step.

Identify the two Rear Stabilizers (5).

Attach one of the Rear Stabilizers (5) to the

Frame (1) with three M10 x 20mm Screws (144);

start all of the Screws, and then tighten them.

Attach the other Rear Stabilizer (5) in the

same way.

Then, remove the packing materials from under

the Frame (1).

144

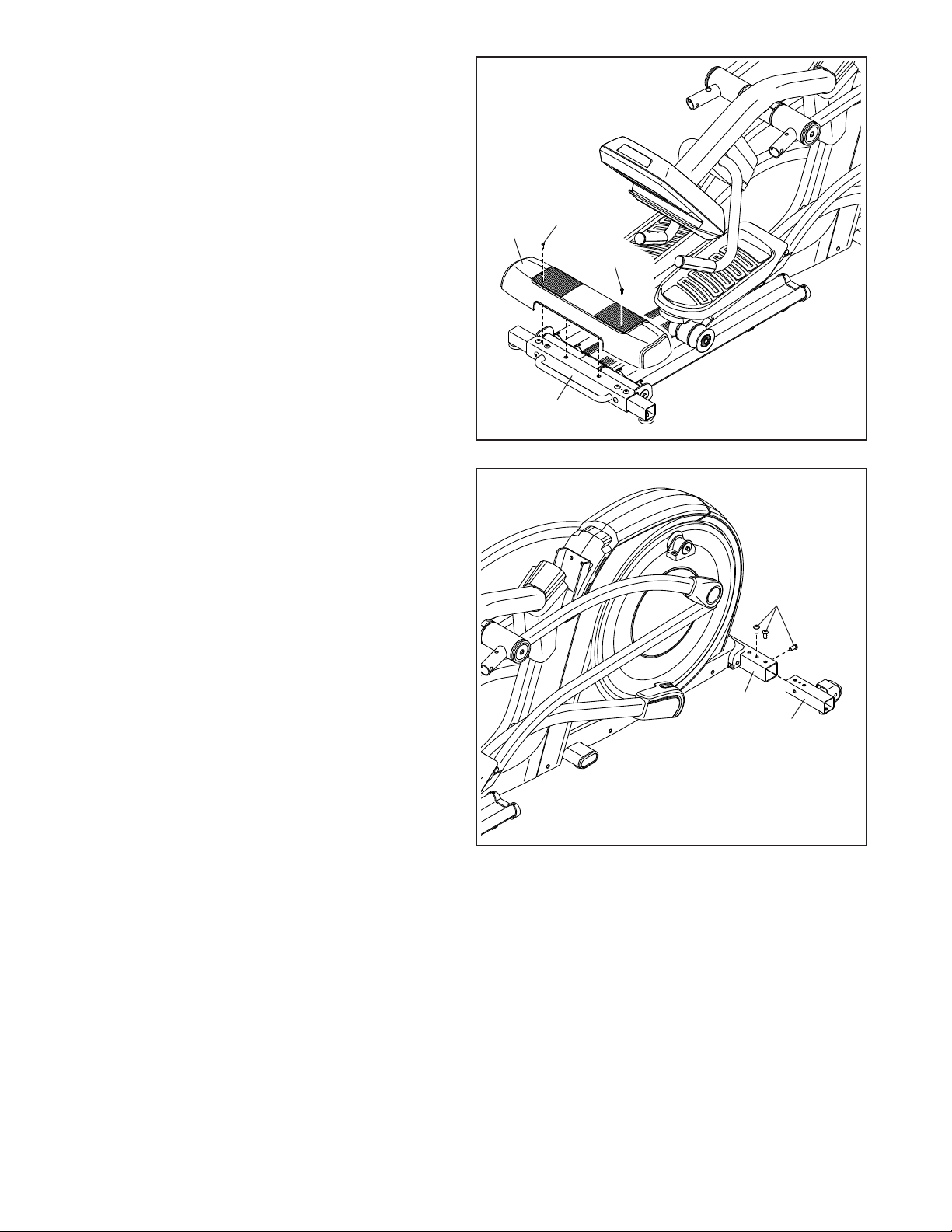

3. Orient the Rear Stabilizer Cover (2) as shown,

and press it onto the Frame (1).

Attach the Rear Stabilizer Cover (2) with two

M4 x 16mm Screws (104).

104

4. With the help of a second person, place some of

the packing materials (not shown) under the front

of the Frame (1). Have the second person hold

the Frame to prevent it from tipping while you

complete this step. Leave the packing materi-

als in place until you complete step 5.

Identify the Right Front Stabilizer (6) and orient it

as shown.

Attach the Right Front Stabilizer (6) to the Frame

(1) with three M10 x 20mm Screws (144); start

all of the Screws, and then tighten them.

Attach the Left Front Stabilizer (not shown) in

the same way.

144
