Pro-Form PFEL79907.1 Manuel utilisateur

Model No. PFEL79907.1

Serial No.

Write the serial number in the space

above for reference.

USER’S MANUAL

Visit our website at

www.proform.com

new products, prizes,

fitness tips, and much more!

Serial Number Decal

(on underside of frame)

QUESTIONS?

As a manufacturer, we are commit-

ted to providing complete customer

satisfaction. If you have questions,

or if parts are damaged or missing,

PLEASE DO NOT CONTACT THE

STORE; please contact Customer

Care.

IMPORTANT: You must note the

product model number and serial

number (see the drawing above)

before contacting us:

CALL TOLL-FREE:

1-888-533-1333

Mon.–Fri. 6 a.m.–6 p.m. MST

Sat. 8 a.m.–4 p.m. MST

ON THE WEB:

www.proformservice.com

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manual

for future reference.

TABLE OF CONTENTS

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

HOW TO USE THE ELLIPTICAL EXERCISER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

MAINTENANCE AND TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

PROFORM is a registered trademark of ICON IP, Inc.

WARNING DECAL PLACEMENT

The warning decal shown at the right has

been applied in the location shown. If the

decal is missing or illegible, call the

telephone number on the front cover of

this manual and request a free replace-

ment decal. Apply the decal in the loca-

tion shown. Note: The decal may not be

shown at actual size.

1. Before beginning any exercise program,

consult your physician. This is especially

important for persons over the age of 35 or

persons with pre-existing health problems.

2. It is the responsibility of the owner to ensure

that all users of the elliptical exerciser are

adequately informed of all precautions.

3. Your elliptical exerciser is intended for home

use only. Do not use your elliptical exerciser

in a commercial, rental, or institutional set-

ting.

4. Keep your elliptical exerciser indoors, away

from moisture and dust. Place your elliptical

exerciser on a level surface, with a mat

beneath it to protect the floor or carpet.

Make sure that there is enough clearance

around your elliptical exerciser to mount,

dismount, and use it.

5. Inspect and properly tighten all parts regu-

larly. Replace any worn parts immediately.

6. Keep children under age 12 and pets away

from your elliptical exerciser at all times.

7. Your elliptical exerciser should not be used

by persons weighing more than 250 lbs.

(113 kg).

8. Wear appropriate exercise clothes when

exercising; do not wear loose clothes that

could become caught on your elliptical exer-

ciser. Always wear athletic shoes for foot

protection.

9. Hold the handgrip pulse sensor or the upper

body arms when mounting, dismounting, or

using your elliptical exerciser.

10. Keep your back straight while using your

elliptical exerciser; do not arch your back.

11. The pulse sensor is not a medical device.

Various factors, including the user’s move-

ment, may affect the accuracy of heart rate

readings. The pulse sensor is intended only

as an exercise aid in determining heart rate

trends in general.

12. When you stop exercising, allow the pedals

to slowly come to a stop.

13. If you feel pain or dizziness while exercising,

stop immediately and cool down.

14. Use your elliptical exerciser only as

described in this manual.

15. To reduce the risk of electric shock, do not

remove the cover or the back of the televi-

sion. There are no user serviceable parts

inside. Refer servicing to qualified service

personnel.

16. To protect the treadmill and TV during light-

ning storms, unplug the power cord from

the wall outlet and disconnect the cable sys-

tem. This will prevent damage due to light-

ning and power line surges.

17. Upon completion of any service or repairs

to the treadmill or the television, ask the

service technician to perform safety checks

to confirm that the unit is in proper operat-

ing condition.

Note to CATV system installer: This reminder is

provided to call the CATV system installer’s

attention to Article 820-40 of the NEC that pro-

vides guidelines for proper grounding and, in

particular, specifies that the cable ground shall

be connected to the grounding system of the

building, as close to the point of cable entry as

practical.

WARNING: To reduce the risk of serious injury, read all important precautions and

instructions in this manual and all warnings on your elliptical exerciser before using your elliptical

exerciser. ICON assumes no responsibility for personal injury or property damage sustained by or

through the use of this product.

IMPORTANT PRECAUTIONS

BEFORE YOU BEGIN

Thank you for selecting the revolutionary PROFORM®

PERSPECTIVE 1000 elliptical exerciser. The PER-

SPECTIVE 1000 elliptical exerciser provides a wide

array of features, including a personal television,

designed to make your workouts at home more effec-

tive and enjoyable.

For your benefit, read this manual carefully before

you use the elliptical exerciser. If you have ques-

tions after reading this manual, please see the front

cover of this manual. To help us assist you, note the

product model number and serial number before con-

tacting us. The model number and the location of th

serial number decal are shown on the front cover of

this manual for the location of the decal.

To avoid a registration fee for any service needed

under warranty, you must register the exerciser at

www.proformservice.com/registration.

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Handgrip Pulse Sensor

Wheel

Pedal

Console/Personal Television

Water Bottle Holder*

Accessory Tray

Leveling Foot

*No water bottle is included

Handlebar

Leveling Foot

ASSEMBLY

To hire an authorized service technician to assemble the elliptical exerciser, call 1-800-445-2480.

Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the

packing materials. Do not dispose of the packing materials until assembly is completed. In addition to the

included hex keys, assembly requires a Phillips screwdriver , an adjustable

wrench , and a rubber mallet .

As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parentheses

below each drawing is the key number of the part, from the PART LIST near the end of this manual. The number

following the parentheses is the quantity needed for assembly. Note: Some small parts may have been pre-

assembled. If a part is not in the hardware kit, check to see if it has been preassembled.

M4 x 16mm

Self-tapping

Screw (79)–16

M8 x 42mm Bolt

(71)–4

M10 x 20mm x

1mm Washer

(81)–2

M4 x 16mm

Screw (86)–8

M6 x 35mm Phillips

Screw (87)–8

M6 Split

Washer (88)–8

M10 x 23mm Shoulder

Screw (80)–2

M4 x 13mm

Washer (93)–2

M10 x 25mm

Washer (94)–10

M8 Nylon

Locknut (96)–4

M10 Nylon

Locknut (97)–2

Wave Washer

(98)–8

Star Washer

(100)–3

M8 x 15mm x 4.5mm

Washer (99)–4

M8 Split

Washer (72)–4

M10 x 20mm Patch

Screw (91)–10

M8 x 16mm Patch

Screw (95)–3

M8 x 75mm Patch

Screw (107)–4

M10 x 78mm Patch Screw (90)–2

M10 x 62mm Patch Bolt (89)–2

Attach the two Wheels (25) to the Front Stabilizer

(35) with two M10 x 62mm Patch Bolts (89) and

two M10 Nylon Locknuts (97).

Attach two Leveling Feet (26) to the underside of

the Front Stabilizer (35).

2. Orient the Front Stabilizer (35) as shown. Have a

second person tip the Frame (2) backward.

Attach the Front Stabilizer (35) to the Frame with

two M10 x 78mm Patch Screws (90).

3. Position the Base (1) near the Frame (2) as

shown. See the inset drawing. Attach two

Leveling Feet (26) to the underside of the Base.

Have a second person tip the Frame (2) forward.

Insert the Base (1) into the Frame. Attach the

Base with four M8 x 75mm Patch Screws (107),

four M8 Split Washers (72), and four

M8 x 15mm x 4.5mm Washers (99).

107 107

To make assembly easier, read the

information on page 5 before you begin

assembling the elliptical exerciser.

5. Have a second person hold the Upright (6) near

the Frame (2) as shown.

Pull the Wire Harness (48) and the Coaxial

Cable (109) out of the Frame (2) and insert them

upward through the Upright (6). Do not let the

Wire Harness, the Coaxial Cable, or the Pulse

Wire (110) fall into the Upright; use a piece of

tape or an elastic band to hold the wires in place

until step 13.

Insert the Upright (6) into the Frame (2). Attach

the Upright with three M8 x 16mm Patch

Screws (95) and three Star Washers (100).

Avoid pinching the Wires (48, 110) and the

Coaxial Cable (109) between the Upright and

the Frame.

4. Hook the front ends of the Frame Covers (105,

106) together. Attach each Frame Cover to the

Frame (2) with three M4 x 16mm Self-tapping

Screws (79).

105

106

109

110

100

Avoid pinching

the wires and

cable during

this step

7. Identify the Left Handlebar (8), which is marked

with a “Left” sticker. Insert the Left Handlebar into

one of the Handlebar Legs (11) as shown.

Attach the Left Handlebar (8) with two

M8 x 42mm Bolts (71) and two M8 Nylon

Locknuts (96). Make sure that the Nylon

Locknuts are inside the hexagonal holes.

Assemble the Right Handlebar and the other

Handlebar Leg (not shown) in the same way.

Hexagonal

Holes

6. Orient the Left Roller Leg (12), which is marked

with a “Left” sticker, near the left Crank Arm (36)

as shown.

Apply a small amount of the included grease to

both sides of a Wave Washer (98). Slide the

Wave Washer onto the end of the left Crank

Arm (36). Next, slide the Left Roller Leg (12)

onto the Crank Arm and set the Roller (22) on

the Base (1). Attach the Left Roller Leg with an

M10 x 20mm Patch Screw (91), a Crank Axle

Cap (30), and an M10 x 25mm Washer (94).

Repeat this step to attach the Right Roller

Leg (21) to the right Crank Arm (not shown).

8. Attach Inner and Outer Handlebar Covers (18,

19) around the Left Handlebar (8) with three M4 x

16mm Self-tapping Screws (79) and an M4 x

13mm Washer (93). Start all three Self-tapping

Screws before tightening any of them.

Repeat this step for the Right Handlebar (not

shown).

9. Apply a generous amount of grease to the

Pivot Axle (65), and insert the Pivot Axle into the

Frame (2).

Attach each Frame Cover (17) to the Frame (2)

with two M4 x 16mm Screws (86).

Grease 65

10. Apply a small amount of grease to both sides of

a Wave Washer (98). Slide the Wave Washer

onto the left end of the Pivot Axle (65). Next,

slide the Left Handlebar (8) onto the Pivot Axle

as shown. Attach the Left Handlebar with an

M10 x 23mm Shoulder Screw (80) and an

M10 x 20mm x 1mm Washer (81).

Repeat this step for the Right Handlebar (9).

Grease

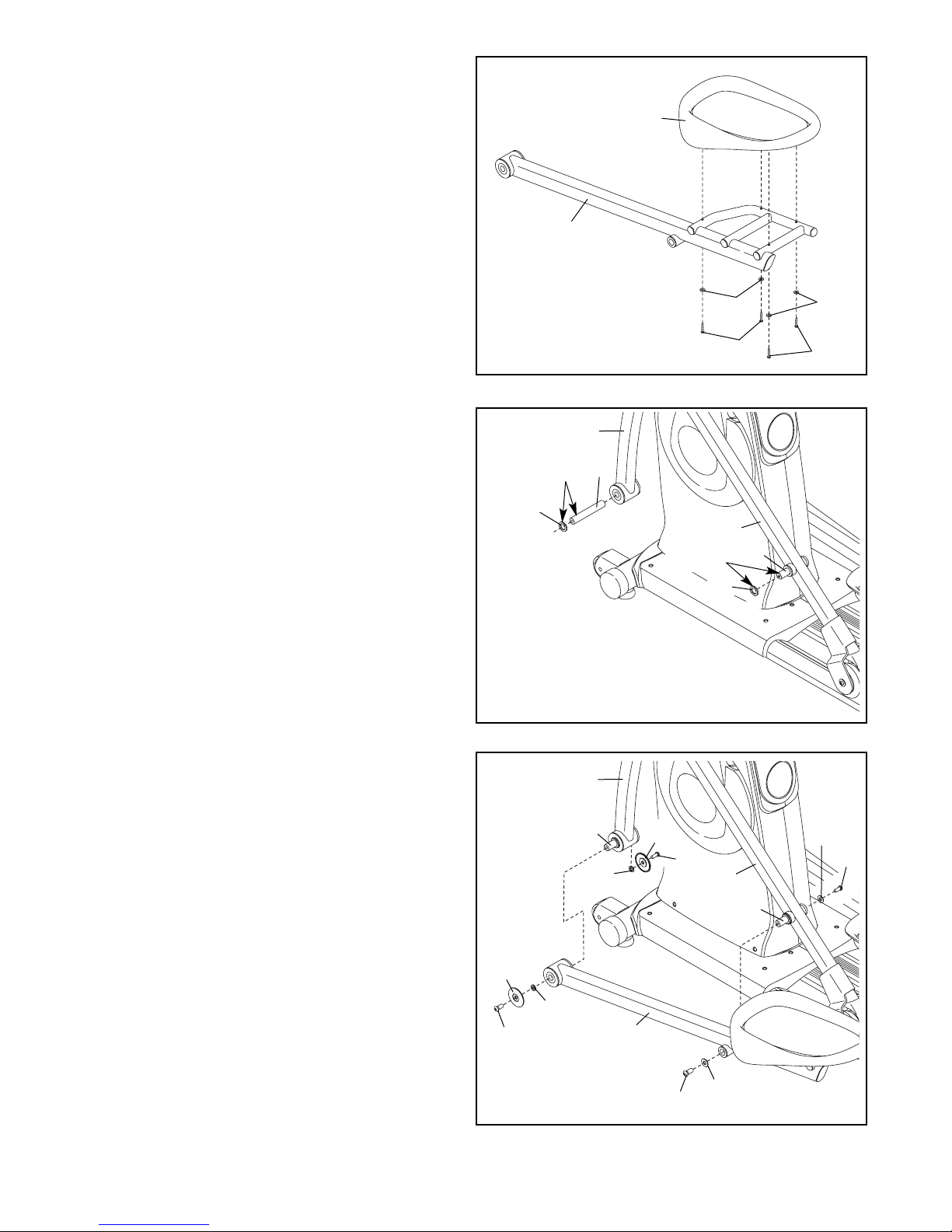

11. Identify the Left Pedal (13) and the Left Pedal

Leg (14), which are marked with “Left” stickers,

and orient them as shown.

Attach the Left Pedal (13) to the Left Pedal

Leg (14) with four M6 x 35mm Phillips

Screws (87) and four M6 Split Washers (88).

Start all four Phillips Screws before tighten-

ing any of them.

Repeat this step to attach the Right Pedal to

the Right Pedal Leg (not shown).

12. Apply a generous amount of grease to two Pedal

Leg Axles (32). Insert one Pedal Leg Axle into

the lower end of the Left Handlebar Leg (11).

Insert the other Pedal Leg Axle into the Left

Roller Leg (12).

Apply a small amount of grease to both sides of

two Wave Washers (98). Slide a Wave Washer

onto each Pedal Leg Axle (32).

13. Orient the Left Pedal Leg (14) as shown, and

slide it onto the Pedal Leg Axles (32). Attach the

Left Pedal Leg to the Left Handlebar Leg (11)

with two M10 x 20mm Patch Screws (91), two

Axle Caps (31), and two M10 x 25mm

Washers (94).

Attach the Left Pedal Leg (14) to the Left Roller

Leg (12) with two M10 x 20mm Patch

Screws (91) and two M10 x 25mm Washers (94);

do not overtighten the Patch Screws. The

Legs (11, 14, 12) must pivot freely.

Repeat step 12 and this step for the Right

Pedal Leg (not shown).

Grease

94 91

91 94

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Pro-Form vélo elliptique

Pro-Form

Pro-Form 650 Hr Elliptical Manuel utilisateur

Pro-Form

Pro-Form HYBRID TRAINER Manuel utilisateur

Pro-Form

Pro-Form 480 Cse Elliptical Manuel utilisateur

Pro-Form

Pro-Form 500 EKG PFEVEL2785.0 Manuel utilisateur

Pro-Form

Pro-Form 696 Elliptical Manuel d'utilisation et d'entretien

Pro-Form

Pro-Form PFEL2926.0 Manuel utilisateur

Pro-Form

Pro-Form PFEL04908.0 Manuel utilisateur

Pro-Form

Pro-Form PFEL4905.0 Manuel utilisateur

Pro-Form

Pro-Form PFEL75907.0 Manuel utilisateur

Pro-Form

Pro-Form 735 E Manuel utilisateur

Pro-Form

Pro-Form 660 Xt Manuel d'utilisation et d'entretien

Pro-Form

Pro-Form PFEL28010 Manuel utilisateur

Pro-Form

Pro-Form PFEL05807 Manuel utilisateur

Pro-Form

Pro-Form 380 Razor Elliptical Guide de l'utilisateur

Pro-Form

Pro-Form 490 LE Manuel utilisateur

Pro-Form

Pro-Form PFEL07909.1 Manuel utilisateur

Pro-Form

Pro-Form 545e Manuel utilisateur

Pro-Form

Pro-Form 510 E Elliptical Manuel utilisateur

Pro-Form

Pro-Form 550 Hr Elliptical Manuel utilisateur

Pro-Form

Pro-Form 1110 E PFEL10112.2 Manuel utilisateur

Pro-Form

Pro-Form 310 Ce Elliptical Guide de l'utilisateur

Pro-Form

Pro-Form 510 E Elliptical Manuel utilisateur

Pro-Form

Pro-Form 764hr Bike Manuel utilisateur

Pro-Form

Pro-Form 500 Ekg Elliptical Guide de l'utilisateur

Manuels vélo elliptique populaires d'autres marques

Weslo

Weslo Momentum 4.0 Elliptical Manuel d'utilisation et d'entretien

Progear Fitness

Progear Fitness Air elliptical pro 1307 Manuel utilisateur

Torque Fitness

Torque Fitness XPLLP Manuel utilisateur

Octane Fitness

Octane Fitness PRO3700C Manuel utilisateur

Xterra

Xterra FS5.8e Manuel utilisateur

Bodyguard

Bodyguard E-40 Manuel utilisateur

Bonn Germany

Bonn Germany Concept 2.2 Manuel utilisateur

Precor

Precor Resolute RSL 620 Manuel utilisateur

NordicTrack

NordicTrack E 9.2 Elliptical Manuel utilisateur

Vision Fitness

Vision Fitness X6600iNetTV Manuel utilisateur

Matrix

Matrix MX-A5x Manuel utilisateur

SportsArt Fitness

SportsArt Fitness ECO-NATURAL Elite E874 Manuel utilisateur

Sears

Sears FREE SPIRIT C249 30737 0 Manuel utilisateur

True

True FS-64 Manuel utilisateur

Sport-thieme

Sport-thieme ST 310 Manuel utilisateur

VIRTUFIT

VIRTUFIT CTR 1.1 Manuel utilisateur

Kettler

Kettler GIRO C 1 Manuel utilisateur

CIRCLE FITNESS

CIRCLE FITNESS E7 Manuel utilisateur
