Pro-Form PFEL07909.1 Manuel utilisateur
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. eep this manual
for future reference.
Serial Number Decal
(on underside of frame)
Model No. PFEL07909.1
Serial No.
Write the serial number in the
space above for reference.
USERʼS MANUAL
www.proform.com
QUESTIONS?
If you have questions, or if parts are
damaged or missing, DO NOT
CONTACT THE STORE; please
contact Customer Care.
IMPORTANT: Please register this
product (see the limited warranty
on the back cover of this manual)
before contacting Customer Care.
CALL TOLL-FREE:
1-888-533-1333
Mon.–Fri. 6 a.m.–6 p.m. MT
Sat. 8 a.m.–4 p.m. MT
ON THE WEB:
www.proformservice.com
TABLE OF CONTENTS
WARNINGDECALPLACEMENT ..............................................................2
IMPORTANTPRECAUTIONS ................................................................3
BEFOREYOUBEGIN ......................................................................4
ASSEMBLY ...............................................................................5
HOWTOUSETHEELLIPTICAL .............................................................13
MAINTENANCEANDTROUBLESHOOTING ...................................................20
EXERCISEGUIDELINES ...................................................................22
PARTLIST ..............................................................................23
EXPLODEDDRAWING ....................................................................25
ORDERINGREPLACEMENTPARTS ..................................................BackCover
LIMITEDWARRANTY ..............................................................BackCover
2

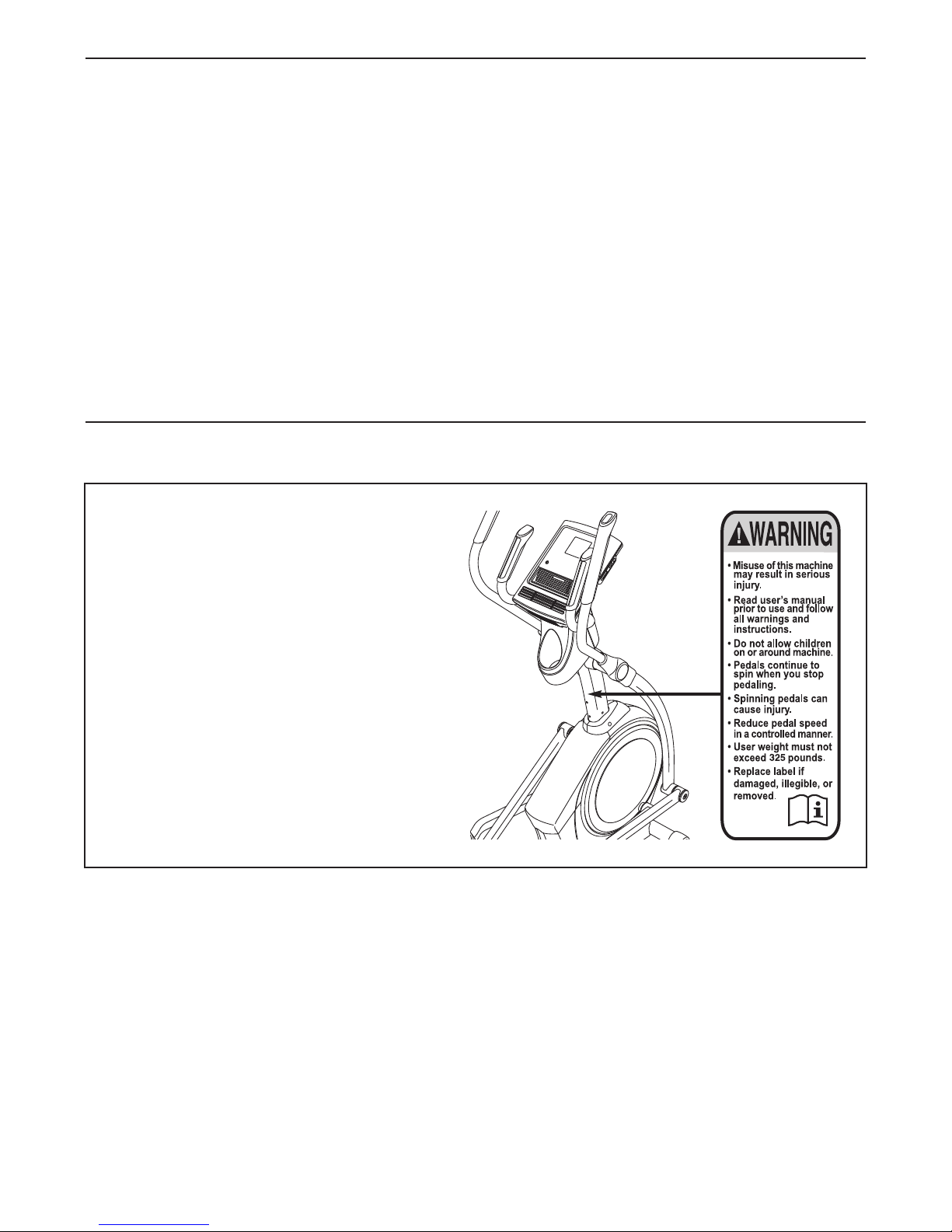

WARNING DECAL PLACEMENT
This drawing shows the location(s) of the
warning decal(s). If a decal is missing or
illegible, see the front cover of this
manual and request a free replacement
decal. Apply the decal in the location
shown. Note: The decal(s) may not be
shown at actual size.
PROFORM is a registered trademark of ICON IP, Inc.
3
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on your elliptical before using your elliptical. ICON
assumes no responsibility for personal injury or property damage sustained by or through the use of
this product.
IMPORTANT PRECAUTIONS
1. Before beginning any exercise program,
consult your physician. This is especially
important for persons over age 35 or
persons with pre-existing health problems.
2. Use the elliptical only as described in this
manual.
3. It is the responsibility of the owner to ensure
that all users of the elliptical are adequately
informed of all precautions.
4. The elliptical is intended for home use only.
Do not use the elliptical in a commercial,
rental, or institutional setting.
5. eep the elliptical indoors, away from
moisture and dust. Do not put the elliptical in
a garage or covered patio, or near water.
6. Place the elliptical on a level surface, with at
least 3 ft. (0.9 m) of clearance in the front
and rear of the elliptical and 2 ft. (0.6 m) on
each side. To protect the floor or carpet from
damage, place a mat under the elliptical.
7. Inspect and properly tighten all parts
regularly. Replace any worn parts
immediately.
8. eep children under age 12 and pets away
from the elliptical at all times.
9. The elliptical should not be used by persons
weighing more than 325 lbs. (147 kg).
10. Wear appropriate clothes while exercising;
do not wear loose clothes that could become
caught on the elliptical. Always wear athletic
shoes for foot protection while exercising.
11. Hold the handlebars or the upper body arms
when mounting, dismounting, or using the
elliptical.
12. The pulse sensor is not a medical device.
Various factors may affect the accuracy of
heart rate readings. The pulse sensor is
intended only as an exercise aid in
determining heart rate trends in general.
13. The elliptical does not have a freewheel; the
pedals will continue to move until the
flywheel stops. Reduce your pedaling speed
in a controlled way.
14. eep your back straight while using the
elliptical; do not arch your back.
15. Over exercising may result in serious injury
or death. If you feel faint or if you experience
pain while exercising, stop immediately and
cool down.
4
BEFORE YOU BEGIN
Thank you for selecting the revolutionary PROFORM®
790 E elliptical. The 790 E elliptical provides an
impressive selection of features designed to make
your workouts at home more effective and enjoyable.
For your benefit, read this manual carefully before
you use the elliptical. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.

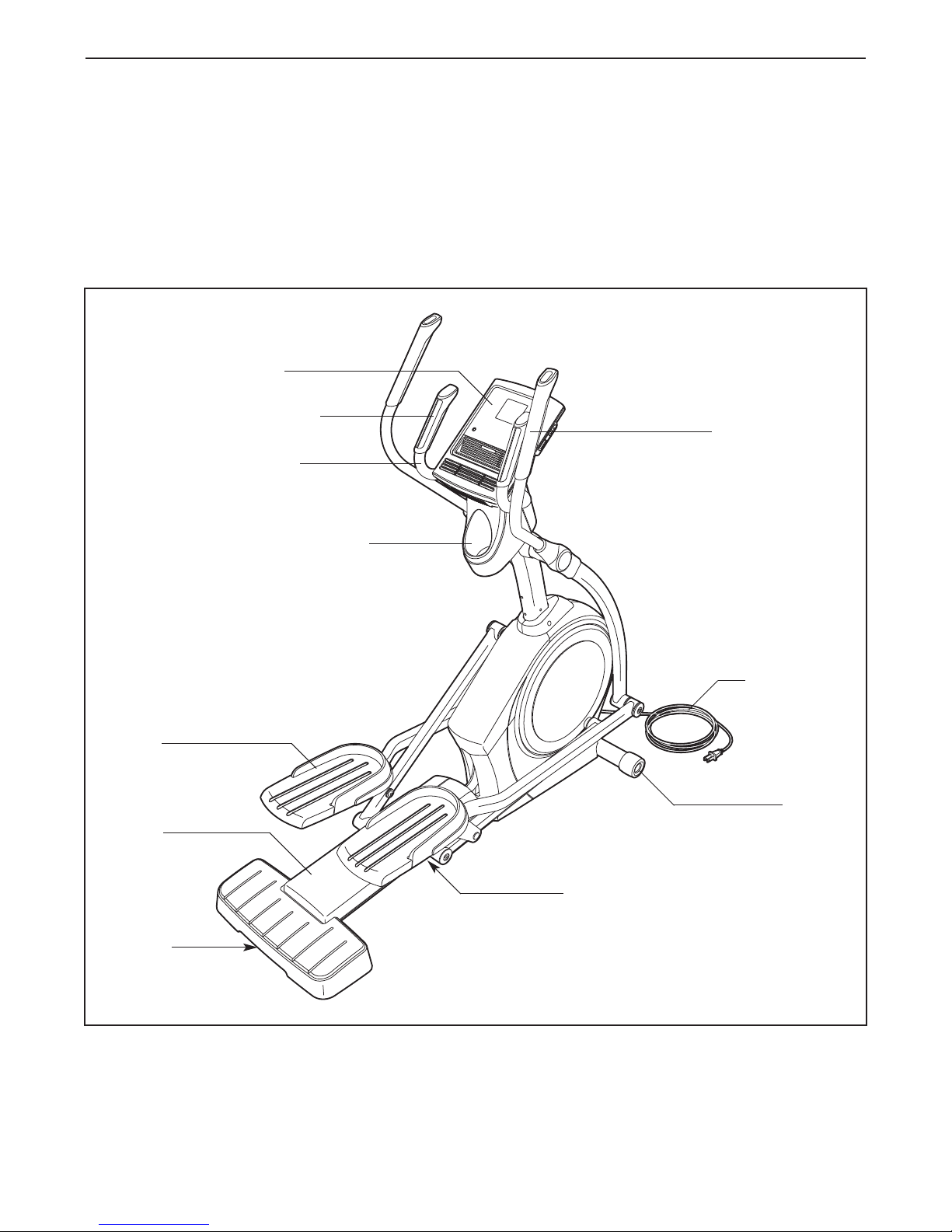

Before reading further, please familiarize yourself with
the parts that are labeled in the drawing below.
Pulse Sensor
Upper Body Arm
Pedal
Roller
Console
Water Bottle Holder*
Ramp
Handle
Handlebar
*Water bottle is not included
Wheel
Power Cord
5
ASSEMBLY
To hire an authorized service technician to assemble the elliptical, call 1-800-445-2480.
Assembly requires two persons. Place all parts of the elliptical in a cleared area and remove the packing
materials. Do not dispose of the packing materials until assembly is completed.
In addition to the included tool(s), assembly requires a Phillips screwdriver , two adjustable
wrenches , and a rubber mallet .
See the drawings below to identify the small parts needed for assembly. The number in parentheses below each
drawing is the key number of the part, from the PART LIST near the end of this manual. The number following
the key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if
it has been preassembled. To avoid damaging parts, do not use power tools for assembly.
M8 x 38mm
Bolt (96)–4
M8 Locknut
(102)–4
Wave Washer
(95)–2 M8 x 25mm
Washer (98)–6
M4 x 16mm
Screw (104)–10
M8 x 19mm Patch
Screw (82)–15
M8 Split
Washer (83)–11
M8 x 80mm Patch
Screw (84)–2 M10 x 20mm Patch
Screw (66)–2
M8 x 56mm Patch
Screw (94)–2
M10 x 25mm
Washer (36)–2
M6 Split Washer
(111)–12
#10 x 12.7mm
Screw (59)–12
6

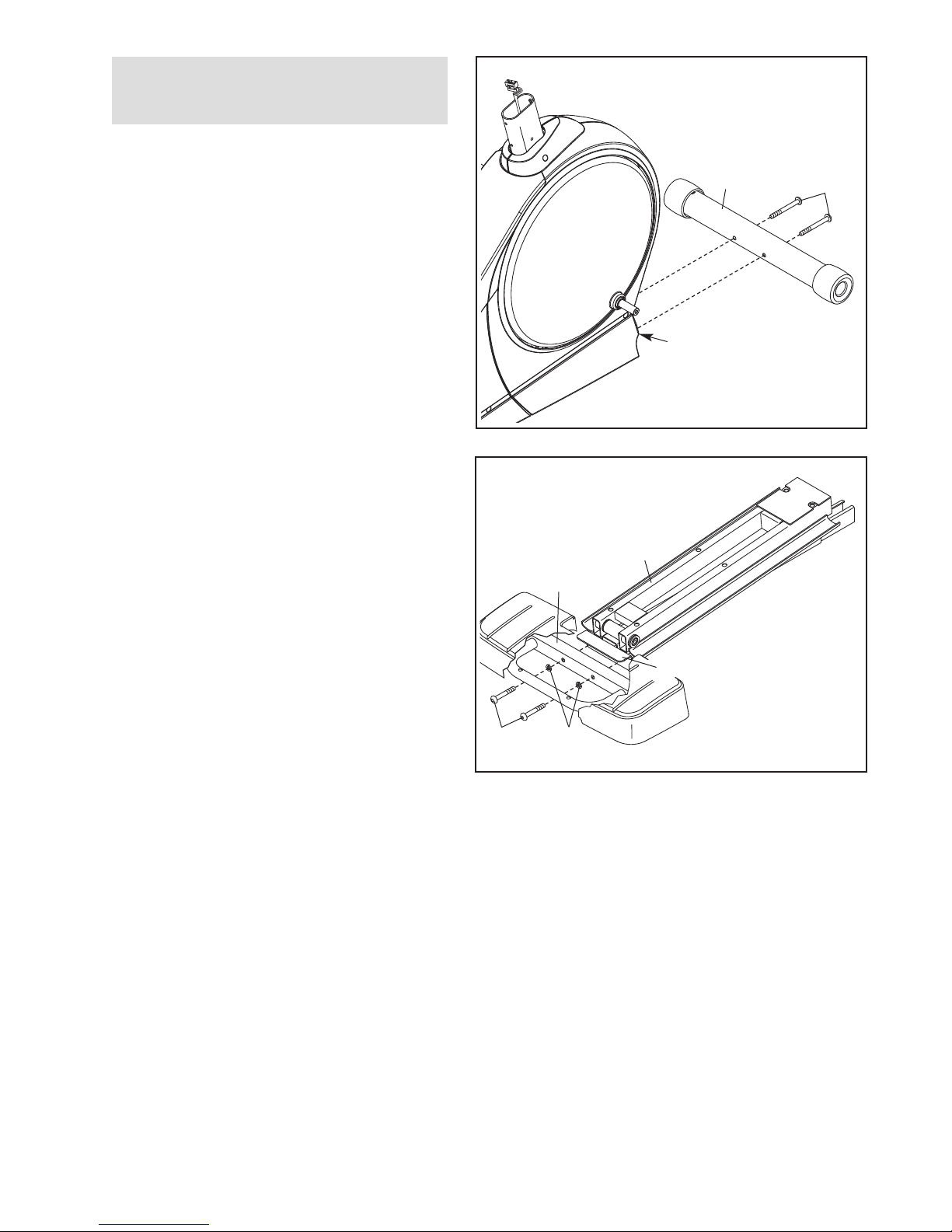

1.
Attach the Front Stabilizer (6) to the Front
Frame (1) with two M8 x 80mm Patch Screws
(84).
2. Orient the Rear Stabilizer (62) and the Rear
Frame (2) as shown.
Tip: If the Ramp Cover (see step 15) is
attached to the Ramp (3), remove the Ramp
Cover.
Attach the Rear Stabilizer (62) to the Rear
Frame (2) with two M8 x 56mm Patch Screws
(94) and two M8 Split Washers (83).
1
2
84
1
62
3
6
83
94
To make assembly easier, read the
information on page 5 before you begin.
2
7
3

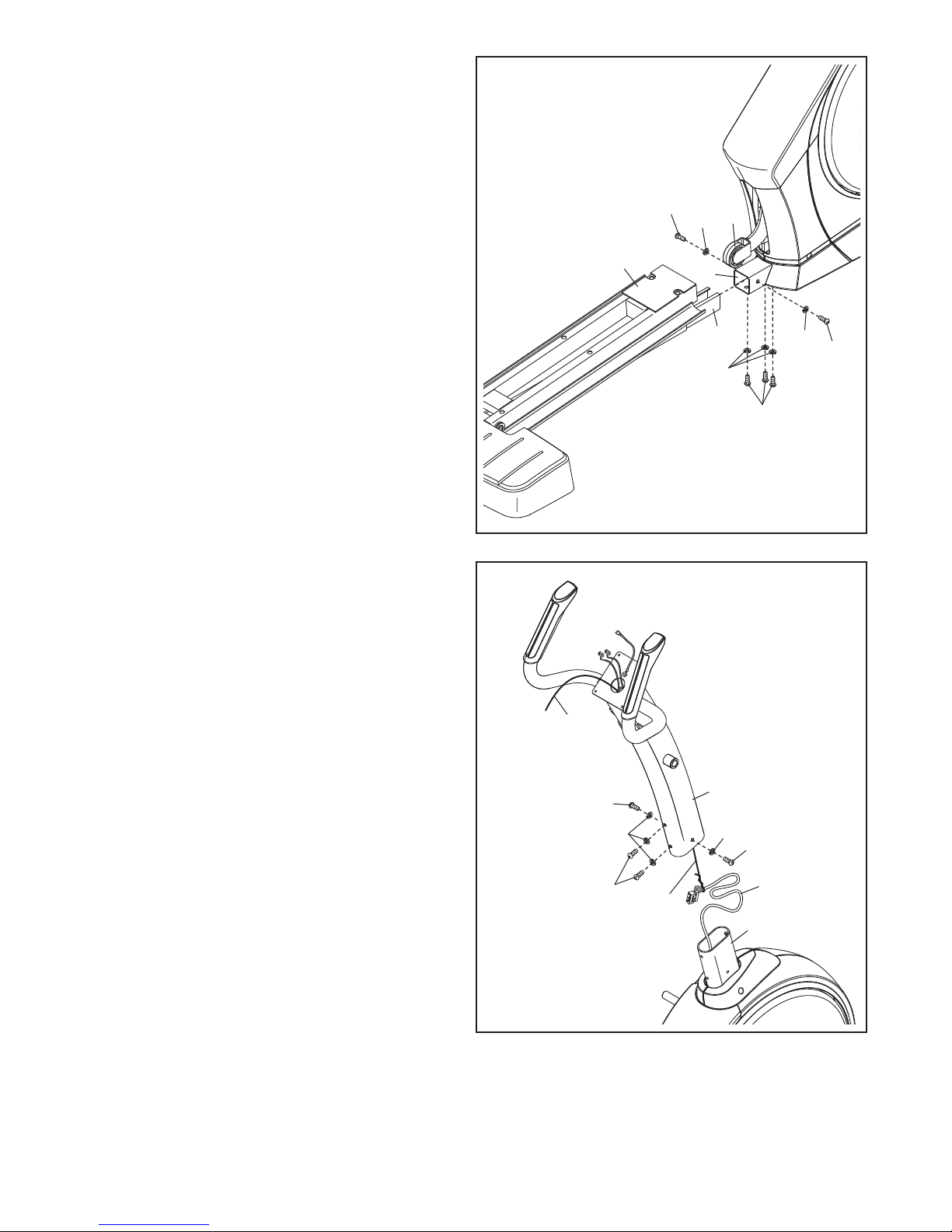

3. Insert the Rear Frame (2) into the Front Frame
(1); make sure that the Ramp (3) is on the
Lift Roller (12).
Attach the Rear Frame (2) with five M8 x 19mm
Patch Screws (82) and five M8 Split Washers
(83).
83
83
83
2
3
12
1
82
82
82
4. Have a second person orient the Upright (4) as
shown and hold it near the Front Frame (1).
Locate the wire tie in the Upright (4). Tie the
lower end of the wire tie to the Upper Wire
Harness (110). Next, pull the upper end of the
wire tie until the Upper Wire Harness is routed
completely through the Upright. Then, untie and
discard the wire tie.
Tip: To prevent the Upper Wire Harness (110)
from falling into the Upright (4), secure the
Upper Wire Harness with a rubber band or
tape.
Tip: Avoid pinching the Upper Wire Harness
(110). Slide the Upright (4) onto the Front
Frame (1). Attach the Upright with four M8 x
19mm Patch Screws (82) and four M8 Split
Washers (83); do not tighten the Patch
Screws yet.
4
Wire
Tie
Wire
Tie
Avoid pinching
the Upper Wire
Harness (110)
4
1
82
82
82
83
83
110
8
5

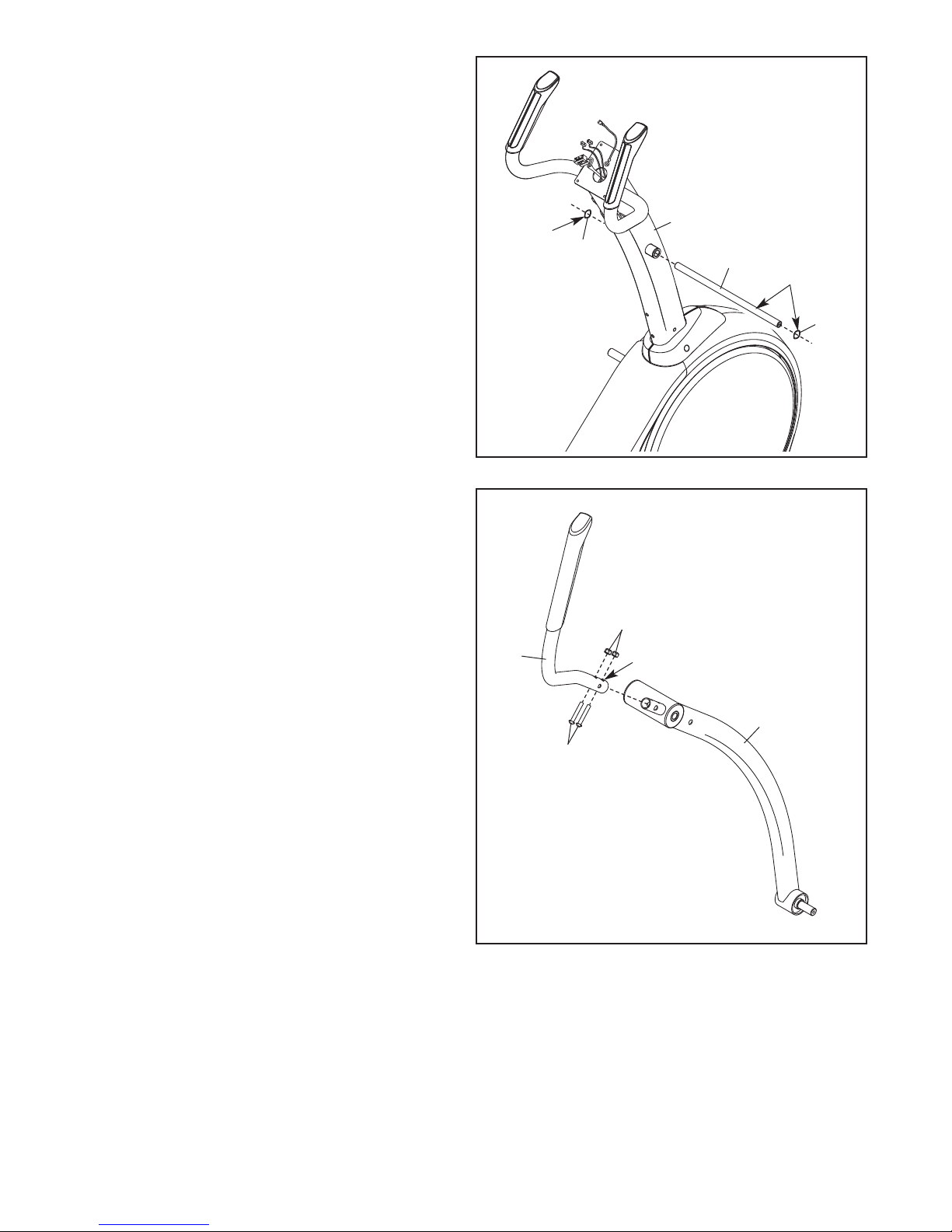

5. Apply a generous amount of grease to the Pivot
Axle (35) and to two Wave Washers (95).
Insert the Pivot Axle (35) through the Upright (4)
and then center it.
Slide a Wave Washer (95) onto each end of the
Pivot Axle (35).
35
95
95
Grease
Grease 4
6
6. Identify the Right Upper Body Arm (61) and the
Right Upper Body Leg (60), which are marked
with “Right” stickers, and orient them as shown.
Make sure that the hexagonal holes are in
the position shown.
Slide the Right Upper Body Arm (61) onto the
Right Upper Body Leg (60). Attach the Right
Upper Body Arm with two M8 x 38mm Bolts
(96) and two M8 Locknuts (102). Make sure
that the Locknuts are in the hexagonal
holes.
Repeat this step for the Left Upper Body
Arm (not shown) and the Left Upper Body
Leg (not shown).
60
61
102
96
Hexagonal Holes
9

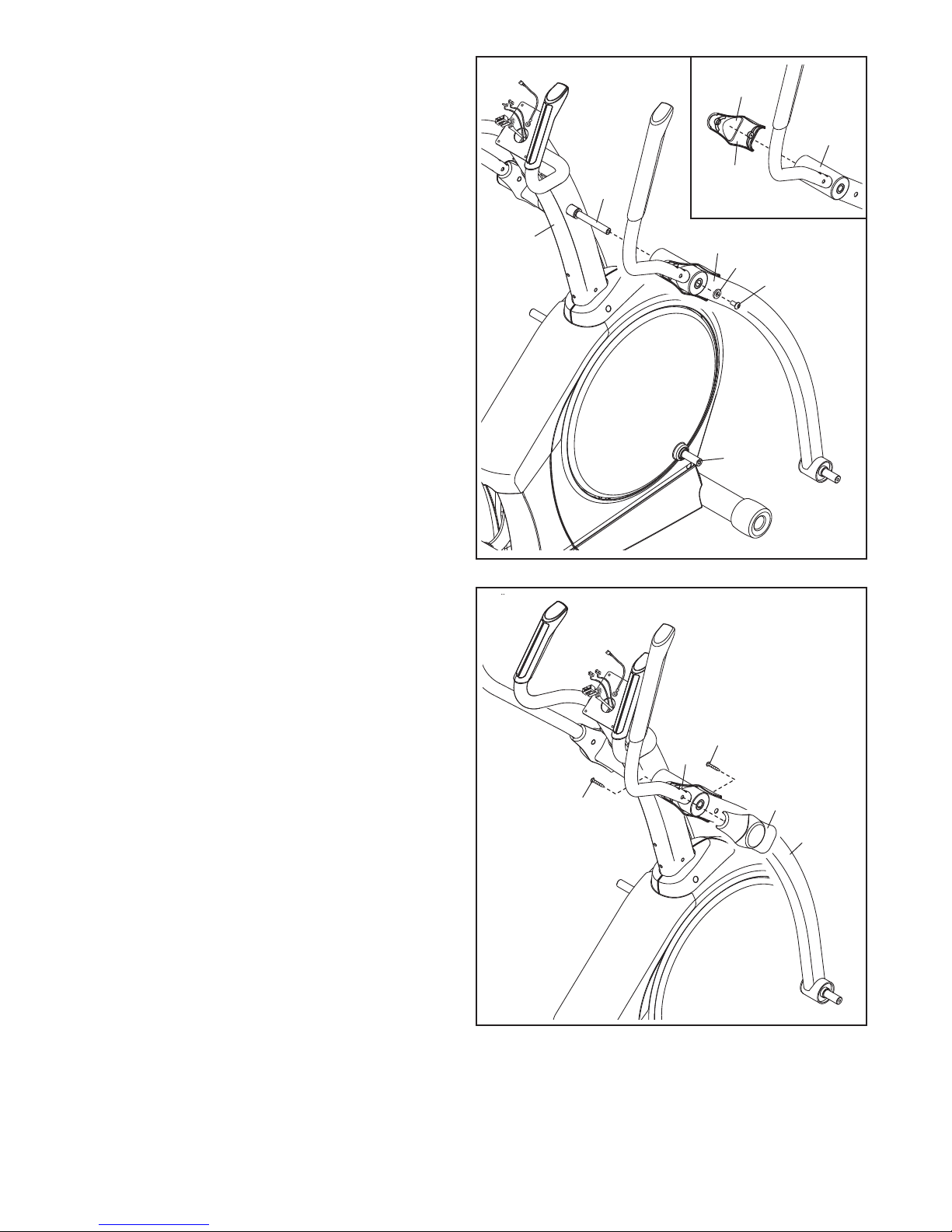

8. Attach an Outer Cover (67) to the Inner Cover
(68) on the Right Upper Body Leg (60) with two
M4 x 16mm Screws (104).
Repeat this step on the other side of the
elliptical.
60
67
104
104
68
7. See the inset drawing. Slide an Inner Cover
(68) onto the Right Upper Body Leg (60).
Next, slide the Right Upper Body Leg (60) onto
the right end of the Pivot Axle (35); make sure
that the Right Upper Body Leg is in front of
the right Crank Arm (20).
Attach the Right Upper Body Leg (60) with an
M8 x 19mm Patch Screw (82) and an M8 x
25mm Washer (98).
Repeat this step on the other side of the
elliptical.
60
82
98
20
35
4
7
8
60
68
Opening
10

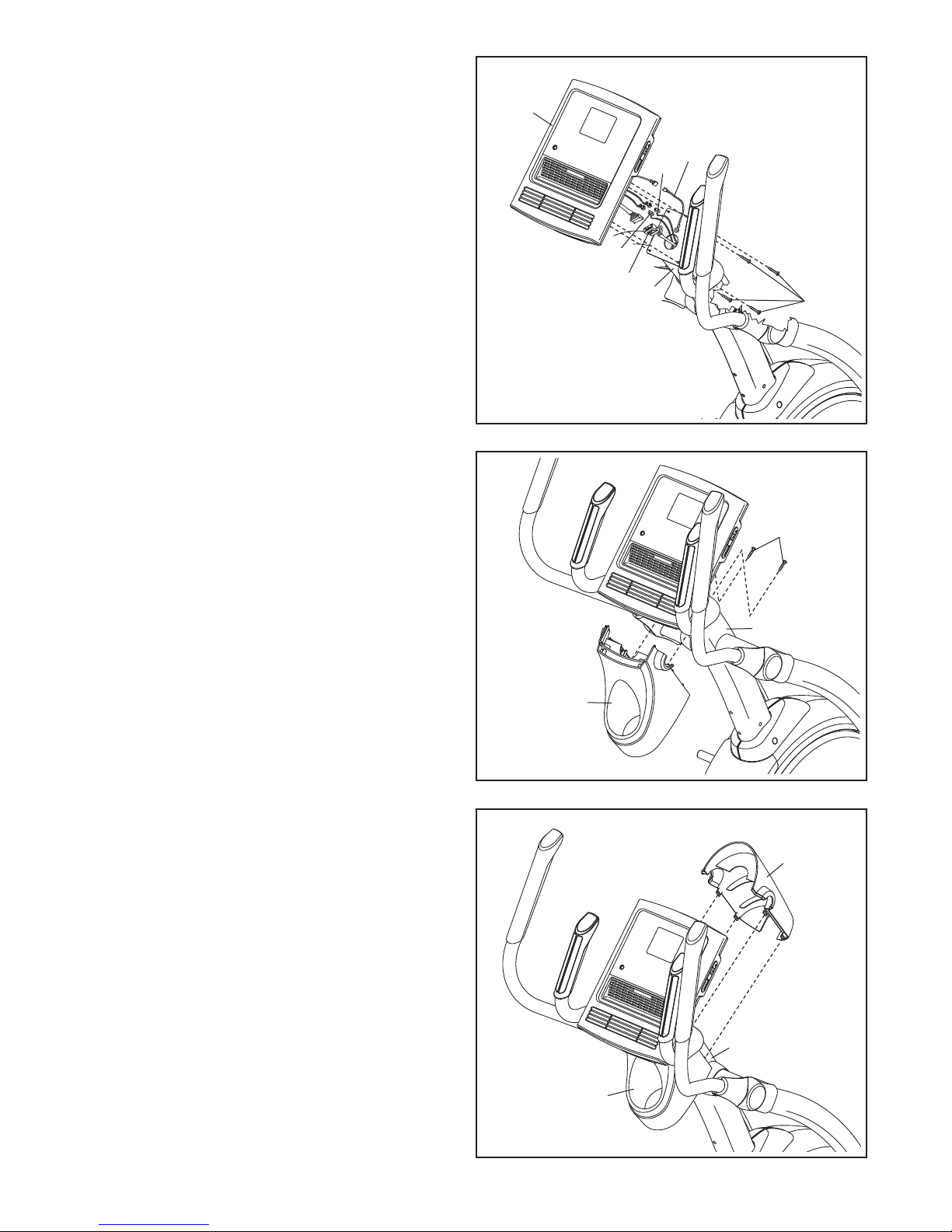

10. Orient the Rear Upright Cover (80) as shown.
Attach the Rear Upright Cover (80) to the
Upright (4) with two M4 x 16mm Screws (104).
10
80
104
4
9. Have a second person hold the Console (7)
near the Upright (4).
Connect the wires on the Console (7) to the
Ground Wire (120), to the Pulse Wires (63, 69),
and to the Upper Wire Harness (110).
Insert the excess wires up into the Console (7)
or down into the Upright (4).
Tip: Avoid pinching the wires. Attach the
Console (7) to the Upright (4) with four M4 x
16mm Screws (104).
9
7
104
63 120
Avoid pinching
the wires
11. Orient the Front Upright Cover (91) as shown.
Attach the Front Upright Cover (91) around the
Upright (4) by pressing the tabs on the Front
Upright Cover into the Rear Upright Cover (80).
11
91
4
80
4
110
69
Ce manuel convient aux modèles suivants
1
Table des matières
Autres manuels Pro-Form vélo elliptique
Pro-Form
Pro-Form PFEVEL95910.1 Manuel utilisateur
Pro-Form
Pro-Form PFEL57908.1 Manuel utilisateur
Pro-Form
Pro-Form PFEVEL80717.0 Manuel utilisateur
Pro-Form
Pro-Form CardioCross Trainer 831.285284 Manuel utilisateur
Pro-Form
Pro-Form PFEL07807.1 Manuel utilisateur
Pro-Form
Pro-Form 6.0 ZE Manuel utilisateur
Pro-Form
Pro-Form 650 Cardio Cross Trainer Elliptical Manuel utilisateur
Pro-Form
Pro-Form Razor 831.23743.0 Manuel utilisateur
Pro-Form
Pro-Form PFEVEL29010 Manuel utilisateur
Pro-Form
Pro-Form VX Manuel utilisateur
Pro-Form
Pro-Form 720 Zle Elliptical Manuel utilisateur
Pro-Form
Pro-Form PFEL85607.0 Manuel utilisateur
Pro-Form
Pro-Form 690 Hr Elliptical Guide de configuration
Pro-Form
Pro-Form PFEL94910.0 Manuel utilisateur
Pro-Form
Pro-Form 800 Hr Heart Rate Control Elliptical Manuel d'utilisation et d'entretien
Pro-Form
Pro-Form Stride Select 825 Manuel utilisateur
Pro-Form
Pro-Form 595 HR Guide de l'utilisateur
Pro-Form
Pro-Form Sport E5.0 Manuel utilisateur
Pro-Form
Pro-Form PFEL19011 Manuel utilisateur
Pro-Form
Pro-Form 696 Elliptical Manuel
Manuels vélo elliptique populaires d'autres marques
Weslo
Weslo Momentum 4.0 Elliptical Manuel d'utilisation et d'entretien
Progear Fitness
Progear Fitness Air elliptical pro 1307 Manuel utilisateur
Torque Fitness
Torque Fitness XPLLP Manuel utilisateur
Octane Fitness
Octane Fitness PRO3700C Manuel utilisateur
Xterra
Xterra FS5.8e Manuel utilisateur
Bodyguard
Bodyguard E-40 Manuel utilisateur
Bonn Germany
Bonn Germany Concept 2.2 Manuel utilisateur
Precor
Precor Resolute RSL 620 Manuel utilisateur
NordicTrack
NordicTrack E 9.2 Elliptical Manuel utilisateur
Vision Fitness
Vision Fitness X6600iNetTV Manuel utilisateur
Matrix
Matrix MX-A5x Manuel utilisateur
SportsArt Fitness
SportsArt Fitness ECO-NATURAL Elite E874 Manuel utilisateur
