Pro-Form 390 E Manuel utilisateur

Serial Number

Decal

CAUTIO

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manual

for future reference.

Model o. 831.23943.0

Serial o.

Write the serial number in the

space above for reference.

• Assembly

• Operation

• Maintenance

• Part List and Drawing

ELLIPTICAL EXERCISER

Userʼs Manual

Sears, Roebuck and Co.

Hoffman Estates, IL 60179

TABLE OF CO TE TS

WARNINGDECALPLACEMENT ..............................................................2

IMPORTANTPRECAUTIONS ................................................................3

BEFOREYOUBEGIN ......................................................................4

ASSEMBLY ...............................................................................5

HOWTOUSETHEELLIPTICALEXERCISER ..................................................14

MAINTENANCEANDTROUBLESHOOTING ...................................................18

EXERCISEGUIDELINES ...................................................................20

PARTLIST ..............................................................................21

EXPLODEDDRAWING ....................................................................22

ORDERINGREPLACEMENTPARTS ..................................................BackCover

90DAYFULLWARRANTY ..........................................................BackCover

WAR I G DECAL PLACEME T

This drawing shows the location(s) of the warning

decal(s). If a decal is missing or illegible, call

1-888-533-1333 and request a free replacement

decal. Apply the decal in the location shown.

Note: The decal(s) may not be shown at actual

size.

1. Before beginning any exercise program,

consult your physician. This is especially

important for persons over age 35 or per-

sons with pre-existing health problems.

2. It is the responsibility of the owner to ensure

that all users of the elliptical exerciser are

adequately informed of all precautions.

3. The elliptical exerciser is intended for home

use only. Do not use the elliptical exerciser

in a commercial, rental, or institutional set-

ting.

4. Keep the elliptical exerciser indoors, away

from moisture and dust. Place the elliptical

exerciser on a level surface, with a mat

beneath it to protect the floor or carpet. Make

sure that there is at least 3 ft. (0.9 m) of clear-

ance in the front and rear of the elliptical

exerciser and 2 ft. (0.6 m) on each side.

5. Inspect and properly tighten all parts regu-

larly. Replace any worn parts immediately.

6. Keep children under age 12 and pets away

from the elliptical exerciser at all times.

7. The elliptical exerciser should not be used

by persons weighing more than 250 lbs.

(113 kg).

8. Wear appropriate exercise clothes when

exercising; do not wear loose clothes that

could become caught on the elliptical exer-

ciser. Always wear athletic shoes for foot

protection.

9. Hold the handgrip pulse sensor or the upper

body arms when mounting, dismounting, or

using the elliptical exerciser.

10. Keep your back straight while using the

elliptical exerciser; do not arch your back.

11. The pulse sensor is not a medical device.

Various factors, including the userʼs move-

ment, may affect the accuracy of heart rate

readings. The pulse sensor is intended only

as an exercise aid in determining heart rate

trends in general.

12. When you stop exercising, allow the pedals

to slowly come to a stop.

13. Over exercising may result in serious injury

or death. If you feel faint or if you experience

pain while exercising, stop immediately and

cool down.

14. Use the elliptical exerciser only as described

in this manual.

WAR I G: To reduce the risk of serious injury, read all important precautions and

instructions in this manual and all warnings on the elliptical exerciser before using the elliptical

exerciser. Sears assumes no responsibility for personal injury or property damage sustained by or

through the use of this product.

IMPORTA T PRECAUTIO S

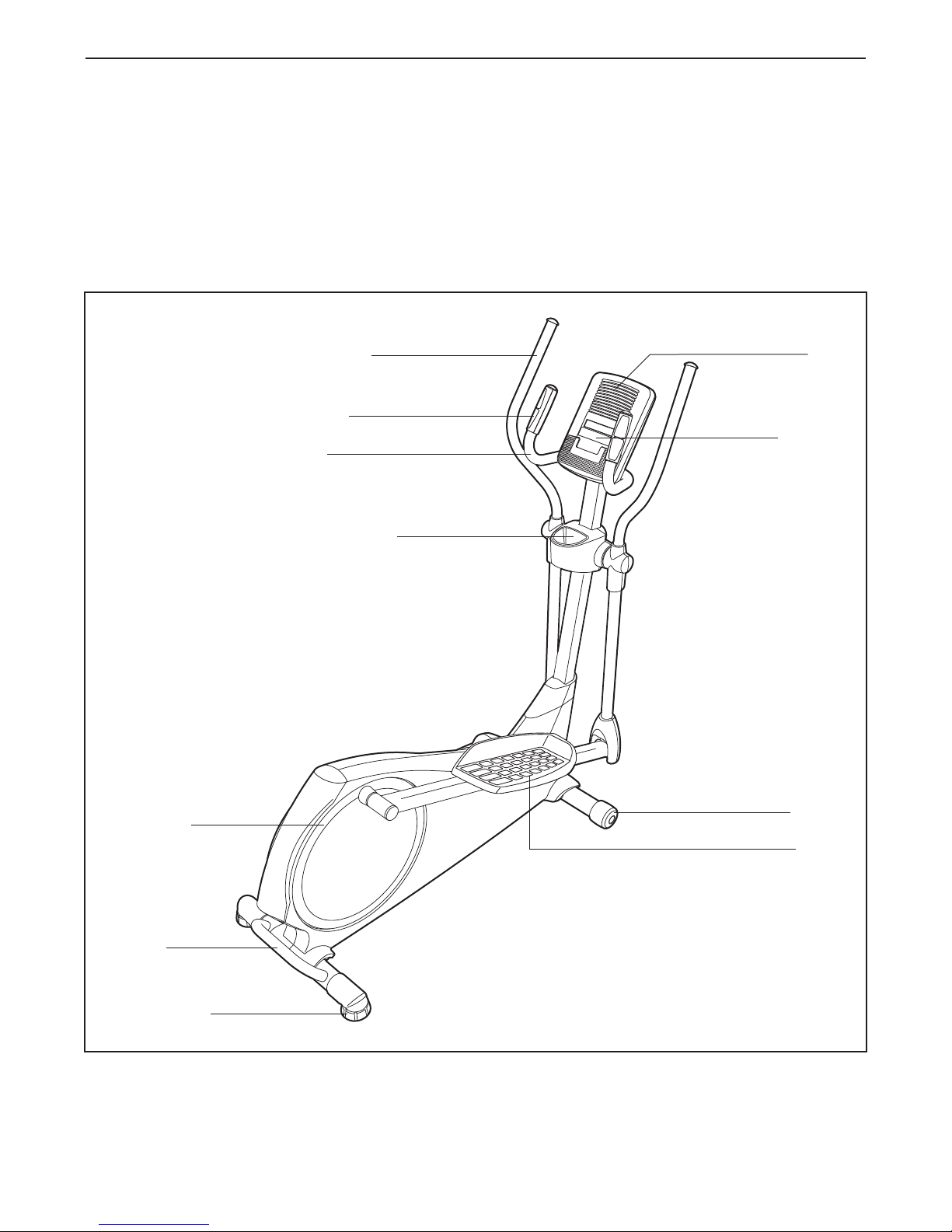

Pulse Sensor

Upper Body Arm

Handlebar

Pedal Disc Wheel

Pedal

Fan

Console

Water Bottle Holder*

Leveling Foot

Handle

*Water bottle is not included

BEFORE YOU BEGI

Thank you for purchasing the PROFORM®390 E ellip-

tical exerciser. The 390 E elliptical exerciser provides

an array of features designed to make your workouts

at home more effective and enjoyable.

For your benefit, read this manual carefully before

you use the elliptical exerciser. If you have ques-

tions after reading this manual, please see the back

cover of this manual. To help us assist you, note the

product model number and serial number before con-

tacting us. The model number and the location of the

serial number decal are shown on the front cover of

this manual.

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

ASSEMBLY

Assembly requires two persons. Place all parts of the elliptical exerciser in a cleared area and remove the

packing materials. Do not dispose of the packing materials until assembly is completed.

In addition to the included tool(s), assembly requires a Phillips screwdriver .

As you assemble the elliptical exerciser, use the drawings below to identify small parts. The number in parenthe-

ses below each drawing is the key number of the part, from the PART LIST near the end of this manual. The

number following the parentheses is the quantity needed for assembly. ote: If a part is not in the hardware

kit, check to see if it has been preassembled. If a part is missing, call 1-888-533-1333.

M10 x 48mm Patch

Screw (75)–6

M10 x 20mm Patch

Screw (79)–7

M8 x 20mm

Patch Screw

(80)–2

M4 x 48mm

Screw (89)–2

M8 x 45mm Button

Bolt (76)–4

M10 x 85mm Patch Screw (82)–4

M4 x 16mm

Screw (92)–7

Shoulder Patch Bolt (31)–2

M8 Washer

(33)–2

M10 Split

Washer (78)–10

M8 Jam Nut

(77)–4

While a second person lifts the rear of the

Frame (1), attach the Rear Stabilizer (70) to the

Frame with two M10 x 85mm Patch Screws

(82).

2. Orient the Front Stabilizer (73) so that the

“Front” sticker is facing away from the front of

the Frame (1).

While a second person lifts the front of the

Frame (1), attach the Front Stabilizer (73) to the

Frame with two M10 x 85mm Patch Screws

(82).

To make assembly easier, read the

information on page 5 before you begin.

Wire

Tie

4. Slide the Upright (2) onto the Frame (1). Tip:

Have a second person hold the Top Shield

Cover (37) out of the way.

Tip: Avoid pinching the Wire Harness (42).

Attach the Upright (2) with four M10 x 20mm

Patch Screws (79) and four M10 Split Washers

(78).

Slide the Top Shield Cover (37) downward and

press it into the Frame (1).

78 78

79 79

Wire Tie

Avoid pinching the

Wire Harness (42)

3. Orient the Upright (2) and the Top Shield Cover

(37) as shown. Slide the Top Shield Cover

upward onto the Upright.

Have a second person hold the Upright (2) near

the Frame (1).

See the inset drawing. Locate the wire tie in

the Upright (2). Tie the lower end of the wire tie

to the Wire Harness (42). Next, pull the upper

end of the wire tie upward out of the top of the

Upright. Then, untie and discard the wire tie.

Tip: To prevent the Wire Harness (42) from

falling into the Upright (2), secure the Wire

Harness with a rubber band or a piece of

tape.

5. See the upper drawing. To avoid pinching or

damaging the Pulse Wires (28) while you

assemble the Handlebar (39), perform the fol-

lowing actions:

Insert the end of the left Pulse Wire (28) inside

the left side of the Handlebar (39).

Then, insert the end of the right Pulse Wire (28)

inside the right side of the Handlebar (39).

See the lower drawing. Have a second person

hold the Handlebar (39) in place around the

Upright (2).

Tip: Avoid pinching the wires. Attach the

Handlebar (39) to the Upright (2) with three M10

x 20mm Patch Screws (79).

Avoid pinching

the wires

6. The Console (4) can use four D batteries (not

included); alkaline batteries are recommended.

IMPORTA T: If the Console has been

exposed to cold temperatures, allow it to

warm to room temperature before inserting

batteries. Otherwise, you may damage the

console displays or other electronic compo-

nents. Remove the screws, remove the battery

covers, insert the batteries into the battery com-

partments, and reattach the battery covers.

Make sure to orient the batteries as shown

by the diagrams inside the battery compart-

ments.

To purchase a power supply, call your local

Sears store. To avoid damaging the console,

use only a manufacturer-supplied power

supply. Plug one end of the AC adapter into the

jack on the console; plug the other end into an

outlet installed in accordance with all local

codes and ordinances.

Batteries

Screws

Battery

Covers

7. Locate the Pulse Wires (28) inside the left and

right sides of the Handlebar (39) and pull them

upward out of the Upright (2).

While a second person holds the Console (4)

near the Upright (2), connect the console wires

to the Wire Harness (42) and to the Pulse Wires

(28).

Insert the excess wires into the Upright (2).

Tip: Avoid pinching the wires. Attach the

Console (4) to the Upright (2) with four M4 x

16mm Screws (92).

Console Wires

Avoid

pinching

the wires

8. Attach the Console Cover (32) to the back of

the Console (4) with two M4 x 48mm Screws

(89).

9. Identify the Left and Right Upper Body Arms (8,

9), which are marked with “Left” and “Right”

stickers.

Orient the Left Upper Body Arm (8) and an

Upper Body Leg (6) as shown. Make sure that

the hexagonal holes are in the indicated

location.

Insert the Left Upper Body Arm (8) into the

Upper Body Leg (6).

Attach the Left Upper Body Arm (8) with two M8

x 45mm Button Bolts (76) and two M8 Jam Nuts

(77). Make sure that the Jam uts are in the

hexagonal holes. Do not tighten the Button

Bolts yet.

Attach the Right Upper Body Arm (9) to the

other Upper Body Leg (6) in the same way.

Hexagonal

Holes

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Pro-Form vélo elliptique

Pro-Form

Pro-Form 425 CSE Manuel utilisateur

Pro-Form

Pro-Form 400 Zle Elliptical Guide de configuration

Pro-Form

Pro-Form 690 Hr Elliptical Guide de configuration

Pro-Form

Pro-Form 225 CSE Manuel utilisateur

Pro-Form

Pro-Form 310 Ce Elliptical Guide de l'utilisateur

Pro-Form

Pro-Form PFEL04912.1 Manuel utilisateur

Pro-Form

Pro-Form CARBON EX Manuel utilisateur

Pro-Form

Pro-Form 690 Hr Elliptical Manuel utilisateur

Pro-Form

Pro-Form 500 Ekg Elliptical Manuel du système

Pro-Form

Pro-Form 510 E Elliptical Manuel utilisateur

Pro-Form

Pro-Form 10.0 Ze Elliptical Manuel utilisateur

Pro-Form

Pro-Form 330 Elliptical Manuel utilisateur

Pro-Form

Pro-Form 380 Razor Elliptical Manuel du système

Pro-Form

Pro-Form PFEL55907.0 Manuel utilisateur

Pro-Form

Pro-Form CardioCross Trainer 831.285284 Manuel utilisateur

Pro-Form

Pro-Form StrideClimber 831.23745.1 Manuel utilisateur

Pro-Form

Pro-Form 450 Hr Elliptical Guide de l'utilisateur

Pro-Form

Pro-Form 650 Cardio Cross Trainer Elliptical Manuel d'utilisation et d'entretien

Pro-Form

Pro-Form ReflexStep Manuel utilisateur

Pro-Form

Pro-Form IFIT COACHLINK E9.0 Manuel utilisateur

Pro-Form

Pro-Form pacerprograms 485p Manuel utilisateur

Pro-Form

Pro-Form PFIVEL74613.0 Manuel utilisateur

Pro-Form

Pro-Form 820 Pr Elliptical Manuel utilisateur

Pro-Form

Pro-Form PFEL28010 Manuel utilisateur

Manuels vélo elliptique populaires d'autres marques

Weslo

Weslo Momentum 4.0 Elliptical Manuel d'utilisation et d'entretien

Progear Fitness

Progear Fitness Air elliptical pro 1307 Manuel utilisateur

Torque Fitness

Torque Fitness XPLLP Manuel utilisateur

Octane Fitness

Octane Fitness PRO3700C Manuel utilisateur

Xterra

Xterra FS5.8e Manuel utilisateur

Bodyguard

Bodyguard E-40 Manuel utilisateur

Bonn Germany

Bonn Germany Concept 2.2 Manuel utilisateur

Precor

Precor Resolute RSL 620 Manuel utilisateur

NordicTrack

NordicTrack E 9.2 Elliptical Manuel utilisateur

Vision Fitness

Vision Fitness X6600iNetTV Manuel utilisateur

Matrix

Matrix MX-A5x Manuel utilisateur

SportsArt Fitness

SportsArt Fitness ECO-NATURAL Elite E874 Manuel utilisateur

Sears

Sears FREE SPIRIT C249 30737 0 Manuel utilisateur

True

True FS-64 Manuel utilisateur

Sport-thieme

Sport-thieme ST 310 Manuel utilisateur

VIRTUFIT

VIRTUFIT CTR 1.1 Manuel utilisateur

Kettler

Kettler GIRO C 1 Manuel utilisateur

CIRCLE FITNESS

CIRCLE FITNESS E7 Manuel utilisateur
