Quick Setup Guide

SL4M and T4M

RFID Smart Label and Thermal Printers

™

This Quick Setup Guide contains a

CD-ROM, located in a plastic pocket in

the back cover, with the following

material:

• Printer Setup Wizard

• Windows Drivers

• Label Design Software

• Network and RFID Solutions

• Manuals

• Contact Us

Save this guide. If you move your

printer to a different location in the

future, you may need these instructions

again.

NOTICE

Introduction

Thank you for your purchase of the SL4M RFID Smart Label printer

or T4M thermal printer.

This

Quick Setup Guide

describes how to set up the printer, load

ribbon and media, and print a test page.

NOTE: This

Quick Setup Guide

covers both the SL4M and T4M

printers.

The SL4M is a smart label printer. It is equipped with an

RFID encoder and has the “RFID SMART” logo near the

control panel.

The T4M printer does not come equipped with an RFID

encoder, but can be upgraded in the field.

Printer Setup

1. Place the printer on a flat level surface that allows easy access

to all sides of the printer.

CAUTION

Never operate the printer on its side or upside down.

2. At the front of the printer, set the power switch to O (Off).

Power Switch

Front View

3. At the rear of the printer, connect the desired interface cable to

the appropriate connector and the host computer.

WARNING

Failure to properly ground the printer may result in electric

shock to the operator.

In compliance with international safety standards, this printer

has been equipped with a three-pronged power cord. Do not

use adapter plugs or remove the grounding prong from the

cable plug. If an extension cord is required, ensure that a

three-wire cable with a properly grounded plug is used.

4. Plug the AC power cord into the AC power receptacle.

5. Plug the AC power cord to a grounded (three prong) electrical

outlet of the proper voltage. (Do not turn on the printer yet.)

AC Power

Receptacle

IEEE1284 Parallel

Interface

RS-232 Serial

Interface

Ethernet Interface

(optional)

USB Connection

Rear View

Loading Ribbon And Roll Media

IMPORTANT

For best results, use only genuine Printronix supplies. See

“Printronix Supplies Department” on page 18.

CAUTION

DO NOT TOUCH the printhead or the electronic components

under the printhead assembly.

CAUTION

Do not close the pivoting deck without label stock installed

between the printhead and the platen, because debris on the

platen may damage the printhead.

CAUTION

Avoid touching the electrical connectors while setting up the

printer to prevent electrostatic discharge damage. The

discharge of accumulated electrostatic energy can damage or

destroy the printhead or electronic components used in this

printer.

Load Ribbon

For direct thermal media (no ribbon required), go to page 10.

IMPORTANT

Clean the printhead, platen roller, and media sensors every

time you change the ribbon. Refer to the

User’s Manual

1. Raise the media cover.

2. Install the ribbon take-up core on the ribbon take-up spindle.

NOTE: The first ribbon take-up core comes with the printer.

Thereafter, move the empty core from the ribbon supply

spindle to the take-up spindle after the ribbon is used up.

3. Slide the ribbon roll onto the ribbon supply spindle until it is

flush with the flange.

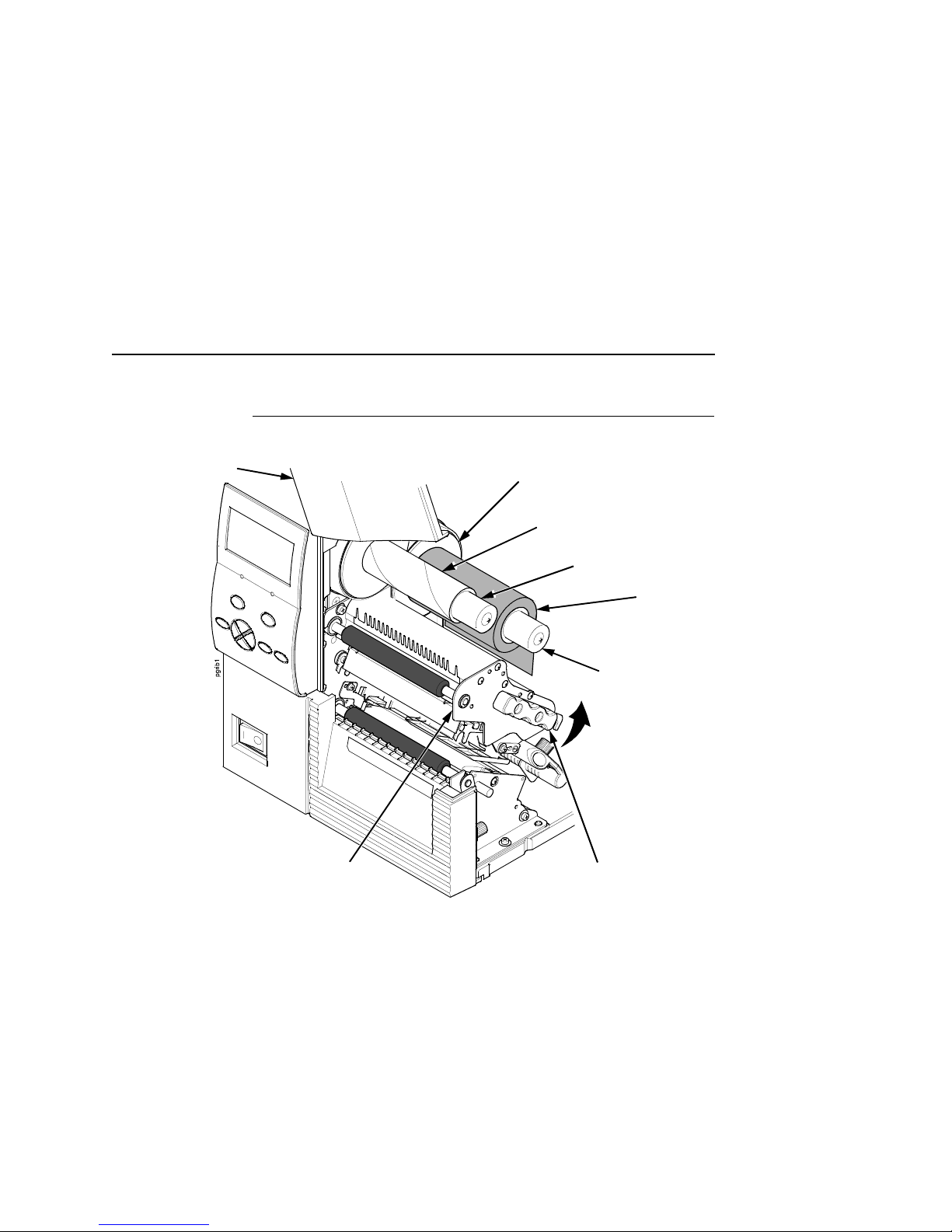

4. Open the pivoting deck by rotating the deck lock lever fully

counterclockwise until the deck swings upward.

Ribbon

Roll

Ribbon

Supply Spindle

Deck Lock

Lever

Pivoting

Deck

Ribbon

Take-Up Core

Ribbon

Take-Up Spindle

Media Cover Flange

Loading Ribbon And Roll Media

5. Thread the end of the ribbon under the ribbon guide rollers,

between the platen (rubber drive roller) and the printhead, and

between the ribbon take-up and supply spindles.

NOTE: Make sure to thread the ribbon behind the ribbon take-up

spindle.

NOTE: The alternate ribbon path is for ribbons that are inked on

the inside.

Printhead

Ribbon Guide

Roller (2)

Ribbon

Supply Spindle

Ribbon

Take-Up Spindle

Ribbon Take-Up

Core

Alternate

Ribbon Path

Platen

(not shown)

Load Ribbon

IMPORTANT

Never attach the ribbon to the ribbon take-up spindle without a

ribbon take-up core installed.

6. Attach the ribbon to the ribbon take-up core on the ribbon

take-up spindle with tape.

7. Manually rotate the ribbon take-up spindle counterclockwise

until the ribbon leader has passed the printhead.

Ribbon

Take-up Spindle

Ribbon

Take-up Core

Ribbon Leader

Printhead

Loading Ribbon And Roll Media

Load Roll Media

IMPORTANT

If you are using direct thermal mode, clean the printhead,

platen roller, and upper and lower media sensors every time

you change the media. Refer to the

User’s Manual

1. Slide the media hanger guide outward to the end of the media

hanger (as shown).

Media Hanger

Guide

Media Cover
