Printronix P7000 H-Series Manuel utilisateur
Quick Setup Guide
P7000, P7000HD, and P7000 H-Series
This Quick Setup Guide contains a
CD-ROM with the following materials:
•The User’s Manual
•Programmer’s Reference Manuals
•Useful utility programs
The CD-ROM is in a plastic pocket in
the back cover.
Save this guide. If you move or pack
the printer in the future, you will need to
reverse the instructions in this guide.
NOTICE
This document contains proprietary information protected by
copyright. No part of this document may be reproduced, copied,
translated, or incorporated in any other material in any form or by
any means, whether manual, graphic, electronic, mechanical, or
otherwise, without the prior written consent of Printronix.
Printronix makes no representations or warranties of any kind
regarding this material, including, but not limited to, implied
warranties of merchantability and fitness for a particular purpose.
Printronix shall not be held responsible for errors contained herein
or any omissions from this material or for any damages, whether
direct or indirect, incidental or consequential, in connection with the
furnishing, distribution, performance, or use of this material. The
information in this manual is subject to change without notice.
COPYRIGHT 2007 PRINTRONIX, INC.
5
Table of Contents
Basic Installation Procedures................... 7
Printer Component Locations...............................................8
Remove Packing Materials...................................................9
Adjust The Paper Supports ................................................14
Release The Paper Chains – Cabinet Model .....................15
Remove Tags – Cabinet Model..........................................16
Remove The Shipping Restraints From
The Power Paper Stacker (If Equipped).............................17
Remove The Paper Tent Tape...........................................19
Attach The Control Panel Overlay......................................20
Connect The Interface And Power Cables.........................21
Cabinet Model ...............................................................21
Interface Connections (Cabinet And Pedestal) .............24
Pedestal Model .............................................................26
Loading Ribbon And Paper ................................................27
Loading Ribbon.............................................................27
Loading Paper (Standard Configuration) ......................30
Set The Top-Of-Form .........................................................37
Adjust The Paper Fence – Cabinet Model .........................40
Adjust The Optional Passive Paper Stacker –
Cabinet Model ....................................................................41
Power Paper Stacker Option..............................................42
Power Paper Stacker Component Locations ................43
Setting Up The Power Paper Stacker ...........................44
Loading And Starting The Power Paper Stacker ..........47
Front Access Paper Stacker Option...................................49
Checking The Paper Feed – Cabinet Model ......................50
Attach The Input Paper Shelf And Output Basket –
Pedestal Model...................................................................51
Table of Contents
6
Install The Optional Acoustic Shroud – Pedestal Model ....53
Quick Access Cover Setup – Pedestal Model....................54
Checking The Paper Feed – Pedestal Model ....................56
The Control Panel ..............................................................57
Printer Self-Test .................................................................58
Quick Setup Menu..............................................................58
P7000 Quick Setup Menu .............................................59
P7000HD Quick Setup Menu........................................61
P7000 H-Series Quick Setup Menu ..............................62
Print A Test Page ...............................................................65
Contact Information............................................................67
Printronix Customer Support Center.............................67
Printronix Supplies Department ....................................67
Corporate Offices..........................................................68
For More Information..........................................................68
7
Basic Installation
Procedures
This Quick Setup Guide provides general information for setting up
and testing your printer. For detailed information, refer to your
User’s Manual which is on the CD-ROM attached to the back cover
of this guide.
Printer Component Locations
8
Printer Component Locations
Familiarize yourself with the names and locations of the printer
components, shown in Figure 1, before continuing with the rest of
the installation procedures.
Figure 1. Printer Component Locations
Ribbon Spool
Ribbon Hub
Blue Tractor
Lock (2)
Paper Support
Tractor (2)
Vertical
Position Knob
Platen Lever
Ribbon Guide (2)
Ribbon
Splined
Shaft
Platen Stop
Barcode
Hammer Bank
Cover and
Ribbon Mask
Date Code Label
Barcode Sensor
9
Remove Packing Materials
CAUTION
To avoid shipping damage, reinstall the shipping restraints
whenever you move or ship the printer.
Save the cardboard packing, foam blocks, and bubble wrap along
with the other packing materials in case you need to move the
printer. If it is necessary to move the printer, reinstall the shipping
restraints, reversing the steps in this section.
Figure 2. Removing the Protective Film
1. Peel the tape off carefully and lift the protective film off the
control panel message display.
Protective Film
Control Panel
Message Display
Remove Packing Materials
Remove Packing Materials
10

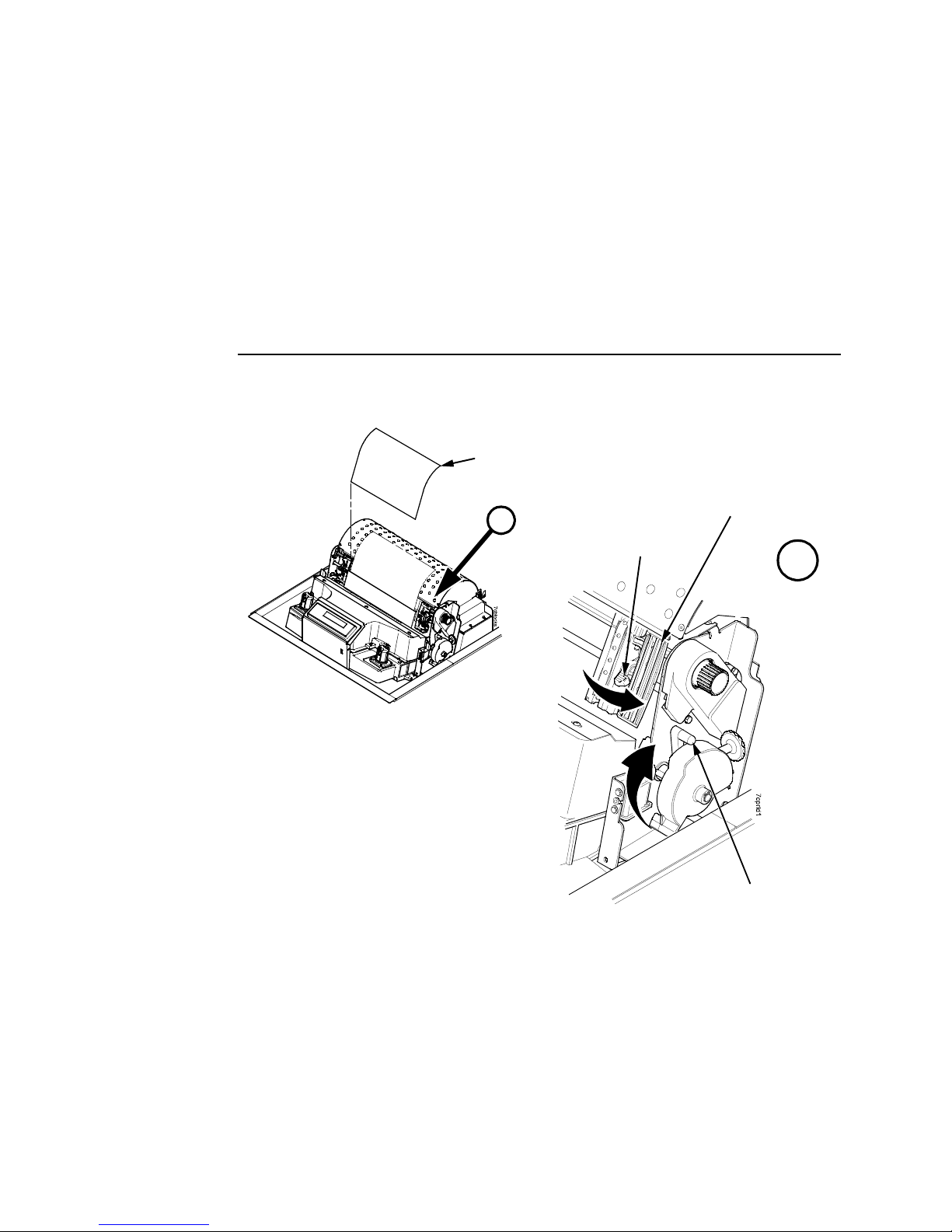

Figure 3. Removing the Sample Configuration Printout
2. Open the blue tractor doors.
3. Move the tractor locks to the middle position to unlock them.
4. Raise the platen lever to the fully open (raised) position.
5. Remove the envelope containing the sample configuration
printout.
6. Store the envelope in the pouch attached to the left interior side
of the cabinet.
7. Remove the cardboard packing.
Envelope
Platen Lever
Blue Tractor
Door (2)
A
A
Blue Tractor
Lock (2)
