Prestigio RoadScanner 500WGPS Manuel utilisateur
About this user manual
This user manual is specially designed to detail the device’s functions and features.
1. Please read this manual before using the device to ensure safe and proper use.
2. Descriptions are based on the device’s default settings.
3. Prestigio continuously strives to improve its products. Due to software upgrading, some
contents in this user manual may be different from your product. Prestigio reserves the
rights to revise this user manual or withdraw it at any time without prior notice. Please take
your product as standard.
Conventions used in this manual
In this user manual, we use the following symbols to indicate useful and important information:
Caution: provides safety precaution and important information.
Note: gives additional information.
Tips: usage tips.
> The order of options or menus you must select to perform a step.
© Copyright 2018 Prestigio. All rights reserved.
Contents
1. Unboxing.................................................................................... 1
Inside your package.................................................................................................................................1
Device overview ........................................................................................................................................1
2. Getting started........................................................................... 2
Insert a microSD card .............................................................................................................................2
Install the suction mount .......................................................................................................................2
Charge the battery ................................................................................................................................... 3
3. Screen interface Instruction ......................................................4
4. APP Operation ............................................................................5
5. Settings........................................................................................5
6. Specifications ..............................................................................7
1. Unboxing
Inside your package
•
Car videorecorder
•
Crowbar for cable installation
1
•
Quickstartguide
•
Suctionmount
•
Car charger
Device overview
MODE MUTE OK/ POI
Lens
Reset
User Manual RoadScanner 500WGPS
1
Before starting video recording, please insert a micro SD card (not included)
into the slot until it locks in place.
The device will automatically recognize it as default storage and all the data will be
saved on this card.
Install suction mount
•
Remove the protection paper from the suction mount and position the device on the
clean windshield or dashboard.
User Manual
RoadScanner 500WGPS
2
2. Getting started
Insert a micro SD card
2
User Manual RoadScanner 500WGPS
3
Charge the battery
Before using the device for the first time, please fully charge the Li-ion battery.
The battery will be completely charged in 1-2 hours.
•Using the car charger: charge the device through cigarette lighter. The device will start
charging after the car engine is turned on.
•Using micro USB cable: connect the device to AC 5V adapter or the USB port of a
computer/laptop.

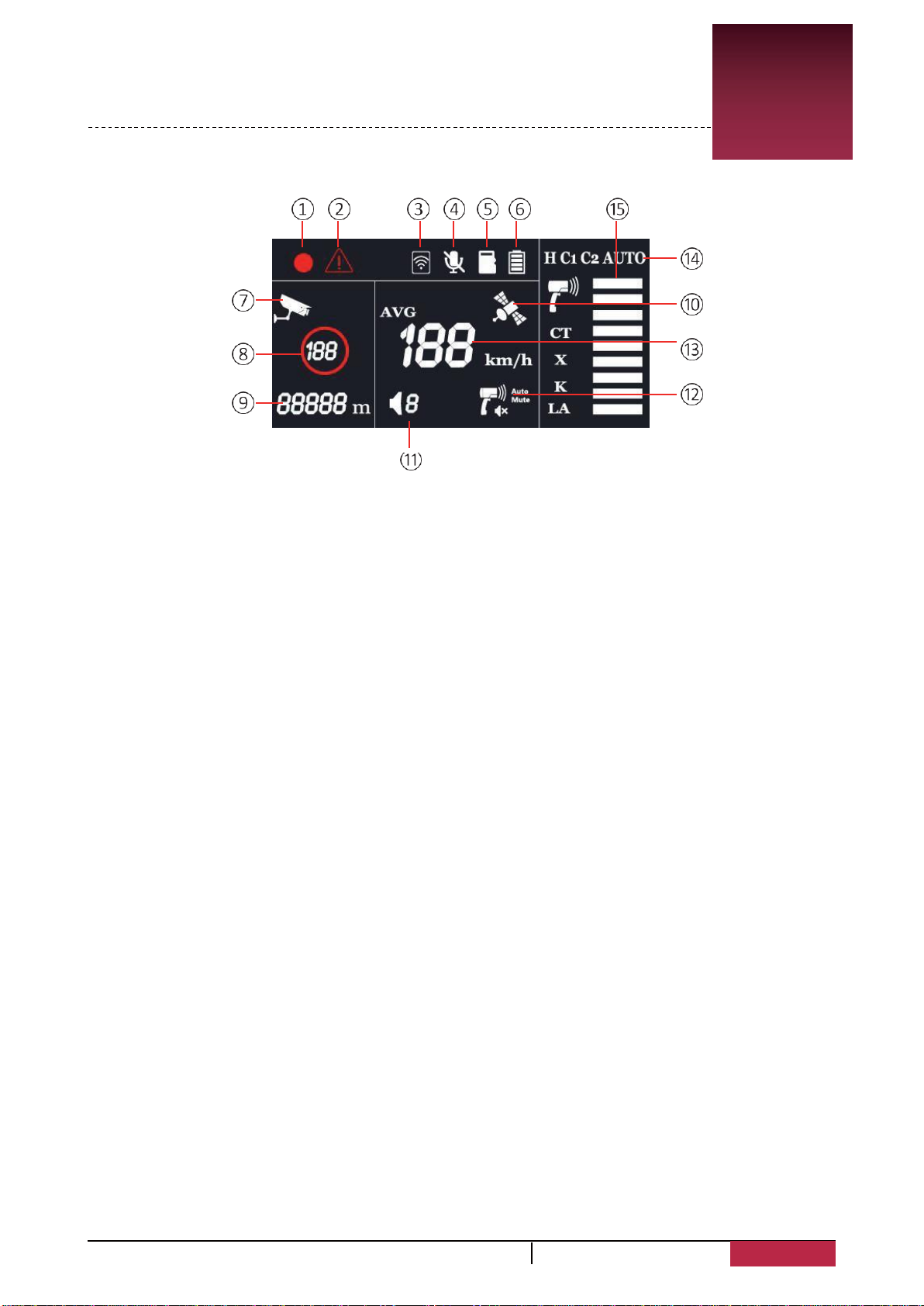

①Recording icon. It flashes when recording.
②Emergency recording icon. Only appears when emergency recording starts.
③WiFi icon. Appears when WiFi signal transmission is ok. Disappears when there is no WiFi
signal and the icon does not flash when mobile phone connects WiFi.
④Audio icon. There will be no sound in the video if it is off.
⑤TF card icon. Only appears when card inserted.
⑥Battery icon. Displays the current battery capacity after cutting off the out- source
power. The battery icon bounces when charging.
⑦E-dog function icon.
⑧Current speed limit icon.
⑨The distance from current place to the speed limit point.
⑩GPS satellite icon. It will highlight after receiving satellite signal.
Does not display when there is no satellite signal.
⑪Volume icon. Set the volume. It displays 0 when it is off.
When the volume is 1-7, the corresponding volume figure will display.
⑫Automute icon. Only displays when Automute is on.
⑬Normal speed and Autodoria average speed display.
If there is no Autodoria, then display normal speed (no AVG display).
When there are AVG speed and normal speed, then displays alternately.
⑭Radar Modes: H is Highway, C1 is City1, C2 is City2.
Highlight when switching to different modes.
⑮Indicates CT is receiving. There are totally 9 levels, the level displays according to the
signal strength received. The radar band (K, LA) will highlight when receiving the related
radar signal.
3. Screen interface instruction
3
User Manual RoadScanner 500WGPS
4
The device has a built-in WiFi function. WiFi is on automatically when powering on the
device, you could use mobile phone APP to connect and operate accordingly.
Firstly, please install the APP which is provided by our company to your mobile phone.
Then power on the device, add the device to check the real-time image, also you can
record videos, take photos, playback the videos in the SD card and adjust parameter
settings. After APP connects the device successfully, the WiFi icon on the device display
will not flash.
1. Use APP to add device. Enter into APP, then click ‘+’ button, then select the device
model, then click to switch network and redirect to mobile phone WiFi connection
setting(For iOS, need to switch to mobile phone WiFi setting manually), finally choose the
WiFi of the device (Prestigio_XXXXXX, Pass word: 12345678) to connect.
2. Operate device via APP
5. Settings
Please download application “PlusCam” to change settings:
Wifi Settings:
Wifi name: Prestigio_XXXXXXX, WiFi Password: 12345678
Subtitle: on/off
APP Video Resolution: 720p/360p
Record Resolution: 1080p/720p
Loop recording: 1 minute/3 minutes/5 minutes. Video recording is provided in a cyclic order
and chosen periods of time. When micro SD card is full then the oldest unprotected files will
be replaced by new recorded files.
Storage Settings: Memory Card/Used Storage/Free Capacity/Total Storage
Microphone: on/off
GPS: on/off
Satellite info: on/off
Loudspeaker Volume: 0-7
Collide Sensitivity: High/Medium/Low
Motion Detection: on/off, Time-lapse recording time. DVR automatically starts recording
when motion is detected in front of camera. Recording stops when there is no movement any
more but a delay of 15-20 seconds. The function works only when power is supplied.
User Manual
RoadScanner 500WGPS
5
4. APP Operation
4
5
E-Dog: on/off
Area: Auto/400m/500m/600m/700m/800m/900m/1000m
Demo: on/off
Voice: on/off
Human Voice: on/off
Extra Mute: on/off
Radar: on/off
Radar Mode: highway limit/city1 limit/city2 limit/auto
Highway limit:
0km/m;10km/m;20km/m;30km/m;40km/m;50km/m;60km/m;70km/m;80km/m;90km/m;100
km/m;110km/m;120km/m;130km/m
city1 limit:
0km/m;10km/m;20km/m;30km/m;40km/m;50km/m;60km/m;70km/m;80km/m;90km/m;10
0 km/m;110km/m;120km/m;130km/m
city2 limit:
0km/m;10km/m;20km/m;30km/m;40km/m;50km/m;60km/m;70km/m;80km/m;90km/m;10
0 km/m;110km/m;120km/m;130km/m
K Band: on/off
La Band: on/off
Automatic Mute: on/off
Language: Choose your language
Time setting: Sync GPS Time
Time zone settings: on/off
Timed Shutdown:
Always on/5 Seconds/10 Seconds/15 Seconds/30 Seconds/1 Minute/3 minutes/5 minutes
Device Version: Device FW Version/Device Data Version
Factory Reset: Reverts all settings back to the original factory default
User Manual
RoadScanner 500WGPS
6
Display
1.7", 960x480
Solution
HiSilicon 3516C
Image sensor
AR0237
Viewing Angle
150°
Video Resolution
1920x1080@30fps, 1280x720@30fps
Video Format
MP4
Picture Resolution
4 MP
Picture Format
JPEG
Memory
Micro SD/SDHC up to 32GB (class 10 )
Microphone
Built-in
Other Functions
Radar Detector, Motion Detection, Cyclic
Recording, Voice Announcements,
WiFi Firmware/Edog update via smartphone
GPS tracker and POI
Yes
G-sensor
Yes
WiFi
Yes
Power Source
Built-in battery 240 mAh, car charger
Interface
USB 2.0
Operating Temperature
0°C ~ 45°C
Dimension
58 x 66 x 88mm (H x W x D)
Weight
140g
Radar Detector Bands
K-BAND (23.3 to 24.4GHz), LASER (904 NM)
6. Specifications
6
User Manual RoadScanner 500WGPS
7
