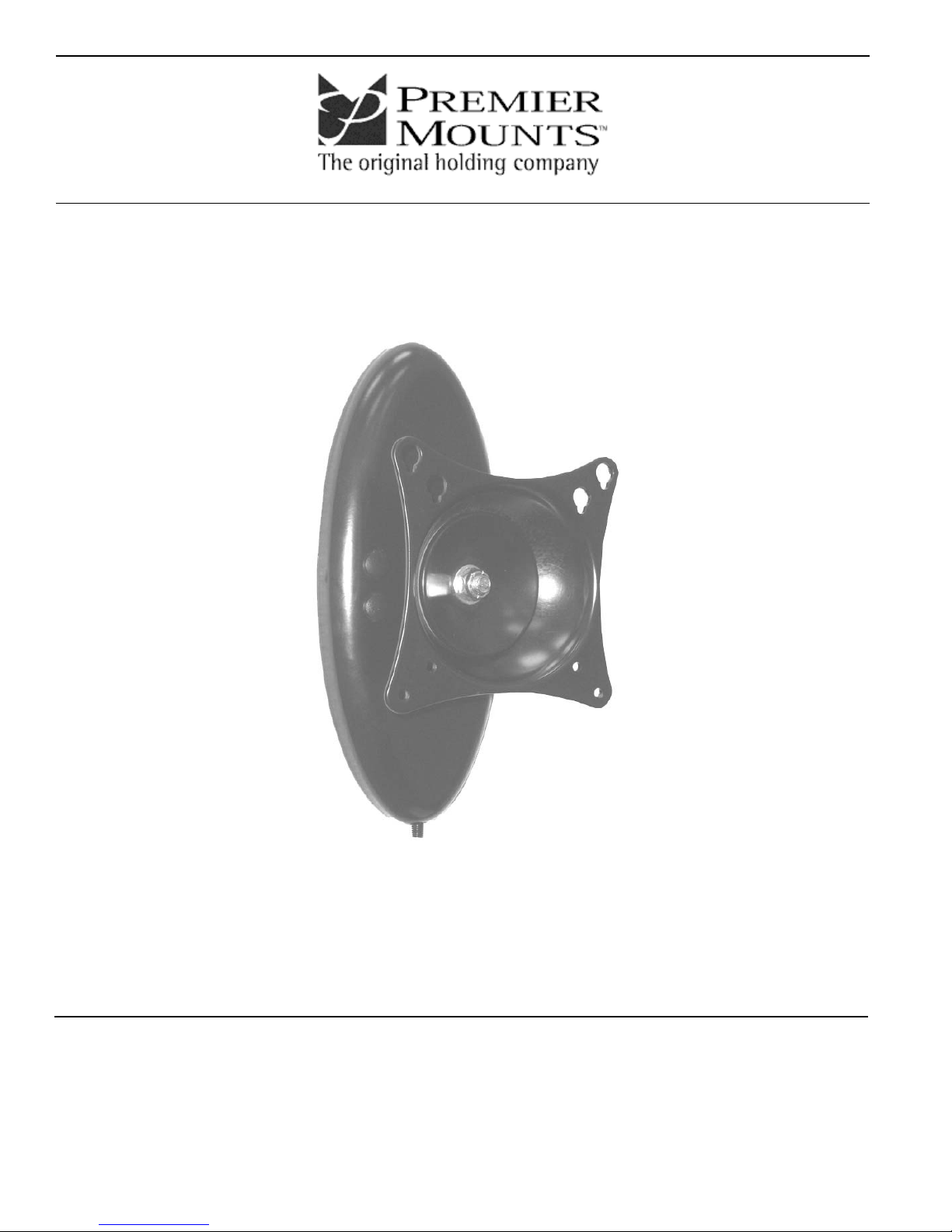

PTM-B

Tilt/Pivot Mount

Installation Instructions

Premier Mounts

3130 E. Miraloma Avenue

Anaheim, CA 92806

Phone: (800) 368-9700 Fax: (800) 832-4888

[email protected] www.mounts.com

IN-PTMB.R0

TABLE OF CONTENTS

Warning Statements 3

Parts List 4

Installation Tools 4

Wood Stud Installation 5

Optional Concrete Installation 5

PTM-B Installation 6

PTM-B Adjustment 6

Attaching the Display 7

UFP-200 Adapter Plate 7

Technical Specifications 8

Warranty 8

Contact Premier Mounts 8

Page 2 Installation Instructions

Warranty

Limited Lifetime Warranty

All Premier Mounts products carry a limited lifetime warranty from ship date against defects in materials and

workmanship. Premier Mounts is not liable for improper installation that results in damage to mounts,

adapters, display equipment or personal injury.

Contact Premier Mounts

In the event of missing and/or damage equipment, or technical questions, the following information can

help in the completion of the installation.

Customer Service - (800) 368-9700

Technical Support - [email protected]

PTM-B

Installation Instructions Page 3

Warning Statements

WARNING: THE WALL STRUCTURE MUST BE CAPABLE OF SUPPORTING AT LEAST A MINIMUM

WEIGHT OF 50 LBS. IF NOT, THE WALL MUST BE REINFORCED. PROPER INSTALLATION

PROCEDURE BY A QUALIFIED SERVICE TECHNICIAN, AS OUTLINED IN THE INSTALLATION

INSTRUCTIONS, MUST BE ADHERED TO. FAILURE TO DO SO COULD RESULT IN SERIOUS

PERSONAL INJURY, OR EVEN DEATH.

WARNING: SAFETY MEASURES MUST BE PRACTICED AT ALL TIMES DURING THE INSTALLATION OF

THIS PRODUCT. USE PROPER SAFETY GEAR AND TOOLS FOR THE INSTALLATION

PROCEDURE TO PREVENT PERSONAL INJURY.

WARNING: PRIOR TO THE INSTALLATION OF THIS PRODUCT, THE INSTALLATION INSTRUCTIONS

SHOULD BE READ AND COMPLETELY UNDERSTOOD. THE INSTALLATION INSTRUCTIONS

MUST BE READ TO PREVENT PERSONAL INJURY AND PROPERTY DAMAGE. KEEP THESE

INSTALLATION INSTRUCTIONS IN AN EASILY ACCESSIBLE LOCATION FOR FUTURE

REFERENCE.

Indicates that the power plug is to be disconnected from the power outlet.

Safety precautions must be taken at all times.

Warning and Caution statements.

A secure structure must support the weight, or load, of the display. When mounting to a wall that contains

wooden studs, dead center of the wooden stud must be confirmed prior to installation.

Do not install on a structure that is prone to vibration, movement or chance of impact. Failure to do so could result

in damage to the display and/or damage to the mounting surface.

Do not install near heater, fireplace, direct sunlight, air conditioning or any other source of direct heat energy. Failure

to do so may result in damage to the display and could increase the risk of fire.

At least two qualified people should perform the installation procedure. Injury and/or damage can result from drop-

ping or mishandling the display.

Recommended mounting surfaces: wooden studs and solid-flat concrete. If the mount is to be installed on any sur-

face other than wooden studs, use suitable hardware (which is commercially available).

Contact Premier Mounts with any technical/ installation questions.

PTM-B

Page 4 Installation Instructions

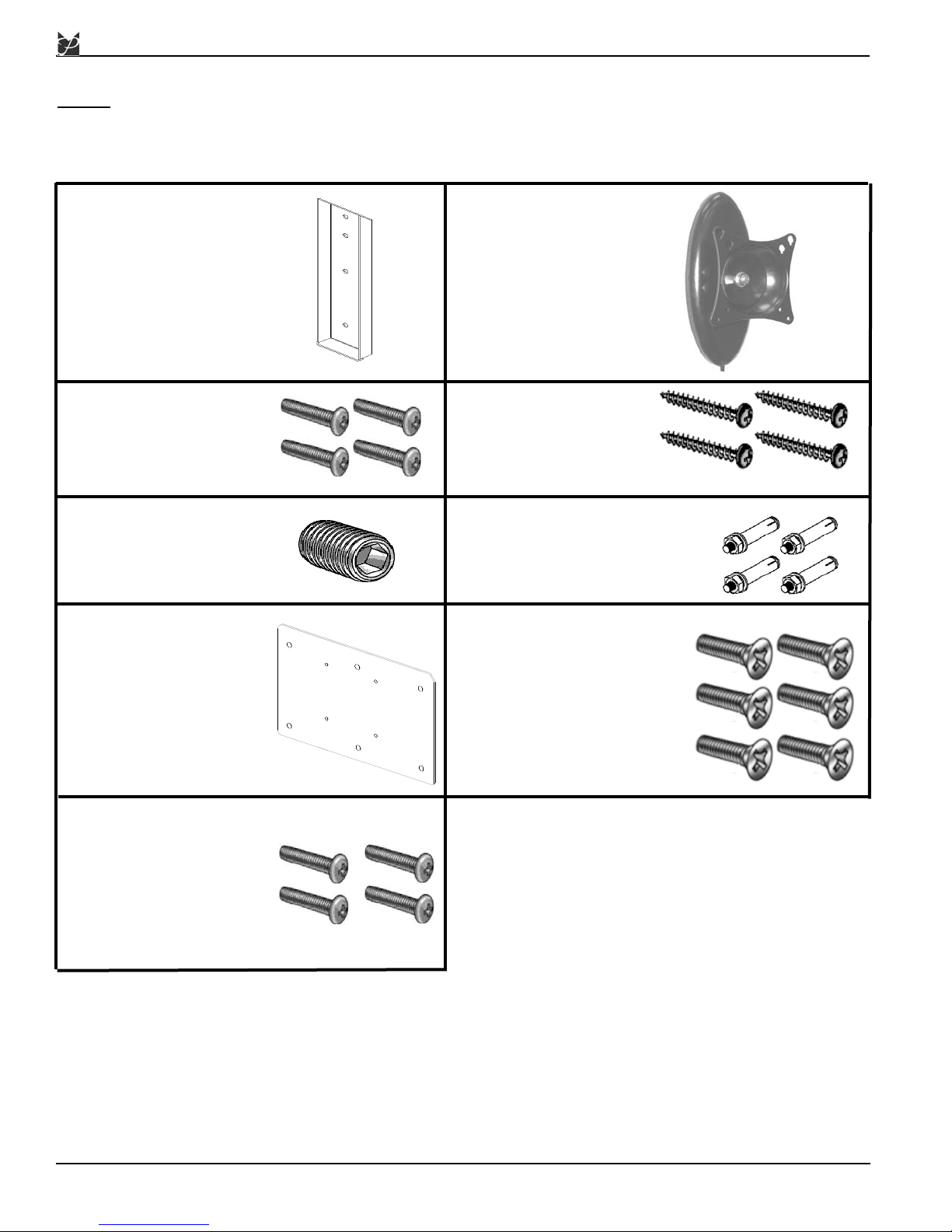

Parts List

NOTE: This mount is shipped with all installation hardware and components. Make sure that none

of these parts are missing and/ or damaged before beginning installation. If there are parts

missing and/or damaged, please stop and contact Premier Mounts - (800) 368-9700.

Installation Tools

Phillips Head Screw Driver Portable Drill

Soft Material/ Blanket Pencil

5/16” Drill Bit (for wedge anchors) Level

Tape Measure Ratchet with 14mm Drive Socket

Stud Finder (Sold Separately) M3 Allen Wrench (Supplied)

Mounting Backplate (Qty 1)

#14 x 2”Wood

Screws (Qty 4)

M4 x 10mm Phillips

Head Screws (Qty 4)

Tilt/Pivot Mount (Qty 1)

PTM-B

1/4” x 1-1/2” Wedge Anchors

(Qty 4). These are used only

for concrete applications.

M6 x 35mm Set Screw

(Qty 1)

UFP-200 Plate (Qty 1)

M4 x 5mm Phillips

Screws (Qty 4)

M4 x 10mm Flat Head

Phillips Screws (Qty 6)

Installation Instructions Page 5

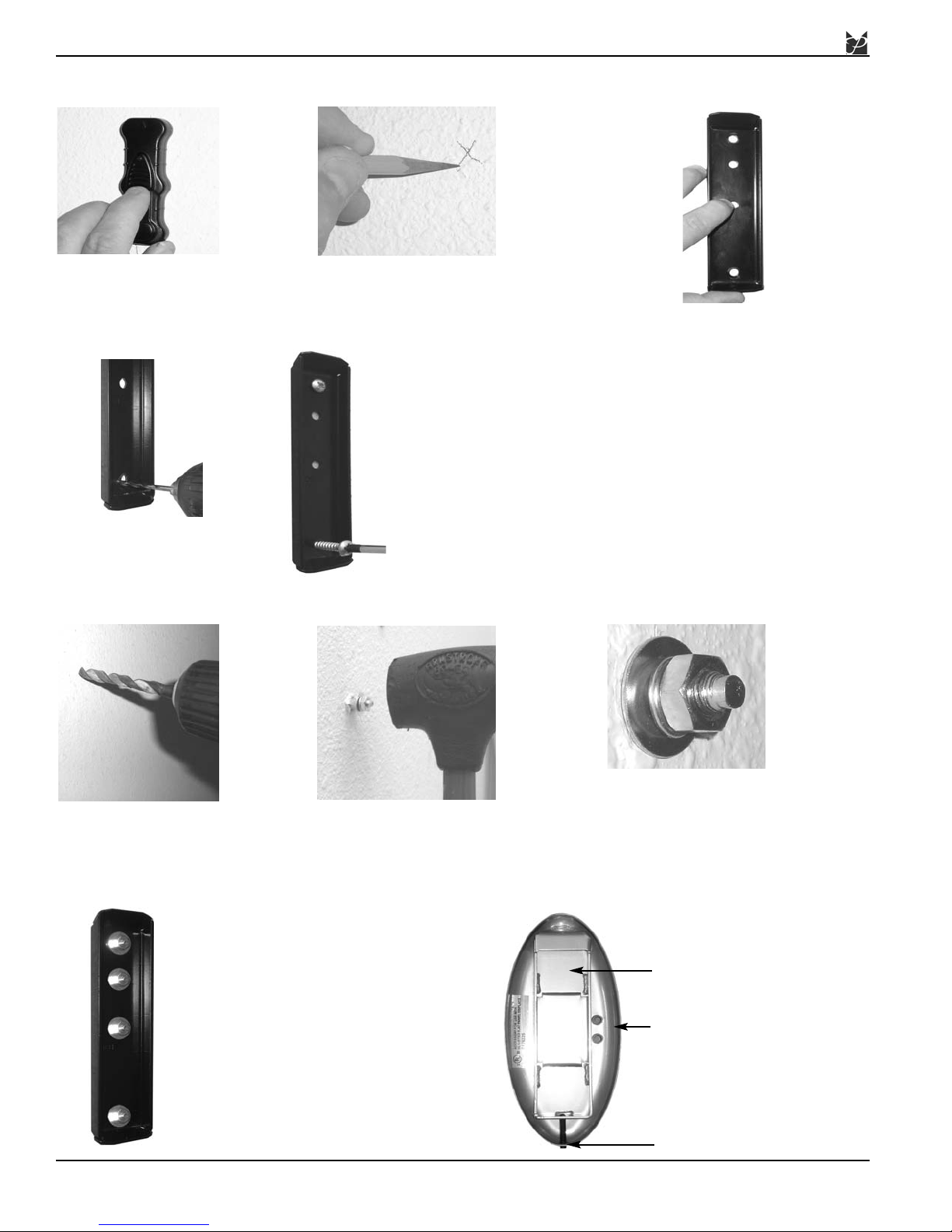

Wood Stud Installation

PTM-B

Determine where the

mount location will be.

Use a stud finder to locate

the nearest wall stud.

Once the stud has been located,

use a pencil to mark the center of

the stud.

Use the level (supplied) to make sure

the backplate is level from top to bot-

tom.

Place the back plate over the first

whole, and use a pencil to mark the rest

of the holes.

Use a drill and a 1/8" drill bit

to pre-drill the mounting

holes.

Use the provided wood

screws to attach the back plate

to the mounting surface.

Optional Concrete Installation

Drill the mounting holes

where the marks were

made with a pencil. Use a

5/16" concrete drill bit

(commercially available).

Once the holes have been

drilled, place the wedge anchor

into the hole. Using a hammer,

gently tap into place.

Correctly seated wedge

anchor bolt.

Place the backplate over the

wedge anchors once the wedge

anchors have been correctly

inserted into the mounting sur-

face. Place the washer, locking

washer and nut onto the threaded

shaft and tighten.

Backplate Receptacle

Mount Base

Locking Screw Access Hole

Page 6 Installation Instructions

PTM-B

PTM Installation

1. The reverse side of the mount must be mounted to the back

plate that is attached to the wall. The back of the mount

contains an elongated rectangle. The back plate

receptacle must be placed over the top of the back plate, so

that the entire mount “hangs” on the back plate.

2. Locate the access hole at the bottom of the mount base. Install

the M6 x 35mm set screw with the M3 Allen wrench.

3. Turn the Allen wrench clockwise (viewed from below) until

the screw is secure.

WARNING: Failure to fully tighten the locking screw may

result in possible damage to your display.

PTM Tension Adjustment

To adjust the tension of the PTM, use

the 14mm socket and Allen Wrench.

The tension nut is located on the face

of the PTM.

Use the M3 Allen Wrench (supplied) to tighten the

locking screw that is located on the bottom of the

mount base. This locking screw will prevent the

mount and display from being lifted off of the wall

plate.

M3 Allen Wrench

PTM-B

Installation Instructions Page 7

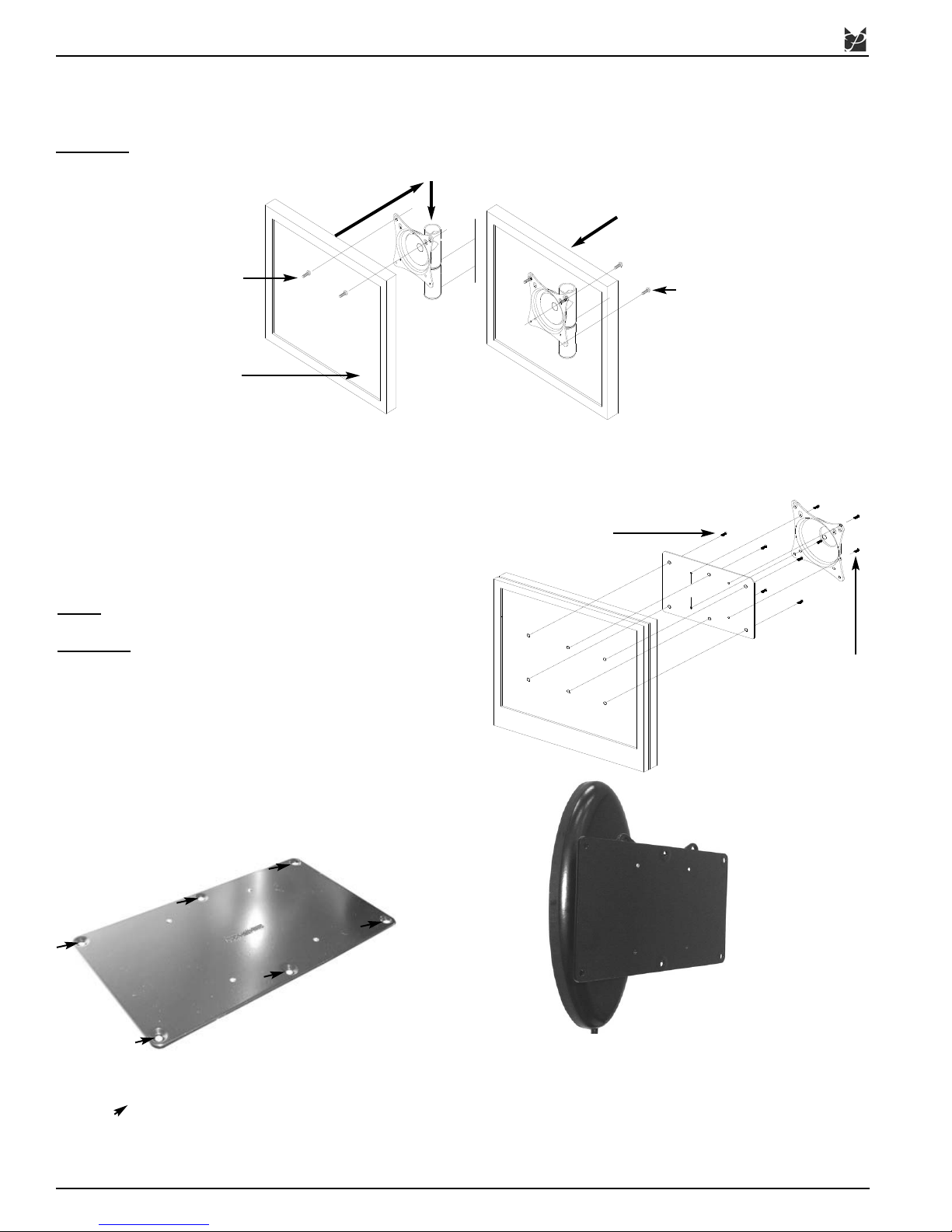

For the PTM-B, it is suggested that the

mount and adapter plate be attached to the

display while the display is on the ground.

The reason for this is because once the

display is attached, there is limited space

behind the unit to use a screwdriver to

tighten the screws.

UFP-200 Adapter Plate

Use six (6) M4 x 10mm screws to attach the plate to the

display ( - 6 total).

Install the top two M4 x 5mm screws into the UFP-200

plate. Do not thread tight.

Attaching the Display

1. Loosely tighten two (2) M4 x 10 phillip screws to the top of the mounting points.

2. Insert the head of the screws through the keyhole slots and then secure the bottom two (2) M4 x 10 phillip screws to

secure the flat panel to the mounts, then tighten the upper M4 screws.

CAUTION: Do not over tighten the M4 screws.

Display

M4 x 10mm

Phillips Head

Screws

M4 x 10mm

Phillips Head

Screws

VESA 75

1. Attach the UFP-200 Adapter Plate to the back of the display

using the six (6) M4 x 10mm screws.

2. Attach the PTM mounting plate to the back of the

UFP-200 using the four (4) M4 x 5 mm screws.

NOTE: If your flat panel is not a VESA 75/100, the UFP-200

Adapter Plate must be used.

CAUTION: DO NOT OVERTIGHTEN THE SCREWS.

M4 x 10mm Phillips

Head Screws

M4 x 5mm

Phillips Head

Screws

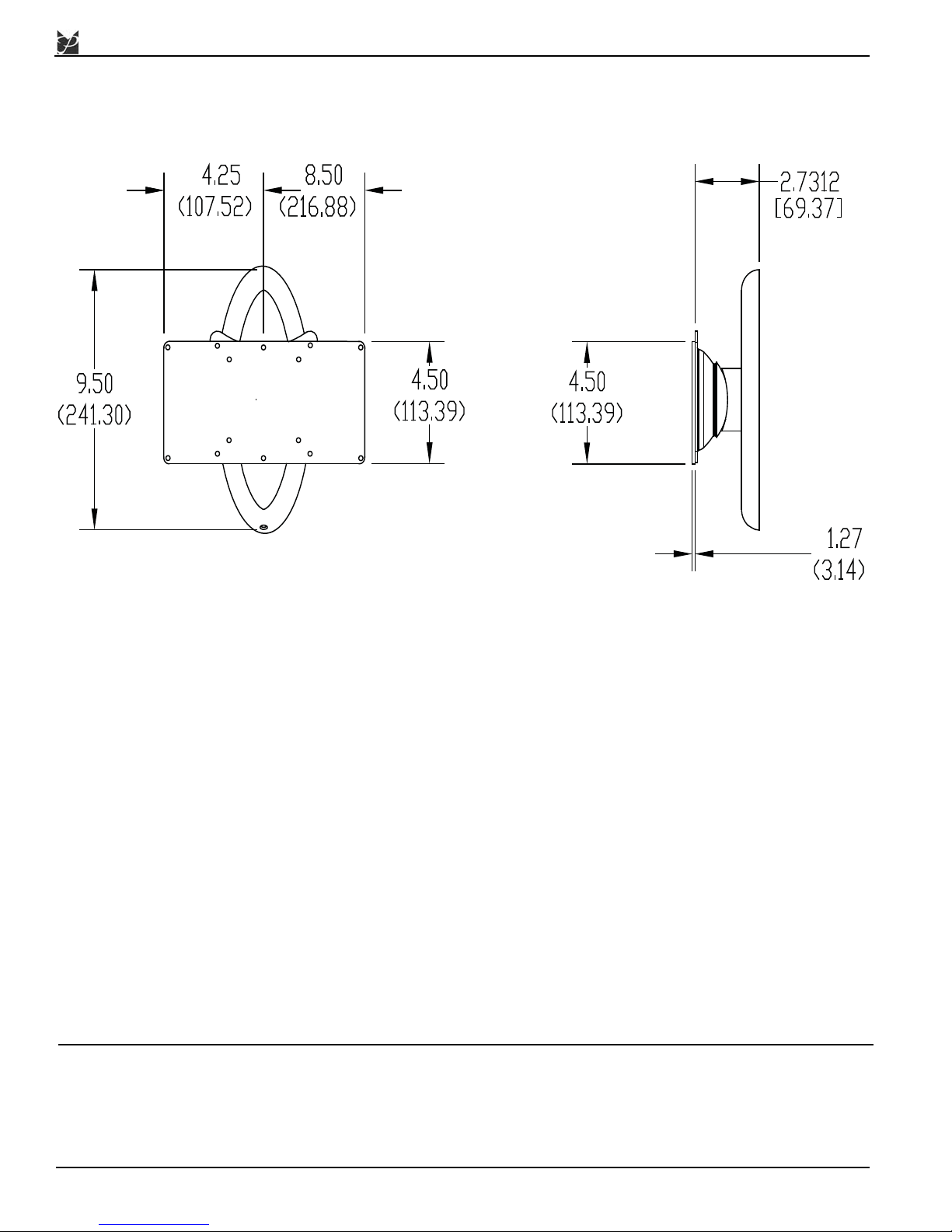

Technical Specifications

All measurements in inches/(mm).

NORTH AMERICA

3130 E. Miraloma Ave.

Anaheim, CA 92806 USA

USA and Canada -

Phone: 800-368-9700

Fax: 800-832-4888

www.mounts.com

EUROPE

Swallow House,

Shilton Industrial Estate,

Shilton, Coventry, England

CV79JY

Phone: +44 (0) 2476 614700

Fax: +44 (0) 2476 614710

AUSTRALIA, NEW ZEALAND,

OCEANIA (DISTRIBUTOR)

P.O. Box 295

Mordialloc Victoria 3195

Australia

Phone: 03 9586 6330

www.premiermounts.com.au

PTM-B

Page 8 Installation Instructions
