Premier Mounts GB-PIPE1 Manuel utilisateur

INSTALLATION INSTRUCTIONS

GB-PIPE1/GB-PIPE1B

Pipe-Mounted Equipment Enclosure

NORTH AMERICA

3130 East Miraloma Avenue

Anaheim, CA 92806 USA

USA and Canada –

Phone: 800-368-9700

Fax: 800-832-4888

EUROPE

Swallow House,

Shilton Industrial Estate,

Shilton, Coventry, England CV79JY

Phone: +44 (0) 2476 614700

Fax: +44 (0) 2476 614710

AUSTRALIA, NEW ZEALAND, OCEANIA

(DISTRIBUTOR)

P.O. Box 295

Mordialloc Victoria 3195

Australia

Phone: 039586 6330

www.premiermounts.com.au

Other Locations – Phone: (001)-714-632-7100; Fax: (001)-714-632-1044

©Premier Mounts 2008

9534-004-003-00

Page 2 Installation Instructions

Table of Contents

Warning Statements

GB-PIPE1

PRIOR TO THE INSTALLATION OF THIS PRODUCT, THE INSTALLATION INSTRUCTIONS SHOULD BE READ AND

COMPLETELY UNDERSTOOD. THE INSTALLATION INSTRUCTIONS MUST BE READ TO PREVENT PERSONAL INJURY AND

PROPERTY DAMAGE. KEEP THESE INSTALLATION INSTRUCTIONS IN AN EASILY ACCESSIBLE LOCATION FOR FUTURE

REFERENCE.

PREMIER MOUNTS DOES NOT WARRANT AGAINST DAMAGE CAUSED BY THE USE OF ANY PREMIER MOUNTS

PRODUCT FOR PURPOSES OTHER THAN THOSE FOR WHICH IT WAS DESIGNED OR DAMAGE CAUSED BY UNAUTHORIZED

ATTACHMENTS OR MODIFICATIONS, AND IS NOT RESPONSIBLE FOR ANY DAMAGES, CLAIMS, DEMANDS, SUITS,

ACTIONS OR CAUSES OF ACTION OF WHATEVER KIND RESULTING FROM, ARISING OUT OF OR IN ANY MANNER

RELATING TO ANY SUCH USE, ATTACHMENTS OR MODIFICATIONS.

THE SURFACE MUST BE CAPABLE OF SUPPORTING AT LEAST FIVE TIMES THE WEIGHT OF THE BOX. IF NOT, THE

CEILING STRUCTURE MUST BE REINFORCED. THE MAXIMUM WEIGHT THAT CAN BE USED WITH THIS PRODUCT

IS 75LBS. PROPER INSTALLATION PROCEDURE BY A QUALIFIED SERVICE TECHNICIAN, AS OUTLINED IN THE

INSTALLATION INSTRUCTIONS, MUST BE ADHERED TO. FAILURE TO DO SO COULD RESULT IN SERIOUS PERSONAL

INJURY, OR EVEN DEATH.

SAFETY MEASURES MUST BE PRACTICED AT ALL TIMES DURING THE ASSEMBLY OF THIS PRODUCT. USE PROPER SAFETY

GEAR AND TOOLS FOR THE ASSEMBLY PROCEDURE TO PREVENT PERSONAL INJURY.

At least two qualified people should perform the assembly procedure. Injury and/or damage can result from dropping or mishandling the

product.

This product is intended for indoor use only. Use of this product outdoors could lead to product failure and personal injury.

Do not install near sources of high heat. Do not install on a structure that is prone to vibration, movement or chance of impact

Contact Premier Mounts with any questions

(800) 368-9700

[email protected]

Warning Statements 2

Parts List 3

Installation Tools 3

GB-PIPE1 Installation 4

1-1/2” NPT Installation 5

PDS-PLUS Installation without NPT (Optional) 6

Cable Connections 7

Side Panel Installation 7

Lateral Shift Adjustment 8

Technical Specifications 8

Warranty 9

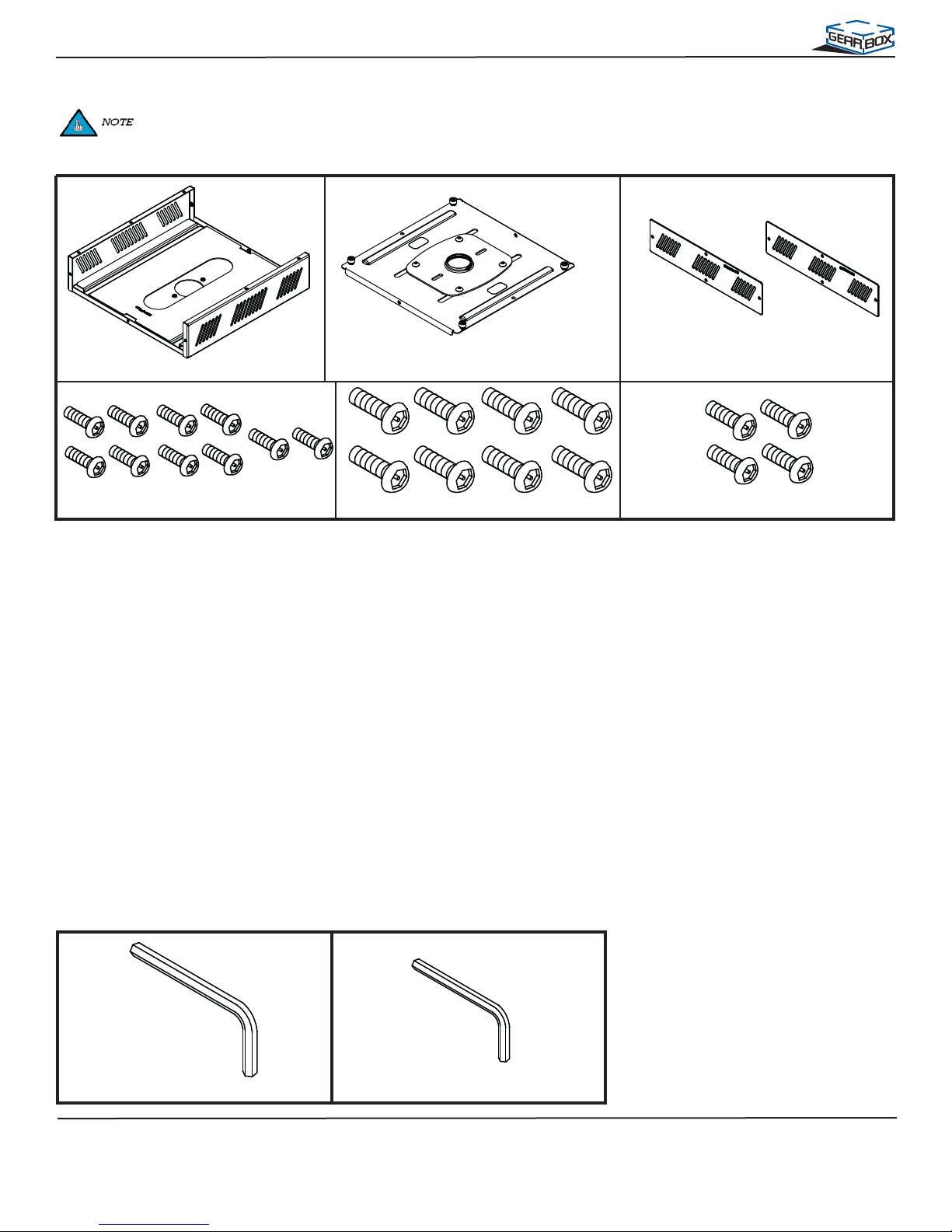

Installation Instructions Page 3

Parts List

This accessory is shipped with all proper installation hardware and components. Make sure that none of these parts

are missing and/or damaged before beginning installation. If there are parts missing and/or damaged, please stop the

installation and contact Premier Mounts (800-368-9700).

Installation Tools

Equipment Tray (Qty 1)

M4 x 8mm Security Head Screw (Qty 10)

M5 Security Wrench

GB-PIPE1

M3 Security Wrench

M8 x 12mm Security Head Screw (Qty8)

Side Panel (Qty 2)

Upper Plate (Qty 1)

M5 x 10mm Security Head Screw (Qty4)

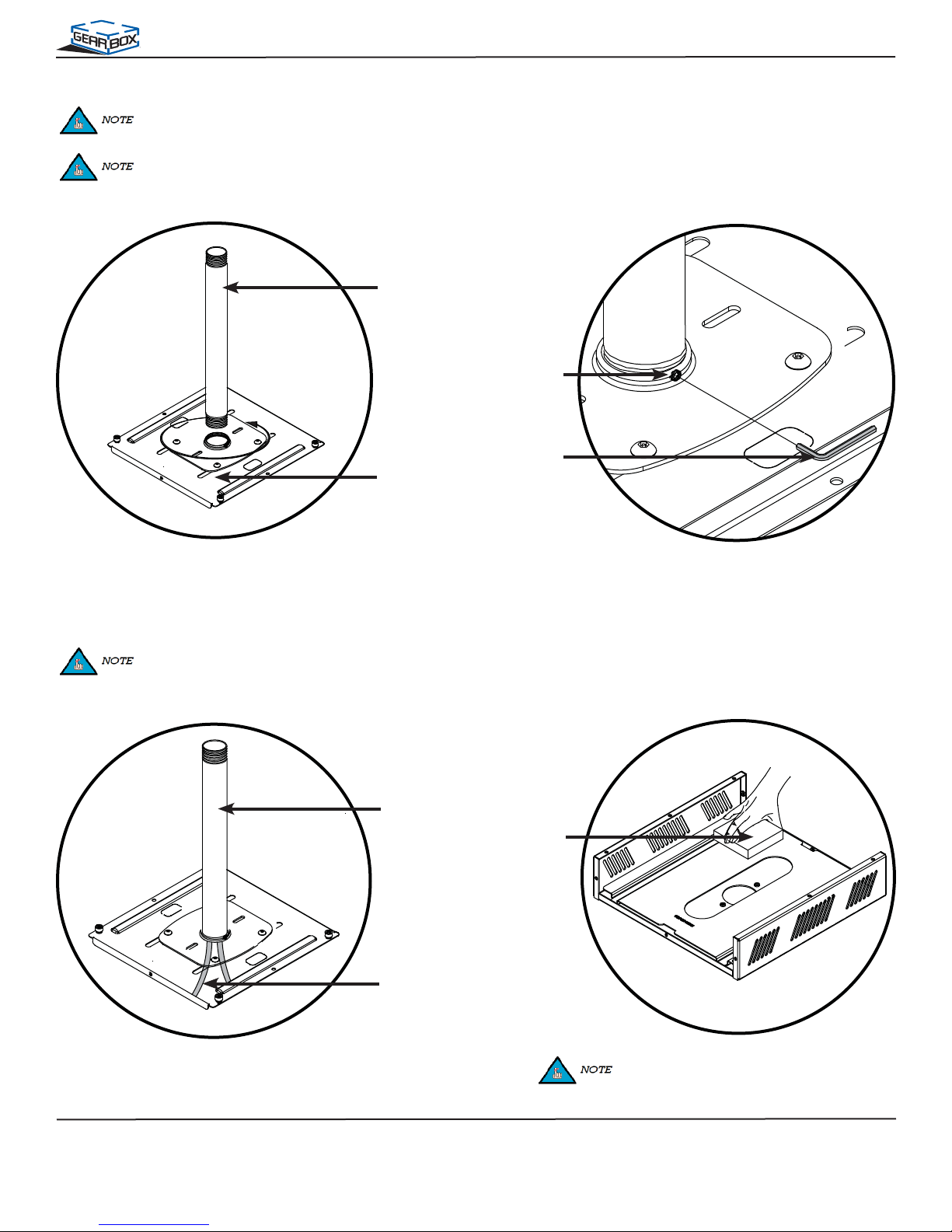

Page 4 Installation Instructions

GB-PIPE1 Installation

Step 1. Determine where the GB-PIPE1 will be

located.

Step 2. Install your 1-1/2” NPT or ceiling adapter.

Step 3. Attach the upper plate to the NPT or

adapter by rotating counter-clockwise.

Step 4. Use an M3 security wrench to tighten the

set screw.

Upper Plate

Step 5. At this time, run all existing cables through

the pipe and down through the upper

plate.

The GB-PIPE1 is designed for use with either a standard piece of 1-1/2” NPT pipe or any available ceiling mount adapter

from Premier Mounts. Please refer to the ceiling mount adapter installation instructions when mounting.

GB-PIPE1

Unpack the Gear Box and review any WARNING statements that apply to the installation. Select the desired location for

the GB-PIPE1.

The upper plate must rotate onto the

threads at least four (4) complete

rotations.

1-1/2” NPT

Set Screw

M3 Security

Wrench

Pipe

Cables

At this time, you may pre-install your

electronic components in the equipment

tray.

Electronic

Component

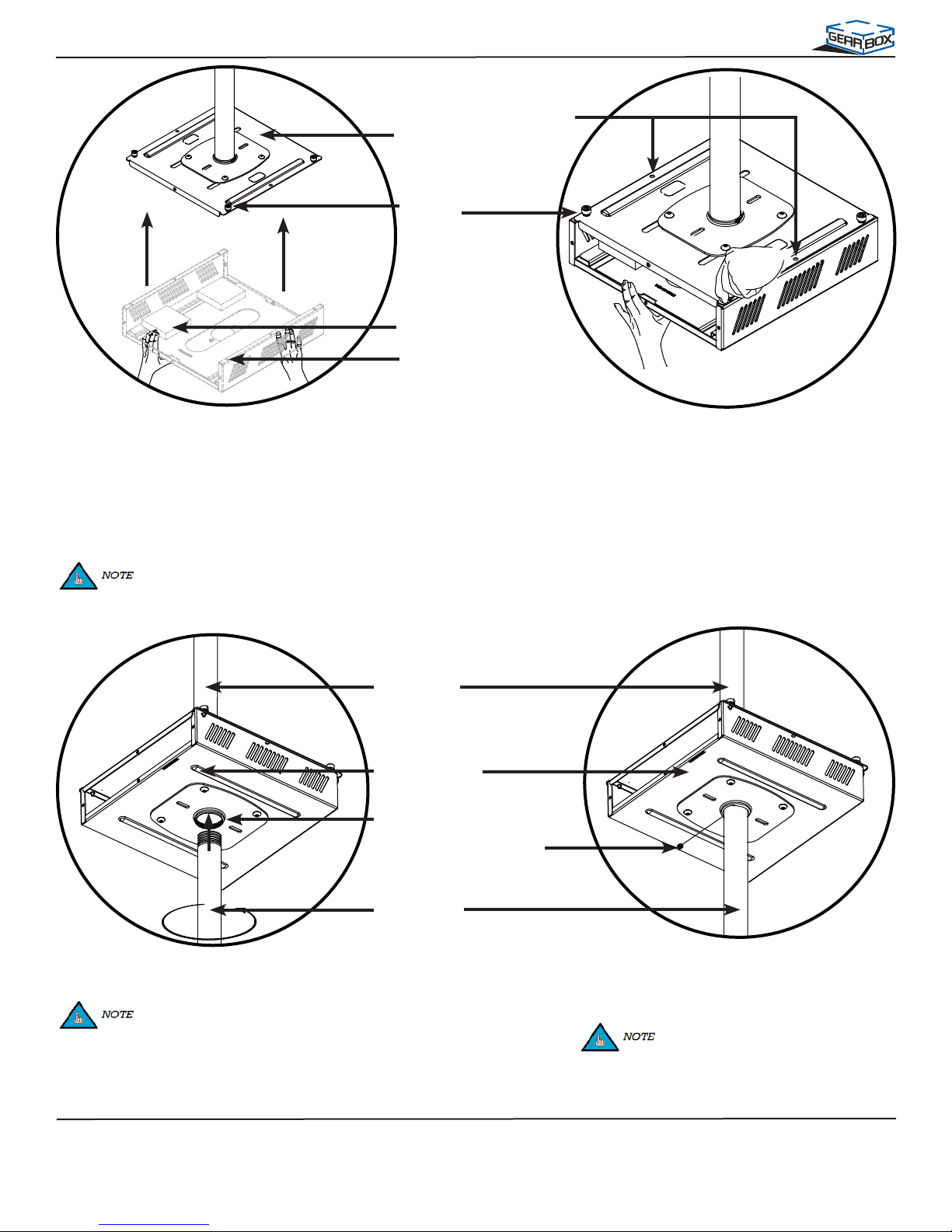

Installation Instructions Page 5

GB-PIPE1

Mounting Hole

Spring Loaded

Nuts

Step 6. Lift the equipment tray into position.

Upper Plate

Step 7. Line up the mounting holes with the

threaded shaft of the spring loaded nuts.

Step 8. Once the holes are lined up, press down

on the spring loaded nuts and tighten.

Step 9. Insert and tighten two (2) M4 x 10mm

security screws on the upper plate.

Electronic Components

1-1/2” NPT Installation

The NPT must rotate onto the

equipment tray four (4) complete

rotations.

Step 2. Use an M3 security wrench to tighten the

set screw.

Step 3. Attach projector mount to NPT.

1-1/2” NPT

Equipment Tray

Set Screw

Step 1. Place the threaded end of the 1-1/2” NPT

into the plate hole.

Plate Hole

Before attaching the lower 1-1/2” NPT, it is strongly recommended that all connections in the equipment tray be made at

this time. Once the connections are made, feed the cables through the plate hole and then through the 1-1/2” NPT. Please

read instructions below to complete the installation.

M4 x 10mm

Security

Screws

Please follow the instructions

included with the mount to complete

this step. If using a PDS Series mount,

connection may be made directly to

the bottom of the equipment tray.

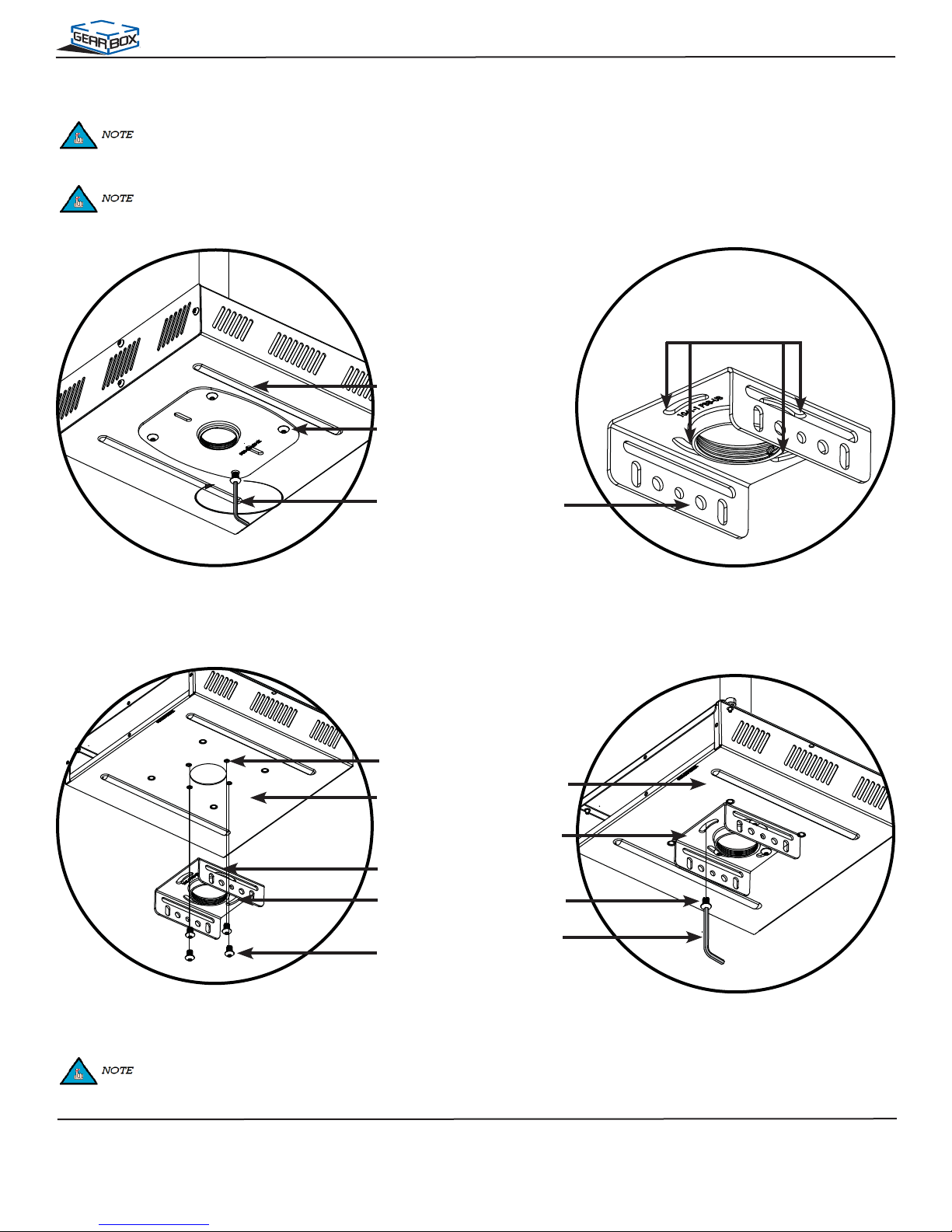

Page 6 Installation Instructions

GB-PIPE1

PDS-PLUS Installation without NPT (Optional)

Before attaching the PDS-PLUS, it is strongly recommended that all connections in the equipment tray be made at this

time. Once the connections are made, feed the cables through the plate hole and then through the 1-1/2” NPT. Please read

instructions below to complete the installation.

M5 Security

Wrench

M8 x 12mm

Security Head

Screw

Equipment

Tray

Step 1. Remove the lower mounting plate from

the equipment tray by removing the four

(4) M8 x 12mm security head screws with

an M5 security wrench.

Mounting Slots

Step 2. Locate the mounting slots that are on the

base box bridge of the PDS-PLUS.

Base Box

Bridge

Step 3. Line up the mounting slots on the base box

bridge with the mounting points on the

equipment tray.

Step 4. Insert four (4) M5 x 10mm security screws

and tighten using the M5 security wrench.

M5 Security

Wrench

M5 Security

Wrench

Mounting

Point

Equipment

Tray

M5 x 10mm

Security Head

Screw

Equipment

Tray

Base Box

Bridge

Base Box

Bridge

Please refer to the PDS-PLUS Installation Instructions before proceeding with the following steps.

M5 x 10mm

Security Head

Screw

Be aware of the screen location and

orient the base accordingly.

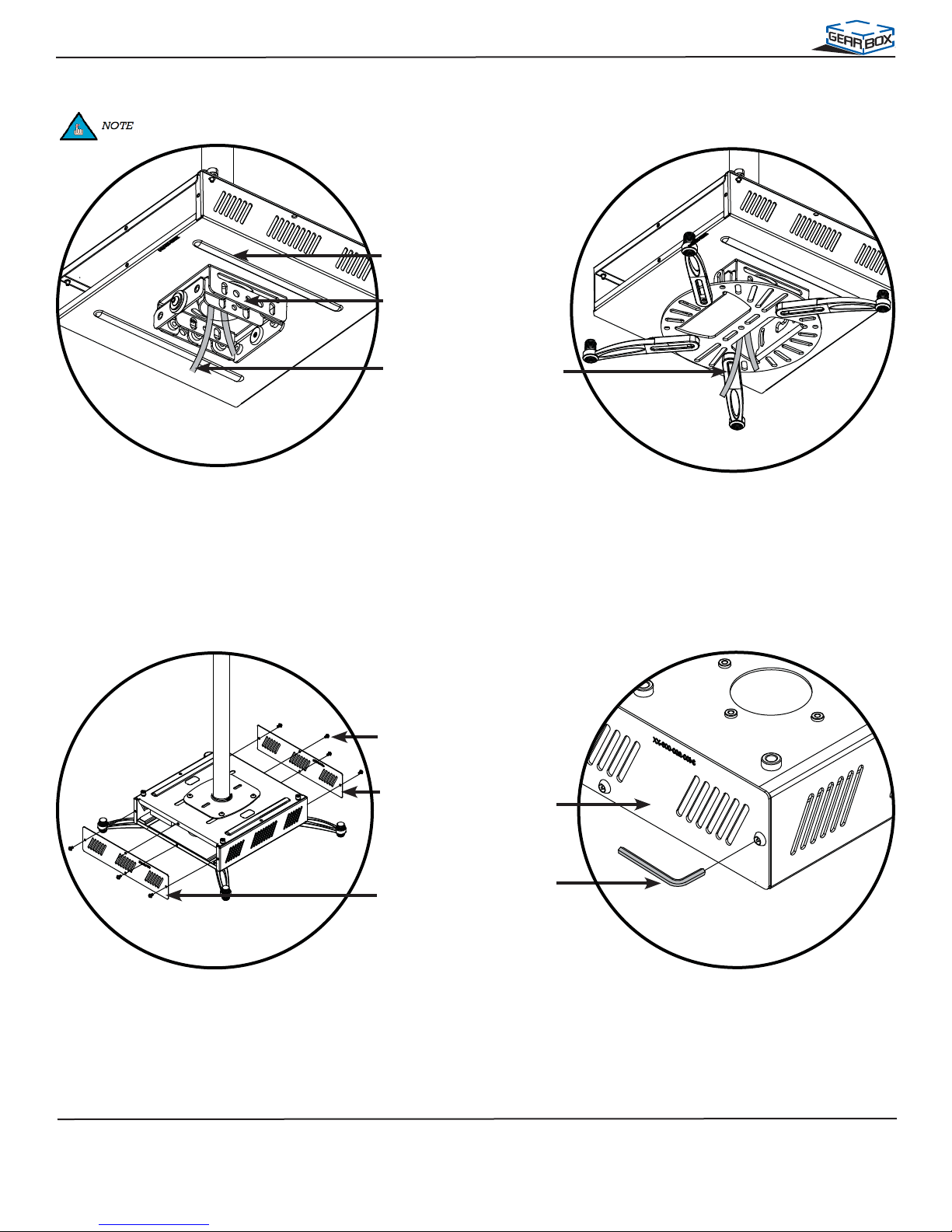

Installation Instructions Page 7

GB-PIPE1

Cable Connections

Equipment

Tray

Step 1. Pull all cables down through the

PDS-PLUS base box.

Please refer to the PDS-PLUS Installation Instructions before proceeding with the following steps.

Cables

PDS-PLUS

Base Box

Step 2. Pull all cables down through the

PDS-PLUS projector plate.

Step 3. Attach all cables to the installed

projector.

Step 2. Tighten these screws using the M5

security wrench.

M3 Security

Wrench

Side Panel

M4 x 8mm

Security Screw

Step 1. Attach the two side panels using eight (8)

M4 x 8mm security screws.

Side Panel Installation

Side Panel

Cables

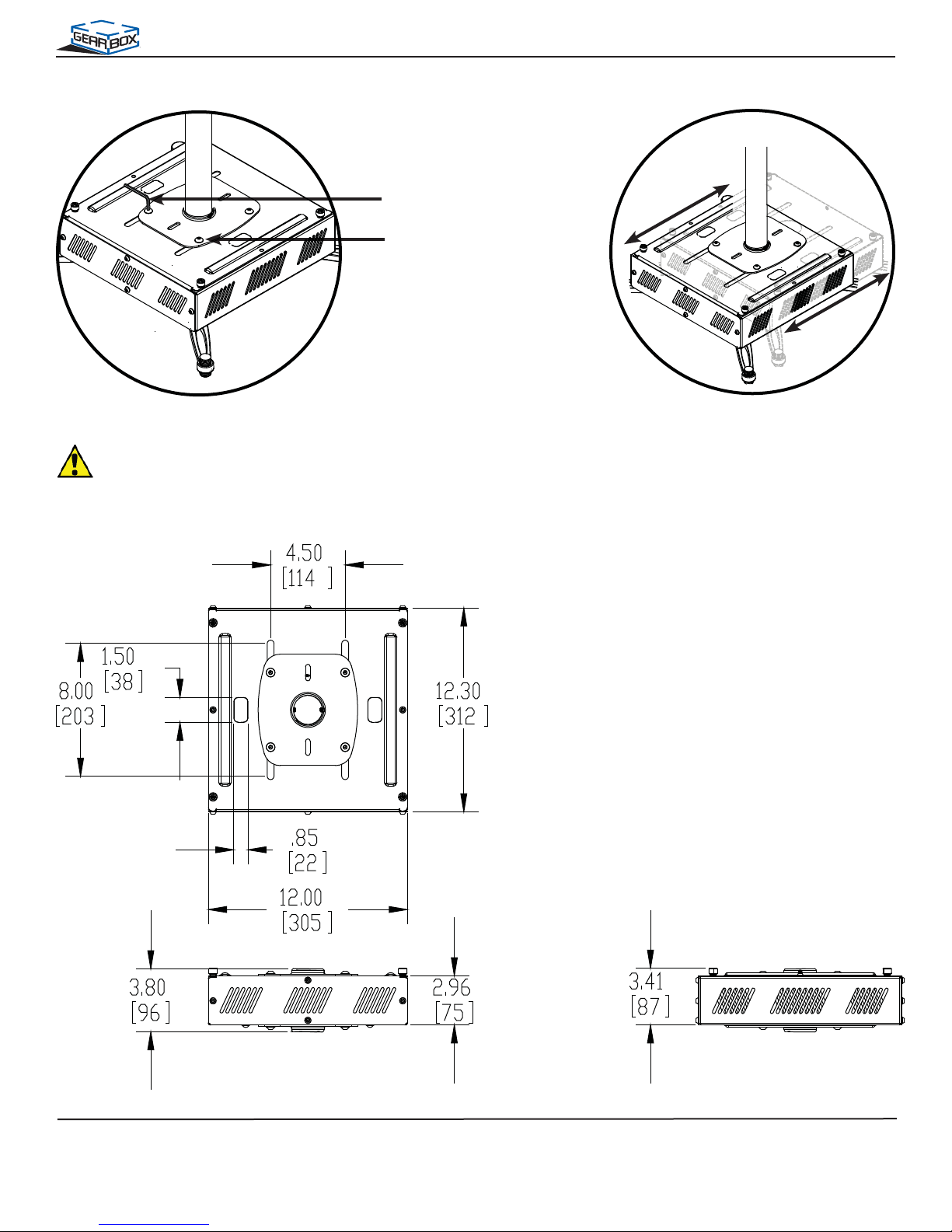

Page 8 Installation Instructions

Technical Specifications

All measurements are in inches(mm).

GB-PIPE1

Lateral Shift Adjustment

M8 x 12mm

Security Head

Screw

M5 Security

Wrench

Step 1. Use the M5 security wrench and loosen

the four (4) M8 x 12mm security screws.

Step 2. Once the screws have been loosened,

slide the GB-PIPE1 laterally side to side

(or front to back).

Step 3. When the desired position has been

determined, use the M5 security wrench to

tighten the M8 x 12mm security screws.

Do not completely remove these screws.

Installation Instructions Page 9

GB-PIPE1

Warranty

PREMIER MOUNTS

LIMITED LIFETIME WARRANTY

What and Who is Covered by this Limited Warranty and for How Long

Premier Mounts warrants this product to be free from defects in material and workmanship for the lifetime of

the original owner of this product. The limited warranty is valid only for the original purchaser of the product.

What Premier Mounts Will Do

At the sole option of Premier Mounts, Premier Mounts will repair or replace any product or product part that is

defective. If Premier Mounts chooses to replace a defective product or part, a replacement product or part will

be shipped to you at no charge, but you must pay any labor costs.

What is Not Covered; Limitations

PREMIER MOUNTS DISCLAIMS ANY LIABILITY FOR DAMAGE TO MOUNTS, ADAPTERS, DIS-

PLAYS, PROJECTORS, OTHER PROPERTY, OR PERSONAL INJURY RESULTING, IN WHOLE OR IN

PART, FROM IMPROPER INSTALLATION, MODIFICATION, USE OR MISUSE OF ITS PRODUCTS.

PREMIER MOUNTS DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, INCLUDING

WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. PREMIER

MOUNTS IS NOT RESPONSIBLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES, INCLUD-

ING BUT NOT LIMITED TO, INABILITY TO USE ITS PRODUCTS OR LABOR COSTS FOR REMOV-

ING AND REPLACING DEFECTIVE PRODUCTS OR PARTS. SOME STATES DO NOT ALLOW THE

EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE

LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

What Customers Must Do for Limited Warranty Service

If you discover a problem that you think may be covered by the warranty you MUST REPORT it in writing to

the address below within thirty (30) days. Proof of purchase (an original sales receipt) from the original con-

sumer purchaser must accompany all warranty claims. Warranty claims must also include a description of the

problem, the purchaser’s name, address, and telephone number. General inquiries can be addressed to Premier

Mounts Customer Service at 1-800-368-9700. Warranty claims will not be accepted over the phone or by fax.

Premier Mounts

Attn: Warranty Claim

3130 East Miraloma Ave.

Anaheim, CA 92806

How State Law Applies

THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS, AND YOU MAY ALSO HAVE OTHER

RIGHTS WHICH VARY FROM STATE TO STATE.

Ce manuel convient aux modèles suivants

Table des matières

Autres manuels Premier Mounts Support et étagère

Premier Mounts

Premier Mounts Rotary RTM-S Manuel utilisateur

Premier Mounts

Premier Mounts Universal Tabletop Stand PSD-TTS/C Manuel utilisateur

Premier Mounts

Premier Mounts BW-BASE Manuel utilisateur

Premier Mounts

Premier Mounts PP-FCTA-QL Manuel utilisateur

Premier Mounts

Premier Mounts FPS-200 Manuel utilisateur

Premier Mounts

Premier Mounts AM50 Manuel utilisateur

Premier Mounts

Premier Mounts INW-UNIFM Manuel utilisateur

Premier Mounts

Premier Mounts AM95 Manuel utilisateur

Premier Mounts

Premier Mounts CTM-MS1 Manuel utilisateur

Premier Mounts

Premier Mounts RTM-L Manuel utilisateur

Premier Mounts

Premier Mounts PTM Manuel utilisateur

Premier Mounts

Premier Mounts 7170-0977 Series Manuel utilisateur

Premier Mounts

Premier Mounts Multi-Monitor with table adapter MMT Manuel utilisateur

Premier Mounts

Premier Mounts PSD-EB Manuel utilisateur

Premier Mounts

Premier Mounts ECM-3763S Manuel utilisateur

Premier Mounts

Premier Mounts SHLF-VC Manuel utilisateur

Premier Mounts

Premier Mounts CTM-MS1 Manuel utilisateur

Premier Mounts

Premier Mounts CTM-MS2 Manuel utilisateur

Premier Mounts

Premier Mounts iPad IPM-500 Manuel utilisateur

Premier Mounts

Premier Mounts Universal Tabletop Stand PSD-TTS Mode d’emploi

Premier Mounts

Premier Mounts PP-6 Manuel utilisateur

Premier Mounts

Premier Mounts PSD-TTS/B Manuel utilisateur

Premier Mounts

Premier Mounts UNI Manuel utilisateur

Premier Mounts

Premier Mounts VPM Manuel utilisateur

Manuels Support et étagère populaires d'autres marques

Salamander

Salamander Acadia AC/W/L400/WH Manuel utilisateur

Fohhn

Fohhn VAT-09 Guide de l'utilisateur

ricoo

ricoo FS0522 Manuel utilisateur

AMSOIL

AMSOIL BMK-22 Guide rapide

Kargo Master

Kargo Master 48220 Manuel utilisateur

Milestone AV Technologies

Milestone AV Technologies SIMPLICITY SLF2 Manuel utilisateur

ricoo

ricoo S1222 Manuel utilisateur

Ready-Set-Mount

Ready-Set-Mount RSMCM602 Manuel utilisateur

VidaBox

VidaBox VB MNT FFS2 Manuel utilisateur

Welch Allyn

Welch Allyn 48960 Manuel utilisateur

Arkon

Arkon CM035-ST-2 Manuel utilisateur

PROEL

PROEL PLWIN60C Manuel utilisateur

Agilent Technologies

Agilent Technologies E2609B Manuel utilisateur

Mustang

Mustang MV-ARM4 Manuel utilisateur

Mounting Solutions

Mounting Solutions WRM-320 Manuel utilisateur

Pyle

Pyle PMKSPAD1 Manuel utilisateur

ShelterIt

ShelterIt 21208 Manuel utilisateur

SPL

SPL RackPack?4 1040 Manuel utilisateur
