Power Fist 8835548 Manuel utilisateur

V1.0 8835548

Please read and understand all instructions before use. Retain this manual for

future reference.

8835548 3 Ton Multi-Function Fabrication Press V1.0

2 For technical questions call 1-800-665-8685

SPECIFICATIONS

Press Capacity 3 Tons

Press Type Manual

Bed/Base Size 16-7/8 x 6-11/16 in.

Working Range 0 to 12 in.

Material Rugged welded steel plate construction

HAZARD DEFINITIONS

Please familiarize yourself with the hazard notices found in this manual. A

notice is an alert that there is a possibility of property damage, injury or

death if certain instructions are not followed.

DANGER! This notice indicates an immediate and specific hazard that

will result in severe personal injury or death if the proper

precautions are not taken.

WARNING! This notice indicates a specific hazard or unsafe practice that

could result in severe personal injury or death if the proper

precautions are not taken.

CAUTION! This notice indicates a potentially hazardous situation that may

result in minor or moderate injury if proper practices are not

taken.

NOTICE! This notice indicates that a specific hazard or unsafe practice

will result in equipment or property damage, but not personal

injury.

V1.0 3 Ton Multi-Function Fabrication Press 8835548

Visit www.princessauto.com for more information 3

INTRODUCTION

The 3 Ton Multi-Function Fabrication Press is ideal for small projects,

machining and fabricating applications, including creating round, square

and oblong holes. Also can be used as an arbor press.

SAFETY

WARNING! Read and understand all instructions before using this tool. The

operator must follow basic precautions to reduce the risk of personal injury

and/or damage to the equipment.

Keep this manual for safety warnings, precautions, operating or inspection

and maintenance instructions.

WORK AREA

1. Operate in a safe work environment. Keep your work area clean, well-

lit and free of distractions. Place lights so you are not working in a

shadow.

2. Keep anyone not wearing the appropriate safety equipment away from

the work area.

3. Store unused tools properly in a safe and dry location to prevent rust

or damage. Lock tools away and keep out of the reach of children.

PERSONAL SAFETY

WARNING! Wear personal protective equipment approved by the Canadian

Standards Association (CSA) or American National Standards Institute (ANSI).

PERSONAL PROTECTIVE EQUIPMENT

1. Always wear impact safety goggles that provide front and side

protection for the eyes. Eye protection equipment should comply with

CSA Z94.3-07 or ANSI Z87.1 standards based on the type of work

performed.

2. Wear gloves that provide protection based on the work materials or to

reduce the effects of tool vibration.

3. Wear protective clothing designed for the work environment and tool.

4. Non-skid footwear is recommended to maintain footing and balance in

the work environment.

5. Wear steel toe footwear or steel toe caps to prevent a foot injury from

falling objects.

8835548 3 Ton Multi-Function Fabrication Press V1.0

4 For technical questions call 1-800-665-8685

PERSONAL PRECAUTIONS

Control the tool, personal movement and the work environment to avoid

personal injury or damage to tool.

1. Do not operate any tool when tired or under the influence of drugs,

alcohol or medications.

2. Avoid wearing clothes or jewelry that can become entangled with the

moving parts of a tool. Keep long hair covered or bound.

3. Do not overreach when operating a tool. Proper footing and balance

enables better control in unexpected situations.

SPECIFIC SAFETY PRECAUTIONS

WARNING! DO NOT let comfort or familiarity with product (gained from

repeated use) replace strict adherence to the tool safety rules. If you use

this tool unsafely or incorrectly, you can suffer serious personal injury.

1. Use the correct tool for the job. This tool was designed for a specific

function. Do not modify or alter this tool or use it for an unintended

purpose. Do not use the press after a shock load until a qualified

technician has examined the press.

2. Do not use the tool if any parts are damage broken or misplaced.

Repair or replace the parts.

3. The maximum load is 3 tons. Do not exceed this rated capacity. Never

apply excessive force to a workpiece.

4. Check to ensure that all bolts and nuts are tight.

5. Only use this shop press on a surface that is stable, level and not

slippery. The surface must be capable of sustaining the weight of the

shop press and the load.

6. Keep hands away from the bed frame area at all times.

7. Do not use the shop press to compress a spring or any other item that

could disengage and cause a potential hazard. Never stand directly in

front of a loaded press and never leave a loaded press unattended.

8. Do not allow an untrained person to operate the press.

9. Do not expose the press to rain, snow or inclement weather.

10. Workpiece may be sharp. After bending or cutting workpieces use

caution. Be aware of sharp edges or sharp shreds of metal that may be

created. Use heavy duty gloves when handling the workpiece.

11. Do not use a breaker bar or pipe to increase leverage.

V1.0 3 Ton Multi-Function Fabrication Press 8835548

Visit www.princessauto.com for more information 5

UNPACKING

WARNING! Do not operate the tool if any part is missing. Replace the

missing part before operating. Failure to do so could result in a malfunction

and personal injury.

Remove the parts and accessories from the packaging and inspect for damage.

Make sure that all items in the contents are included.

Contents: • Fabrication Press • Handle • Knob • Handle Sleeve (2)

ASSEMBLY & INSTALLATION

Numbered references in parenthesis (#1) refer to the included Parts List.

PRESS ASSEMBLY

1. Insert the handle (#4) through the hole of gear (#3).

2. Slide a handle sleeve (#5) onto the end of each handle and push down

to firmly seat each one.

3. Screw the knob (#2) into the end of the gear (#3).

MOUNT TOOL ON A PEDESTAL

The hardware to mount tool is not included. The pedestal must be secured

to the floor to prevent it from tipping over.

1. Align the tool’s mounting holes with the corresponding pedestal holes.

2. Slide a flat washer over a 1/4-20 x 1 in. hex head bolt and insert

through press base and pedestal holes.

3. Slide a 1/4 in. flat washer over the end of the bolt and screw a 1/4-20 in.

hex nut onto the bolt end. Tighten until the space between the tool’s

base and pedestal is 1/8 in.

4. Screw a second nut onto the bolt and secure against the first. This will

prevent them from loosening due to the tool’s vibration.

5. Repeat steps 1 to 4 for the other three bolt holes.

MOUNT TOOL ON A WOOD WORKBENCH

The hardware to mount the tool is not included.

1. Clean the work area where the tool will be mounted.

2. Position the tool, check that it will be level and there are no

obstructions around it that will interfere with a long workpiece.

3. Slide a flat washer over a 1/4 x 1 in. wood screw and secure the press in

place.

8835548 3 Ton Multi-Function Fabrication Press V1.0

6 For technical questions call 1-800-665-8685

4. Repeat with three more screws. Tighten all screws until the gap

between the press base and the bench top is 1/8 in.

OPERATION

1. Loosen the knob (#2) and adjust the handle’s length (#4) for greater

leverage, then tighten the knob (02#) to secure the handle.

2. Mount accessories onto the press (see accessory’s manual).

a. Do not install accessories to use as an arbor press.

3. Insert the workpiece between the upper and lower accessory or

between the ram and work table.

4. Rotate the handle down to apply pressure to the workpiece. Extend

the handle length to increase the force on the workpiece.

5. Rotate the handle up to release the workpiece.

6. Repeat until the task is complete.

CARE & MAINTENANCE

1. Maintain the tool with care. A tool in good condition is efficient, easier

to control and will have fewer problems.

2. Inspect the tool components periodically. Repair or replace damaged or

worn components. Only use identical replacement parts when servicing.

3. Follow instructions for lubricating and changing accessories.

4. Only use accessories intended for use with this tool.

5. Keep the tool clean, dry and free from oil/grease at all times.

6. Maintain the tool’s labels and name plates. These carry important

information. If unreadable or missing, contact Princess Auto Ltd. for

replacements.

WARNING! Only qualified service personnel should repair the tool. An

improperly repaired tool may present a hazard to the user and/or others.

LUBRICATION

Inspect and lubricate the tool when required. Only use light oil to lubricate

the tool. Other lubricants may not be suitable and could damage the tool or

cause a malfunction during use.

When not in use for an extended period, apply a thin coat of lubricant to the

steel parts to avoid rust. Remove the lubricant before using the tool again.

V1.0 3 Ton Multi-Function Fabrication Press 8835548

Visit www.princessauto.com for more information 7

DISPOSAL

Recycle a tool damaged beyond repair at the appropriate facility.

Contact your local municipality for a list of disposal facilities or by-laws for

electronic devices, batteries, oil or other toxic liquids.

TROUBLESHOOTING

Visit a Princess Auto Ltd. location for a solution if the tool does not function

properly or parts are missing. If unable to do so, have a qualified technician

service the tool.

8835548 3 Ton Multi-Function Fabrication Press V1.0

8 For technical questions call 1-800-665-8685

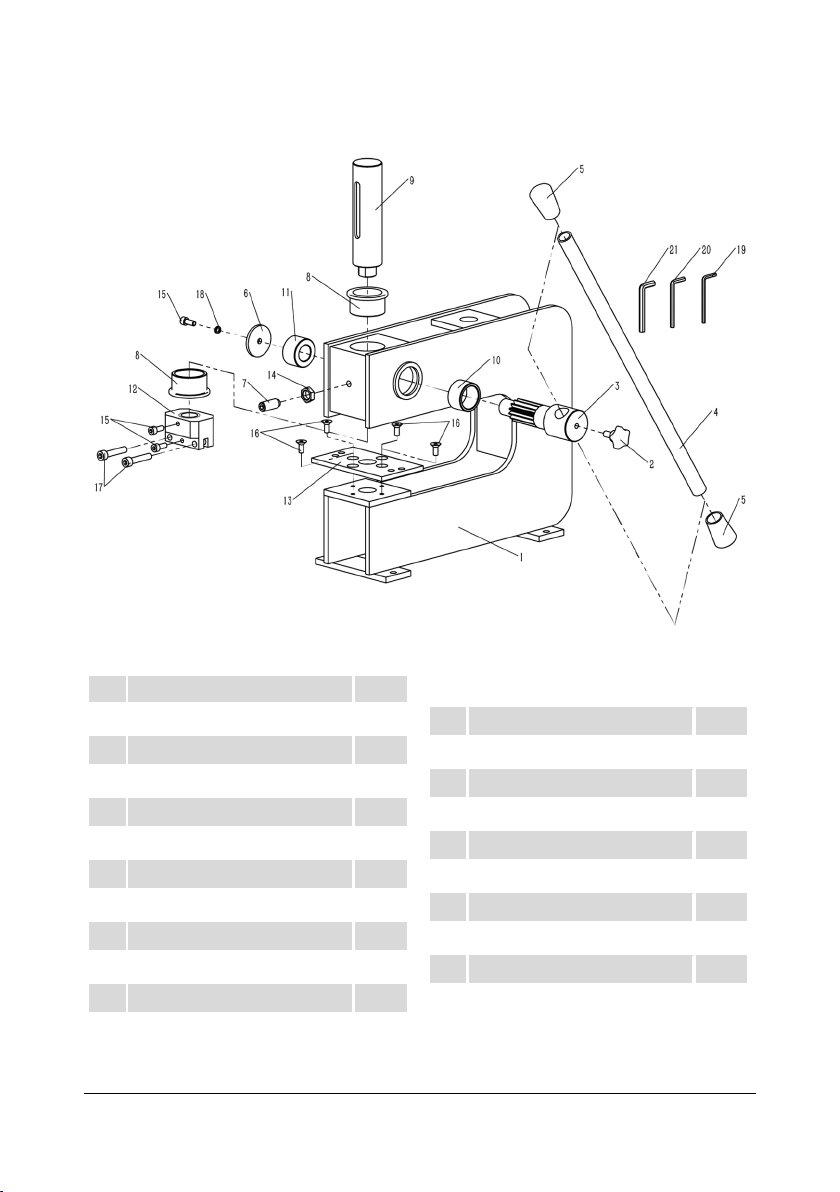

PARTS BREAKDOWN

PARTS LIST

# DESCRIPTION QTY

1 Base 1

2 Knob 1

3 Gear 1

4 Handle 1

5 Handle Sleeve 2

6 Cover Plate 1

7 Screw 1

8 Sleeve 2

9 Gear Lever 1

10 Sleeve 1

11 Sleeve 1

12 Upper Holder 1

13 Working Table 1

14 Nut M16 1

15 Hex Screw M8x20 3

16 Hex Screw M8x20 4

17 Hex Screw M10x50 2

18 Washer 8 mm 1

19 Hex Wrench 5 mm 1

20 Hex Wrench 6 mm 1

21 Hex Wrench 8 mm 1

V1,0 8835548

Vous devez lire et comprendre toutes les instructions avant d'utiliser l'appareil.

Conservez ce manuel afin de pouvoir le consulter plus tard.

8835548 Presse de fabrication multifonction, 3 tonnes V1,0

2 En cas de questions techniques, appelez le 1-800-665-8685

SPÉCIFICATIONS

Capacité de presse 3 tonnes

Type de presse Manual

Taille de plate-forme/base 16 7/8 à 6 11/16 po

Plage de travail 0 à 12 po

Matériau Construction en plaques d’acier soudées robustes

DÉFINITIONS DE DANGER

Veuillez-vous familiariser avec les avis de danger qui sont présentés dans ce

manuel. Un avis est une alerte indiquant qu'il existe un risque de dommage

à la propriété, de blessure ou de décès si on ne respecte pas certaines

instructions.

DANGER ! Cet avis indique un risque immédiat et particulier qui

entraînera des blessures corporelles graves ou même la

mort si on omet de prendre les précautions nécessaires.

AVERTISSEMENT ! Cet avis indique un risque particulier ou une pratique non

sécuritaire qui pourrait entraîner des blessures

corporelles graves ou même la mort si on omet de

prendre les précautions nécessaires.

ATTENTION ! Cet avis indique une situation possiblement dangereuse qui

peut entraîner des blessures mineures ou modérées si on

ne procède pas de la façon recommandée.

AVIS ! Cet avis indique un risque particulier ou une pratique non

sécuritaire qui entraînera des dommages au niveau de

l'équipement ou des biens, mais non des blessures

corporelles.

Table des matières

Langues :

Autres manuels Power Fist Outils électriques

Power Fist

Power Fist 2990177 Manuel utilisateur

Power Fist

Power Fist 8667834 Manuel utilisateur

Power Fist

Power Fist 8474116 Manuel utilisateur

Power Fist

Power Fist Electric Chain Saw Sharpener Manuel utilisateur

Power Fist

Power Fist 8843575 Manuel utilisateur

Power Fist

Power Fist 2990245 Manuel utilisateur

Power Fist

Power Fist PFRT2103-40 Manuel utilisateur

Power Fist

Power Fist 8911323 Manuel utilisateur

Power Fist

Power Fist 8644171 Manuel utilisateur

Power Fist

Power Fist 9049073 Manuel utilisateur

Power Fist

Power Fist 8873127 Manuel utilisateur

Power Fist

Power Fist 8096000 Manuel utilisateur

Power Fist

Power Fist Rotary Tool Manuel utilisateur

Power Fist

Power Fist 79 pc Manuel utilisateur

Power Fist

Power Fist 8571481 Manuel utilisateur

Power Fist

Power Fist 9093899 Manuel utilisateur

Power Fist

Power Fist 8002384 Manuel utilisateur

Power Fist

Power Fist 8067936 Manuel utilisateur

Power Fist

Power Fist 8639106 Manuel utilisateur

Power Fist

Power Fist 8383853 Manuel utilisateur

Power Fist

Power Fist 8651598 Manuel utilisateur

Power Fist

Power Fist 8343055 Manuel utilisateur

Power Fist

Power Fist 8757783 Manuel utilisateur

Power Fist

Power Fist 3462108 Manuel utilisateur

Manuels Outils électriques populaires d'autres marques

AEG

AEG OMNI-JS Manuel utilisateur

SIP

SIP 01533 Manuel utilisateur

Ribimex

Ribimex PRS499 Manuel utilisateur

3M Fiber Optic Connector Crimp Tool Manuel utilisateur

Ryobi

Ryobi P524 Manuel utilisateur

ROJEK

ROJEK FSN 300A Manuel utilisateur

Kemper

Kemper 1740PRO Manuel utilisateur

WABCO

WABCO OptiTire Manuel utilisateur

EINHELL

EINHELL TE-MS 18/210 Li Manuel utilisateur

Orgapack

Orgapack OR-T 85 Guide rapide

TOUGHCUT

TOUGHCUT Diamond 400 Manuel utilisateur

Yaros

Yaros PB-3603 Manuel utilisateur

Fein

Fein BSS 2.0 E Guide de configuration

Baileigh Industrial

Baileigh Industrial SS-2725 Manuel utilisateur

Milwaukee

Milwaukee 2674-20 Manuel utilisateur

Fein

Fein BLs 1.6 Manuel utilisateur

Princess

Princess Electric Multi Sharpener Manuel utilisateur

FOREDOM

FOREDOM K.1050 Manuel
